2mm 3mm 4mm 5mm 6mm PVDF ACM ACP aluminum composite panel
- Category: Building Boards >>>
- Supplier: Goldensign Industry Co. Ltd.
Share on (10000007469166):
Product Overview
Description
Product Description
2mm 3mm 4mm 5mm 6mm PVDF ACM ACP aluminum composite panel

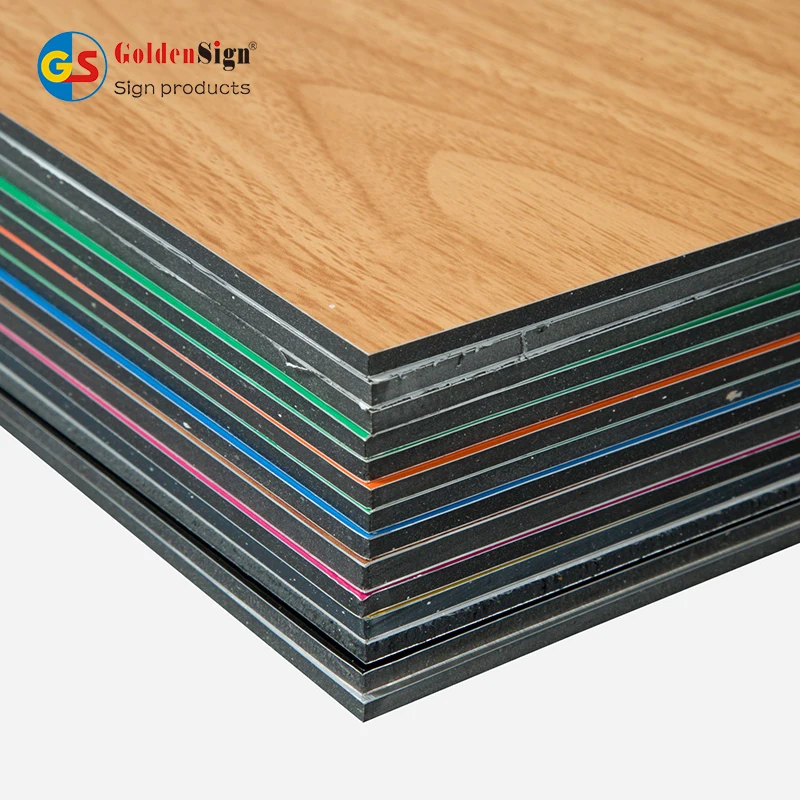

Aluminium composite panel is consisted of THREE layers, the surface and back covers of high strength aluminum alloy sheets and the core of nontoxic low density polyethylene (PE) sheet. The painting in the surface and back aluminum sheets are from PPG VALSPAR of USA and Becker of Sweden.
Specifications
Width: 1.22m; 1.25m; 1.5m; 2m
Length: 2.44m; 3m; 5m; customized
Skin aluminum thickness: 0.06-0.5mm
Thickness: 2-6mm
Coating: PE coating; PVDF coating

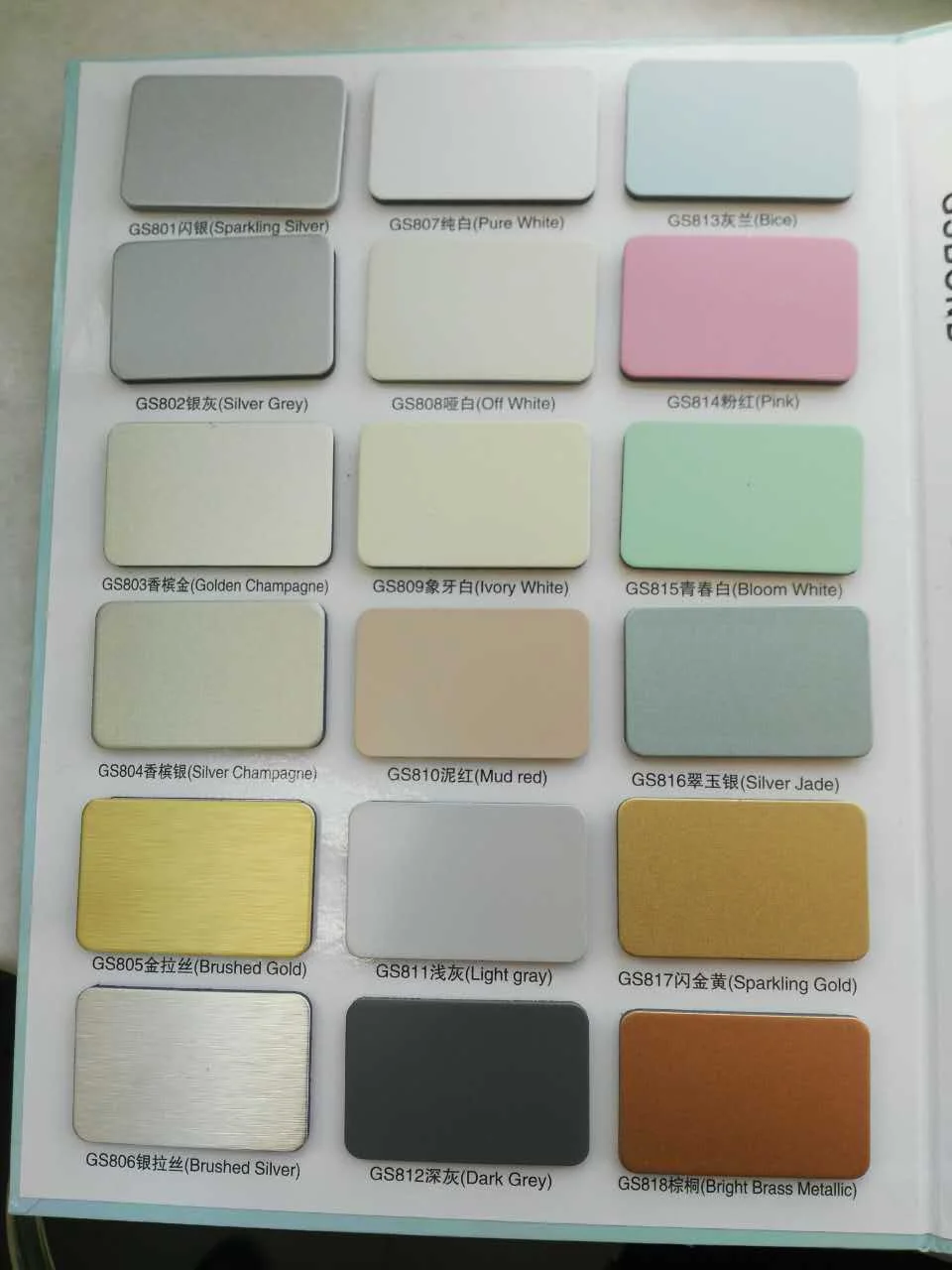

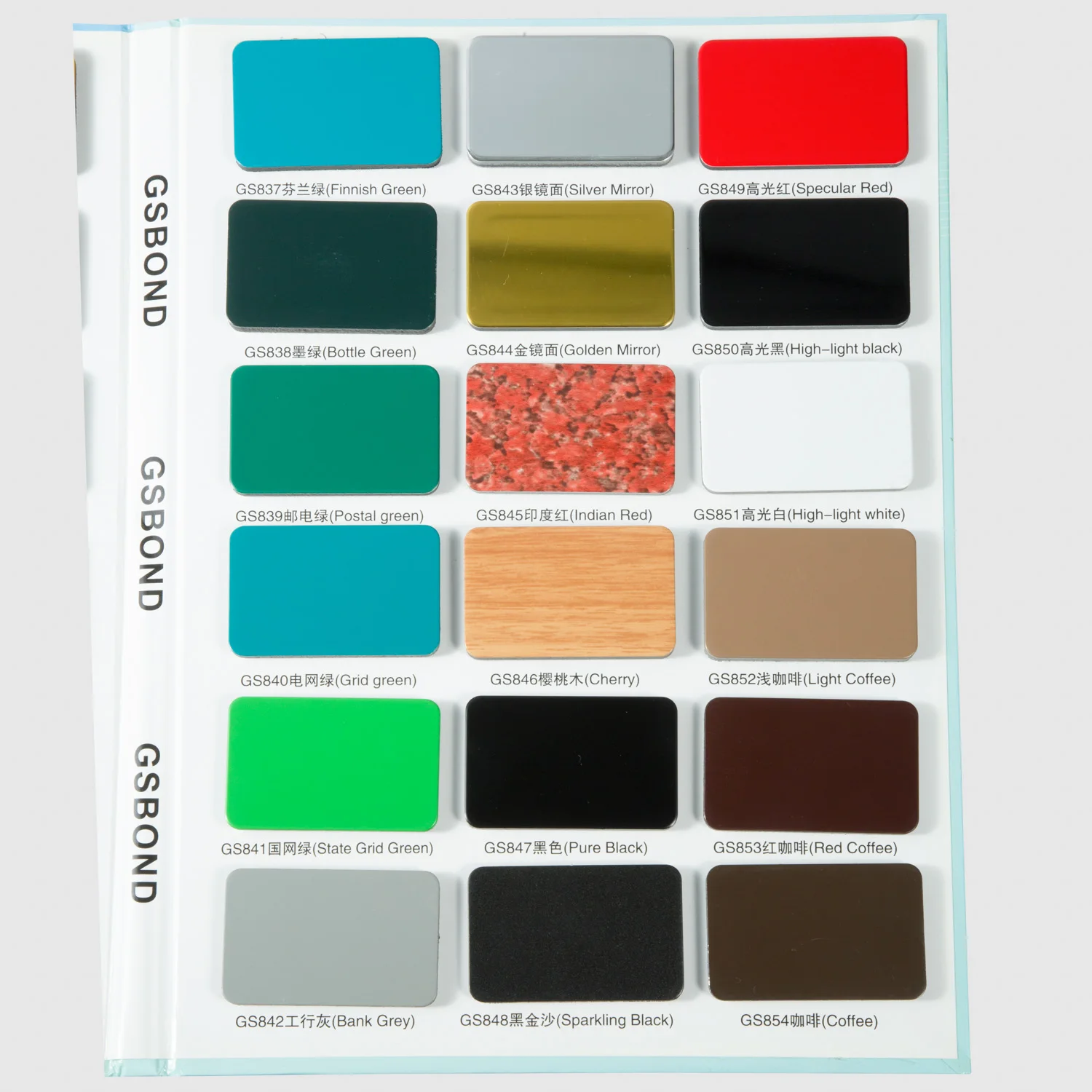

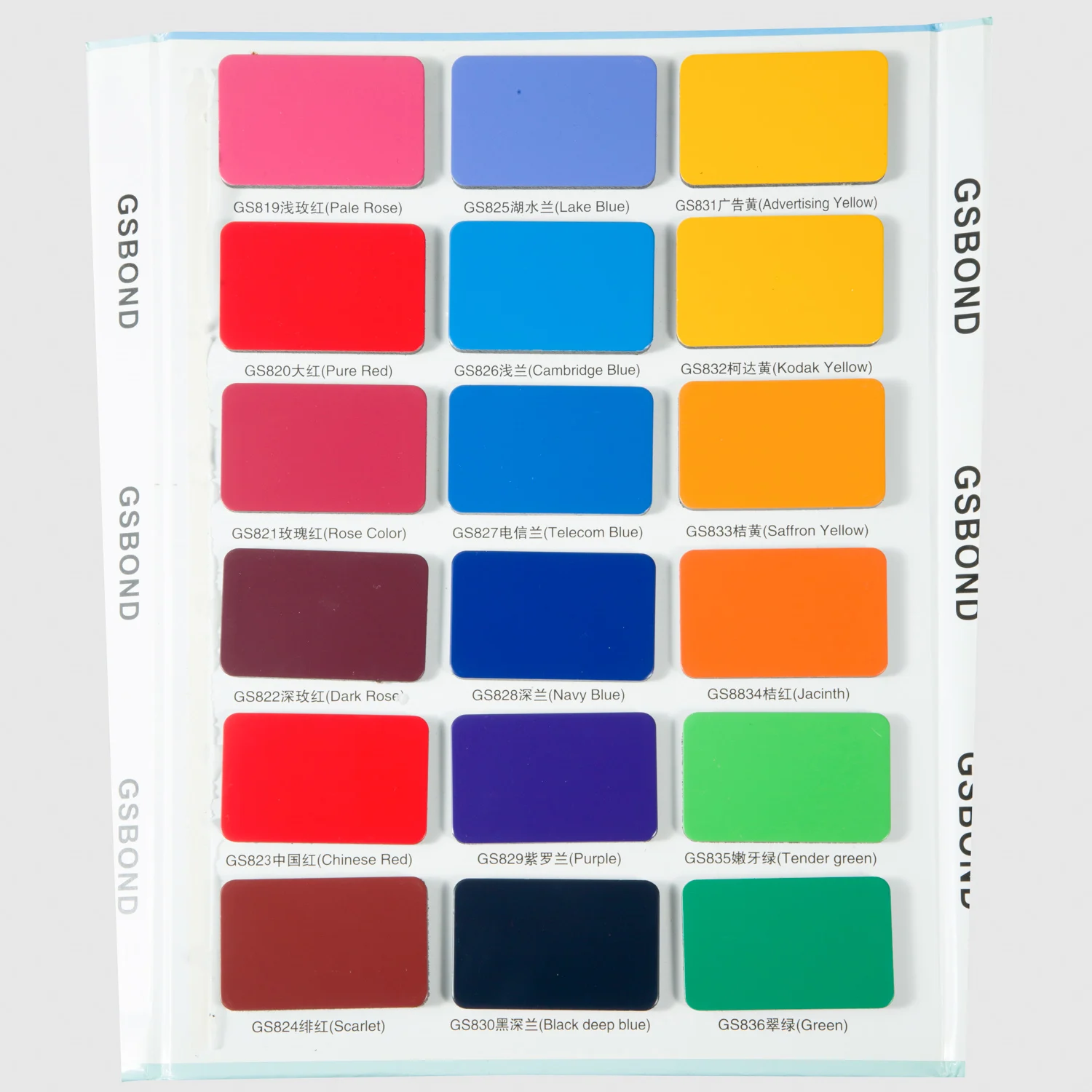

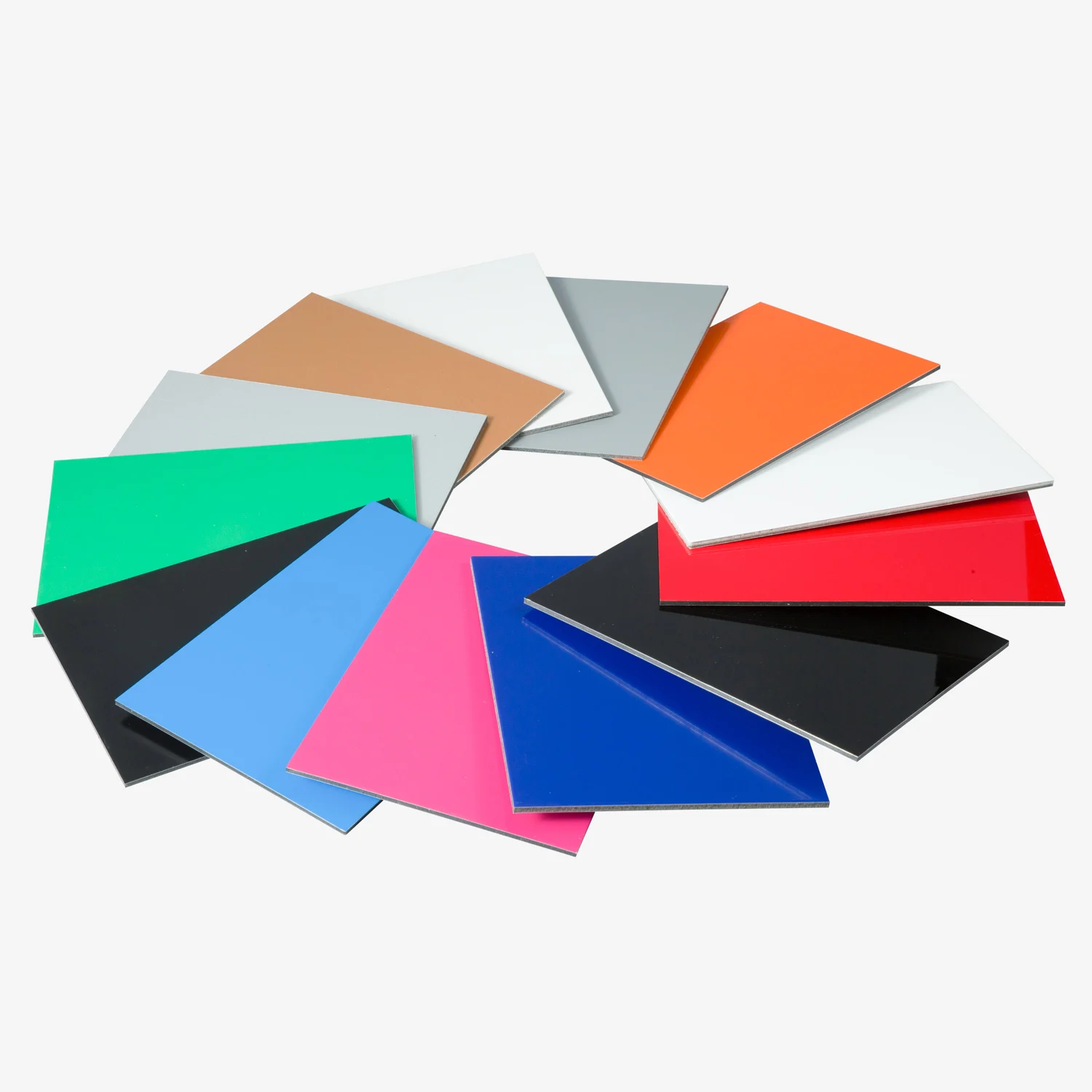

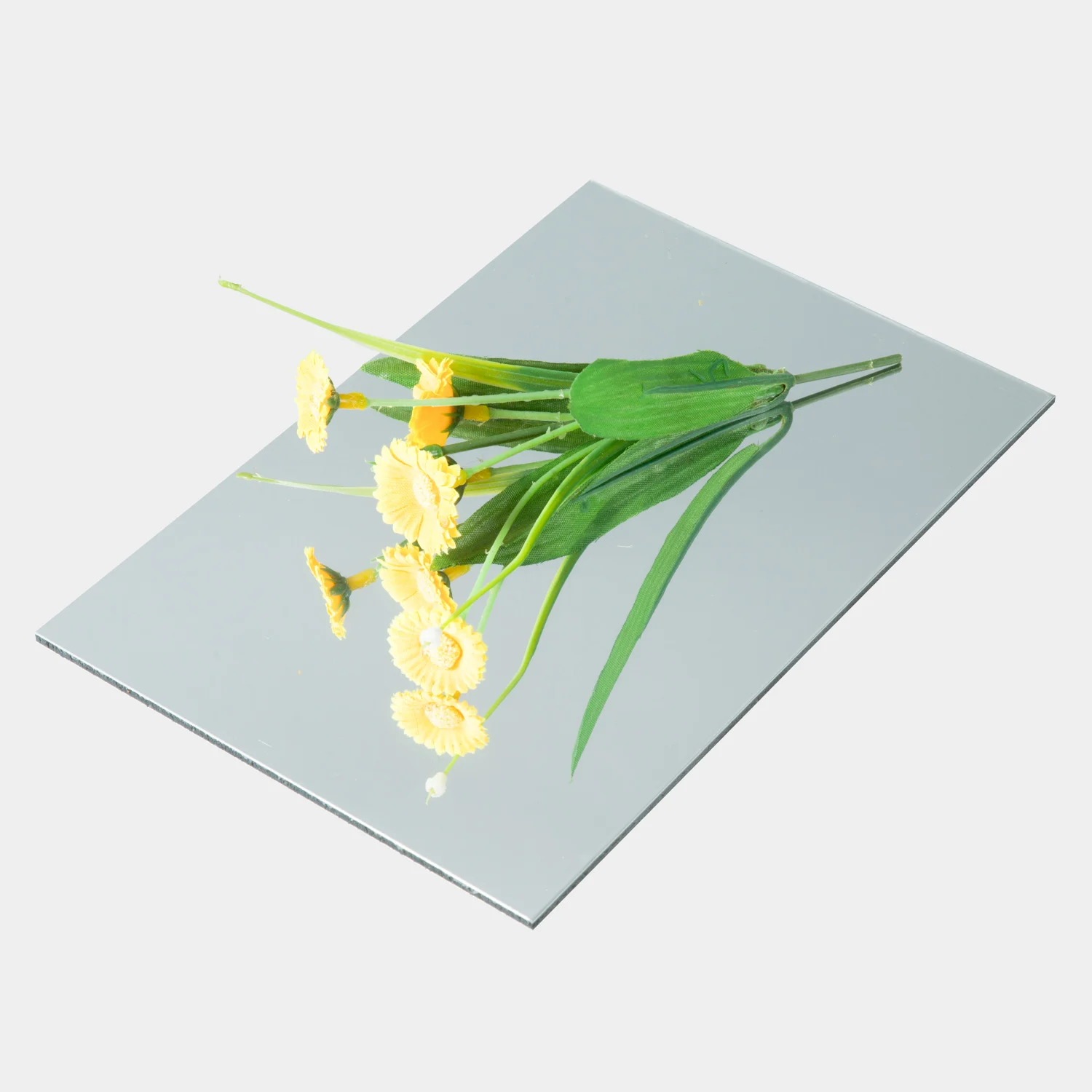

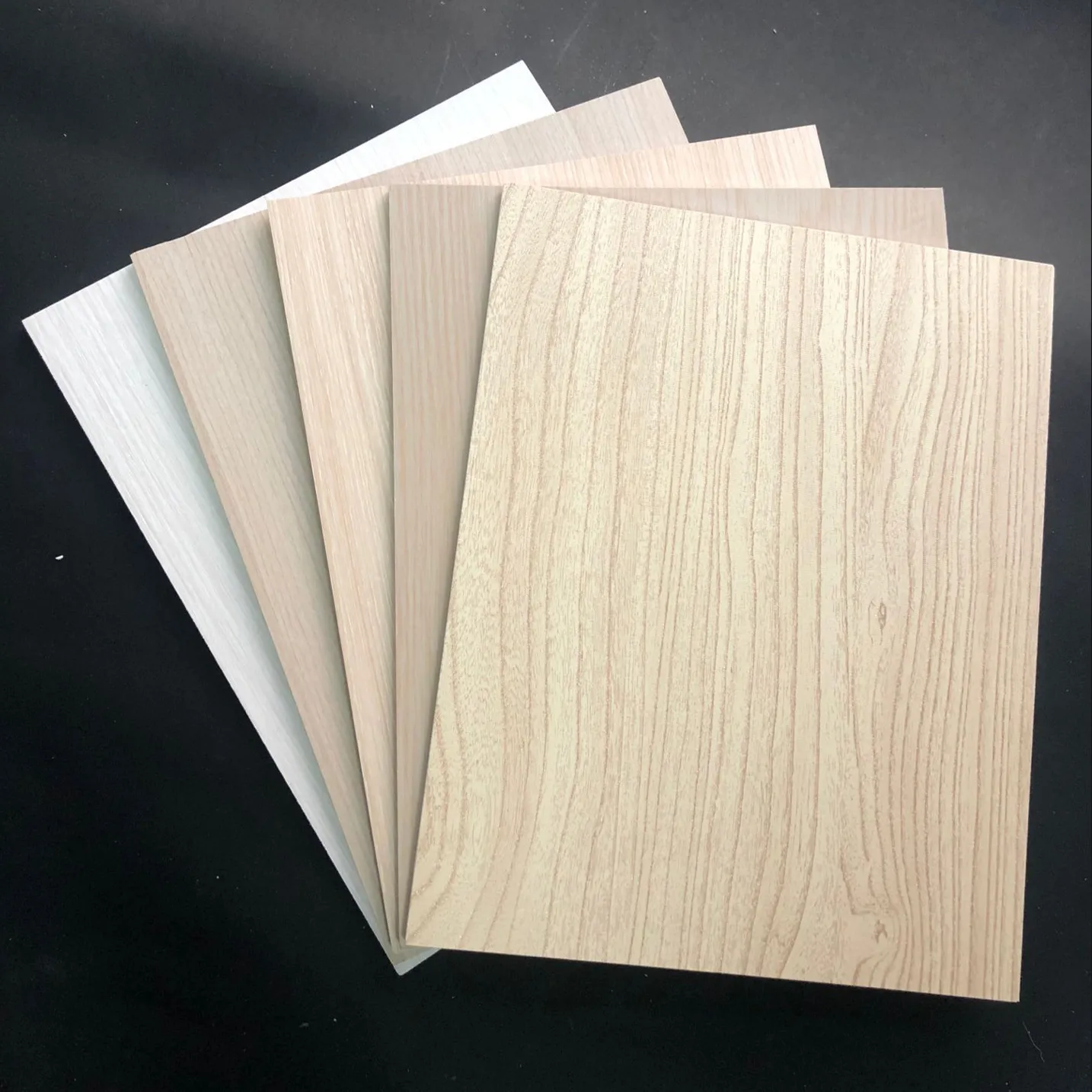

Color: Common; wooden; marble; mirror colors
1.Constructional exterior curtain walls;
2.Decorative renovation for store-added old buildings;
3.Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies;
4.Gallaies,exhibition,saloons,stores,offices,banks,
hotels,restaurants and apartments;
5.Advertisement board, display platforms and signboards;
6.Raw materials in industrial purpose;
7.Materials used for vehicle and boat.
5.Advertisement board, display platforms and signboards;
6.Raw materials in industrial purpose;
7.Materials used for vehicle and boat.
Features:
2.Excellent surface flatness and smoothness ;
3.Heat insulation, sound insulation, fire-resistance;
4.Acid-resistance, alkali-resistance, good weather proofing and non-resonance;
5.Various uniform colors ,can be easily processed and fabricated, quickly installed;
6.Elegant and magnificent, good flexibility fits various designs;
7.Easily maintenance, simply cleaning.
Specification
Aluminium alloy | 1100, 3003, 5005 |
Pencil hardness | 2H |
Toughness of coating | 2T |
Elongation | 5% |
Tensile strength | 130 Mpa |
Temperature Resistance | -50°C to +90°C |
Impact Strength | 50kg/cm2 , no change |
Boiling water resistance | Boiling for 2 hrs, no change |
Thermal Expansion | 2.4mm/m at 100°C Temp difference |
Acid Resistance | Immersed in 2% HC1 for 24 hrs, no change |
Alkali Resistance | Immersed in 2% NaOH for 24 hrs, no change |
Cleaning Resistance | Cleaned 1000 times with water, no change |
Oil Resistance | Immersed in 20# engine oil for 24 hrs, no change |
Solvent Resistance | Cleaned 100 times with dimethylbenzene, no change |
Skyrainbow ACP Tolerance(mm) : | ||
Thickness | ± 0.2 | |
Width | ± 2 | |
Length | ± 4 | |
Diagonal | ± 5 | |

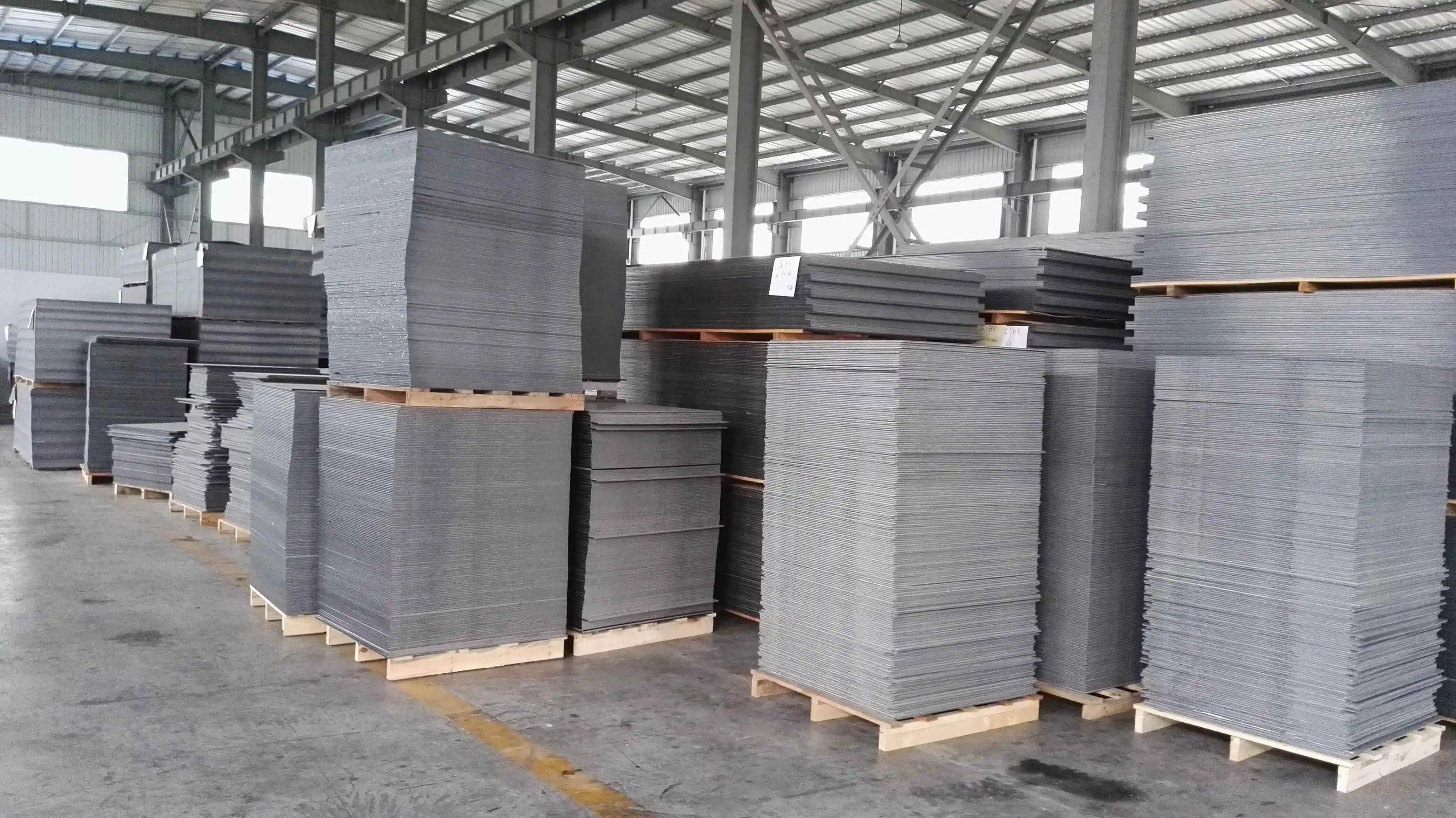

Packing & Delivery
Popular Packing
Protection film

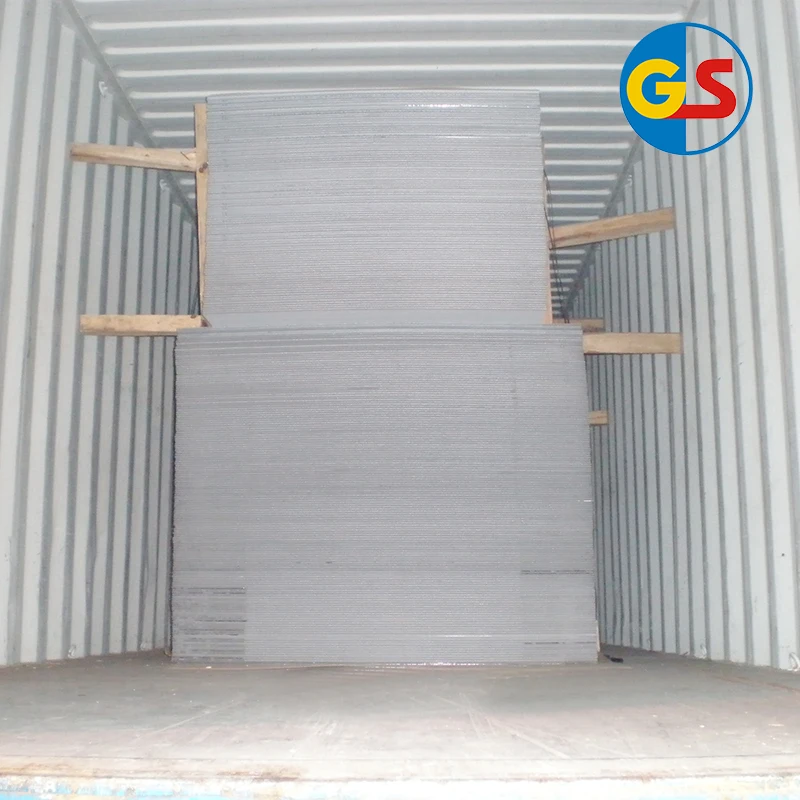

Loading

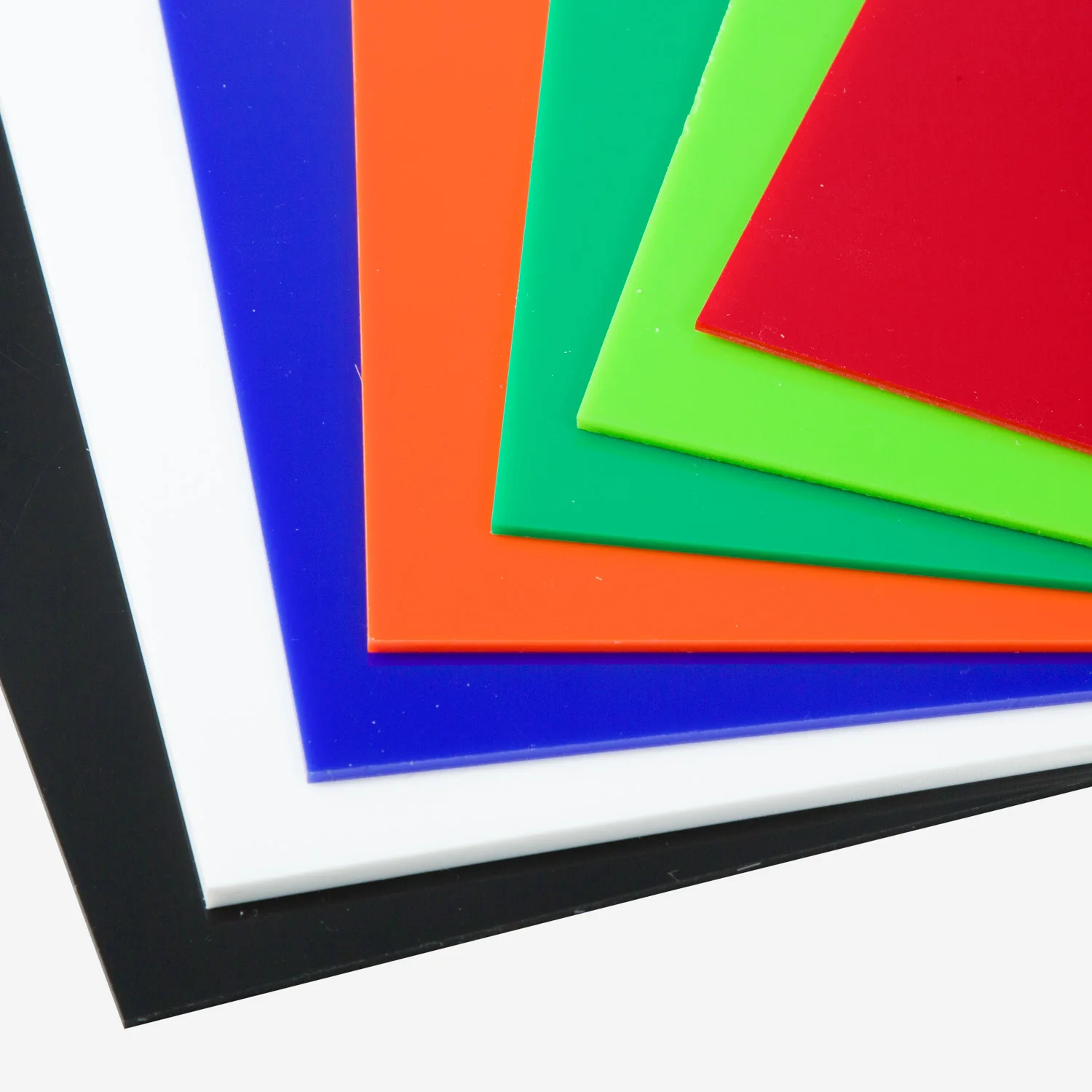

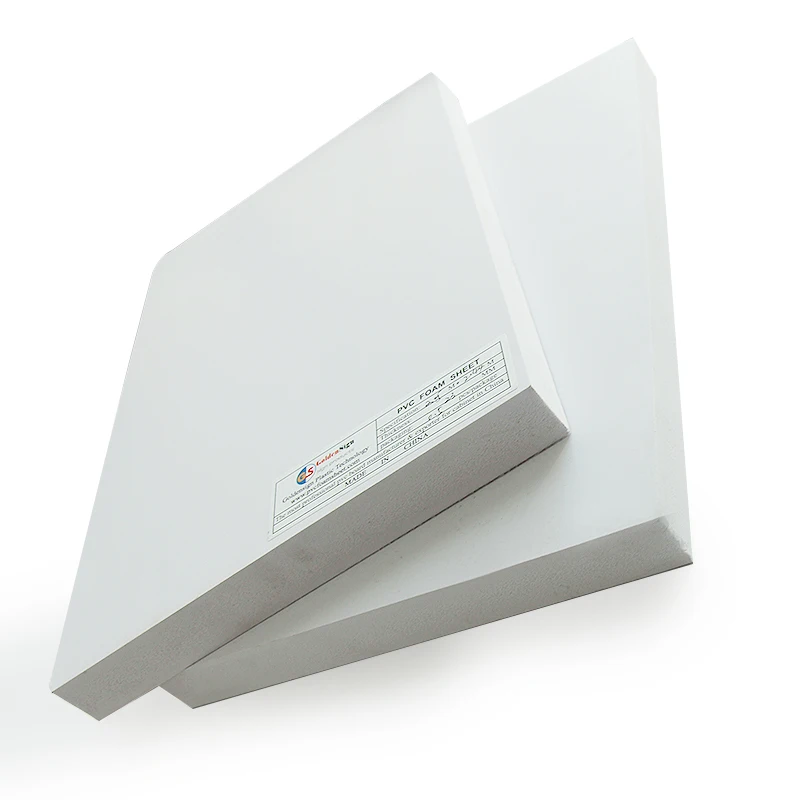

Recommend Products

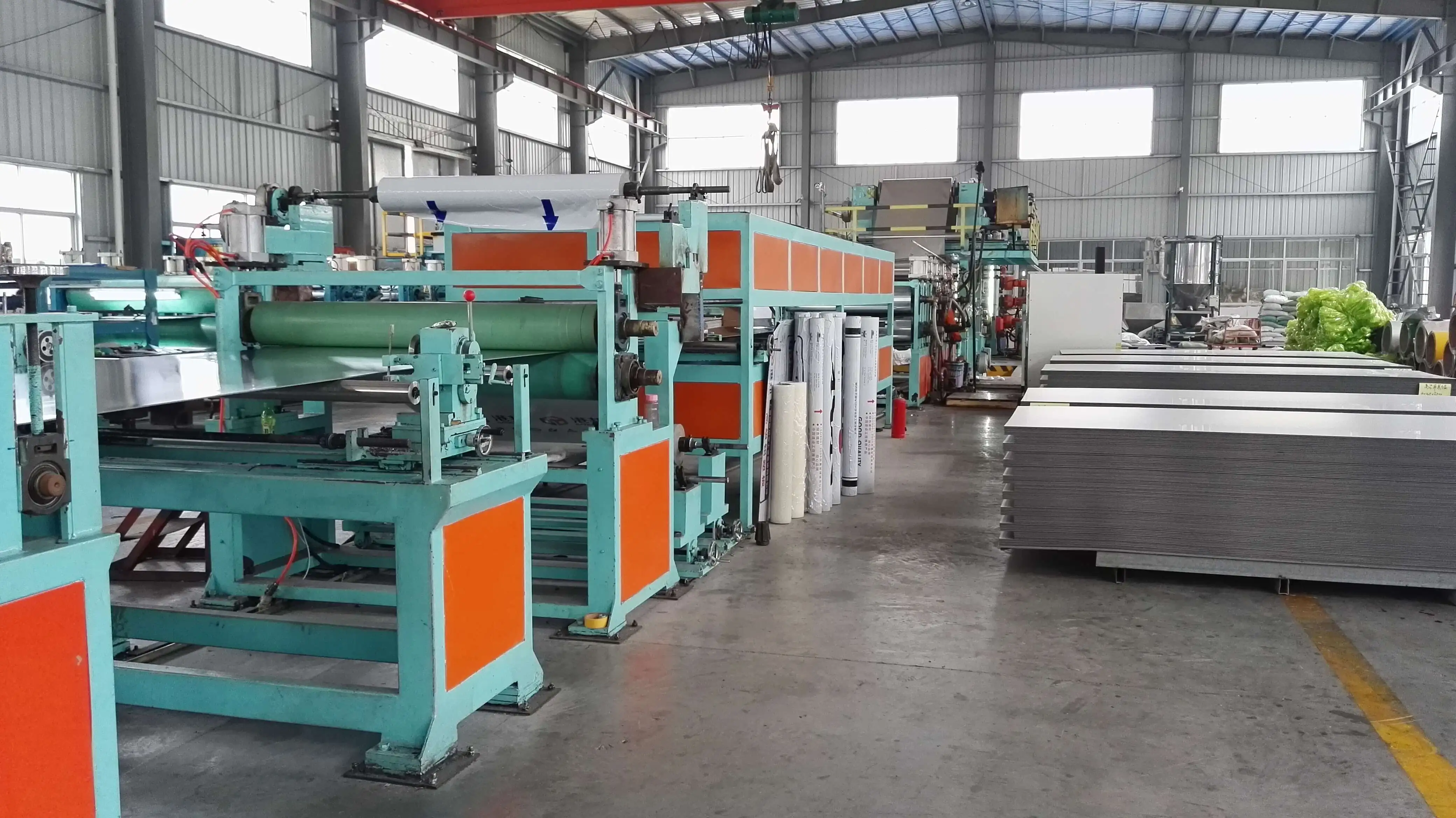

Company Profile
Exhibitions
FAQ
* 1, Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer with 17 years experience in this field.
* 2, Q: How can i get the sample?
A: Small samples available are free, just freight collect.
* 3, Q: How long can I expect to get the sample?
A: We can prepare samples within 3 days. Usually it takes about 5-7 days for the delivery.
* 4, Q: What is your MOQ?
A: MOQ is 2 tons/order. Each size, thickness.
* 5, Q: What colors can you make?
A: The white color is most popular. And we can customize special color according to your requirement.
* 6, Q: Can we have our Logo or company name to be printed on your package?
A: Sure. Your Logo can be putted on the package by printing or sticker.
* 7, Q: What is your lead time for mass production?
A: Normally 15-30 days, depends on the size, quantity and season.
* 8, Q: What is your payment term?
A: T/T, L/C, D/P
* 9, Q: How do you pack it?
A: We are a professional manufacturer with 17 years experience in this field.
* 2, Q: How can i get the sample?
A: Small samples available are free, just freight collect.
* 3, Q: How long can I expect to get the sample?
A: We can prepare samples within 3 days. Usually it takes about 5-7 days for the delivery.
* 4, Q: What is your MOQ?
A: MOQ is 2 tons/order. Each size, thickness.
* 5, Q: What colors can you make?
A: The white color is most popular. And we can customize special color according to your requirement.
* 6, Q: Can we have our Logo or company name to be printed on your package?
A: Sure. Your Logo can be putted on the package by printing or sticker.
* 7, Q: What is your lead time for mass production?
A: Normally 15-30 days, depends on the size, quantity and season.
* 8, Q: What is your payment term?
A: T/T, L/C, D/P
* 9, Q: How do you pack it?
A: Each sheet covered by protection film, around 1.5 tons packed in a wood pallet.
