Best buy HD 720P vertical fixed focus camera module
- Category: >>>
- Supplier: MIDAS TOUCH SOLUTIONS INC.
Share on (10000007478266):
Product Overview
Description
Product Description
Overview

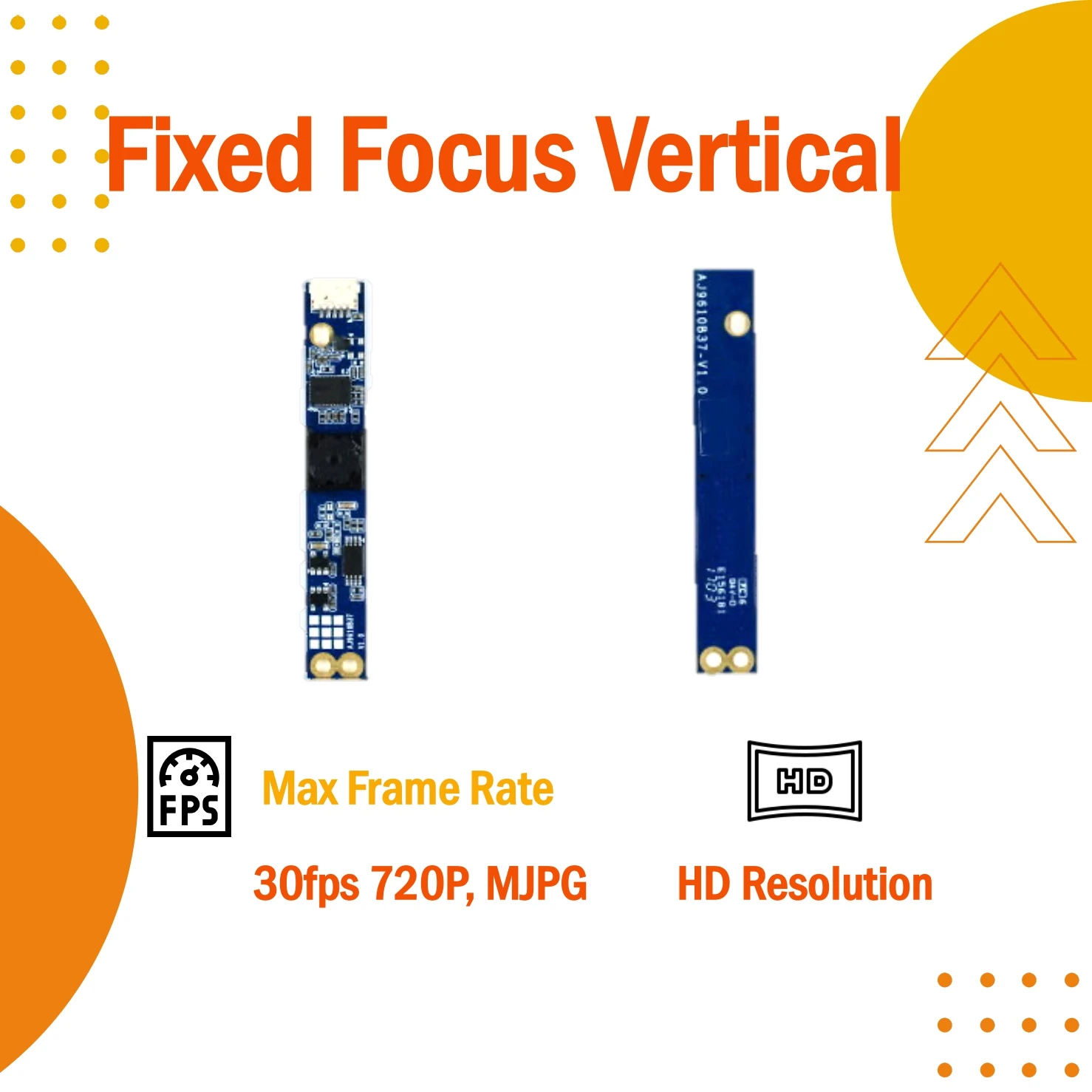

MAJ-9610 not only offers up to HD resolution (1280X720) for image applications to take still image, but also offers video stream for end user to preview/record motion image through USB 2.0 interface. MAJ-9610 can support VGA (300K, 640x480) resolution up to 30 fps at YUY2 mode, 720P resolution (1280x720) up to 30fps at MJPG mode.
Module Specifications | ||

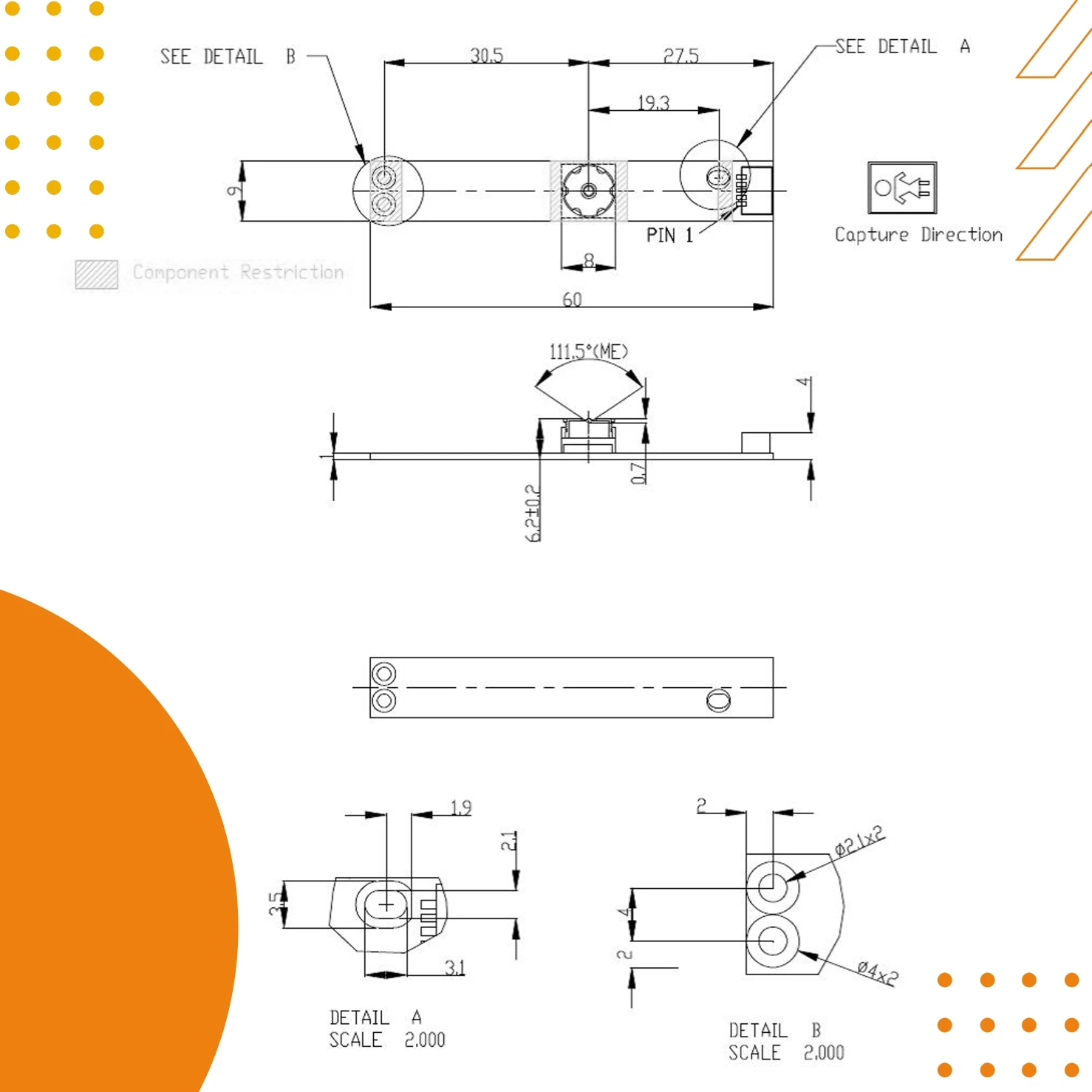

Size(LWH/mm) | 60.0 x 9.0 x 6.2±0.2 mm (including PCB Thickness) | |
Output Interface | USB2.0 (480Mbit/sec) & USB1.1 | |
HD | 1280x720 | |
Video Class Compliant | YES | |
Power Consumption | +3.15V ~ +5.25V | |
Operating Temperature | 0℃ to +55℃ | |

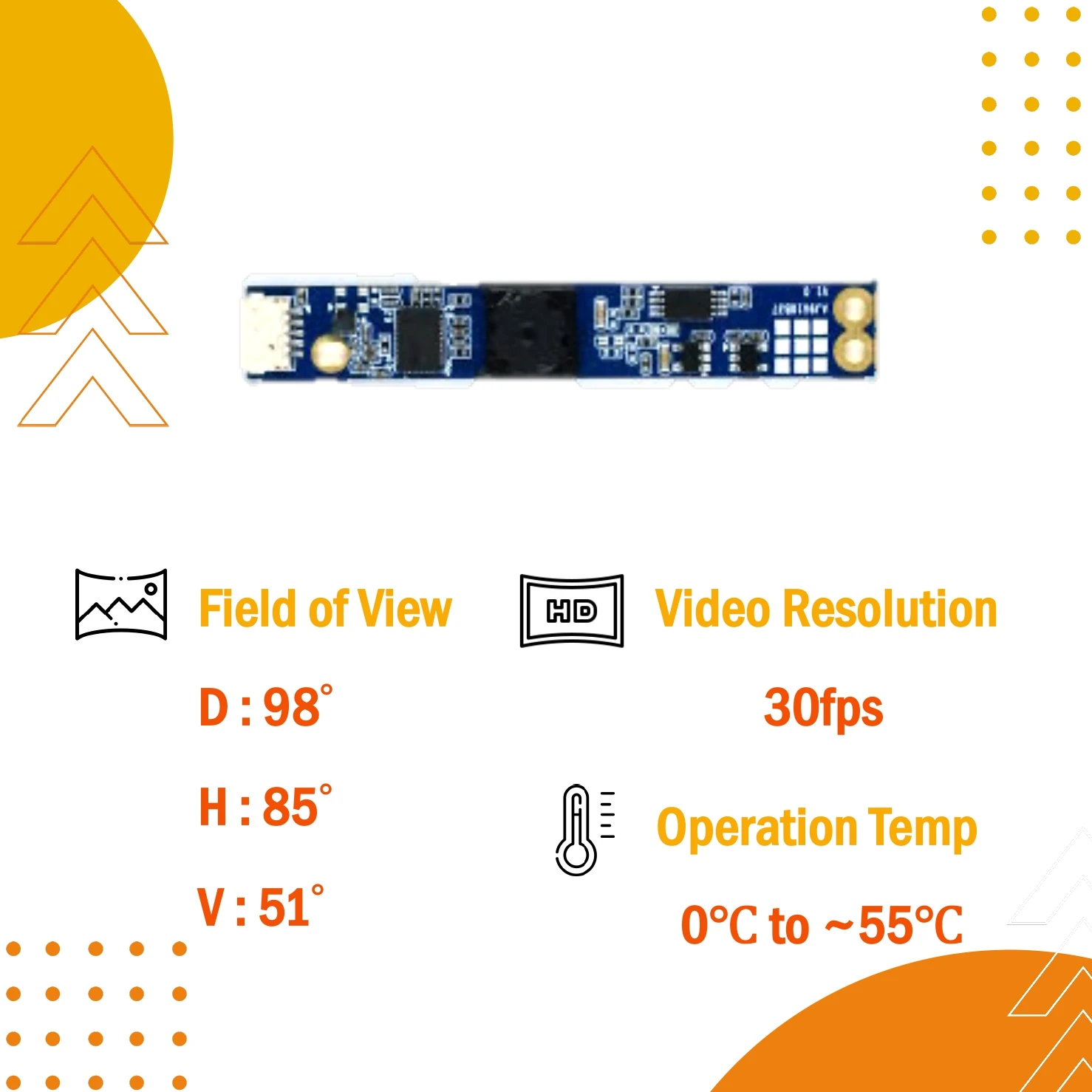

Field of View | Diagonal: 98° Vertical: 51° Horizontal: 85° | |
Backend IC Specifications | ||
Compatibility | USB 2.0 Video Class Compliant, Microsoft WHQL Certified | |

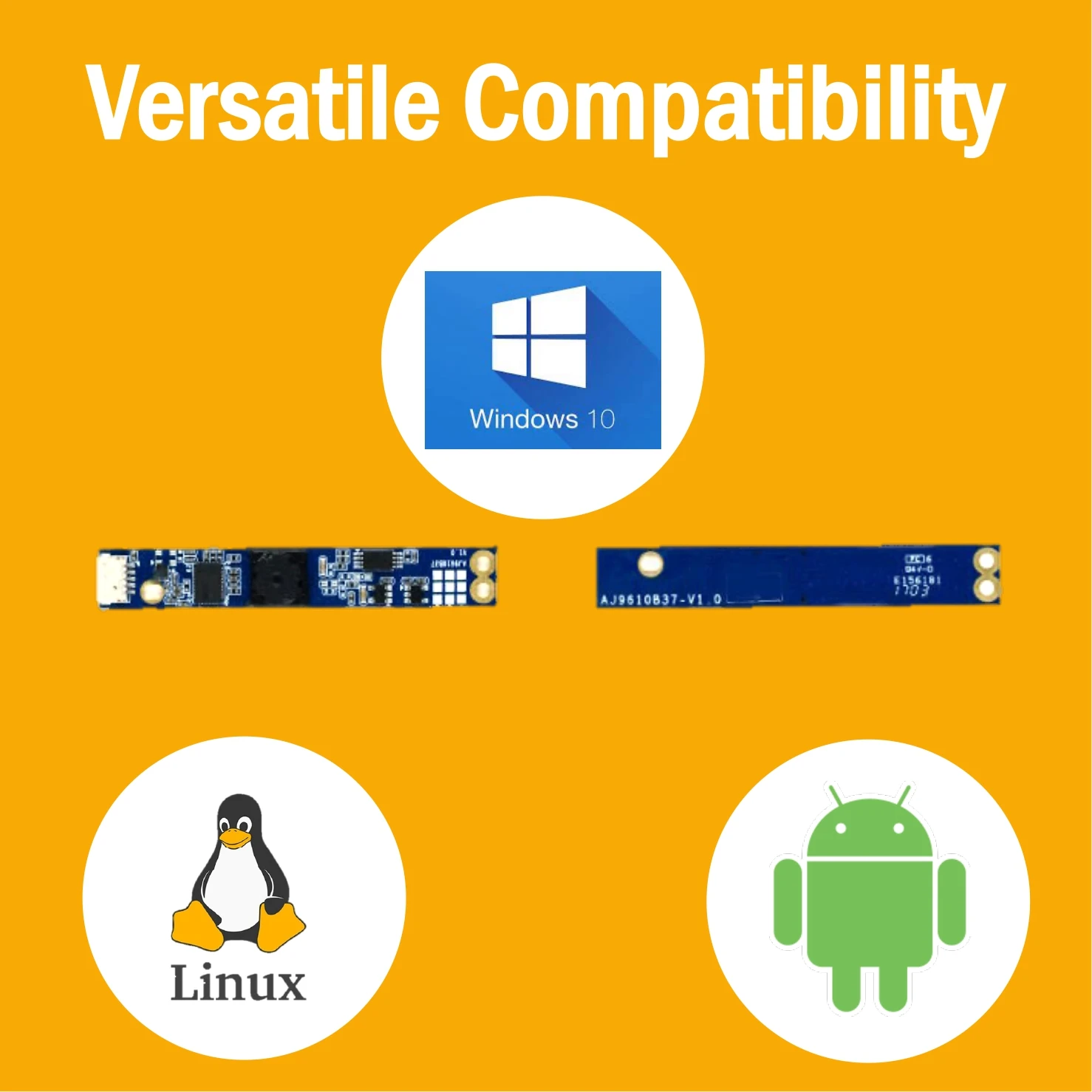

OS Supported | Win7, Win8, Win8.1, Win10, Linux, Android | |
Sensor Specifications | ||
Image Sensor | 1/4" HD CMOS Sensor | |
Active Pixels | 1280(H) x 720(V) | |
0°C to 40°C (with standard HDD/SSD/SATA‐Slim/DRAM) | ||
