Product Overview
Description
Standard Window Patching Machine For Carton And E-flute Box

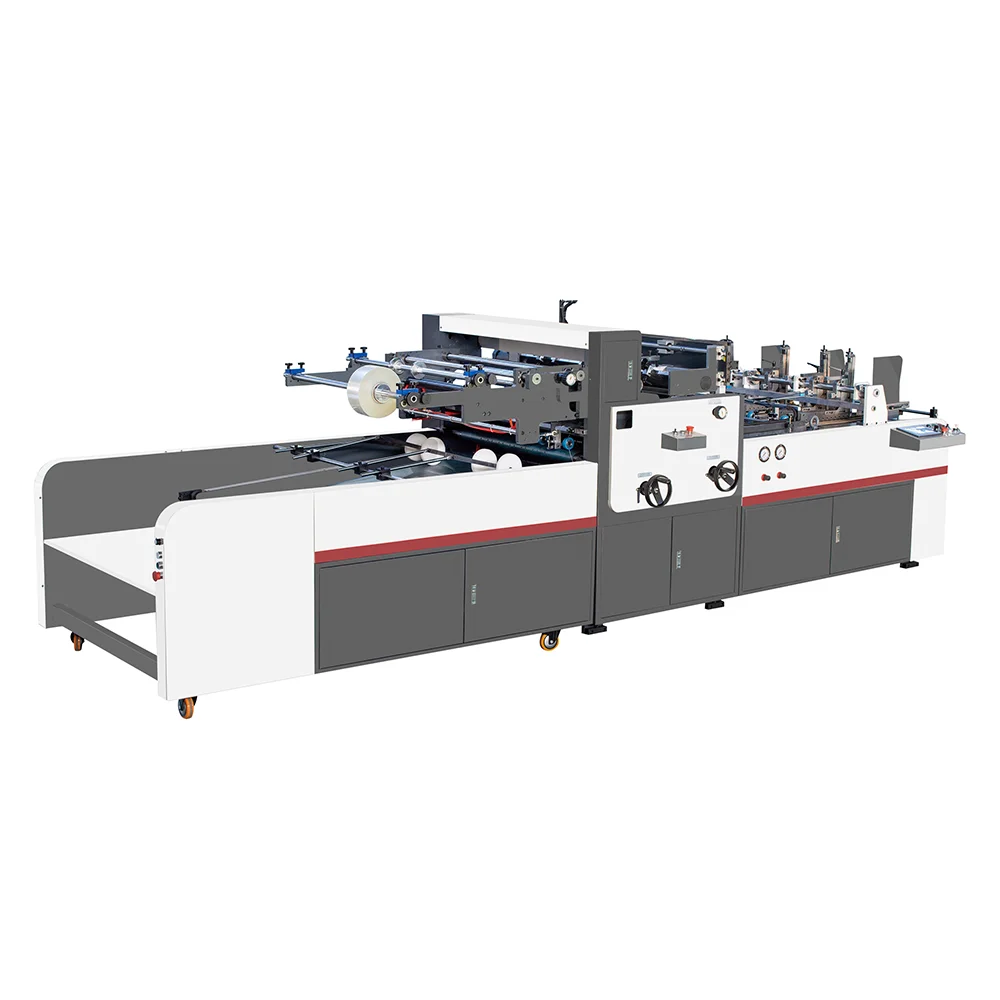

LKS-800C Automatic Windows Patching Machine
Window Patching Machine is widely used in the patching to packing paper articles with window or without window, such as, phone box, wine box, napkin box, clothes box, milk box, Foods box, gifts box, card etc.
1.It can be used to paste paper onto partial surface of cardboard(paste reinforced paper).
2.It can be used to patch films to double or three-side window, and film-creasing, film-punching, film-cutting gaps, especially to PVC、PET films, the max thickness of film is 0.5mm, which highly increases the using scope of window patching machines.
3.It can make holes on the surface of reinforced paper, which are corresponding to the handler holes after being pasted with small precision errors.
2.It can be used to patch films to double or three-side window, and film-creasing, film-punching, film-cutting gaps, especially to PVC、PET films, the max thickness of film is 0.5mm, which highly increases the using scope of window patching machines.
3.It can make holes on the surface of reinforced paper, which are corresponding to the handler holes after being pasted with small precision errors.
Model | LKS-800C |
Max. Paper Size | 760*650mm |
Min. Paper Size | 100*100mm |
Max. film Size | 460*460mm |
Min. film Size | 40*30mm |
Film Sheet Thickness | 0.03-0.5mm |
4500s/h (Corner cutting&creasing); | |
12000s/h (flat patching) | |
Cardboard | 200-1200g/m² |
Corrugated Paper | ≤5mm |
Total Power | 9 KW |
Total Weight | 2800KG |
Overall Dimensions | 4800*1405*1520mm |
Servo Paper Feeding
The paper feeding unit is driven by a 1.5KW servo motor to ensure high speed stability of the paper feeding.
It can apply to various size and different thickness, wide ranges. Suitable to cardboard and corrugated board, ect.
It can apply to various size and different thickness, wide ranges. Suitable to cardboard and corrugated board, ect.
Machine Interface
This special equipment designed and developed applicable to the windows patching of advanced colorful boxes and cartons with high production efficiency, multi-function, high safety and easy operation to be combined, inserting the film length and counting conveniently.
Conveying Part
The conveying rubber wheels used in this part are made of high-qualify imported NBR-rubber, which can make better work, without indentions, scratches, tearing-ups etc. thus making it durable and locate the positions of the papers to be processed well, Adopt the natural import Malaysian belt, with high toughness and friction, photoelectric tracing ensure the accuracy feeding paper.
Gluing Part
The gluing roller is made of high-quality and high-hardness nylon, resistant to acid materials and resistant to corrosion. The volumes of the glue can be adjusted. When it needs to be washed clean, the roller can be pulled out, which makes the cleaning and maintenance easy and convenient.
Film Feeding Part
The way of film feeding is multi-roller-pressed and controlled. The size of the film can be adjusted.The unique precise and optional partially cutting-off of the film and the rectifying function together make another unique special of the product.
Film Feeding By Servo Motor
Adopting 750W famous brand servo motor with high precision reducer to ensure the accurate of feeding the film, the film precision is guaranteed within ±0.1-0.5mm
Film Patching Part
We have our own patented technology, It can ensure the machine working with quietly and it can cutting all the films within 0.5mm.
And can ensure the position of the window and the film in high precision, and easy adjustment. and easy to operate.
And can ensure the position of the window and the film in high precision, and easy adjustment. and easy to operate.
Delivery Part
It adopt non-stop automatic delivery system. Ensure smooth and steady delivery with high efficiency.
When the machine receiving the paper, the platform can adjust the speed independently, counting function; and the paper collecting platform can adjust the upper and lower position according the products.
When the machine receiving the paper, the platform can adjust the speed independently, counting function; and the paper collecting platform can adjust the upper and lower position according the products.
Glue Position Adjustment
Through the rotation of the hand button, it can be non-stopped adjust the glue position left-right sides and the front and back side conveniently.
Film Cutting
Adopt the cam structure to intermittently cutting for all kinds of paper boxes ( such as the tissue box), and it also can intermittent cutting.
