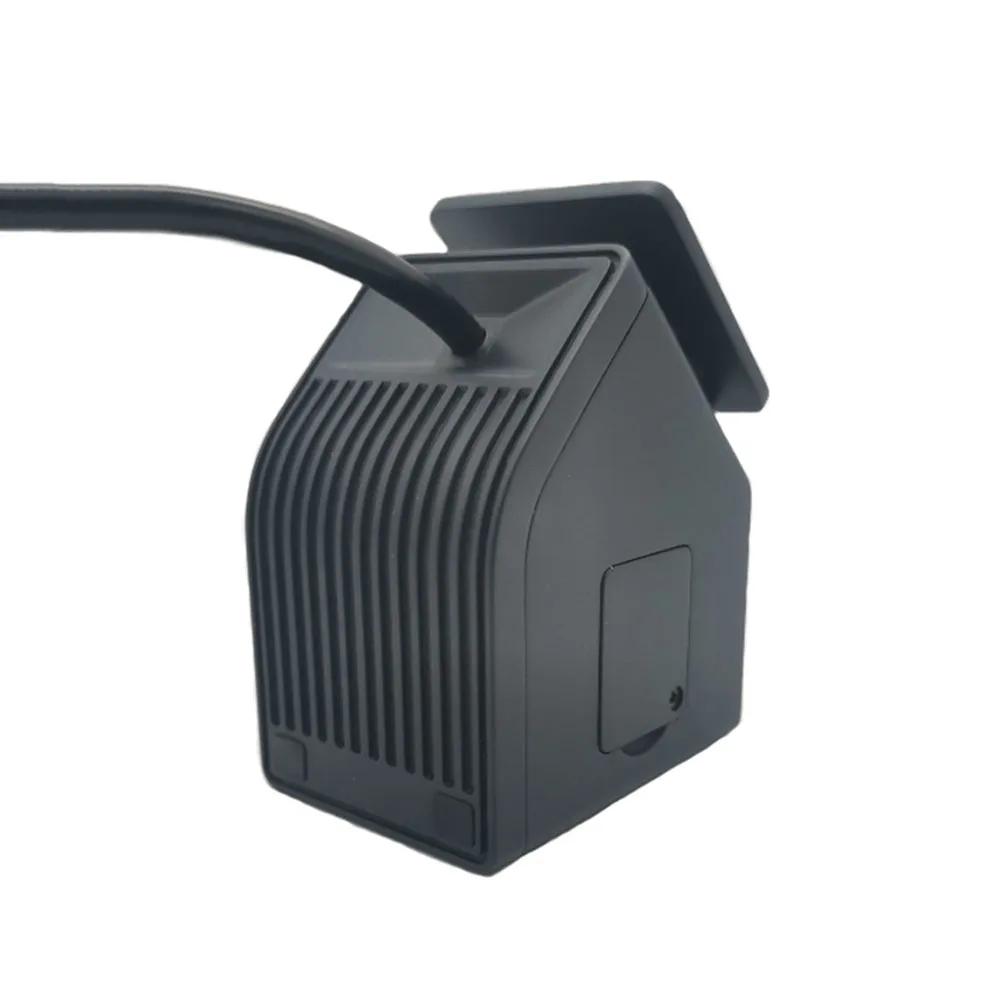

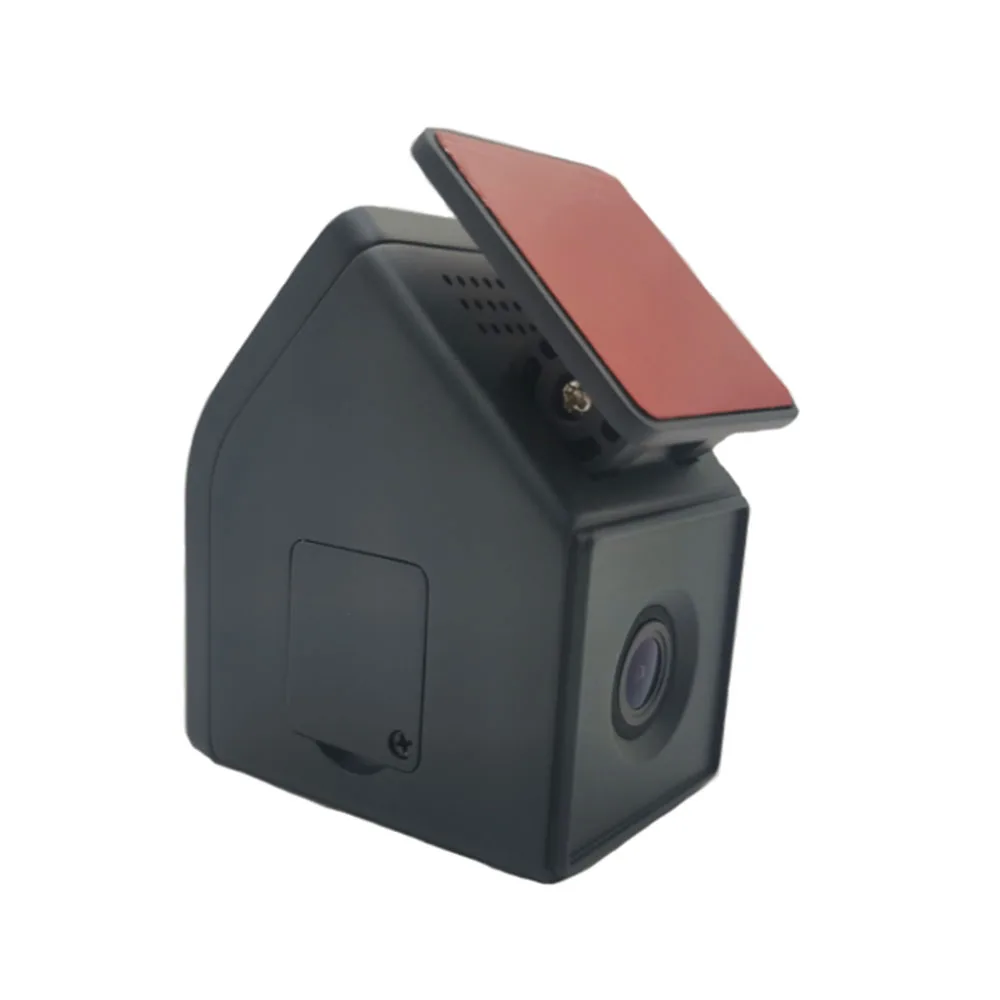

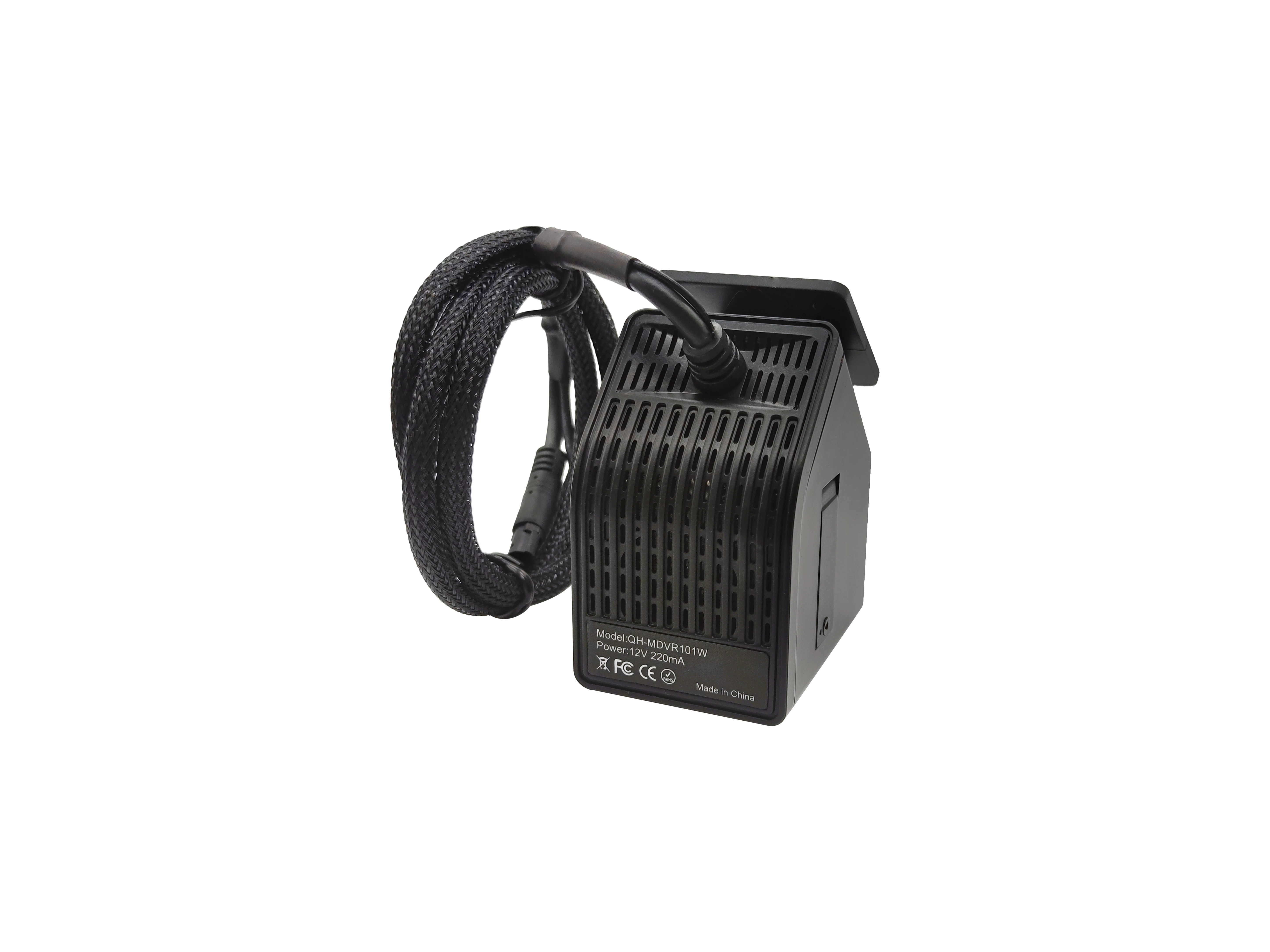

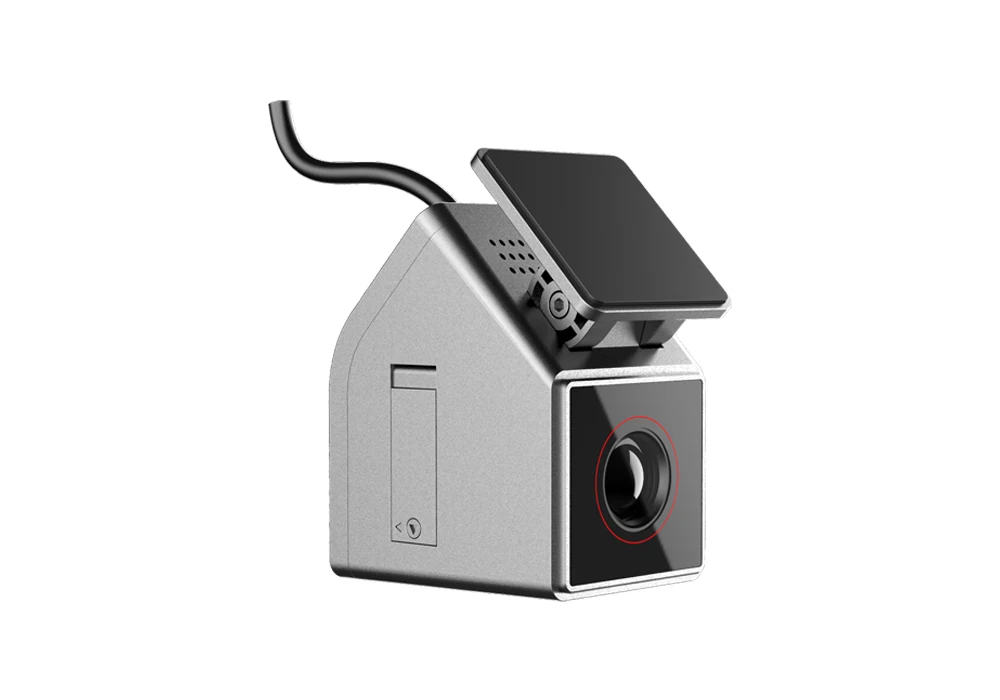

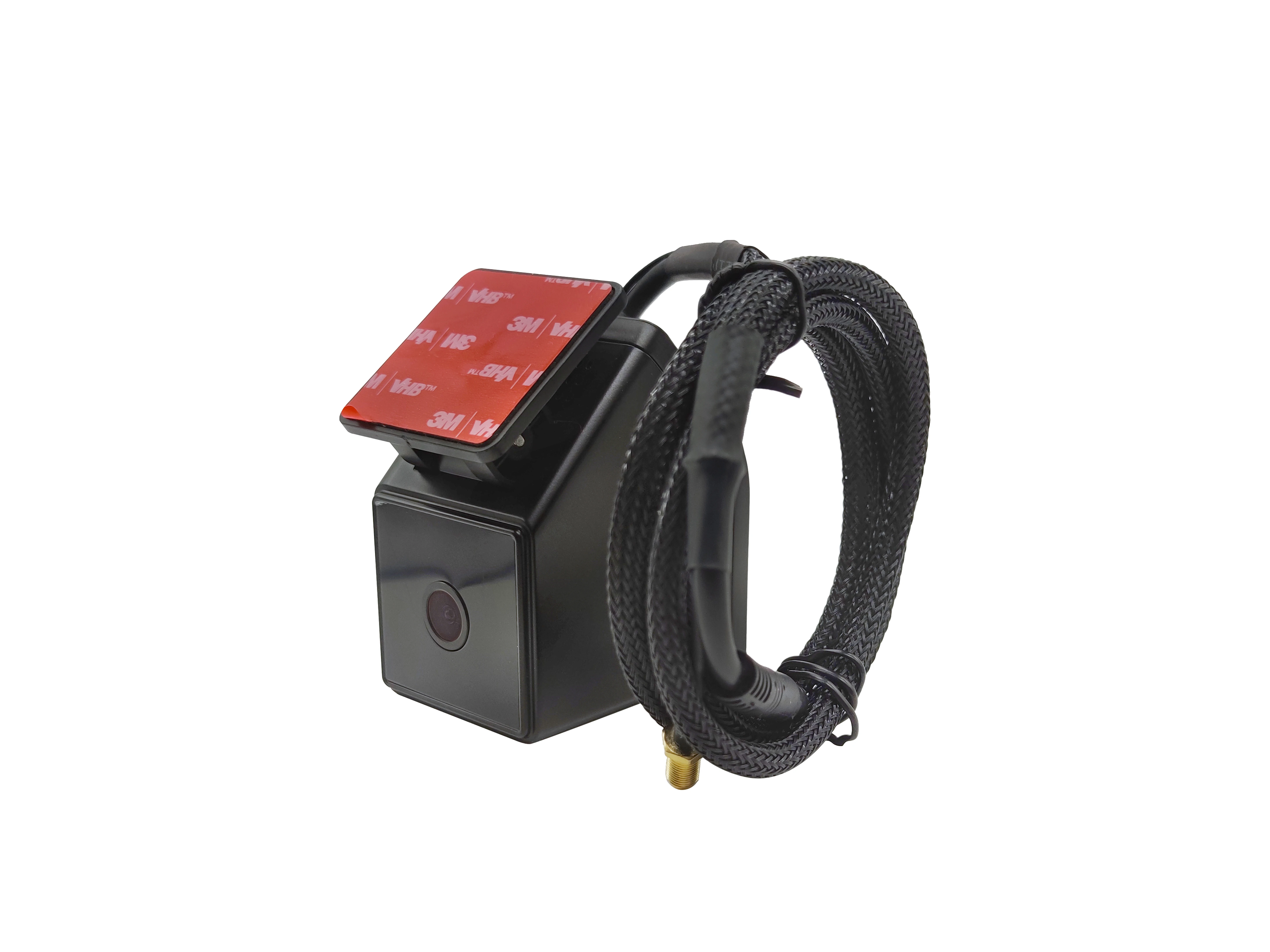

Upgrade version 2 ch/3 ch/4 ch 1080P 4G GPS WiFi Dual Micro SD Card Mobile DVR Telematics Camera
- Category: >>>
- Supplier: Shenzhen QOHO Electronics Co. Ltd.
Share on (10000007486828):
Product Overview
Description
Product Description
Upgrade version 2-ch/3-ch/4-ch 1080P 4G GPS WiFi Dual Micro-SD Card Mobile DVR Telematics Camera
Feature
• 1080P 4G GPS WIFI Mobile DVR, Car DVR; Max Support 2K/4MP;
• H.265 compression code, adopt ALLwinner V536 high-performance processor, Low Consumption;
• Built-in 1080P 110 degrees wide front road view camera;
• Support external 2 channels or 4 channel extendable(total 4 channels as optional);
• Built-in speaker to indicate device working status and instructions from the server;
• Industrial grade design;
• Support to connect with equipment with mobile phone through WIFI;
• Support remote live view in real-time;
• Support to set parameters via mobile phone;
• Support 2 TF cards, maximum 512GB;
• Support center management software such as CMSV6, Wialon;
• Support iPad, iPhone, Android, and PC to remote view in real-time;
• TF card data security protection with special lock way;
• Easy installation with 3M sticker on the windscreen.
Feature
• 1080P 4G GPS WIFI Mobile DVR, Car DVR; Max Support 2K/4MP;
• H.265 compression code, adopt ALLwinner V536 high-performance processor, Low Consumption;
• Built-in 1080P 110 degrees wide front road view camera;
• Support external 2 channels or 4 channel extendable(total 4 channels as optional);
• Built-in speaker to indicate device working status and instructions from the server;
• Industrial grade design;
• Support to connect with equipment with mobile phone through WIFI;
• Support remote live view in real-time;
• Support to set parameters via mobile phone;
• Support 2 TF cards, maximum 512GB;
• Support center management software such as CMSV6, Wialon;
• Support iPad, iPhone, Android, and PC to remote view in real-time;
• TF card data security protection with special lock way;
• Easy installation with 3M sticker on the windscreen.
Specification
Industrial Design | Unique design, flexible to easily install on the windshield of all kinds vehicles. | ||
Language | Chino, inglés u otros (se puede personalizar) | ||
SOC(System on chip) | ALLwinner V536 Cortex-A7 Dual-Core CPU | ||
Compression | H.265 High Efficient / H.264 Compression | ||
Video | Video input | 1 channel 1080P video input (support external 2 / 4 channels extendable) | |
Video compression | H.265/H.264 compression, Max support 2K/4MP | ||
Built-in camera 1 | 1080P or 2K/4MP 110 degrees front wide-view camera | ||
Extended camera 2 | 1080P 130 degrees cabin wide view camera | ||
Extended Camera 3 and Camera 4 | 1080P Side Camera or Rear-View Camera-Optional | ||
Optional OSD information | Time, channel name, company name, driver name, plate number, GPS position,Network, speed, G-sensor Harsh Braking,Harsh Acceleration,Harsh Concerning,Over-speed)... | ||
Recording | Support CMS platform back-up, mobile phone local downloading/playback, History recording via MDVR player software. | ||
GPS | Built-in GPS module and antenna to make sure accurate position and time | ||
4G | Built-in 4G module and antenna, FDD-LTE/WCDMA,TD-LTE,FDD-CTLTE optional | ||
WIFI | Built-in WIFI module and antenna; AP mode in default, phone connect directly with device and can switch to WIFI mode after set well the parameters. Support WIFI downloading.2.4G or 5.8G , APP or Hotspot exchange. | ||
G-sensor | Automatically correcting and do not limit the installation direction of the equipment | ||
AI Function Extended | DMS/DMS(Driver Fatigue Monitor) Optional | ||
ADAS Function Optional | |||
BSD Function Optional | |||
Interface Extended | USB Optional | ||
CVBS Out Optional | |||
Audio | Built-in Speaker and Mic, Support Two-way Intercom | ||
Power | Within 7-10 sec Start | ||
8-36V Wide Voltage, lower consumption mode | |||
APP | 1-CH or multi-channel video playback | ||
Track playback | |||
Android and IOS version | |||
Support CMSV6, Wialon | |||
PC Client | 1-CH or multi-channel video playback | ||
Track playback | |||
Window version | |||
Storage | 2 TF card slot,Support 2 max 256G TF cards,total 512GB Micro-SD card. | ||
Cables | 1-CH Standard Version | Power cable,IO-IN/Out,RS232 | |
2-CH Extended Version | Power cable,IO-IN/Out,RS232,1*4 pin Aviation | ||
4-CH Plus Version | Power cable,IO-IN/Out,RS232,3*4 pin Aviation | ||
Model | QH-MDVR101(Standard Version) | QH-MDVR101-4CH(Plus Version) | |
1080P 110 degrees Front Road View | √ | √ | |
H.265 High Efficient Compression | √ | √ | |
Built-in GPS | √ | √ | |
Built-in 4G for Remote Live Streaming/Downloading | √ | √ | |
Built-in WIFI AP/Client Mode for Configuration & Automatic Upload | √ | √ | |
Built-in G-sensor(Harsh Braking/Acceleration/Cornering/Collison Alarm) | √ | √ | |
Automatic Alarm Video Uploading to Cloud Server | √ | √ | |
Pre & Post Alarm Recording | √ | √ | |
Internal Microphone & Speaker for Two Way Communication | √ | √ | |
Built-in Super Capacitor UPS for Data Protection (4 Seconds after Shut Down) | √ | √ | |
2*I/O Alarm Input | √ | √ | |
1*I/O Alarm Output (5V) | √ | √ | |
2* TF Card Slots | √ | √ | |
1* SIM Card Slot | √ | √ | |
TF & SIM Card Tamper-proof Lock | √ | √ | |
Support CMSV6, Wialon | √ | √ | |
RS232 Interface | √ | √ | |
1*CVBS Output | Optional | Optional | |
1*USB Output | Optional | Optional | |
1080P Camera 2 Input Interface | × | √ | |
1080P Camera 3 Input Interface | × | √ | |
1080P Camera 4 Input Interface | × | √ | |
