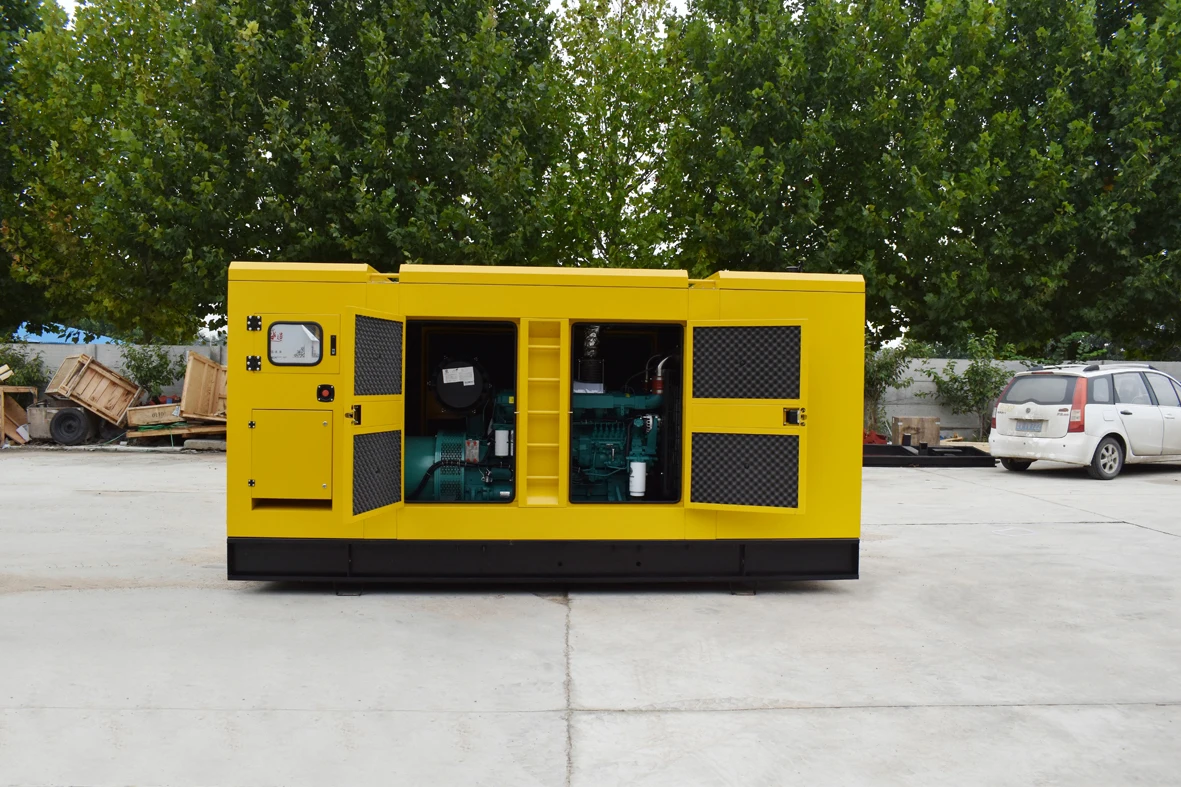

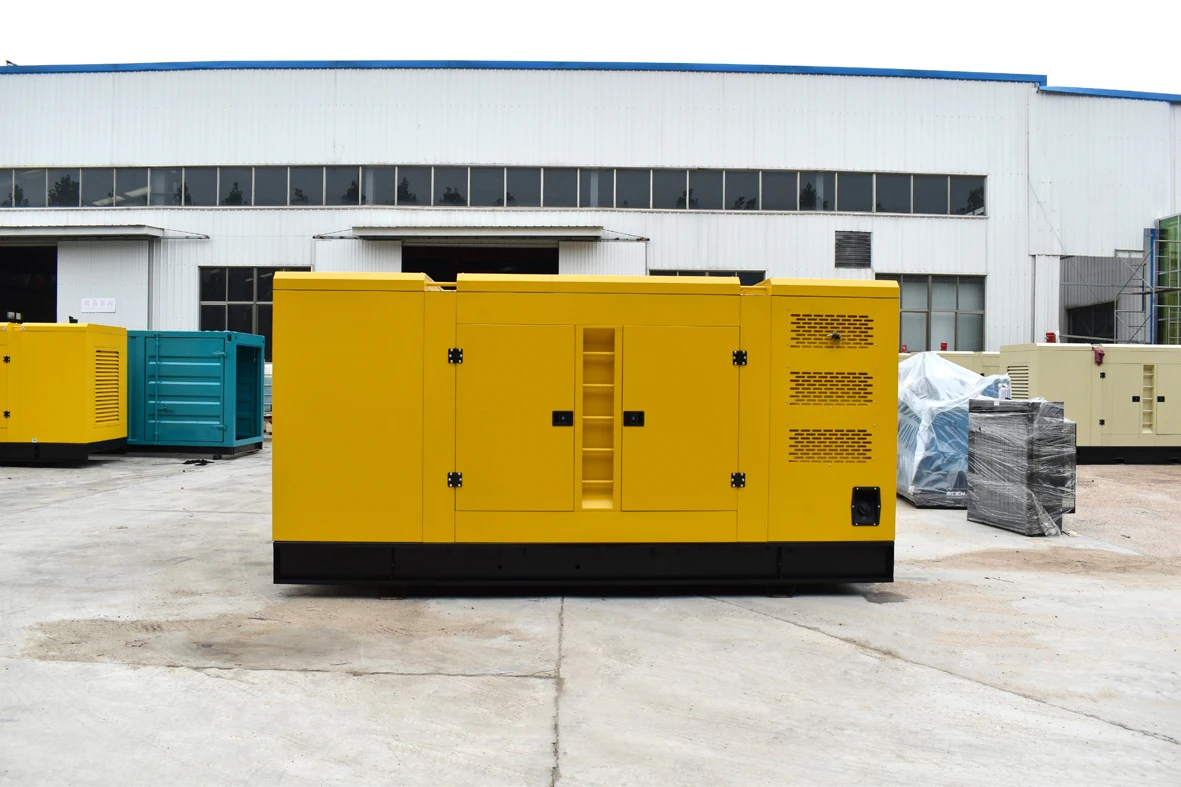

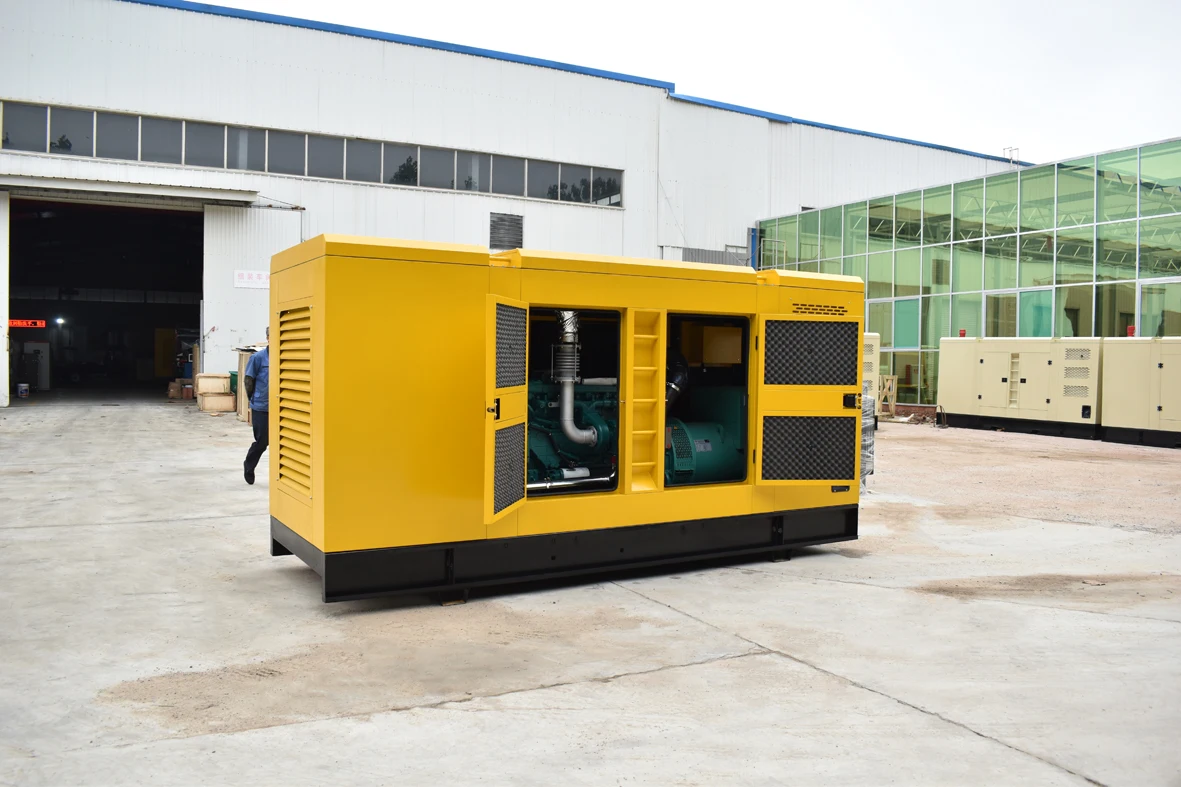

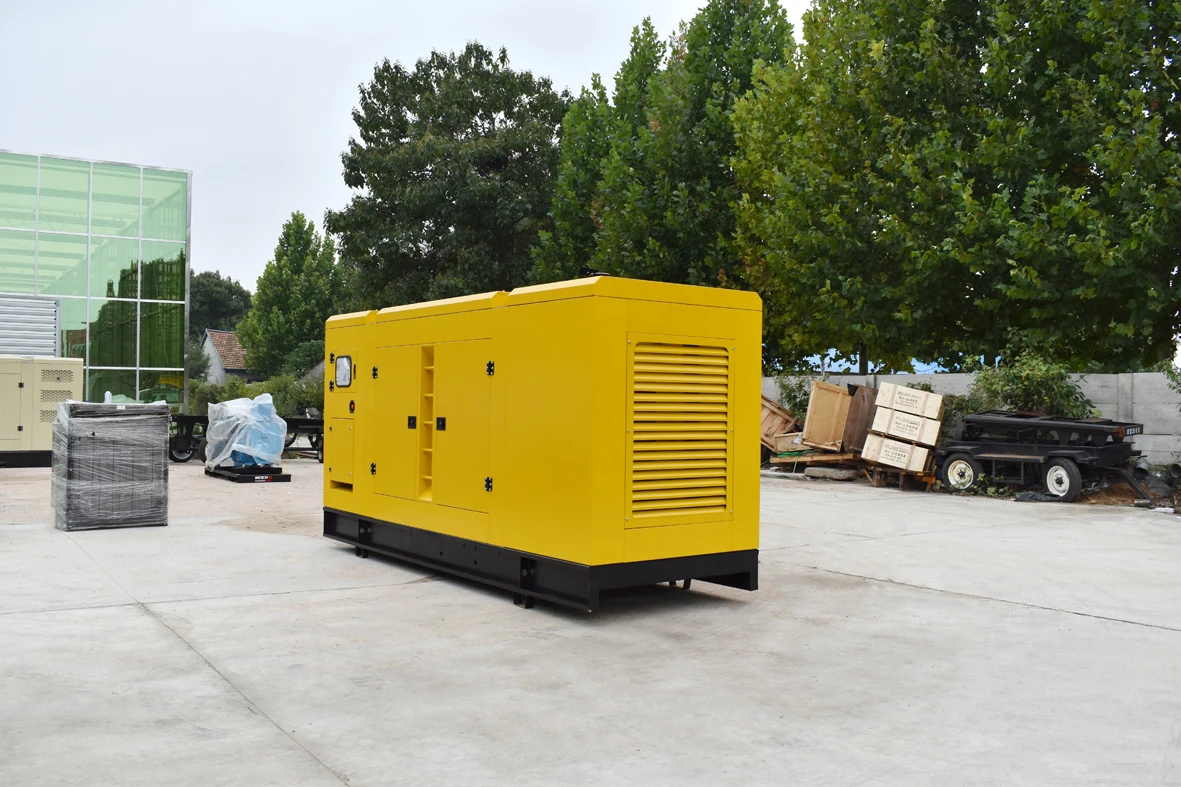

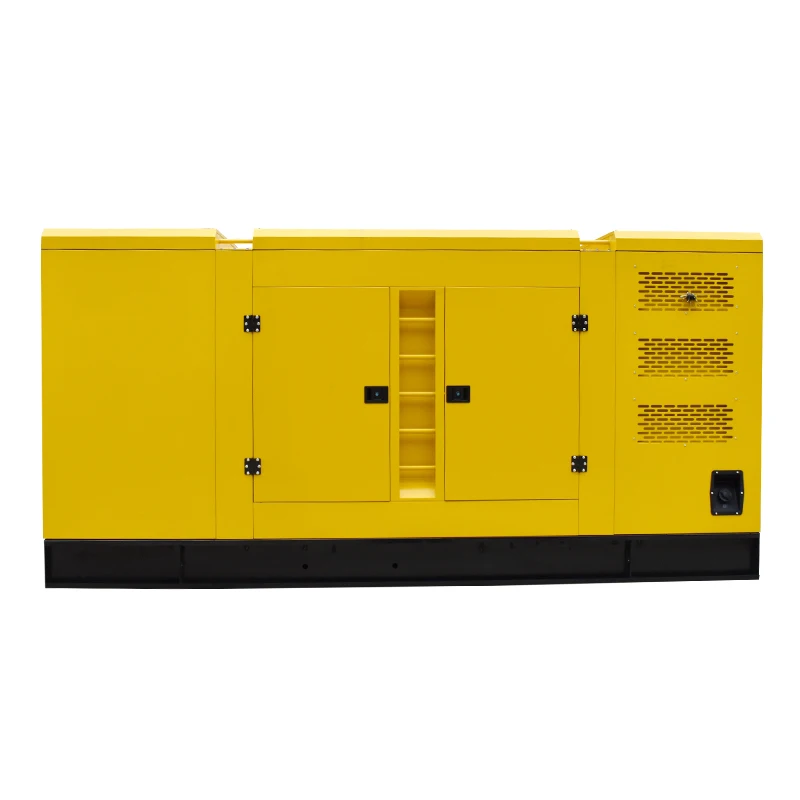

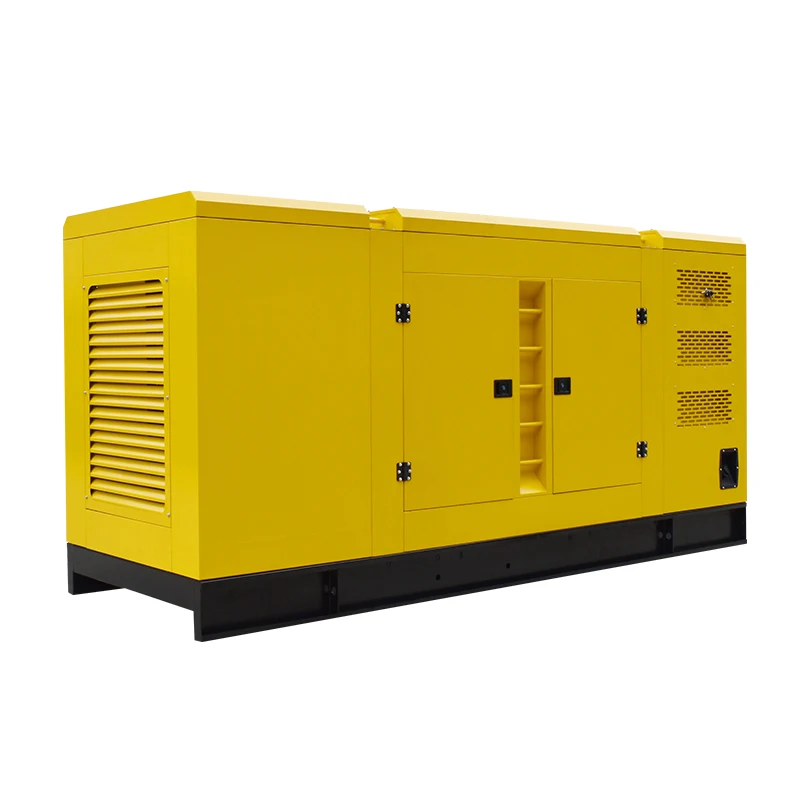

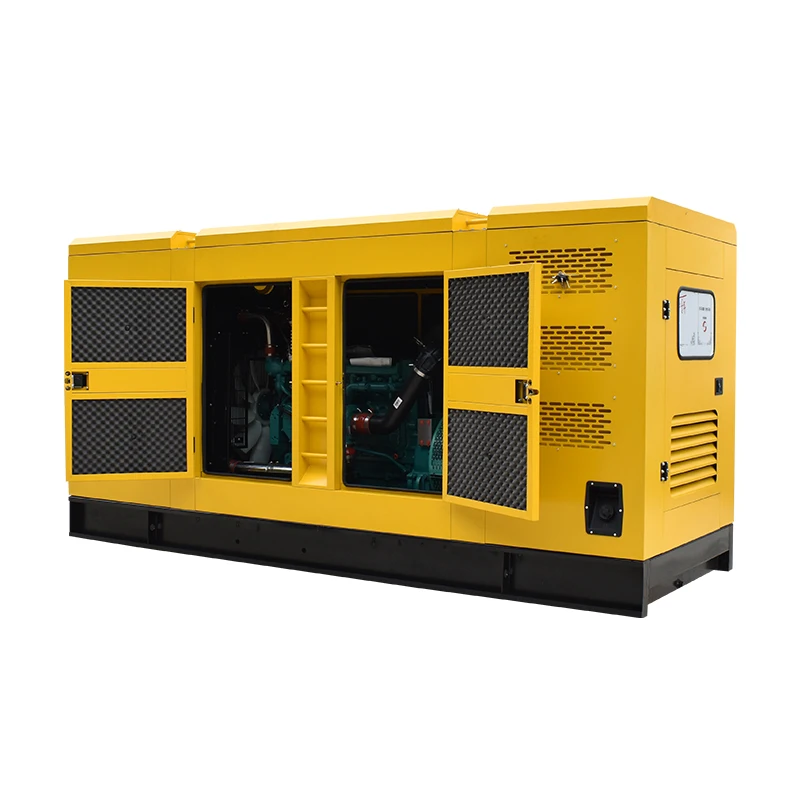

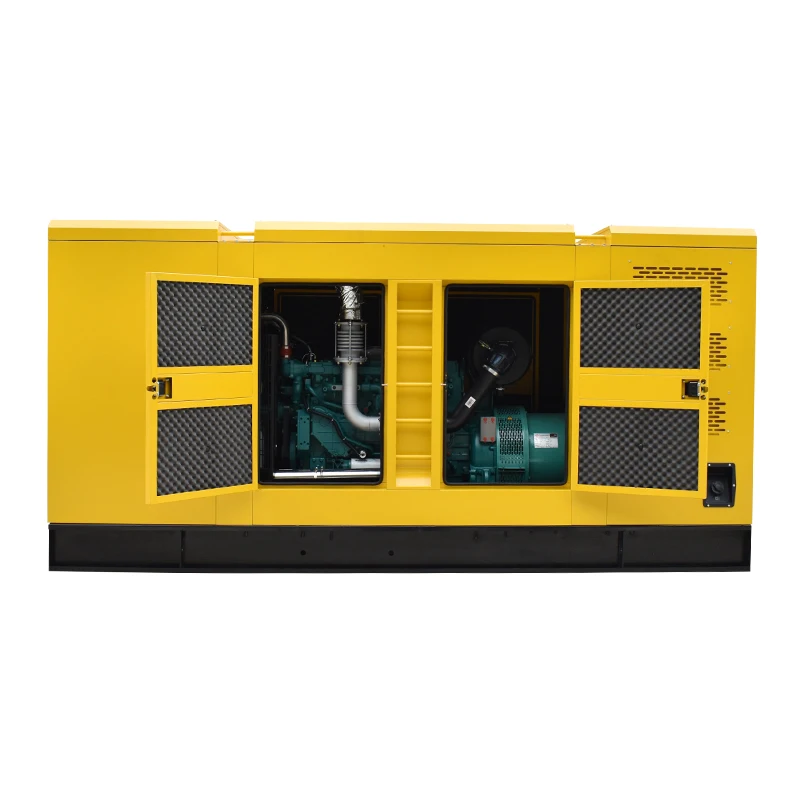

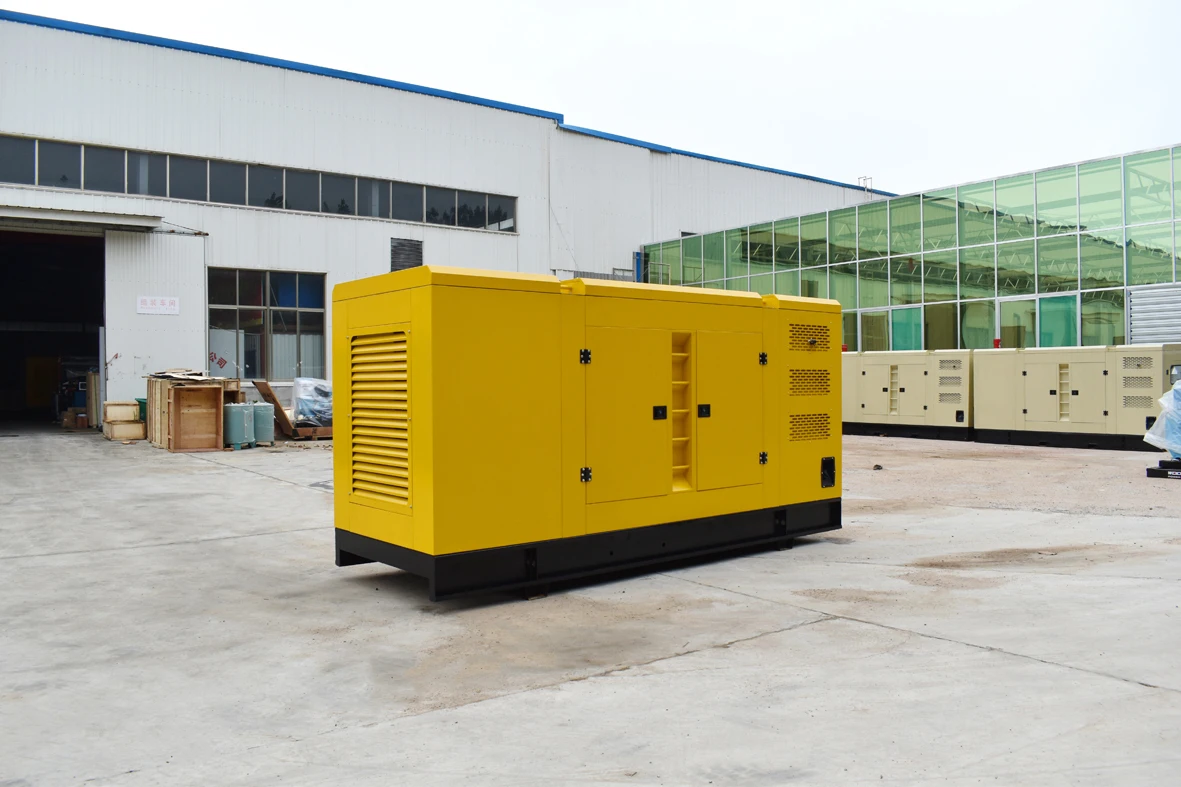

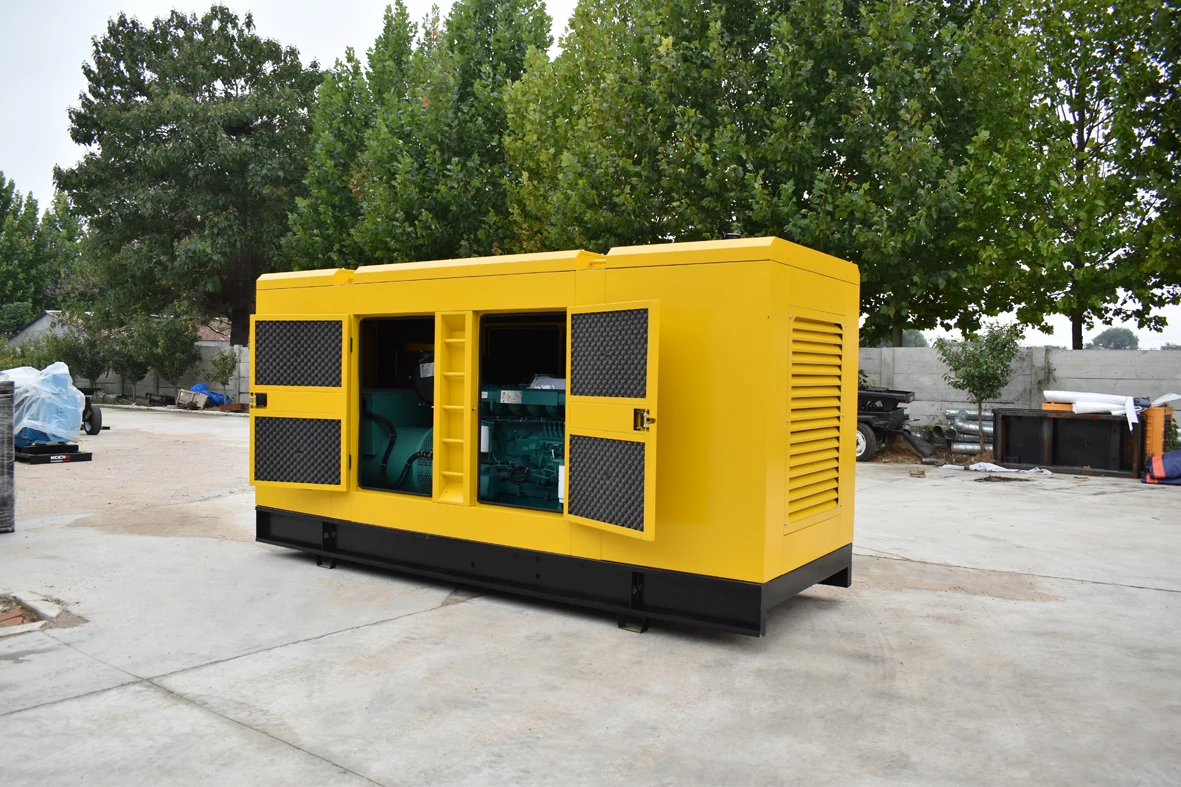

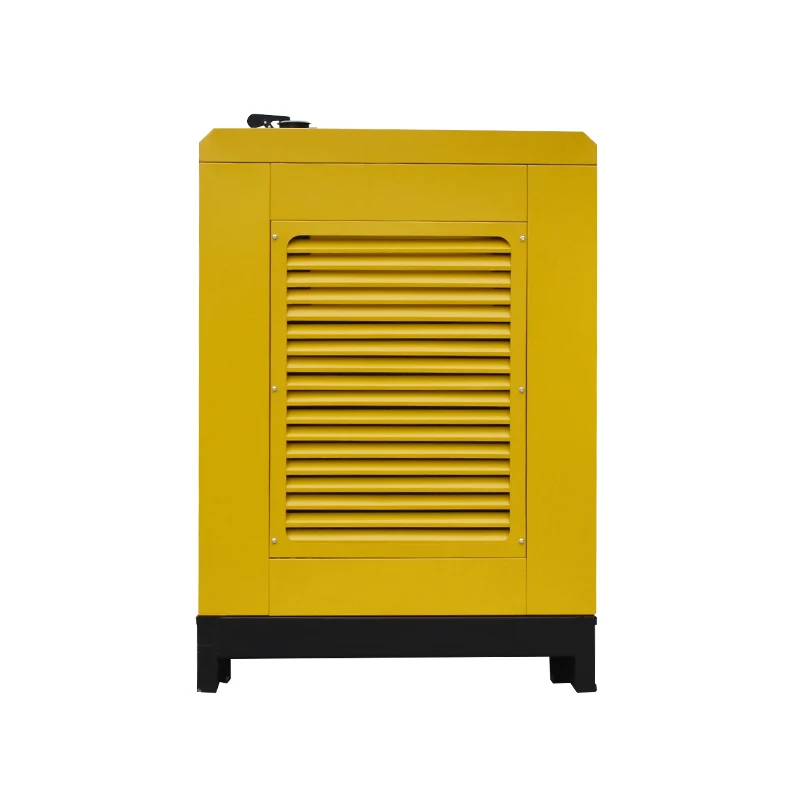

International Warranty shandong weichai Silent 300kw silent diesel generators from china

Product Overview

Description

3

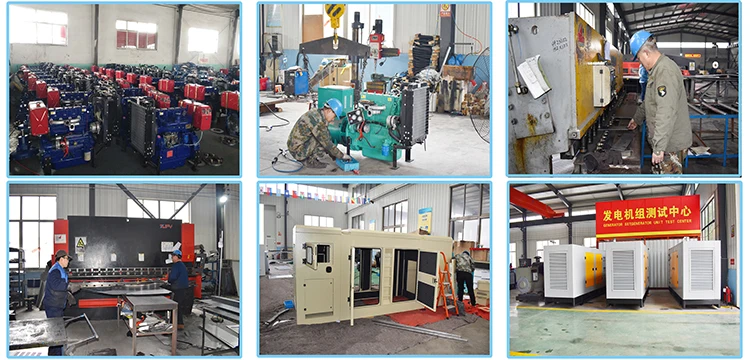

Weifang Best Power Equipment Co., Ltd. is a comprehensive enterprise specialized in manufacturing and sales of diesel generators, diesel water pump and diesel generator electric welding machine.

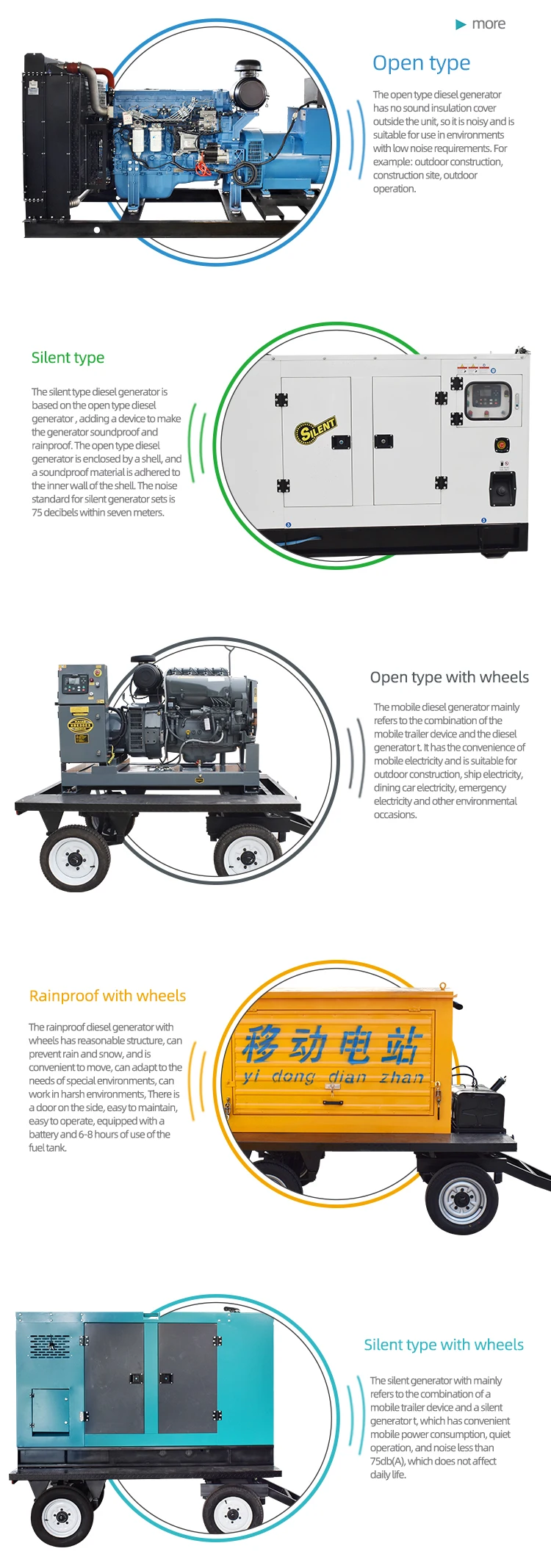

At present, we produce diesel generator sets ranging from 2-2000kw. According to specifications, diesel generators can be divided into 50 and 60 Hz . According to the phase sequence, it can be divided into single-phase and three-phase. According to the requirements of the target country, the voltage frequency can be divided into 110/120/190/220/240/380 / 400V , and it also can be divided into water cooling and air cooling according to the cooling way. Currently, the main operating brands include Ricardo, Weichai, Yuchai, Shangchai etc. And machine also can be equipped with well-known alternator brands such as Lingyu, Landian, Stamford, and Mecc. In order to meet the needs of customers' use environment, the factory can provide ATS self-switching dual power supply system, one-button start four protection monitors, mute box, two-wheel or four-wheel mobile trailer, etc.

Diesel generator	Genset model	BEST-300
	Rated power	300KW
	Rated voltage	230/400kw
	Rated current	540A
	100% loading fuel consumption	205g/kwh
	Noise standard	≤75
	Size (L*W*H)	3850*1300*1910mm
	Weight (kg)	3000kg

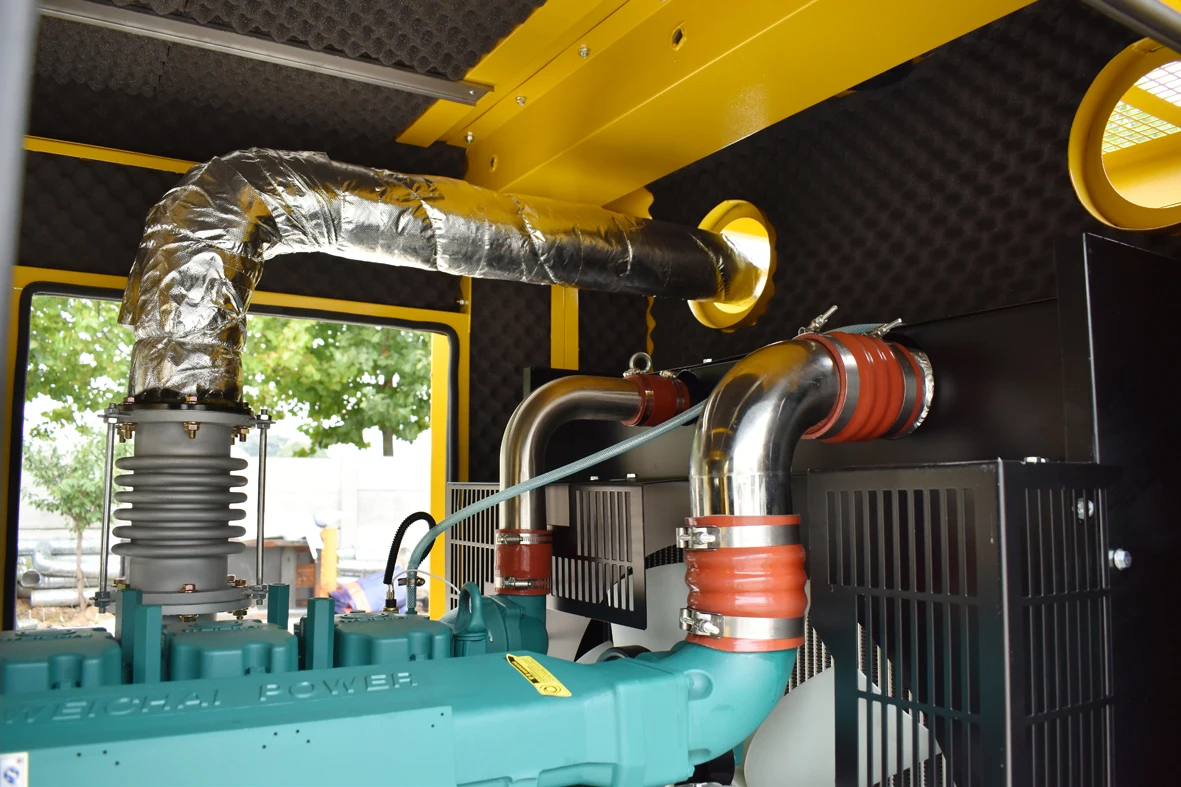

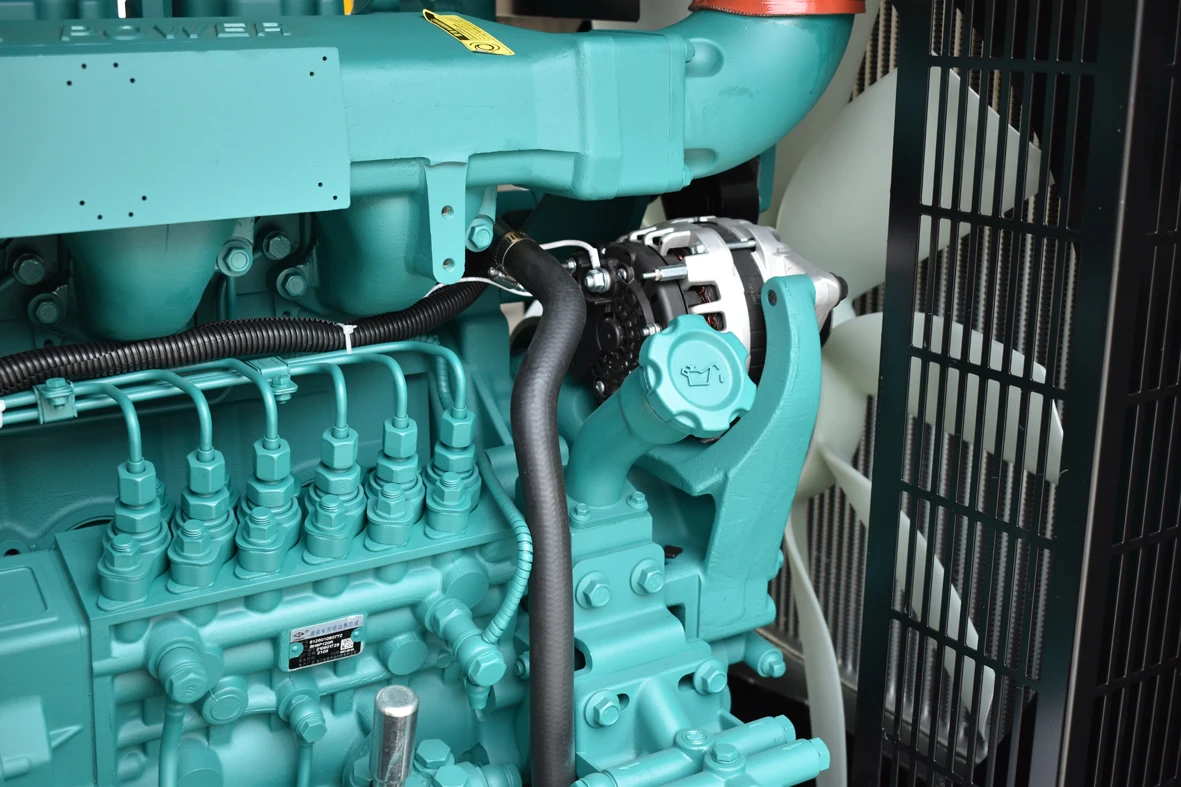

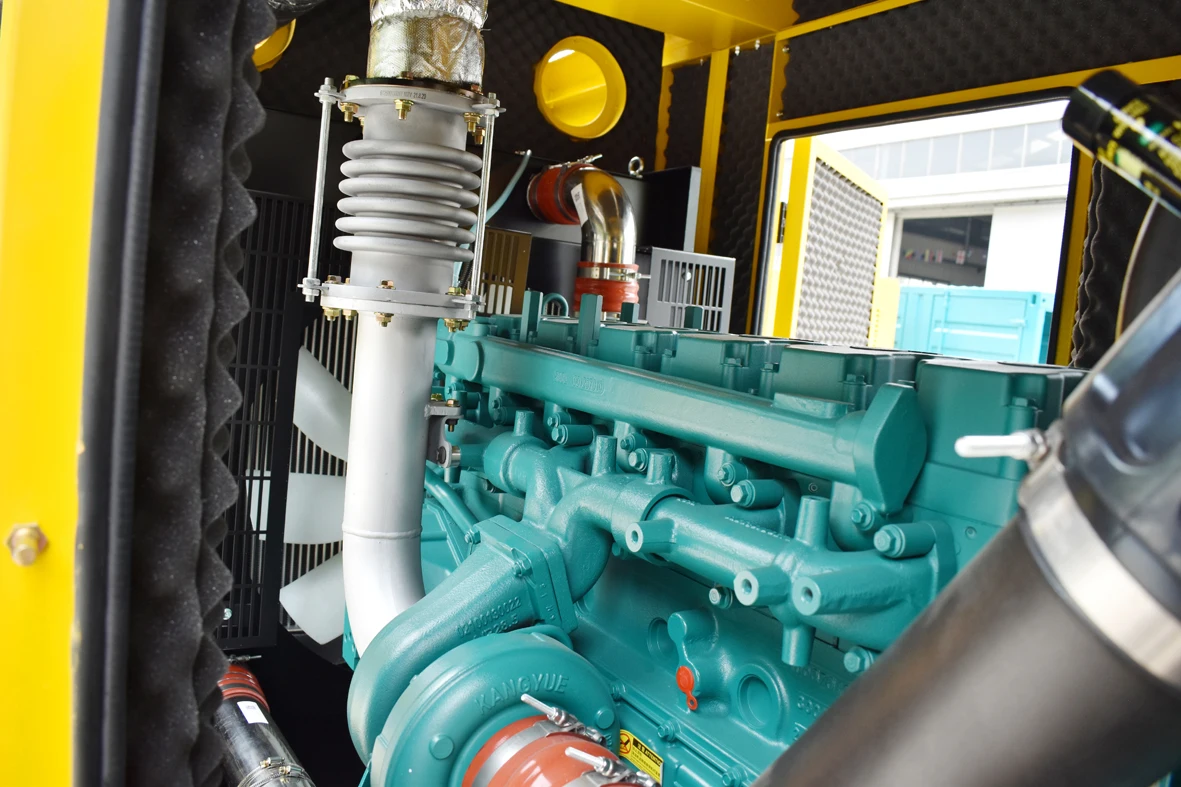

Engine	Brand	WEICHAI
	Model	WP10D320E200
	Engine power(kw)	320kw
	Cylinders	6
	Rated speed(rpm)	1500rpm
	Bore * stroke(mm)	126*130
	Oil capacity(L)	24L
	Displacement (L)	9.54L
	Coolant capacity(L)	22L
	Cooling mode	Closed water circulation cooling
	Starting system	Electric start
	Oil supply mode	Direct injection
	Compression ratio	17:1
	Air intake mode	Turbocharged

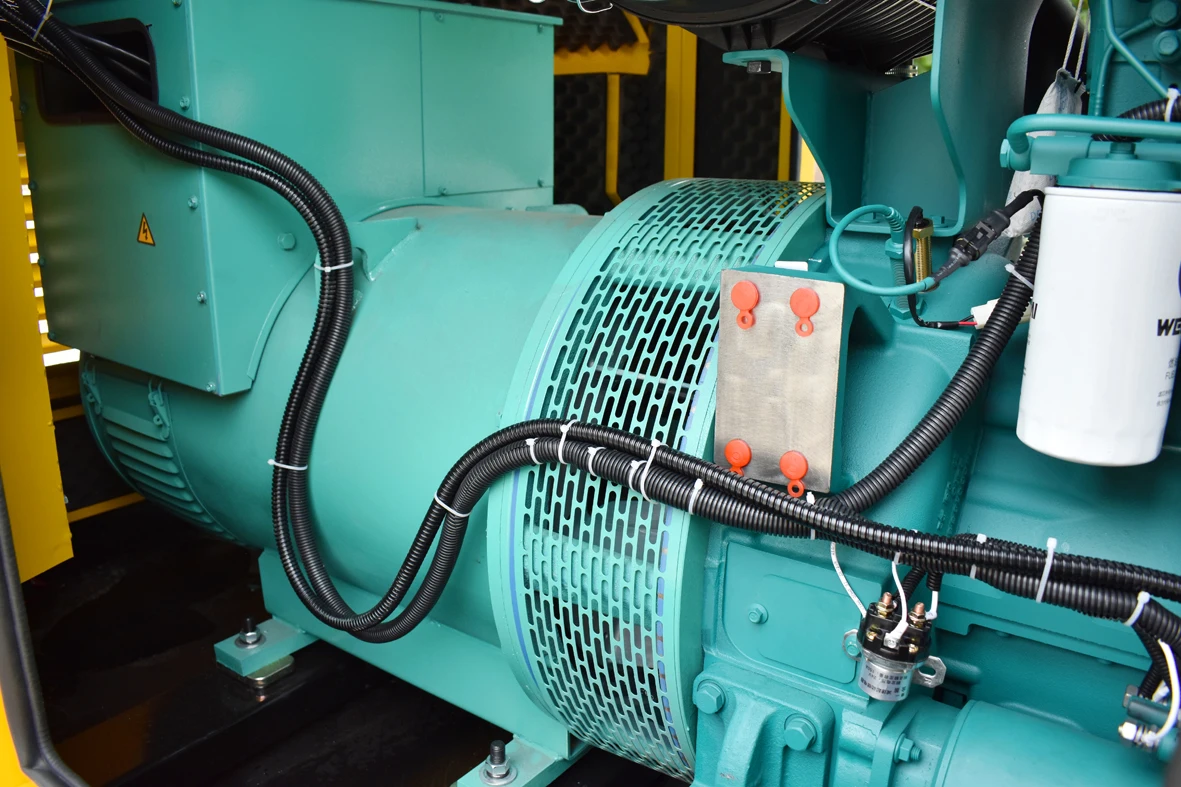

Alternator	model	300kw
	Rated voltage	230/400V
	Frequency	50Hz
	Rated power factor	0.8
	Connection mode	3 phase 4 wires
	Steady state voltage  regulation	≤±1
	transient voltage regulation	≤+20~-15
	Steady state frequency regulation	0~5
	Transient frequency  regulation	+10~-7
	Voltage fluctuation	≤0.5
	Frequency fluctuation	≤0.5
