UE 481woodworking machinery 1224/1325/1530 cnc machine router 3d wood cutting machine
- Category: >>>
- Supplier: Jinan Quick-Fulltek CNC Machinery Co. Ltd.
Share on (10000007577198):
Product Overview
Description

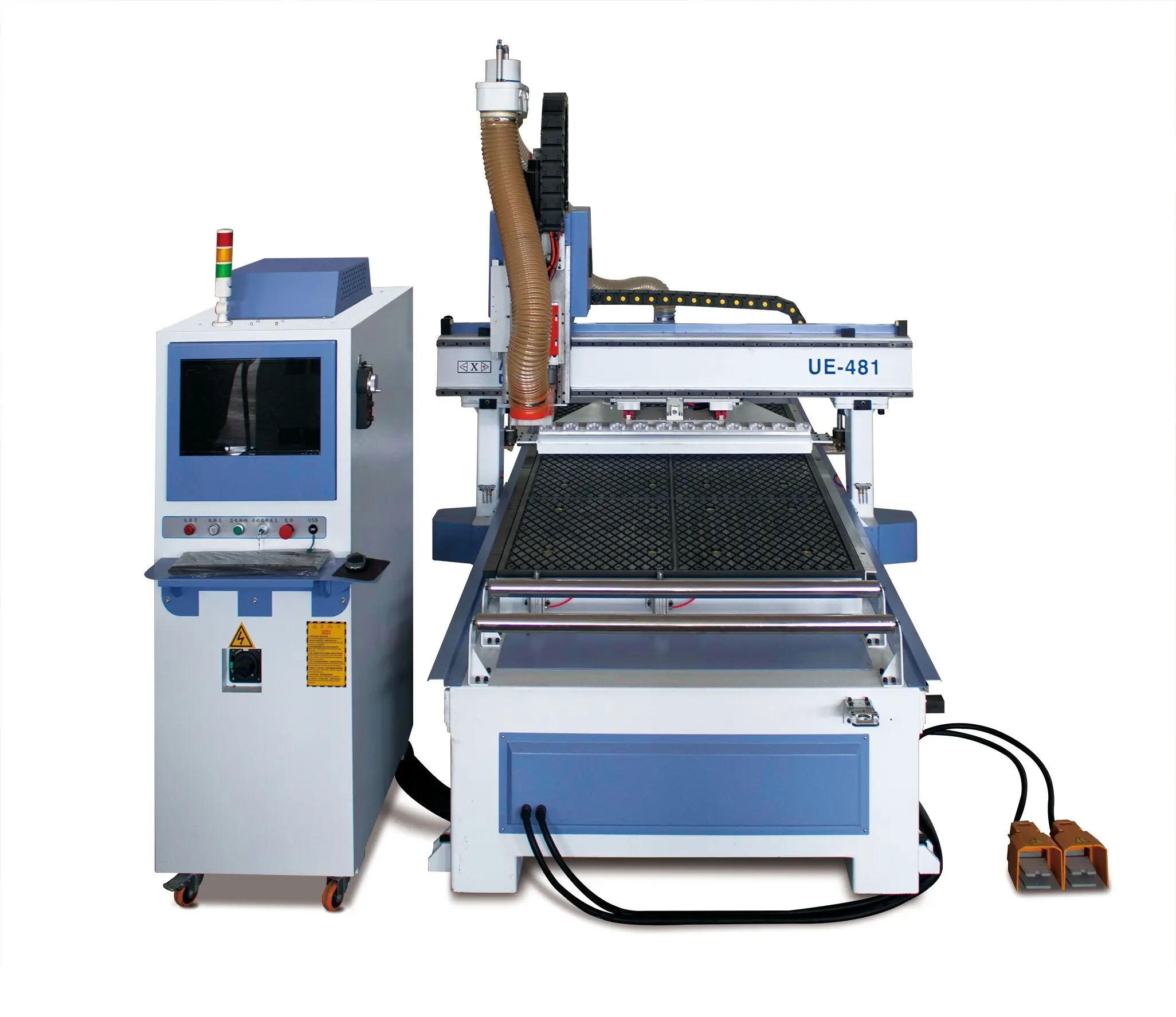

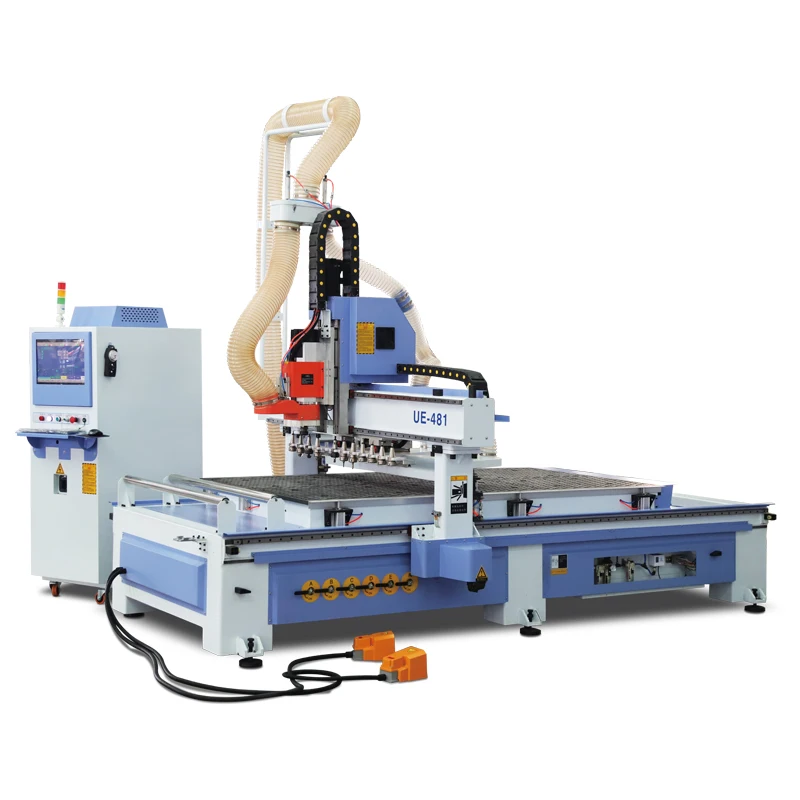

UE-481woodworking machinery 1224/1325/1530 cnc machine router 3d wood cutting machine
Product Description
UE-481woodworking machinery 1224/1325/1530 cnc machine router 3d wood cutting machine is Quick CNC new model, the economical auto tool changer machine, with more compact machine body, without reducing the strength at the same time more flexible and convenient for placement, the new type of half tracking 12 pcs linear tool changers saves the time of tool change.
If you want to find an economical and useful automatic tool changing machine, then choose it.
If you want to find an economical and useful automatic tool changing machine, then choose it.
Parameters of CNC Router | ||||||
Model | UE-481 | |||||
X-Y-Z axis working area | 1220x2440x200mm | |||||
Machine size | 3860x2100x2380mm | |||||
X-Y movement | rack and pinion,gear drive/Taiwan | |||||
Z movement | ball screw drive | |||||
Guide | linear 25 square/Taiwan | |||||
Max.speed | 80,000mm/min | |||||
Spindle power | 9kw Chinese ATC spindle | |||||
Spindle speed | 18,000-24,000rpm | |||||
Inventer power | 11kw | |||||
Tool magazine | 12 pcs linear tool changers | |||||
Drive motor | Inovance servo motor | |||||
Working voltage | AC380V/50-60HZ,3-phase | |||||
Command code | G code | |||||
Computer interface | USB 2.0 | |||||
Table | Vacuum table | |||||
Pump | 7.5KW wind pump | |||||
Software | Artcam&Alphacam software | |||||
Controls | SYNTEC system/Taiwan | |||||
Machine weight | 2800kgs | |||||
Standard enquipment included | 1. Auto tool length compensation device 2. Manual oil lubrication system 3. Dust hood 4. Tool shanks | |||||
Optional | 1)Drilling boring system 2)Double working stations 3)Auto Loading&Unloading system 4)Becker pump | |||||
Main Features
1) It can work continuously for 24 hours, process cabinet 200 square meters, work 10 hours can process cabinet door panel 130㎡. Process 300 engravings panels of interior doors.
2)The new type of half tracking 12 pcs linear tool magazine makes the machine more efficiency ,which can change tools very fast .
3) Work schedule can be customized according to the workpiece condition.
4)The lathe is founded by high-quality steel that ensures the high stability ,all the three axises are using imported straight-quadrate rails.
5)Y axis uses double-motor drive that ensure the machine equality and smoothly running.
6)Using high accurate pinion and rack transmission. The highest speed is 80,000mm/min.
7)Spindle adopts Chinese 9KW ATC spindle, which is very powerful and with little noise.
Excellent Parts
9KW Chinese ATC spindle
The features are high speed and low noise. Heavy duty cutting is available for high precision.
Inovance servo motor
This servo motor with high speed, high precision,which may shorten\tspeed up and slow down time.
Syntec controller
It can be compatible with many types of software.Such as CAD,CAM software.

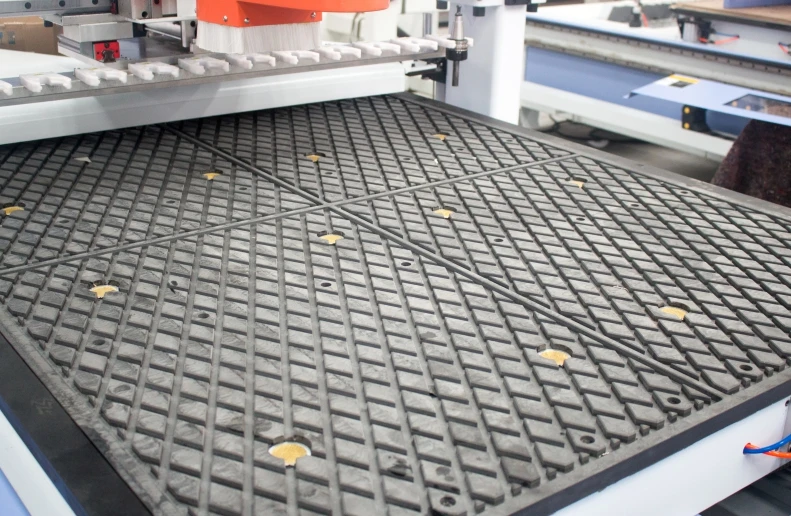

Vacuum table
The vacuum table is single layer vacuum table with high qulity PVC and strong sealing.
Linear tool magazine
Linear type with too holder and tool chank,fast changing speed, under the gantry.
Dust exhaust apparatus
This function can not only push the material, but also remove dust

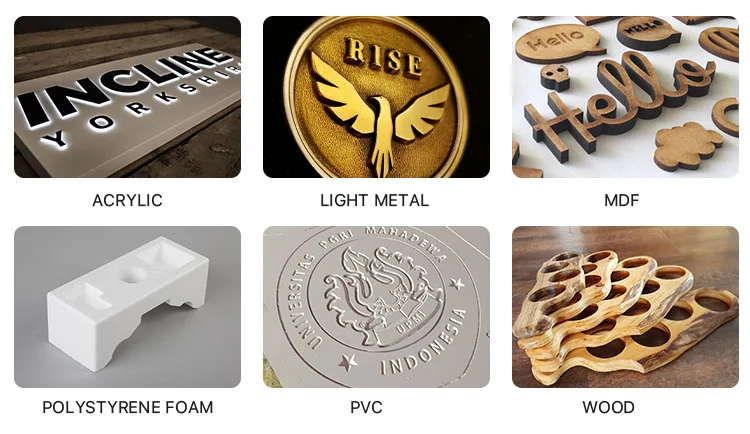

Samples Show
1. General woodworking manufacturing(Cabinet,Doors,Non-metallic materials,other furniture..)
2. 3 dimensional(3D) machining(sign,plastics,wood,molds,etc)
3. Sheet plastic fabrication,composite machining(graphite,phenolic,kevlar.etc)
4. Non-ferrous sheet metal machining(aluminium,brass,copper,zinc)
2. 3 dimensional(3D) machining(sign,plastics,wood,molds,etc)
3. Sheet plastic fabrication,composite machining(graphite,phenolic,kevlar.etc)
4. Non-ferrous sheet metal machining(aluminium,brass,copper,zinc)

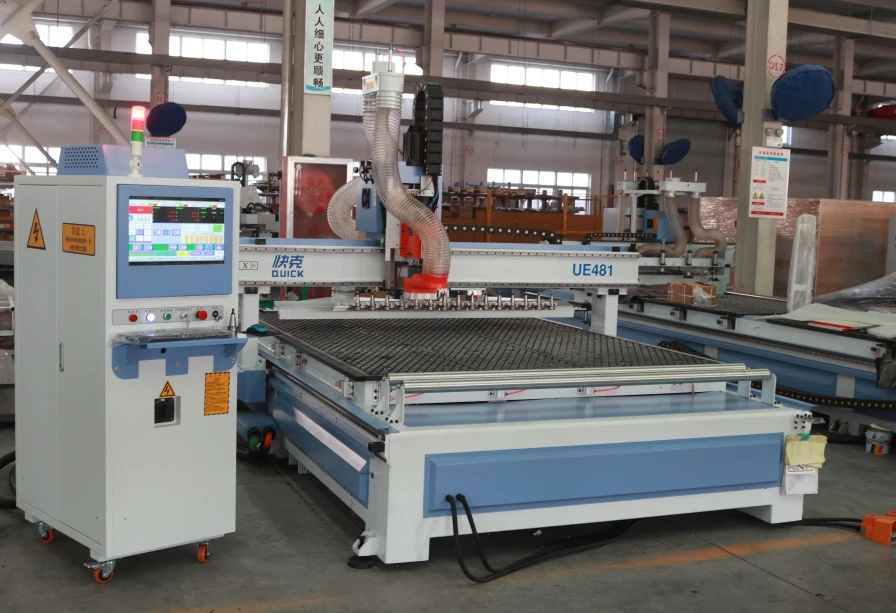

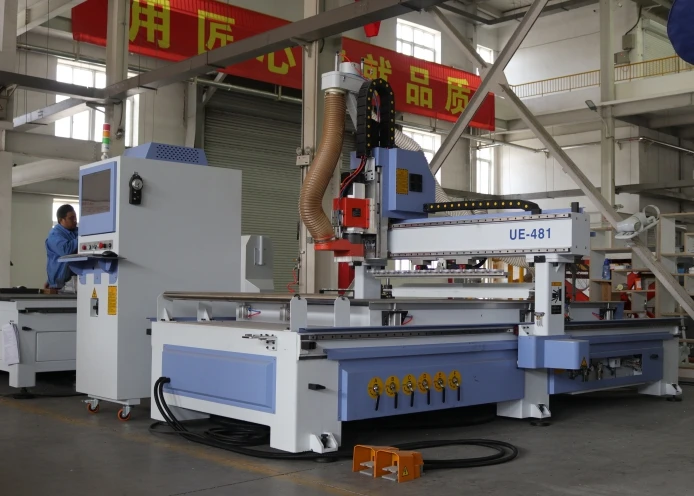

Machine In Factory
Related Products
Heavy Duty ATC UA-481
ATC Model UD-481
Manual Tool Changer K45MT 1325
Carousel Type UC-481
Company Infomation
JINAN QUICK-FULLTEK CNC MACHINERY CO., LTD was founded in 2006,factory floor space is about 15,000 square meters.
We are one of the best CNC router suppliers in China with 15 years experience and specializes in R&D and production of various CNC equipment, such as 3 axes CNC, ATC CNC, Automatic load and unload CNC,4 axis,5 axis, PTP, panel furniture CNC.Meanwhile, customized equipment is available according to different requirements.
We are one of the best CNC router suppliers in China with 15 years experience and specializes in R&D and production of various CNC equipment, such as 3 axes CNC, ATC CNC, Automatic load and unload CNC,4 axis,5 axis, PTP, panel furniture CNC.Meanwhile, customized equipment is available according to different requirements.
Our Team
We have more than 300 workers including 25 professional designers,35 experienced after sale service engineers and 20 sales persons.
Customers
JINAN QUICK-FULLTEK CNC MACHINERY CO., LTD as a professional high quality manufacturer, has exported to more than 90 countries and regions, such as USA, England,Russia, Malaysia, Indonesia and so on.
Our company has won high praise from customers for its high-quality machine quality and excellent service. Every year, many customers come to visit our company. If you want to visit our company, we would like to welcome you.
Our company has won high praise from customers for its high-quality machine quality and excellent service. Every year, many customers come to visit our company. If you want to visit our company, we would like to welcome you.
Our Service
1. One year for the whole machine without consumable parts.
2. We will provide the consumable parts at an agency price.
3. 24 hours online service,free technical support by whatsapp/wechat/call/email.
4. Machine has been adjusted before delivery,operation disk is including in the delivery.If there is any other questions,pls kindly contact us.
5. We have manual instruction and CD(Guiding Videos)for software installation,operation and machine’s using and maintenance.
6. Engineers are available to service machinery overseas.
2. We will provide the consumable parts at an agency price.
3. 24 hours online service,free technical support by whatsapp/wechat/call/email.
4. Machine has been adjusted before delivery,operation disk is including in the delivery.If there is any other questions,pls kindly contact us.
5. We have manual instruction and CD(Guiding Videos)for software installation,operation and machine’s using and maintenance.
6. Engineers are available to service machinery overseas.
Exhibition Review
Our company participates in the exhibition every year. We will showcase our products at the exhibition. We welcome you to attend our exhibition. I believe that you will be satisfied with our products.
Certifications
Our company has been approved by ISO 9001:2000 quality control system and all product got CE certificate.
Machine Packing
1.Whole film packaging machine
2.Anti-collision package edge
3.Fumigation-free plywood wooden box with iron binding belt
4.According to the customer's requirements for loading the whole container or LCL at Qingdao port.
3.Fumigation-free plywood wooden box with iron binding belt
4.According to the customer's requirements for loading the whole container or LCL at Qingdao port.
5.The loading port according to the requirements of customers, the delivery time of the machine is about 35 days.
FAQ
Q: Are you factory or trading company?
A: We are professional factory specialize in CNC equipment for over 14 years.
Q: What's your MOQ? What's your delivery term?
A: Our MOQ is 1 set machine, we usually require 20-30 days for manufacturing, 1 day for packaging.
The exact time will be depended on your order quantity and customized level.
Q: What's your payment term?
A: We normally accept T/T and L/C at sight, other fast payment way is also accepted if the amount is small, like Western union, Master card and cash etc.
Q: Whats your warranty time ? What you can supply to us after we bought your machine?
A: We give customer 1 year quality warranty. In case any accident in customer's factory, we will give permanent technic support and spare parts supplying.
A: We are professional factory specialize in CNC equipment for over 14 years.
Q: What's your MOQ? What's your delivery term?
A: Our MOQ is 1 set machine, we usually require 20-30 days for manufacturing, 1 day for packaging.
The exact time will be depended on your order quantity and customized level.
Q: What's your payment term?
A: We normally accept T/T and L/C at sight, other fast payment way is also accepted if the amount is small, like Western union, Master card and cash etc.
Q: Whats your warranty time ? What you can supply to us after we bought your machine?
A: We give customer 1 year quality warranty. In case any accident in customer's factory, we will give permanent technic support and spare parts supplying.
PS: All machines can be customized according to your requests
