High frequency induction heater casting furnace high temperature furnace graphite crucible copper aluminum smelting furnace 500KG
PRODUCT SHOW

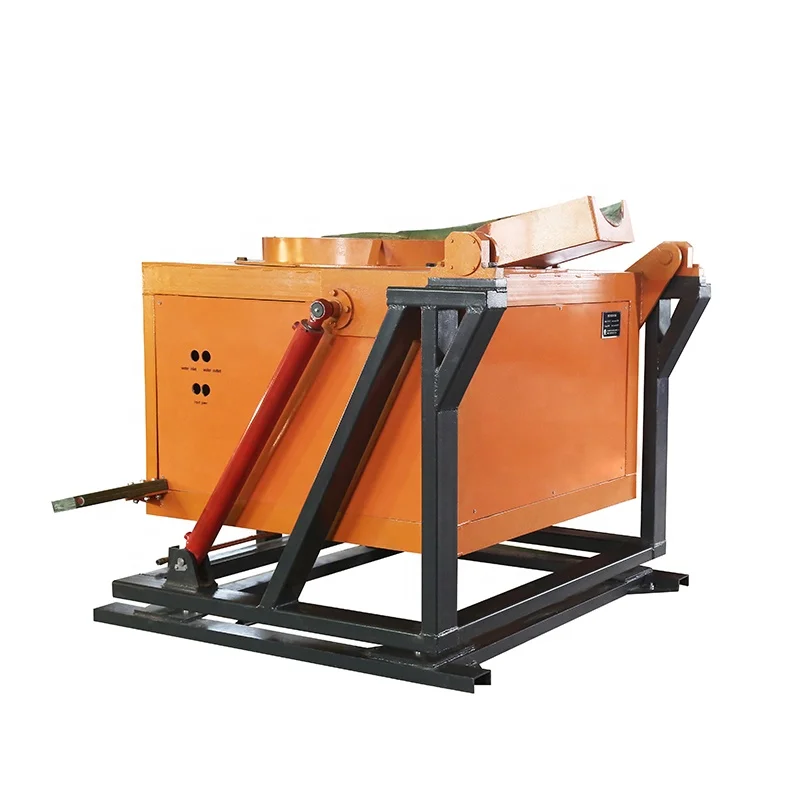

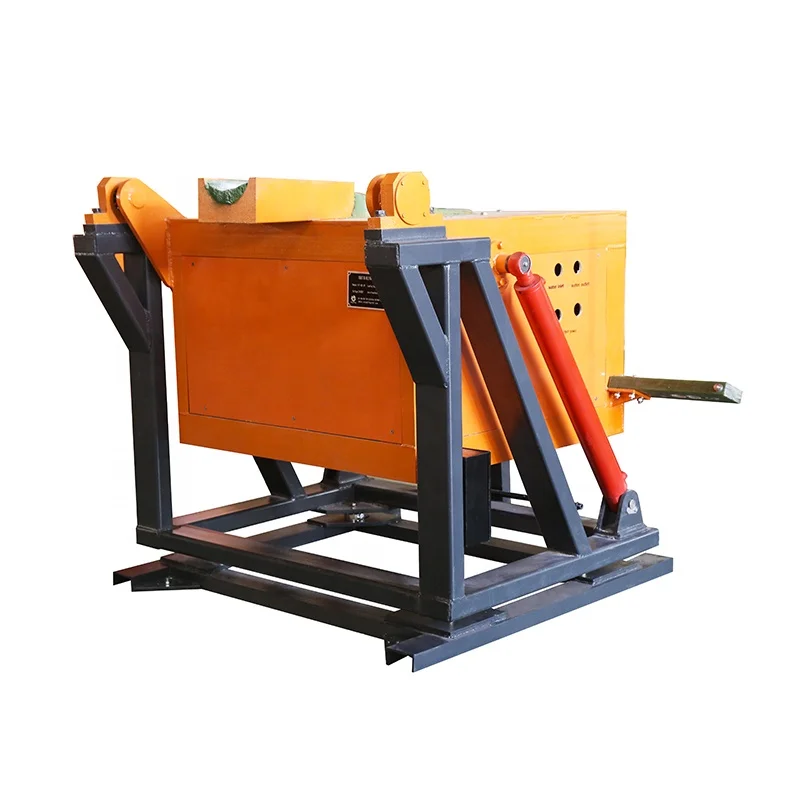

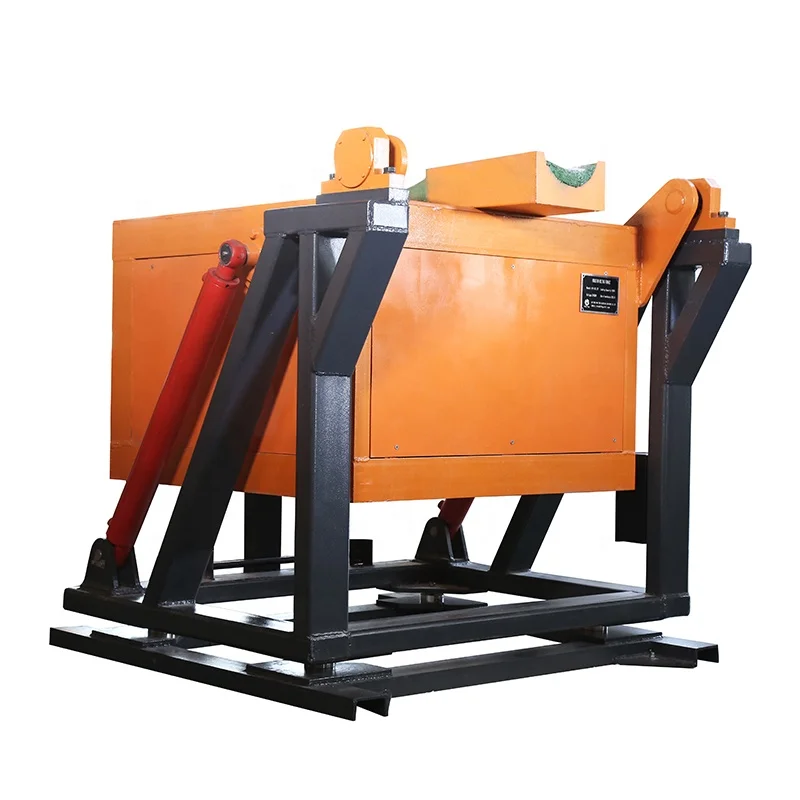

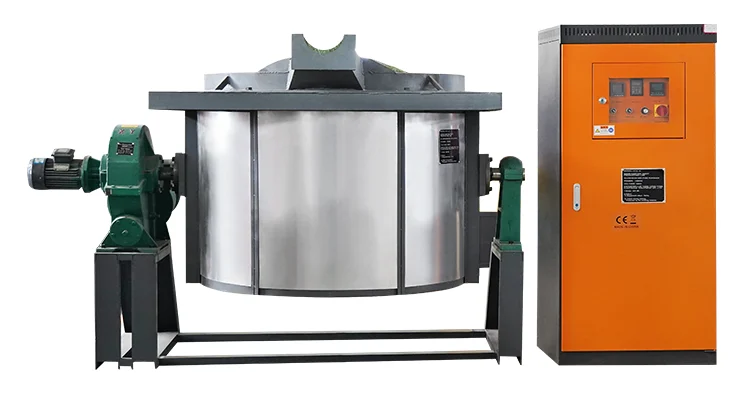

Electromagnetic Aluminum Melting Furnace
This furnace adopts electromagnetic induction smelting, the structure is very simple, does not need to do the foundation. Cooling method can be water cooling or air cooling. The furnace body is tilted by a reducer, which can be tilted manually when power is cut off. The noise meets the environmental protection standard and is less than 60 decibels.

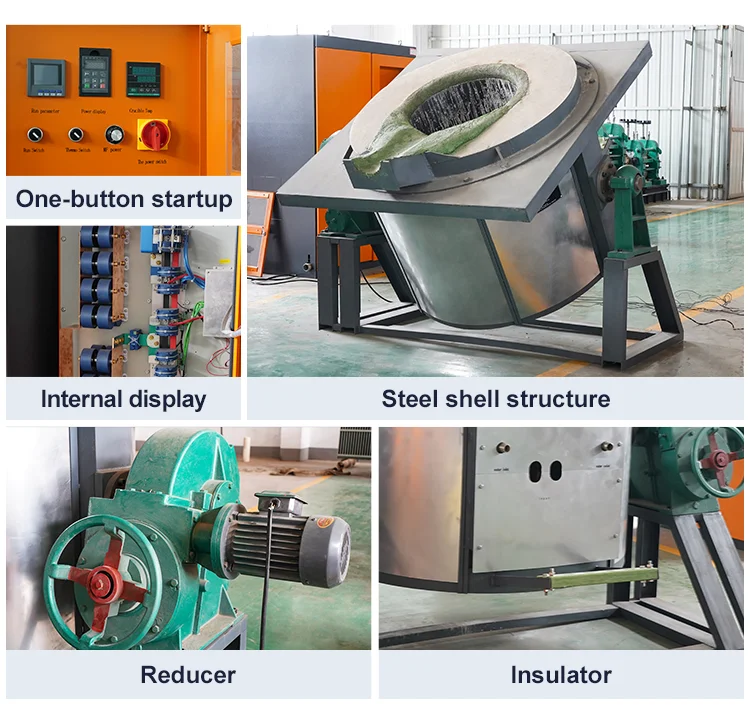

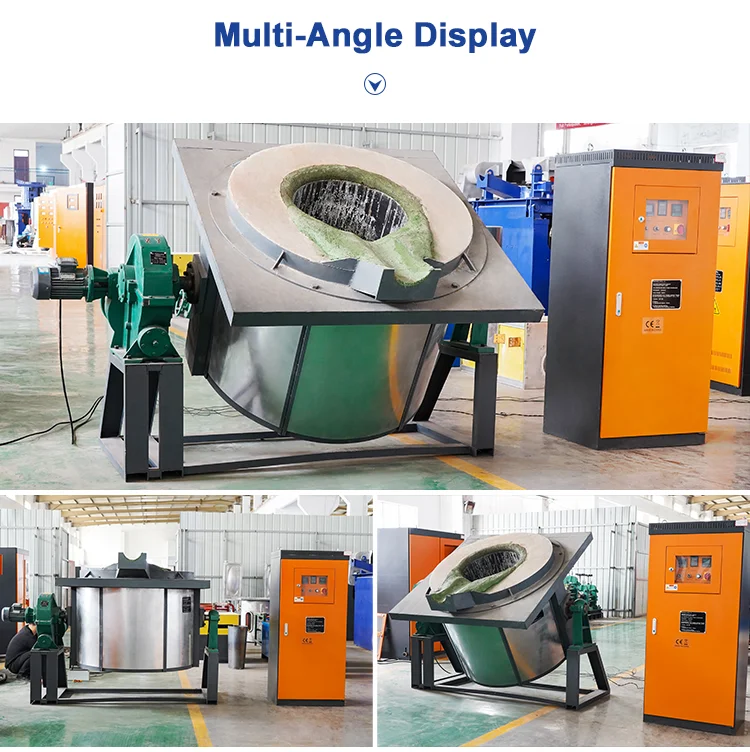

DETAIL DISPLAY
SPECIFICATION
Capacity | Power | Voltage | Cabinet Size | Weight | Crucible size | Transformer |
100KG | 40KW | 3*380v | 800*620*1850 | 0.5T | 385*700 | 50KVA |
150KG | 80KW | 3*380v | 800*620*1850 | 0.6T | 620*470 | 100KVA |
250KG | 120KW | 3*380v | 800*620*1850 | 0.8T | 620*650 | 150KVA |
350KG | 140KW | 3*380v | 800*620*1850 | 0.8T | 620*850 | 175KVA |
500KG | 160KW | 3*380v | 800*620*1850 | 1T | 710*720 | 200KVA |
700KG | 200KW | 3*380v | 1300*850*2000 | 1T | 700*1230 | 250KVA |
1000KG | 320KW | 3*380v | 1300*850*2000 | 1.2T | 780*1400 | 400KVA |
1300KG | 400KW | 3*380v | 1300*850*2000 | 1.2T | 850*1300 | 500KVA |
RECOMMEND

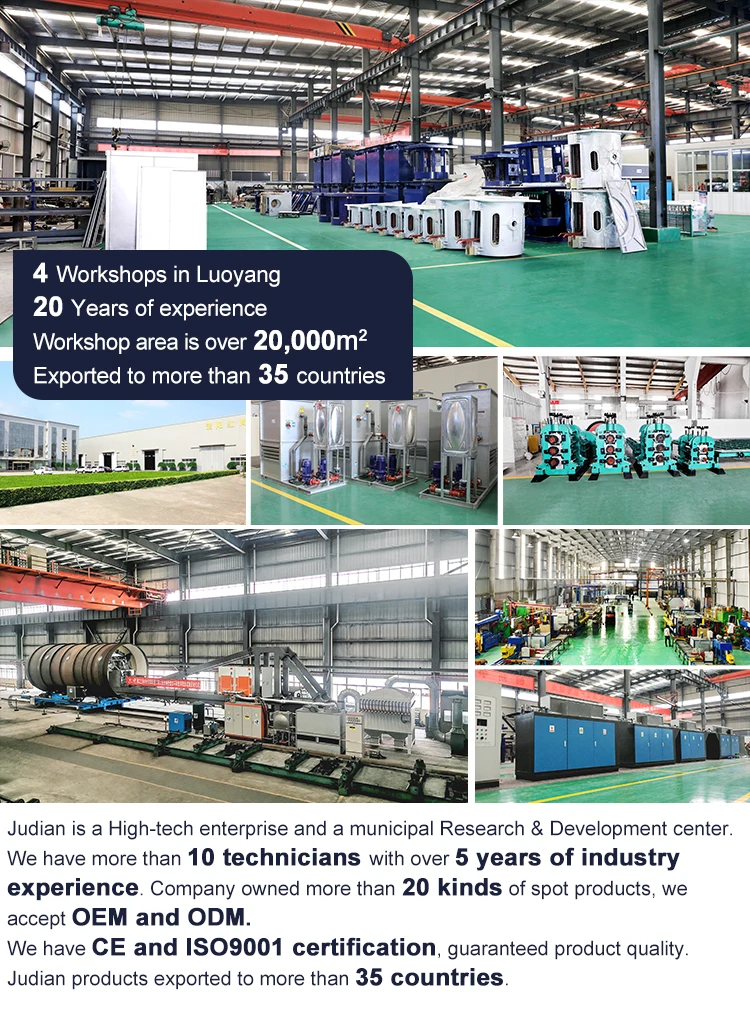

ABOUT US
