Fire Resistant Fabric High Temperature Fiberglass Cloth Heat Treated Fiberglass Fabric Welding Blanket Roll
- Category: >>>
- Supplier: Changshu Jiangnan Glass Fiber Co. Ltd.
Share on (10000007602518):
Product Overview
Description
Product Introduction
800gsm Heat Treated Fiberglass Cloth | ||||||||
Item Model | HT2025 | |||||||
Description | E-glass Heat Treated Industrial Fabric | |||||||
Weave Structure | 8H Satin | |||||||
Cloth Weight | 600gsm | |||||||
Thickness | 0.8mm | |||||||
Thread Count | Warp | 8±1 ends/cm | ||||||
Weft | 5.7±1 picks/cm | |||||||
Breaking Strength | Warp | 1900N/2.5cm | ||||||
Weft | 1750N/2.5cm | |||||||
Working Temperature | Basic fabric 550 ºC | |||||||
Color | Tan | |||||||
Fire Resistance | Non-Flame | |||||||
Products Description

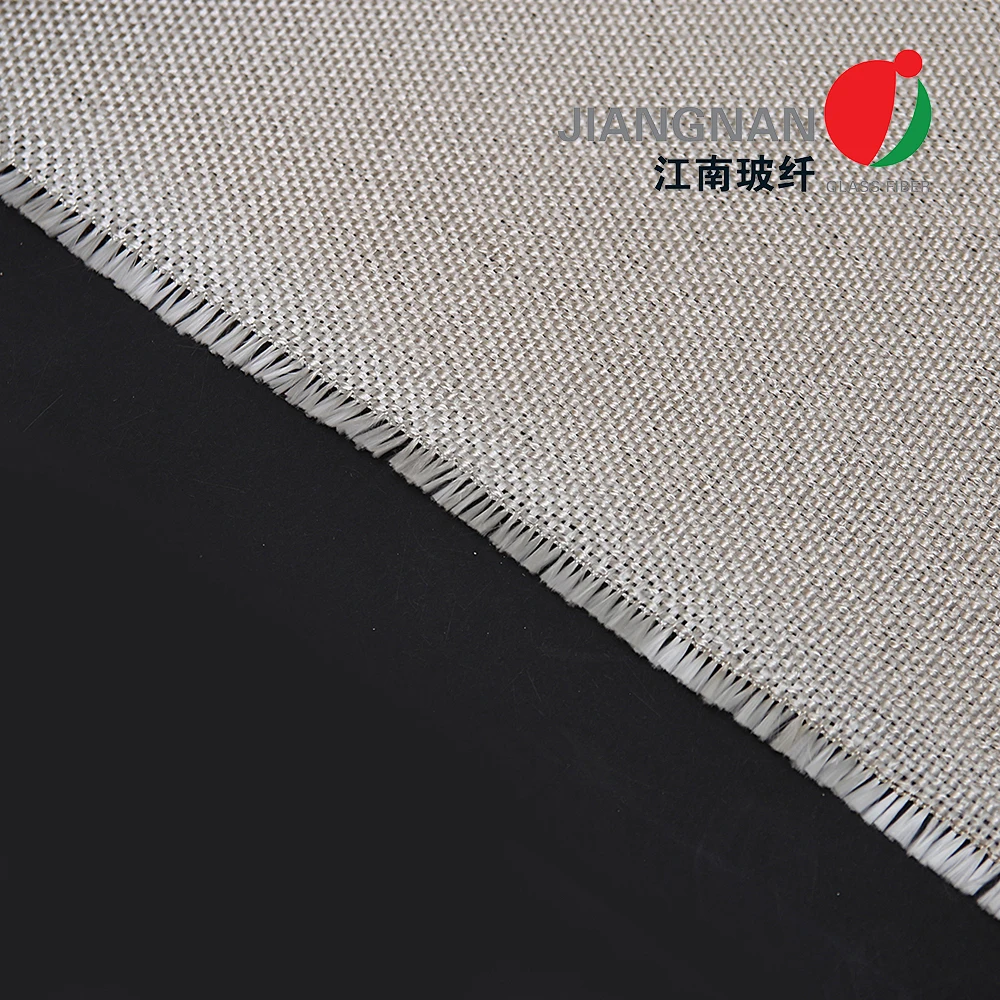

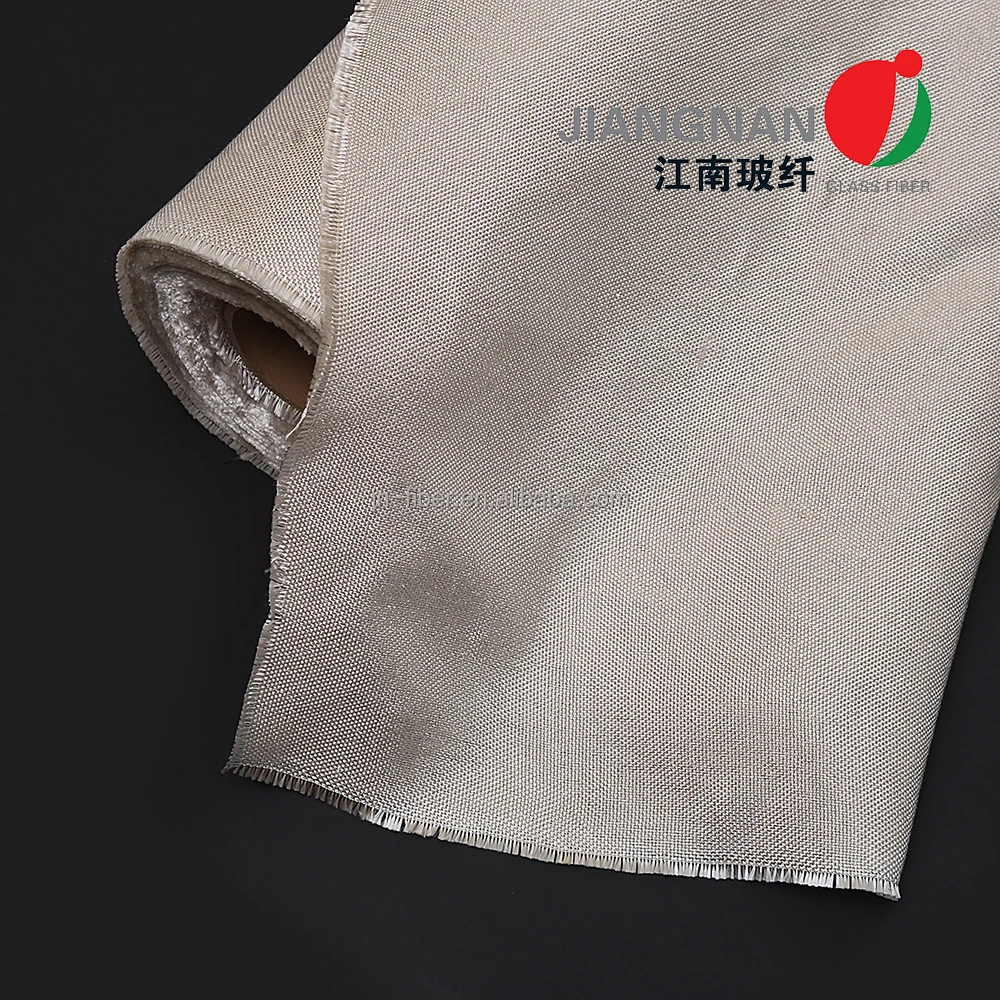

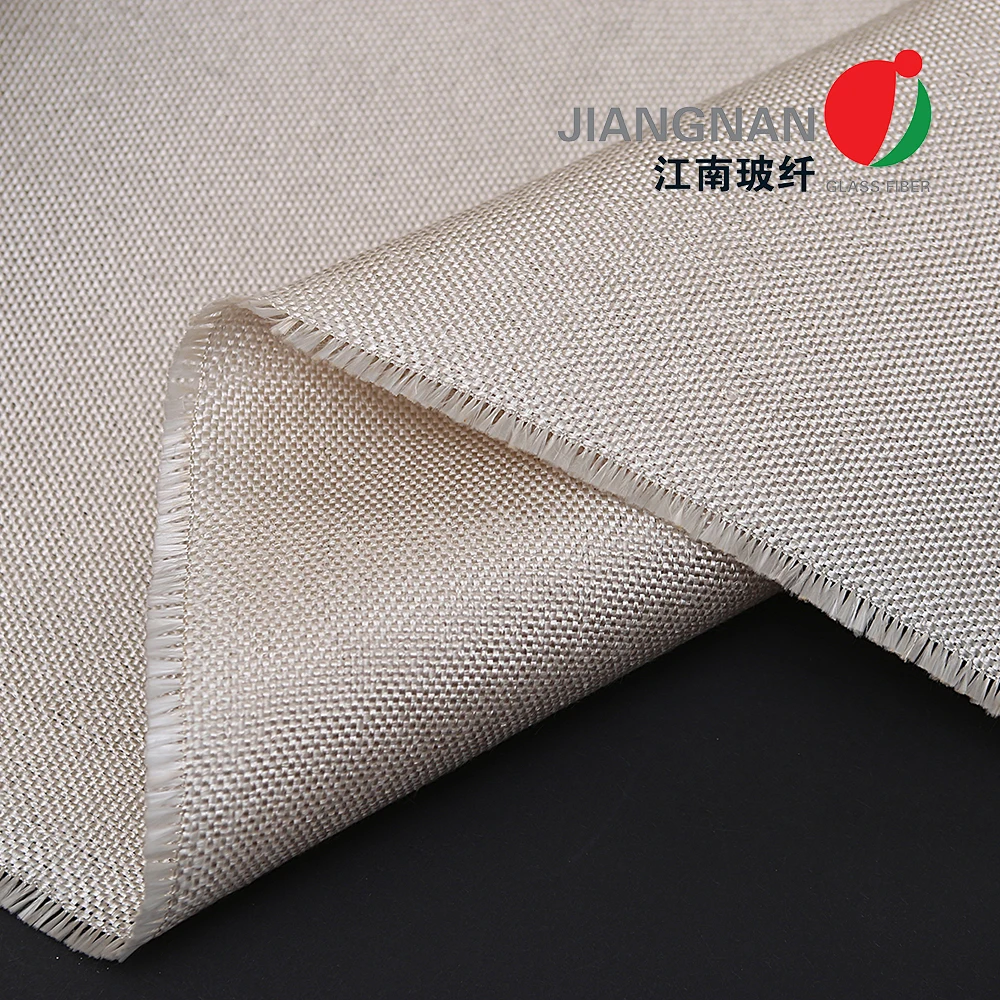

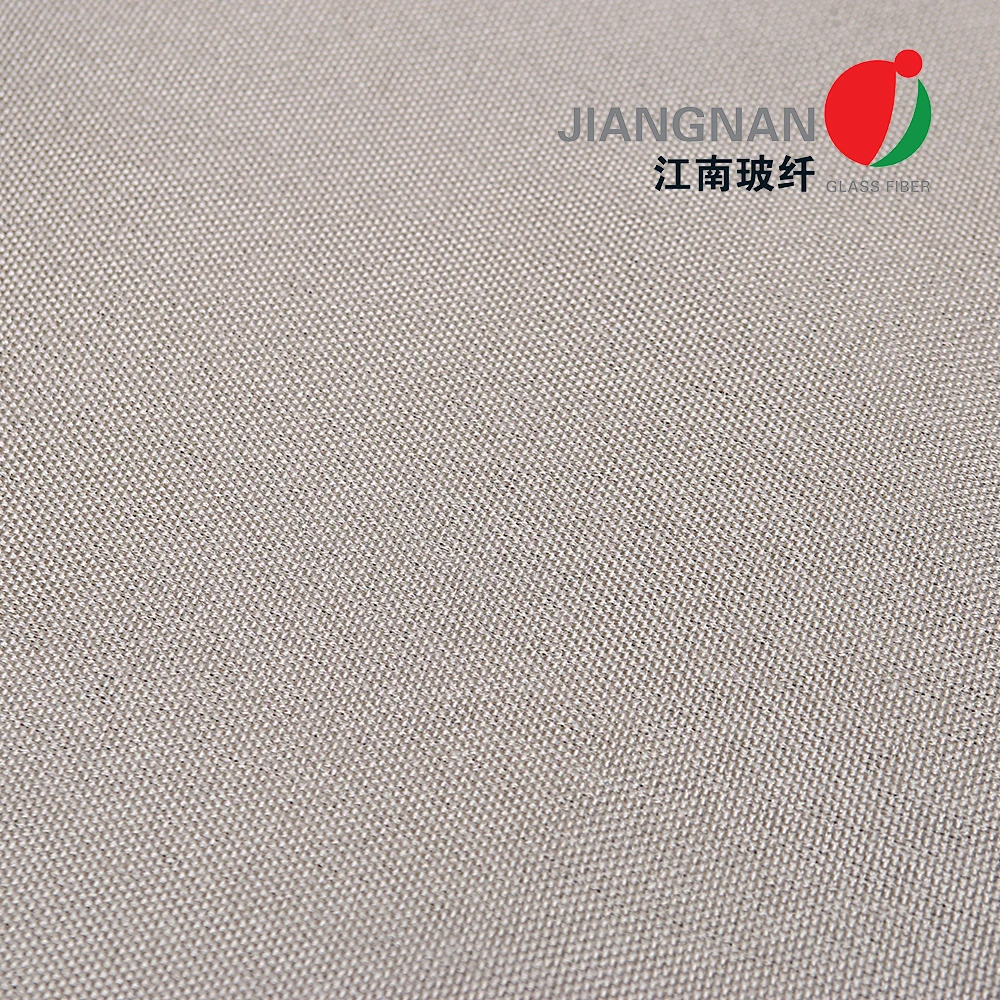

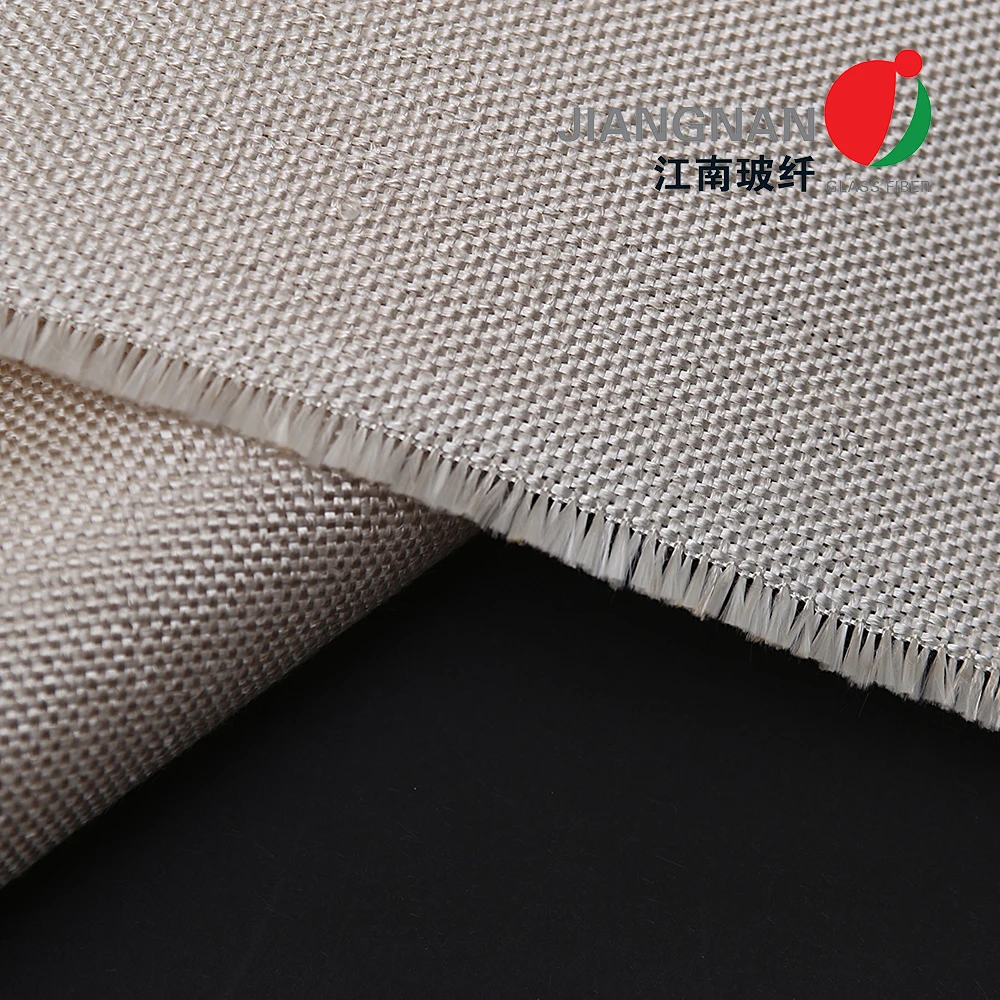

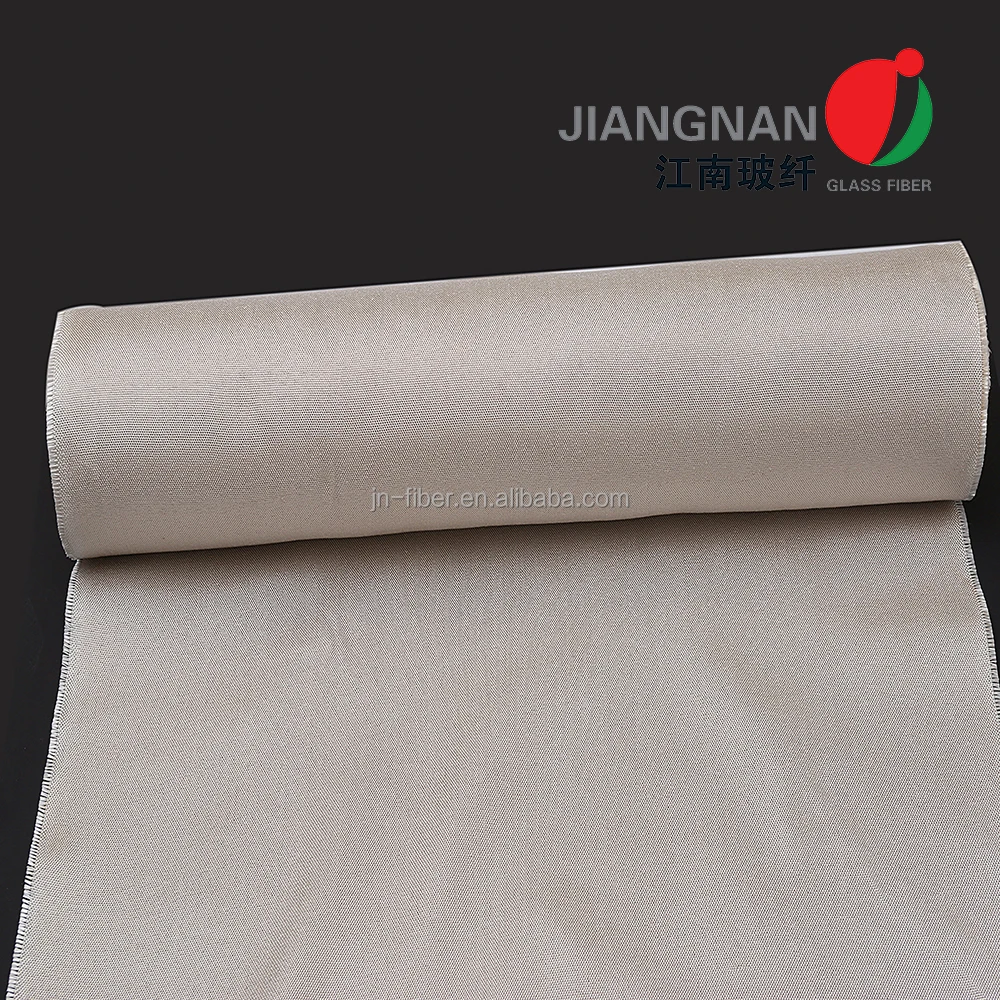

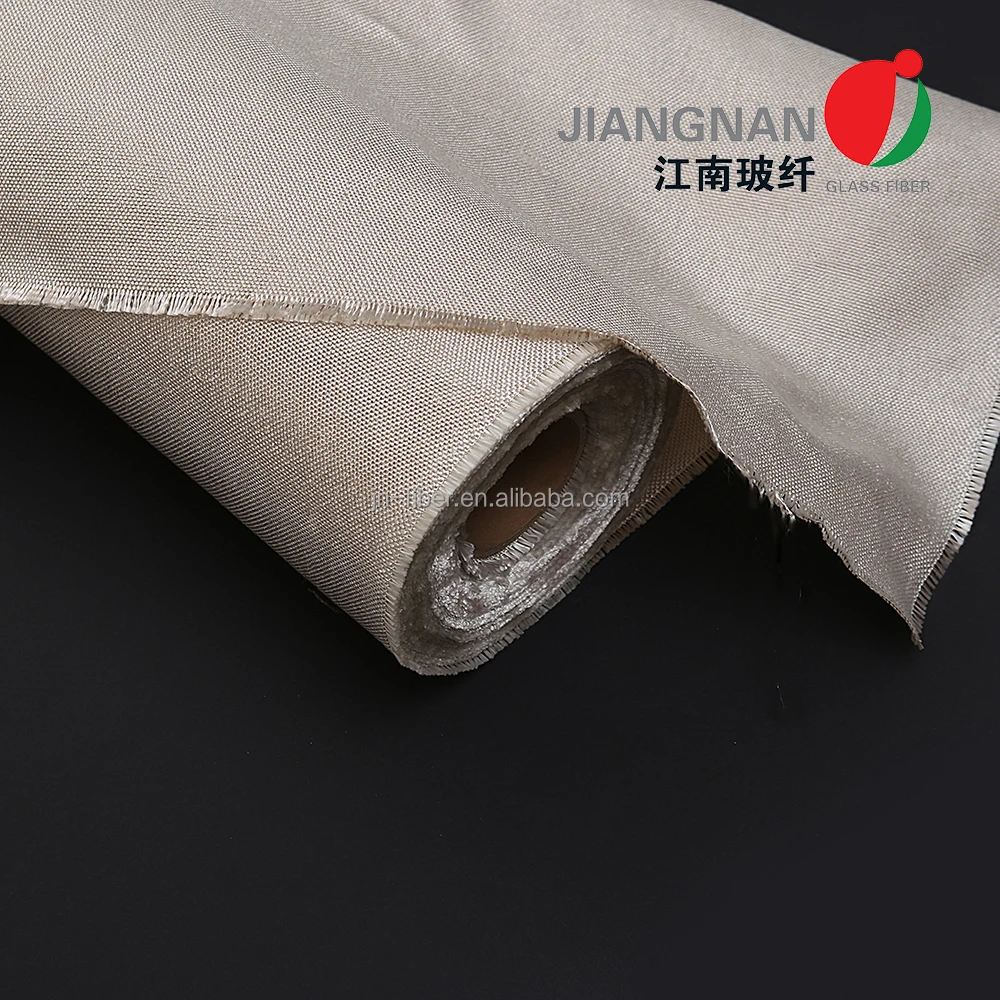

Heat Treated Fiberglass Cloth Smoke Free Glass Fiber Fabric
Heat Treated Fiberglass Fabrics is fiberglass fabric conducted with heat treatment to remove organic elements in fabrics. The process improves weave stability and smoke-free during hot work application, and the cloth will change to brown color.It is no difference from fiberglass loomestate, but expecially for the application where smoke is not allowed.
used in the temperature from -70ºC to 550º
good flexibility and high surface friction
chemical corrosion resistance
good flexibility and high surface friction
chemical corrosion resistance
1. Used as welding blanket, filter bag, fire resistance curtain.
2. Cover materials for Tadpole seals
3. Insulation layers in expansion joint.
4. Insulation mattress/jacket cover material
2. Cover materials for Tadpole seals
3. Insulation layers in expansion joint.
4. Insulation mattress/jacket cover material
Application
Welding Blanket is the ideal Protective device outfitted for the large shopping malls, supermarkets and recreational facilities in which the welding and cutting have to be conducted. It can effectively separate the object from heat sources and spark-spreading zones to block or isolate the fire. It is also the ideal packing material to wrap the objestc and equipments with a rough surface
How To Choose Basic For Welding Blankets?
Sparks Levels | Spark Description | Cloth Type | Welding Cloth Thickness |
Light Duty Sparks | General Purpose Weling, light Sparks and Small Spatter | HT3732 | 0.4mm |
Medium Duty Sparks | Heavier Welding, Sparks, Spatter and Light Slag. | HT2025/HT800 | 0.6/0.8mm |
Heavy Duty Sparks | Heavy Sparks, Spatter, Slag and Molten Metal. | HT3788 | 1.6mm |
