Full Automatic Carpet Washing & Centrifuge Machine Monster Double 4200 White
- Category: >>>
- Supplier: KOMMAN MAKINA MEKATRONIK HAVA VE KARA TASITLARI ANONIM SIRKETI
Share on (10000007618800):
Product Overview
Description
Product Description

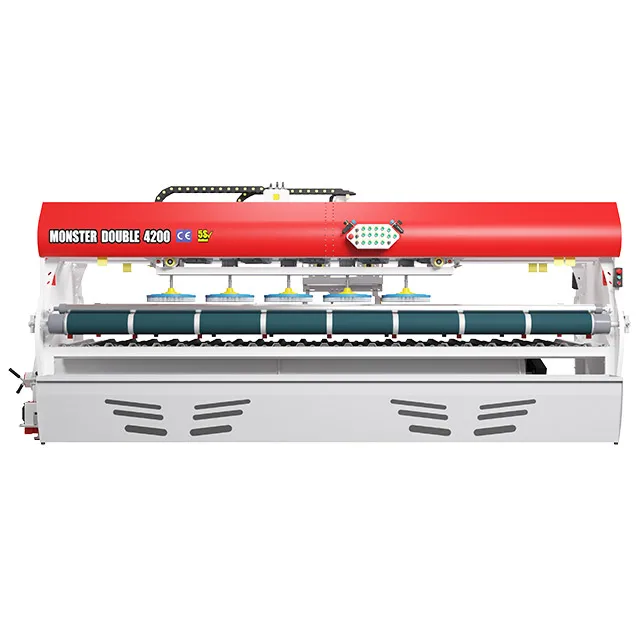

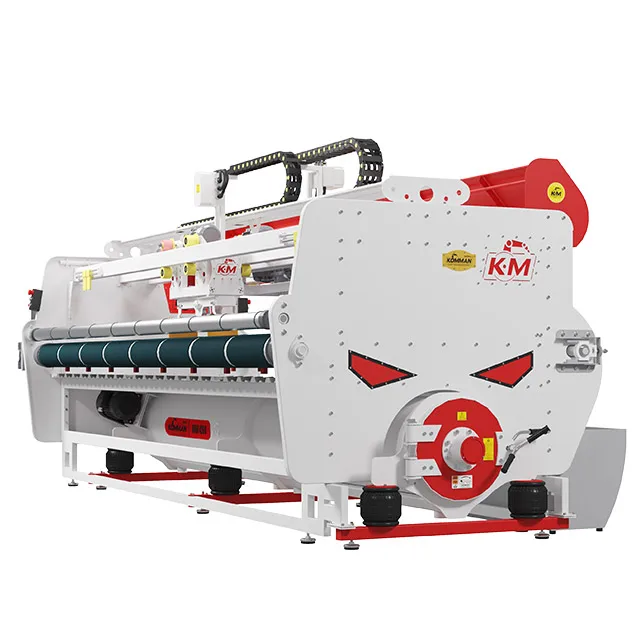

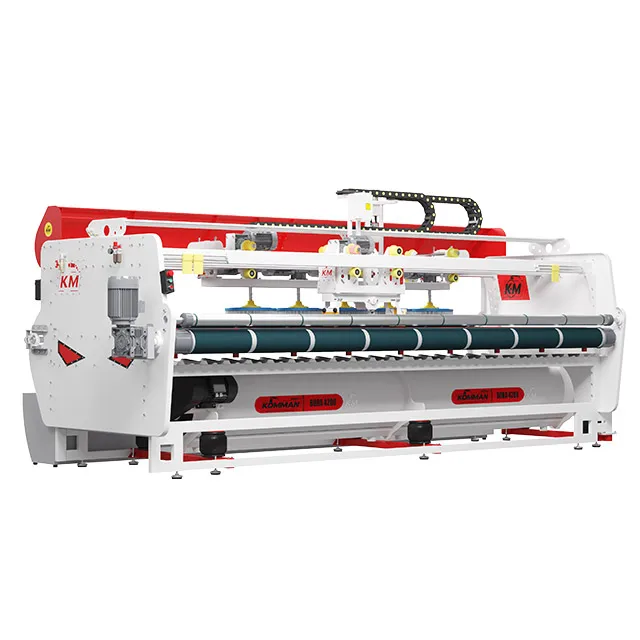

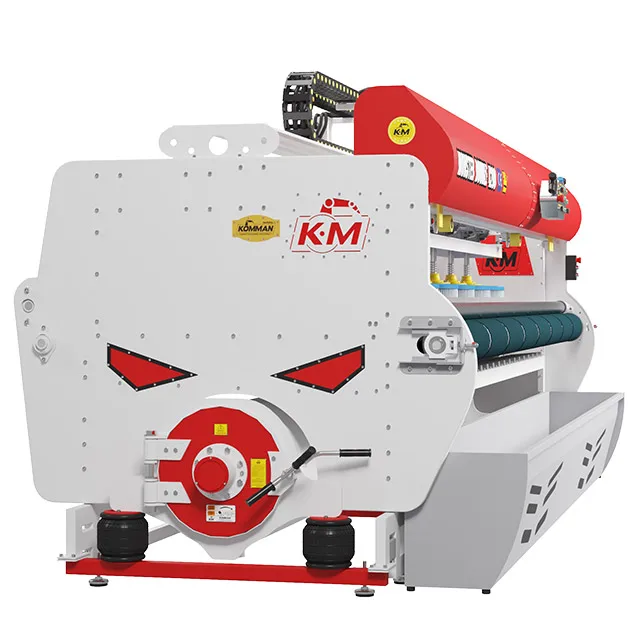

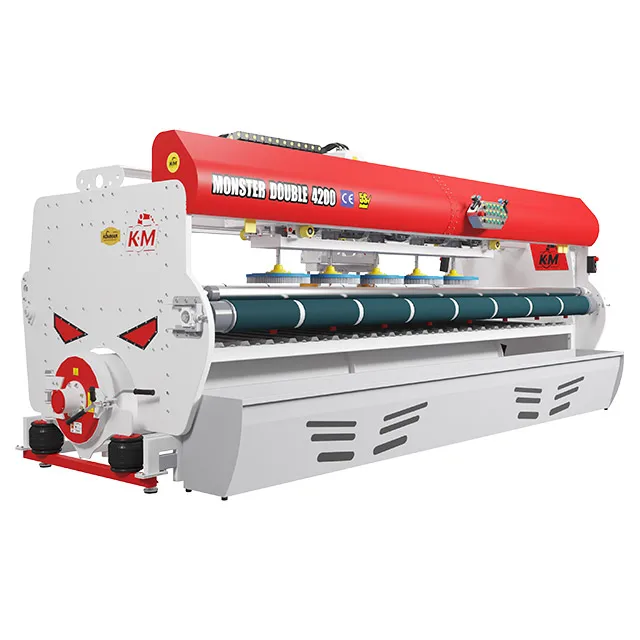

CARPET WASHING & CENTRIFUGE MACHINE MONSTER DOUBLE 4200 WHITE
MONSTER DOUBLE 4200 Technical Specifications:
It has been designed as a compact machine with a total of 5 brushes, and both washing and wringing machine features are presented
together.
It provides a great advantage to our valuable users in terms of space saving.
* 5 disc type brushing system
* Large diameter and 5 mm thick high strength conveyor drums
* Large diameter and high strength linear trolley shears
* Pneumatic carpet pressure system
* Spring pressure system for a homogeneous pressure on the carpet.
* Squeegee and rinsing system
* Moving rinse water system
* Carpet wrapping unit
* Possibility to wash all kinds of carpets
* 1st quality compact endless conveyor belt. ( Chemical resistant )
* Socket, adjustable belt tension and segmented belt system.
* Versatile, easy-to-use automation directory
* Pre-wetting system
* Optimum operation of the machine with horizontal movement control according to the width of the carpet.
* Possibility to control the speed of all units in the system thanks to the AC drives in the automation infrastructure
* The machines have been designed compactly with the mass production model and manufacturing and workmanship errors have been
reduced to the level of the automotive industry.
* Minimum failure level
* Manufacturing according to the principle of working in the most severe conditions.
* Maximum output level with low energy and water consumption.
* Optionally, it can be produced as chrome, galvanized or epoxy oven painted.
* 4.20 Belt width - Compact endless conveyor belt
* Total Number of Brushes: 5
* Voltage: 380-50 / V-Hz
* Brush Motor Power: 1.1 KW
* Brushing units: 5 Disc Brushes
* Total Power: 14 KW
* Disc Brushes Motor Speed: 1400 rpm
* Brush Cycle: 200 rpm
* Brush Diameter: 420 mm
* 720 square meters carpet cleaning in 8 hours
* A carpet of 6 square meters can be washed in an average of 3 minutes.
* Carpet washing speed 1m/min per minute
* Electricity Consumption in 1 Hour: 11.50 KWh
* Width x Length x Height:1930 x 5380 x 2000 mm
Bora 4200 Carpet Spinning Machine Technical Specifications:
Ø Outer Drum Galvanized and Epoxy Primer Ship Painted
Ø Inner Drum Chrome Stainless
Ø Anti-Vibration Bellows and Shock Absorber System
Ø Strong and Long-Lasting Bedding
Ø Drum Cover Wear Resistant European Polyethylene Material
* Inner Drum Length: 4200 mm
* Inner Drum Thickness: 3 mm
* Inner Drum Diameter: 380 mm
* Engine Power: 5.5 kW
* Weight: 530 kg
* Dimensions:1100*4800*1400
* Capacity: 500 m²/hour
It has been designed as a compact machine with a total of 5 brushes, and both washing and wringing machine features are presented
together.
It provides a great advantage to our valuable users in terms of space saving.
* 5 disc type brushing system
* Large diameter and 5 mm thick high strength conveyor drums
* Large diameter and high strength linear trolley shears
* Pneumatic carpet pressure system
* Spring pressure system for a homogeneous pressure on the carpet.
* Squeegee and rinsing system
* Moving rinse water system
* Carpet wrapping unit
* Possibility to wash all kinds of carpets
* 1st quality compact endless conveyor belt. ( Chemical resistant )
* Socket, adjustable belt tension and segmented belt system.
* Versatile, easy-to-use automation directory
* Pre-wetting system
* Optimum operation of the machine with horizontal movement control according to the width of the carpet.
* Possibility to control the speed of all units in the system thanks to the AC drives in the automation infrastructure
* The machines have been designed compactly with the mass production model and manufacturing and workmanship errors have been
reduced to the level of the automotive industry.
* Minimum failure level
* Manufacturing according to the principle of working in the most severe conditions.
* Maximum output level with low energy and water consumption.
* Optionally, it can be produced as chrome, galvanized or epoxy oven painted.
* 4.20 Belt width - Compact endless conveyor belt
* Total Number of Brushes: 5
* Voltage: 380-50 / V-Hz
* Brush Motor Power: 1.1 KW
* Brushing units: 5 Disc Brushes
* Total Power: 14 KW
* Disc Brushes Motor Speed: 1400 rpm
* Brush Cycle: 200 rpm
* Brush Diameter: 420 mm
* 720 square meters carpet cleaning in 8 hours
* A carpet of 6 square meters can be washed in an average of 3 minutes.
* Carpet washing speed 1m/min per minute
* Electricity Consumption in 1 Hour: 11.50 KWh
* Width x Length x Height:1930 x 5380 x 2000 mm
Bora 4200 Carpet Spinning Machine Technical Specifications:
Ø Outer Drum Galvanized and Epoxy Primer Ship Painted
Ø Inner Drum Chrome Stainless
Ø Anti-Vibration Bellows and Shock Absorber System
Ø Strong and Long-Lasting Bedding
Ø Drum Cover Wear Resistant European Polyethylene Material
* Inner Drum Length: 4200 mm
* Inner Drum Thickness: 3 mm
* Inner Drum Diameter: 380 mm
* Engine Power: 5.5 kW
* Weight: 530 kg
* Dimensions:1100*4800*1400
* Capacity: 500 m²/hour
