12V 24V LiFePO4 pack 50A 100A 200A Lithium Battery Pack to Replace Lead Acid Battery Solar Storage Battery
- Category: >>>
- Supplier: Shenzhen King Sako Electronics Co. Ltd.
Share on (10000007636565):
Product Overview
Description
Details Images

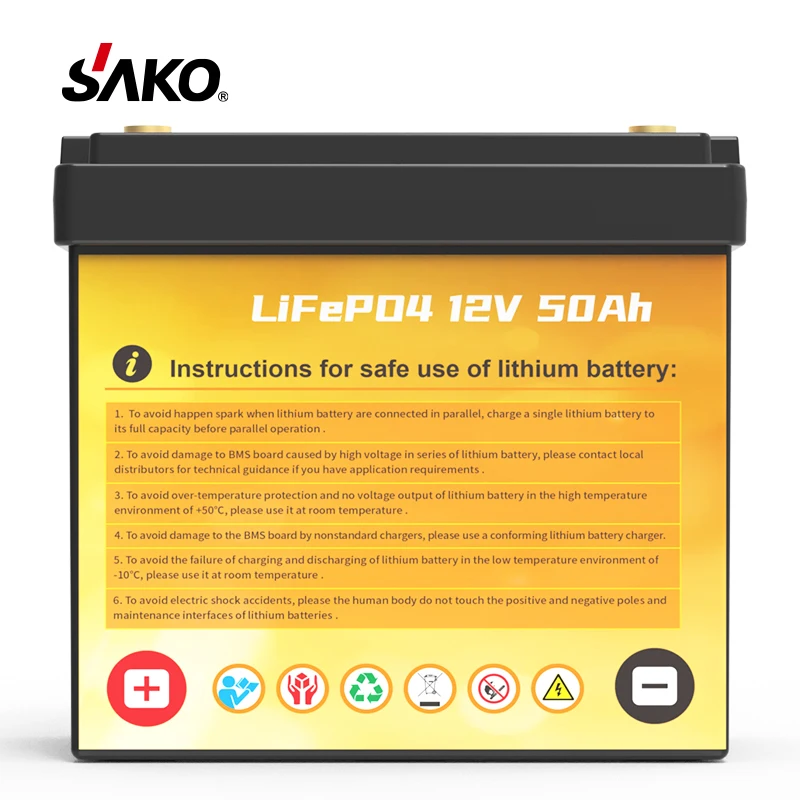

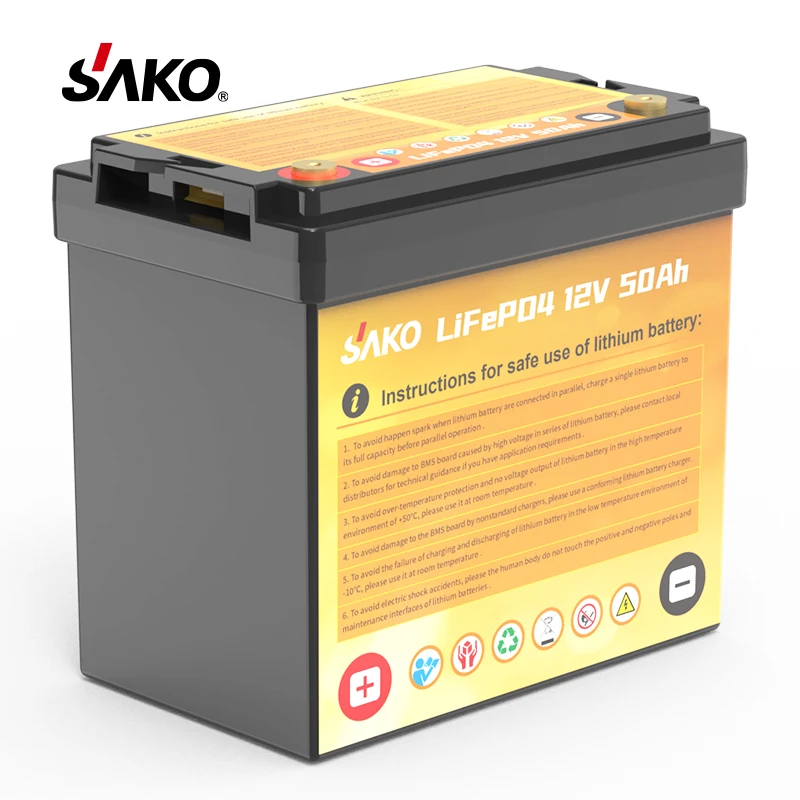

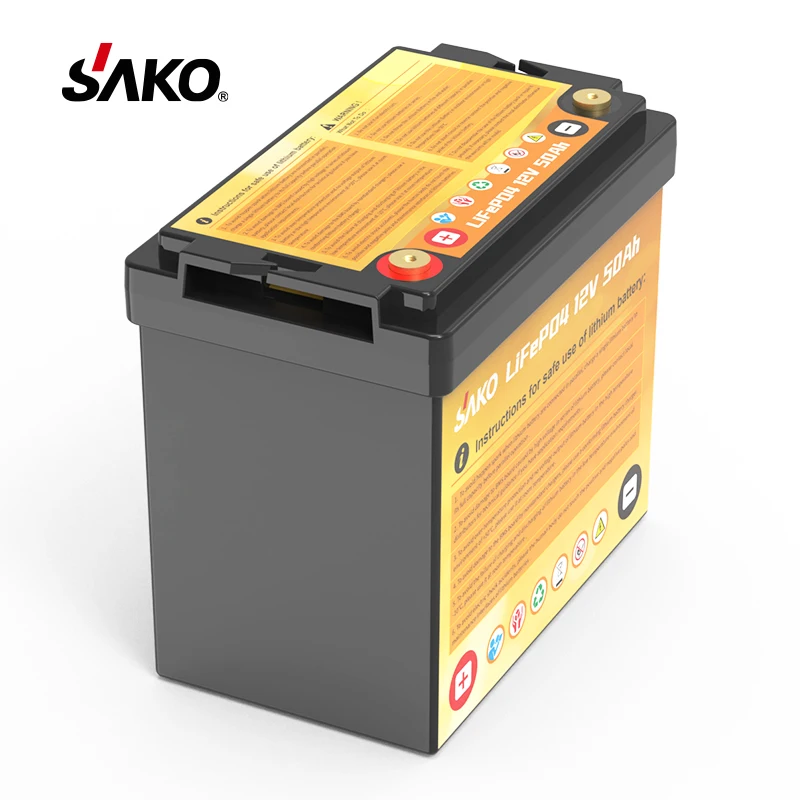

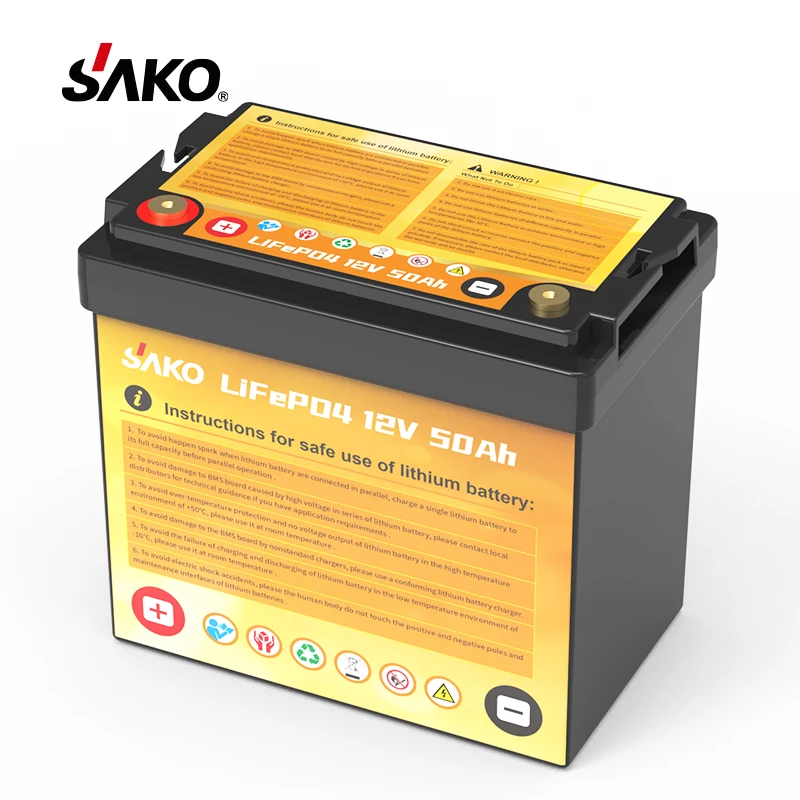

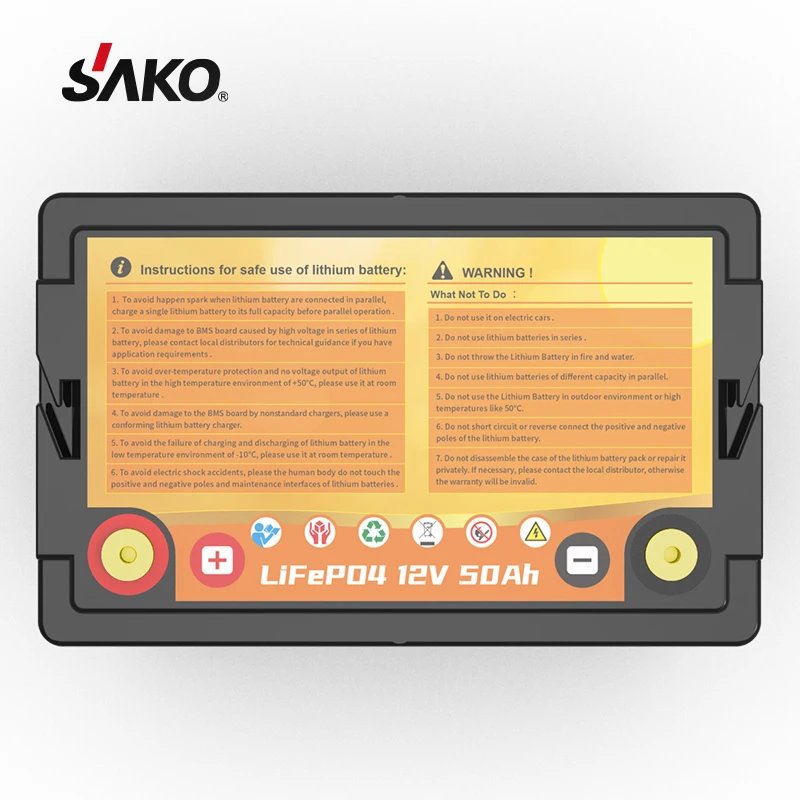

12V 24V LiFePO4 pack 50A 100A 200A Lithium Battery Pack to Replace Lead Acid Battery , 3000 cycles with Smart BMS
12V 24V LiFePO4 pack, safe and reliable.
Top brand cell such as CATL，BYD
Long life design, cells cycle time up to 3000times
With intelligent BMS system, max discharge current up to 200A.
With cell equalizer, can balance all cells in short time.
Optional for bluetooth monitor .
High density, small size and weight
All around protection functions
Application
Storage solar system, UPS power bank, Inverter power bank, Railway power bank, Telecommunication
power system, Medical electronics, Commercial finance,Security communications, Transportation logistics and so on
power system, Medical electronics, Commercial finance,Security communications, Transportation logistics and so on
MODEL | Li-MAX-12.8V50AH | Li-MAX-12.8V100AH | Li-MAX-12.8V200AH | Li-MAX-25.6V100AH | ||||
SPECIFICATION | ||||||||
Battery Type | LiFePO4 | |||||||
Normal Battery Voltage(Vdc) | 12.8V | 12.8V | 12.8V | 25.6V | ||||
Normal Capacity(25℃，0.2C）（WH） | 640WH | 1280WH | 2560WH | 2560WH | ||||
Voltage window (Vdc) | 11.2～14.6V | 11.2～14.6V | 11.2～14.6V | 22.4～29.2V | ||||
Folat Charge Voltage(Vdc) | 13.8V | 13.8V | 13.8V | 27.6V | ||||
Max.continue discharge current（A） | 50 | 100 | 200 | 100 | ||||
Max.pulse discharge current（A） | 100A 1Sec. | 200A 1Sec. | 300A 1Sec. | 200A 1Sec. | ||||
Max.continue charge current（A） | 25 | 50 | 100 | 50 | ||||
Cycle life(+25℃ 0.2C 100%DOD） | ＞3000 Cycles | |||||||
Cell Equalizer Current(A) | 1~5A Max. | |||||||
Terminal | M6 | M8 | ||||||
Storage temperature | 0℃～30℃ | |||||||
Storage duration | 6 months at 25℃ | |||||||
Safety standard | UN38.3,MSDS,CE | |||||||
IP degree | IP65 | |||||||
PROTECTION | ||||||||
Protection | Overcharge protection、Overdischarge protection、Overcurrent protection、Shortcircuit protection、 Overtemperature protection | |||||||
AMBIENT | ||||||||
working Temperature | -10℃～+50℃ | |||||||
Humidity | 0~95% ( no condensation) | |||||||
Sea Level(m) | ≤1500 | |||||||
DIMENSION | ||||||||
L×W×H (products size) mm | L231xW145xH211mm | L332xW172xH220mm | L522xW238xH218mm | L522xW238xH218mm | ||||
L×W×H (package size) mm | L239xW154xH252mm | L342xW181xH265mm | L532xW252xH268mm | L532xW252xH268mm | ||||
Weight(NW Kg) | 5.5Kg | 12.0Kg | 27.0Kg | 27.0Kg | ||||
Weight(GW Kg) | 6.0Kg | 13.0Kg | 28.0Kg | 28.0Kg | ||||
20FT QTY( UNIT) | ||||||||
Recommend Products
Buyer Feedback
Company Profile
Our Partners
Product packaging
FAQ
Q 1.Would you accept to use our logo ?
A:All of our products are accepted to print your logo on the enclosure and package box, it depends on the amount, from 200pcs to 1000pcs.
Q 2.We want to know month capacity.
A:20000-30000PCS per Month.
Q 3.how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q 4. What kind of certificate you have ?
A:CE/TUV/CE/ISO/CB/UL/ROHS certificates.etc.
Q5. Are you a factory or trading company?
Yes,we are factory, supplying OEM/ODM service.
Q 6.How to pay for solar controller?
A:We accept paypal, western union, T/T. If you have any good payment, we also can accept.
Q 7.How to choose suitable inverter?
A:If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.
Q8.How do I choose the size of the inverter?
A:Different types of load demand for power are different. You can view the load power values to determine the size of the power inverter.
Q9.what can you buy from us?
A:Solar Gel Battery,Lead Acid Battery,Solar Off-grid System,Lithium Battery,Battery Balancer,Solar Panel
A:All of our products are accepted to print your logo on the enclosure and package box, it depends on the amount, from 200pcs to 1000pcs.
Q 2.We want to know month capacity.
A:20000-30000PCS per Month.
Q 3.how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q 4. What kind of certificate you have ?
A:CE/TUV/CE/ISO/CB/UL/ROHS certificates.etc.
Q5. Are you a factory or trading company?
Yes,we are factory, supplying OEM/ODM service.
Q 6.How to pay for solar controller?
A:We accept paypal, western union, T/T. If you have any good payment, we also can accept.
Q 7.How to choose suitable inverter?
A:If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.
Q8.How do I choose the size of the inverter?
A:Different types of load demand for power are different. You can view the load power values to determine the size of the power inverter.
Q9.what can you buy from us?
A:Solar Gel Battery,Lead Acid Battery,Solar Off-grid System,Lithium Battery,Battery Balancer,Solar Panel
