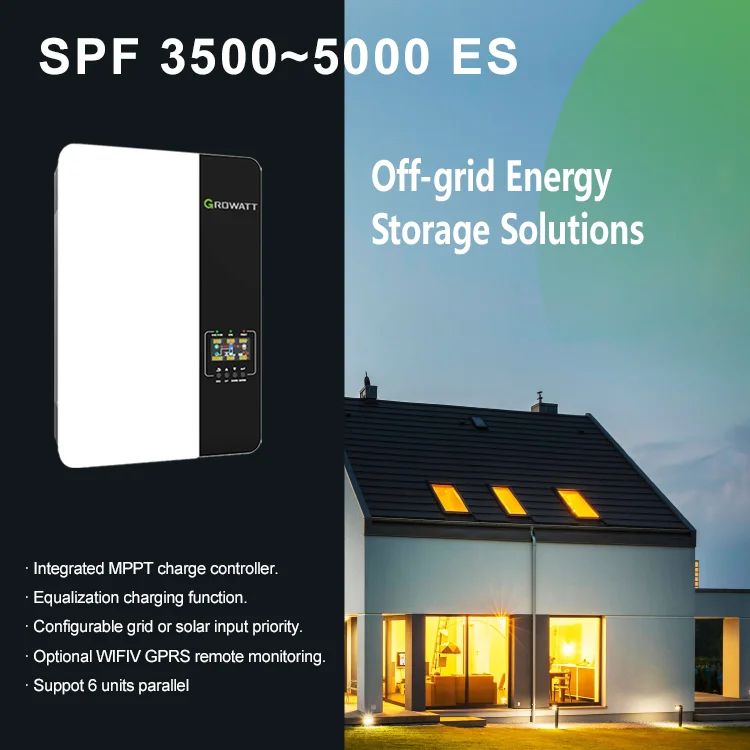

Integrated MPPT Growatt SPF 3500 5000 ES 3KW 5KW Power 48VDC 230VAC Off Grid Solar Energy Storage Pure Sine Wave Hybrid Inverter
- Category: >>>
- Supplier: Shenzhen Jidian Technology Co. Ltd.
Share on (10000007670462):

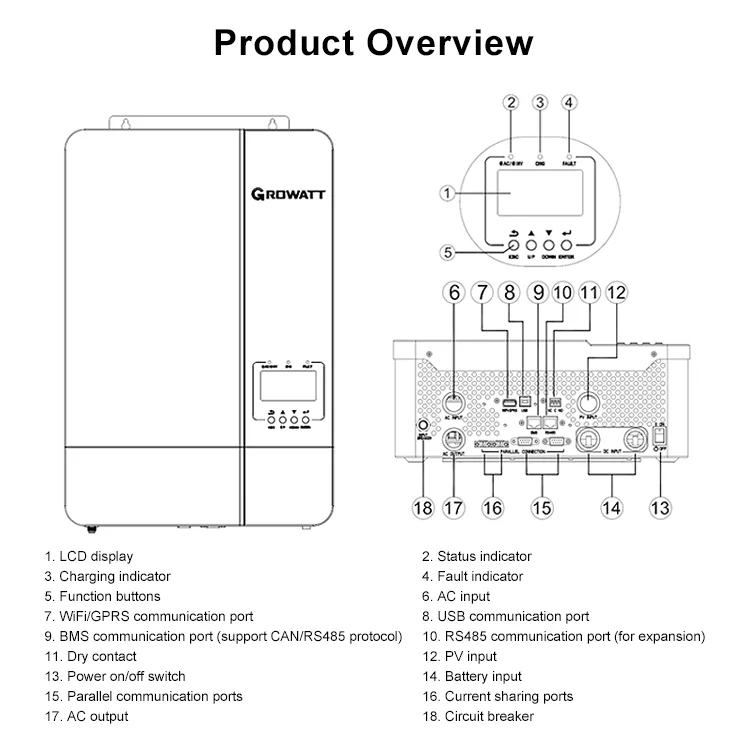

Product Overview
Description
Specification

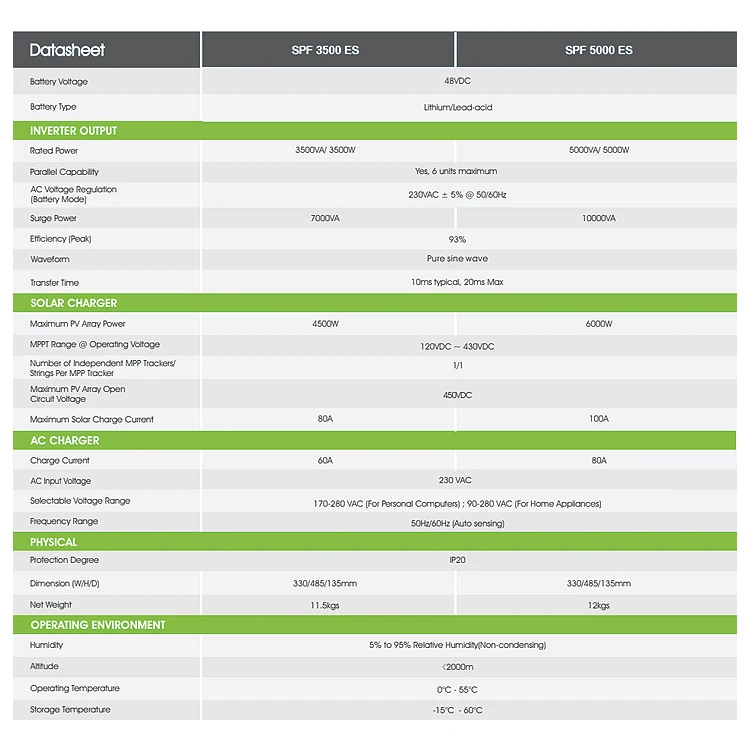

Datasheet | SPF 3500 ES | SPF 5000 ES | ||
Battery Voltage | 48VDC | |||
Battery Type | Lithium/Lead-acid | |||
INVERTER OUTPUT | ||||
Rated Power | 3500VA/ 3500W | 5000VA/ 5000W | ||

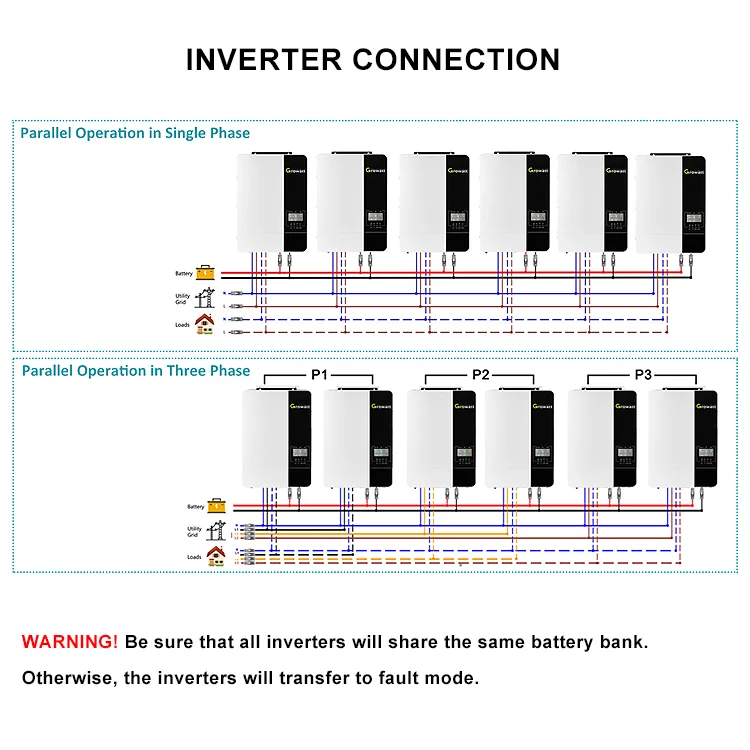

Parallel Capability | Yes, 6 units maximum | |||
AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz | |||
Surge Power | 7000VA | 10000VA | ||
Efficiency (Peak) | 93% | |||
Waveform | Pure sine wave | |||
Transfer Time | 10ms typical, 20ms Max | |||
SOLAR CHARGER | ||||
Maximum PV Array Power | 4500W | 6000W | ||
MPPT Range @ Operating Voltage | 120VDC ~ 430VDC | |||
Number of Independent MPP Trackers/ Strings Per MPP Tracker | 1/1 | |||
Maximum PV Array Open Circuit Voltage | 450VDC | |||
Maximum Solar Charge Current | 80A | 100A | ||
AC CHARGER | ||||
Charge Current | 60A | 80A | ||
AC Input Voltage | 230 VAC | |||
Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |||
Frequency Range | 50Hz/60Hz (Auto sensing) | |||
PHYSICAL | ||||
Protection Degree | IP20 | |||
Dimension (W/H/D) | 330/485/135mm | 330/485/135mm | ||
Net Weight | 11.5kgs | 12kgs | ||
OPERATING ENVIRONMENT | ||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||
Altitude | <2000m | |||
Operating Temperature | 0°C - 55°C | |||
Storage Temperature | -15°C - 60°C | |||
Product Description
Recommend Products
Company Profile
Shenzhen Jidian Technology Co.,Ltd

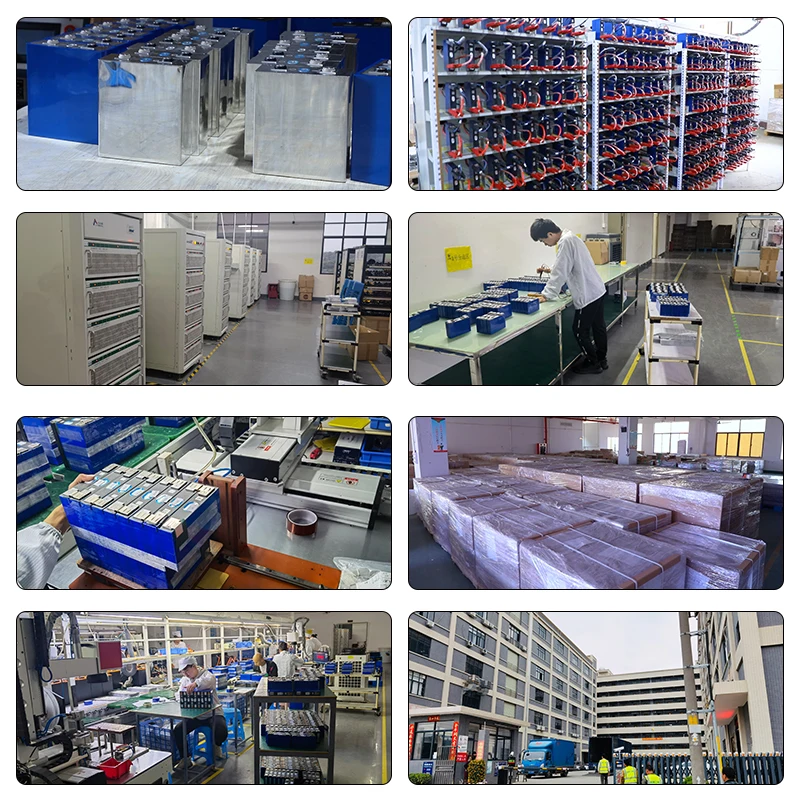

Shenzhen Jidian Technology Co.,Ltd, is an energy system solution provider, committed to provide high quality, efficient, safe and environmentally friendly smart power energy system solutions. Focus on manufacturing and design of LiFePO4 and lithium cells and integrated battery packs for Green Energy Storage Systems. We also provide the full services of customized battery products, including battery design, development, selection cells and BMS, Charger. We serve a full range of battery solution and one-stop shopping resources for customers. Our products are widely used in wireless communication devices, UPS, Tower Base Station, lighting, electrical tools, toys, medical equipment, solar energy storage systems, backup power systems and electric vehicles. We believe that our reliable quality products and good service for customers are the keys to our success. We will continue to develop products with innovative ideas and breakthrough technologies, work together with you to create a better future.
Certifications
FAQ
1. Is the freight on the website accurate?
3. Does the shipping way to our country include tax?
4. Why the transportation time is so long and the tracking number not updated in nearly a month?
5. Is this product safe?
6. How to confirm the high quality of the product you sent me?
7. The battery is so heavy, will it damaged easily on the road?
8. Is it OK to print my logo on the product?
-Please contact us before you order,the default freight on the website is basically calculated according to the usual air freight price, different countries,differentorder weight, different freight. Please contact us in time, we will provide you with the best shipping way and accurate freight.
2. The delivery time set on your system is 15 days, do I really need to wait so long?
-No, if it is not a customized order, we usually send it out within 3 working days.
3. Does the shipping way to our country include tax?
-It depends on the country and the shipping way you choose. Most Asian countries, most European countries, the United States, and Canada have tax-included shipping channels.
4. Why the transportation time is so long and the tracking number not updated in nearly a month?
-As you know, the battery (especially the high-power battery) is special commodity, the terms of transportation are very strict. We transit our products by formal DG logistic channel, it is more slowly than the normal logistic, because it needs wait the DG ship/train schedule. Due to the particularity of the product and logistic, the tracking number we provide will not updated before the goods passes the customs in your country. Don't worry, your goods is still in normal transit. When the goods passes through the customs in your country, the tracking information will updated, and you will receive it within 3-5 days.
5. Is this product safe?
-Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no explosion at any circumstance.
6. How to confirm the high quality of the product you sent me?
-Our batteries are all grade A, No matter how many you order, we will test each product before sending out.
7. The battery is so heavy, will it damaged easily on the road?
-This is also a matter of great concerm to us. After long-term improvement and verification, our packaging is now very safe and reliable. When youopen the package, you will definitely feel our sincerity.
8. Is it OK to print my logo on the product?
-Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
