S7700 48 port PoE Interface Card ES1D2G48VX5E of competitive price
- Category: >>>
- Supplier: XWIFI INDUSTRIAL LIMITED
Share on (10000007685712):
Product Overview
Description
Details Images
Installation Instructions
We will test all the switches before shipping. All the switches are new and original
S7700 48 port PoE Interface Card ES1D2G48VX5E of competitive price | |
Basic function | The ES1D2G48VX5E has two units: * Data switching unit: consists of the CPU, switching chip, and physical layer (PHY). * PoE management unit: consists of the CPU and the PSE daughter card. The ES1D2G48VX5E provides: * Forty-eight GE electrical ports for data transmission and line-rate switching * PoE++ function |
Forwarding speed | 48 Gbit/s |
Distributed forwarding | Performs concurrent data forwarding using a distributed data plane. |
Ports | The ES1D2G48VX5E is hot swappable. |

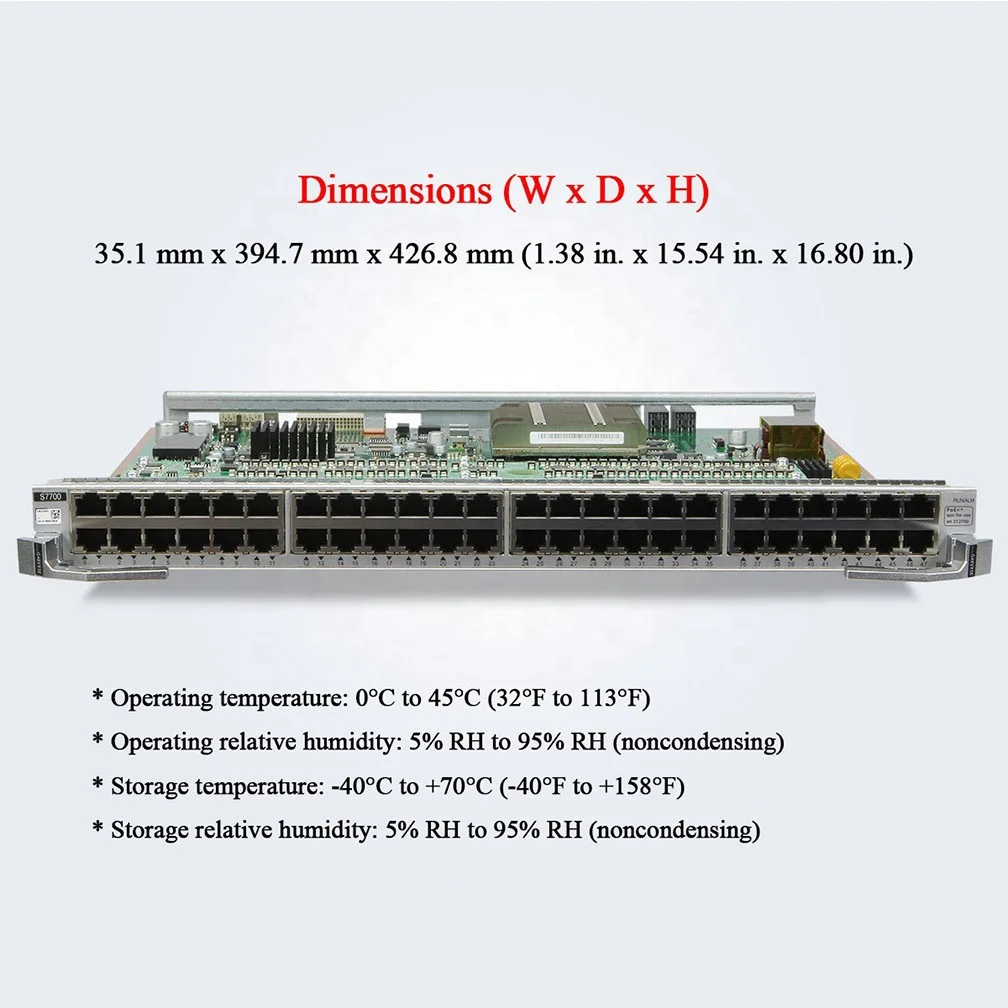

Physical specifications | * Dimensions (H x W x D): 35.1 mm x 394.7 mm x 426.8 mm (1.38 in. x 15.54 in. x 16.80 in.) * Weight: 3.35 kg (7.39 lb) * Maximum power consumption: 60 W * Maximum power: * When the card is used on the S7703, S7706, or S7712: 60 W for each port and 1440 W for the whole card * When the card is used on the S7703 PoE or S7706 PoE: 60 W for each port and 2880 W for the whole card |
Environment specifications | * Operating temperature: 0°C to 45°C (32°F to 113°F) * Operating relative humidity: 5% RH to 95% RH (noncondensing) * Storage temperature: -40°C to +70°C (-40°F to +158°F) * Storage relative humidity: 5% RH to 95% RH (noncondensing) |
S7700 48 port PoE Interface Card ES1D2G48VX5E of competitive price
The S7700 series switches (S7700 for short) are high-end smart routing switches designed for next-generation enterprise networks. The S7700 design is based on Huawei’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive HQoS policies, controllable multicast, load balancing, and security, in addition to high-performance Layer 2 to Layer 4 switching services. The S7700 also features super scalability and reliability.
The S7700 series is available in three models: S7703, S7706, and S7712. The switching capacity and port density of all three models is expandable. The S7700 is based on a new hardware platform, which adopts a left-to-rear ventilation channel to achieve better energy efficiency. Key components work in redundancy mode to minimize risks of system breakdown and service interruption. Using innovative energy-saving chips, the S7700 provides an industry-leading solution for a sustainable energy-saving network.
The S7700 series is available in three models: S7703, S7706, and S7712. The switching capacity and port density of all three models is expandable. The S7700 is based on a new hardware platform, which adopts a left-to-rear ventilation channel to achieve better energy efficiency. Key components work in redundancy mode to minimize risks of system breakdown and service interruption. Using innovative energy-saving chips, the S7700 provides an industry-leading solution for a sustainable energy-saving network.
Product Selling Points

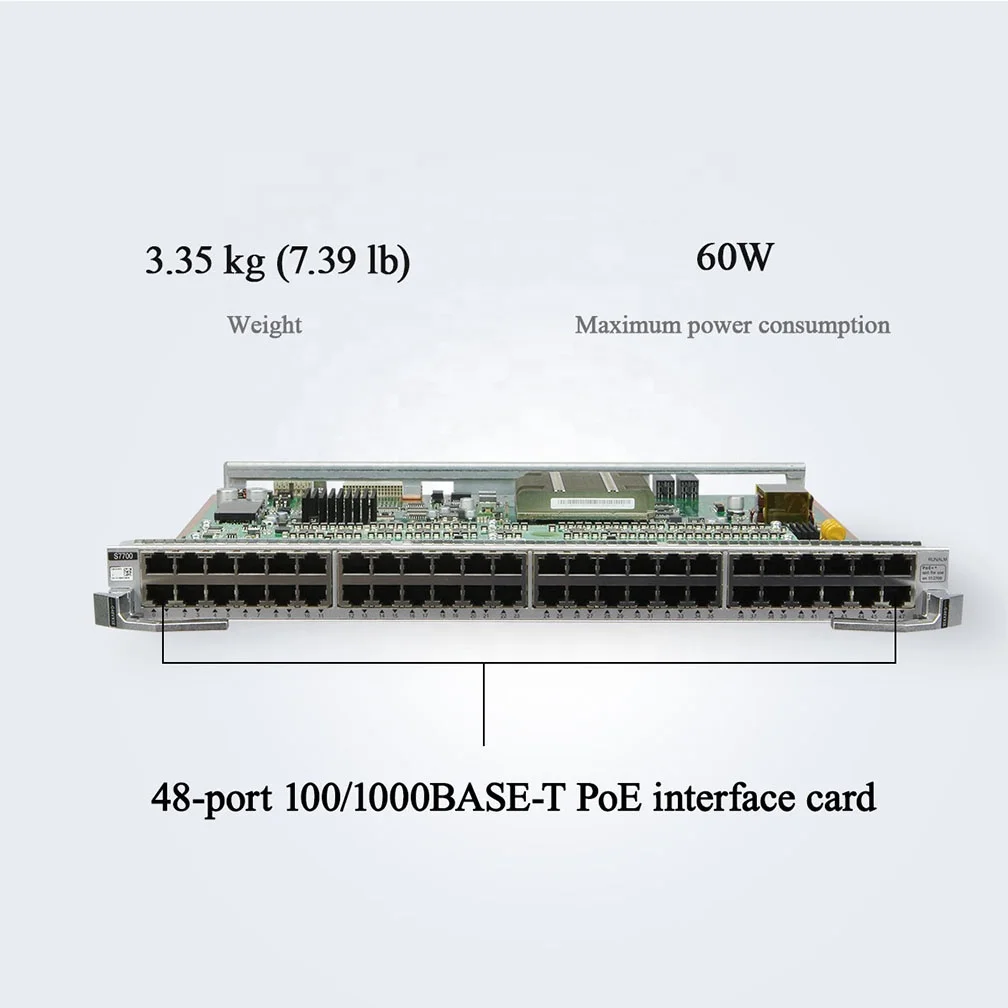

ES1D2G48VX5E-48-port 100/1000BASE-T PoE interface card (X5E, RJ45, PoE++)
S7700 Chassis Supported in V200R013C00 and later versions
S7700 Chassis Supported in V200R013C00 and later versions
Company Profile
XWIFI company provides high-end data center switches from Huawei, applied to ISP & IDC,
operating over 10 years. We are based in zhongguancun, Beijing. We aims to provide users with high-quality products and campus
network solutions by integrating market advantages through efficient supply chains. We will initiate the second phase of our
development strategy. Our company regards “ reasonable prices, efficient delivery time and good after-sales service” as our tenet.
We hope to cooperate with more customers for mutual development and benefits. Our equipment are selling well all over the world
and getting lots of best evaluation from customers. We are appreciated it if you can choose us and cooperated with us!
Choose US!!!!!
operating over 10 years. We are based in zhongguancun, Beijing. We aims to provide users with high-quality products and campus
network solutions by integrating market advantages through efficient supply chains. We will initiate the second phase of our
development strategy. Our company regards “ reasonable prices, efficient delivery time and good after-sales service” as our tenet.
We hope to cooperate with more customers for mutual development and benefits. Our equipment are selling well all over the world
and getting lots of best evaluation from customers. We are appreciated it if you can choose us and cooperated with us!
Choose US!!!!!
Product Packaging
FAQ
1.How can i get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price,please email us or contact us in other ways so that we can offer you a quote.
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price,please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
-It depends on the order quantity and the season you place the order.Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,Money Gram,and Paypal. This is negotiable.
-T/T,Western Union,Money Gram,and Paypal. This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-a. We keep good quality and competitive price to ensure our customers benefit;
-b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
-a. We keep good quality and competitive price to ensure our customers benefit;
-b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
