Product Overview
Description
Product Description
Overview

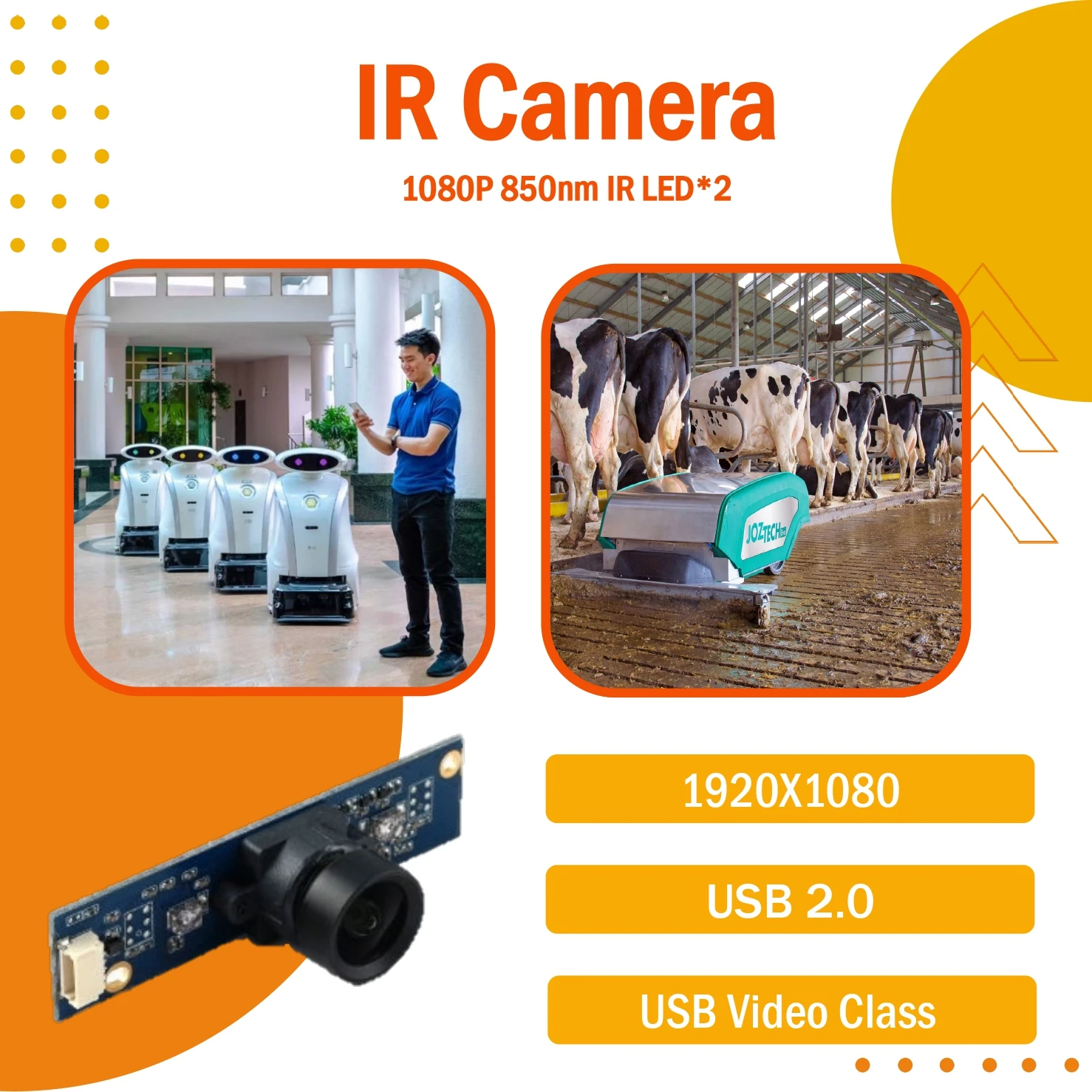

MAH-6520 not only offers up to FHD resolution (1920X1080) for IR applications to take still image, but also offers video
stream for end user to preview/record motion image through USB 2.0 interface. And It can support VGA (300K, 640x480) resolution up to 30 fps at YUY2 mode, FHD(1920x1080) resolution up to 30fps at MJPG mode.

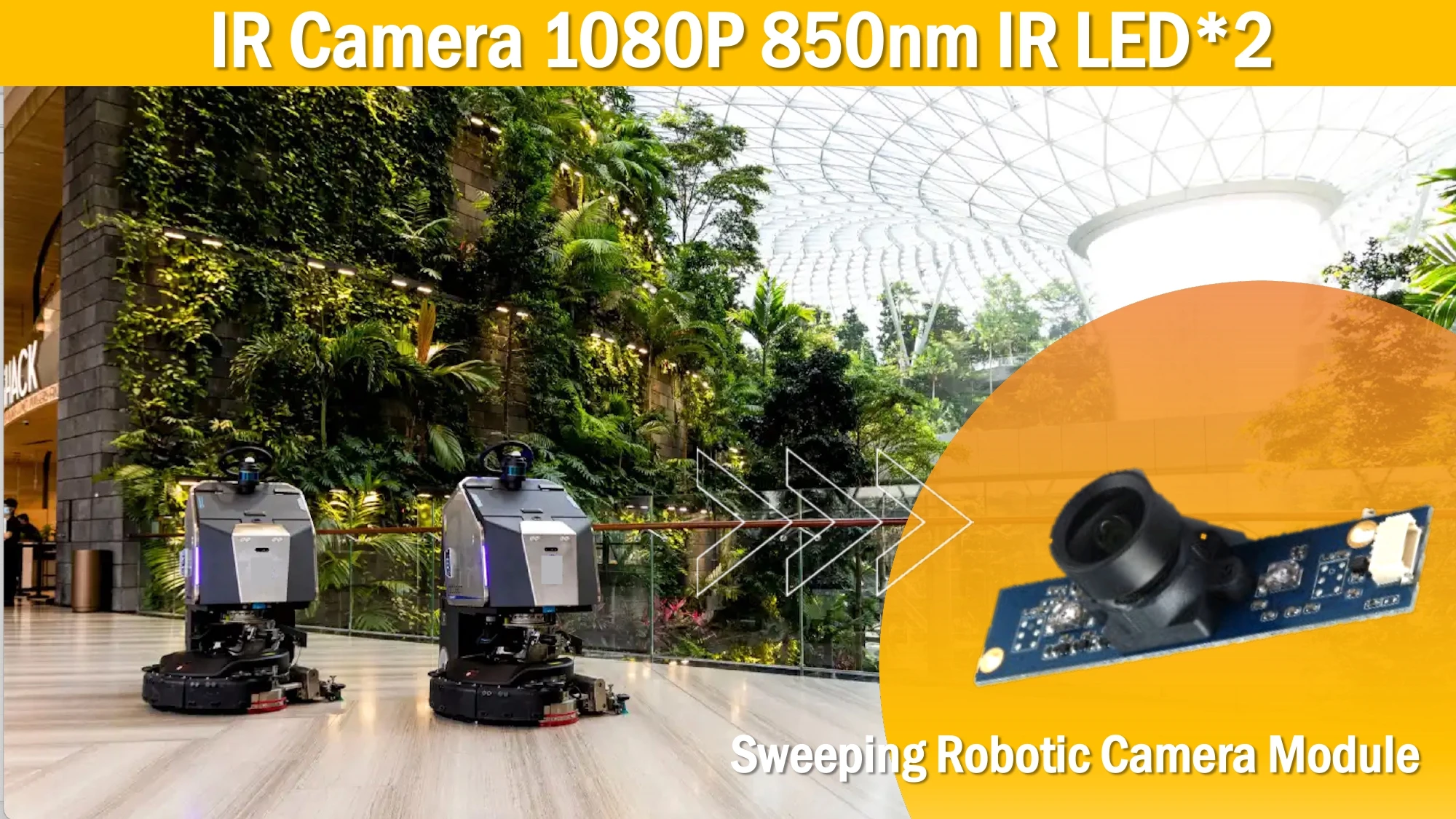

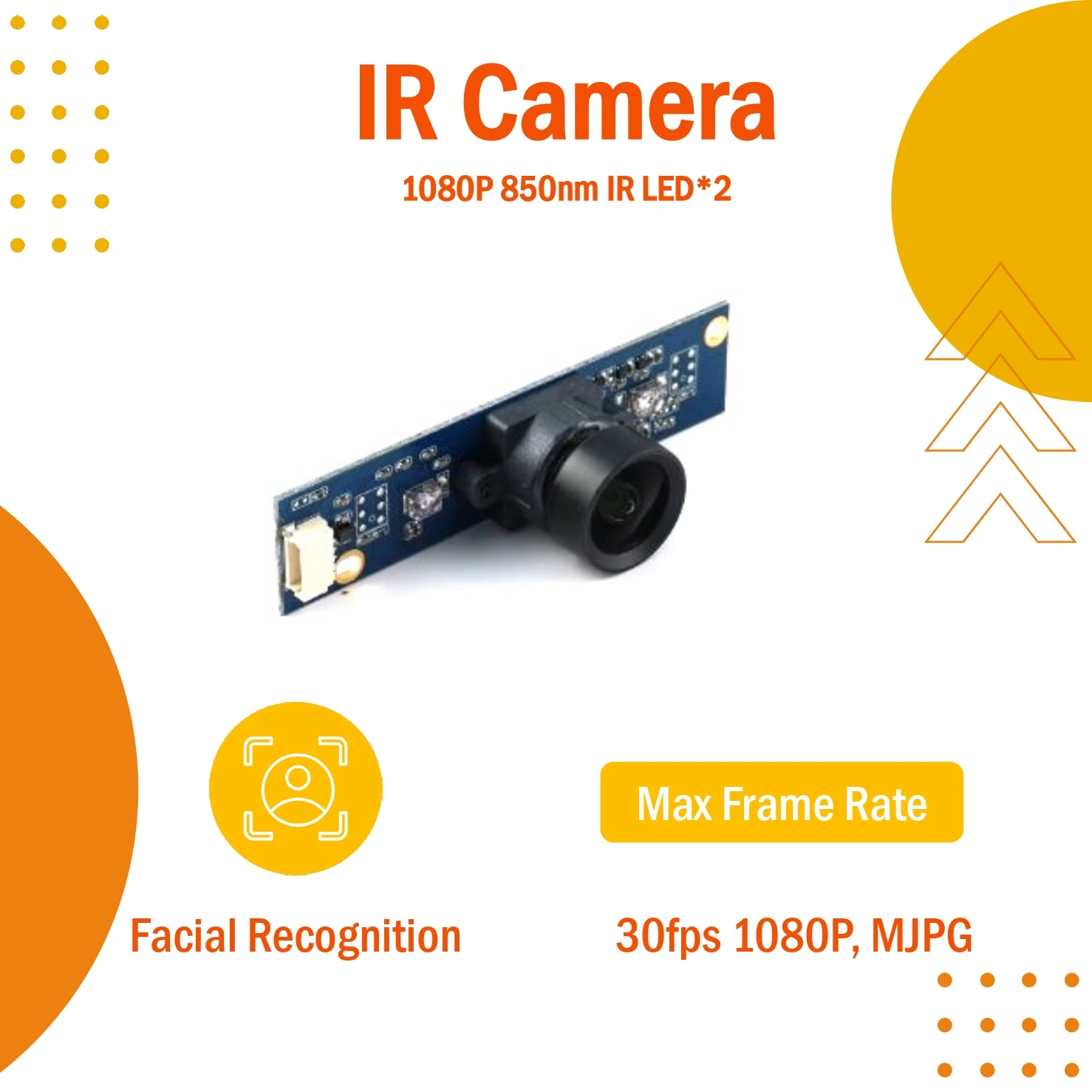

MAH-6520 equips two 850nm IR LEDs, clear images could be captured under low light operating environment. It can be used as security and/or identification in nights.
MAH-6520 is an USB Video Class (UVC) compliant camera module with video feature, designed for portable notebook PC image applications. It is made up of the following components, CMOS sensor, lens, holder, backend, PCB, image processing circuit and connector, to come out a digital video device. It shall be a reliable device which is embedded in notebook PC to transfer video data through USB interface to notebook PC.
MAH-6520 not only offers up to FHD resolution (1920X1080) for IR applications to take still image, but also offers video
stream for end user to preview/record motion image through USB 2.0 interface. And It can support VGA (300K, 640x480) resolution up to 30 fps at YUY2 mode, FHD(1920x1080) resolution up to 30fps at MJPG mode.
MAH-6520 equips two 850nm IR LEDs, clear images could be captured under low light operating environment. It can be used as security and/or identification in nights.
Module Specifications | ||

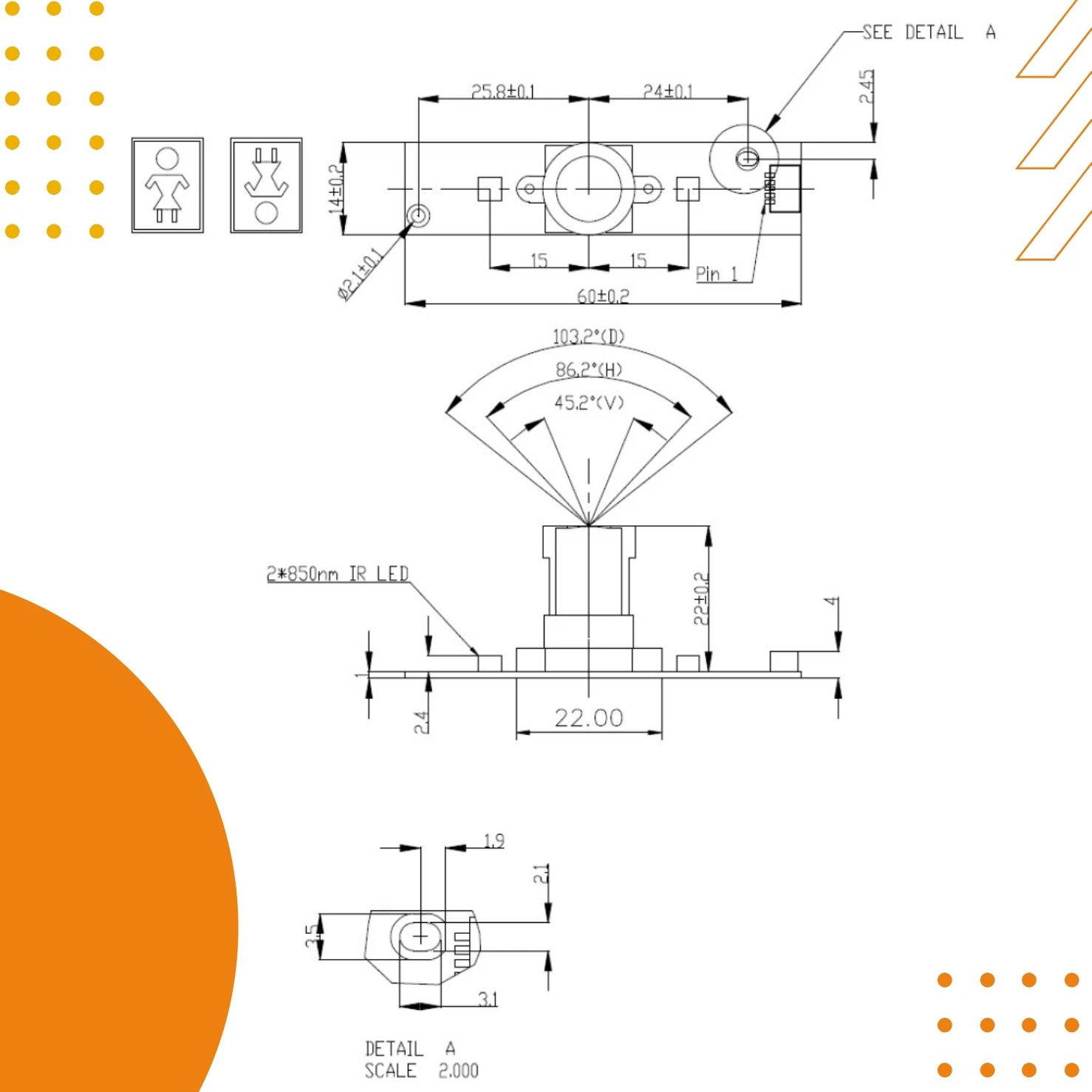

Size(LWH/mm) | 60.0 x 14.0 x 23±0.2 mm (including PCB Thickness) | |
Output Interface | USB2.0 (480Mbit/sec) & USB1.1 | |
Power Consumption | +5V | |
FHD | 1920X1080 | |
Video Class Compliant | YES | |
Operating Temperature | 0℃ to +55℃ | |

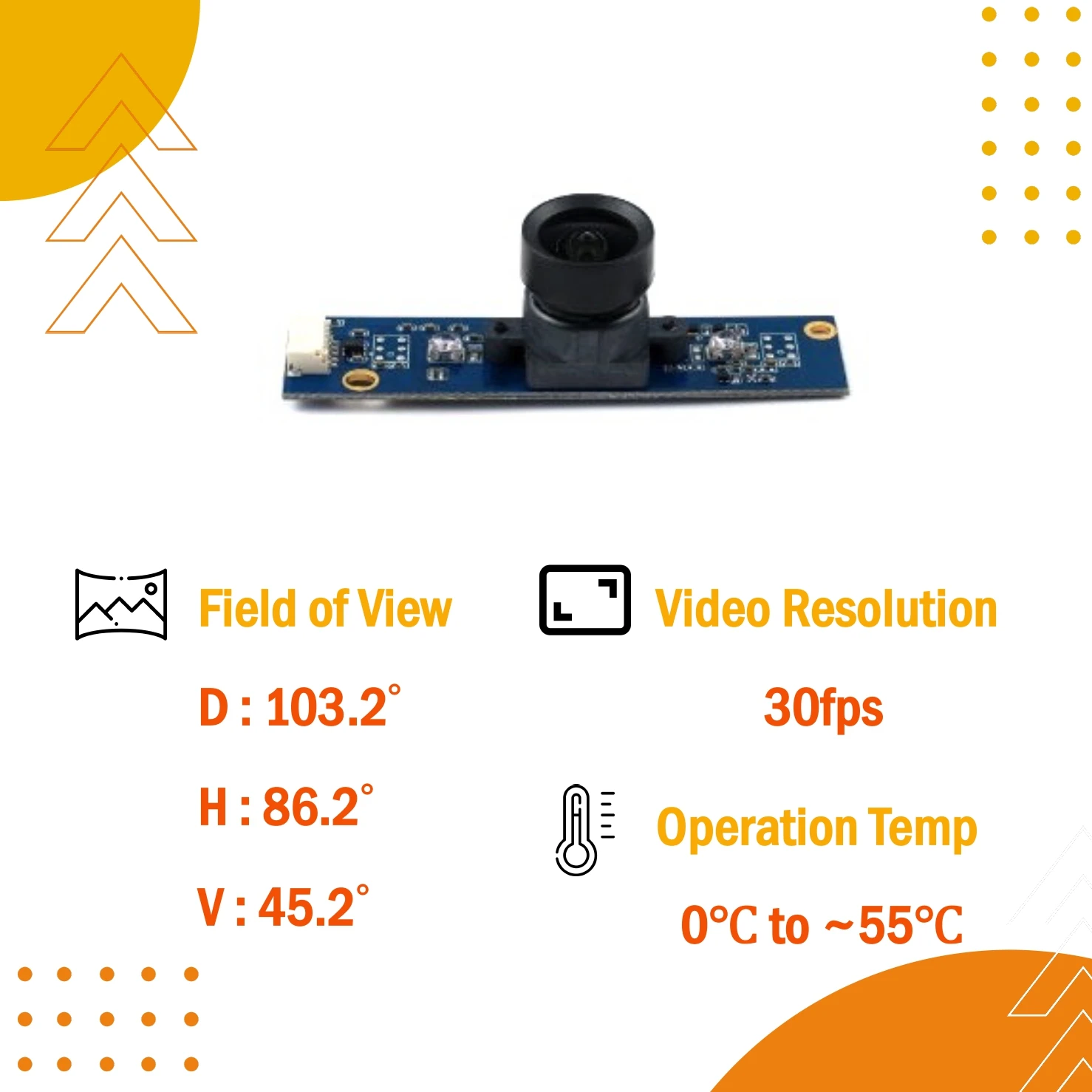

Field of View | Diagonal : 103.2° Horizontal : 86.2° Vertical : 45.2° | |
Backend IC Specifications | ||
Compatibility | USB 2.0 Video Class Compliant, Microsoft WHQL Certified | |

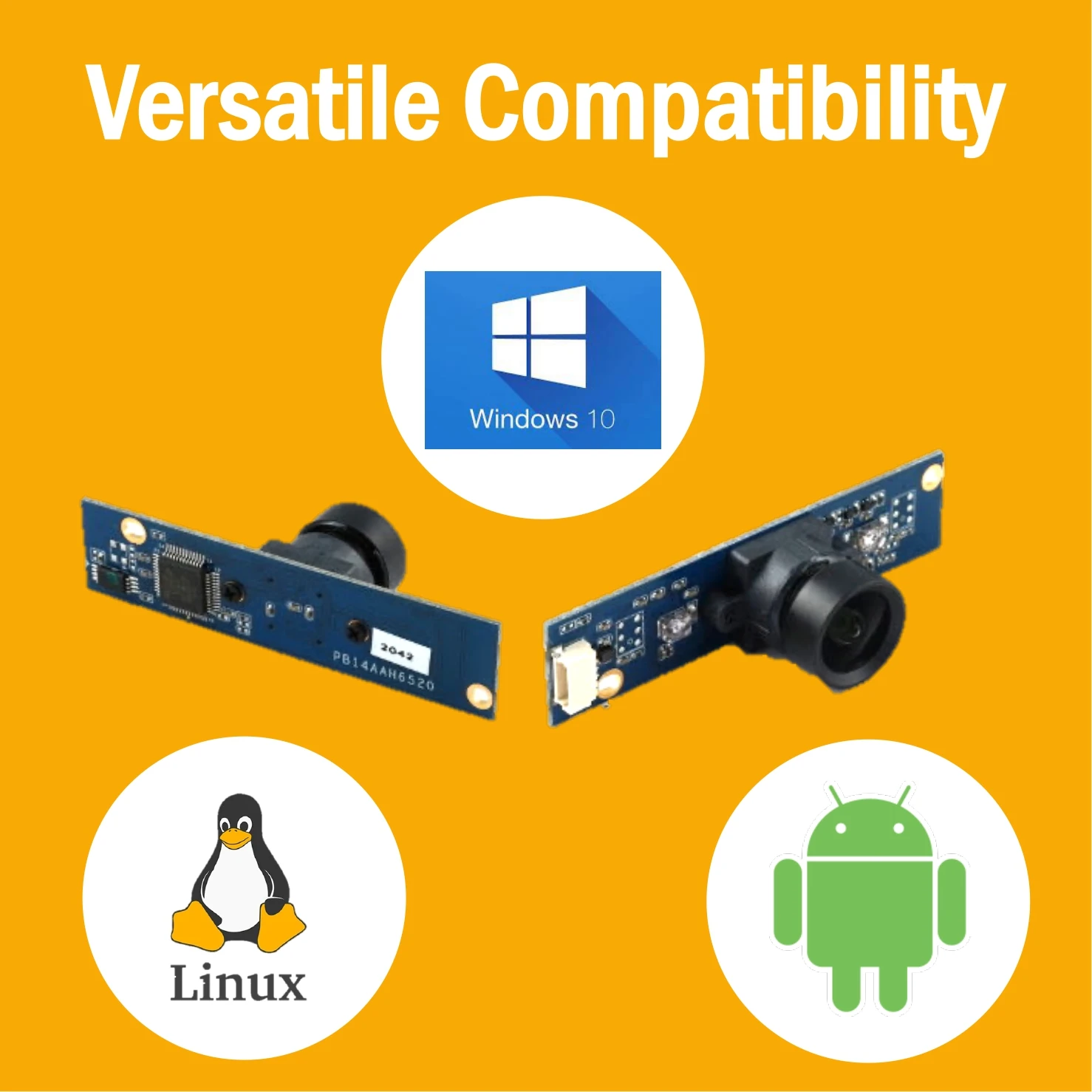

OS Supported | Support Win7, Win8, Win8.1, Win10, Linux, Android | |
Sensor Specifications | ||
Image Sensor | 1/4" FHD 1080p CMOS Sensor | |
Active Pixels | 1920(H) x 1080(V) | |
0°C to 40°C (with standard HDD/SSD/SATA‐Slim/DRAM) | ||
