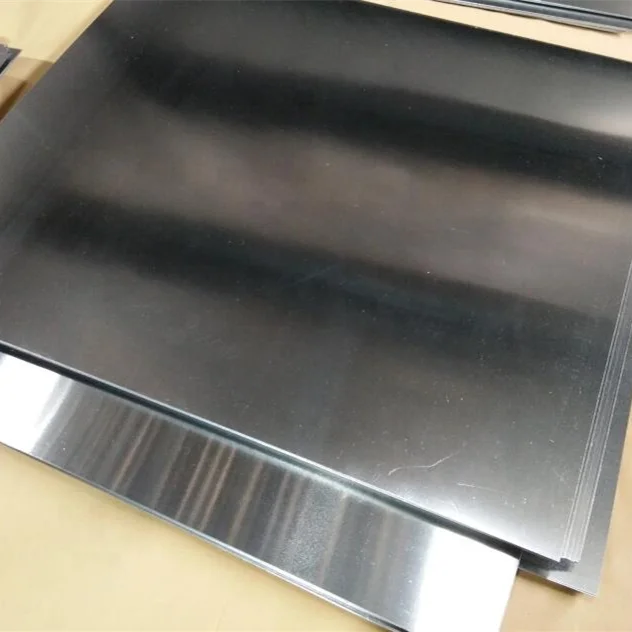

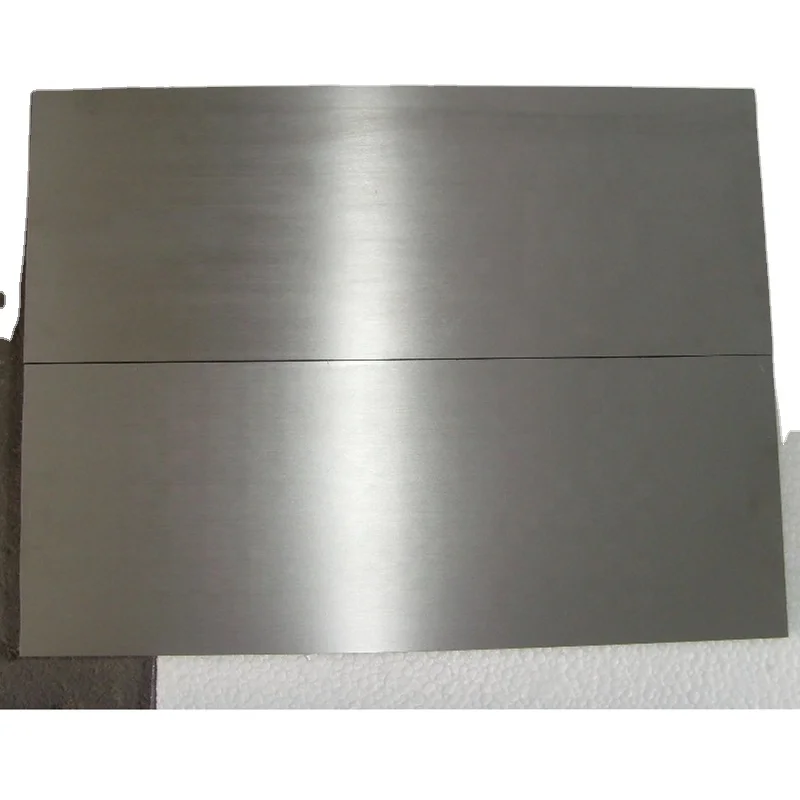

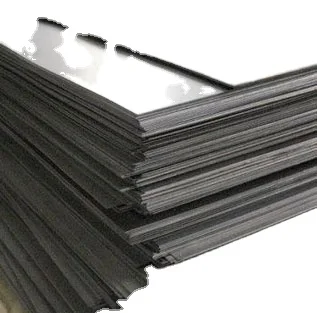

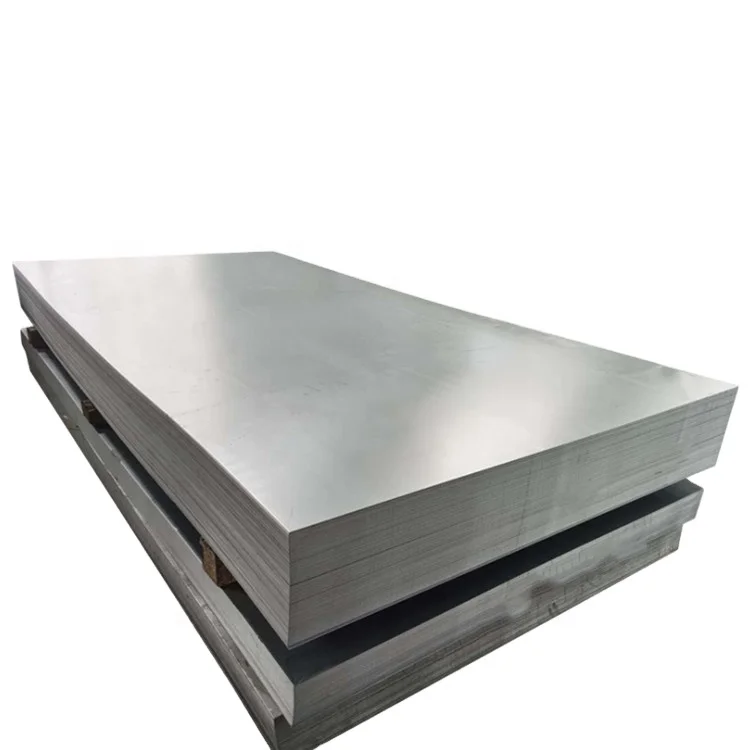

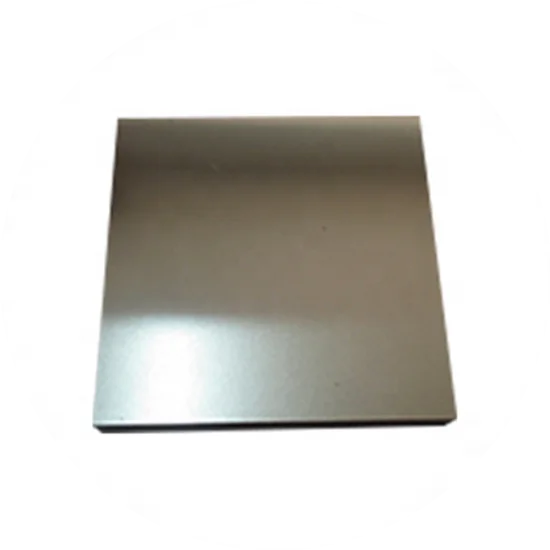

SML Pure Molybdenum Sheet Plates TZM and MoLa Molybdenum Lanthanum Alloy Sheet Price per KG
Product Description
Product information
Item | best price pure Molybdenum sheet plates |
Standard | ASTM B386, GB/T3876 |
Grade | Mo1, 361 |
Material | 99.95% min. Mo |
Density | 10.2g/cm3 |
Melting Point | 2610 Centigrade |
Using temperature | 1400 Centigrade max. |
Size | Thick 0.025mm min. x W600mm max. x L3000mm max. |
Processing | Cold rolled, Stress relief annealing, Hot rolled |
Colour | Black or bright |
Package | Standard wooden case as your request |
Feature
1. Low thermal expansivity
2. High using temperature
3. Good corrosion resistence
4. High strength
5. Low electrical resistivity
Application
1.Used for producing molybdenum targets, boats, discs, etc.
2. Used as protection cover in glass coating industry
3. Used for the electronics industries, such as intergrated circuit, information storage, LCD, laser storage, electronic control device, etc.
4. Mainly used as heat shield and reflection shield in high temperature furnace industry, such as vacuum furnace, sapphire growing furnace, etc.
Chemical requirements
Element | Ni | Mg | Fe | Pb | Al | Bi | Si | Cd | Ca | P |
Concentration(%) | 0.003 | 0.002 | 0.005 | 0.0001 | 0.002 | 0.0001 | 0.002 | 0.0001 | 0.002 | 0.001 |
Element | C | O | N | Sb | Sn | Mo |
|
|
| |
Concentration(%) | 0.01 | 0.003 | 0.003 | 0.0005 | 0.0001 | balance |
|
|
| |
Surface:shiny, acid pickling, satin, or as-rolled condition; dependent upon thickness and width parameters.
Normal condition: cold-rolled bright, acid pickling, polished.
Normal specification we can provide:
Molybdenum Plate/Sheet /Foil/Strip | ||
Thickness(min) mm | Width(max) mm | Length(max) mm |
0.025~0.09 | 150 | 1000 |
0.1 | 350 | 1500 |
0.12 | 400 | 1500 |
0.15 | 420 | 1500 |
0.2 | 450 | 2000 |
0.3~1 | 550 | 2500 |
1.5~5 | 500 | 2000 |
5~25 | 500 | 1500 |
Related products

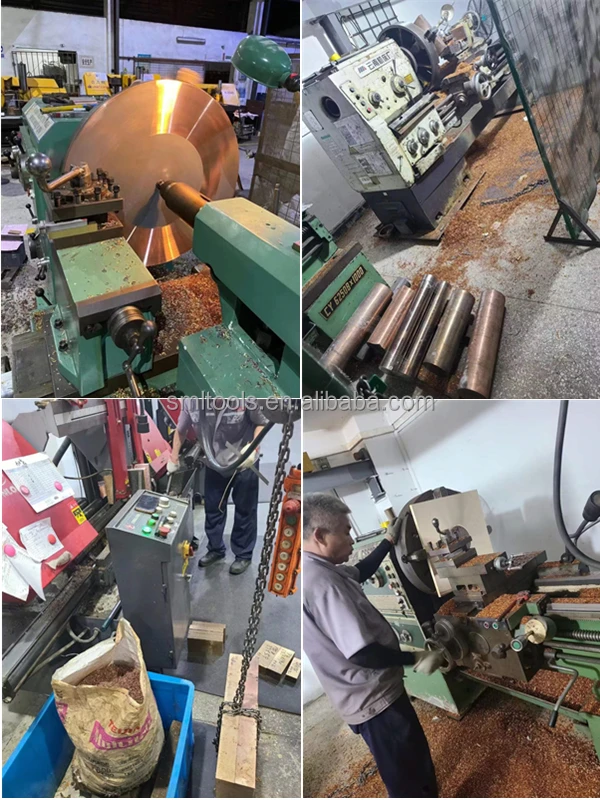

Company Information
Founded in 2008, SML Tools has specialized in producing Tungsten & Molybdenum, and other alloys products!

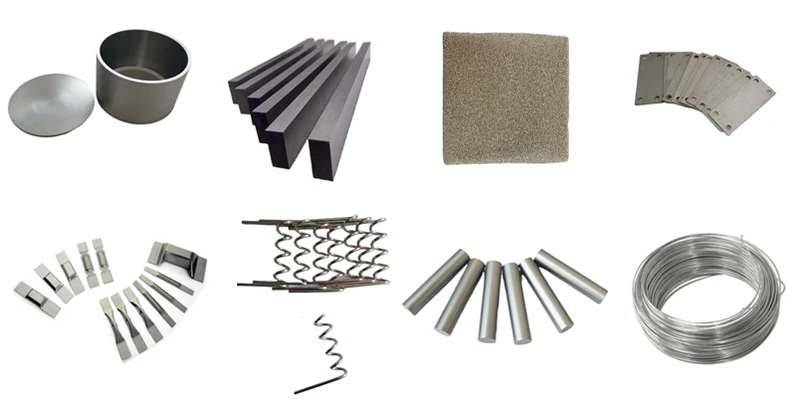

SML Tools is a leader in the deep processing industry of these materials: Tungsten, Molybdenum, Nickel rod, sheet, cube, tube, crucible, wire, electrode and other alloy like, tantalum,niobium, zirconium, tungsten alloy, Molybdenum alloy, titanium alloy...
SML Tools has a complete line to take care of your needs and have always prioritized our customers'goals. We are sure you will agree that SML TOOLS is your best source for Alloy Metal!
