HP 270 Multifunctional Dialysis Paper/Paper Card Packaging Machine
- Category: >>>
- Supplier: Zhejiang Jiangnan Pharmaceutical Machinery Co. Ltd.
Share on (10000007742082):
Product Overview
Description
Product Overview

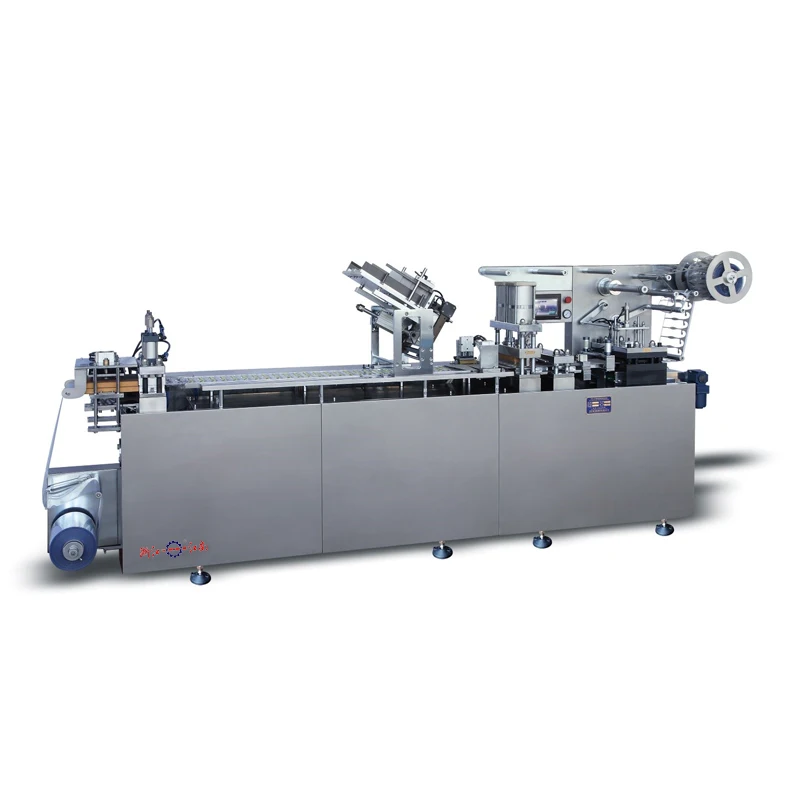

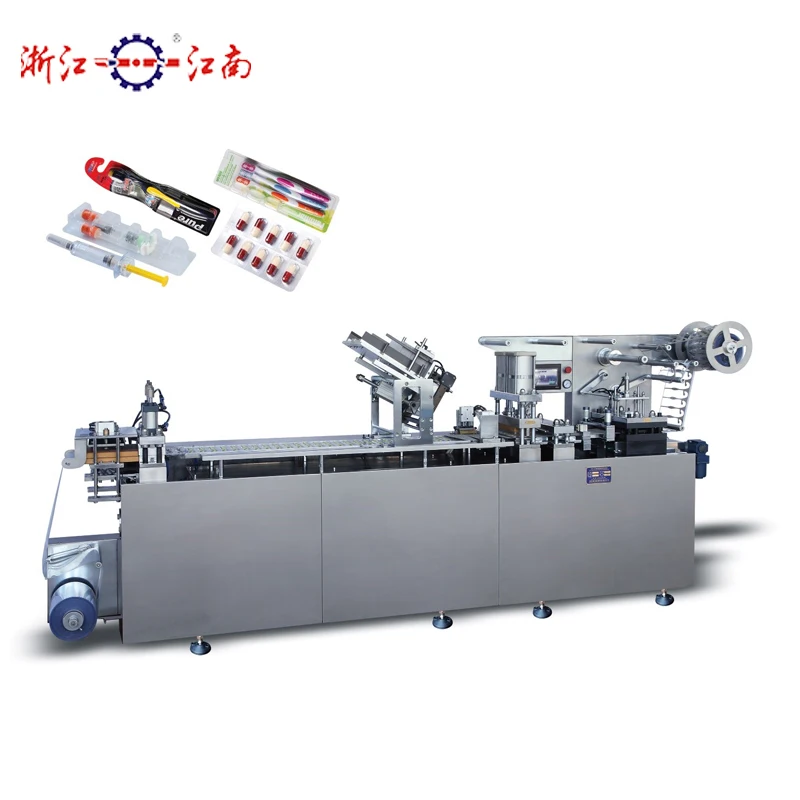

HP-270 Multifunctional Dialysis Paper/Paper Card Packaging Machine
It is suitable for paper and plastic packaging of toothbrushes, hardware, stationery, medical equipment such as injections,
syringes, medicines and other related products.
syringes, medicines and other related products.
The main equipment of this equipment is plastic (PVC/PET) heating, forming, forming blister testing (optional), stroke traction,
feeding, lack of material inspection and waste (optional), automatic paper card, paper plastic preheating seal , reheat seal,
aircraft hole (optional), random coding (optional), punching and other feature stations.
■ Worm gear reducer drive, overload protection of the main engine, low noise and stable operation.
■ Adjustable stroke size, free to change the size of the block, suitable for multi-species products.
■ It adopts dual-axis positioning and (spline) shaft transmission, and the work is stable and stable.
■ It adopts PLC programmable modular design, which is easy to operate and easy to maintain.
feeding, lack of material inspection and waste (optional), automatic paper card, paper plastic preheating seal , reheat seal,
aircraft hole (optional), random coding (optional), punching and other feature stations.
■ Worm gear reducer drive, overload protection of the main engine, low noise and stable operation.
■ Adjustable stroke size, free to change the size of the block, suitable for multi-species products.
■ It adopts dual-axis positioning and (spline) shaft transmission, and the work is stable and stable.
■ It adopts PLC programmable modular design, which is easy to operate and easy to maintain.
PRODUCT SPECIFICATIONS
Punching speed (standard version 245 x 50 x 2mm) one out of two card toothbrush | Paper / plastic 15 times / minute |
Production capacity | Paper / plastic 1800 times / hour |
Feed stroke optional range | 30-220mm |
Formed area | 255-220mm |
Forming depth | Plastic 40mm (Special requirements 50mm) |
Forming up/down heating power | 2kw ( x2 ) |
Heat sealing heating power | 3.5 kw |
Main motor power | 1.5 kw |
Total power of the power supply | Three-phase four-wire 380v 50hz (220v 60hz) 11.8kw |
Air pump volume flow | ≥ 1m3 / min |
Packaging material-Plastic hard sheet (special made of PET structure) | ≤ 0.2-0.5x270mm |
Packaging material-Paper card / dialysis paper / PE film / aluminum foil | ≤ 270x220x0.5mm / 270x0.02mm |
Dimensions | 4350x700x1650mm |
Total Weight | 2000kg |
