Industrial type 1/4 body brass coupler_plug_brass fittings
Industrial type 1/4 body brass coupler_plug_brass fittings
Industrial type 1/4 body brass coupler_plug_brass fittings
Industrial type 1/4 body brass coupler_plug_brass fittings
Industrial type 1/4 body brass coupler_plug_brass fittings
Industrial type 1/4 body brass coupler_plug_brass fittings
Industrial type 1/4 body brass coupler_plug_brass fittings

Industrial type 1/4 body brass coupler_plug_brass fittings

Share on (10000007755540):


Price:$0.80 - $0.90

Quantity:


Product Overview

Description

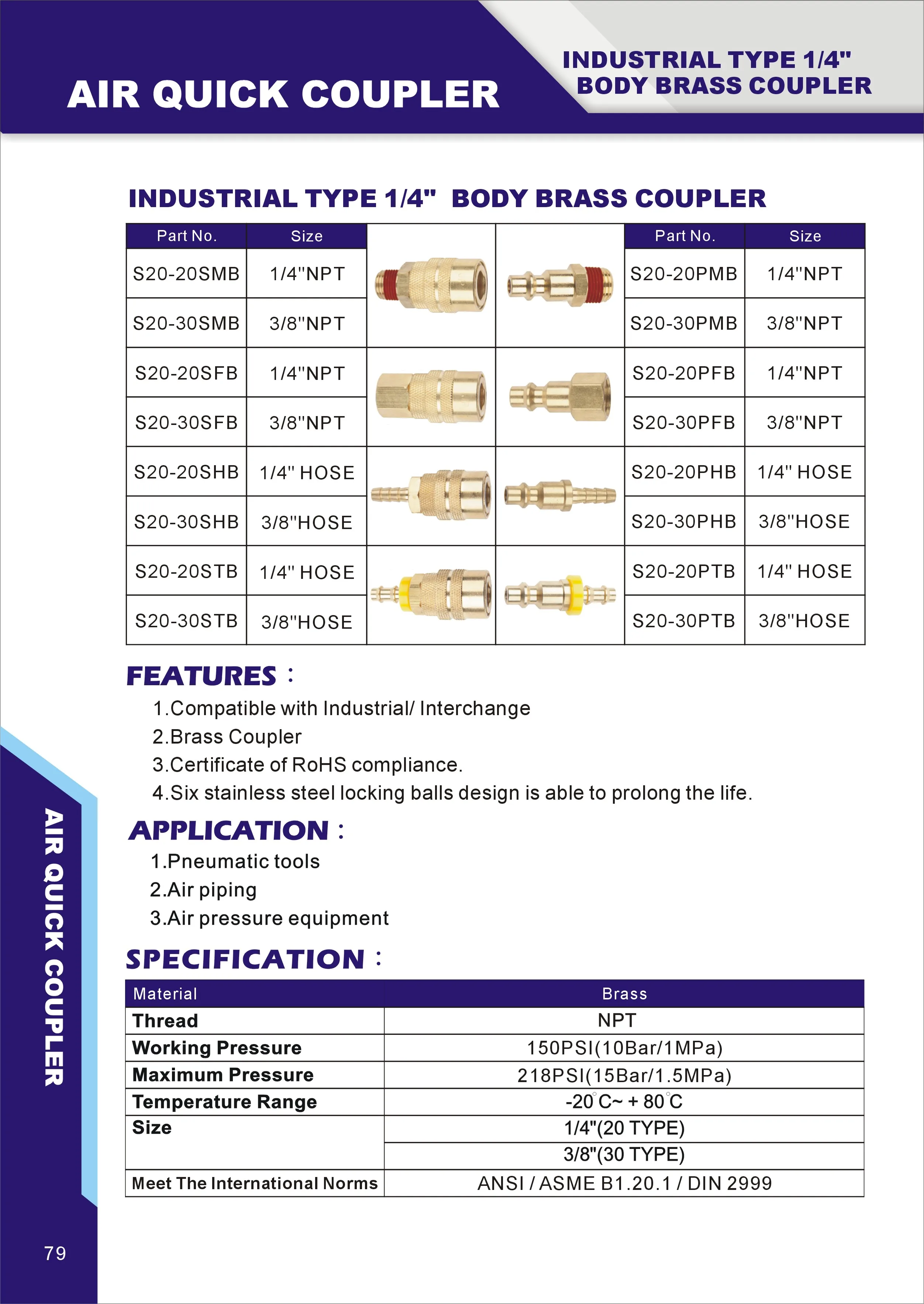

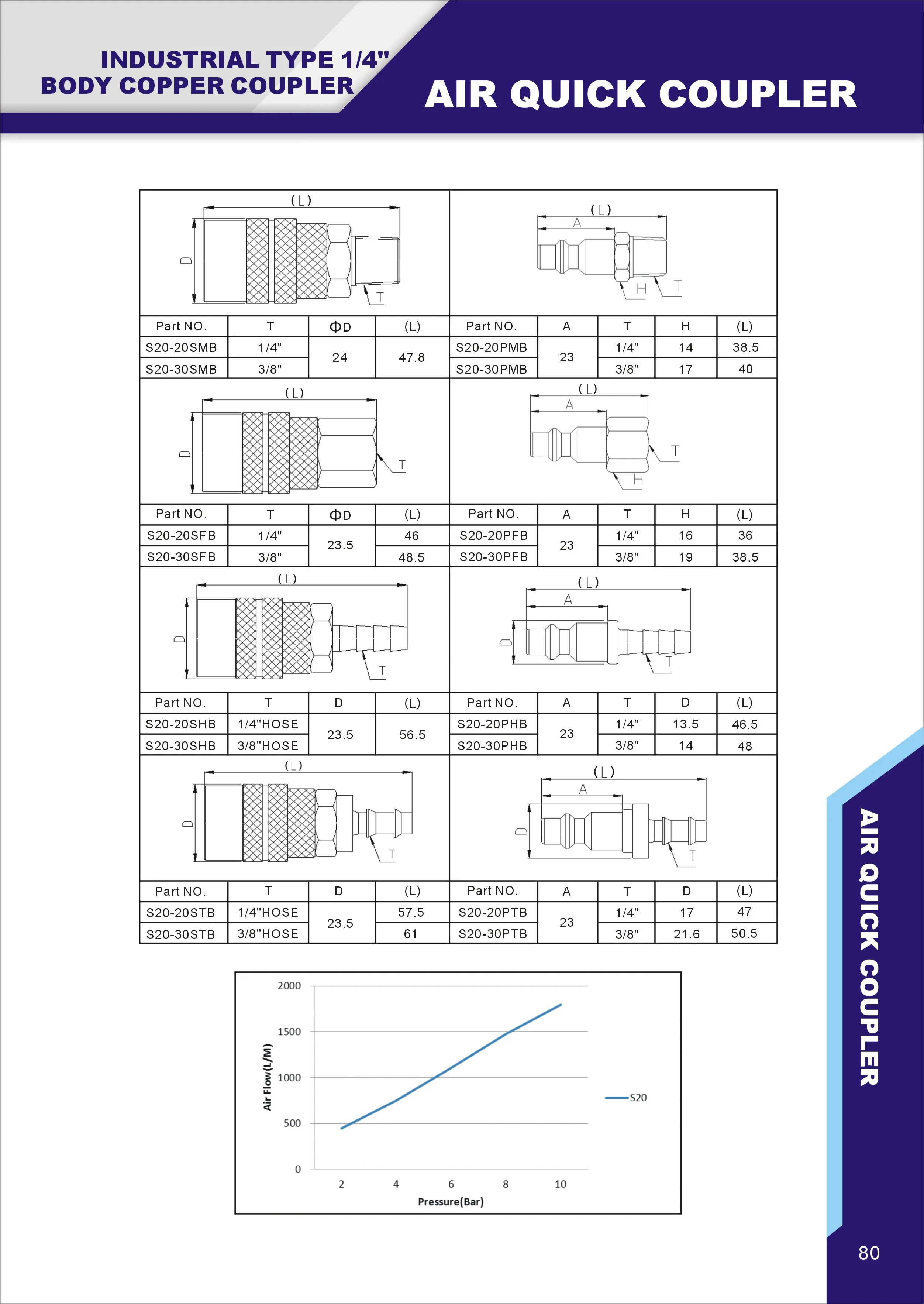

Products Description


Material
Brass
Thread
NPT
Working Pressure
150PSI (10Bar/1MPa)
Maximum Pressure
218PSI (15Bar/1.5MPa)
Temperature Range
-20℃ ~ +80℃
Size
1/4" NPT (S20-20PMB)
3/8" NPT (S20-30PMB)

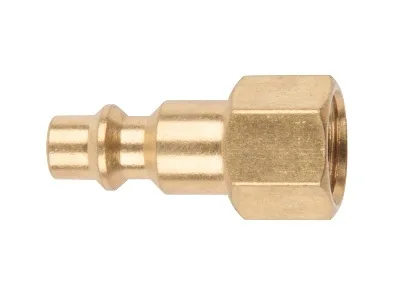

1/4" NPT (S20-20PFB)
3/8" NPT (S20-30PFB)
1/4" HOSE (S20-20PHB)
3/8" HOSE (S20-30PHB)

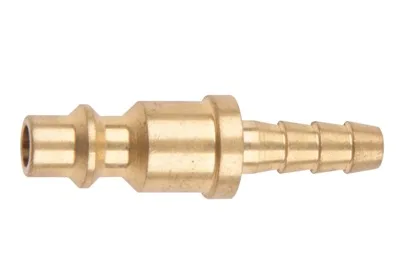

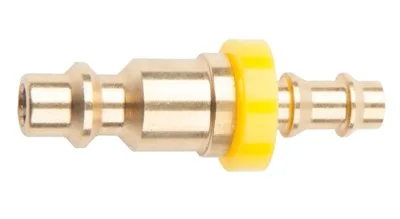

1/4" HOSE (S20-20PTB)
3/8" HOSE (S20-30PTB)


*Meet The International Norms : ANSI / ASME B1.20.1 / DIN 2999


FEATURES：
1. Compatible with Industrial Interchange
2. Brass Coupler
3. Certificate of RoHS compliance.
4. Six stainless steel locking balls design is able to prolong the life.
