2MP Low Light Embedded USB Camera Module for Baby Camera Module
- Category: >>>
- Supplier: MIDAS TOUCH SOLUTIONS INC.
Share on (10000007833681):
Product Overview
Description
Product Description

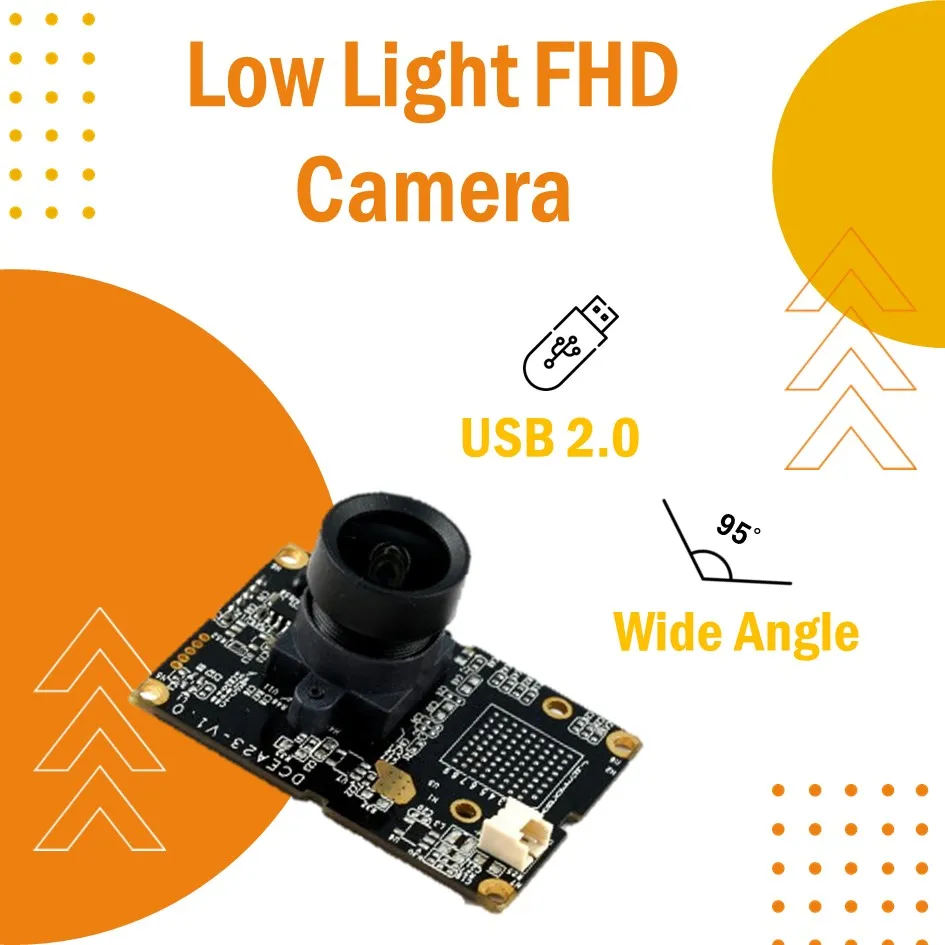

MDC-EA23 is a USB Video Class (UVC) compliant camera module with video features, designed for portable notebook PC image applications. It is made up of the following components, CMOS sensor (AR0230CS), lens, holder, backend, PCB, image processing circuit, and connector, to come out a digital video device. It shall be a reliable device that is embedded in a notebook PC to transfer video data through a USB interface to a notebook PC. The ON Semiconductor’s AR0230CS is a 1/2.7−inch CMOS digital image sensor with an active pixel array of 1928Hx1088V. It captures images in either linear or high dynamic range (HDR) modes, with a rolling−shutter readout.

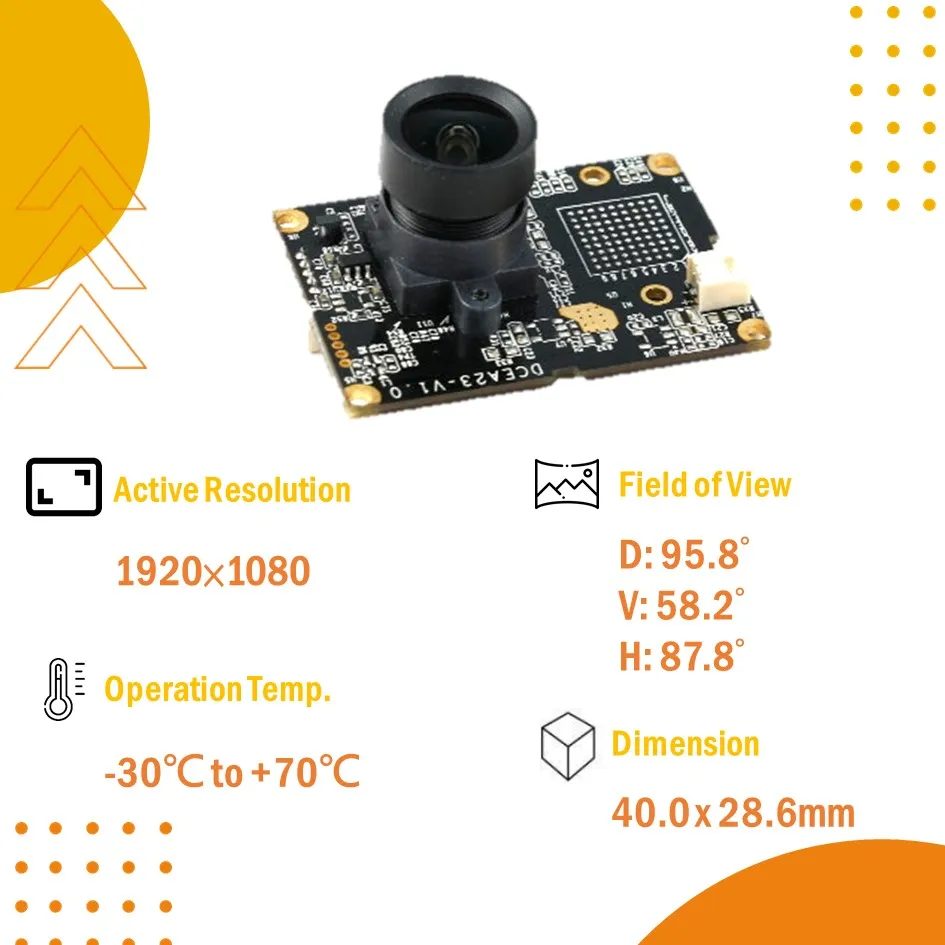

Module Specifications | ||

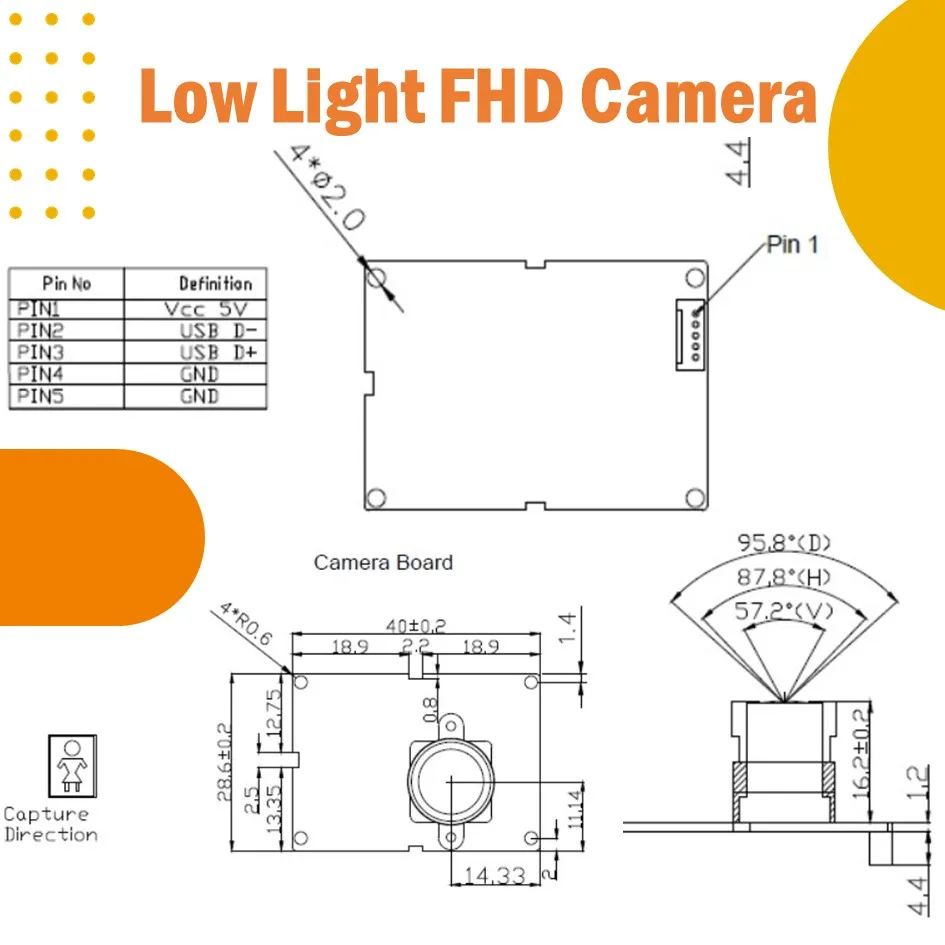

Size(LWH/mm) | 40.0mm x 28.6mm | |
Image/Video Format | YUY2, MJPG | |
Output Interface | USB2.0 (480Mbit/sec) & USB1.1 | |
Operating Temperature | -30℃ to +70℃ | |
Field of View | Diagonal: 95.8° Vertical: 58.2° Horizontal: 87.8° | |
Power Consumption | 5V | |
Backend IC Specifications | ||
Type | Backend IC with USB2.0 interface | |
OS Supported | Win7, Win8, Win8.1, Win10, Linux, Android | |
Support Sensor Size | Support Most popular CMOS sensors | |
Compatibility | USB Video class Compliant, Microsoft WHQL Certified | |
Sensor Specifications | ||
Optical format | 1/2.7-inch Full HD CMOS Sensor | |
Active resolution | 1920H×1080V | |
Unit pixel size | 3.0μm x 3.0μm | |
0°C to 40°C (with standard HDD/SSD/SATA‐Slim/DRAM) | ||
Note: All specifications are subject to change without furthur notice.
