Easy Operational 15Mpa Rated Pressure Semi-automatic Cement Concrete Hollow Blocks, Solid Block, Paving Brick Making Machine

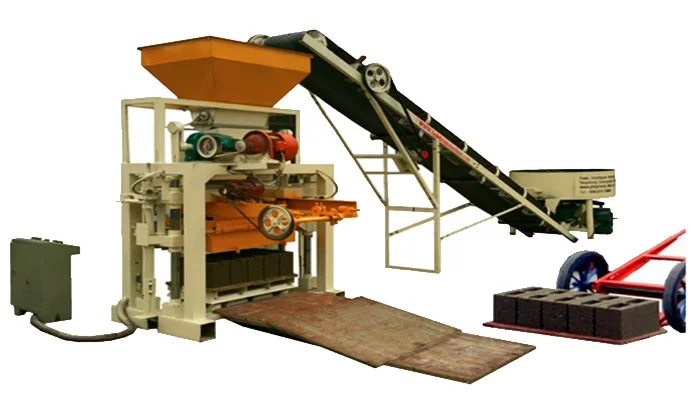

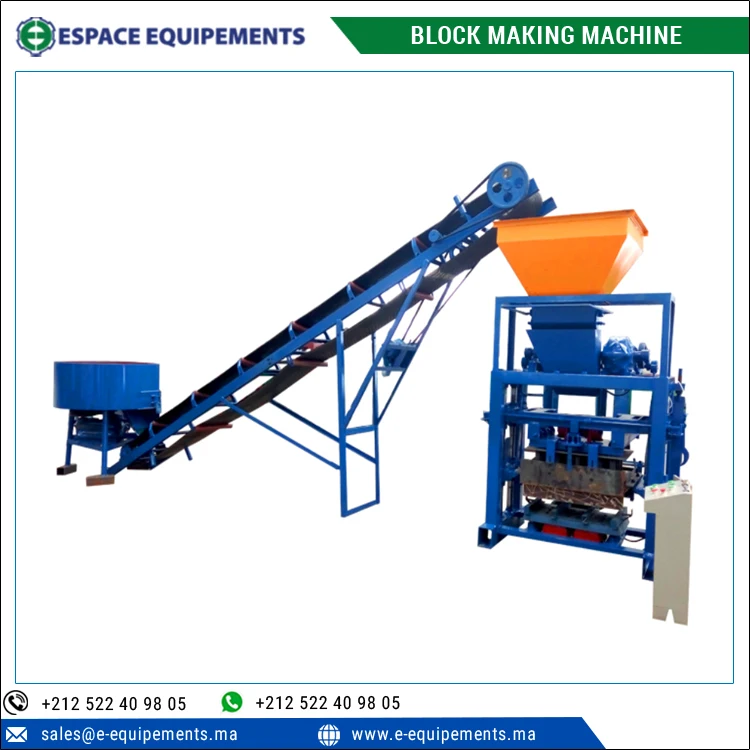

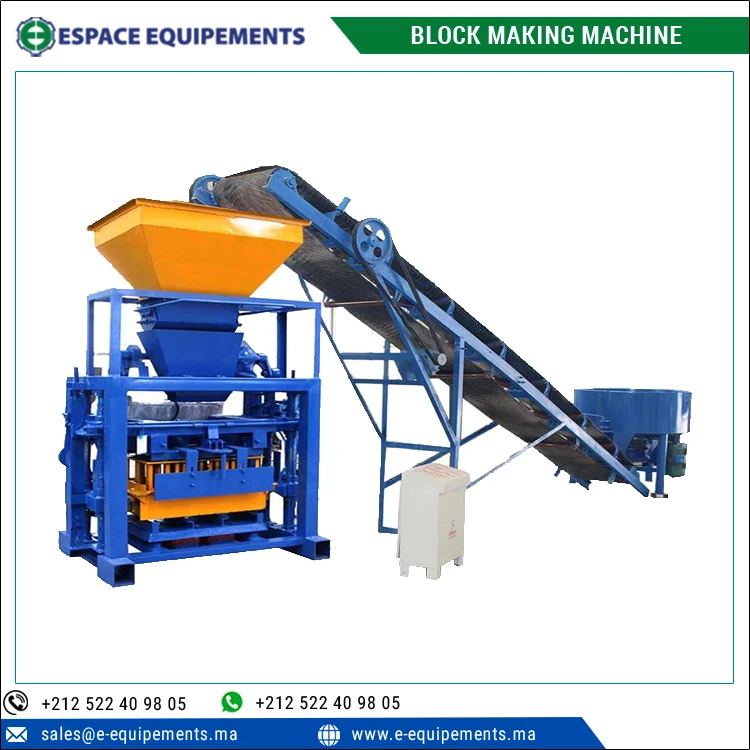

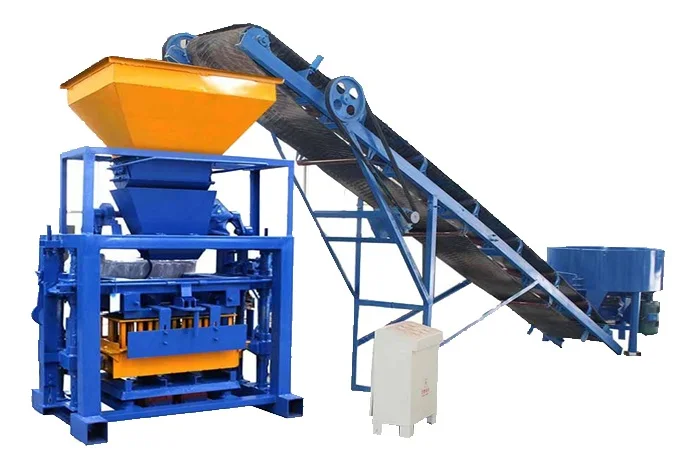

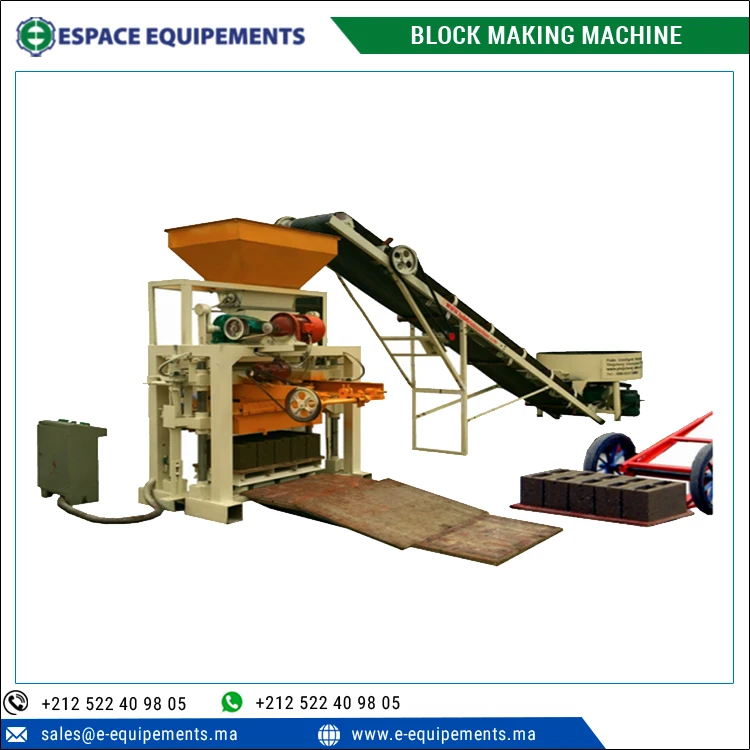

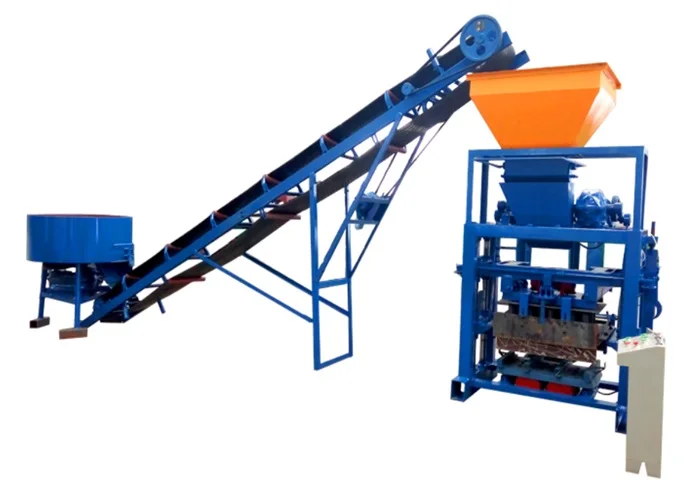

The QT40-1 block machine is a kind of semi-automatic type based on the original medium and small-scale block machine. It is durable, highly profitable and of easy operation.
It adopts fourlead, channel steel stander making the equipment more firm and the mould and the squeeze head orientation more precise.
The QT40-1 is a multi-purpose small scale block machine. Exchanging mold can produce normal bricks, hollow bricks, multi-holes' bricks even paver blocks, interlocking blocks.
| Model | QT40-1 |
| Dimension of host machine | 1650*1380*2100MM |
| Voltage | 380V or adapt to your local voltage |
| Moulding period | 30-35S |
| Pallet size | 850*550MM |
| Weight of the machine | 2T |
| Host Machine Power | 8.2KW |
| Vibration Force | 40-50KN |
| Vibration frequency | 4000 R/Min |
| Upper vibrator power | 2.2KW |
| Down vibrator power | 2.2KW*2 |
| Capacity | 3000PCS/8Hr |
| Capacity | 15.7KW |
| Mixer Model | JD350 |
| Workshop Area | 60 m2 |
| Voltage | 380V/220V/415V/240 |
| Application | Widely used in buildings, road surfaces, squares, gardens, landscaping, and various construction works |
| Warranty | 1 year |
| QT40-1 block machine capacity of different blocks | ||||||
| No | Size | Pcs per mould | Cycle per minute | Pcs per minute | Pcs per hour | Pcs per day |
| 1 | 4 inch hollow | 7 | 2 | 12 | 714 | 5712 |
| 2 | 6 inch hollow | 5 | 2 | 9 | 510 | 4080 |
| 3 | 8 inch hollow | 4 | 2 | 7 | 408 | 3264 |
| 4 | 240x115x53mm standard brick | 24 | 2 | 41 | 2448 | 19584 |
| 5 | 240x115x53mm standard brick | 24 | 2 | 41 | 2448 | 19584 |
| 6 | 220x100x75mm standard brick | 18 | 2 | 31 | 1836 | 14688 |
| 7 | 230x110x70mm standard brick | 20 | 2 | 34 | 2040 | 16320 |
| 8 | 300x300x60mm | 2 | 2 | 3 | 204 | 1632 |
| 9 | 200x200x60mm | 8 | 2 | 14 | 816 | 6528 |
| 10 | 250x250x60mm | 6 | 2 | 10 | 612 | 4896 |
| 11 | 400x400x80mm | 2 | 2 | 3 | 204 | 1632 |
| 12 | 100x100x60mm | 28 | 2 | 48 | 2856 | 22848 |
| 13 | 240x240x60mm | 6 | 2 | 10 | 612 | 4896 |
| 14 | 245130x60mm | 12 | 2 | 20 | 1224 | 9792 |
| 15 | 130x130x60mm | 14 | 2 | 24 | 1428 | 11424 |
| 16 | 200x100x60mm | 14 | 2 | 24 | 1428 | 11424 |
| 17 | 200x163x60mm | 8 | 2 | 14 | 816 | 6528 |
| 18 | 220x110x80mm | 12 | 2 | 20 | 1224 | 9792 |
