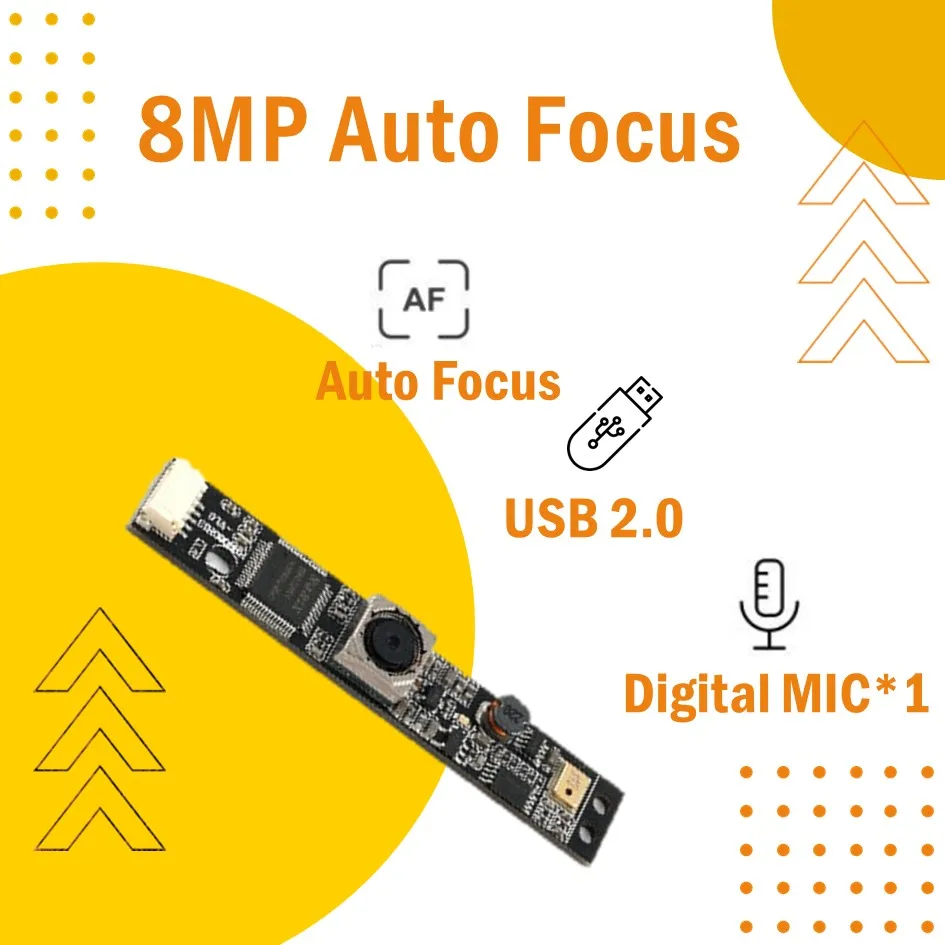

Best Buy 8MP Auto Focus USB Drone Camera Module with Microphone, FOV 75 Degree, Support for Windows, Linux, Android
- Category: >>>
- Supplier: MIDAS TOUCH SOLUTIONS INC.
Share on (10000007892083):
Product Overview
Description
Product Description
MHB-9080 not only offers up to 8M resolution (3264X2448) for image applications to take still image, but also offers video
stream for end user to preview/record motion image through USB 2.0 interface. MHB-9080 can support VGA (300K, 640x480) resolution up to 30 fps at YUY2 mode, 1920x1080 resolution up to 25fps at MJPG mode. MHB-9080 also provides audio input by one Digital Microphone (Optional).
stream for end user to preview/record motion image through USB 2.0 interface. MHB-9080 can support VGA (300K, 640x480) resolution up to 30 fps at YUY2 mode, 1920x1080 resolution up to 25fps at MJPG mode. MHB-9080 also provides audio input by one Digital Microphone (Optional).
Module Specifications | ||

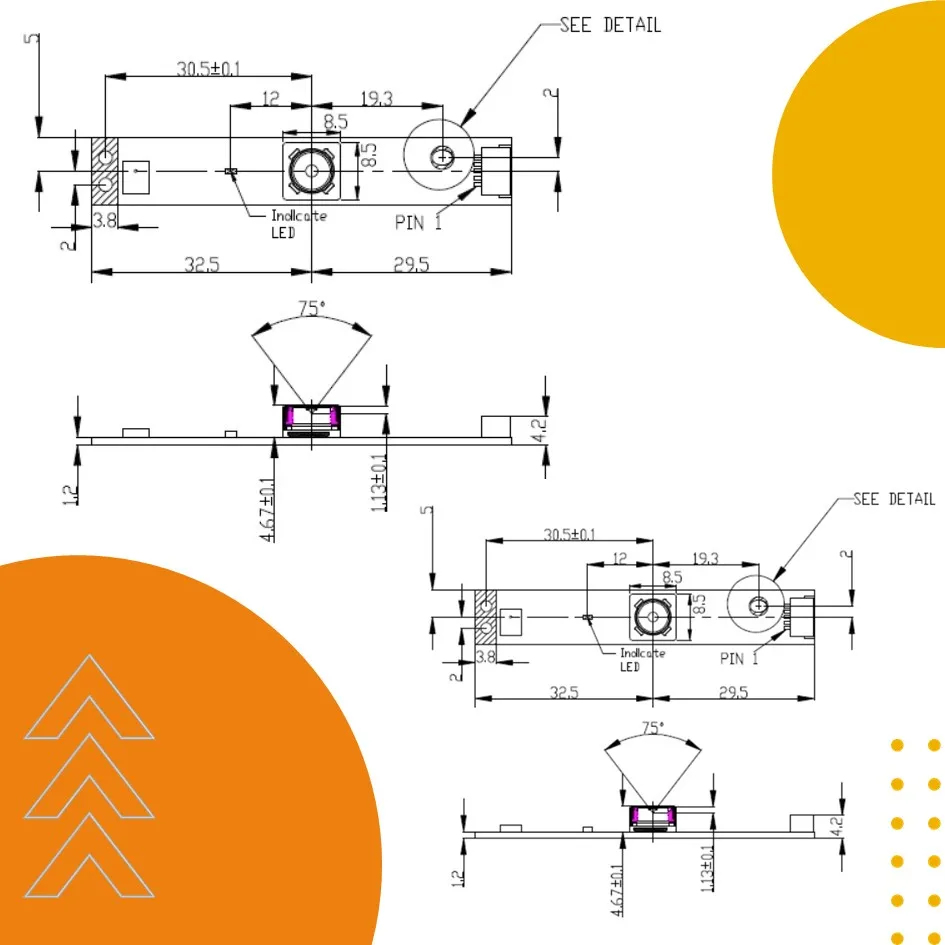

Dimension (LWH/mm) | 62.0 x 10.0 x 5.9±0.2 mm (including PCB Thickness) | |
Power Consumption | +5V | |
Output Interface | USB2.0 (480Mbit/sec) & USB1.1 | |

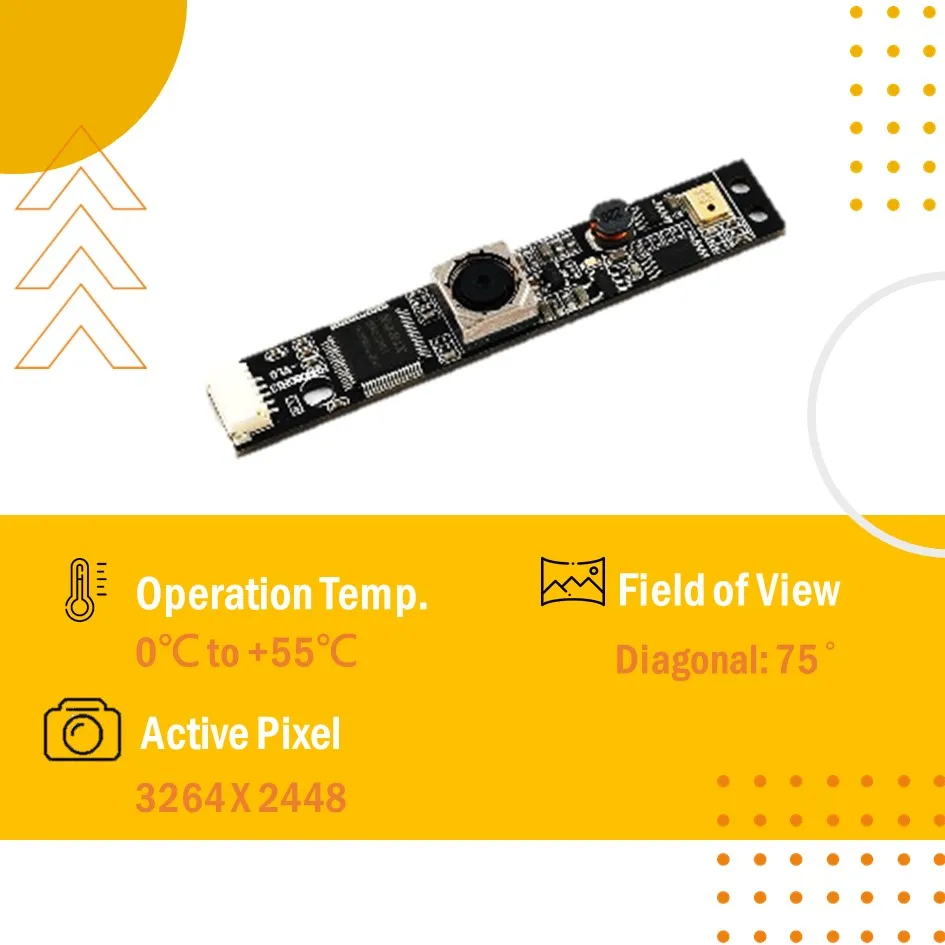

Operating Temperature | 0℃ to +55℃ | |
Field of View | Diagonal: 75° | |
OS Support | Win7, Win8, Win8.1, Win10, Linux, Android | |
Backend IC Specifications | ||
Compatibility | USB 2.0 Video Class Compliant, Microsoft WHQL Certified USB 2.0 Audio Class Compliant, Microsoft WHQL Certified | |
Support Sensor Size | Support Most popular CMOS sensors | |
OS Supported | Win7, Win8, Win8.1, Win10, Linux, Android | |
Sensor Specifications | ||
Image Sensor | 1/3.2" CMOS Sensor | |
Active resolution | 3264(H) × 2448(V) | |
0°C to 40°C (with standard HDD/SSD/SATA‐Slim/DRAM) | ||
Note: All specifications are subject to change without furthur notice.
