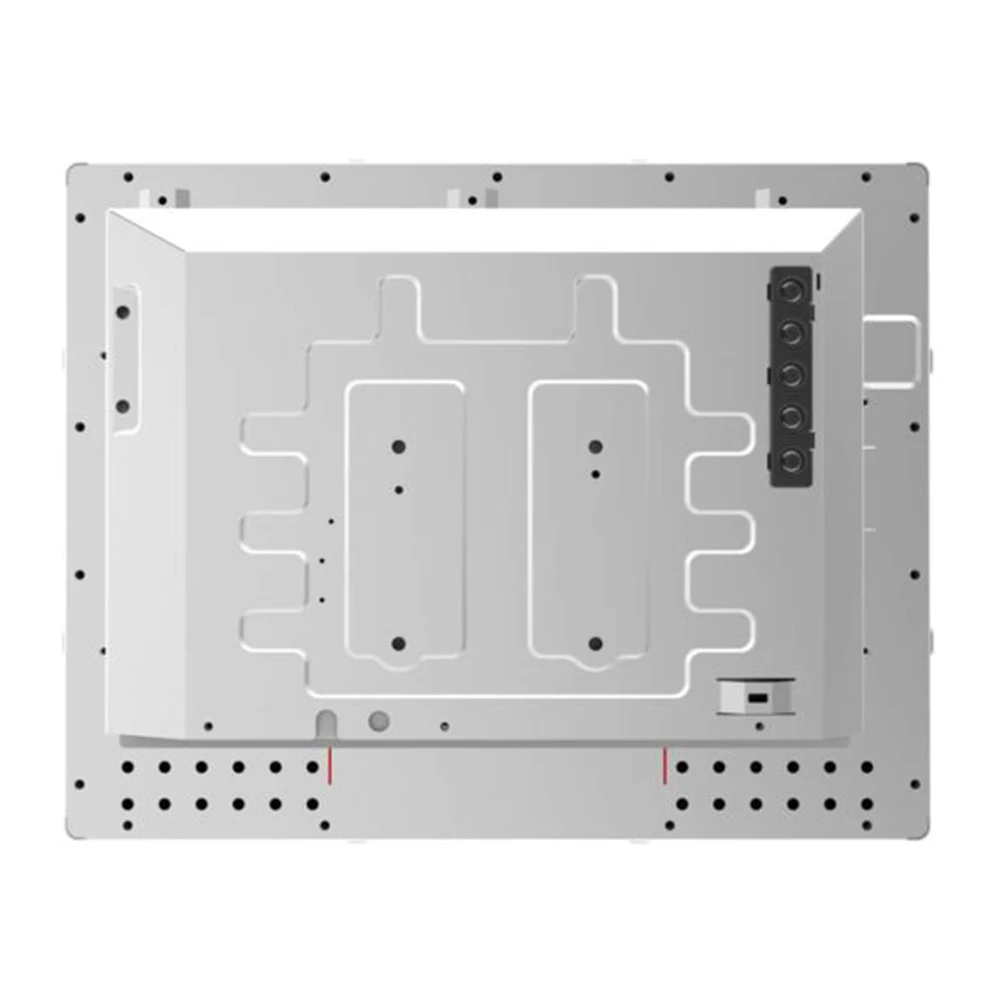

Производители водонепроницаемый IP65 промышленный открытый каркас сенсорный экран монитора
- Category: Touch Screen Monitors >>>
- Supplier: Shenzhen BaoBao Industrial Co. Ltd.
Share on (10000007892196):
Product Overview
Description

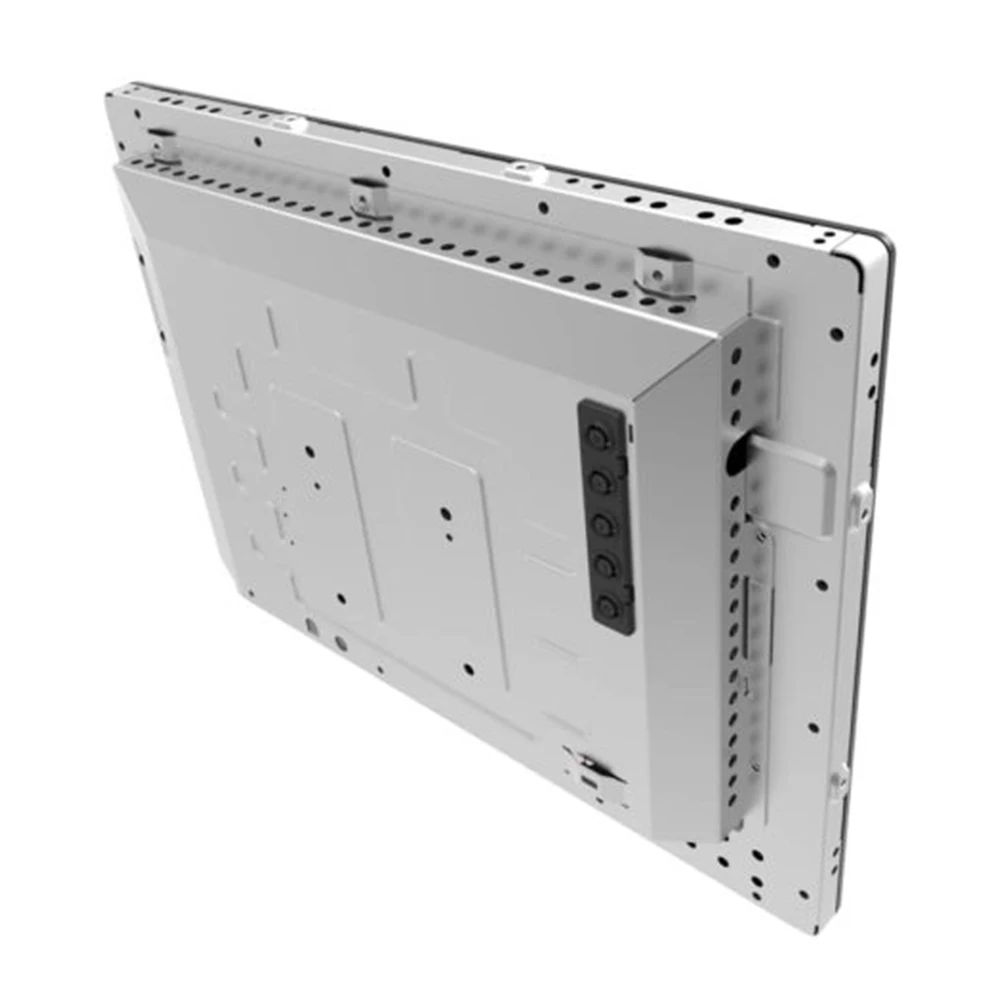

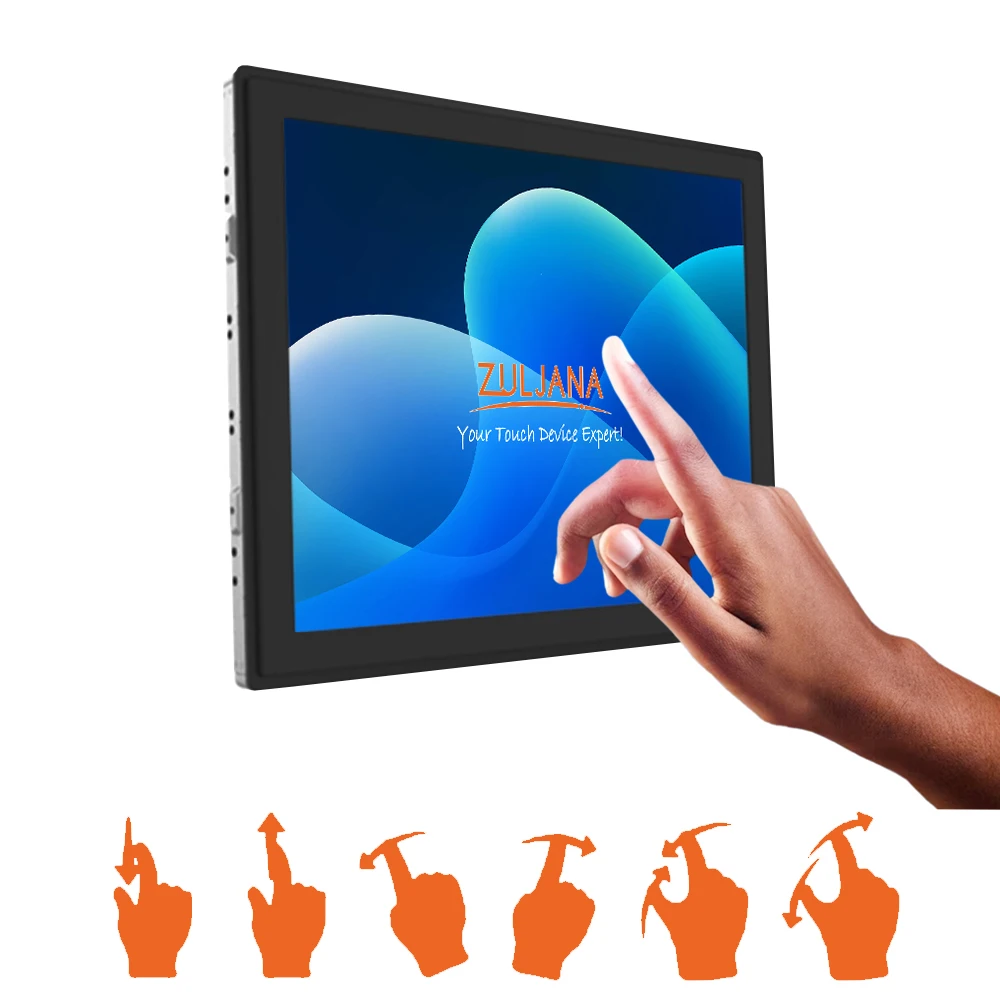

Manufacturers of Waterproof IP65 Industrial Open Frame Touch Screen Monitor
| Product Detail | Product name | 15" Open Frame Monitor | 17" Open Frame Monitor | 19" Open Frame Monitor |
| Model | ZL15TMBCAP-OF | ZL17TMBCAP-OF | ZL19TMBCAP-OF | |
| LCD Panel | IP rating | IP65 Front / IP40 Back | ||
| Screen diagonal (Inch/cm) | 15" / 38.1 cm | 17" / 43.1 cm | 19" / 48.26 cm | |
| Display active screen size (cm) | 30.4 cm x 22.8 cm | 36.8 cm x 30.6 cm | 37.93 cm x 30.41 cm | |
| Aspect ratio | 4:3 | 5:4 | 5:4 | |
| Physical resolution | 1024 x 768 | 1280 x 1024 | ||
| Maximum showable resolution | 1920 x 1080 | |||
| Colours displayed | 16.7 M | |||
| Brightness (cd/m²) | 350 | |||
| Contrast | 700:1 | 1000:1 | ||
| Typical reaction time Tr/ Tf (ms) | 8/12 (ms) | |||
| Visual Angle horizontal/vertical (°) | 160/160 (°) | |||
| Backlight / Backlight Lifetime (hours) | 30,000 (hours) | |||
| Touch Panel | Touch Technology | PCAP 10-Point Multitouch | ||
| Touch Panel Drivers | Windows; Linux; Android | |||
| Touch Life (Contacts) | Unlimited | |||
| Surface Hardness | 7H | |||
| Surface Treatment | Anti-glare (Optional) | |||
| Operation/Mechanical | Operating Temperature (°C) | -10 ~ +60 | ||
| Humidity Range (RH) | 10% ~ 90% | |||
| Net weight (kg) | 3.1 kg / 6.6138lb | 4.5 kg / 7.94 lb | 5.8 kg / 7.94 lb | |
| Gross weight (kg) | 5.30 kg / 11.684lb | 6.10 kg / 11.684lb | 6.80 kg / 11.684lb | |
| Housing material | Aluminium front / back case | |||
Housing (cm) L × H × W | 36.2 x 28.6 x 4.94 | 37.2 x 31.6 x 4.47 | 43.85 x 36.35 x 4.47 | |
| Mounting | VESA 100 | |||
| Power | Power Indicator | Green LED | ||
| Power Supply | 100-240V AC DC; 12V DC-Out | |||
| Working Power (V) | 12 V | |||
| Power Consumption (W) | 27 W | |||
| Stand-By Consumption (W) | <1 | |||
| External Connectors | Video | 1 x HDMI, 1 x DVI-D, 1 x VGA | ||
| Audio | 1 x PC-Audio | |||
| Touch Connector | 1 x USB | |||
| Connectors | 1 x 12V DC-In | |||
| Included in Delivery | Power Supply (see Power section), Driver DVD, Short Installation Manual, Cables - VGA, USB Touch, Audio cable, Standard Stand | |||
