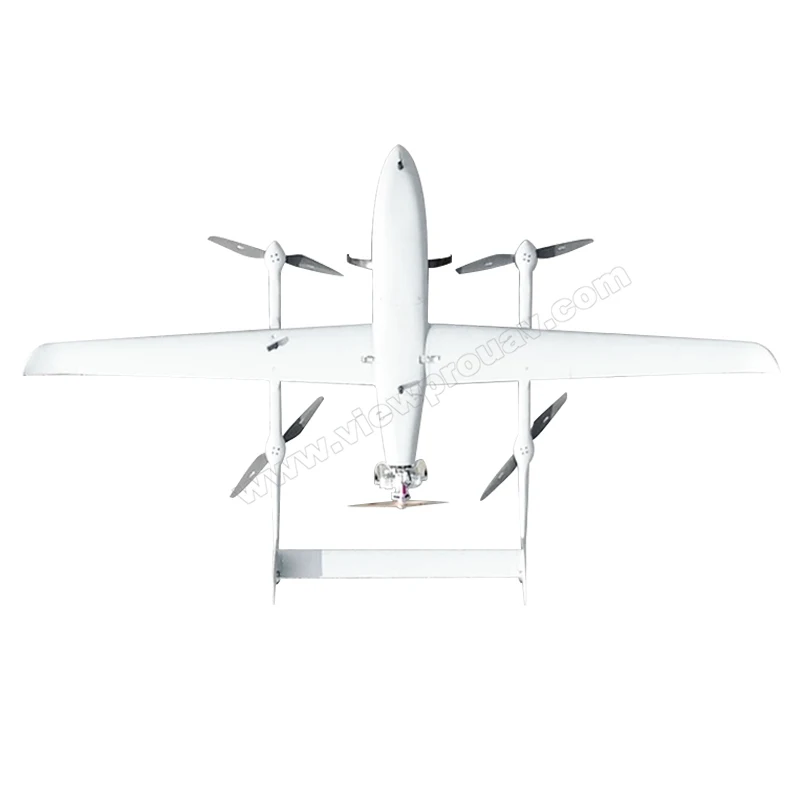

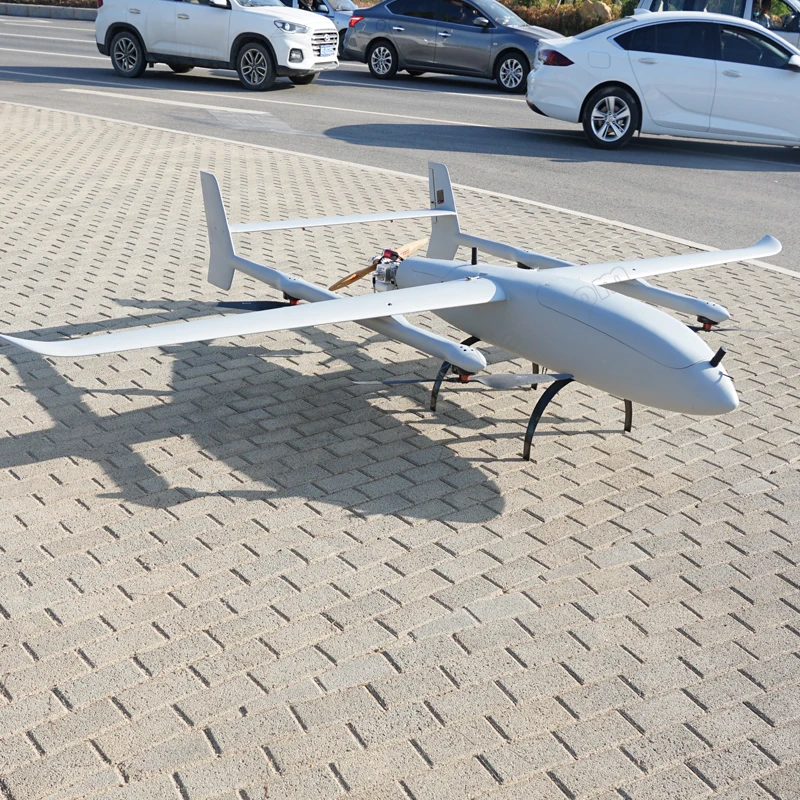

Viewpro Falcon F390 Super Powerful Hybrid VTOL Drone with Robust 3.9m Wingspan 10hrs Flight Time
- Category: >>>
- Supplier: Viewpro Ltd.
Share on (10000007902836):
Product Overview
Description
Product Description
Falcon F390 Flight Video https://www.youtube.com/watch?v=is8gP5PnMVw&t=6s

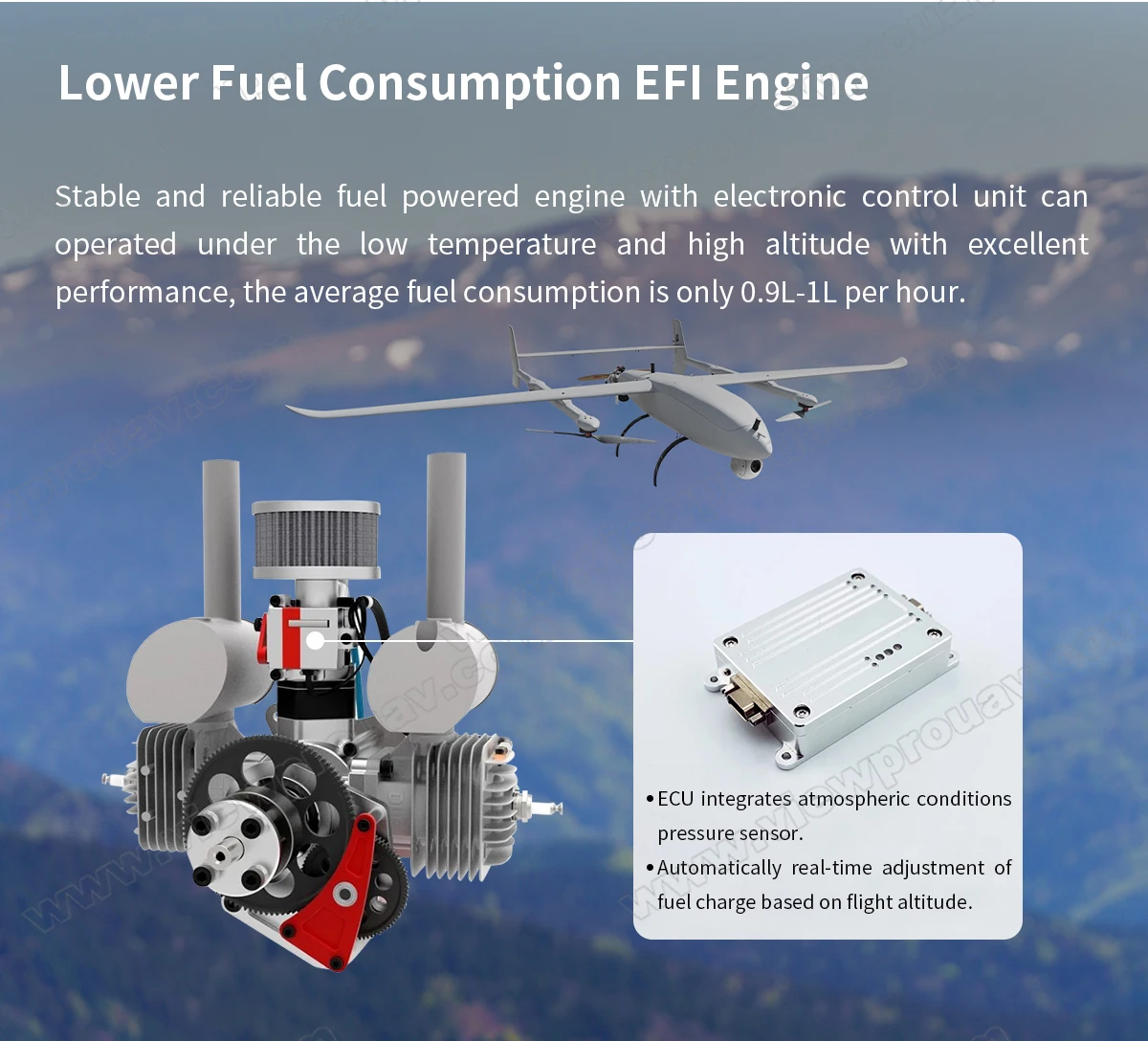

Viewpro Falcon F390 Hybrid VTOL fixed wing is a industrial-grade UAV features with 3.9m wingspan designed for long endurance and heavy lift missions. The tail engine is EFI version which is advantage at fuel saving. The average fuel consumption is only 1L/hr. With a fuel powered engine and 10L petrol, the endurance is up to 10 hours with 5kg payload, and 8hrs at maximum payload capacity 8kg.

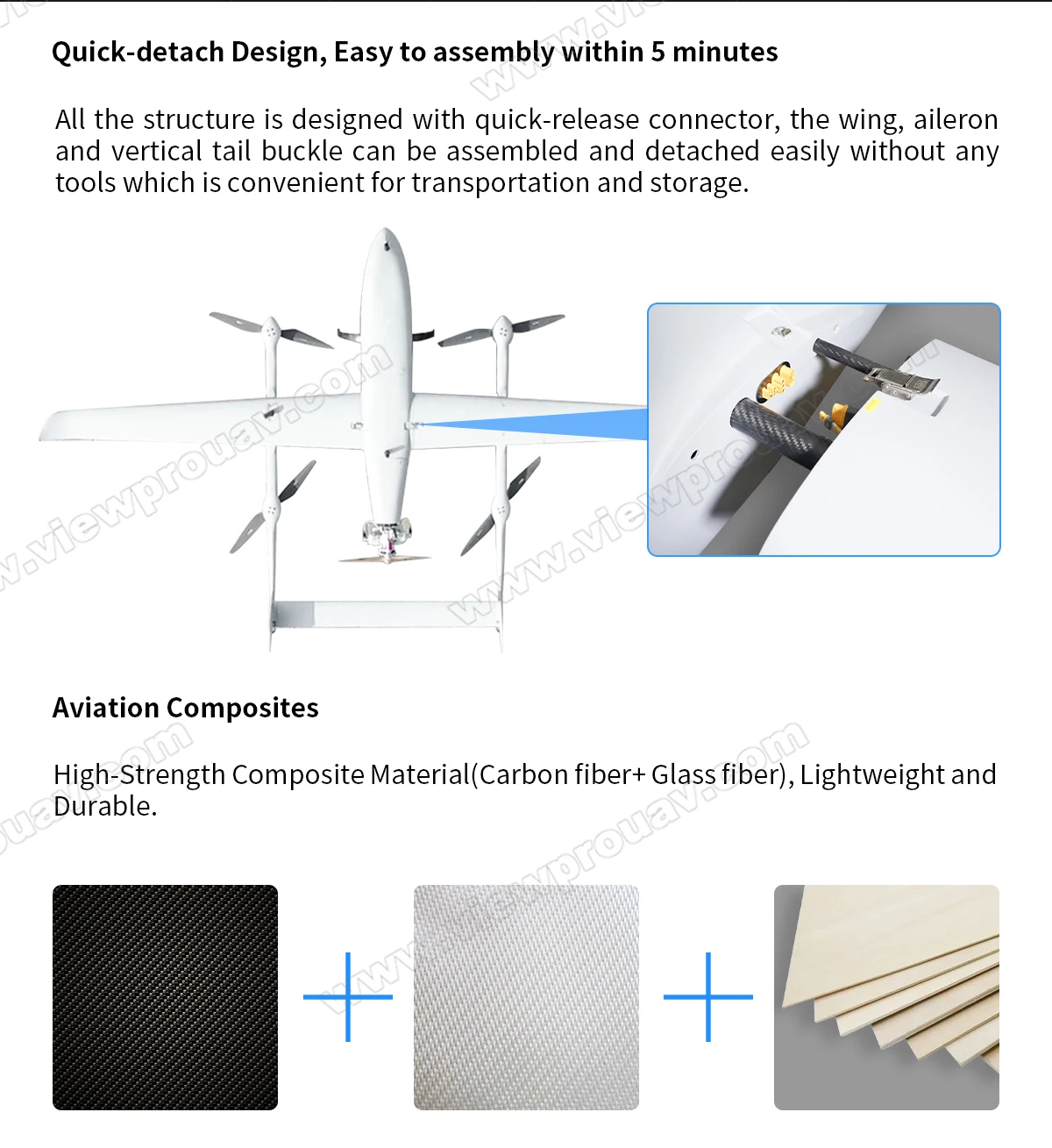

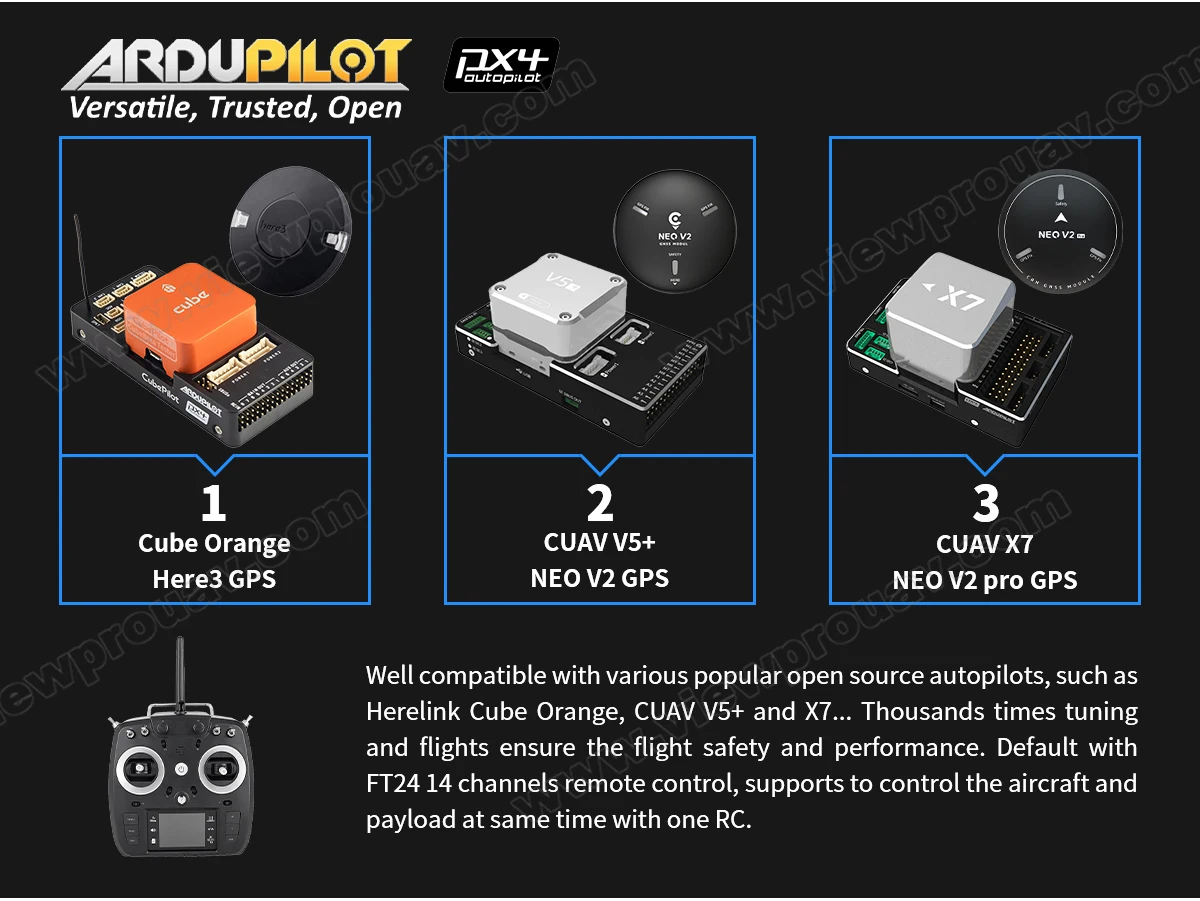

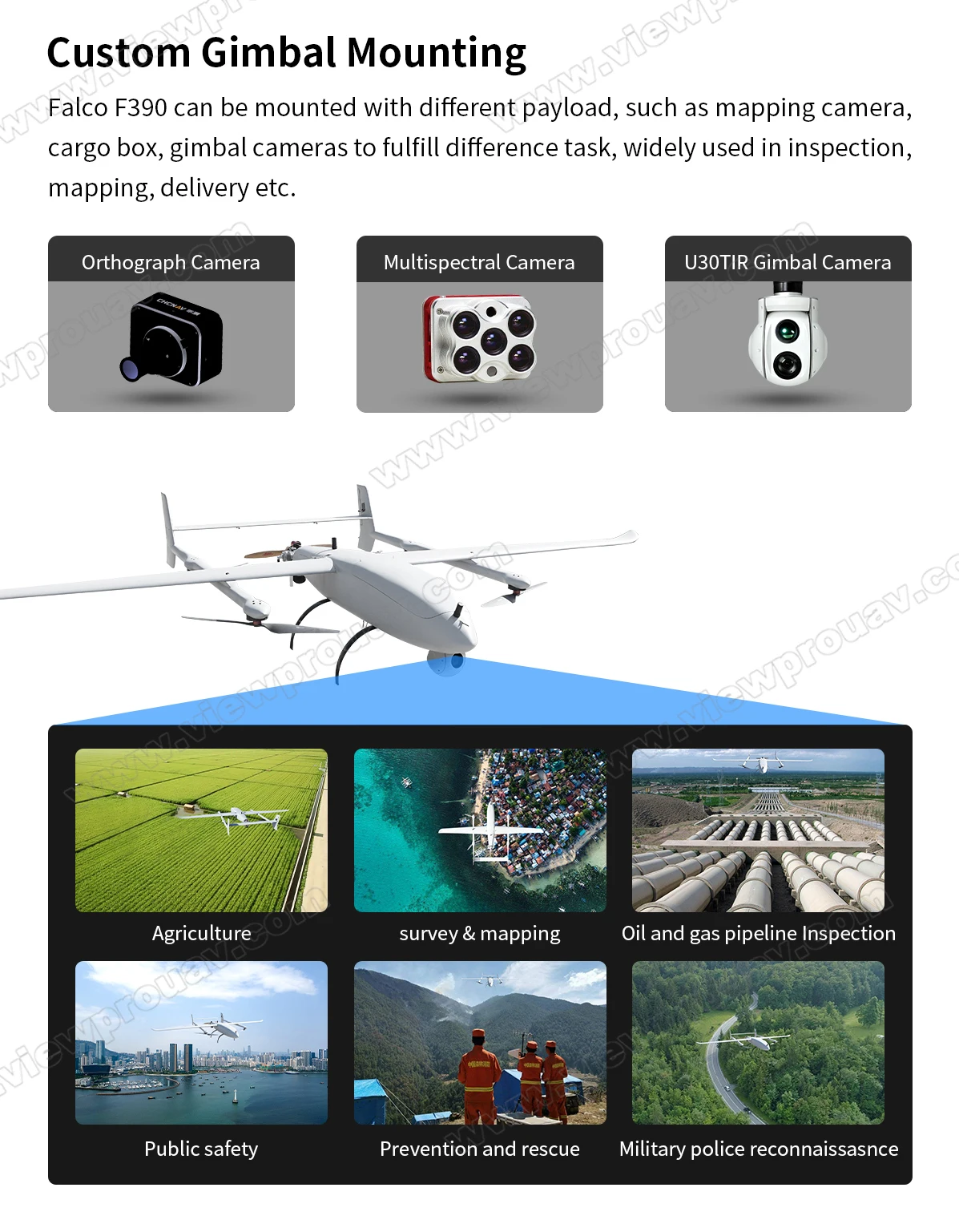

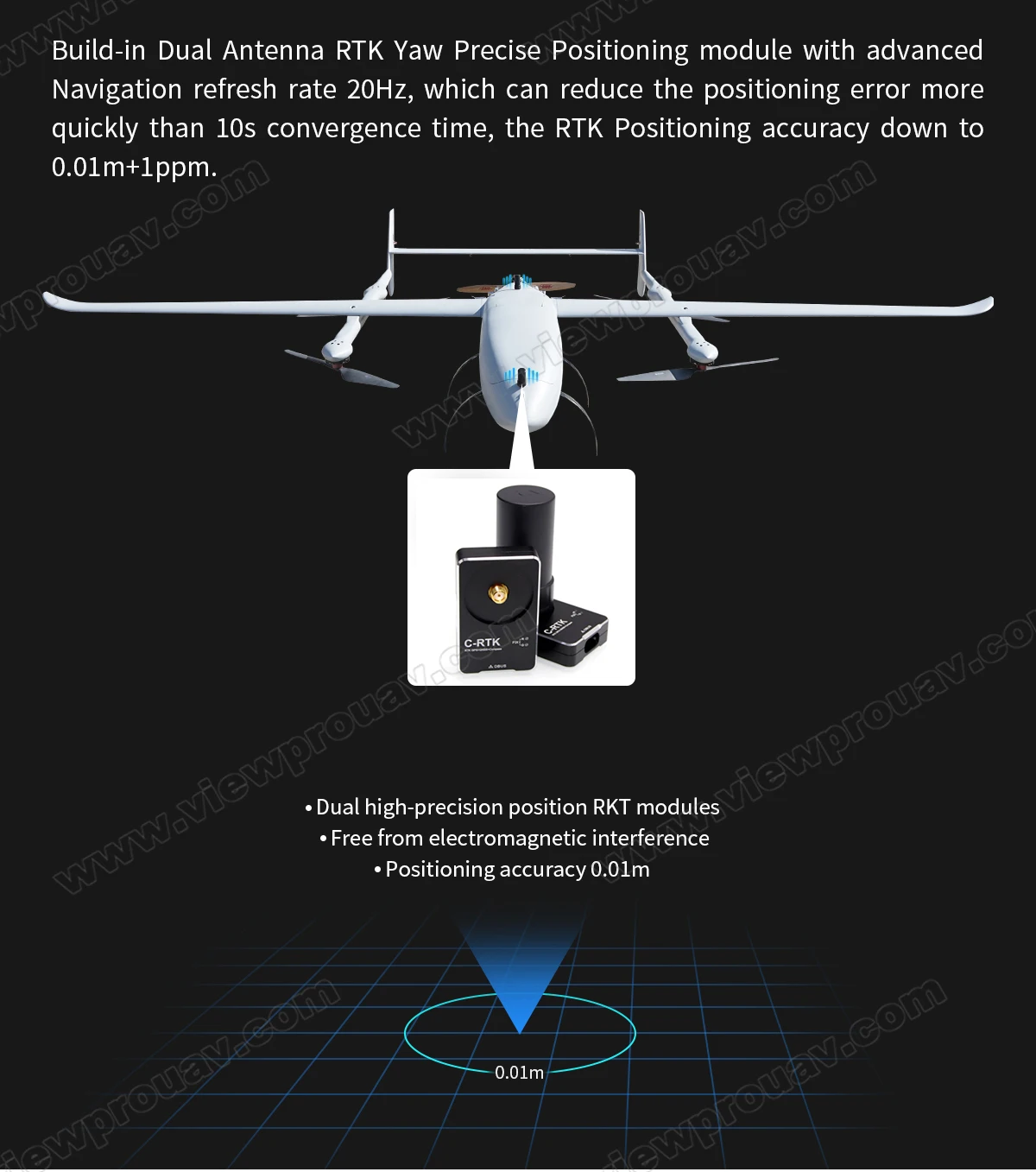

Made of Kevlar, Carbon Fiber and Glass Fiber, highly advanced aerodynamic design, formed the F390 as a light and durable platform. It is easy to assemble and storage with quick-release design. Falcon F390 is equipped with a powerful T-motor VTOL propulsion system and 23inch engine propeller that makes the maximum cruising speed 144km/h, Max.Take-off Weight 35kg. Open source autopilot CUAV X7 Pro and industrial level flight control i-Balanace S4 are optional for the professional platform. And it is equipped with dual-RTK position module to continuously and precisely lock the course without fear of electromagnetic interference, dispensing from manual gyro calibration with the heavy system as normal VTOL. It is widely used in various domains, such as long range power/oil pipeline inspection, railway patrol, surveying and mapping, border patrol, forest fire-fighting, cargo delivery etc..
Made of Kevlar, Carbon Fiber and Glass Fiber, highly advanced aerodynamic design, formed the F390 as a light and durable platform. It is easy to assemble and storage with quick-release design. Falcon F390 is equipped with a powerful T-motor VTOL propulsion system and 23inch engine propeller that makes the maximum cruising speed 144km/h, Max.Take-off Weight 35kg. Open source autopilot CUAV X7 Pro and industrial level flight control i-Balanace S4 are optional for the professional platform. And it is equipped with dual-RTK position module to continuously and precisely lock the course without fear of electromagnetic interference, dispensing from manual gyro calibration with the heavy system as normal VTOL. It is widely used in various domains, such as long range power/oil pipeline inspection, railway patrol, surveying and mapping, border patrol, forest fire-fighting, cargo delivery etc..
Details Images
Specification
Model No. | Falcon F390 |
Type | VTOL Fixed Wing |
Color | White as default (Support customization) |

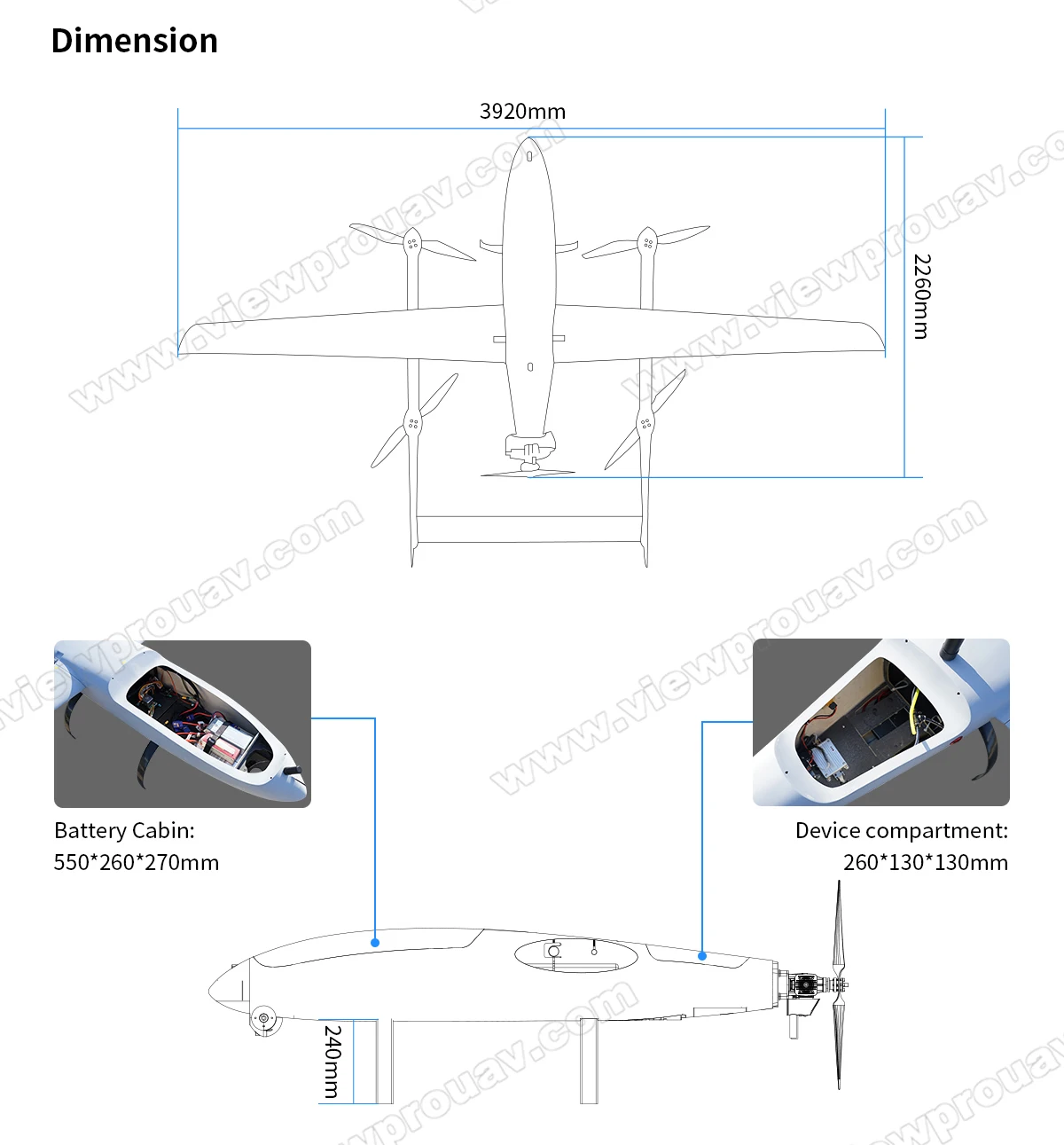

Wingspan | 3920mm |
Length | 2260mm |
Height | 800mm |
Belly to Ground | 240mm |

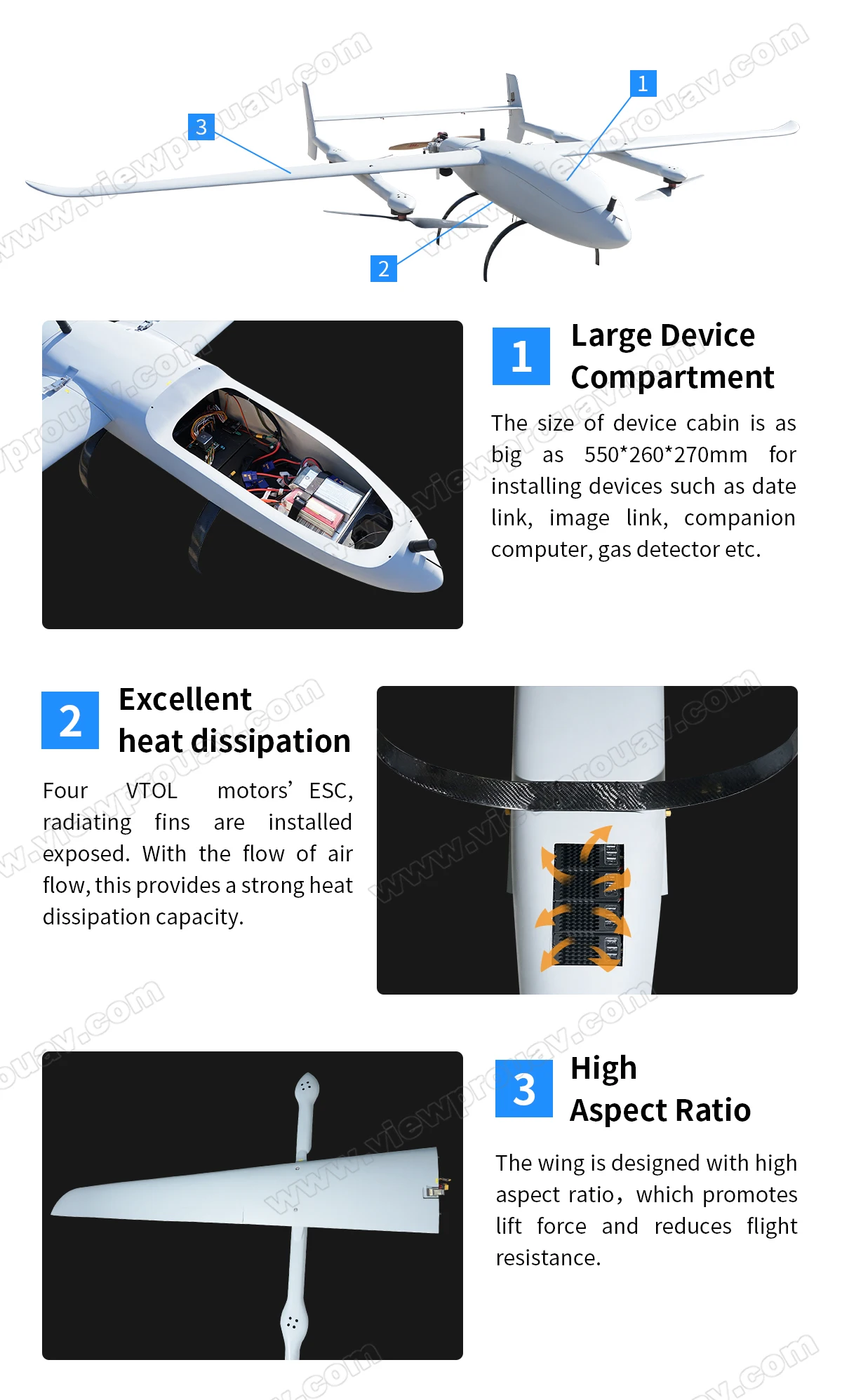

Battery Cabin | 550*260*270mm |
Material | Carbon fiber + glass fiber + Kevlar |
Airframe Weight | 19kg (including propulsion system) |
MTOW | 35kgs |
Max Payload | 8kgs |
Suggested Load | 5kgs |
Flight Time | 10h with 5kg payload |

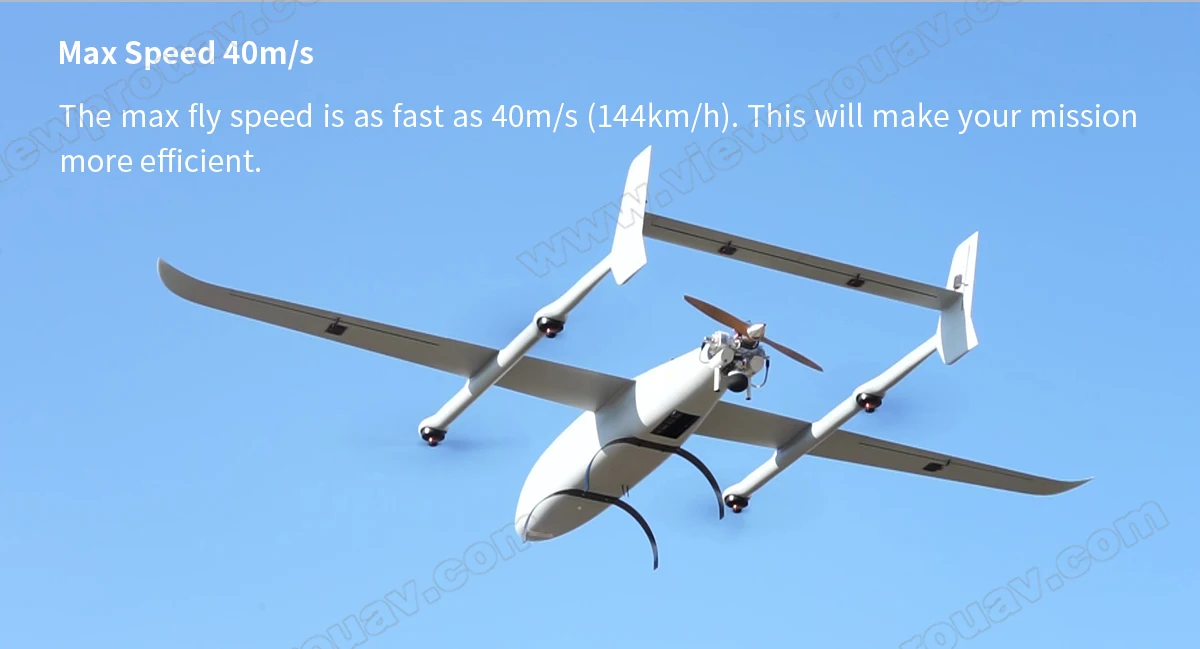

Max Cruising Speed | 144km/h(40m/s) |
Stall Speed | 65km/h (18m/s) |
Max Flight Altitude | 5000m |
Max Wind Resistance | ＞12m/s (fixed wing), 10m/s (VTOL) |
Engine | DLE60 EFI |

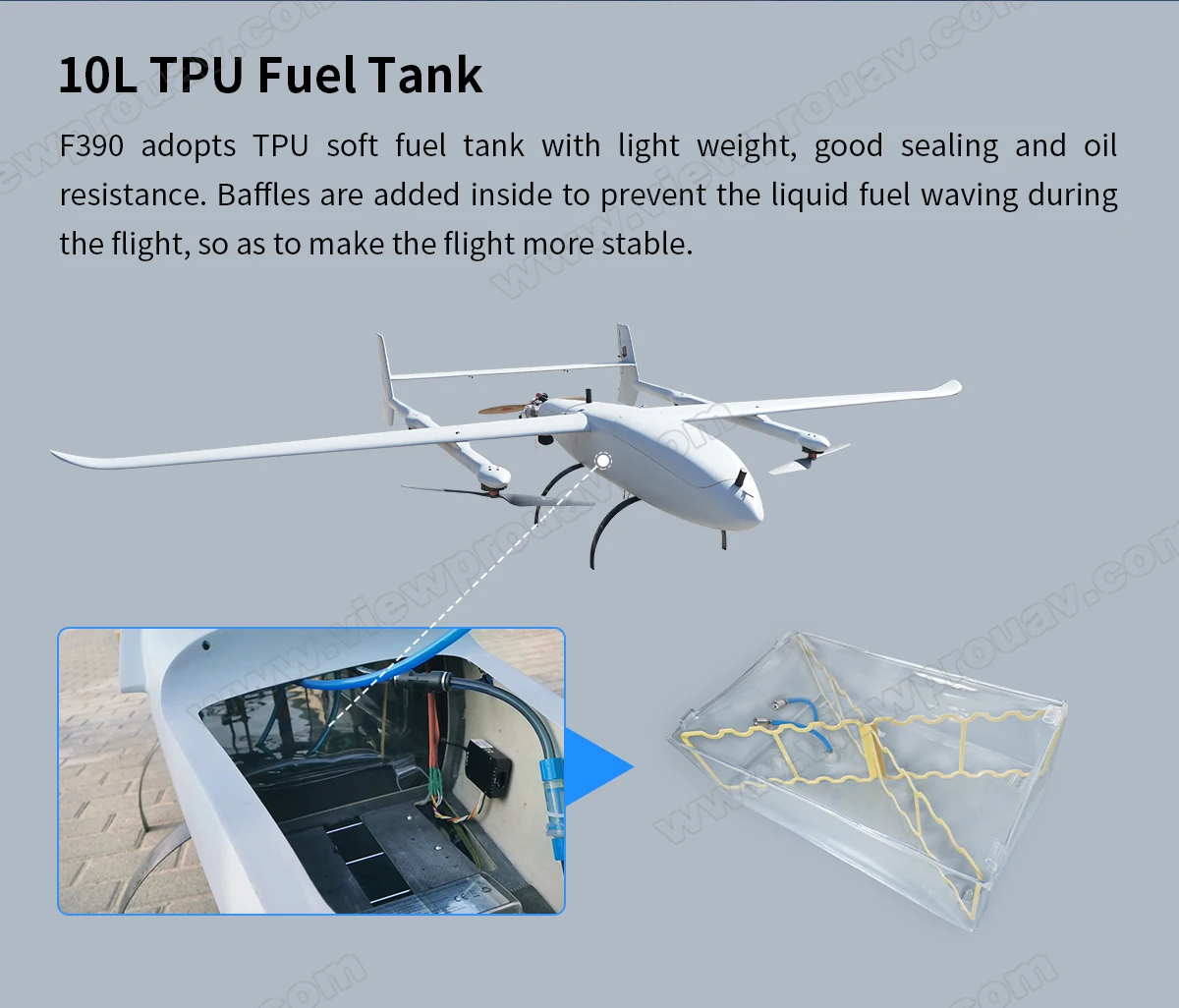

Fuel tank | 10L |
Battery (Recommended) | 4*6S 8000mAH Li-ion + 1*6S 27000mAH Li-ion |
Working Temperature | -20-45℃ |
IP Grade | IP44 |
Package Chargeable Size | 230*69*63cm |

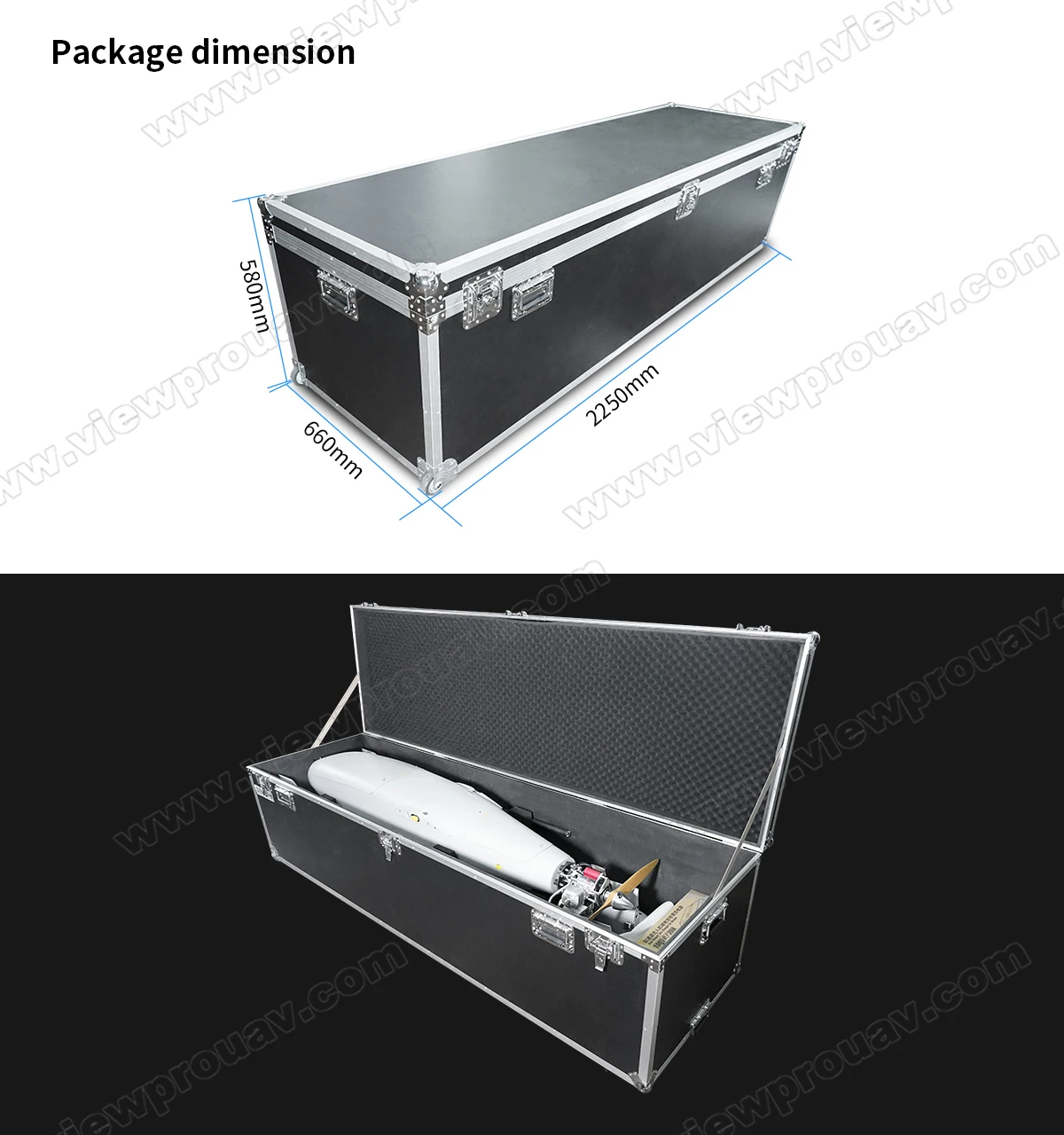

Packing & Delivery
Company Profile
ViewproUAV focuses on turn-key drone solutions and one-stop service for UAV platforms. With the veteran UAV team, we provide not only R&D, assembly, tuning and flight test service before delivery, but also professional and satisfying training and technical support after sales service.
The main UAV platforms we provide include:
● Electric VTOL fixed wings
● Hybrid VTOL fixed wings
● Hybrid fixed wing
● Rotary-wing drones (including quadrotor, hexacotper, octocopter...)
And also drone peripheral products such as various drone payloads, flight controllers, ground control stations, data link & video transmitters, batteries, etc.
● Electric VTOL fixed wings
● Hybrid VTOL fixed wings
● Hybrid fixed wing
● Rotary-wing drones (including quadrotor, hexacotper, octocopter...)
And also drone peripheral products such as various drone payloads, flight controllers, ground control stations, data link & video transmitters, batteries, etc.
