India Origin Manufacturer Selling Patent Design Automatic Laboratory Purpose 100 Sample Concentration Nitrogen Evaporator

India Origin Manufacturer Selling Patent Design Automatic Laboratory Purpose 100 Sample Concentration Nitrogen Evaporator

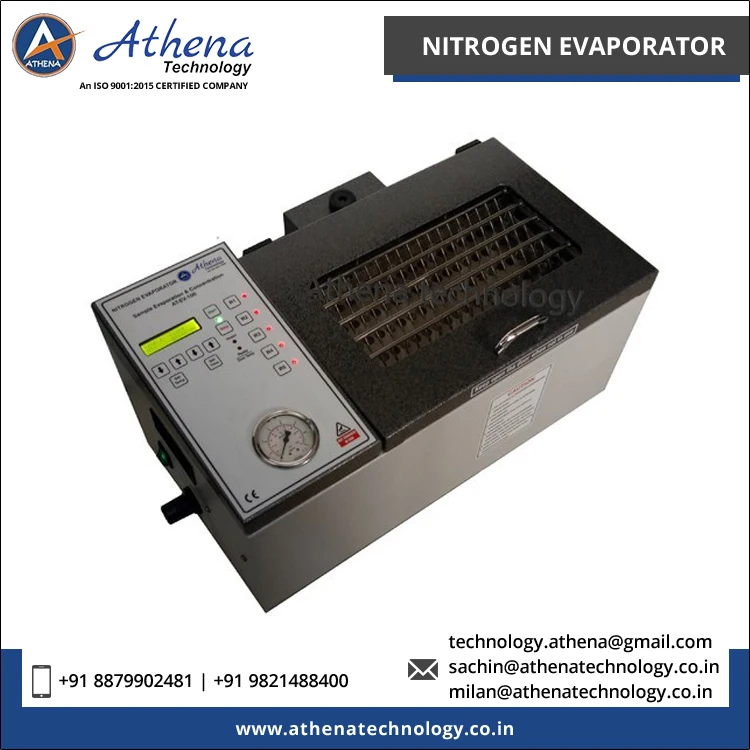

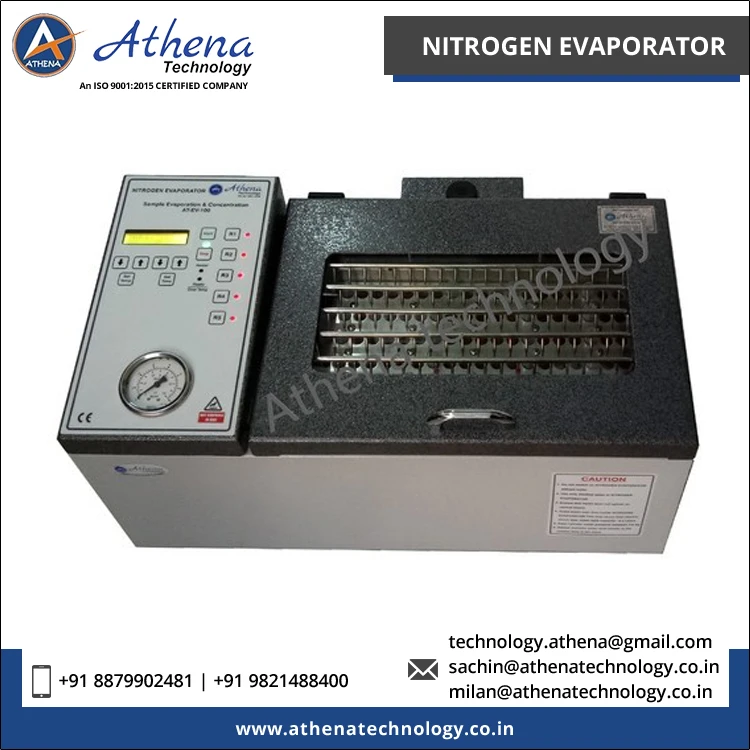

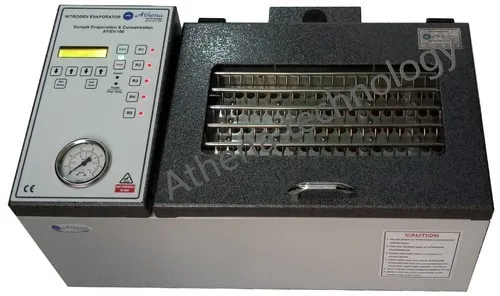

Our deep knowledge and industrial expertise enable us to provide a distinguished range of 100 Sample Nitrogen Evaporator This evaporator is an automated high speed, small volume sample concentrator. It is specially designed for small sample volumes and large batches. It is ideal for sample volumes from 1 ml to 12 ml. We manufacture this evaporator using optimum class components and cutting-edge methodology as per the defined industry standards and norms.

Features:

• Anti-corrosive body



• Minimum maintenance



• High performance

Product Specifications:

• Time Set-up / down arrow keys (15 sec increments)



• Temperature range: Ambient to 95ºC (thermal cutout for safety)



• Temperature set-up / down arrow keys (1°C increment)



• Start/stop: Green LED indication when process is ON



• Gas stations: 5 Nos. with LED indication



• Display: LCD (Digital)



• Gas regulator range: 0 to 100 PSI (approx)



• Pressure gauge range: 0 to 100 PSI



• Controlled: Fully Microprocessor based



• Sample capacity: 100 Nos. (AT-EV-100)



• Exhaust: 1/2" Hose Pipe of 1 mtr. length



• Vortex Shearing Concentration

Other Details:

• Compact Size Tabletop Model.



• Precise manufacturing using latest technology -Water Jet Cutting & CNC fabrication



• High-Quality Pressure Gauge from Wika.



• Side Handles for easy movement



• SS 316 tank & Nozzle Manifold for durability and maintenance free



• Best Quality powder coating for great looks & to avoid rusting



• Specially Designed Aluminum block for fast & uniform heating



• No Bacterial fungal Growth, No cleaning required



• Tank & Body gap is well insulated with imported Glass wool Sheet to avoid heat loss.



• Auto Cut off with precision sensor for Time, temperature & gas flow



• Best quality Pneumatic Fitting from Janatics & Parker operation



• Efficient & adjustable ventilation with Built-in exhaust fan with blower



• 2mtr 1.5 ″ID Polyethylene Exhaust hose for easy ventilation



• 4mm Flexible Transparent gas Path Tubing



• Snap fitting 8mm OD Flexible Polyethylene Tubing for nitrogen supply



• 5 Nitrogen Control valves with ON/OFF Switches



• 50 nitrogen –dispending nozzle in five horizontal rows



• Self glowing Power ON /OFF Switch



• Automated Solvent Drying, Solvent Evaporation And Sample Concentration



• Evaporation Medium : Nitrogen & dry Heat (using block)



• Fast evaporation



• Microprocessor-controlled vortex motion increases surface area for faster evaporation.



• Maintenance-free, microprocessor-controlled motor provides smooth variable-speed ower to drive the vortex motion.



• Audible alarm with automatic shut down for timed end point



• Audible/visual alarm for end point detected by temperature sensors at heater and block..



• All mechanical components are isolated from the chemical fumes and vapors for longer life.
