Connection box junction box 200T high speed electrical metal box making power press punching machine
- Category: >>>
- Supplier: Maanshan Prima Cnc Machinery Co. Ltd.
Share on (10000008005306):
Product Overview
Description

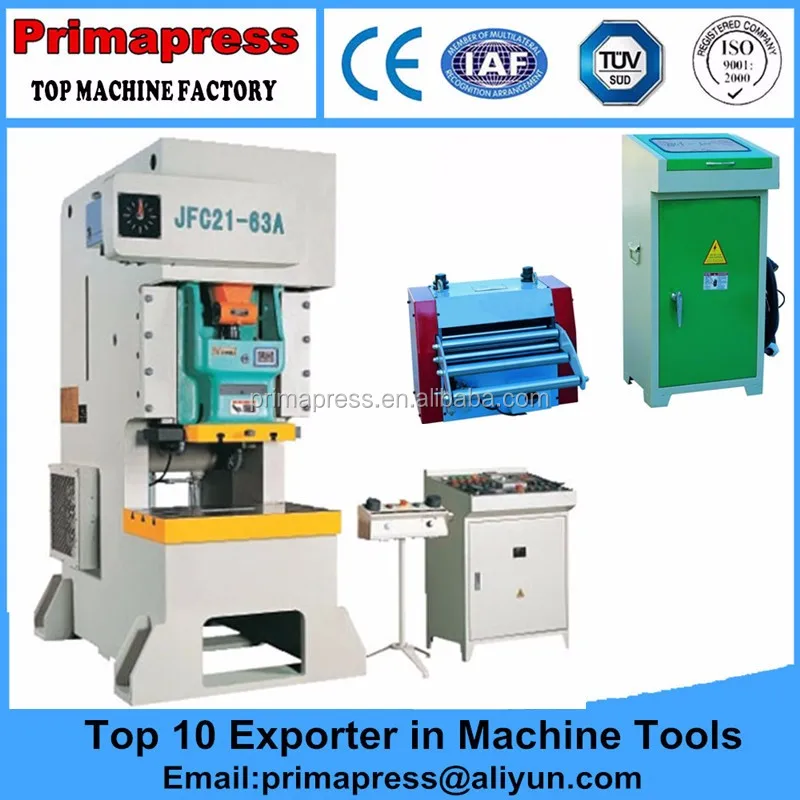

160T Automatic Mechanical Stamping Power Press Punching Machine
Videos in Youtube:The mold is customized, we don't have stock for video display
Product Description
1. Main Features:
Open Back Press with Fixed Bed, a kind of thin sheet metal processing universal press imported advanced technology of AIDA company in Japan, which is suitable for shearing, punching, blanking, bending and shallow drawing. The structural feature is as follows:
Main Technical Specification:
Capacity | kN | JF21-250B | JF21-250 | JF21-450 | JF21-630 | JF21-800 | ||
Nominal Stroke | mm | 3 | 3 | 4 | 4 | 5 | ||
Slide Stroke | mm | 60 | 80 | 100 | 120 | 140 | ||
SPM | Fixed | min-1 | 100 | 100 | 80 | 70 | 60 | |
Variable | 80-120 | 80-120 | 70-90 | 60-80 | 50-70 | |||
Max. Die Height | mm | 200 | 250 | 270 | 300 | 320 | ||
Die Height Adjustment | mm | 50 | 50 | 60 | 80 | 80 | ||
Between Slide Center & Frame | mm | 160 | 210 | 230 | 300 | 300 | ||
Bolster (FB×LR) | mm | 300×680 | 400×700 | 440×810 | 580×900 | 580×1000 | ||
Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.) | mm | 130×260 | φ170×20×φ150 | φ180×30×φ160 | φ200×40×φ180 | φ200×40×φ180 | ||
Bolster Thickness | mm | 70 | 80 | 110 | 110 | 120 | ||
Bolster Opening (Dia./ FB×LR) | mm | 200 | 260 | 300 | 390 | 390 | ||
270 | 250 | 300 | 460 | 520 | ||||
Slide Area (FB×LR) | mm | 270 | 250 | 340 | 400 | 420 | ||
330 | 360 | 410 | 480 | 560 | ||||
Shank Hole (Dia.×Dpth) | mm | φ40 | φ40 | φ40 | φ50 | φ50 | ||
60 | 60 | 60 | 80 | 80 | ||||
Between Columns | mm | 448 | 450 | 550 | 560 | 640 | ||
Main Motor Power | kW | 3 | 3 | 5.5 | 5.5 | 7.5 | ||
Outline Size (FB×LR×H) | mm | 1150×1050×2050 | 1300×1050×2050 | 1390×1125×2315 | 1580×1210×3320 | 1640×1280×2700 | ||
Net Weight | kg | 2200 | 2600 | 3450 | 5400 | 7000 | ||

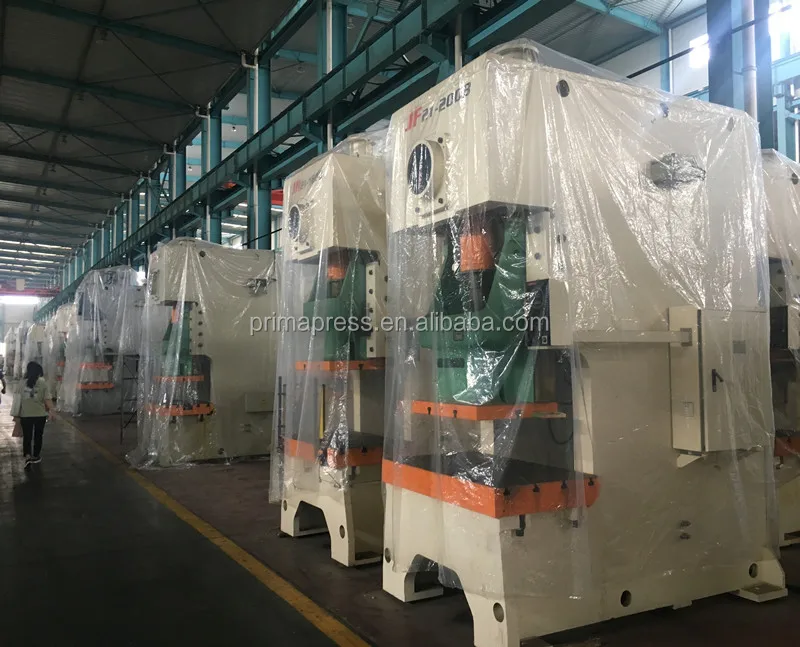

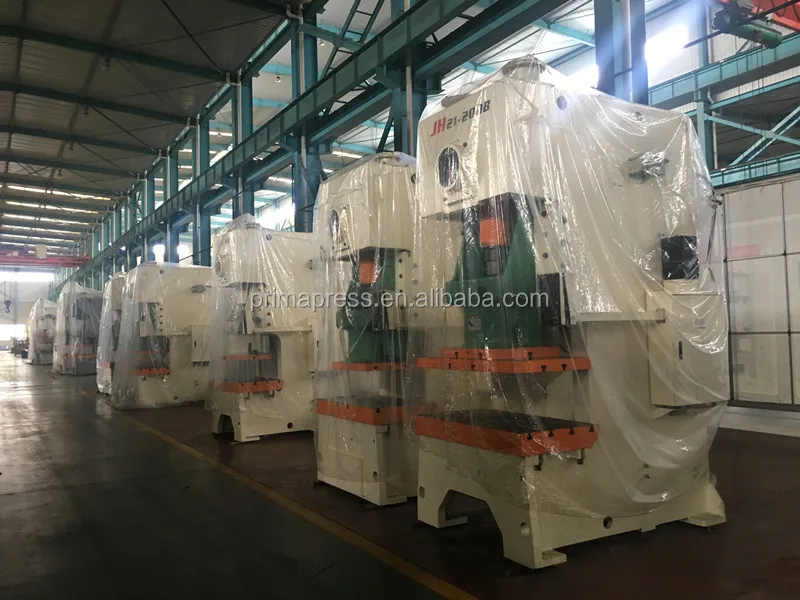

Packaging & Shipping

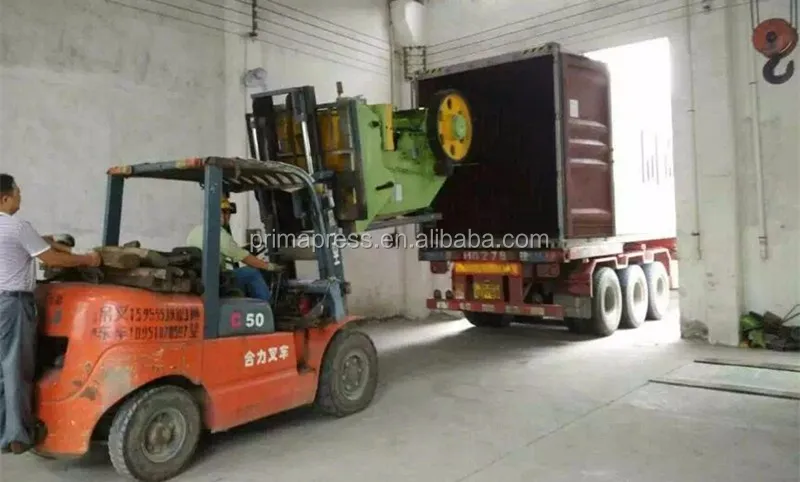

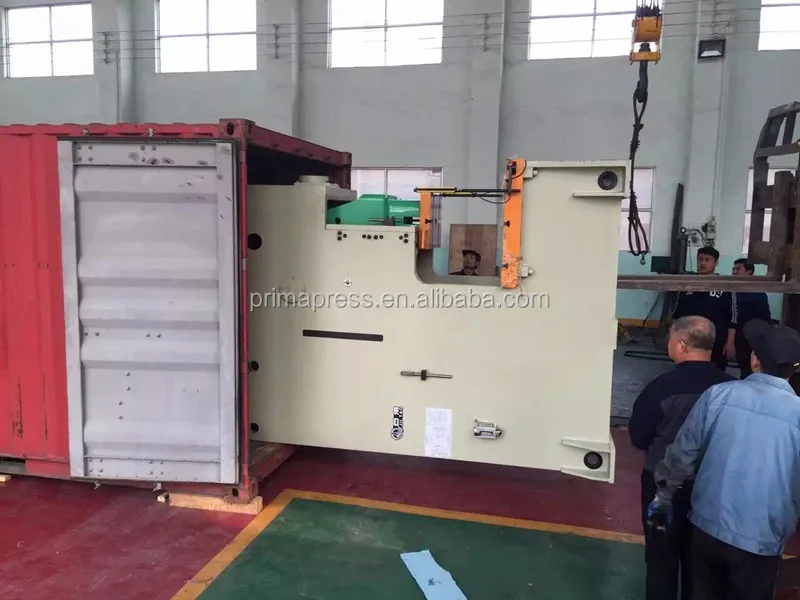

We order the container to go our factory for the loading.
Our Services
24 hours on line services, and we take care about the after-sales services.
FAQ
Price : Give me reply, i will give you my favorable price immediately !
Payment term : 30% deposit and the balance paid against copy of B/L in 3 days .
Package : Standard exporting package .
Operation manual and video disc :
When delivery machine, the related operation instruction of model will delivery together with machine. And in the instruction, there is teaching video disc .
After-sales service :
1.machine is simple, generally, user can understand how to operate. There is operation instruction and disc .
2.welcome to our factory to learn how to operate our machine, we will give good training .
3.our engineer is available for user. If there is requirement, our engineer can go to user factory, and adjust machine, give good training to user .
