Price:$250,000.00

Quantity:


Product Overview

Description



Product Overview

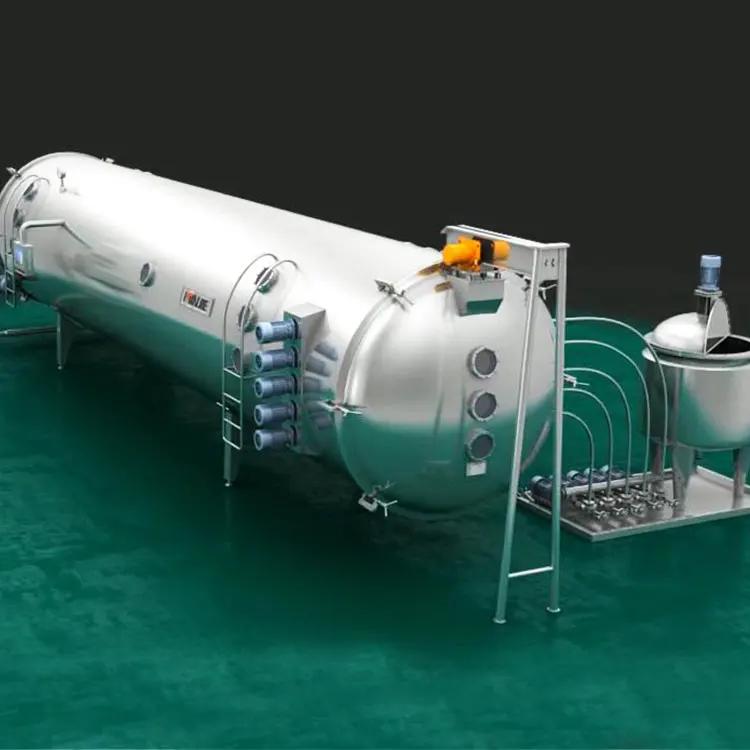

Vacuum Belt Dryer
Vacuum belt dryer is a continuous feed and discharge vacuum drying equipment. it is used widely in food pharmaceutical, chemical industries, because the vacuum degree and temperature can be adjusted, so it is especially suitable for liquid with temperature-senstive ,high-viscosity materials


1Continuous feed-in and discharge in vacuum state
2.Complete the drying, crushing, granulating process under vacuum condition
3.Automatic, continuous and pipe lining drying process
4. High product quality and ingredient preservation
5.Drying temperature adjustable 20℃-150℃
6.Organic solvent recovery can be up to 99%
7.Recycling of organic solvent, no discharge, no pollution1/3 operation cost of vacuum oven and spray dryer
8 Suitable for drying of thermal sensitive, high sugar and high viscosity material suitable for drying of thermal sensitive, high sugar and high viscosity material
9.PLC control system,CIP cleaning system, GMP standard



Model selection referencce


Model
size
Heat exchange area ㎡
Heating Temp ℃
Moisture content of feeding material %
Moisture content of dried powder
Water Evaporation   kg/h
Heating media
MJY30-4
1.7*9.8*2.7m
30
                                                                                                                                                                                                          30-150 Adjustable
                                                                                                               20-80% with fluidity
                                                                                                    0.2-5%  Adjustable
15-25
                                  Steam or Hot water or Hot oil
MJY60-6
2.2*10.8*3.65m
60
45-55
MJY80-6
2.2*13.5*3.65m
80
60-75
MJY100-6
2.2*16.1*3.65m
100
80-90
MJY120-7
2.2*16.1*6.35m
120
100-110
MJY160-8
2.8*17.3*4.1m
160
120-140
MJY200-10
2.8*17.3*4.15m
200
160-180


Application
1. food and beverage such as instant tea /cocoa powder/Molasses/Honey/Camel Milk/Malted milk drink/ovaltine powder
2. Pharmaceutical such as Herbal Medicine/Plant Extract/Pills
3. Chemical such as Lithium Battery Fluid/Polymer battery/Cobalt products/Copper products/Agricultural chemicals/Hazardous Chemical








Details Images




Our Advantages










FAQ


Question 1: What is the working principle of vacuum belt dryer?

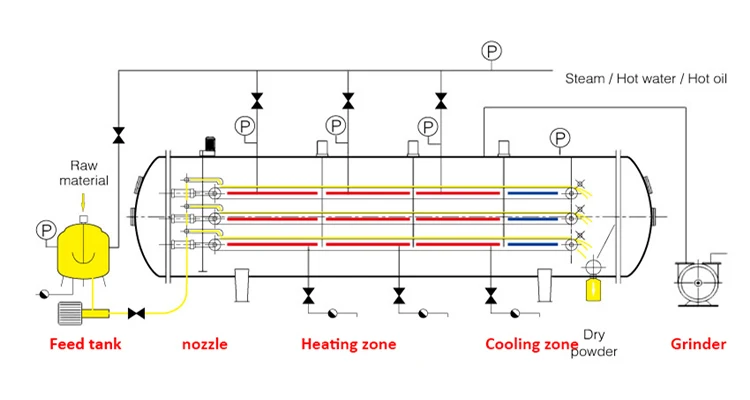

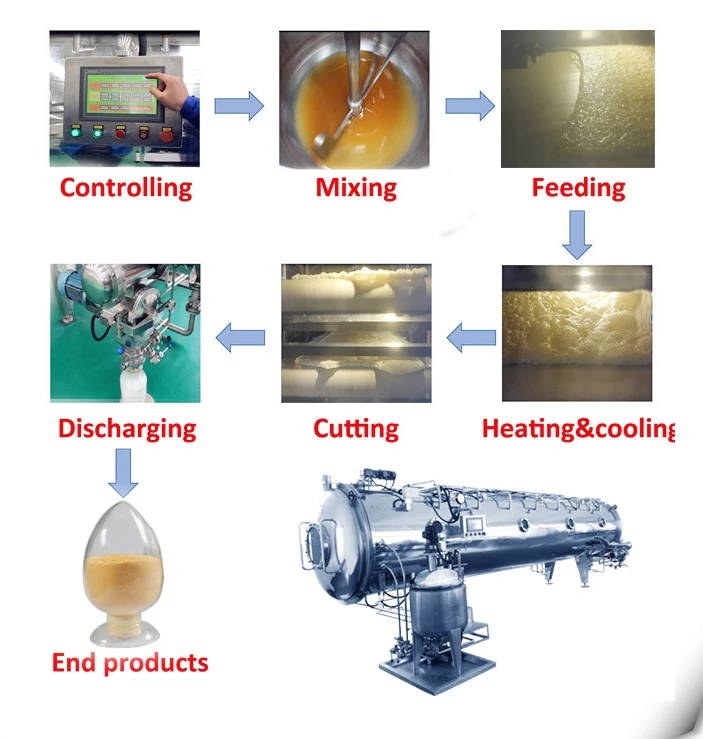

Answer: Vacuum belt dryer is a continuous infeed and discharge vacuum drying equipment. Liquid product is conveyed into dryer body by infeed pump, evenly spread on belts by distribution device. Under high vacuum, the boiling point of the liquid is lowered; water in the liquid material is evaporated under low temperature, thus protect active ingredients in the product.

Question 2: What is the cleaning way? Whether does the machine accord with GMP standards?
Answer: with CIP cleaning, vacuum belt dryer is the best choice for GMP performance.

Question 3: What kind of products can vacuum belt dryer dry?
Answer: all kinds of liquid material for vacuum belt dryer.

Question 4: How to ship vacuum belt dryer?
Answer: Flat Rack+container

Question 5:What is the delivery time?
Answer: 90-120 days

Question 6: What is the after-sales service type?
Answer: engineers onsite to guide installation, commissioning and training.

Question 7:How many years history of your factory?
Answer: Since 1998.

Question 8:How many sets vacuum belt dryer are been sold every year?
Answer: 80-100 sets

Question 9: What is drying temperature?
Answer: 30-150℃(adjustable)
