Large capacity high performance high quality single stage Stainless Steel SS 304 and SS 316 centrifugal pump
- Category: >>>
- Supplier: C-WAY EXPORTS
Share on (10000008102580):
Product Overview
Description
Item | Value |
Warranty | 1 YEAR |
Customized support | OEM |
Brand Name | C-WAY |
Model Number | N/A |
Place of Origin | India |
Province | Telangana |
Application | Commercial Buildings, Drinking water treatment, Family Homes, Food and Beverage Industry, Industrial Utilities, Irrigation and Agriculture, Marine, Raw Water Intake, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions |
Horsepower | 10 |
Power Source | Electric |
Pressure | High Pressure |
Structure | Single-stage Pump |
Cable Length | 2 Meter |
Outlet Size | 4 inch |
Voltage | 220 V-240 V |
Power | 2 hp-30 hp |
motor | 0.37 KW- 110 KW |
Product name | Centrifugal water Pump |
Application | Agriculture |
Frequency | 50hz /60hz |
Material | Stainless Steel, cast iron |
Type | Single-stage Pump |
Impeller | Stainless Steel Material |
Feature | Energy Saving |
Size | 4*4 |
Speed | 2900 Rpm |
Keywords | Centrifugal Electric Water Pump |
CENTRIFUGAL WATER PUMP
* We are the largest exporter of CENTRIFUGAL WATER PUMP. We provide high quality centrifugal water pump which is highly durable and long lasting. Compliance with stringent quality standards.
* Our Centrifugal Pumps are stainless steel centrifugal mono block and bare pumps (coupled). Centrifugal Pumps are made from ss-304 or ss-316 sheet.
* These are precisely fabricated. Its wetted parts are of stainless steel and are widely used in chemical and process
industries. As these pumps are fabricated from steel, it is also widely used in dairy, food and beverages industries, RO and DM plant, sea water applications.
* These pumps are available from 0.25 HP to 30 HP.
* We offer a wide range of Centrifugal Pump, which is extensively used in various engineering, fluid based and other industries for transporting of milk, juice, water, chemicals etc.
* It is fabricated using high grade stainless steel, these pumps are acknowledged for high durability and flexibility.
Innovatively designed, these pumps ensure trouble free performance and energy efficiency.
* We can also provide centrifugal pumps based on the customer requirements.
Features of centrifugal water pump
* As all pumps are made from rolled stainless steel, mechanical properties are far superior then cast material.
* Pore free, non-pitting and non-adhering smoother surface, so less friction tosses, and less crevice corrosion.
* Super finish surface also ensure no ingress or emission of germs or impurities during pumping or idling which is basic
requirement of steriie / hygienic application
* Pump can handle liquids having viscositi up to 1500 centipoise
* Pumps are highly energy efficient and requires less NPSH to function without cavitation
* The pumps can work under a vacuum of 720 mm of Hg, suitable for vacuum evaporators
* Pumps are available with dosed/semi open impellers.
* The best elastomers are used in the pumps to provide optimum resistance for high temperatures and chemicals.
* Minimum working / rotating parts
* Safe and quite operation levels
* Gentte product handling with lower maintenance and downline cost.
* Dynamically combinations of seal faces as per customer's requirement (single seal / double seal, seal external cooling )
* Suitable for standard motor or flange type or foot cam flange type motor or engine
* Monobloc or bare pumps or with trolley
* Various types of connection like - tri'clove joints SMS, flanges or threaded nipple/coupling
* As all pumps are made from rolled stainless steel, mechanical properties are far superior then cast material.
* Pore free, non-pitting and non-adhering smoother surface, so less friction tosses, and less crevice corrosion.
* Super finish surface also ensure no ingress or emission of germs or impurities during pumping or idling which is basic
requirement of steriie / hygienic application
* Pump can handle liquids having viscositi up to 1500 centipoise
* Pumps are highly energy efficient and requires less NPSH to function without cavitation
* The pumps can work under a vacuum of 720 mm of Hg, suitable for vacuum evaporators
* Pumps are available with dosed/semi open impellers.
* The best elastomers are used in the pumps to provide optimum resistance for high temperatures and chemicals.
* Minimum working / rotating parts
* Safe and quite operation levels
* Gentte product handling with lower maintenance and downline cost.
* Dynamically combinations of seal faces as per customer's requirement (single seal / double seal, seal external cooling )
* Suitable for standard motor or flange type or foot cam flange type motor or engine
* Monobloc or bare pumps or with trolley
* Various types of connection like - tri'clove joints SMS, flanges or threaded nipple/coupling
Centrifugal water pump

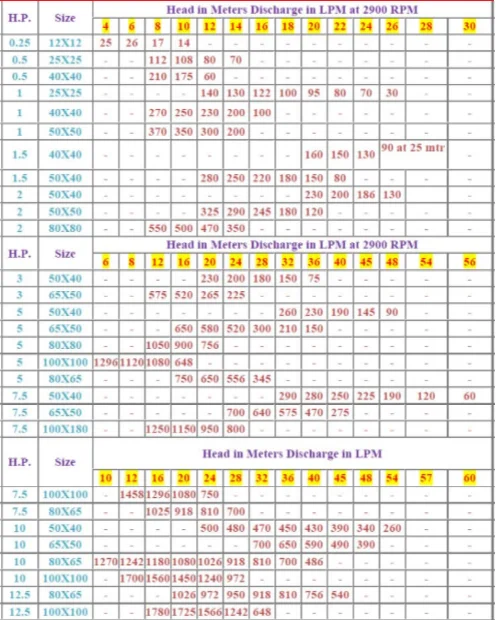

Technical specifications
Technical specifications
333
Applications:
* Milk, Cream, Butter Milk Condensed Milk
* Fruit 3uice, , Sugar Syrup
* Vitamin Solutions, Sugar & Confectionery
* R 0 Water, DM Water, Pure Water. Water for Injection (WFI)
* Vegetable Oil, Mineral Oil, Lub Oil etc
* Pharmaceutical Formulations, Syrup etc
* Alkaline Solution / Alcoholic Drinks
* Acids, Fine Chemicals
* Bottling Plants, Soft Drinks & Distillery
* Food Processing / Liquid Food Stuffs
* Colour dyes and Pigments / Paints
* Descaling Applications, Paper & Cement Industries
* Water Treatment Plants
* Detergent, Soaps, Paste & Shampoo
* Textile Sizing, Dyeing & Finishing Systems
* Natural Cellulose Fiber / Synthetic Fiber System
* Hot & Cold Water Pumping
* Fruit 3uice, , Sugar Syrup
* Vitamin Solutions, Sugar & Confectionery
* R 0 Water, DM Water, Pure Water. Water for Injection (WFI)
* Vegetable Oil, Mineral Oil, Lub Oil etc
* Pharmaceutical Formulations, Syrup etc
* Alkaline Solution / Alcoholic Drinks
* Acids, Fine Chemicals
* Bottling Plants, Soft Drinks & Distillery
* Food Processing / Liquid Food Stuffs
* Colour dyes and Pigments / Paints
* Descaling Applications, Paper & Cement Industries
* Water Treatment Plants
* Detergent, Soaps, Paste & Shampoo
* Textile Sizing, Dyeing & Finishing Systems
* Natural Cellulose Fiber / Synthetic Fiber System
* Hot & Cold Water Pumping
