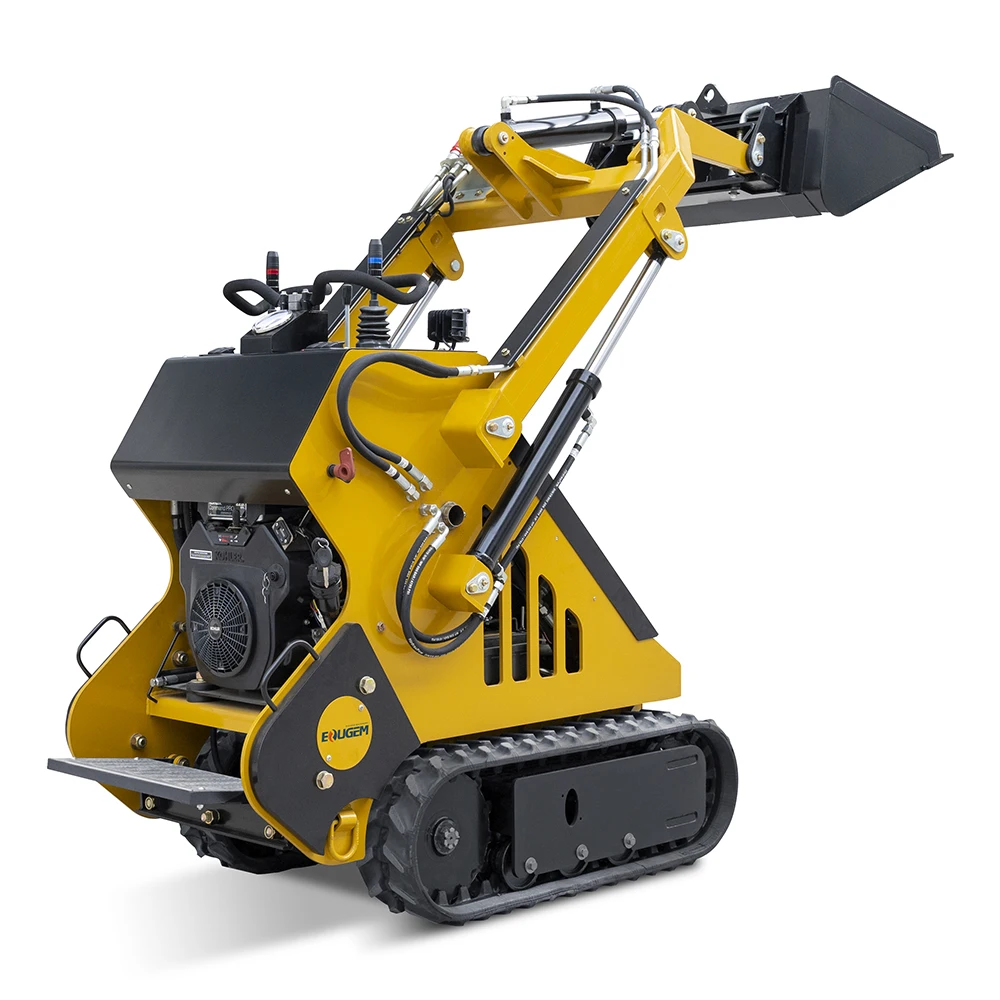

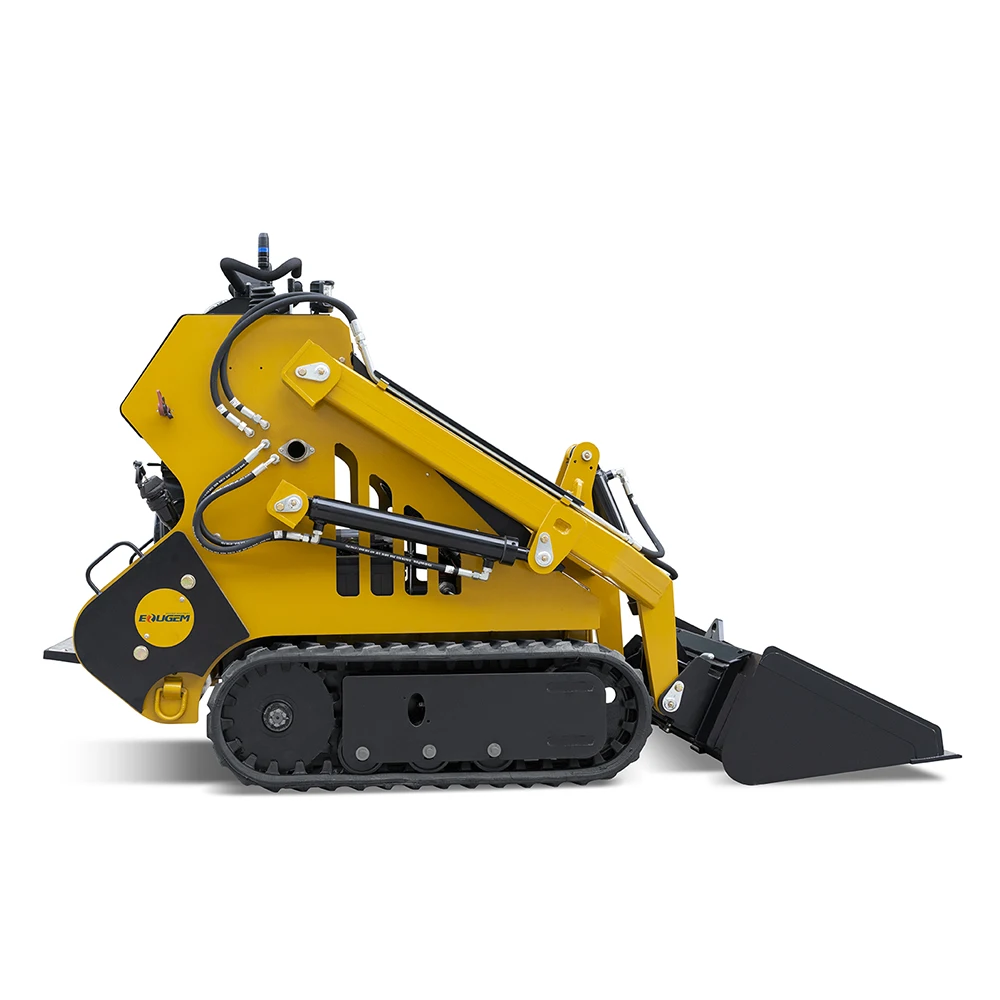

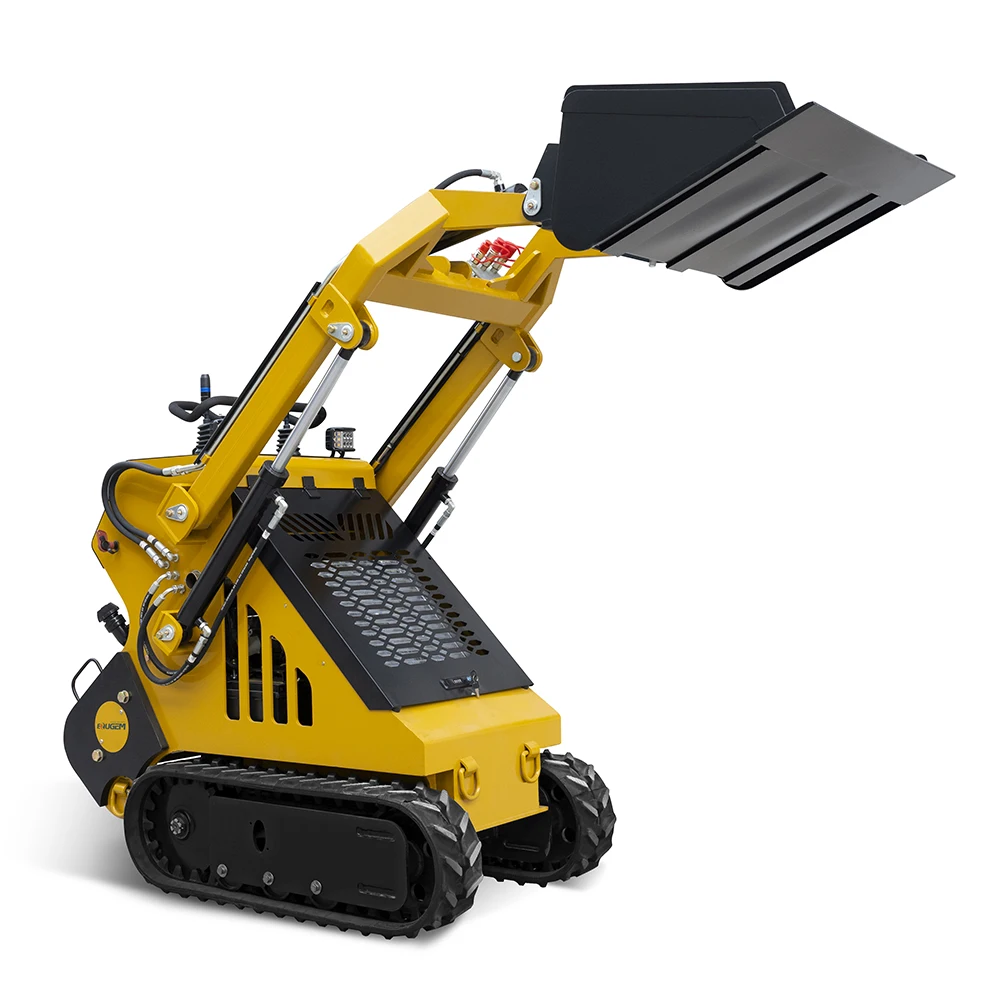

Skid Steer Loader Mini Crawler 23hp Kohler honda rato engine SK650 Mini Skid Steer Loader With Concrete Mixer
- Category: >>>
- Supplier: Shandong Oujin Engineering Machinery Co. Ltd.
Share on (10000008178230):
Product Overview
Description
Products Description

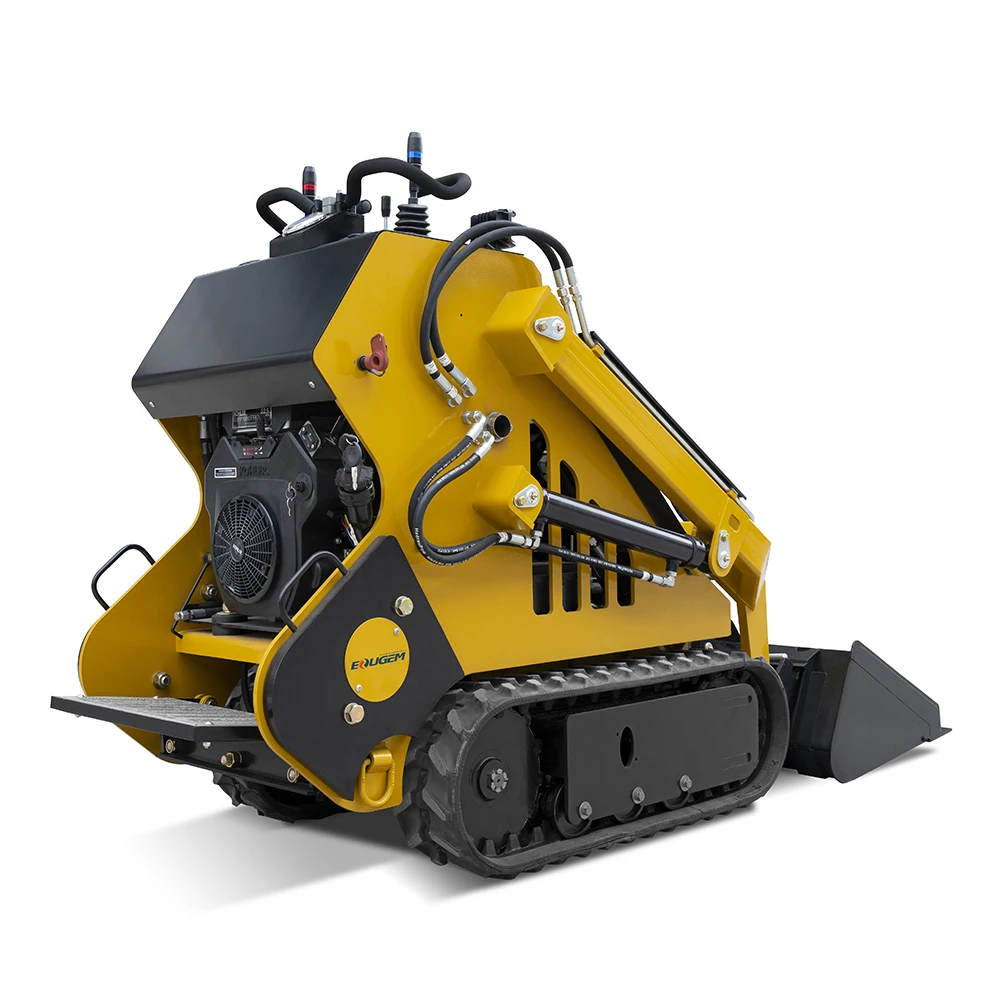

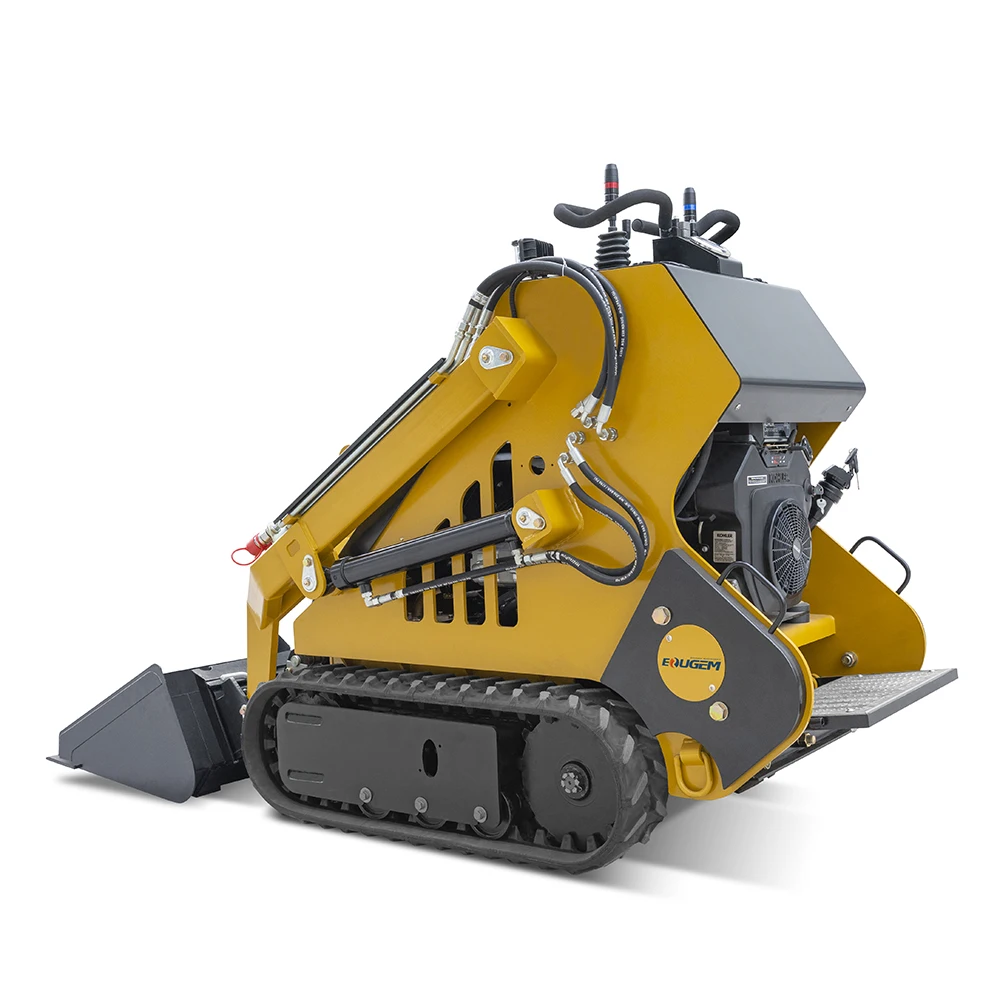

Product Application- Mini skid steer loader wheeled type model SK650
SK650 SERIES is a kind of mini skid steer loader designed for productivity. Its ease of use, compact size, versatility and
efficiency make it and ideal machine in any compact raodways or low space working.
SK650 has both wheeled and tracked type, 4WD and skid-steering. Ride-on and folable platform adds convenience and comfor for
operation and transportation, simply put it into a traioler or in a delivery van to transport, no need special equipment.
SK650 SERIES is a kind of mini skid steer loader designed for productivity. Its ease of use, compact size, versatility and
efficiency make it and ideal machine in any compact raodways or low space working.
SK650 has both wheeled and tracked type, 4WD and skid-steering. Ride-on and folable platform adds convenience and comfor for
operation and transportation, simply put it into a traioler or in a delivery van to transport, no need special equipment.
Main Characterisitics:
♦Good performance with competitive price
♦Turn within its own length
♦Excellent reach and lift height for truck loading (radial direction)

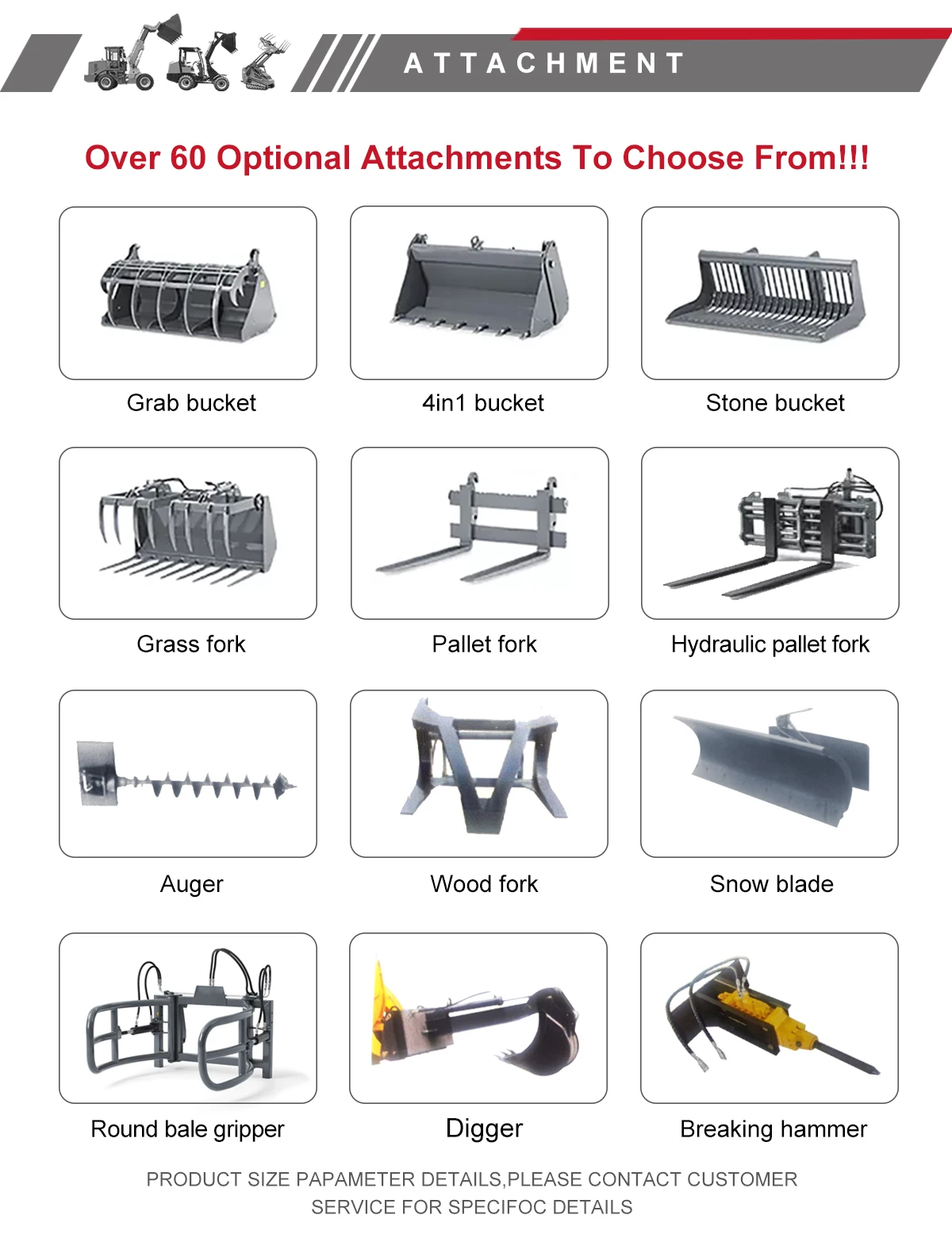

♦More than 20 series attachments for option: pallet fork, hydraulic hammer,
backhoe, sweeper, angle broom, 4 in1 bucket, auger, trencher, tooth bucket and so on.
♦Attachment can be used with bobcat type skid steer loader
♦World famous hydraulic system from America (Sauer pump and hydraulic motor)
♦Famous brand engine with EPA or EURO II or III from China and Japan
♦Multifunctional, maneuverability and reliability
♦Good performance with competitive price
♦Turn within its own length
♦Excellent reach and lift height for truck loading (radial direction)
♦More than 20 series attachments for option: pallet fork, hydraulic hammer,
backhoe, sweeper, angle broom, 4 in1 bucket, auger, trencher, tooth bucket and so on.
♦Attachment can be used with bobcat type skid steer loader
♦World famous hydraulic system from America (Sauer pump and hydraulic motor)
♦Famous brand engine with EPA or EURO II or III from China and Japan
♦Multifunctional, maneuverability and reliability
mini skid steer loader specification | ||||
Mini skid steer driving Type | Tracked skid steer SK650 | |||
Engine Model | Optional: Honda, Briggs&Stratton; Rato | |||
Mini kid steer rated power | 23hp/17kw | |||
Rotating speed | 3600rpm | |||
Mini skid steer rated loading | 280kgs/616lb | |||
Skid steer Max. lift | 350kgs/770lb | |||
Bucket Capcity | 0.15m³ | |||
Max. travel speed | 6km/h; 3.7m/h | |||
Skid steer operating weight | 900kgs/1980lb | |||
System pressure | 17mpa | |||
Skid steer arm lift time | 4s | |||
Skid steer tipping bucket time | 1.2s | |||
Landing time | 3s | |||
Fuel tank capacity | 25L | |||
Engine displacement | 625ml | |||
The Max. working height | 2435mm/96ins | |||
Max. hinge pin height | 1897mm/75ins | |||
Biggest unloading height | 1498mm/59ins | |||
Dumping reach | 612mm/24ins | |||
Rollback of bucket on the ground(°) | 26 | |||
Rollback of bucket full height (°) | 114 | |||
Angle of departure(°) | 25 | |||
Dumping angle at Max. height(°) | 33.7 | |||
Mini skid steer loader total height | 1355mm/53ins | |||
Ground clearance | 92mm/3.6ins | |||
Wheel base | 720mm/28.3ins | |||
Overall length with bucket | 2170mm/85.4ins | |||
Length without bucket | 1740mm/68.5ins | |||
Mini skid steer total width | 830mm/32.6ins | |||
OPTIONS
Company Profile
Shandong OUJIN Engineering Machinerry Co.,ltd is mainly engaged in the production and management of the construction machinery of medium and small loaders ect,which mainly produces the MAMMUT series of engineering mechanical deformation products such as wheel loaders of 1-6TON ,motor grader ,3-3.5 TON terrain forklift ,telescopic loader ,MAMMUT grass grasping machine,wooden grabbing machine and snow grader machine.MAMMUT covers an area of 50000 square meters of production plant currently.In the early of 2011,a high quality and modern plant as well as a research and development center will be established at the third stage of engineering at Caterpiller Industrial Park according to the companys develpment strategy.It is with a total investment of 320million yuan ,covering an area of35000 square meters ,with annuel sales revenue of over 230 million yuan which is of high standards and high quality.MAMMUT has a frist class R&D team ,a frist class manufacturing team and a frist class after-sales service team .It passed ISO9001 international quality management system certification and European CE certificate in one time . The products of MAMMUT are always in sync with the advanced level of the world and shaping a new image of MAMMUT.
Certifications
Exhibition
after-sale services
Contact
The price on the page is for reference only, And the specific price is subject to the specific model and configuration.
Please CONTACT US, tell me your requirements, and make you satisfied.We will reply you immediately and provide you with preferential prices and perfect after-sales service for customized products you like without wasting your time
Please CONTACT US, tell me your requirements, and make you satisfied.We will reply you immediately and provide you with preferential prices and perfect after-sales service for customized products you like without wasting your time
FAQ
Q : Are you trading company or manufacturer?
we are real manufacture , Has a professional design, sales and after-sales team. over 200 engineering technicians,more than 17
years of production experience.
Q : How long is your delivery time?
For our standard machine the delivery time is 25-30days
But for OEM products the delivery time is 45days
The attachment of the machine is 10 days
Q : Is oem available?
Yes ，we provide the OEM&ODM service
Q : Which certifications do you have for wheel loaders?
CE, ISO9000, SGS ,EAC ect
Q:Why choose OUJIN (EOUGEM & MAMMUT )?
1) We are an experienced loader manufacturer with over 17 years.
2) customers-focused,you'll get reply within 5 minutes.
3) good quality with reasonable price.
4) CE,BV,SGS,ROPS and FOPS,ISO9001ect
Q:What is OUJIN (EOUGEM & MAMMUT ) warranty?
1) after-sales: one year warranty OR 1000hours .
2) order some wearing parts with loader for easy maintenance.
Q:What about the payment term?
30% advance payment,70% balance by T/T.
we are real manufacture , Has a professional design, sales and after-sales team. over 200 engineering technicians,more than 17
years of production experience.
Q : How long is your delivery time?
For our standard machine the delivery time is 25-30days
But for OEM products the delivery time is 45days
The attachment of the machine is 10 days
Q : Is oem available?
Yes ，we provide the OEM&ODM service
Q : Which certifications do you have for wheel loaders?
CE, ISO9000, SGS ,EAC ect
Q:Why choose OUJIN (EOUGEM & MAMMUT )?
1) We are an experienced loader manufacturer with over 17 years.
2) customers-focused,you'll get reply within 5 minutes.
3) good quality with reasonable price.
4) CE,BV,SGS,ROPS and FOPS,ISO9001ect
Q:What is OUJIN (EOUGEM & MAMMUT ) warranty?
1) after-sales: one year warranty OR 1000hours .
2) order some wearing parts with loader for easy maintenance.
Q:What about the payment term?
30% advance payment,70% balance by T/T.
