HGM80 High Pressure Ultrafine Raymond Mill for Dolomite Kaolin Talc Barite Ultrafine Raymond Mill 2500 Mesh
- Category: >>>
- Supplier: Henan Hongke Heavy Machinery Co. Ltd.
Share on (10000008201161):
Product Overview
Description
HGM80 High Pressure Ultrafine Raymond Mill for Dolomite Kaolin Talc Barite Ultrafine Raymond Mill 2500 Mesh
Product Overview
High Pressure Ultrafine Raymond Mill (calcite carbonate grinding mill, chalk grinding mill, limestone grinding mill, dolomite grinding mill, kaolin grinding mill, bentonite grinding mill , talc grinding mill, mica grinding mill, magnesite grinding mill,pyrophyllite grinding mill, ceyssatite grinding mill, barite grinding mill, gypsum grinding mill, alunite grinding mill, granite grinding mill, fluorite grinding mill, phosphate rock grinding mill, kalium ore grinding mill , float stone grinding mill)is mainly applied to non-inflammable, non-explosive and brittle materials with Mohs hardness under six. Such as calcite, chalk, limestone, dolomite, kaolin, gypsum, etc, totally more than 100 kinds of materials. Product fineness can be controlled between 325~2500 mesh.

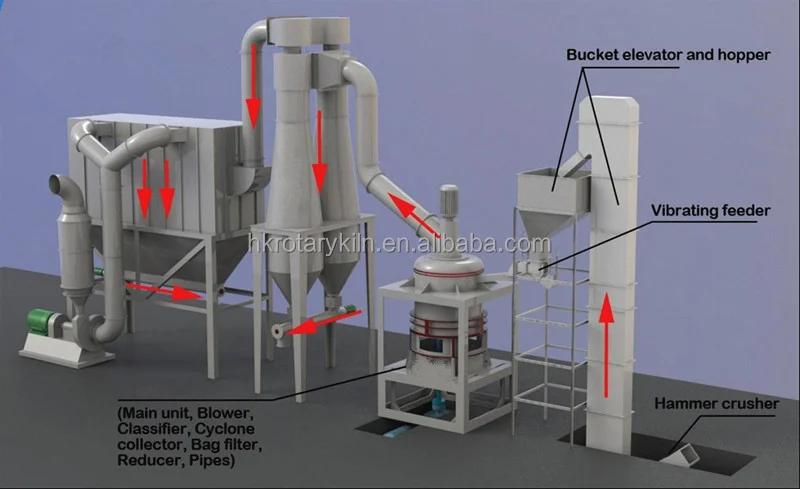

WORKING PRINCIPLE
Large materials are broken into small particles by crusher, then the crushed material is sent by the elevator to the storage warehouse, and then through the vibration feeder and the inclined guide pipe, the materials are sent uniformly to the bulk plate on the upper part of the turntable in the main engine.
When the mill works, the main engine motor rotates the main shaft and rotary wheel through the reducer, and the turntable drives dozens of grinding rollers to rotate and roll in the grinding ring roller hrough the edge roller pin.The material spreads into the periphery under the centrifugal force and falls into the grinding cavity, which is impacted, rolled and ground in the ring of the grinding ring.Repeated grinding through three or four layers of ring ring into powder.
The high pressure fan draws the external air through suction and takes the crushed material into the powder machine.The high-speed rotating impeller is screened, the unqualified coarse powder falls and reground, the qualified fine powder enters the cyclone collector with the airflow, the dust falls, from the discharge valve at the bottom is the finished product.A small part of the fine dust enters the dust collector with the air flow and adheres to thie surface of the filter bag.
The pulse valve controls the instantaneous injection of high-pressure airflow from the inside of the filter bag. The dust attached to it will fall due to the sudden shaking of the filter bag. The conveyor at the bottom sends out the two collected fine powder materials for the finished packaging.The filtered clean air is finally eliminated from the muffler air outlet.
FEATURES AT A GLANCE
1. High efficiency
Under the same final size and power, the product capacity of ultra-fine mill is twice than jet mill and agitation mill.
2. Longer lifetime of spare parts
The roller and ring are made of special material, which improve the grinding efficiency a lot.
For same material and final size, the lifetime of its wearing parts can reach to more than one year, about 2-5 times as long as that of vertical shaft impact crusher and turbo-mill. Especially when handling calcium carbonate and calcite, the lifetime can reach 2-5 years.
3. High safety and reliability:
There are no rolling bearings and bolts in grinding cavity, so problems caused by bolts shedding or wear of bearings and seal components will never happen.
4. High fineness of products
The product fineness can reach <=3um.
5. Environment friendly
The application of pulse dust collector and muffler reduce the pollution and noise of the dust, which has reached national environment protections.
Under the same final size and power, the product capacity of ultra-fine mill is twice than jet mill and agitation mill.
2. Longer lifetime of spare parts
The roller and ring are made of special material, which improve the grinding efficiency a lot.
For same material and final size, the lifetime of its wearing parts can reach to more than one year, about 2-5 times as long as that of vertical shaft impact crusher and turbo-mill. Especially when handling calcium carbonate and calcite, the lifetime can reach 2-5 years.
3. High safety and reliability:
There are no rolling bearings and bolts in grinding cavity, so problems caused by bolts shedding or wear of bearings and seal components will never happen.
4. High fineness of products
The product fineness can reach <=3um.
5. Environment friendly
The application of pulse dust collector and muffler reduce the pollution and noise of the dust, which has reached national environment protections.
PRODUCT SPECIFICATIONS
Model | HGM80 | HGM90 | HGM100 | HGM100L | HGM125 |
Average Working Dia.（mm） | 800 | 900 | 1000 | 1000 | 1250 |
Grinding Ring （pcs） | 3 | 3 | 3 | 4 | 4 |
Grinding Roller （pcs） | 21 | 24 | 27 | 36 | 44 |
Main Shaft Speed （r.p.m） | 230-240 | 200-220 | 180-200 | 180-200 | 135-155 |
Feeding Size （mm） | ≤20 | ≤20 | ≤20 | ≤20 | ≤20 |
Final Size (μm/mesh） | 5-47 （325-2500） | 5-47 （325-2500） | 5-47 （325-2500） | 5-47 （325-2500） | 5-47 （325-2500） |
Capacity （t/h） | 0.5-4.5 | 0.6-6.5 | 0.7-7 | 1-8.5 | 1.5-12 |
Overall Size （L*W*H，m） | 13.9*4*6.2 | 14.7*4.8*7.2 | 18*4.6*8.6 | 18*4.6*8.6 | 14*9*10.25 |
Total Power （kw) | 123-143 | 168.35 | 221.6 | 243.95 | 344.4 |

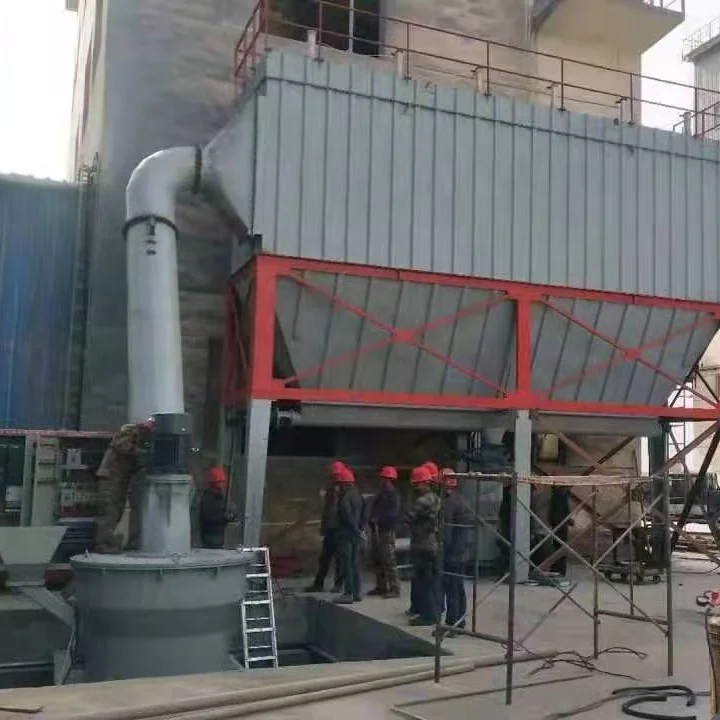

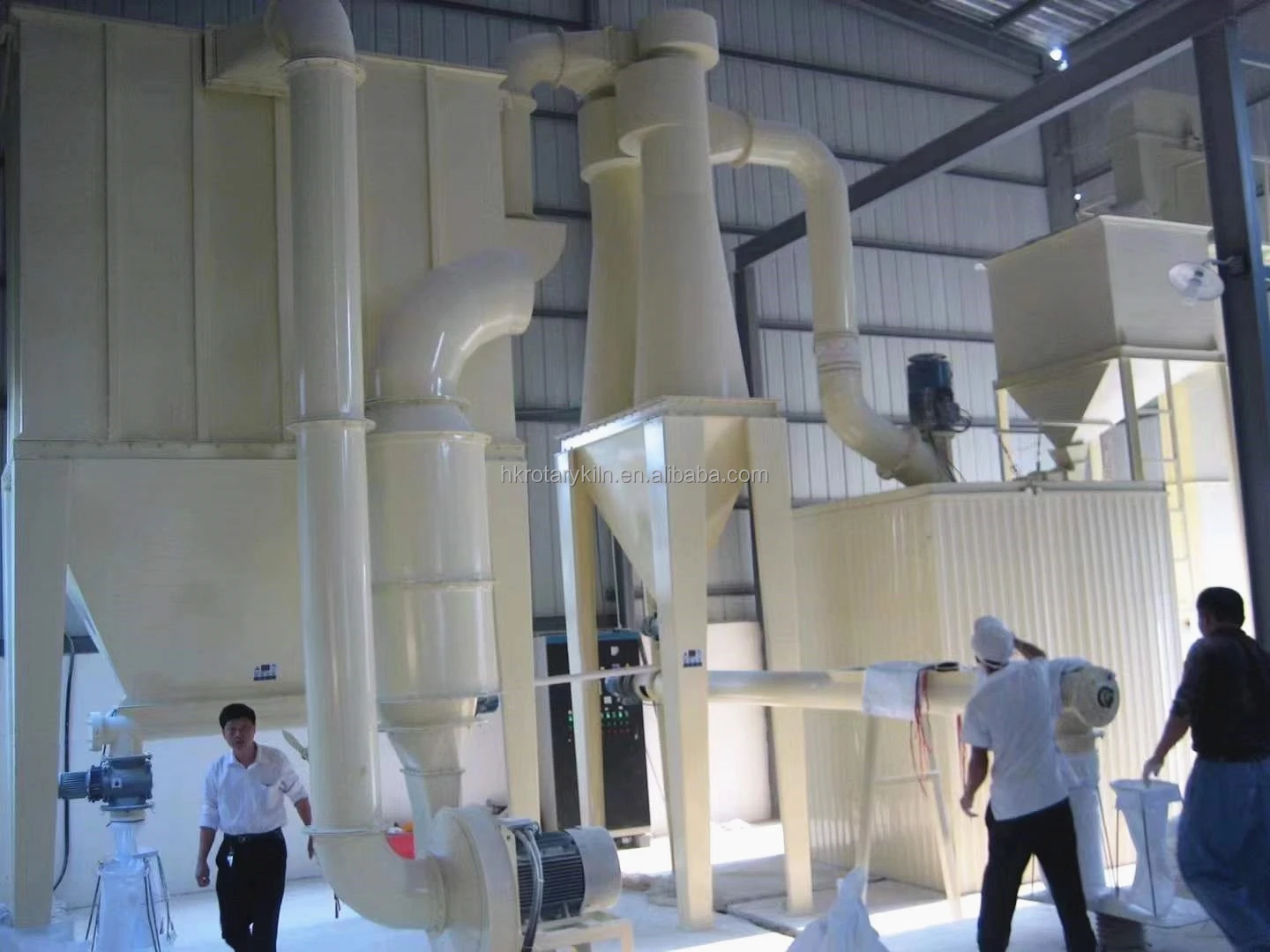

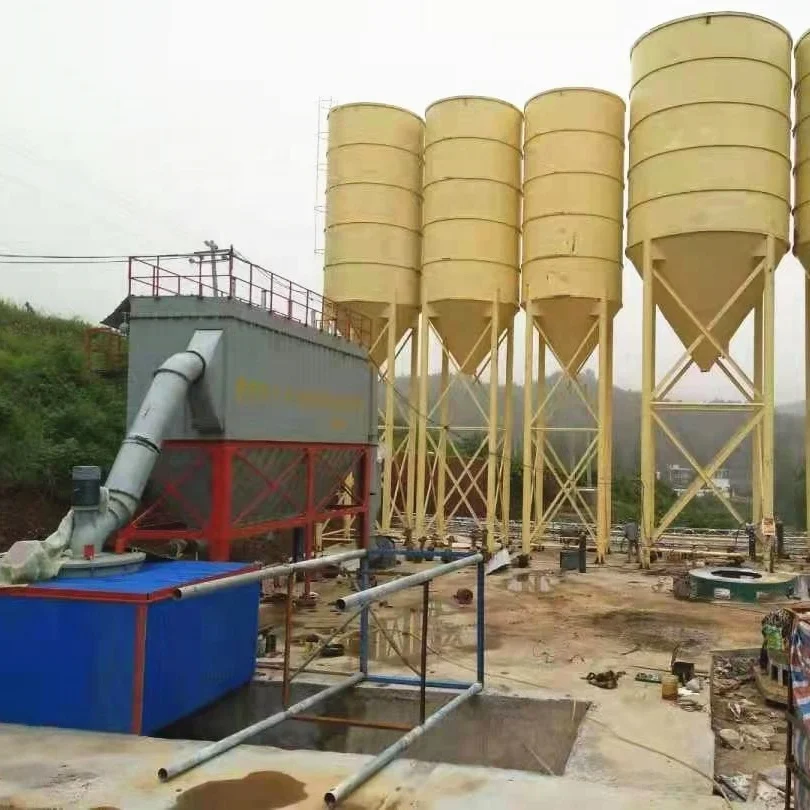

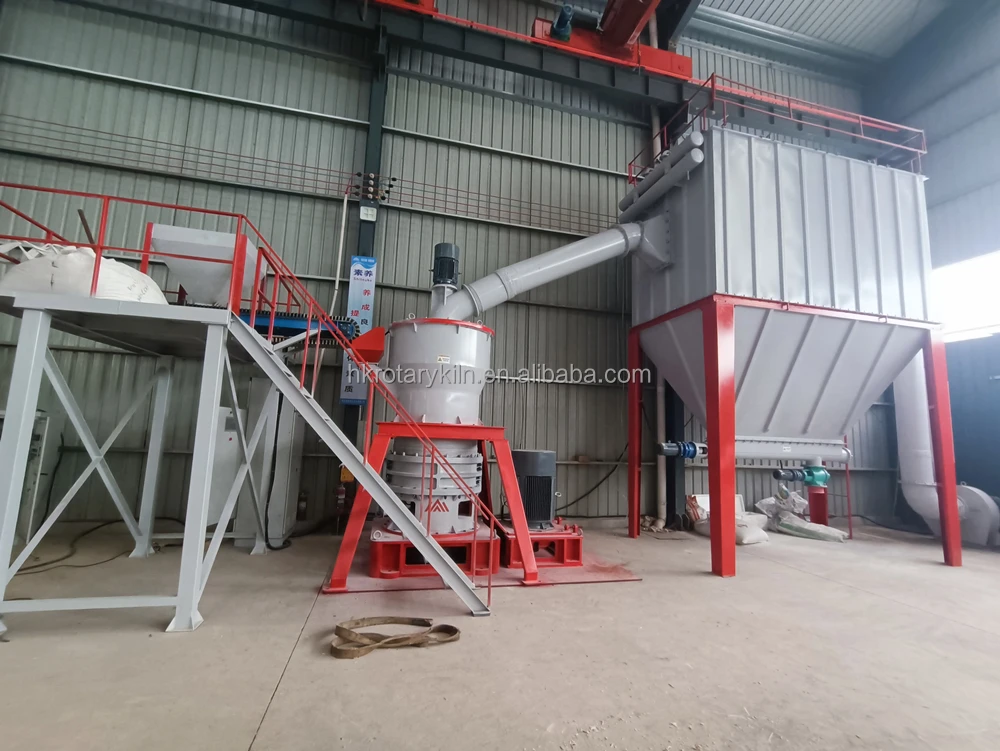

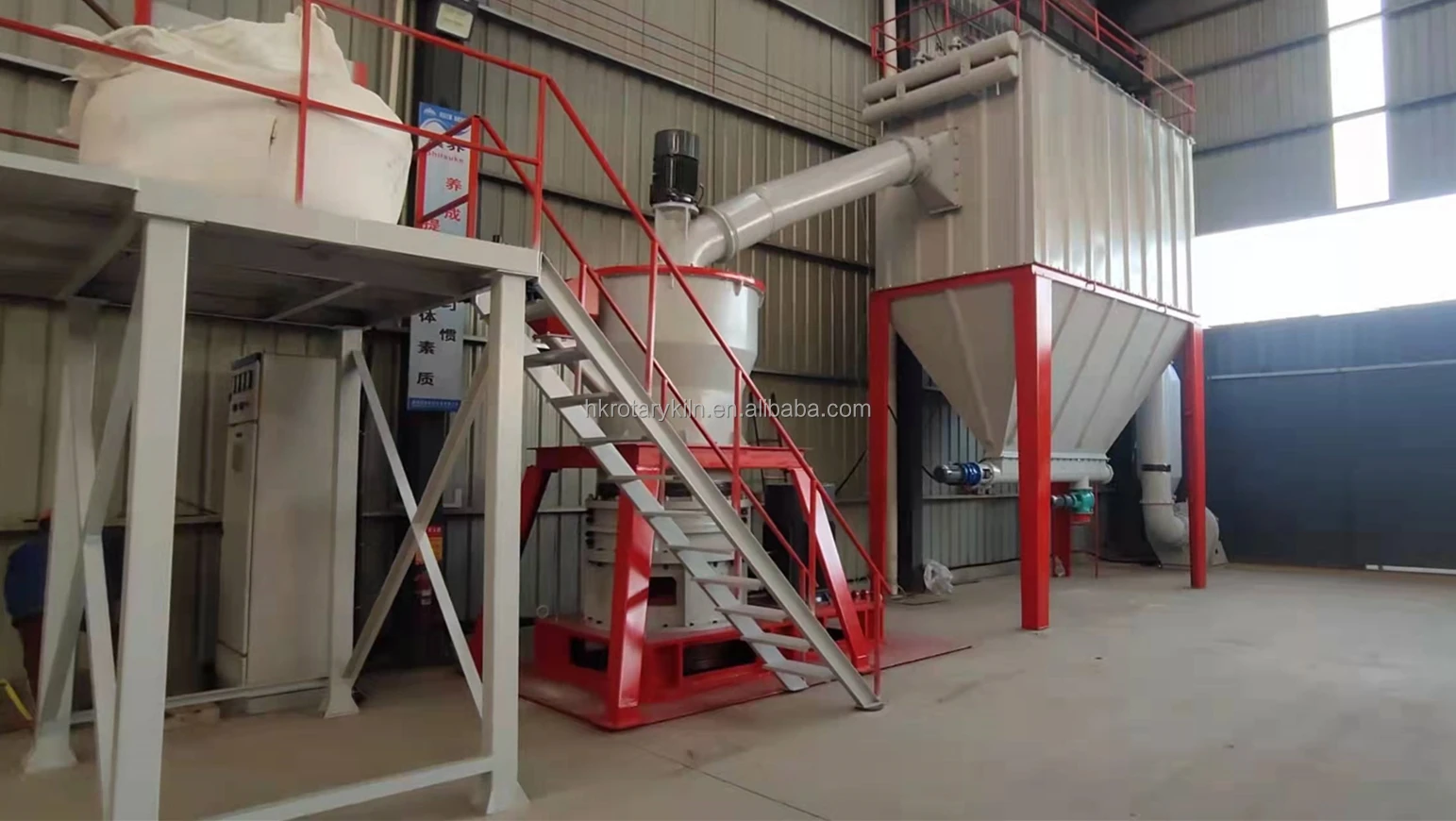

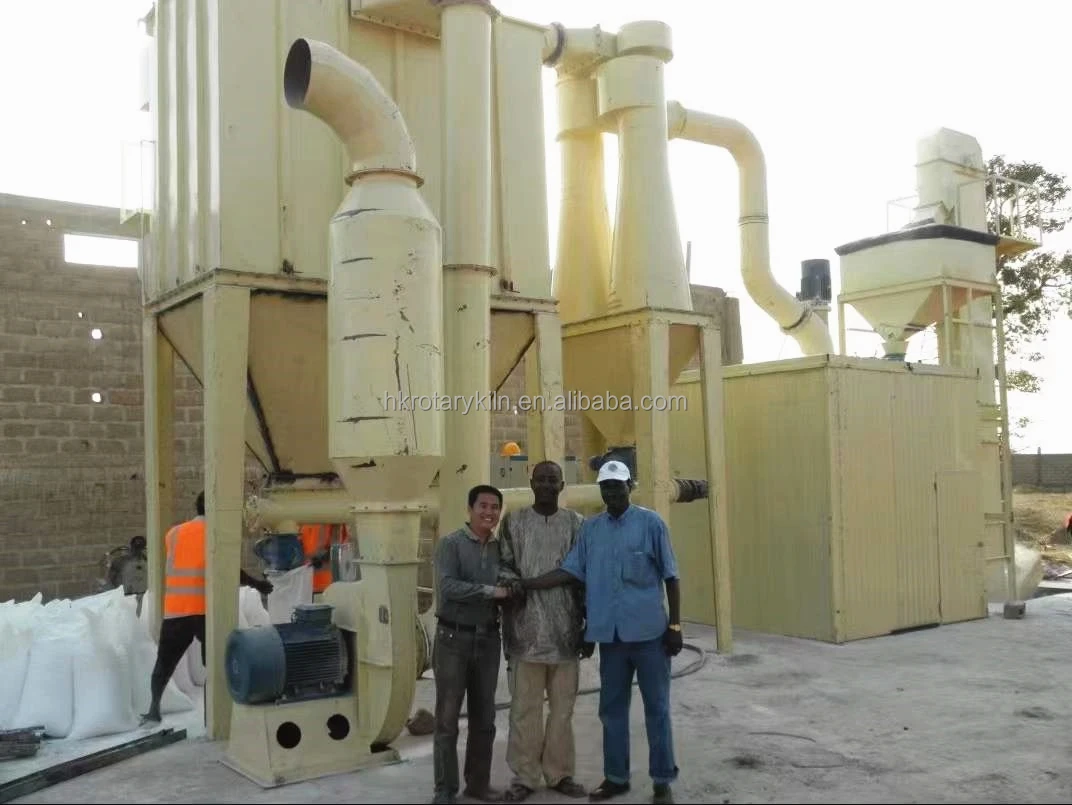

Successful Project
COMPANY PROFILE
Henan Hongke Heavy Machinery Co., Ltd. is located in Henan Province which is the cultural base of the central area of China. We are a mining machinery manufacturing enterprise that integrates scientific research, production and marketing.
We are a high-tech enterprise that specializes in the research and production of rotary kilns, dryers, crushers and so on, such as new type of lime rotary kiln, ceramsite kiln, zinc oxide rotary kiln, sludge rotary kiln, chemical rotary kiln, metallurgical rotary kiln, Raymond mill, ultra-fine mill, large and medium dryer, ball mill, sand mill,stone production line, mineral processing equipment, wood crusher, pellet machine and so on.
From the design, production, installation and debugging, we provide you the entire tracking service.We adhere to the aim of high quality to survive, good credibility to make development, and sincerely look forward to cooperating with you!
We are a high-tech enterprise that specializes in the research and production of rotary kilns, dryers, crushers and so on, such as new type of lime rotary kiln, ceramsite kiln, zinc oxide rotary kiln, sludge rotary kiln, chemical rotary kiln, metallurgical rotary kiln, Raymond mill, ultra-fine mill, large and medium dryer, ball mill, sand mill,stone production line, mineral processing equipment, wood crusher, pellet machine and so on.
From the design, production, installation and debugging, we provide you the entire tracking service.We adhere to the aim of high quality to survive, good credibility to make development, and sincerely look forward to cooperating with you!
FAQ
1. What is the minium order quantity?
One set.
2.How long is the warranty period?
One year. Wearing parts are excluded.
3. What is the after-service of your company?
We can provide the customers foudation drawing, installation service, work training as well as other service according to the customer's requirements.
4.How long is the delivery time?
About 15 days after we receive the payment.
5. What are the payment terms?
T/T, L/C are the best, it can be adjustable according to different situations.
--------------------------------------------------------------------------------------
Kindly Note:
1. Please pay attention to the capacity. It's what you must take into consideration in choosing a suitable machine.
2. Please Inform us the follow figures:
1). Raw material
One set.
2.How long is the warranty period?
One year. Wearing parts are excluded.
3. What is the after-service of your company?
We can provide the customers foudation drawing, installation service, work training as well as other service according to the customer's requirements.
4.How long is the delivery time?
About 15 days after we receive the payment.
5. What are the payment terms?
T/T, L/C are the best, it can be adjustable according to different situations.
--------------------------------------------------------------------------------------
Kindly Note:
1. Please pay attention to the capacity. It's what you must take into consideration in choosing a suitable machine.
2. Please Inform us the follow figures:
1). Raw material
2) Initial size and final size
3). Capacity ( t/h)
Upon we got your message we shall give you our favorable offer in short time.
3). Capacity ( t/h)
Upon we got your message we shall give you our favorable offer in short time.
