TTN 608 Skateboard Bearings Deep Groove Ball Bearing

Share on (10000008221536):


Price:

Quantity:


Product Overview

Description



Product Description


Name

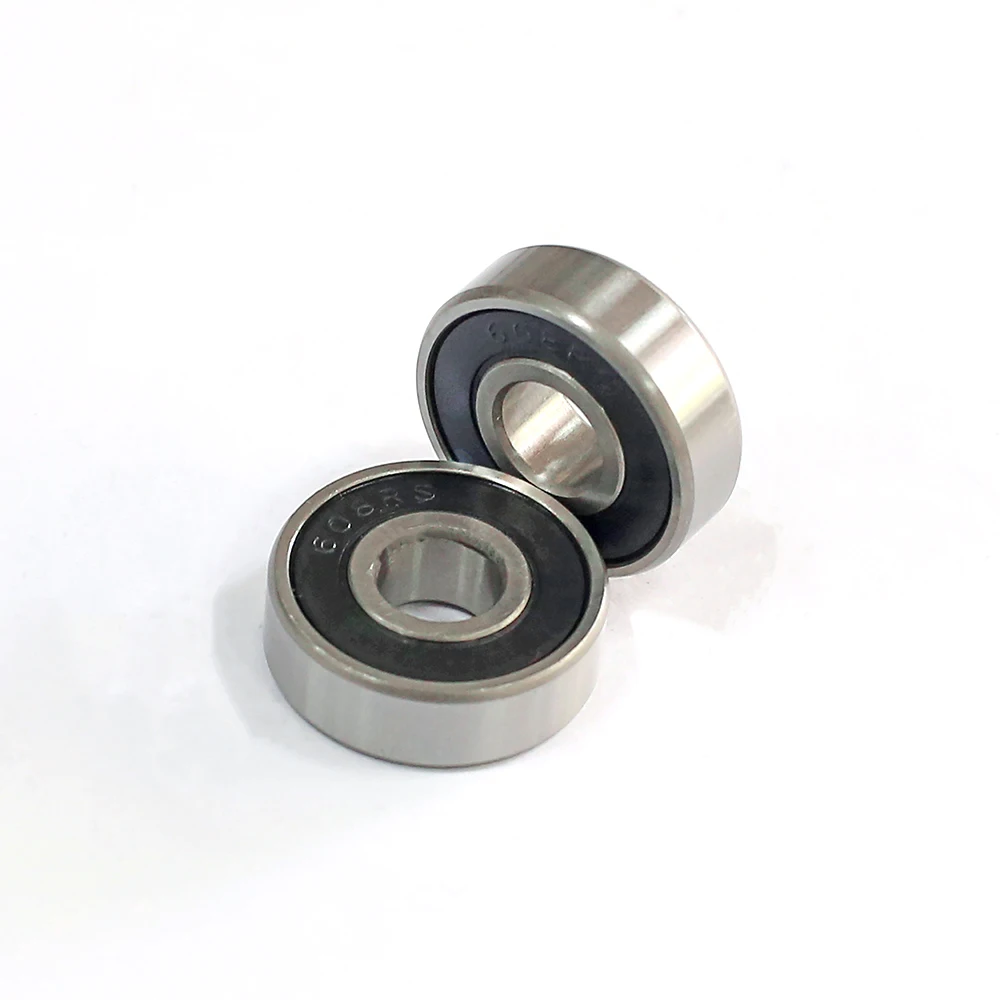

TTN 608 Skateboard Bearings Deep Groove Ball Bearing

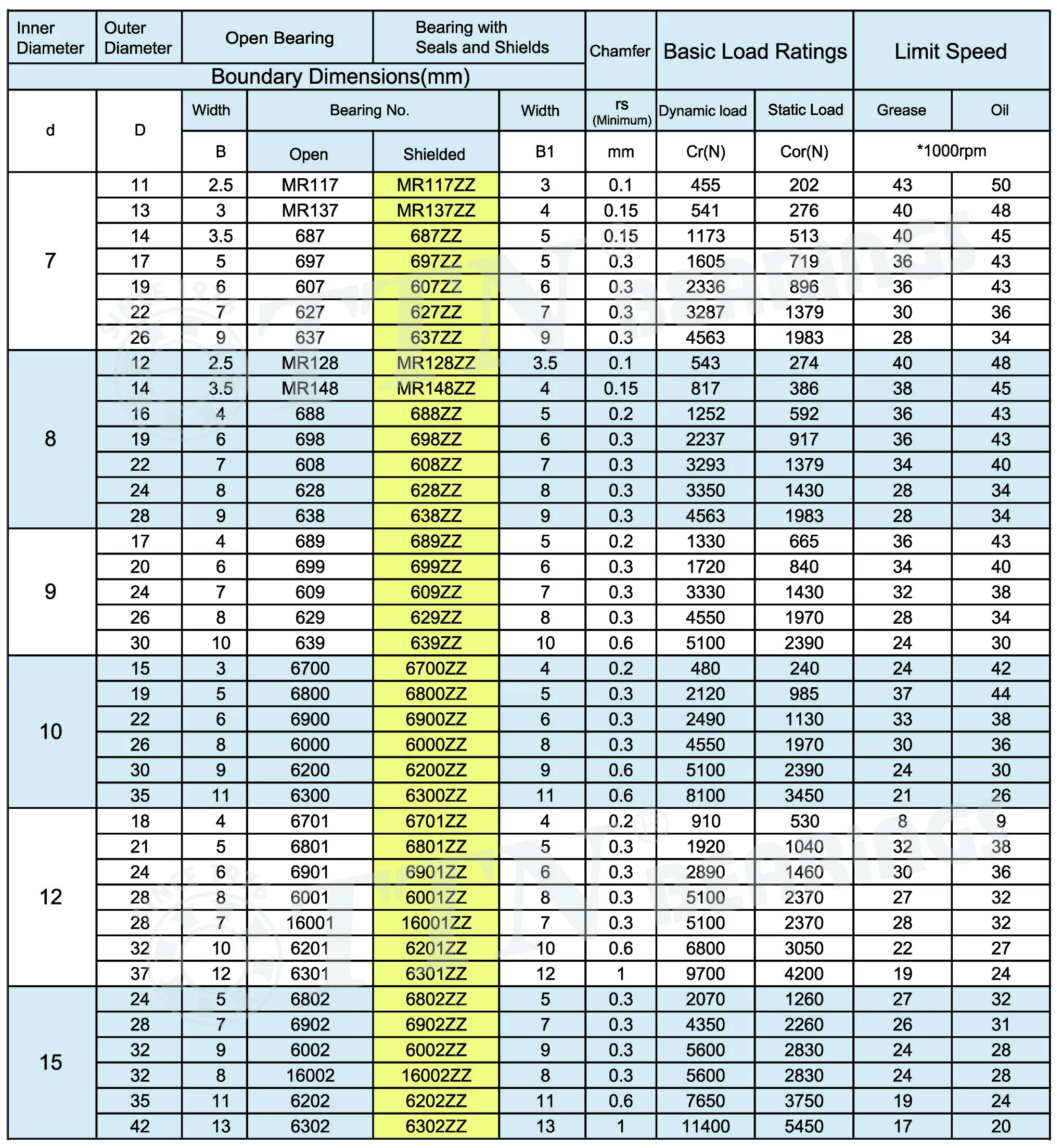

Specifications
Deep groove ball bearing
Product brand
TTN
Dimensions
8*22*7
Material
Chrome steel(SUJ2/GCr15)
Seals
2RS LLB
Ball
3.969X7 G10
Packing
10PCS/Tube

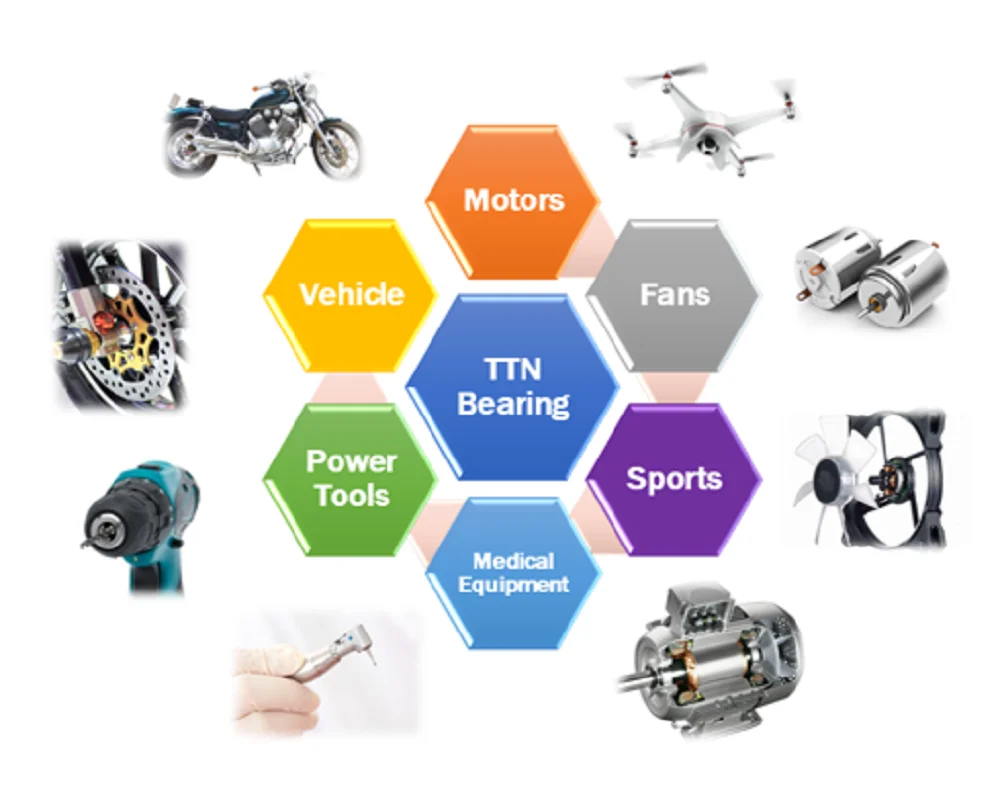

Application




Manufacturing Technique




Material:
JYXC and BAOSTEEL. G5~G10 Grade Steel Ball.
Organized raw materials and accessories. It’s the base of best product quality.


Heat Treatment of Inner/Outer Ring
Continuously process of 24hours.
Achievement of HRC60~64 chrome steel hardness. For the best bearing working life and strength.


Raceway Super Grinding of Inner/Outer Ring
Since the raceway is the most important working surface, to achieve the best accuracy and quality, we use closed full automation raceway super grinding machine which provides high accuracy of vibration frequency, stable pressure and high stiffness.
So, the raceway will be super shining and smooth and guaranteed the best quality of bearing.


Automation Assembly –Ball Filling
After rings fitting, automation of ball filling machine was applied.
It can fill the right size and number of steel balls, avoiding wrong number of balls filling.
End of the automated assembly line is the automation riveting press machine which provides consistent pressure and avoided the incorrectness of manipulation. So the strength of bearings was guaranteed.


Greasing, Gland and Uniform
Full connected automation greasing, gland and uniform machines was applied.
They can grease with exactly amount of grease, gland exactly in position and uniform the grease without any damages or rust.


Products Test
All our products are 100% tested and Q.C passed.
For customers overseas, our products are examined by SGS and qualified with RoHS, Reach and CPSIA standard.


Company Profile




Certifications




Exhibition






Packing & Delivery




FAQ


Q: Can I have free samples?
A: Sure, we’re willing to provide you free samples and you only have to pay the shipping fee.


Q: Can I order small quantities?
A: Sure, we have large number of various bearings in stock for every application. Once you chosen the right one, we can even deliver one bearing for you.


Q: Can I have customized service like branding or packaging?
A: Sure, customization is our pleasure. We would like to help you to build your own product, corporate identity, and marketing.


Q: What if I couldn’t find the right bearing in your catalog for my application?
A: Please contact us directly. We have specialist that can help you any questions or problems of bearings. We can design the bearing for you from the basic requirements like materials, rpm, clearance, and durability. We also have in house lab for testing to make sure that the customized bearing is fully functional for your application.


Q: Why I often got bad bearings from other suppliers online?
A: Please keep in faith. We will solve the problem since we’ve run the business over 45 years. We’re quite experienced and knowing your needs. Just let us know your requirements.


Q: How long is the delivery?
A: If RTS, once payment is confirmed, goods will be shipped within 2 days. For large quantities or customized products, it’ll take like 45~60 days to produce. We can push the schedule for you if under emergency circumstances.
