auto fire extinguisher ball fire ball
US $2.90-$4.20
Fire extinguisher 4KG ABC Dry Chemical Extinguisher for multiple purposes of fire distinguish From Vinafoam Vietnam
- Category: Fire Extinguishers >>>
- Supplier: VIETNAM VINA FOAM COMPANY LIMITED
Share on (10000008244836):
Product Overview
Description
Specification
TECHNICAL DATASHEET | |||||
FIRE RATING | 2A 55B C | ||||
CHARGE OF EXTINGUISHER | 4 kg ± 2% | ||||
BODY CONSTRUCTION | Technology Process | Full Deep Drawing | |||
Outer painting | Polyester resin, minimum thickness 50mcr | ||||
Corrosion resistance | Minimum 480 hours according to ISO 9227:1990 | ||||
Vibration resistance | 40Hz-60Hz Amplitude: 0,25 mm ± 0,03 mm | ||||
DISCHARGE HOSE | Made of rubber plastic | Spray nozzle included | |||
Discharge hose length | 440 mm | ||||
EXTINGUISHING AGENT | ABC Dry Powder | ||||
PROPELLANTS | N2 | High purity 99.999% | |||
DISCHARGE TIME | 18s | ||||
EFFECTIVE RANGE | 5-7 m | ||||
TEST PRESSURE | 25 bar | ||||
WORKING PRESSURE | 12-14 bar | ||||
OPERATING TEMPERATURE | -10oC to 60oC | ||||
DIMENSIONS | Total Height | 515 mm | |||
Outer Diameter | 140 mm | ||||
TOTAL WEIGHT | 7,0 kg | ||||
PACKING SPECIFICATIONS | Standard Packing | In a compact, single-layer carton box | |||
Box dimensions | L x W x H : 460 x 242 x 156 mm | ||||
Gross weight with box | 7,5 kg | ||||
Pallet | 64 boxes/pallet | ||||
Pallet size | CP3 type (1130 x 1130 mm) | ||||
Container 20ft | 640 boxes/ 20ft | ||||
Container 40ft | 1280 boxes/ 40ft | ||||
Product Description
4KG ABC Dry Chemical Extinguisher for multiple purposes of fire distinguish (Class A – B – C –E)
Cylinder is made of low carbon mild steel, ST14 type with three-point welding technique. The outer layer is electrostatically painted.
Valve material is chrome plated cast steel; valve fittings and stamping pressure gauge meet CE/European standards.
The discharge hose is made of PVC plastic, ensuring excellent durability and flexibility over the operating temperature range. The discharge hose is fitted with a complete spray nozzle.
The shelf life is 5 years if the storage and handling follow the manufacturer's instructions.
The product warranty period is 2 years according to the manufacturer's standards.
** Please scan the QR code on the label to get our best product maintenance service.
Packing & Delivery
We pack 1 piece/ carton box, 64 boxes/ pallet
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
VinaFoam is the first R&D and manufacturer of fire fighting foam and high quality fire extinguisher in Vietnam. VinaFoam own a system of advanced testing facilities, machines, allowing the implementation of all strict procedures and standards as prescribed by international and local standards such as ISO, EN, ICAO, UL, CE,...
Our goal is to create life values and peace of mind for customers and partners, based on our advanced, environmentally friendly technology and our experienced, enthusiastic and creative staffs.

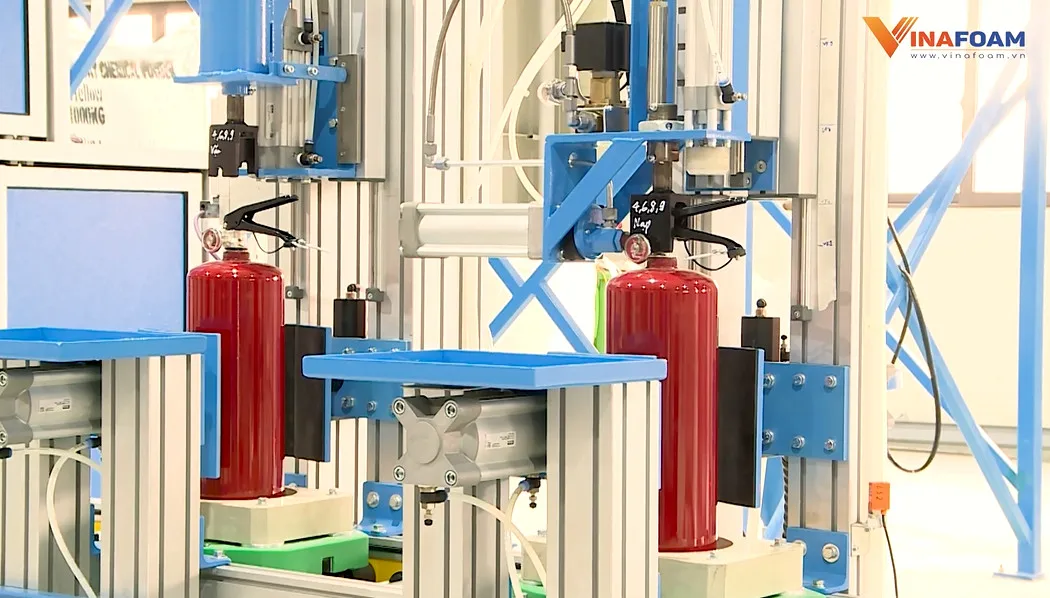

Following the successful steps of the factory producing foaming agent for fire fighting. In 2020, VinaFoam officially invested in a fire extinguisher production line with advanced technology from Europe. A year later, the first fire extinguisher products, with VinaFoam brand, have begun to leave the factory and enter the market with the mission of bringing a comprehensive safety solution for the community and society.

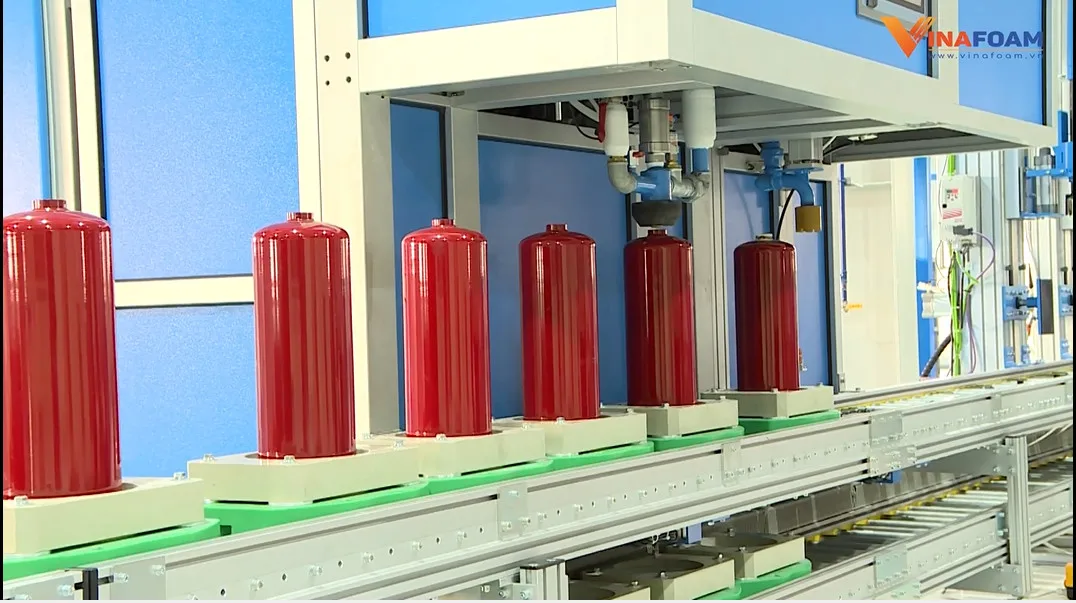

VINAFOAM's fire extinguisher products are manufactured on advanced technological lines, giving the product excellent appearance and high quality.
VinaFoam committees to meeting all quality standards when supplying products to the market.
