Pneumatic Actuator UPVC Ball Valve

Description :

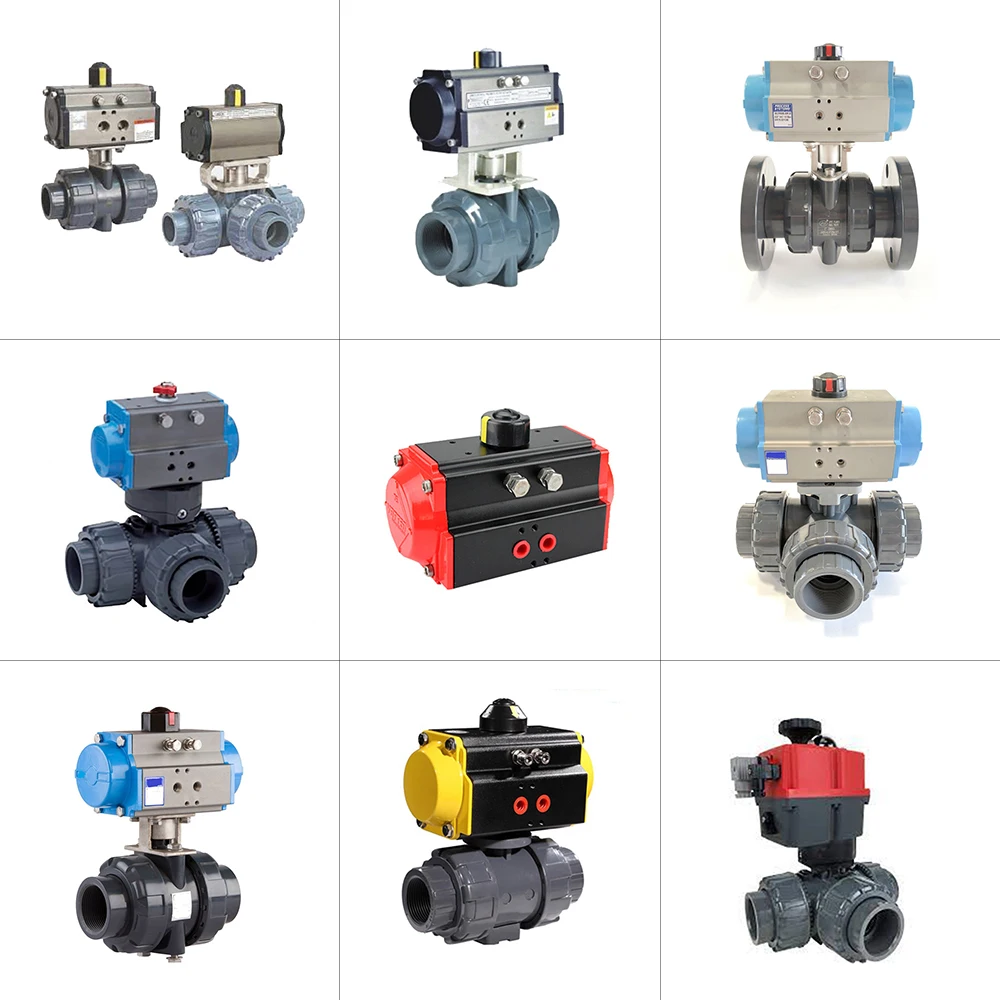

UPVC Pneumatic Rotary Actuated Ball Valve :

• We are the largest exporter of Pneumatic Rotary Actuator operated ball valve in different variation , 2 piece design ball valve, 3 piece design ball valve, and a Jacketed design in 2 way, 3 way, 4 way, and 5 way ball valves with screwed and flanged end connections.

• Our corrosion-resistant ball valves have been designed by a team of expert engineers which can easily tolerate heavy loads of industrial fluids.

• Anti-static Feature: to protect against any potential fire that could be caused by the building of static electricity as the ball keeps rubbing against the PTFE seats, especially in the presence of flammable fluids

• Ball valves are available in various end connections, like Threaded, Socket-Weld, Butt-Weld, Flanged in Raised Face and Ring Type Joint ends.

• Apart from UPVC we have Ball Valves in different materials such as Stainless Steel, Carbon Steel and PVC.

• The pneumatic Actuator rotates 90° to 180° to operate the valve with just the compressed air. Hence, it has a low cost and low maintenance, which saves electricity and gives a fast movement compared to the motorized actuators.

• The pneumatic actuators are cost efficient, spark free, and sustainable in hazardous and flammable environments compared to other energy sources. It has smooth working without any extra noise.

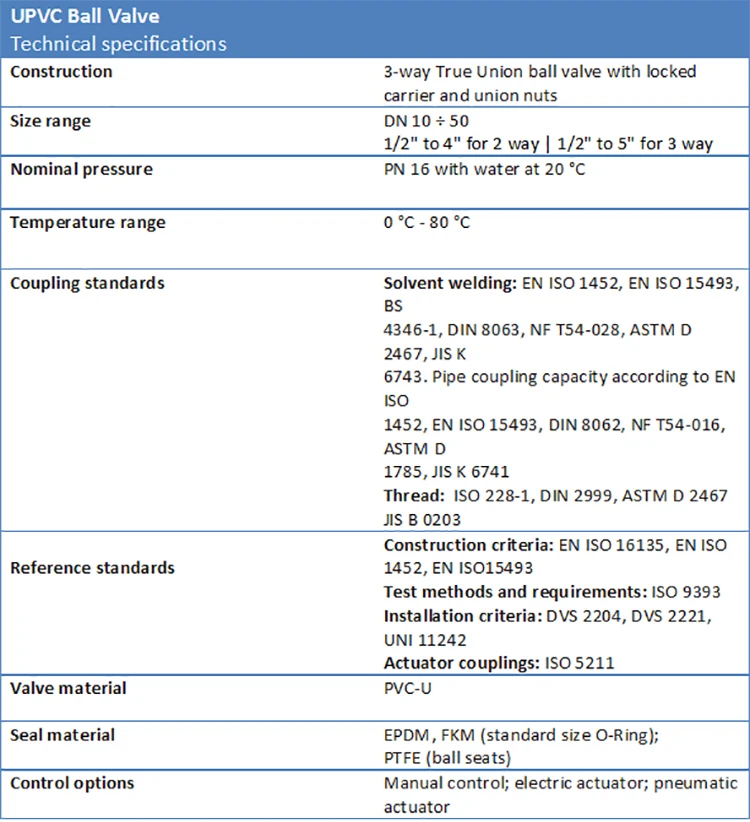

UPVC Ball Valve Features :

• Connection system for solvent weld, threaded and flanged joints

• SEAT STOP ball carrier system that lets you micro-adjust ball
  seats and minimize axial force effects

• Easy radial dismounting allowing quick replacement of O-rings and ball
  seats without any need for tools

• PN16 True Union valve body made for rigid PVC-U injection moulding,
  equipped with built-in bores for actuation. ISO 9393 compliant test requisites

• Option of dismounting downstream pipes with the valve in the closed
  position.

• High surface finish stem with double O-Ring and double connection key
  to the ball, equipped with visual ball position indicator for correct handle
  installation.

• Integrated bracket for valve anchoring

• Possibility of installing pneumatic and/or electric actuators,the
  robust anchor tower for easy and quick automation using the Power Quick
  module (optional).

• Possibility to have handle with integrated LSQT limit micro switch, even as
  a retrofit in existing installations.

• All our Ball Valves are designed in accordance with ISO 17292, ANSI Class rating 150 to 600, Nominal Size available from ½” to 12” inches.

• We designed the ball valves to use with various material combinations like Carbon Steel, Low Carbon Steel, Special Alloy, Stainless Steel, Monel and Inconel.

• Our ball valves come with a bottom entry system, with a backseat, assures even higher integrity of sealing at higher pressures.

• For Stainless Steel ball valve - Mirror finished balls with drilled holes. That is a sign of high-quality surface finish is achieved on the ball to increase the life of the seals and hence the valve.


KV 100 FLOW COEFFICIENT :

The Kv 100 flow coefficient is the Q flow rate of litres per minute of water at a temperature of 20°C that will generate Δp= 1 bar pressure drop at a certain valve position. The Kv100 values shown in the table are calculated with the valve completely open.

OPERATING TORQUE AT MAXIMUM WORKING PRESSURE

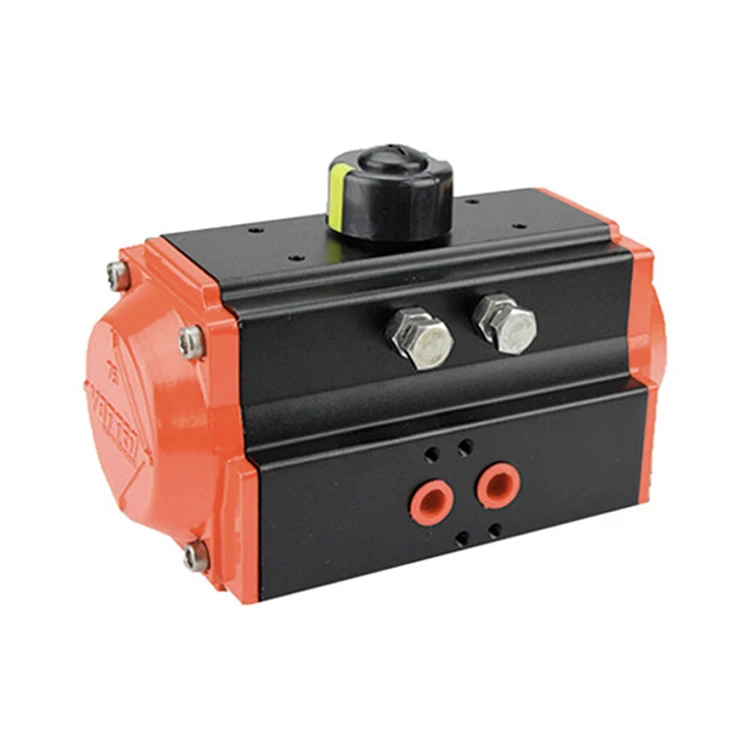

Features of Pneumatic Rotary Actuator :

• Heavy duty Rack and pinion design.

• Spring return or double acting.

• Open and close adjustment stops.

• NAMUR Interface for easy Solenoid Valve installation.

• ISO 5211 mounting pad in all Rotary Actuators for easy mounting.

• Hard anodized Aluminium body, also available in Stainless Steel version.

• A long list of torque range up to 1,10,000NM.

• Dual Stroke adjustment for +/- 4 ranges at both ends.

• Visual indicator, Top Mount indicator.

• High temperature and corrosion-resistant models are available.

• Solenoid, limit switches, positioner and other accessories are available.

• Fully adjustable limit switches allow for fine control of on-off position.

Pneumatic Rotary Actuator Double Acting Specification :

Applications :

• Mining Industry


• Oil and gas


• Agriculture


• Water Treatment


• Construction


• Petrochemical Industries


• Power Generation


• Nuclear & Atomic energy


• Chemicals


• Fertilizer
