PRODUCT DESCRIPTION
This machine is a small semi-automatic & manual beer Can filling machine developed by MIC Machinery. Suitable for filling beer, water, cold coffee, cider, carbonated beverage, soda and non-cartonated drinks.
The machine is pneumatically driven, high filling accuracy, easy to clean and easy to operation. The machine shell is made of all 304 stainless steel. Meet GMP and CE and ISO Standard.
If you need a matching semi-automatic Can sealing machine. You can contact me.
PRODUCT PARAMETER
Model | V01 |
Application | Beer, cold coffee, cider, water, carbonated beverage, soda, non-carbonated drinks and so on |
Packing Type | Aluminum cans, tin cans, pet cans, etc |
Capacity | 480-600CPH |
Filling Range | 187ml, 250ml, 330ml, 355ml, 440ml, 500ml, 8oz, 12oz, 16oz, 1L and so on (0.1-1L) |
Air Pressure | 0.6-0.8Mpa |
Size | 575*550*480mm |
Weight | 15 KG |
PRODUCT APPLICATION

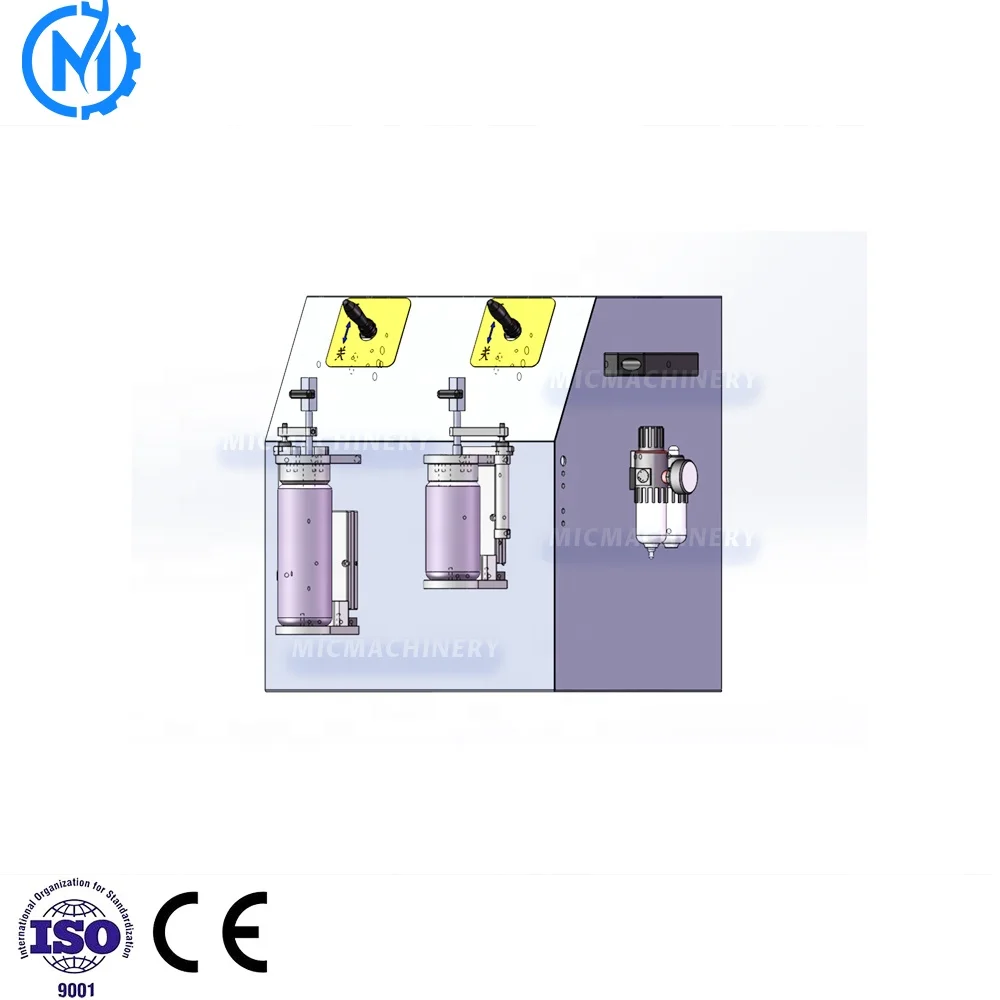

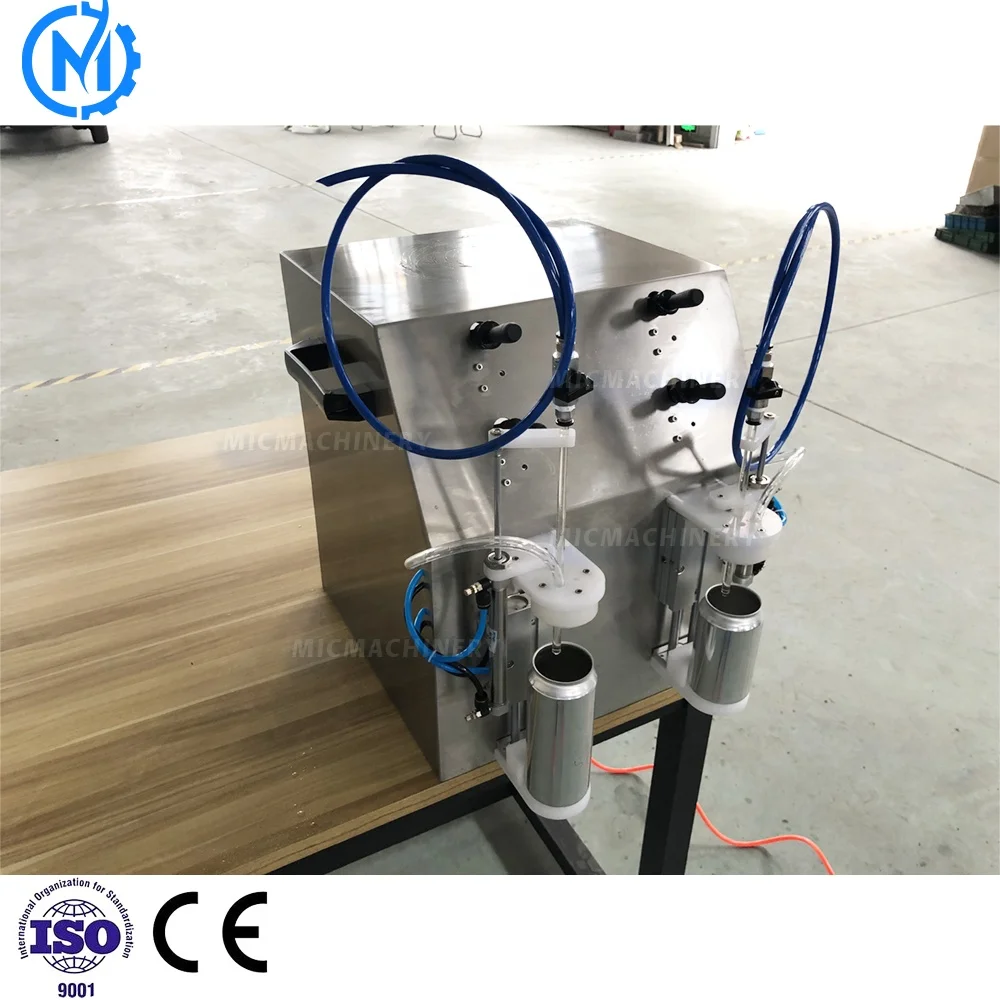

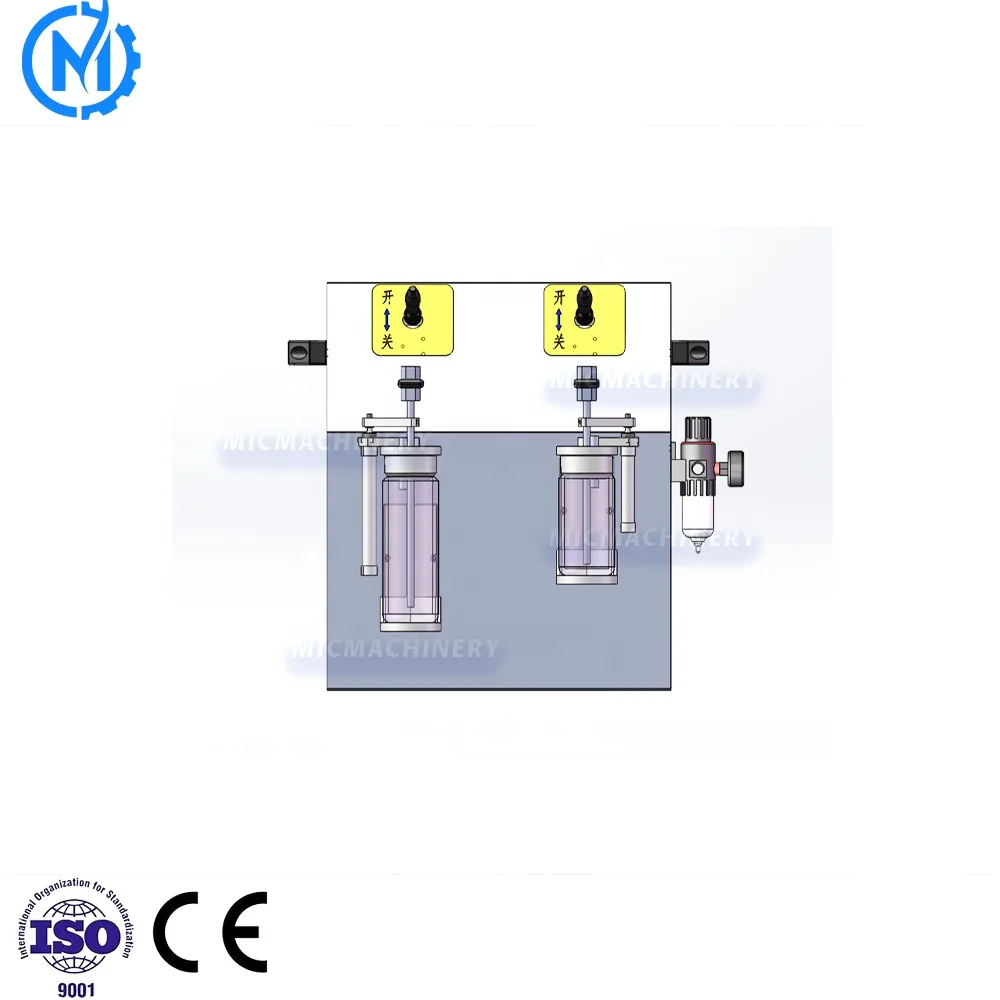

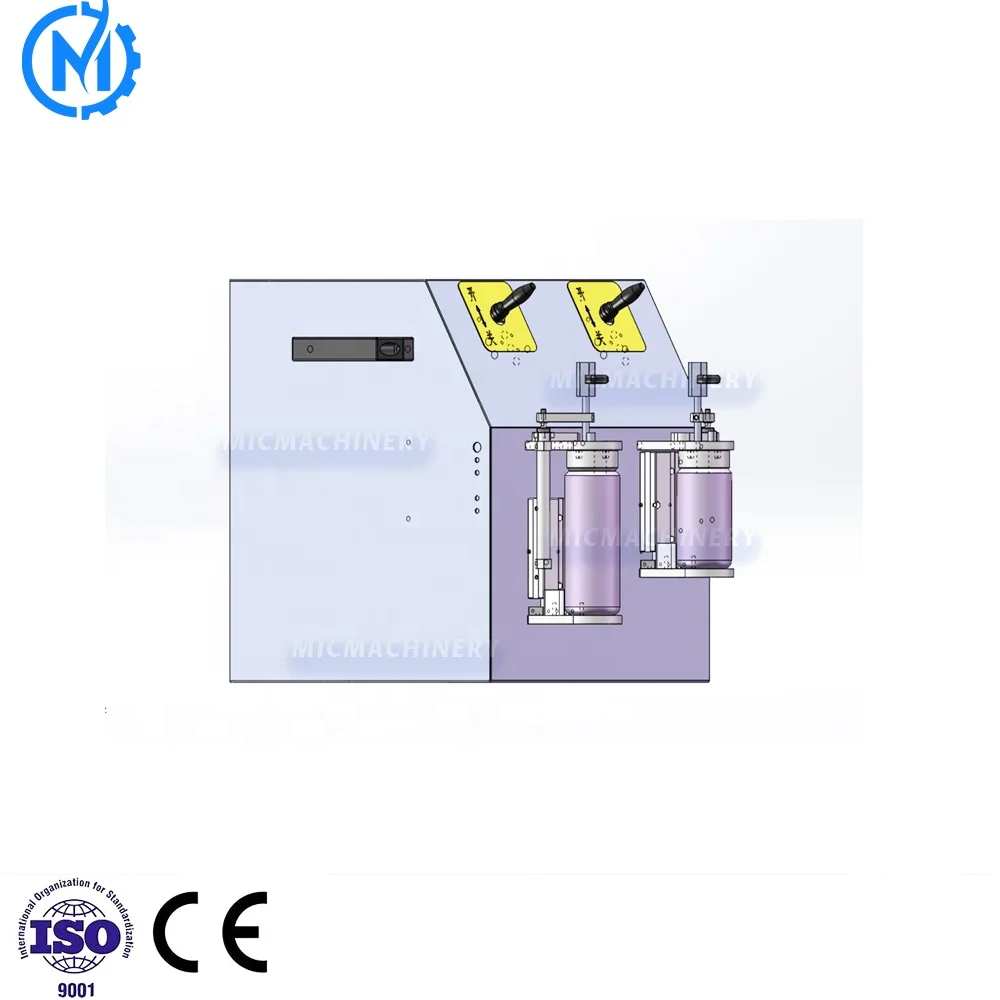

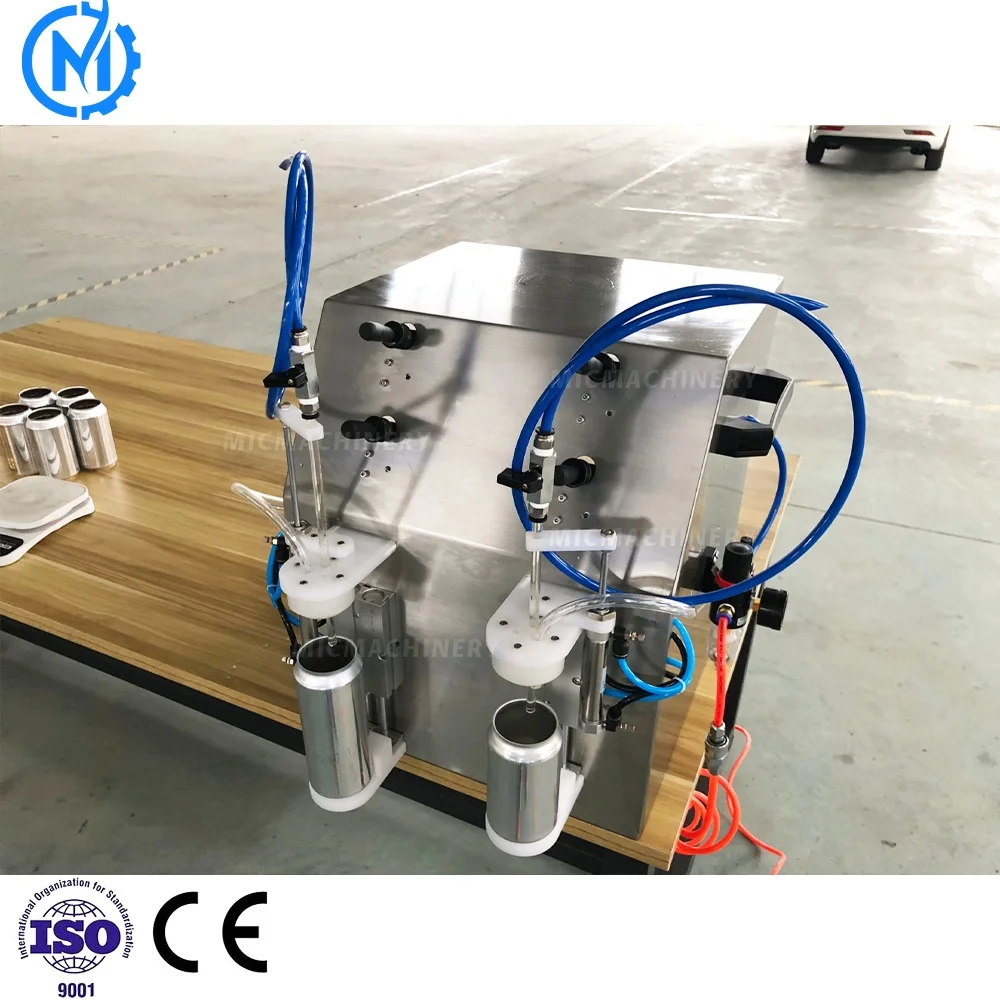

DETAILED IMAGES
Working Principle
Manually place the Can in the filling position. Manually open the filling valve switch. First fill with CO2, then wait for the pressure of the Can to equal the pressure of your liquid tank. The filling head fill from the bottom of the Can. When filling to the specified level. Stop filling. Manually close the filling valve switch.
Related Products
— OTHER RECOMMEND PRODUCTS —
— FACTORY VIEW —
— FAQ —
Q1.Are you trading company or manufacturer ?
>> We are factory. Our factory is located in Zhangjiagang near Shanghai.
Q2.What is the payment of your company?
>> 100% T/T, 30% of prepaid contracts entered into force, 70% paid before delivery. L/C is supported also.
Q3.Do you provide a complete production line and customized services?
>> We are a company that provides a complete production line. We can design the machine according to your requirements (material, power, filling type, bottle type, etc), and we will give you our professional advice. As you know, we have beenin this industry for many years.
Q4.If we buy your machine, what is your guarantee or quality assurance?
>> We provide you with high- quality machines with 1 year warranty and lifetime technical support.
Q5.How long does it take to install?
>> According to your machine order, we will send one or two engineers to your factory, about 10 days. Customers need to provide round-trip air tickets, visa fees, local transportation, accommodation, food, 120 US dollars/ day / person.
Q6.What kind of after-sales service is provided?
>> After the production is completed, we will debug the production line, take photos, video and send to customers via email or instant tools. After the commissioning is completed, we will package and ship the equipment according to the standard export packaging. Operating manuals will be sent with machine or by email. According to the customer' s requirements, we can arrange our engineers to the customer's factory for installation and training. Engineers, sales managers, and after-sa les service managers form an after-sales team to follow up on customer projects online and offline.
