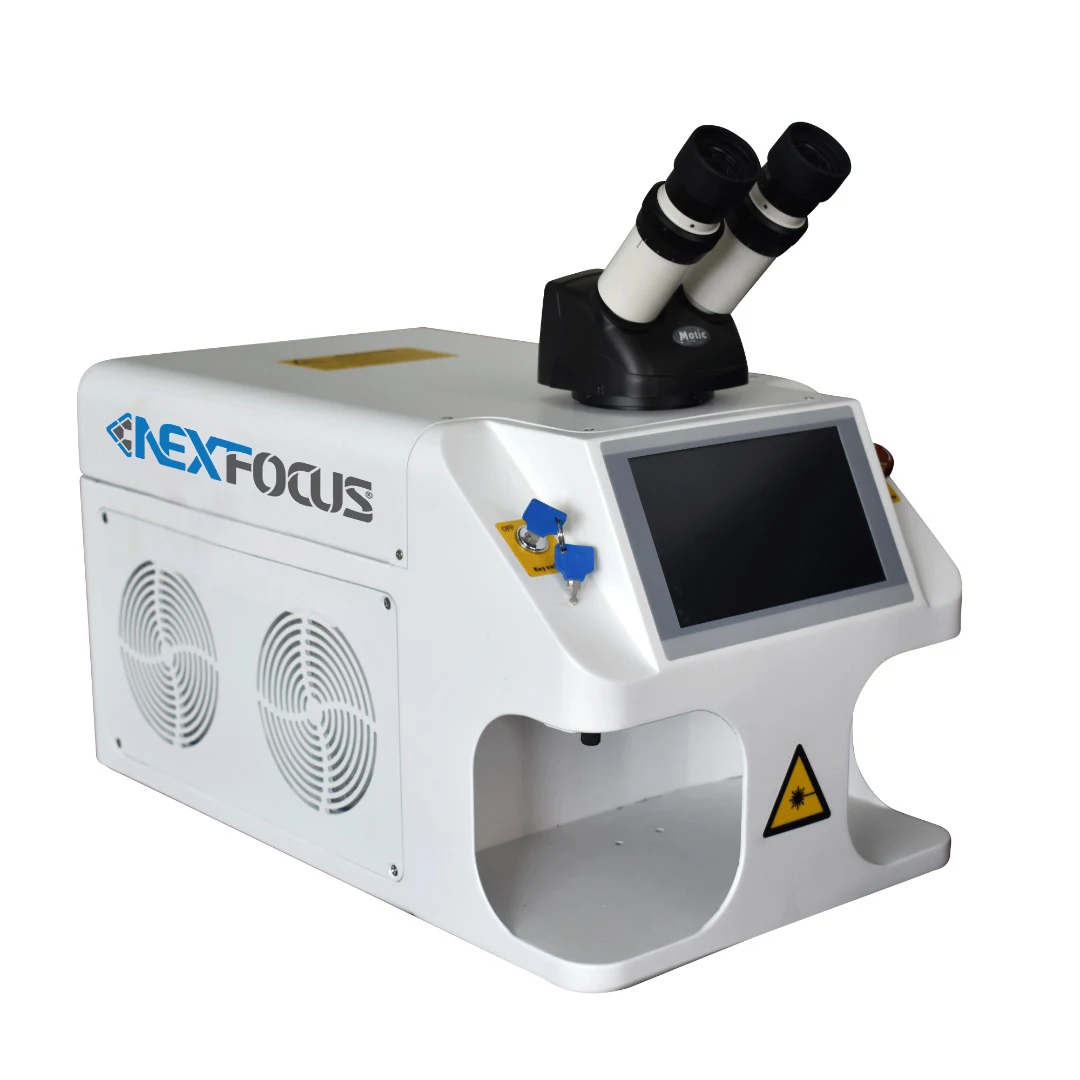

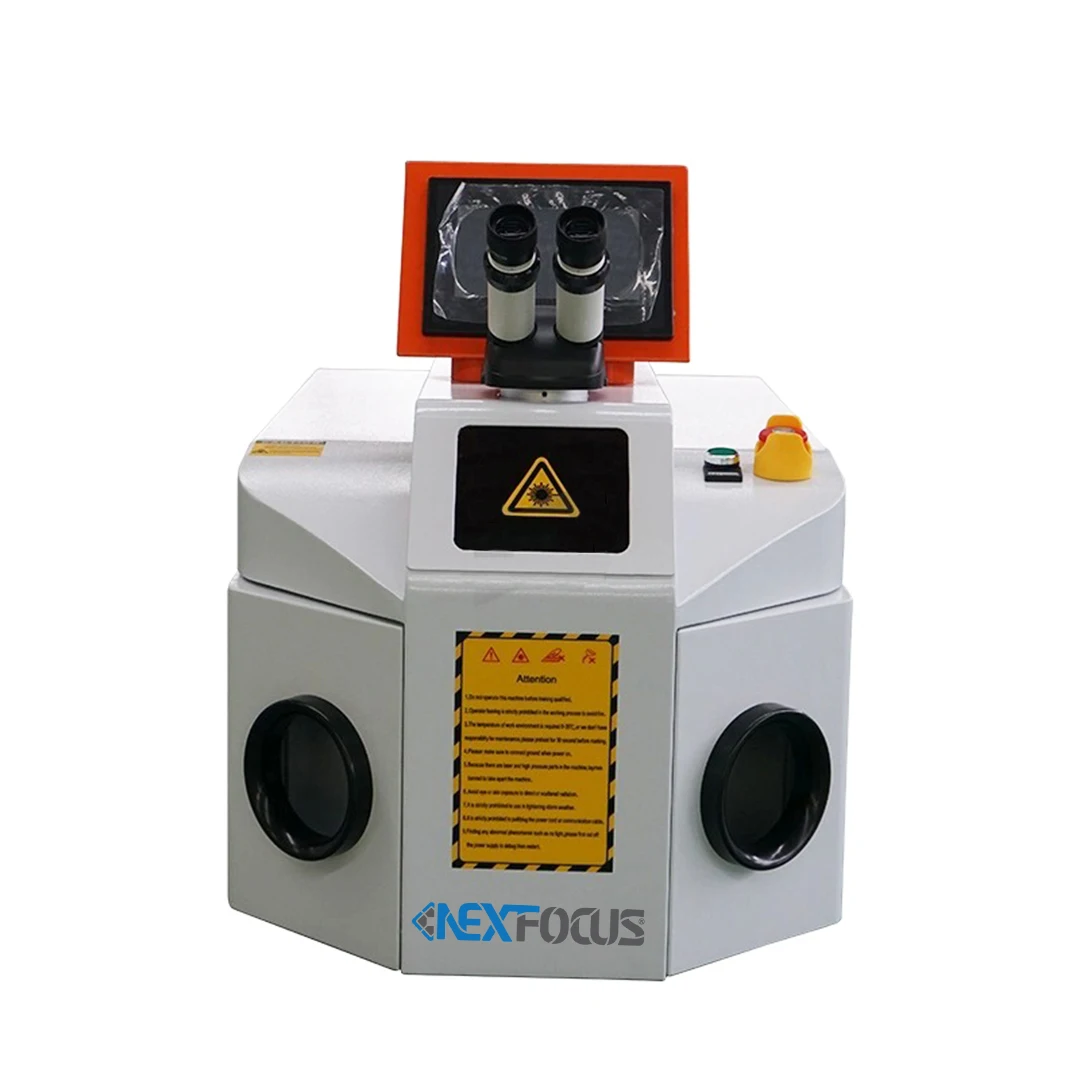

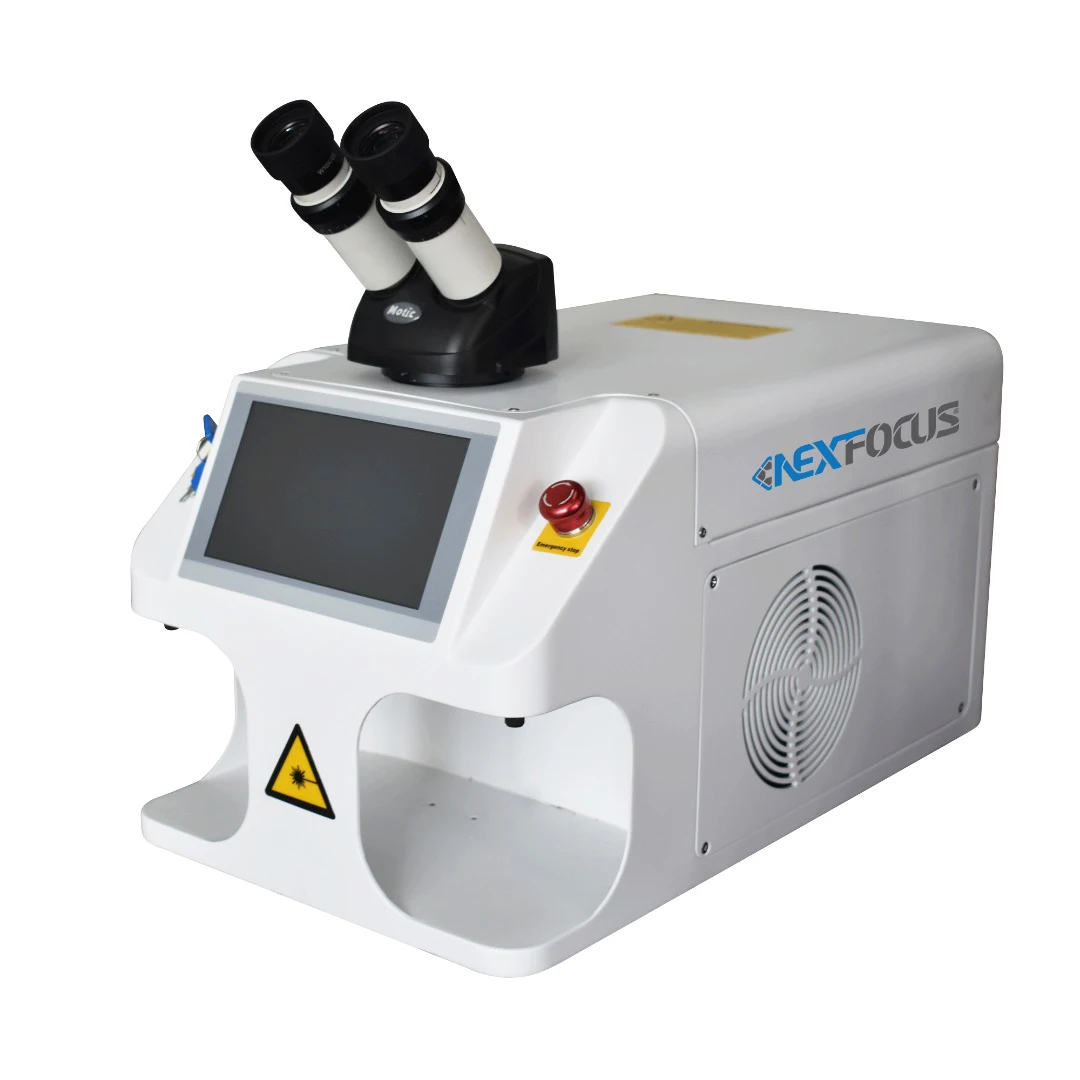

Multifunctional Small Size Laser Welding Machine 50w 70w 100w 150w 200w laser spot welding machine price
- Category: >>>
- Supplier: Next Focus Co. Ltd.
Share on (10000008285777):
Product Overview
Description
Product Paramenters

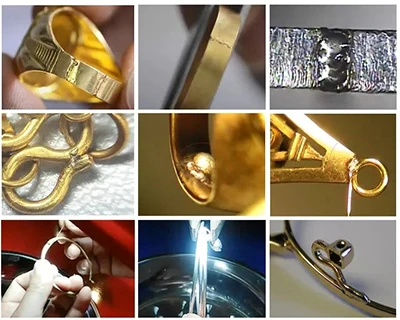

The laser spot welding machine dedicated to gold and silver jewelry, golf, fill holes for electronic components, welding trachoma, weld inlay mouth and so on. Welding firm, beautiful, non-distortion, simple operation, easy to use.

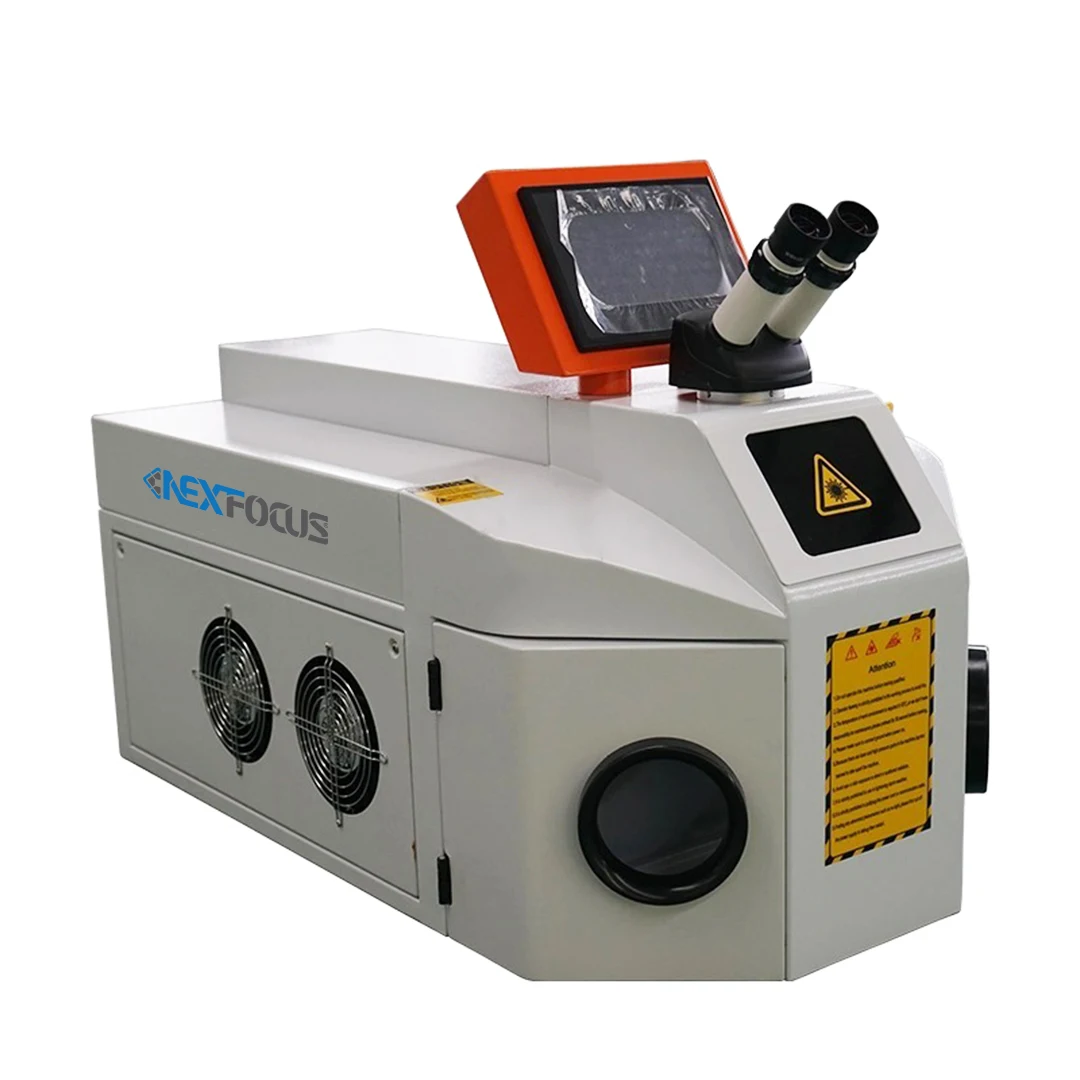

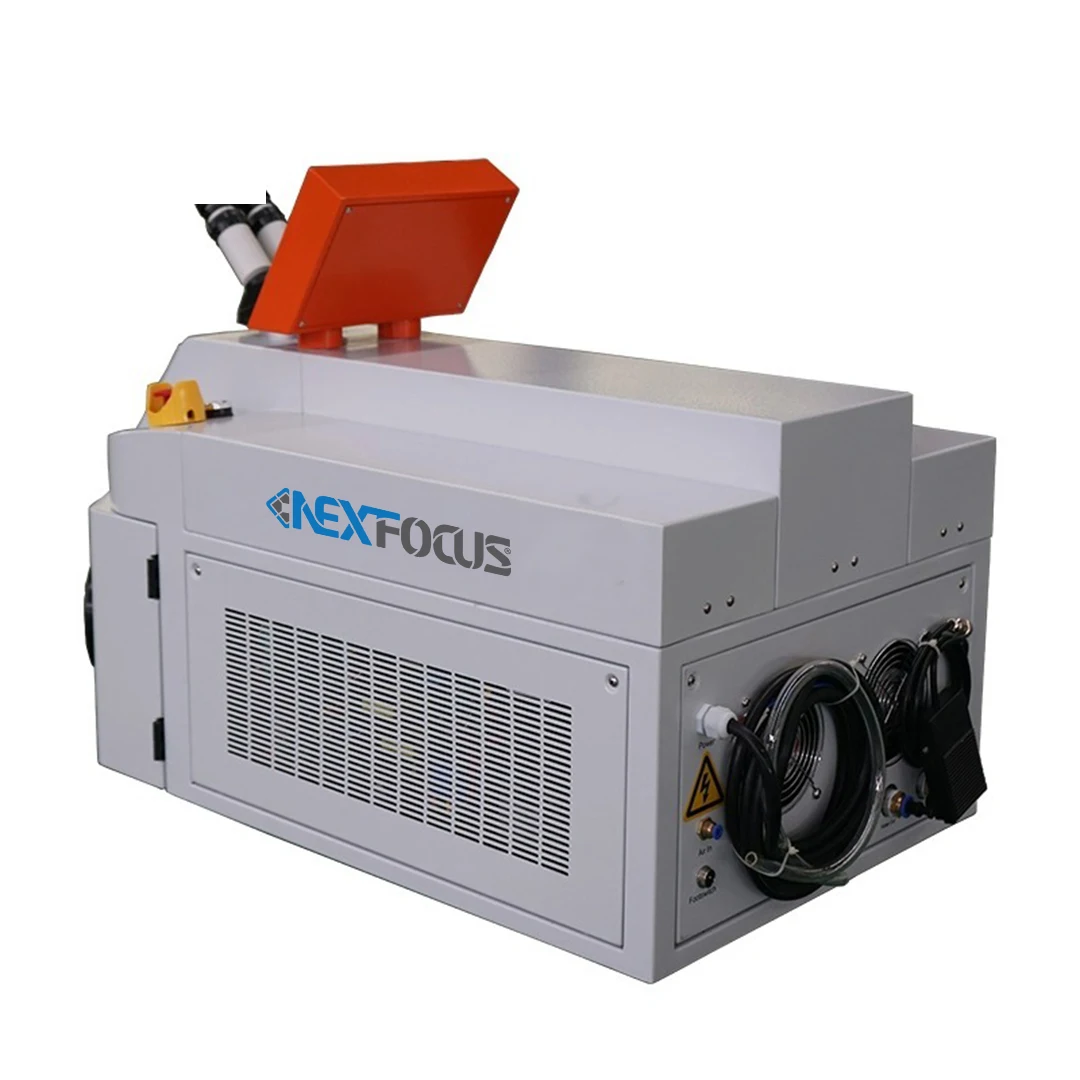

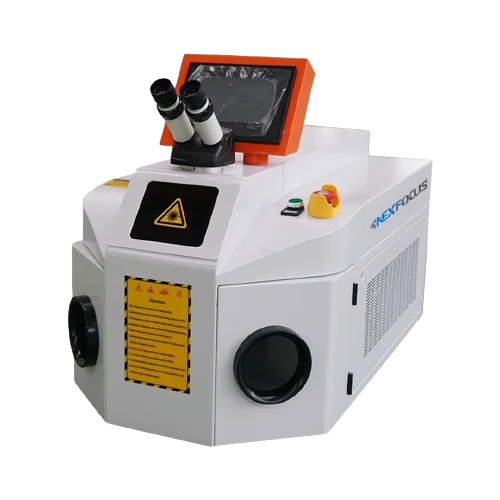

Next Focus LSW Series laser spot welding machine is used for perforation and spot welding of the sand hole for gold and silver jewelry. Laser spot welding is an important application of laser materials processing technology. Spot welding is thermal conduction, namely, the laser radiates the surface of the part, and the heat on the surface expands inside through heat conduction. By controlling parameters such as laser pulse width, energy, peak value and repeating frequency, the part will melt, and thus forming specific molten pools. Due to its unique benefit, the product has been successfully applied to gold and silver jewelry processing, and welding of small-sized parts.
Key Features:
* Energy, pulse width, frequency and facular can be adjusted within a wide range to achieve different welding effects. The
parameters are adjusted by the control rod in the sealed cavity, simple and efficient

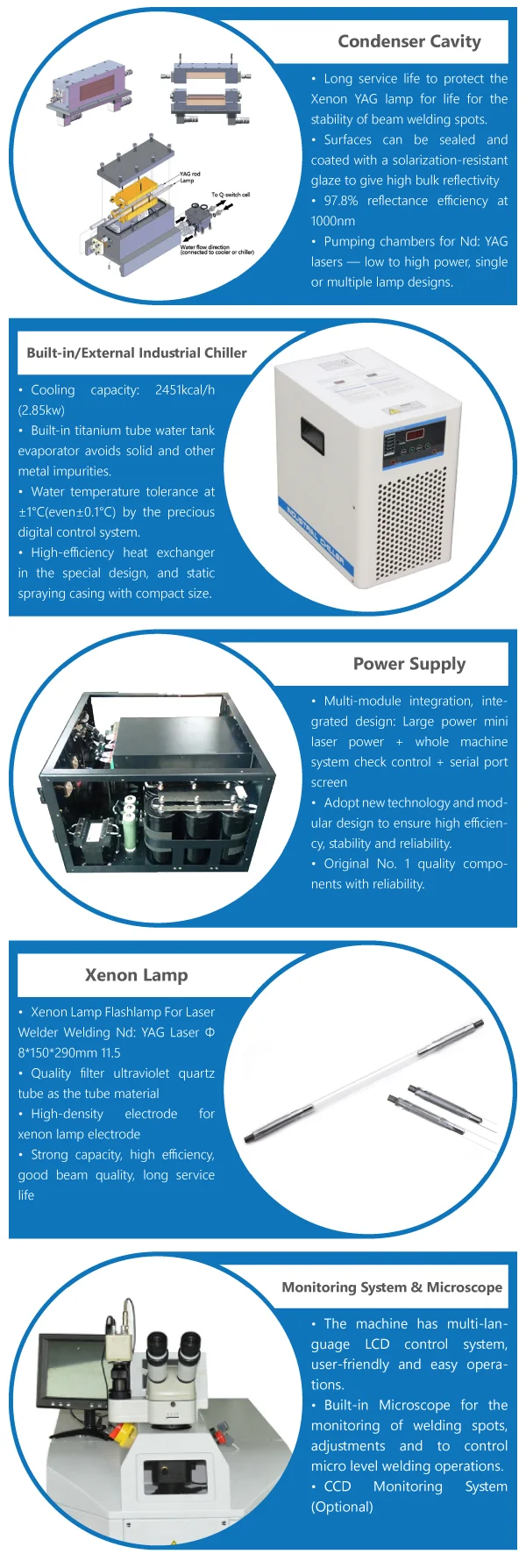

* Ceramic focusing cavity imported from the U.K. is employed, corrosion resistant, high temperature resistant, efficient in
optical/electrical conversion. The focusing cavity's service life is 8 to 10 years, and the service life of the xenon lamp is
over 8 million times
* World-leading automatic light shielding system is employed to remove stimulation of light on eyes during operation
* 100% Maintenance Free Equipment with 10000 working hours life
* Personalized design in compliance with ergonomics principles
Advantages:
Fast, Efficient, Deep, Little Distortion, Little Affection Area, Quality Welding, Pollution Free Welding Point, and Energy Saver.
Next Focus LSW Series laser spot welding machine is used for perforation and spot welding of the sand hole for gold and silver jewelry. Laser spot welding is an important application of laser materials processing technology. Spot welding is thermal conduction, namely, the laser radiates the surface of the part, and the heat on the surface expands inside through heat conduction. By controlling parameters such as laser pulse width, energy, peak value and repeating frequency, the part will melt, and thus forming specific molten pools. Due to its unique benefit, the product has been successfully applied to gold and silver jewelry processing, and welding of small-sized parts.
Key Features:
* Energy, pulse width, frequency and facular can be adjusted within a wide range to achieve different welding effects. The
parameters are adjusted by the control rod in the sealed cavity, simple and efficient
* Ceramic focusing cavity imported from the U.K. is employed, corrosion resistant, high temperature resistant, efficient in
optical/electrical conversion. The focusing cavity's service life is 8 to 10 years, and the service life of the xenon lamp is
over 8 million times
* World-leading automatic light shielding system is employed to remove stimulation of light on eyes during operation
* 100% Maintenance Free Equipment with 10000 working hours life
* Personalized design in compliance with ergonomics principles
Advantages:
Fast, Efficient, Deep, Little Distortion, Little Affection Area, Quality Welding, Pollution Free Welding Point, and Energy Saver.
Specification
Laser Power | 50W/70W/100W/150W/200W/300W |
Laser Wavelength | 1064nm |
Max Pulse Energy | 50J-120J |
Laser Welding Depth | 0.1-2.0mm |
The Pulse Width | 0.1-20ms |
Batter, Laser Welding Frequency | 1-20Hz |
Adjustable Range of Spot Size | 0.2-2mm |
Control System | LCD Monitoring Control System (CCD System Optional) |
Machine Power Consumption | ≤4kw |
The Demand for Electricity | 220V±0%/50Hz/30A |
System Components and Environmental System Components | Host Computer, Cold Water Tank |
Supplies | Xenon Lamp, Filter, Protection Lens, (Golden Cavity) |
Installation Environment | 4 Square Meters (Installation Area) |
Environment | Clean, No Dust or Less Dust |
Temperature | 55℉ (13℃) to 82℉ (28℃) |
Humidity | 5% to 75% Non-Condensing. |
Power Supply | 220V50HZ Alternating Current, 30A an Air Switch, |
Machine Dimensions (L x W x H) | 1000*480*1080mm |
Weight (Kg) | Gross Weight 80Kg (Desktop) 140Kg (Floor Type) |
