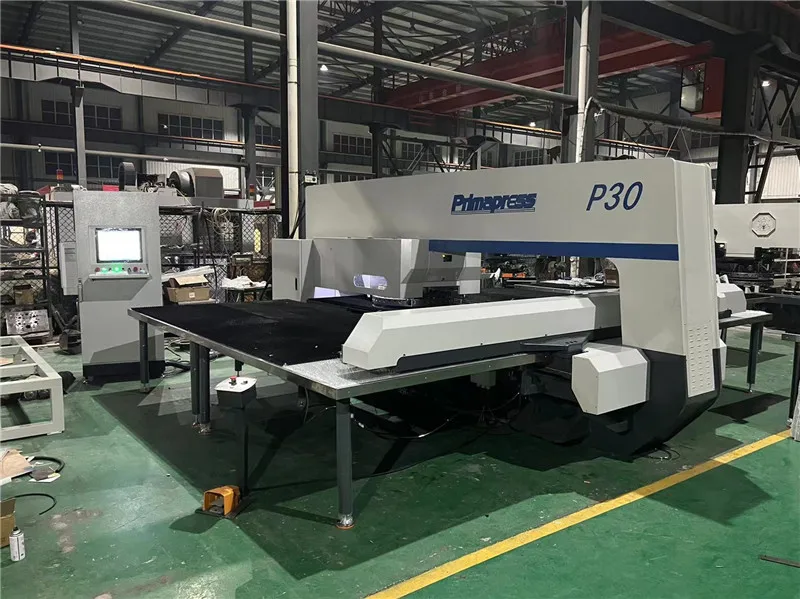

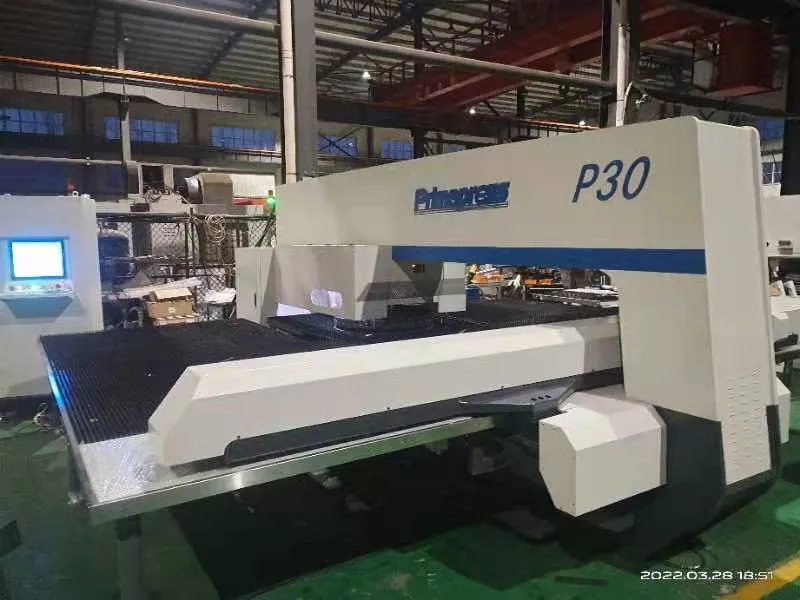

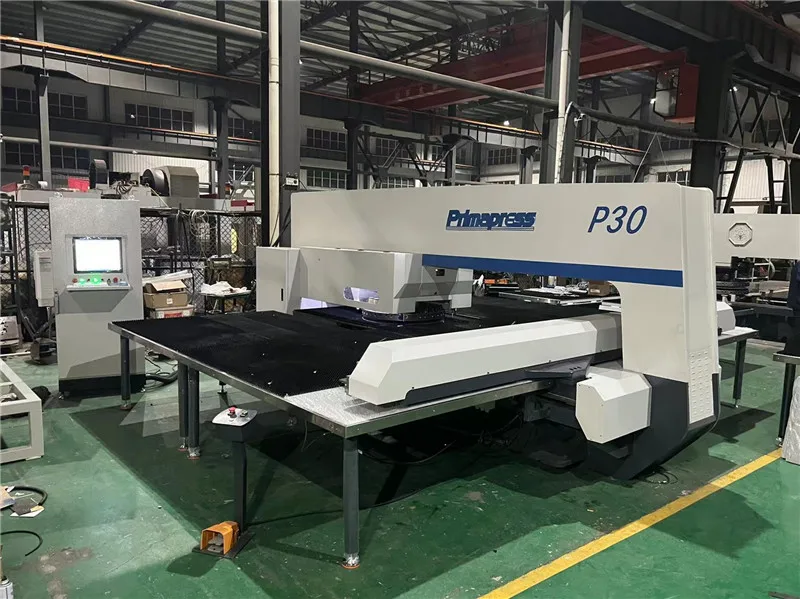

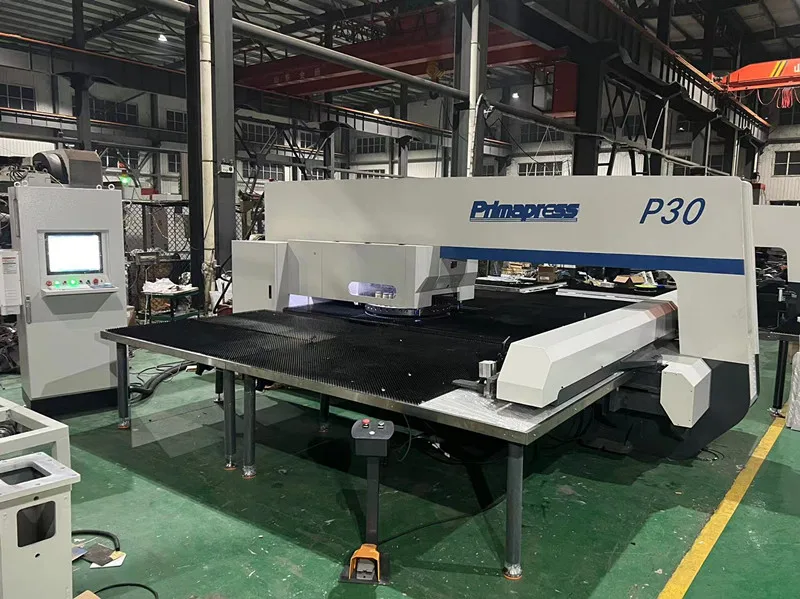

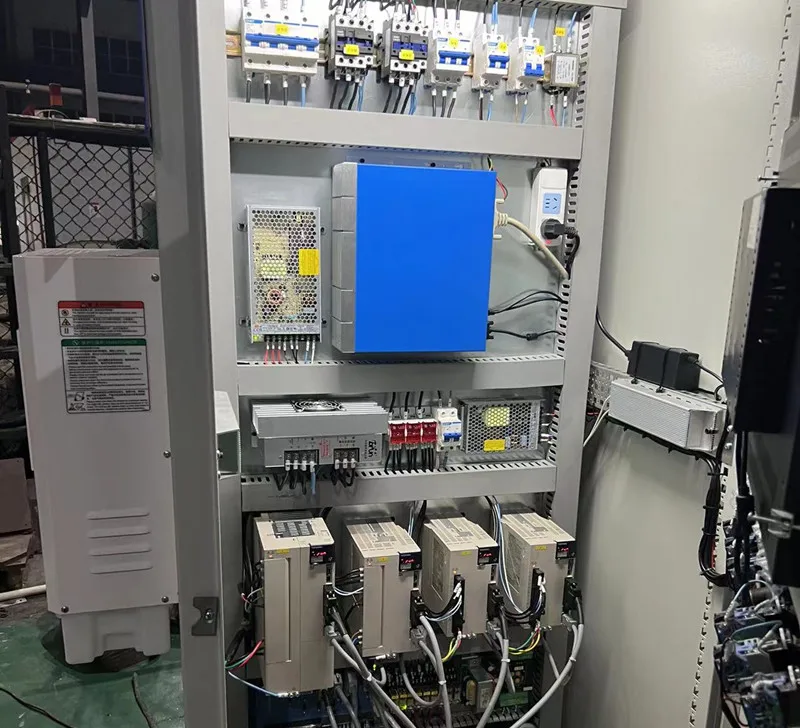

Prima High power sheet CNC turret punch press metal plate CNC hydraulic turret punching machine

Brief Introduction

Specifications

1. Nominal force                           KN           300

2. Workpiece size                          mm           1250×2500

Max workpiece weight                   Kg           156

4. Max workpiece thickness                  mm           6.35

5.Max punch diameter                      mm           88.9

6.Number of stations                                     32

Working accuracy                      mm           ±0.1

Max. hit speed                         HPM          600

Workpiece traveling speed               m/min         106

Turret speed                      r/min          30

Frame construction                              Closed-type

Throat                           mm          1275

Number of control axis                           4 axes (X, Y, T, C)

Max rotary station punching diameter   mm         50.8

Repeatability                    mm          0.02

Number of clamp                               2

Clamp type                                    Pneumatic type

Heat treatment of the frame                       Tempering

Tool type                                      Long guide sleeve type

                                                     (AMADA)

Turret construction                              Long bushing in the thin turret

Air pressure                         Mpa       0.6

Machine dimension (L*W*H)           mm       4800*2700*2200

Machine weight                      kg        17500

2. Machine Feature

1. Advanced and reliable Hydraulic drive system can select stroke automatically corresponding to different thickness of metal sheet and is convenient to realize special process of louver, blanking, etc. The punch is equipped with auto Hydraulic overload protection device, and guarantees consistent pressing force for quality products.

2.  The punch is of FANUC 0iP control system.

3.  Rotary tooling stations are of worm wheel structure with max. punching diameter of 50.8.

4.  Dual turret is of long insert structure ensuring coaxiality of the punch and die, which gives long life to the tool and turret.Machine Tool Equipment CNC sheet metal turret punching machine

5.  Imported pneumatic and Hydraulic components guarantee reliability of the machine.

Imported ballscrews with long travel, and linear guideways ensure transmission precision.

The worktable with hard brush and steel ball reduces noise and shock of the machine, and protects surface of the work piece. sheet matel hole CNC turret Punching Machine

The machine is straight-side frame, which is annealed for eliminating inner stress.

The clamps with auto protection function, in the protective zone, only excise movement without punching action for continuous operation.  Rotary punch press CE/ISO CNC Punching Turret Machine

10.Central lubrication device provides lubricant oil to the desired points to reduce friction of pairing elements for long machine life.

12.Tool station layout consists of A,B,C,D, which is convenient for the customer and save the tool cost.

13.Common requirement is for site foundation preparation and machine installation is simple.

 We order the container to go our factory for the loading.

    24 hours on line services, and we take care about the after-sales services.

Price :  Give me reply, i will give you my favorable price immediately !

Payment term :  30% deposit and the balance paid against copy of B/L in 3 days .

Package :  Standard exporting package .

Operation manual and video disc :

When delivery machine, the related operation instruction of model will delivery together with machine. And in the instruction, there is teaching video disc .

After-sales service :

1.machine is simple, generally, user can understand how to operate. There is operation instruction  and disc .

2.welcome to our factory to learn how to operate our machine, we will give good training .

3.our engineer is available for user. If there is requirement, our engineer can go to user factory,  and adjust machine, give good training to user .
