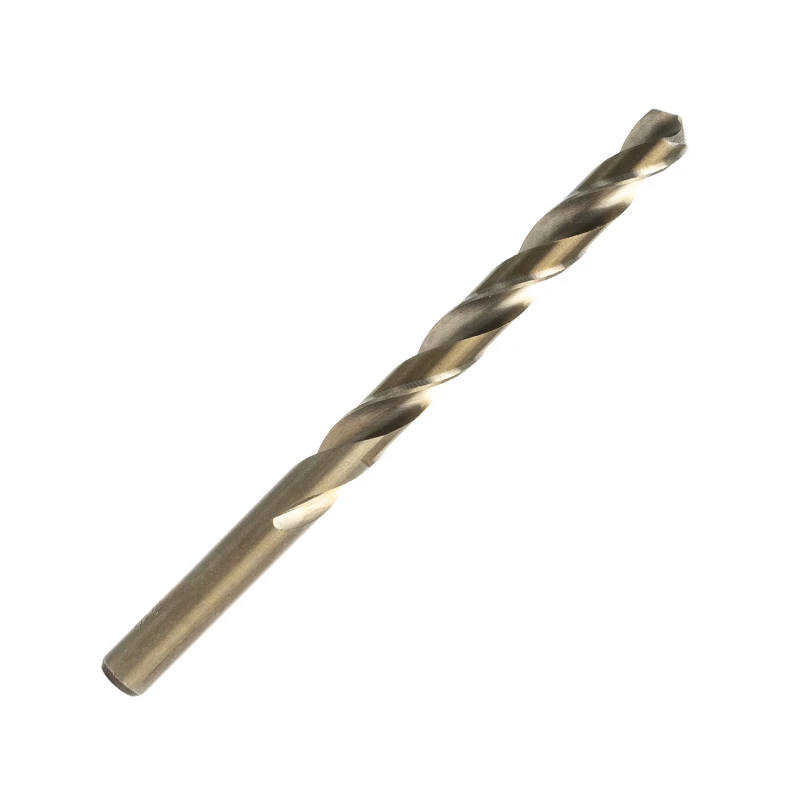

Zhongzuan 19pcs DIN 338 Hss Straight Shank Titanium M35 Cobalt Twist Drill Bit Set With Metal Box For Metal Drilling
- Category: >>>
- Supplier: Zhongzuan (Chongqing ) Precision Tools Manufacturing Co. Ltd.
Share on (10000008289965):
Product Overview
Description
Product Description
19pcs DIN 338 Hss Straight Shank Titanium M35 Cobalt Twist Drill Bit Set With Metal Box For Metal Drilling

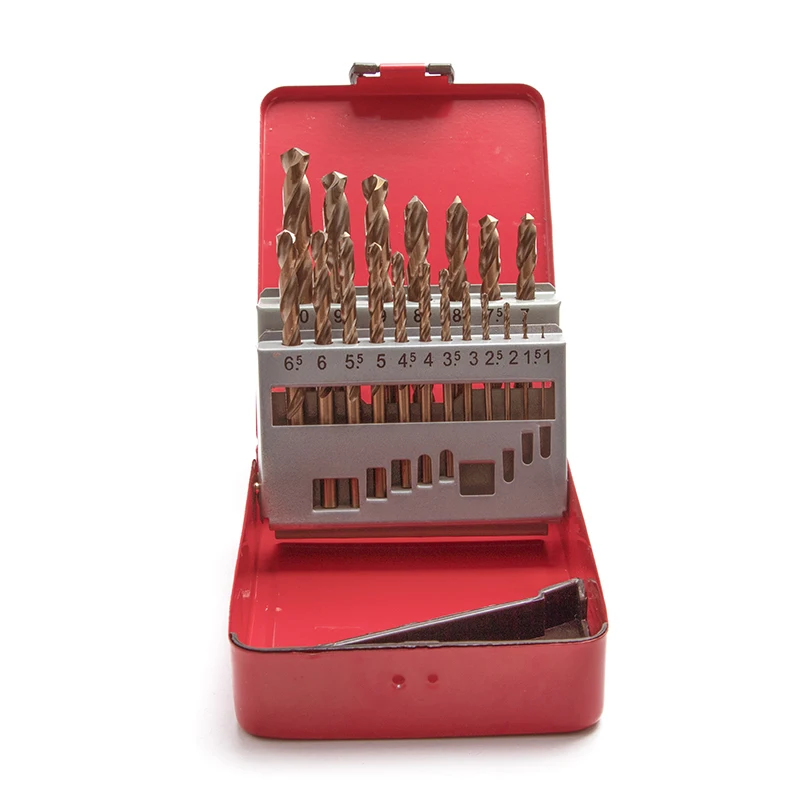

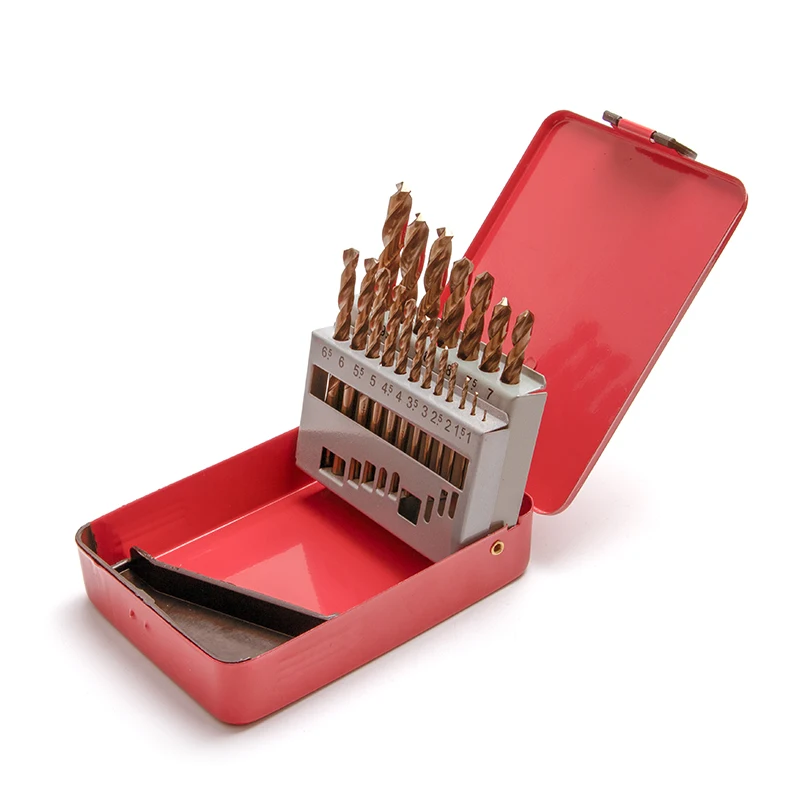

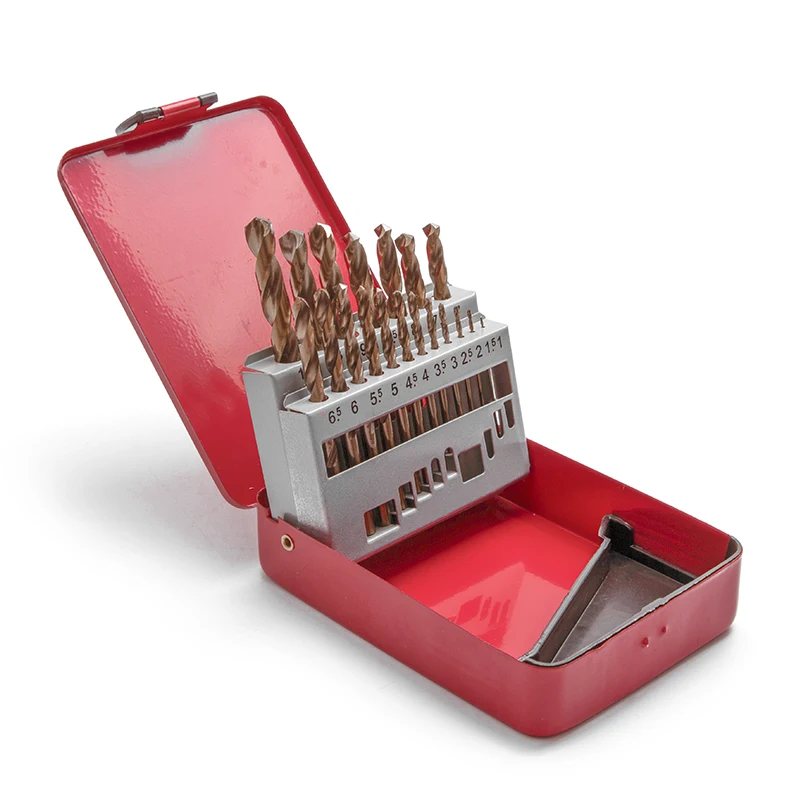

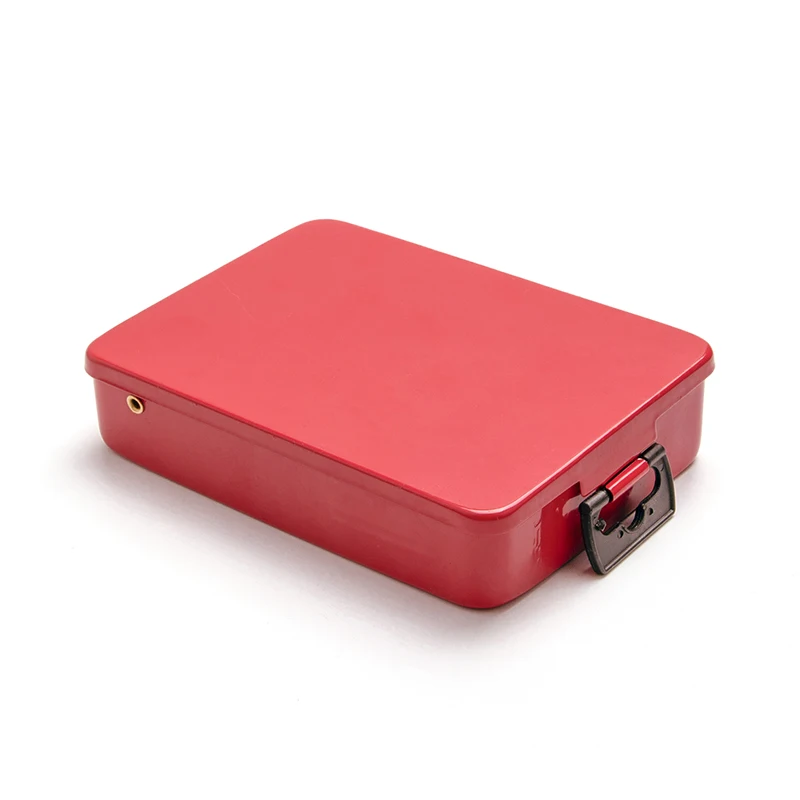

Twist drills are packaged in iron boxes, which will not damage the packaging during transportation, which is convenient for storage and management of twist drills. The twist drill is made of M35 cobalt material, which is suitable for drilling stainless steel, iron, aluminum, wood, plastic, PVC and other materials. Each drill has a 135° separation point tip design, which helps reduce walking.
1. Made of Hss M35 cobalt material, used for stainless steel, iron, aluminum, plastic, wood drilling.

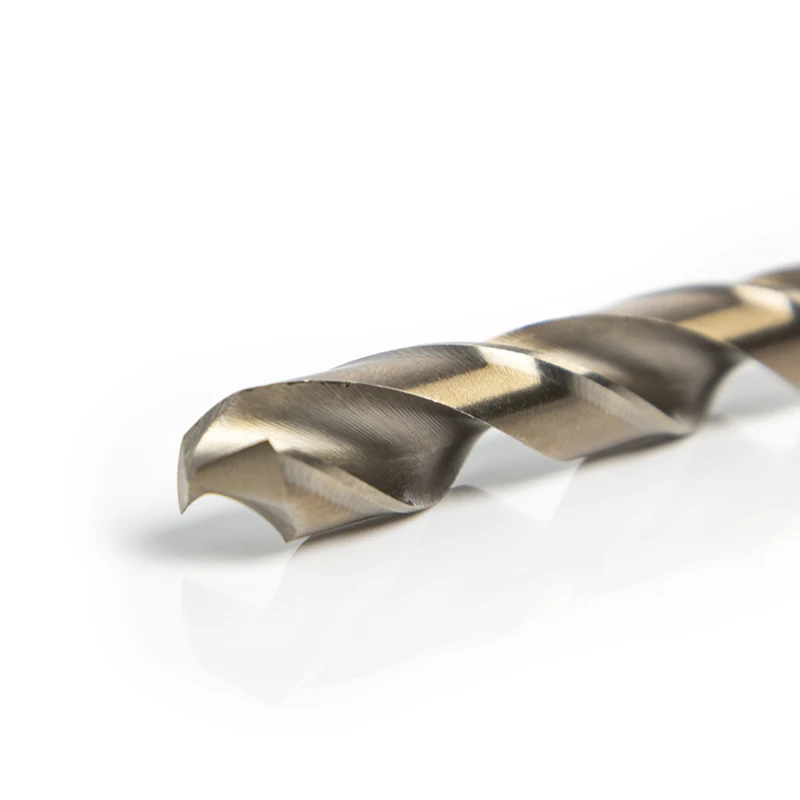

2. 135° Split point tip design to help reduce walking.
3. Titanium coating process on the surface to prevent rust and abrasion.

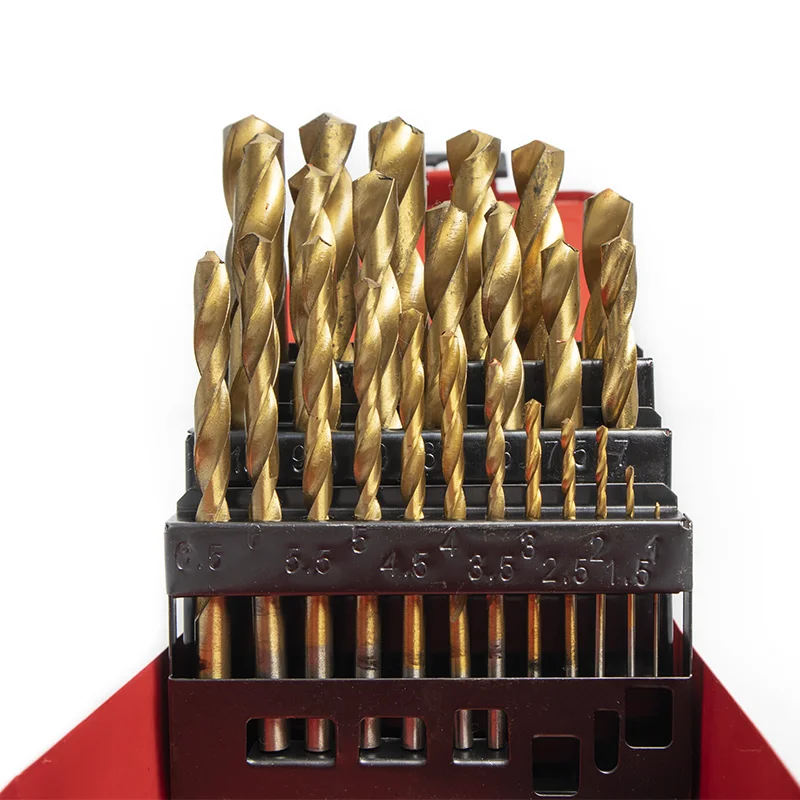

4. * Twist drill bit set size of 19 twist drill bits include: 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10mm.
5. Size markings on the drill bit shank for identifying sizes quickly.
6. Precision fully ground edges and grooves ensure fast drilling, excellent chip movement and ultimate accuracy.
1. Made of Hss M35 cobalt material, used for stainless steel, iron, aluminum, plastic, wood drilling.
2. 135° Split point tip design to help reduce walking.
3. Titanium coating process on the surface to prevent rust and abrasion.
4. * Twist drill bit set size of 19 twist drill bits include: 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10mm.
5. Size markings on the drill bit shank for identifying sizes quickly.
6. Precision fully ground edges and grooves ensure fast drilling, excellent chip movement and ultimate accuracy.
Product Name | 19pcs 1-10mm Hss Titanium Cobalt Twist Drill Bit Set |
Material | Hss 4341, Hss 6542(M2), M35, M42 |
Size | 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10mm |
Machining Process | Through high-precision CNC machine tools and strict Heat treated full grinding |
Shank | Straight Shank |
Standard | Each drill bit is made to the exacting specifications of DIN338 manufacture |
Specifications | Metric size, Imperial size, Digital size. Welcome to contact us to tell you the specifications or customization you need |

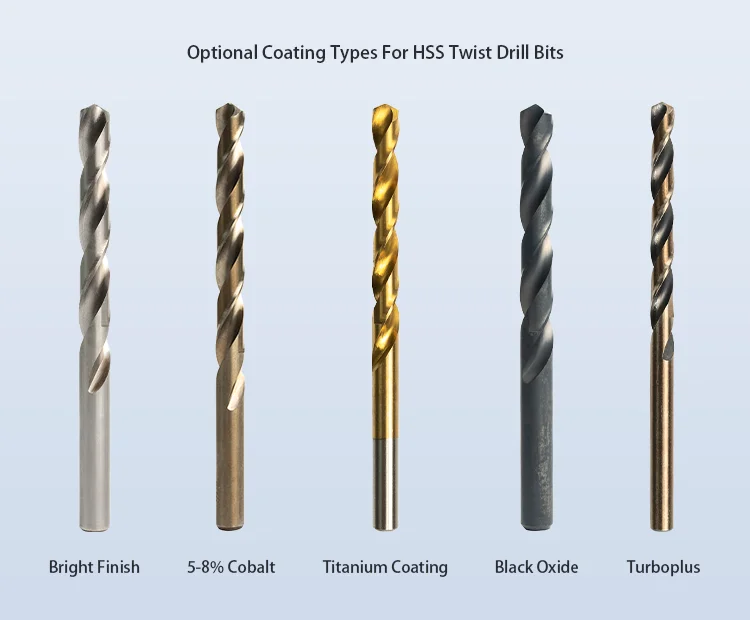

Coatings | Titanium Plating |
Packing | Iron box |
Use | Drilling of stainless steel, iron, aluminum alloy, wood, plastic, etc. |
Features | 1. Fully ground A3K7 process, the raw materials are made of industrial-grade high-hardness 99 refining-grade high speed steel, which is stronger and more durable. 2. Manufacturing standard: DIN338, KL67.3L17, the drill has high surface finish, no surface black carbon layer, smooth cutting and high drilling efficiency. 3. It is used for drilling and processing of steels with different hardness (such as rail steel, stainless steel, spring steel, etc.) such as various machines and CNC machine tool platforms, and the precision is within 0.02 wire. |
118° and 135° split points
The 118° point angle is mainly used for softer materials such as mild steel and cast iron.
The 135° split point is used for cutting hard steel, especially for deep holes that are more than 4 times the diameter of the drill bit. Using the 135° split point, cutting harder materials produces thicker chips, minimizing work hardening of the cavity.
The 135° split point is used for cutting hard steel, especially for deep holes that are more than 4 times the diameter of the drill bit. Using the 135° split point, cutting harder materials produces thicker chips, minimizing work hardening of the cavity.
Spiral fluted shank
Fully ground body construction. High flow spiral design for the fastest removal speed and for thick material.

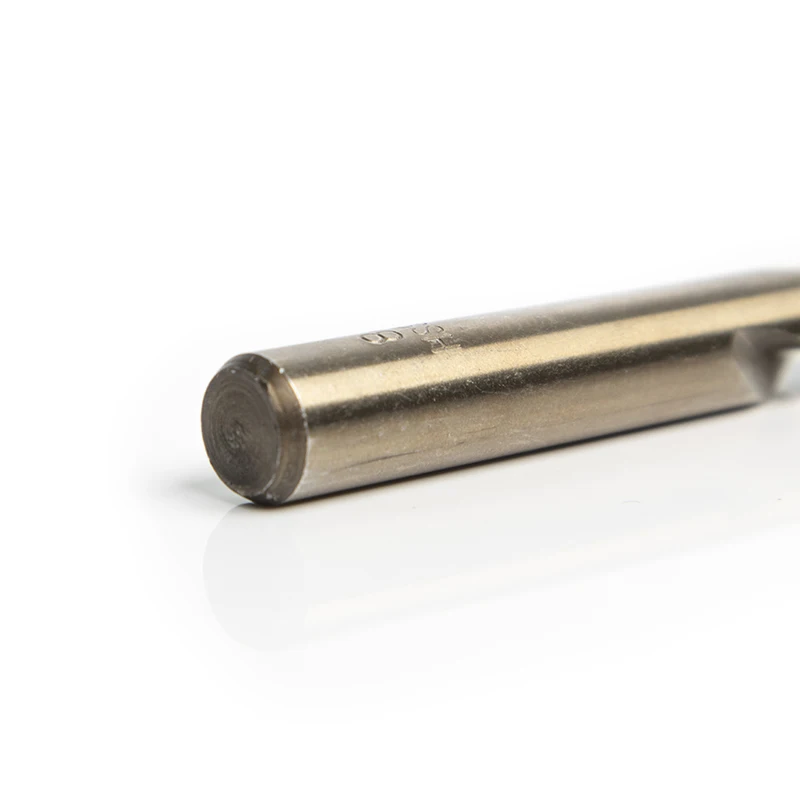

Straight shank
Straight shank for standard chuck, less "walking" or "wandering." The end of the shank is chamfered to allow an easy and firm grip. Special SST heat treatment of bronze and surface.
Application
HSS twist drill bits are suitable for fast drilling of stainless steel, aluminum alloy, iron, plastic, copper, wood.
Note: It is forbidden to use on tiles, walls, concrete, stone, etc.!
Applicable Equipment
Electric Hand Drill
Lithium Electric Drill
Bench Drill
Drill Press
Machining Center
Milling Machine
Twist drill tachometer | ||||||
Size | Rotational speed (r/min) | Size | Rotational speed (r/min) | |||
1-2mm | 3000-1800 | 8-9mm | 500-400 | |||
2-3mm | 1800-1400 | 9-10mm | 400-350 | |||
3-4mm | 1400-1000 | 10-11mm | 350-300 | |||
4-5mm | 1000-800 | 11-12mm | 300-280 | |||
5-6mm | 800-700 | 12-13mm | 280-250 | |||
6-7mm | 700-600 | 14mm | 220 | |||
7-8mm | 600-500 | 15mm | 200 | |||

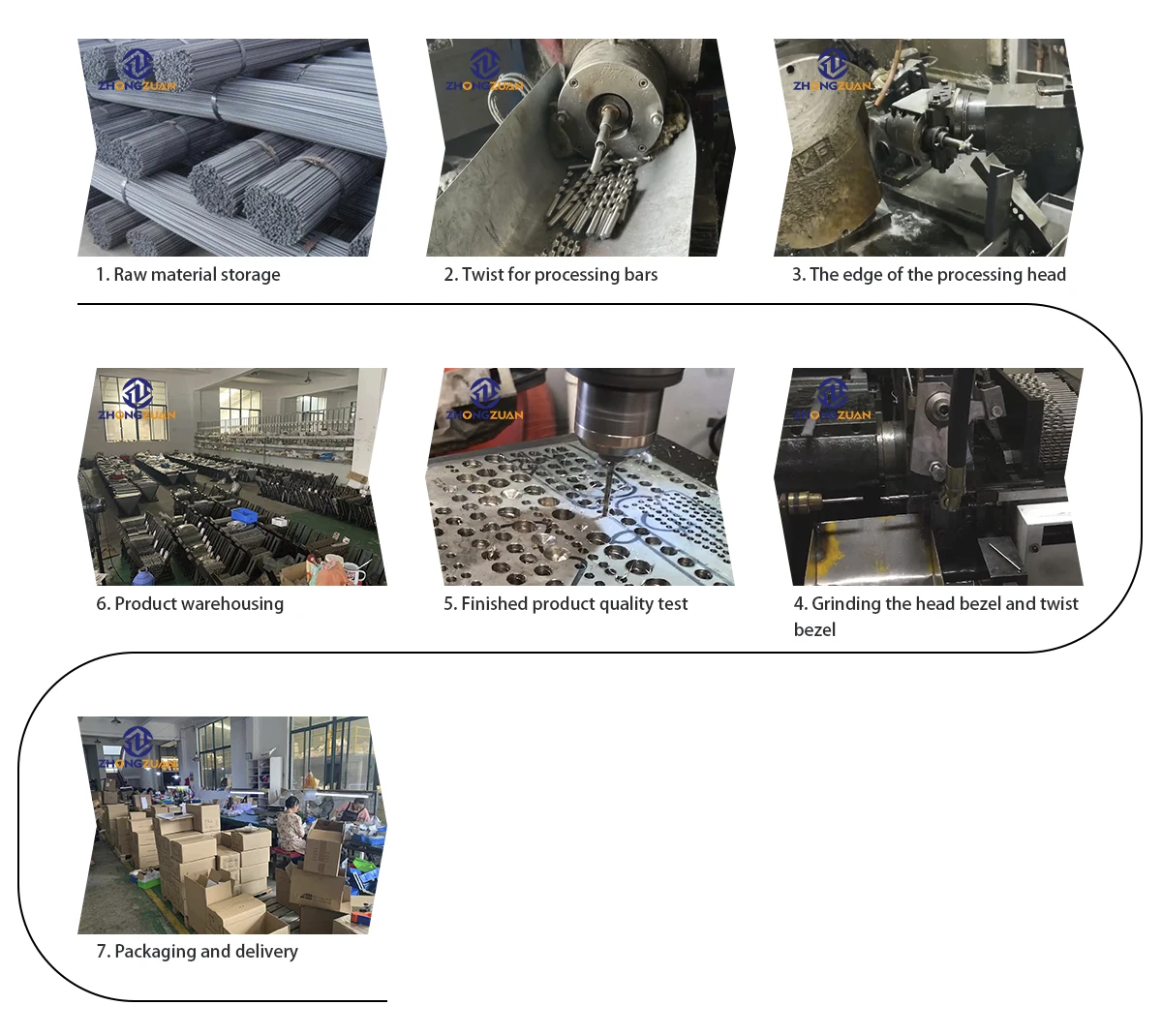

Production Process
Packing & Delivery
We have cooperated with DHLUPS,TNT Fedex,China Post and other sea shipping agent,thus we can quote the most economical shipping charge for you.
Company Profile
ZhongZuan is a professional power tool accessories manufacturer & supplier in China. Since 1995,with 27 years of industry experience. We manufacture and sell Diamond Core Bits, Hss Drill Bits, Wood Drill Bits, Hammer Drill Bits & Chisels, Router Bits, Diamond Saw Blades, Hss Saw Blades, TCT Saw Blades, Polishing Pads, Abrasive Tools and many more to choose from. We have accumulated rich experience in product
design, manufacturing and application, and can design supporting products for the complex processing environment of products, help customers solve various application problems of products, and provide professional solutions.
design, manufacturing and application, and can design supporting products for the complex processing environment of products, help customers solve various application problems of products, and provide professional solutions.
FAQ
Q: How long is the delivery time?
A: We have stock of common specification products, which can be shipped normally within three days after your payment. The latest delivery will be within 15 days. If you need to customize products or do not have stock, we need to schedule the production, the time limit is expected to give you according to our order scheduling situation.
Q: How about the quality of your products?
A: Our products are processed and manufactured with high quality raw materials, and we equipped with professional quality inspection team personnel and quality inspection equipment. From the purchase of raw materials → put into production → product molding →packaging, each link will have strict quality control!
Q: Is OEM available?
A: Yes! Please send your brand in PNG, JPG, PDF, PSD, AI and other file formats to our sales staff and tell us your detailed requirements, we have professional designers who will produce a preview of the effect according to your requirements for your confirmation and reference.
Q: Can I package my products or customize the packaging according to my requirements?
A: Absolutely! Welcome to contact our professional business team to tell us all the details of the packaging.
Q: Can I get samples?
A: Absolutely! We know that when a customer purchases in bulk, they will get a sample to test the quality of the product to see if they will buy in bulk from that supplier. So we are happy to provide samples for you. We support free samples for most of our products, except for some higher value products which require you to pay for the samples. The shipping cost will be borne by you.
