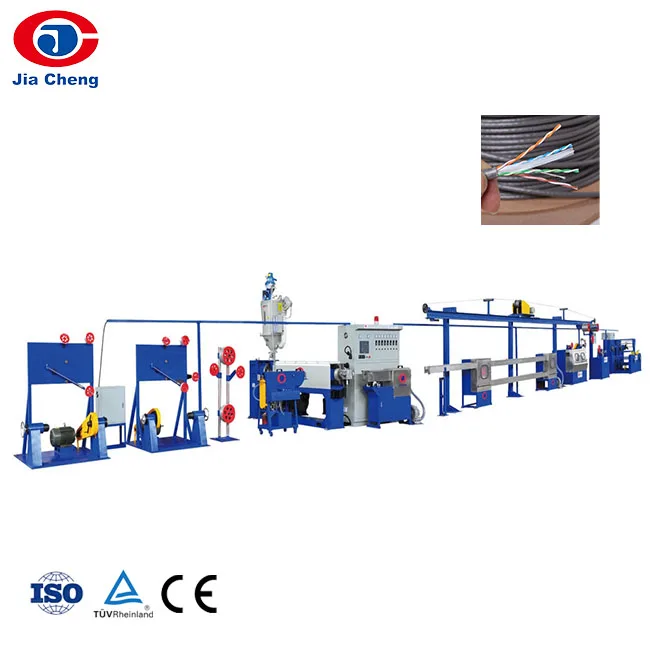

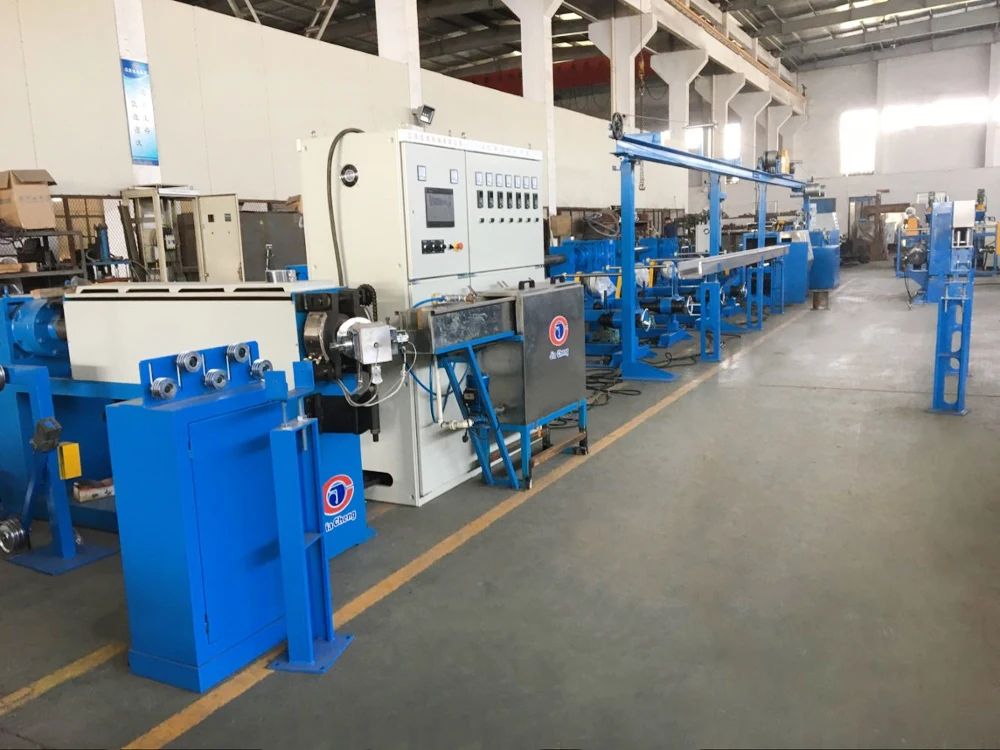

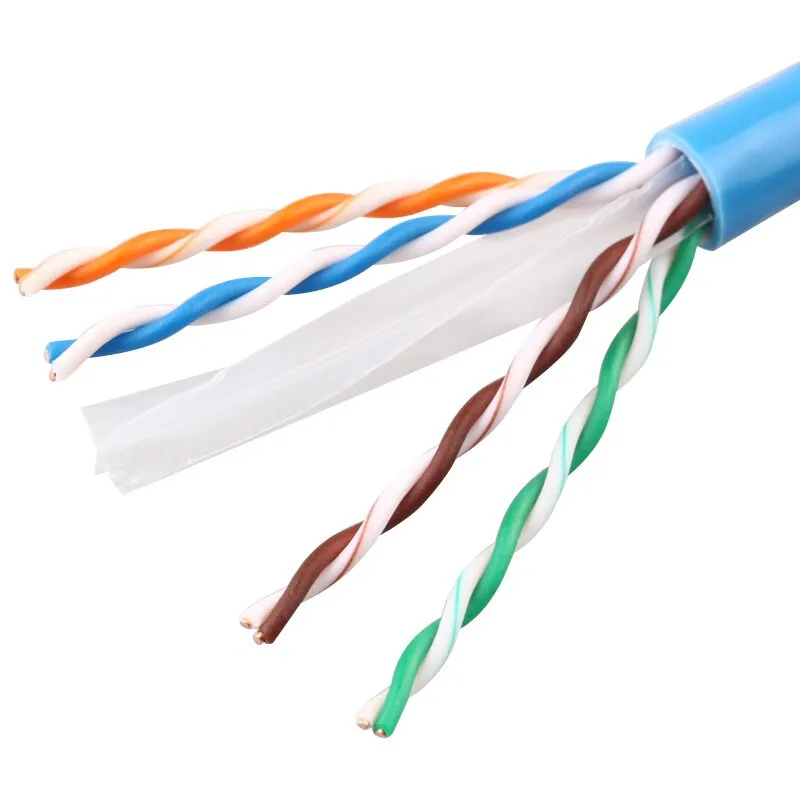

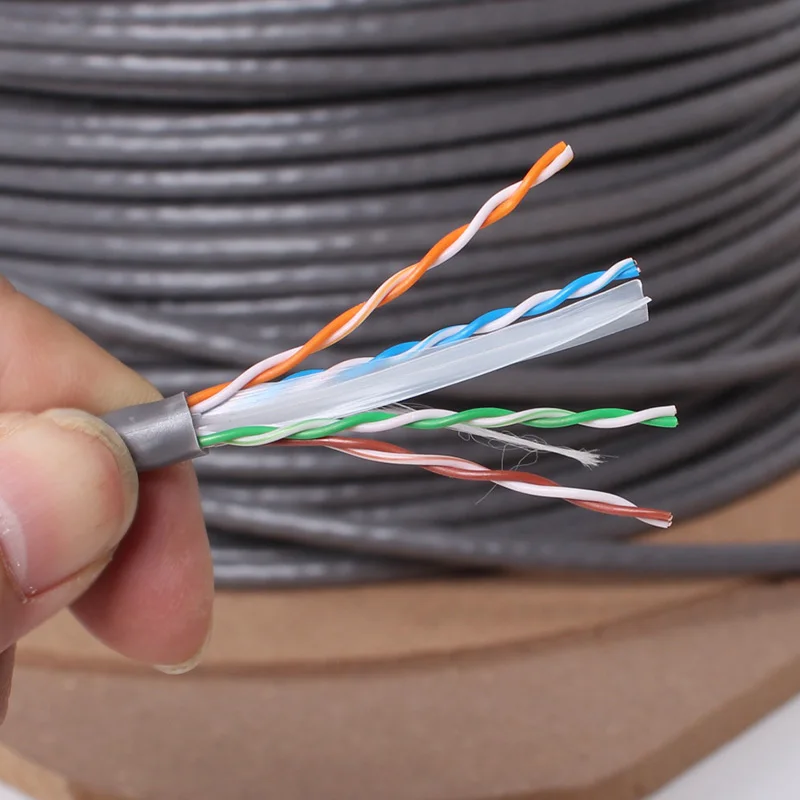

JIACHENG Cat5 and Cat6 Network Lan Cable Extruder Production Line Making Manufacturing Equipment Machine
- Category: >>>
- Supplier: Jiangsu Jiacheng Technology Co. Ltd.
Share on (10000008296452):
Product Overview
Description
Product Overview
Technical Parameter
Type | Screw Parameter | Extrusion Capacity | Power | Finished Dia, (mm) | Line Speed(m/min) | ||||||||
Dia (mm) | L/D Ratio | PVC | LDPE | PP | Main Motor Power | Total Power | |||||||
JCJX-30 Extrusion | 30 | 25:1 | 25 | 16 | 13 | 5.5 | 21 | 0.2-1 | 10-650 | ||||
JCJX-40 Extrusion | 40 | 25:1 | 40 | 20 | 17 | 7.5 | 24 | 0.4-3 | 10-650 | ||||
JCJX-50 Extrusion | 50 | 25:1 | 80 | 40 | 34 | 11 | 28 | 0.8-5 | 10-650 | ||||
JCJX-60 Extrusion | 60 | 25:1 | 100 | 53 | 41 | 18.5 | 42 | 1-8 | 10-650 | ||||
JCJX-70 Extrusion | 70 | 25:1 | 130 | 86 | 68 | 22-37 | 50 | 2-12 | 10-500 | ||||
JCJX-80 Extrusion | 80 | 25:1 | 200 | 122 | 96 | 30-55 | 65 | 3-25 | 10-350 | ||||
JCJX-90 Extrusion | 90 | 25:1 | 240 | 133 | 124 | 37-75 | 75-113 | 5-35 | 10-250 | ||||
Product Details
Straightening Table
1) Straightening direction: one-way
2) Straightening wheel, it can be adjusted up and down
3) With tool box
2) Straightening wheel, it can be adjusted up and down
3) With tool box

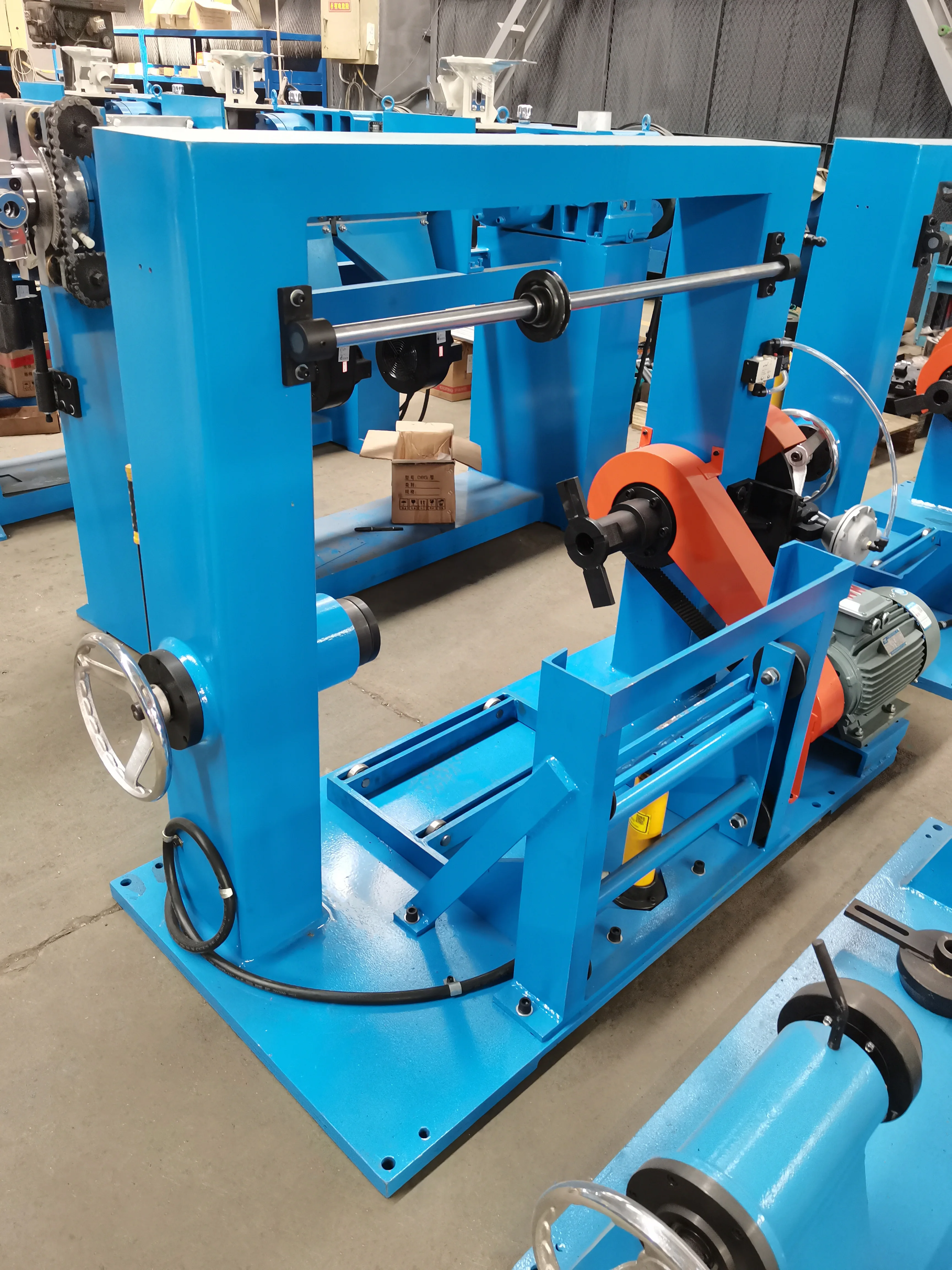

Pay-off
1）Bobbin size: Φ630
2）Tension control: magnetic powder tension
3）Wire-broken, stop automatically
4）Handling mode: lifting by electricity
2）Tension control: magnetic powder tension
3）Wire-broken, stop automatically
4）Handling mode: lifting by electricity

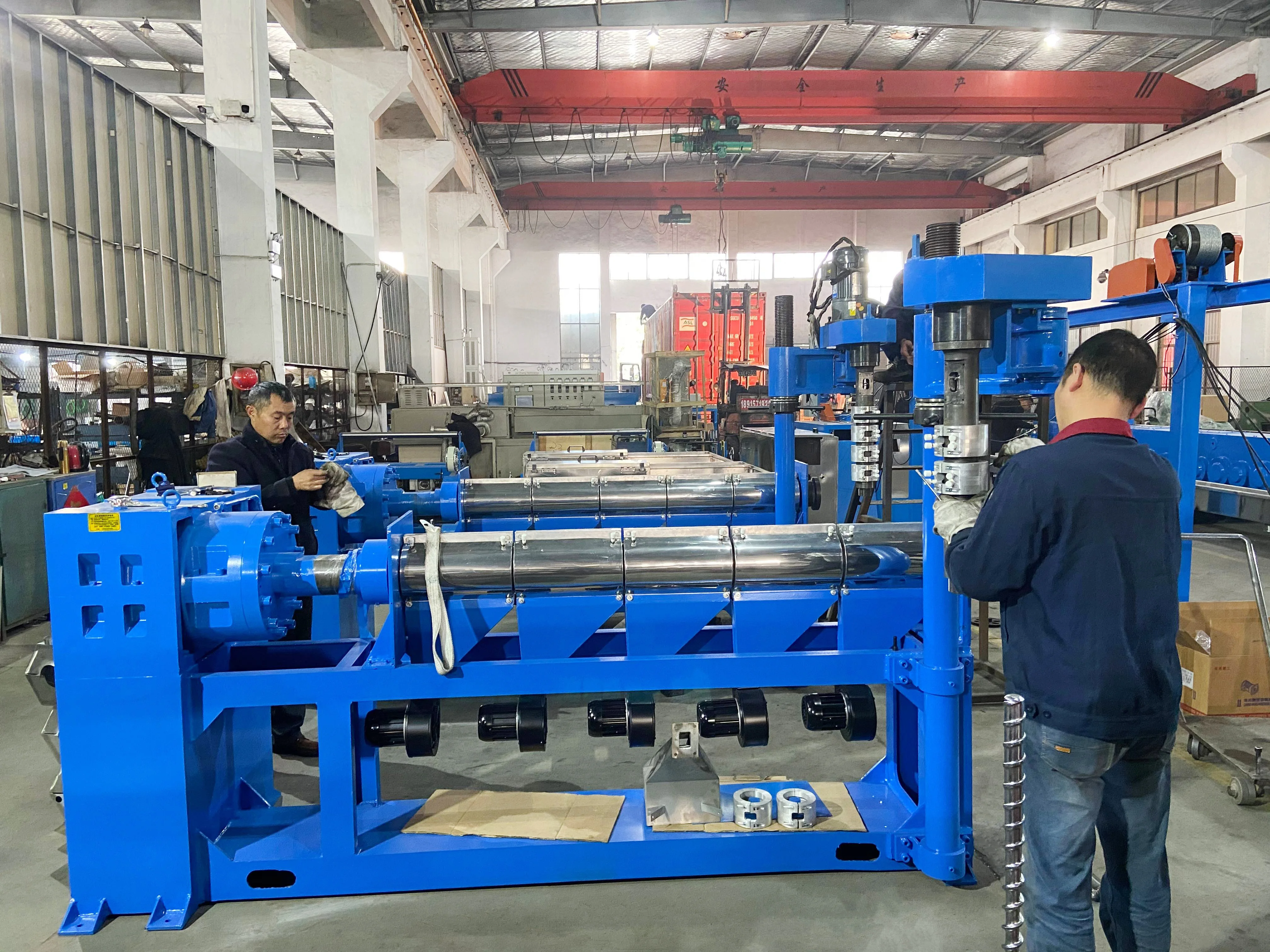

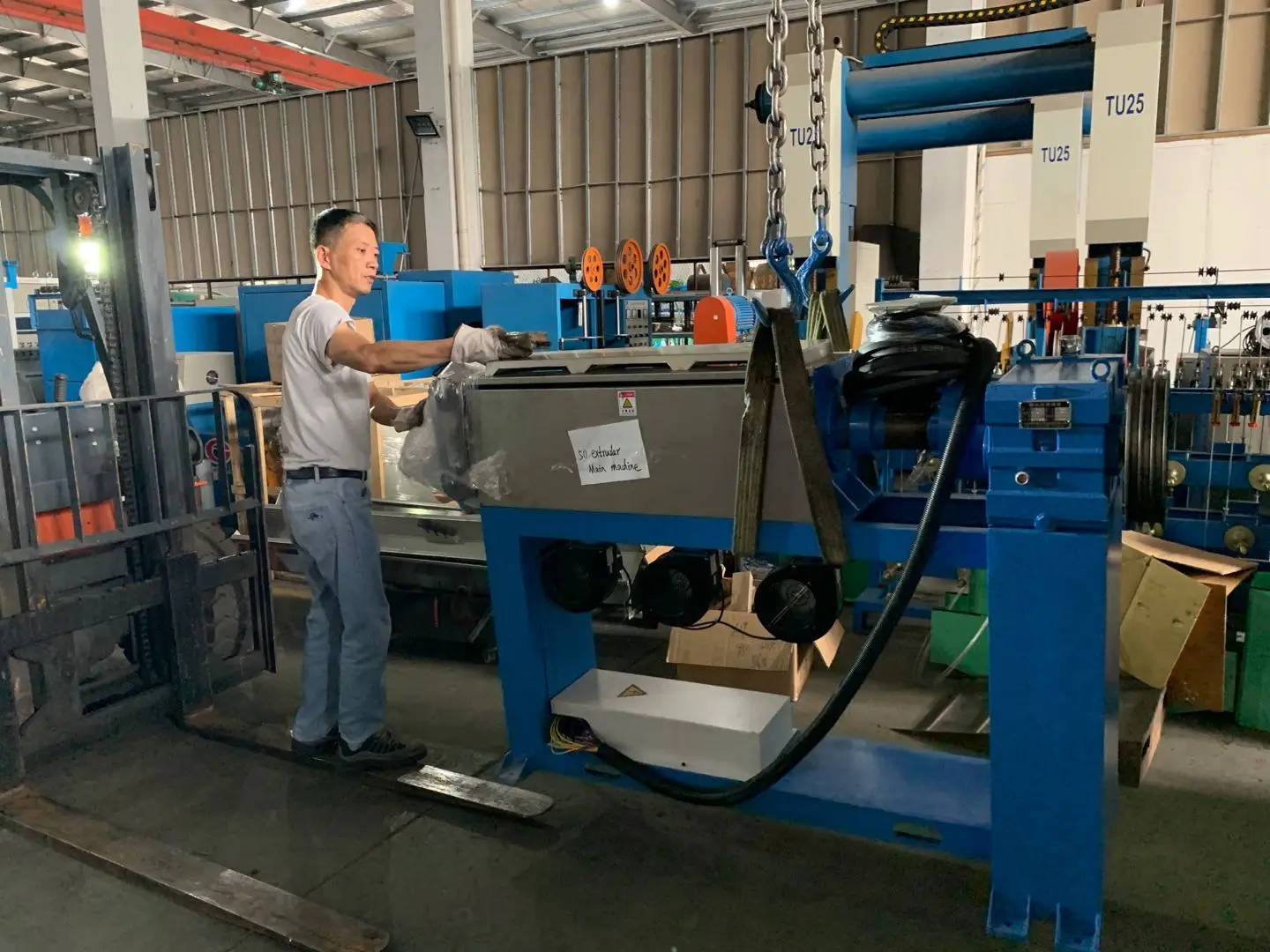

Main Extruder Machine
1) Gear Lubrication: gear mandatory for oil
2) Screw-cylinder:Screw-cylinder connected with the reduction gear box at a special heat elimination design,which greatly improve the life of the screw and the gear box;
3) Chuck:
The chuck operation is very convenient, and wear, greatly improve the traditional screw-type connection, easy to wear rubber drain.
4) Machine head: adjustable, free of the head(1 group), the nose temperature in two, head 1 section, eye model 1 section
2) Screw-cylinder:Screw-cylinder connected with the reduction gear box at a special heat elimination design,which greatly improve the life of the screw and the gear box;
3) Chuck:
The chuck operation is very convenient, and wear, greatly improve the traditional screw-type connection, easy to wear rubber drain.
4) Machine head: adjustable, free of the head(1 group), the nose temperature in two, head 1 section, eye model 1 section
Fixed Trough
1) Material: SUS304 stainless steel
2) Groove: U-type stainless steel sink
3) After the upper and lower front 4 meters 4 meters
4) Tank Specification: outside width250 * winner width120 * height 180 * 1.5mm thickness
2) Groove: U-type stainless steel sink
3) After the upper and lower front 4 meters 4 meters
4) Tank Specification: outside width250 * winner width120 * height 180 * 1.5mm thickness
Horizontal Wire Accumulator
1) Transmission: multi-core type cable
2) Anti-collision: compression spring
3) Double checking devices: Detection of non-contact linear displacement sensor
4) Safety device: Front and rear set limit switches, emergency stop control synchronization break
5) 1 piece meter, upside is meter device and underneath is tool box
2) Anti-collision: compression spring
3) Double checking devices: Detection of non-contact linear displacement sensor
4) Safety device: Front and rear set limit switches, emergency stop control synchronization break
5) 1 piece meter, upside is meter device and underneath is tool box

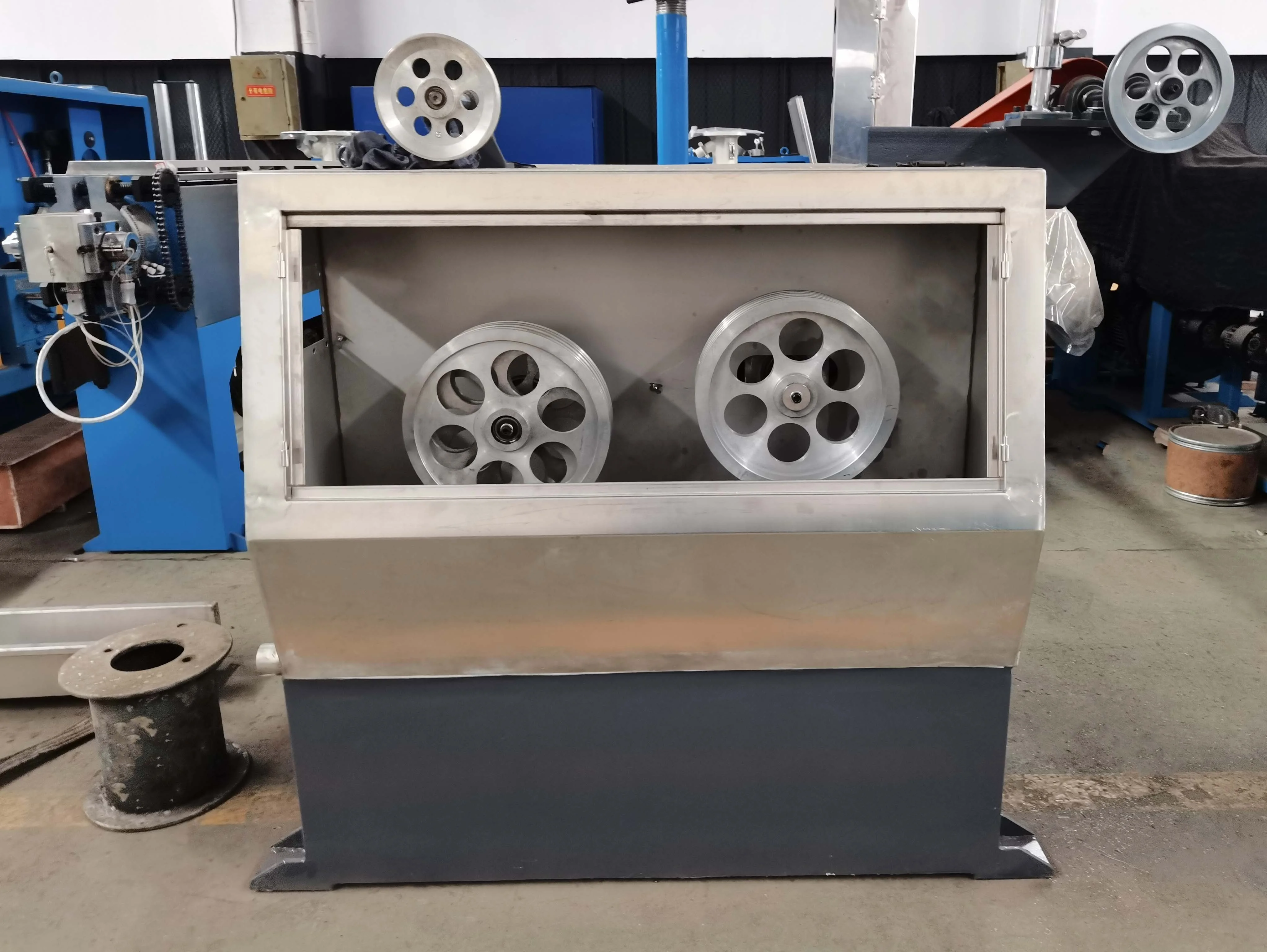

Double-wheel Hual-off
1) Type: water tank with two wheels
2) Cabinet: Fully enclosed cabinet door
3) U-type drying device drying
4) a, water tanks installed in CAPSTAN outlet end of the cable using high pressure air to dry the surface
of the water to keep the scene clean
b, air pressure can be adjusted,with a group switch, adjust the air pressure size
c, specially designed to lead to take the alignment between the meter wheel, cited with U-groove to take the water tank to facilitate the rapid production of alignment
2) Cabinet: Fully enclosed cabinet door
3) U-type drying device drying
4) a, water tanks installed in CAPSTAN outlet end of the cable using high pressure air to dry the surface
of the water to keep the scene clean
b, air pressure can be adjusted,with a group switch, adjust the air pressure size
c, specially designed to lead to take the alignment between the meter wheel, cited with U-groove to take the water tank to facilitate the rapid production of alignment
Spark tester
1) Test range: Φ0.1～Φ30mm
2) Max speed: 500m/min
3) Testing voltage: 0～15KV（Max.）
4) Test panels Length: 280mm; Center height: 1m
5) Comply with Japan, the United States, Europe and Great Wall of China national standards or certification
2) Max speed: 500m/min
3) Testing voltage: 0～15KV（Max.）
4) Test panels Length: 280mm; Center height: 1m
5) Comply with Japan, the United States, Europe and Great Wall of China national standards or certification
LGD-25 Diameter gauge
1) It is used laser scanner technique, then it with big measuring range
2) It is used SMD circuit. Small volume, light weight and strong anti-interference
3）RS485 communication interface，it can communicate with PLC and PC
4) With real-time measurement data and Printing capabilities
5) It is used F mirror with high precision, analyte measurement of the swing does not affect the normal
6) Free from light and smoke, then it will not affect the measurement stability
2) It is used SMD circuit. Small volume, light weight and strong anti-interference
3）RS485 communication interface，it can communicate with PLC and PC
4) With real-time measurement data and Printing capabilities
5) It is used F mirror with high precision, analyte measurement of the swing does not affect the normal
6) Free from light and smoke, then it will not affect the measurement stability
Application:
It is used for the insulation of wire & cable with PVC, LDPE, NYLON, TPU. Also it can be equipment with triple co-extrution crosshead and double layer.
