Description :

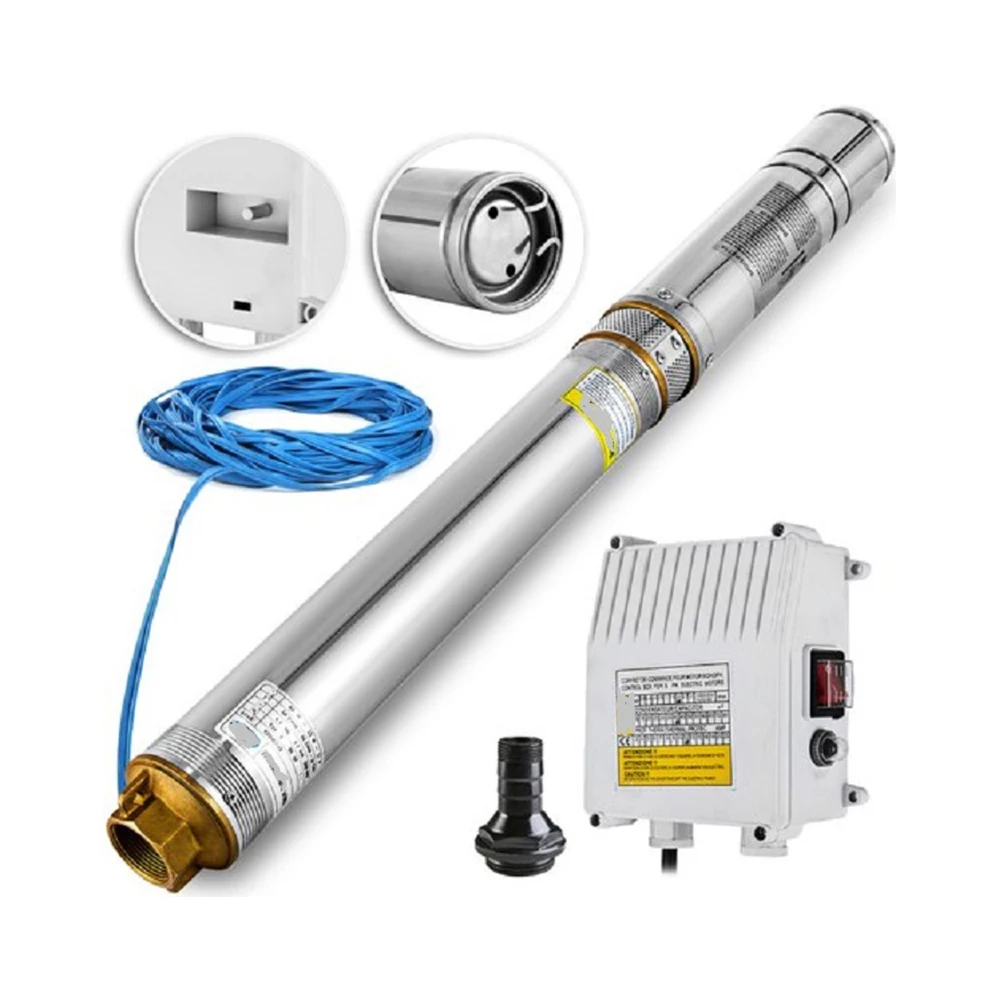

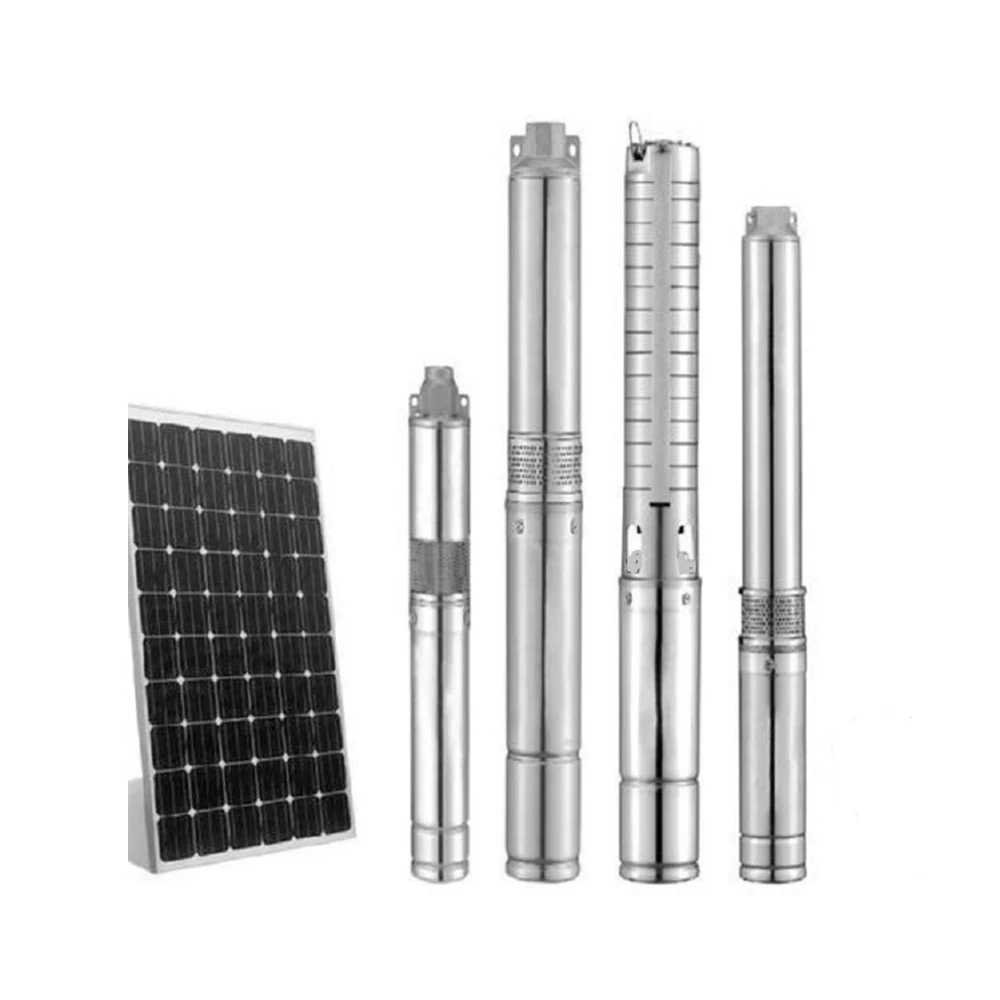

Submersible Solar Pump :

• The Solar pump system is composed of a solar array, a pump and a pump controller.

• Solar pump set is an aggregation of many solar modules connected in series/ parallel.

• The system absorbs radiation from the sunlight and convert it into electrical energy thus help in providing dynamical water as a whole system.

• The pump controller controls and adjusts the system operation, according to the variation of intensity of sunlight to realize the maximum power point tracking (MPPT).

• The pump is able to draw water from the deep wells or rivers and lakes to pour into the storage tank or reservoir, or directly connect to the irrigation system, fountain system etc.

• According to the demand and application, different type of pumps such as Centrifugal pump, Axial flow pump, Mixed flow pump or Deep –well pump can be used.

• High flow system for fast tank filling and significant water output.

• Pump set can start at low radiation.

• Clean and pollution free energy, Eco friendly.

• Ideal for remote areas, where electricity is not available or availability is capital intensive.

• Suitable for day time irrigation, continuous supply for 6 – 8 hours in a day.

• Soft start feature increases the life of the system by preventing water hammer.

• Simple installation and Maintenance free.

Features :

• State-of-the art design.

• Highly energy efficient submersible solar water pumps with energy efficient inverter duty motor.

• High efficiency solar photovoltaic panels with a service life of minimum 20 years.

• Robust design Galvanized steel mounting structure for long life.

• High technology automatic controller with dynamic MPPT (Maximum Power Point Tracking) control method.

• The Controller offers complete protection against under and over voltage and dry run protection for the pump.

• Highly efficient controller with a conversion efficiency of 98%.

• The controller can be operated with an ambient temperature of up to 50°C.

• Environmental friendly, air and noise pollution free solution.

• The material of pump is Stainless Steel (AISI 304, AISI 316).

• Cost efficient pumping.

• Very strong ROI against diesel powered pumping systems which reduces production costs and carbon foot print.

• We provide large range of pumps for each application specific demand and optimize efficiency.


Applications :

• Ground water lowering



• Irrigation system



• Industrial application



• Drip Irrigation and Sprinkler



• Tank/ Cistern filling



• Wildlife refuge



• Rural water supply for ranches, cabins and cottages



• Fountains



• Desert Control



• Pasture Animal husbandry



• Water supply for Icelands



• Wastewater Treatment

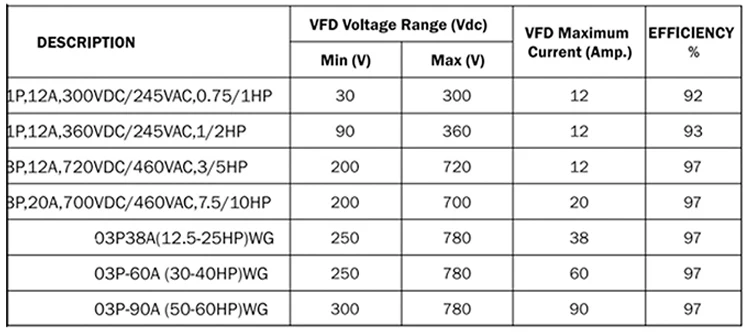

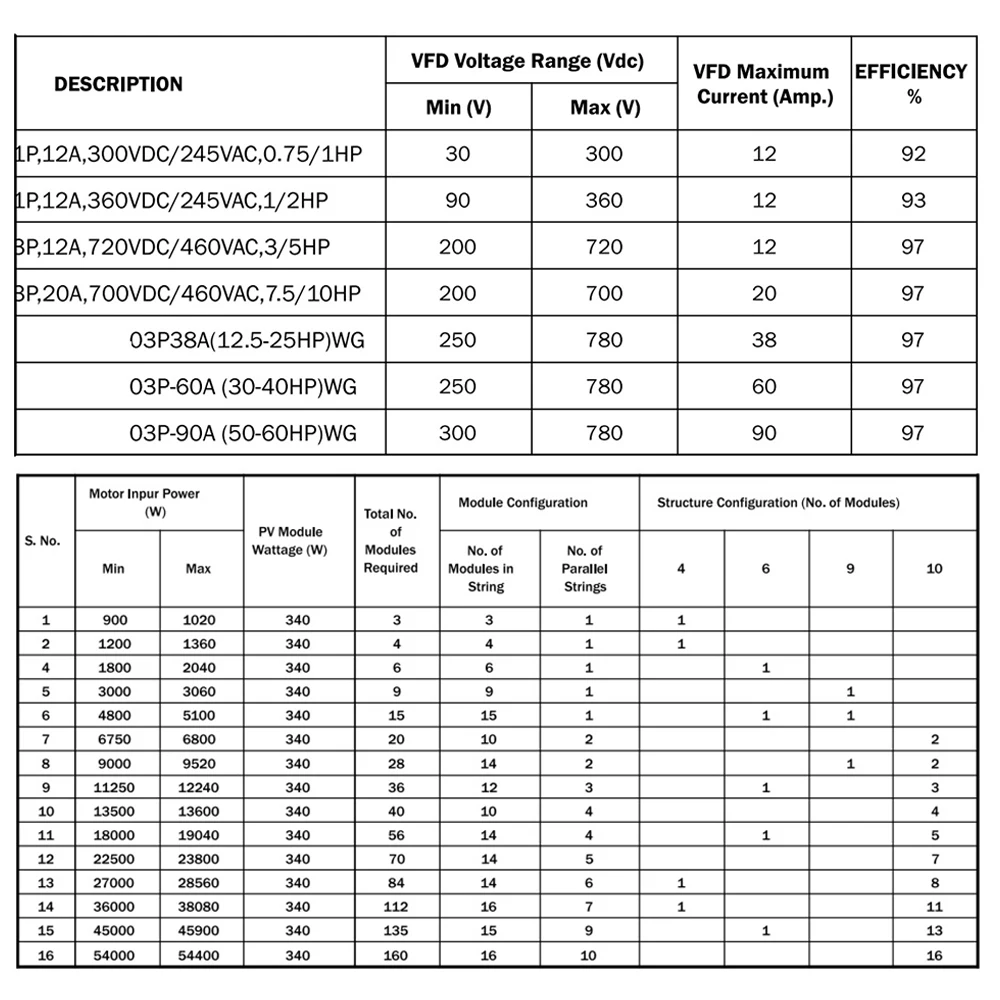

Solar Pump Controller Specification :

Features Of Controller :

• A three - digit-seven - segment display provides detail system status.



• A small keypad for selection of user option.



• Controller can be operated by Mobile application.

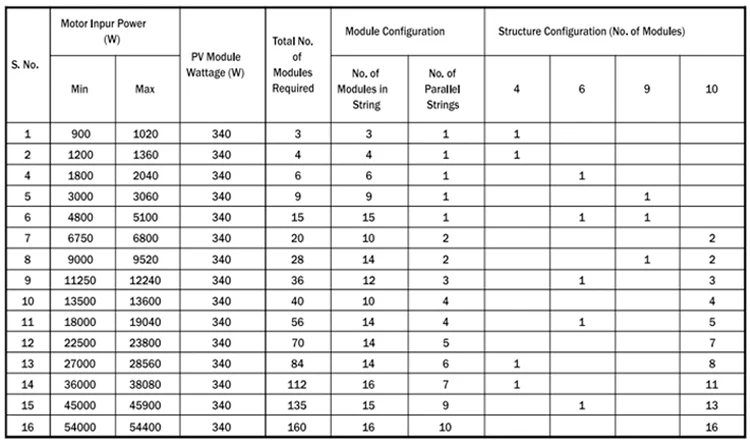

Solar Power Selection & Configuration :

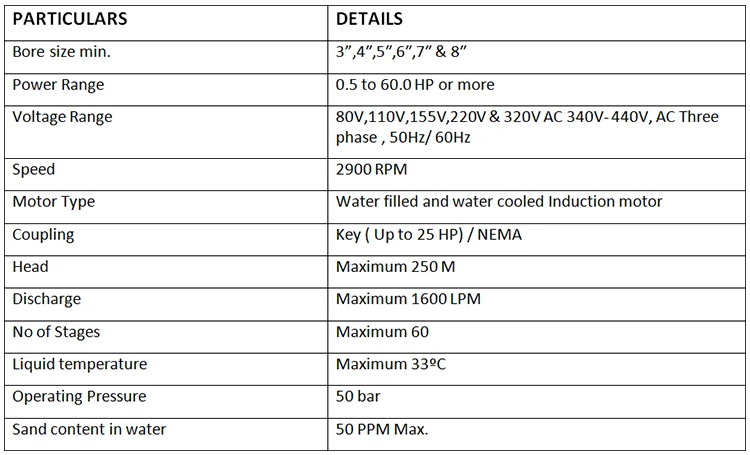

Product Operating Range :

The Solar Water Pumping System Includes :

• High efficient Submersible Motor



• Submersible Pump



• Solar Panel and its mounting structure



• Solar Controller



• Cable



• Pipes



• Variety of flow rates available in : 8 to 1058 GPM



• Motor and Controller ratings available in : 900 to 54000 Watt.
