Yukuan Digital Audio Broadcasting 1 Channel DRA AC3 EAC3 AAC MPEG 1 IP Audio Decoder
- Category: >>>
- Supplier: Beijing Yukuan Science & Technology Co. Ltd.
Share on (10000008377715):
Product Overview
Description
YUK600-1A

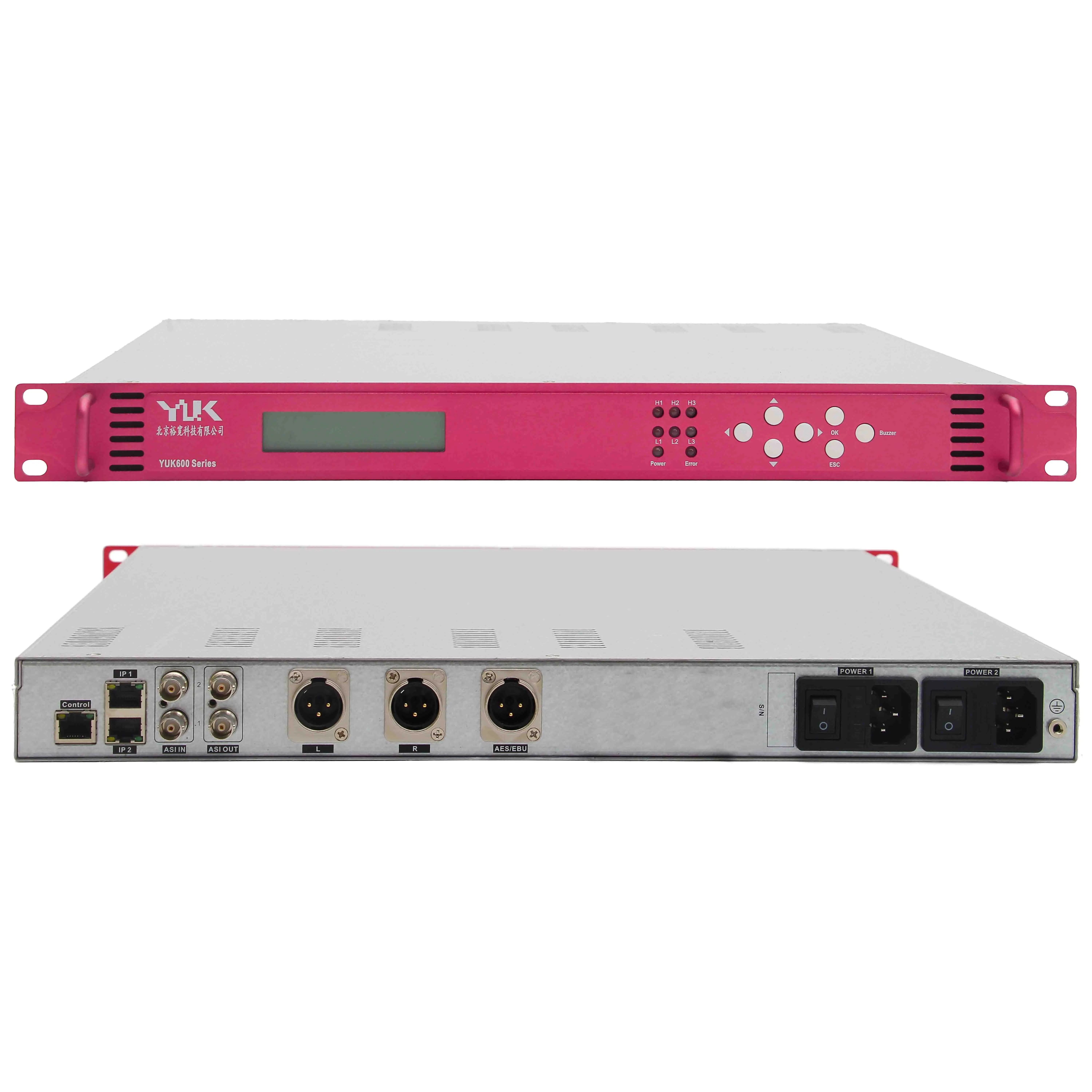

Yukuan Digital Audio Broadcasting 1 Channel DRA AC3 EAC3 AAC MPEG-1 IP Audio Decoder
Product Overview
YUK600-1A one channel audio decoder, supports 2×ASI input, 1×IP input output, 2× ASI output. Support DRA AC3 EAC3 AAC MPEG-1 and other audio formats. It outputs one channel analog stereo, one channel AES/EBU digital audio after decoding.
Product Feature
* Support multiple input IP ASI
* Multiple output, AES/EBU, analog stereo, ASI, IP
* Support DRAAC3 EAC3 AAC MPEG-1 decoding
* Support mux remux and demux
* Friendly user interface and easy-to-operate menu system, all operating functions can be completed on the LCD
* Web network management based on B/S
* Multiple output, AES/EBU, analog stereo, ASI, IP
* Support DRAAC3 EAC3 AAC MPEG-1 decoding
* Support mux remux and demux
* Friendly user interface and easy-to-operate menu system, all operating functions can be completed on the LCD
* Web network management based on B/S
Specification
ASI Input/Output | ||
ASI Input Connector | 2×BNC, 75Ω | |
ASI Output Connector | 2×BNC, 75Ω | |
Executive Standard | DVB-ASI, EN50083-9 | |
Input Bitrate | ≤120Mb/s | |
Output Bitrate | ≤200Mb/s | |
TS Over IP | ||
IP Input/Output Connector | 1×RJ45，10/100/1000 Base-T | |
Effective Bitrate | 90Mb/s（1000 Base-T） | |
Frame Length | (1-7)×188 compatible with 240 | |
Transfer Protocol | UDP/RTP, Unicast, Multicast | |
Audio Decoding Format | ||
Standard | MPEG-1 layer I/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC 2-CHANNEL/5.1 CHANNEL AC3/DRA/EAC3 | |
Bitrate | 64/128/256/384Kbps | |
Sampling Frequency | 48/44.1/32KHz | |
Support volume adjustment | ||
Analog Audio Output | ||
Connector | 2×XLR(1 channel analog stereo) | |
Audio Output Mode | Left, Right, Dual Mono, Stereo | |
Digital Audio Output | ||
Connector | 1×XLR(1 channel AES/EBU) | |
Local and Remote Management | ||
Connector | 1×RJ45, 10/100/1000 Base-T | |
Remote Control | HTTP Web | |
Local Control | HTTP Web | |
Equipment Upgrade | IP | |
Physical Specifications | ||
Dimension(L×W×H) | 450mm×280mm×44mm | |
Weight | Net weight 6.2KG | |
Power | AC 90V～250V，50/60Hz | |
Power Consumption | 24W (excluding LNB power supply) | |
Temperature Range | 0 ~ 45℃(operation), -10 ~ 60℃(storage) | |
Humidity | 10 ~ 90% (Non-condensing) | |

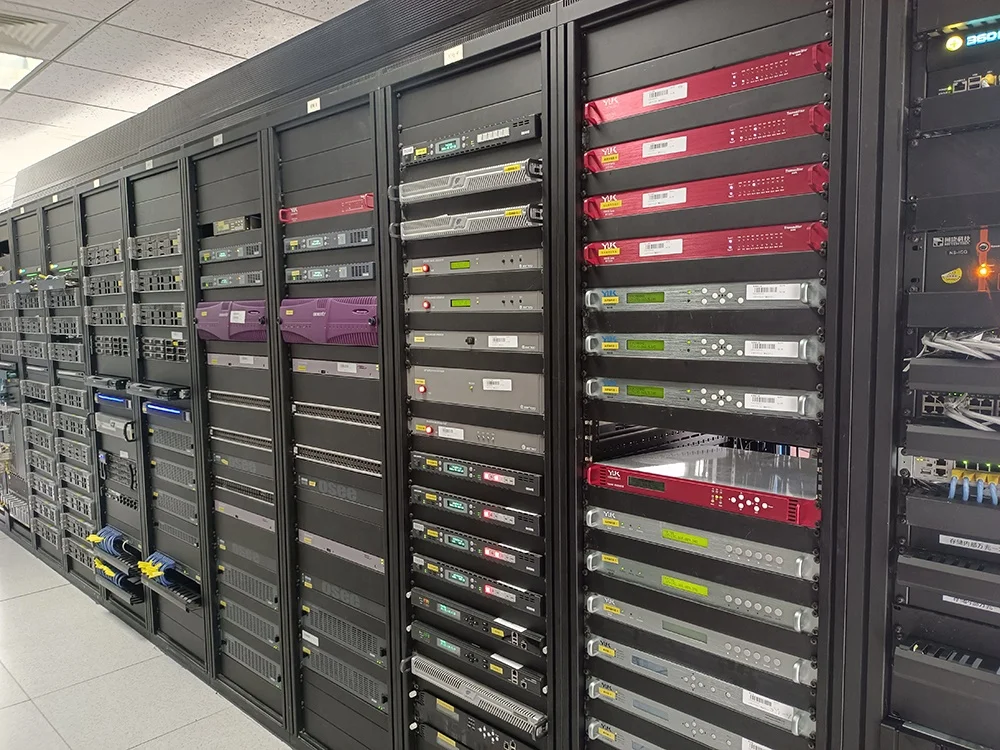

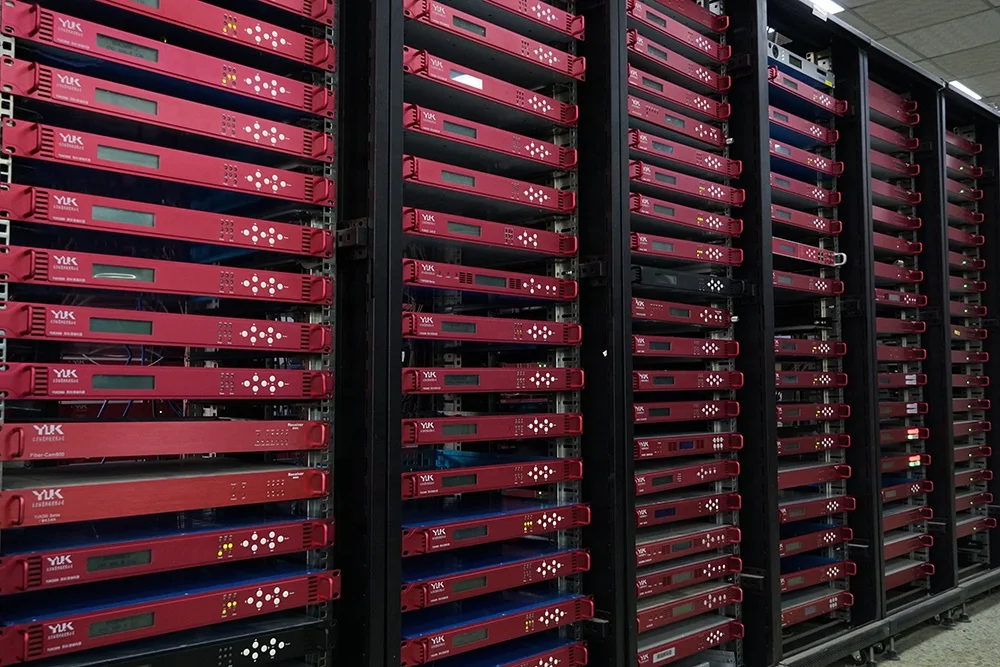

Project Case
