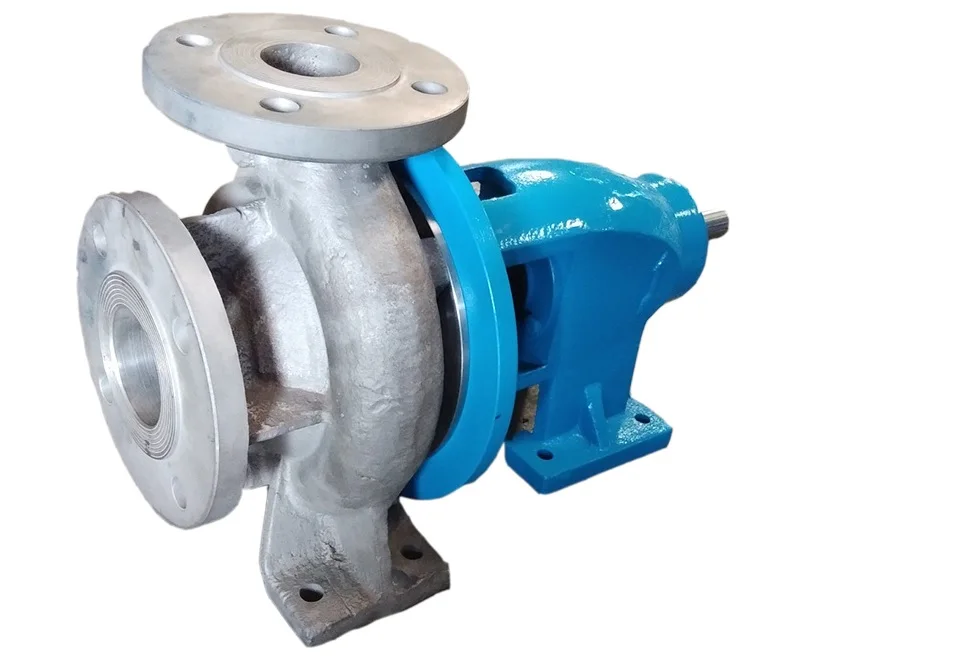

Brand New Wholesale Price Heavy Duty Self Priming End Suction SS316 Horizontal Industrial Centrifugal Pump
- Category: >>>
- Supplier: C-WAY EXPORTS
Share on (10000008428251):
Product Overview
Description
Product Description
Centrifugal Pump
Description :
Centrifugal Pump :
- SS 316 Centrifugal Chemical transfer Pumps
- Complete SS 316 Horizontal Centrifugal pumps with High head & High discharge design.
- Front open Suction casing for easy operation and maintenance.
- Hydraulically balanced Impeller for better efficiency and lower power consumption.
- Fabricated from SS 316 rolled steel sheet give better surface finish and low liquid friction.
- Mechanical seal of Carbon, Ceramic, Silicon or Pure Teflon gland packing.
- Ideally suitable for mild chemical transfer from underground to overhead tank, unloading from tanker, washing and cleaning of parts, Food and dairy products, beverages etc.
- All pumps are available in Bare Shaft and Monoblock design with std. TEFC motors OR Flameproof motors.
- Material of Construction: SS 316
- Operating Temp: Std. 110 deg.
Specification :
| Pump Type | 3HP Horizontal Centrifugal Monoblock Pump |
| Inlet Outlet Size | 50 x 40 BSP threaded |
| Orientation | Suction - Horizontal Delivery - Top Max |
| Capacity | 230 LPM |
| Max. Head | 40 Meters |
| Min. Head required | 20 Meters |
| Max operating Temp | 110 Deg C |
| Motor | 3 HP , 2900 RPM TEFC NFLP Class F IP 55 |
| Motor Volts | 415 V , 3 phase |
| Current | 4.5 Amps max |

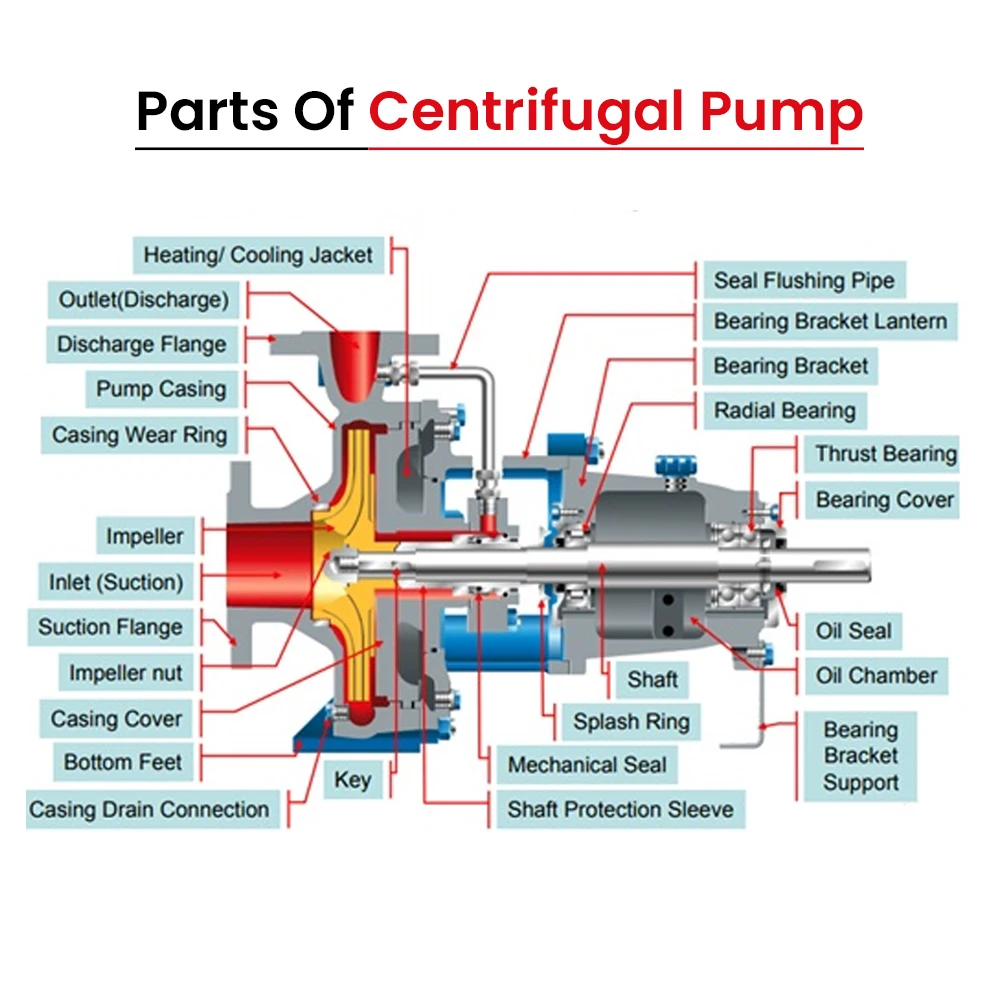

Material of Construction:
Suction Casing | SS 316 |
Impeller | SS 316 |
Back Plate | SS 316 |
Shaft | SS 316 |
Shaft Sleeve | NA |
Sealing | Mechanical Seal or Gland Packing |
Seal Type | Sic v/s Sic or TC v/s TC Single spring Seal |
Seal Mounting | Internal |
Gland Packing type | PTFE |
Bearing Bracket | Cast Iron |
Motor Body | Cast Iron |
Other Data | |
Impeller type / Dia | Closed / 165 mm |
Mechanical Seal type / Size | Single Spring / 22 mm |
Bearings | 6206 ZZ |
Features :
- Simple & Front open design
- All contact parts of SS-316 material
- Best in class efficiency with high head and high capacity
- Available in monoblock & Bare type
- Sealing by Mechanical Seal of Carbon, Ceramic, SC, TC, & Pure Teflon Packing.

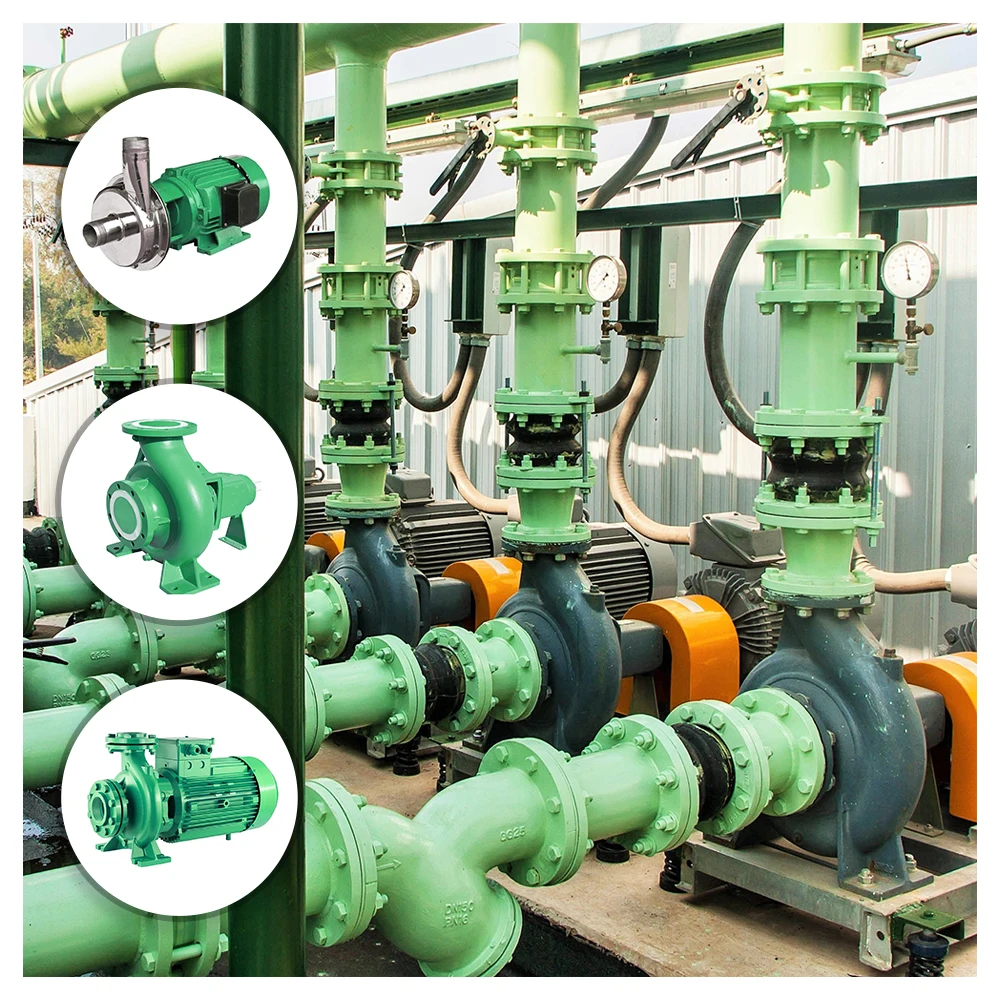

Applications :
- Water supply for residential areas.
- Fire protection systems.
- Sewage/slurry disposal.
- Food and beverage manufacturing.
- Chemical manufacturing.
- Oil and gas industrial operations.
3HP Horizontal Centrifugal Monoblock Pump

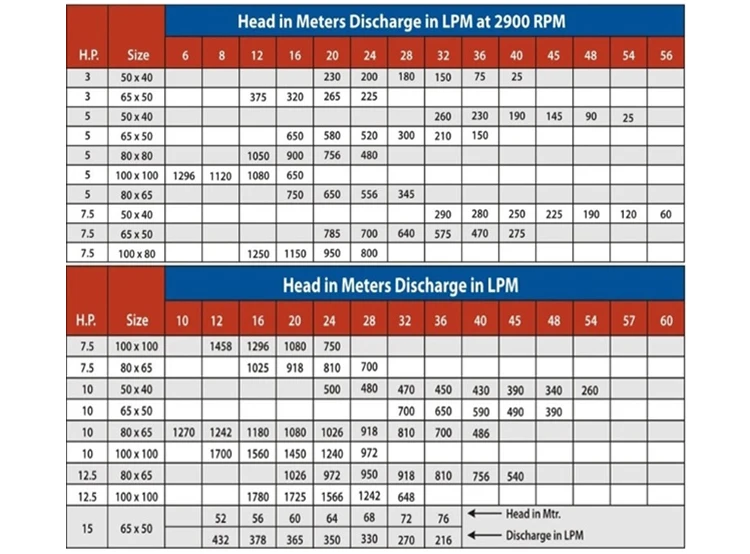

Available Range :
- Capacity from 20 LPM to 2000 LPM
- Head upto 60 mtrs.
