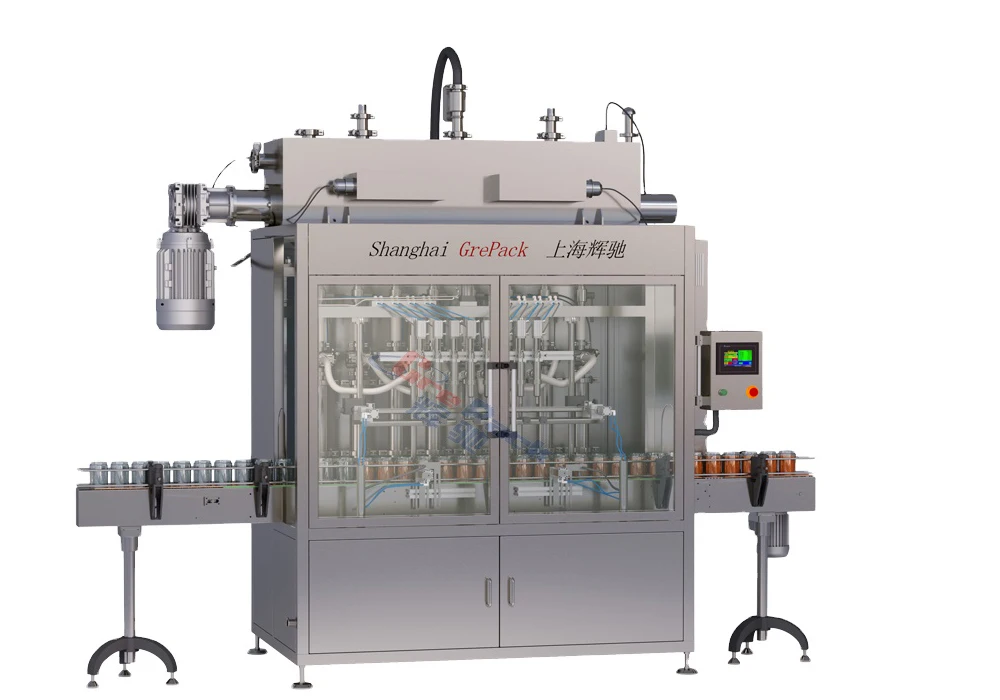

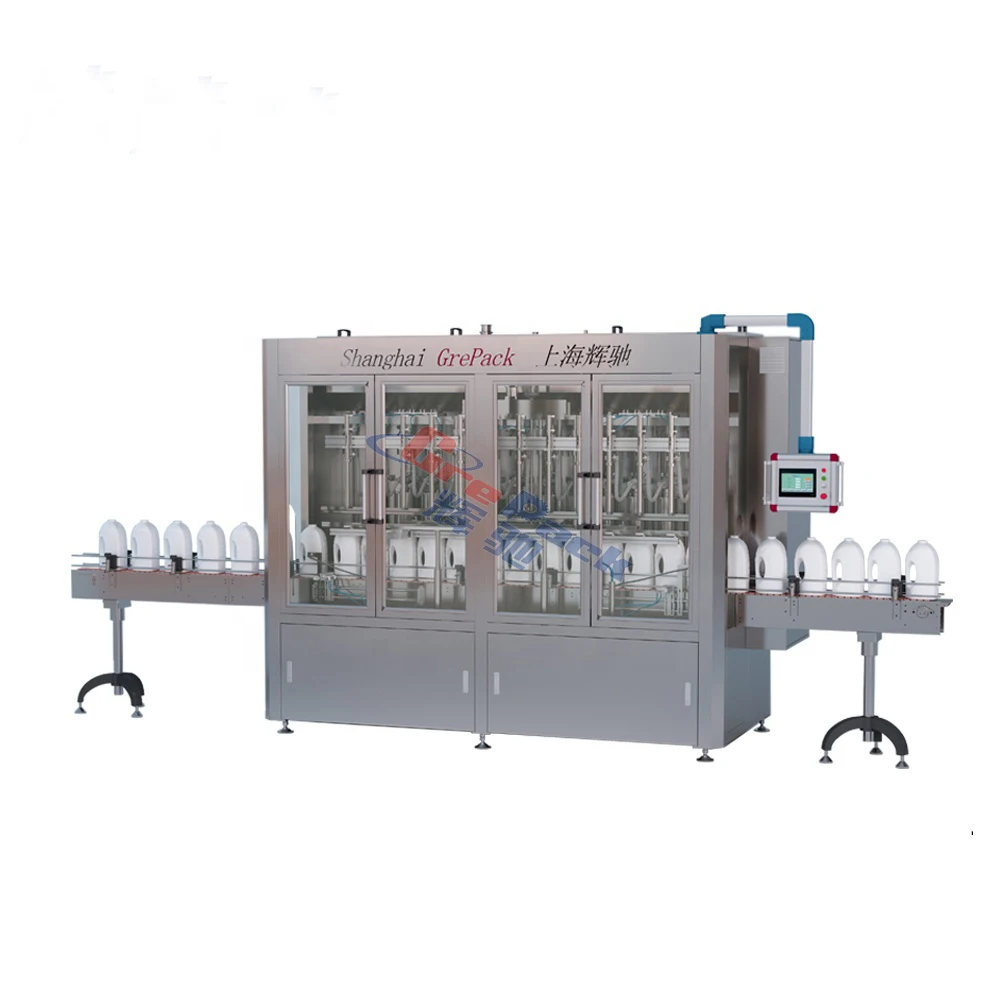

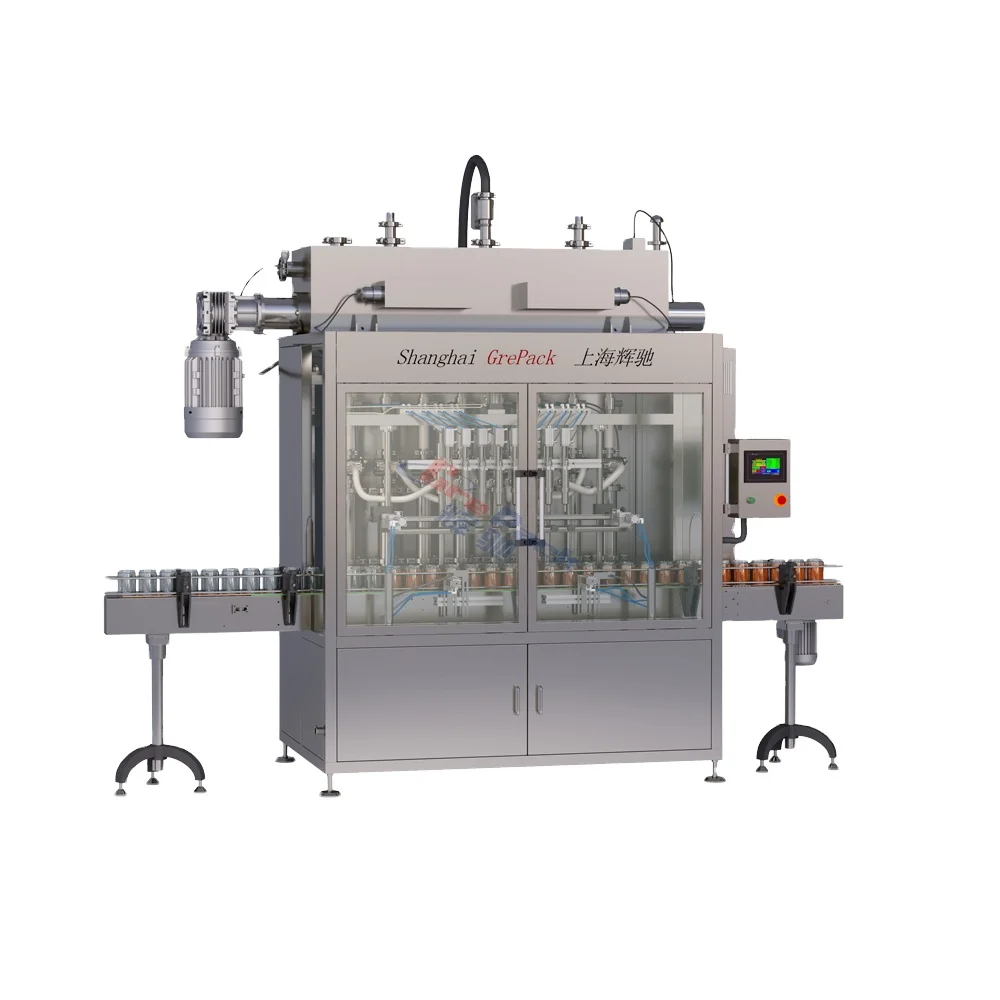

Sauce&jam&paste filling machine

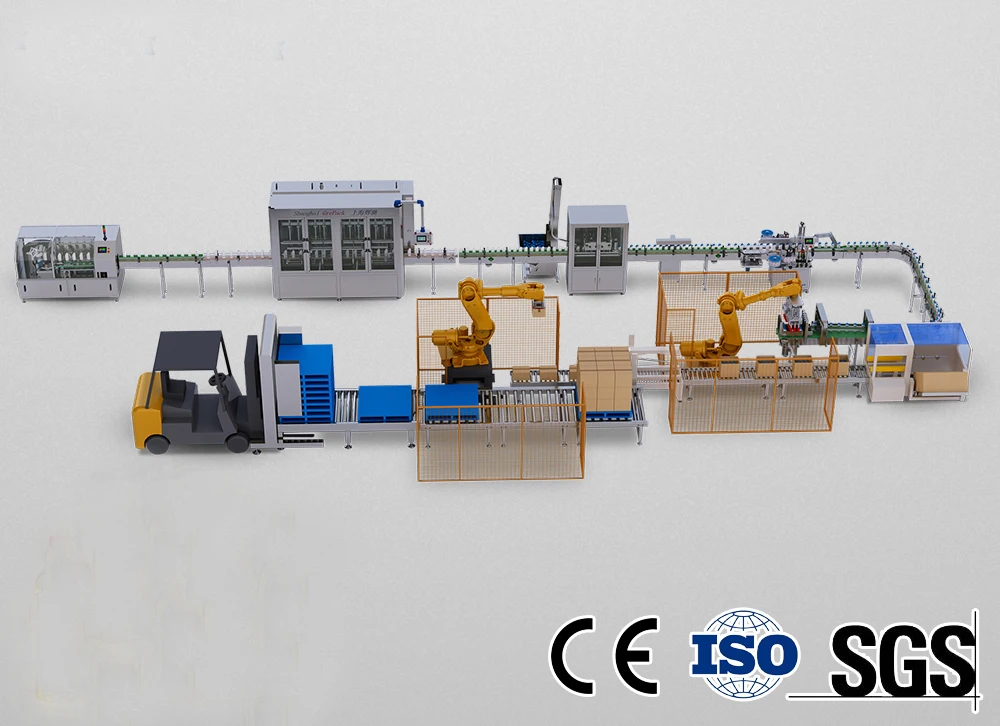

This filling machine controlled by servo piston, and can be connected with filling line (capping machine,
labeling machine and even intelligent packing system), and mainly suitable for various material, such as daily products, sauce, jam,paste ,cream and so on.
Features
1）Different volume can be set on HMI directly;
2）Fast adjustment for different size bottles within 10-20min;
3）Piston driven by servo motor, high accuracy within +/-0.5% and high stability;
4）Hyginenic tri-clamps connection, easy to remove and clean, comply with Food grade standards;

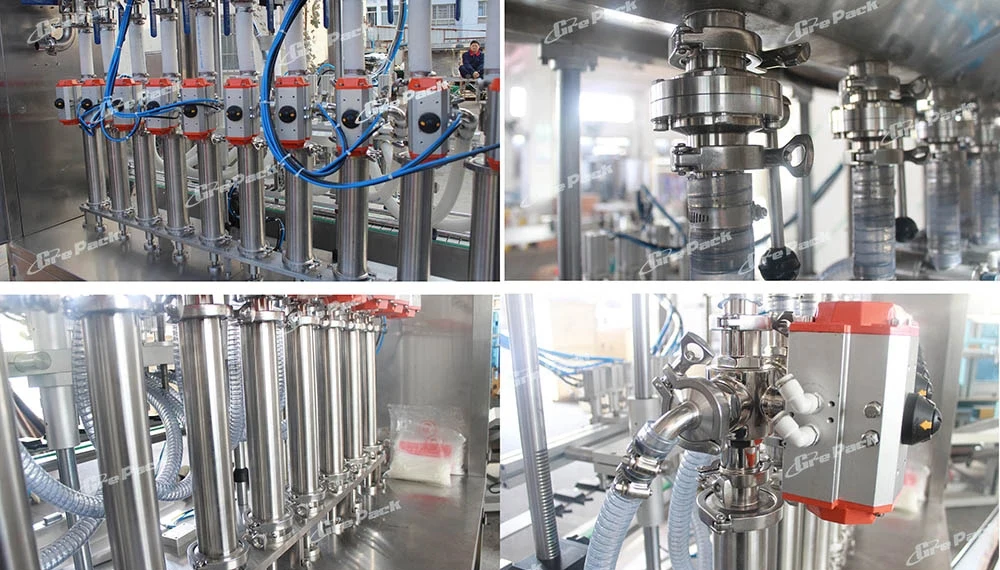

5）servo piston and nozzle are designed for normal sauce or thick jam for related products to fill without dripping
labeling machine and even intelligent packing system), and mainly suitable for various material, such as daily products, sauce, jam,paste ,cream and so on.
Features
1）Different volume can be set on HMI directly;
2）Fast adjustment for different size bottles within 10-20min;
3）Piston driven by servo motor, high accuracy within +/-0.5% and high stability;
4）Hyginenic tri-clamps connection, easy to remove and clean, comply with Food grade standards;
5）servo piston and nozzle are designed for normal sauce or thick jam for related products to fill without dripping
Specification
Model | Unit | GP5600 | ||||||||||||
Nozzle | PCS | 2 | 4 | 6 | 8 | 10 | 12 | 16 | ||||||
Filling volume | Ml | 20-100ml, 100-1000ml, 200-3000ml, 500-5000ml | ||||||||||||
capacity | B/h | 600-800 | 720-1300 | 1200-1900 | 1400-2600 | 1600-3200 | 1800-4000 | 5000-6000 | ||||||
Tolerance | % | ≤+-0.5% | ||||||||||||
voltage | V | Single or Three-phase four-wire system AC220V 380V ±10% | ||||||||||||
power | KW | 2 | 2.5 | 2.5 | 2.8 | 3.5 | 4 | 4.5 | ||||||
Air pressure | MPA | 0.55-0.8 | ||||||||||||
Air consume | M3/min | 0.7 | 0.8 | 1 | 1.2 | 1.2 | 1.8 | 2 | ||||||
