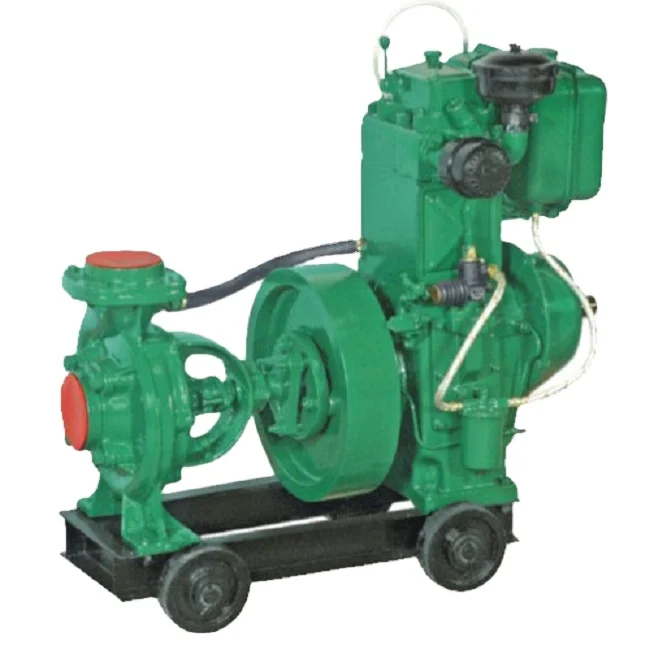

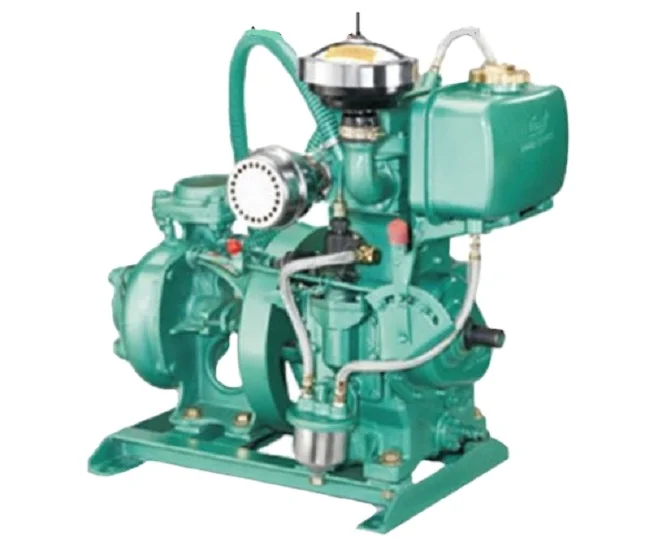

Premium quality high performances 4 inch 6 hp large flow agriculture irrigation water cooled diesel engine pump
- Category: >>>
- Supplier: C-WAY EXPORTS
Share on (10000008471266):
Product Overview
Description
Item | Value |
Warranty | 2 years |
Customized support | OEM |
Brand Name | C-WAY |
Model Number | N/A |
Place of Origin | India |
Province | Telangana |
Application | Drinking water treatment, HVAC OEM, Industrial Utilities, Irrigation and Agriculture, Marine, Raw Water Intake, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions |
Horsepower | 6 HP |
Power Source | Diesel Engine |
Pressure | High Pressure |
Structure | PISTON PUMP |
Outlet Size | 4 inch |
Voltage | 220 V |
Power | 4.6 Kw |
motor | N/A |
Product name | 6 hp Water Cooled Diesel Engine Pump |
Voltage | 220 V |
Size | 4 inch |
Fuel | Diesel |
Speed | 1500rpm |
Head | 16 meters |
Flow rate | 16 LPS |
Medium | Water Similar Liquids |
Application | Agriculture |
Feature | High Efficiency Low Noise |

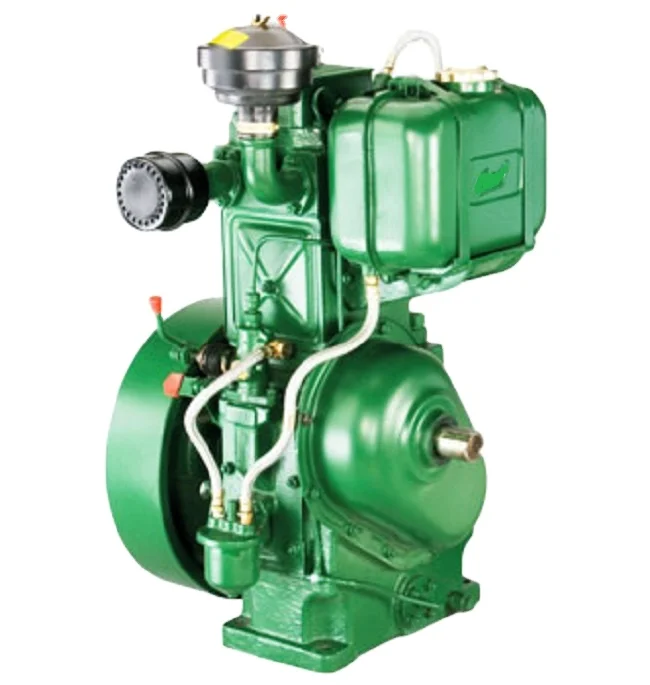

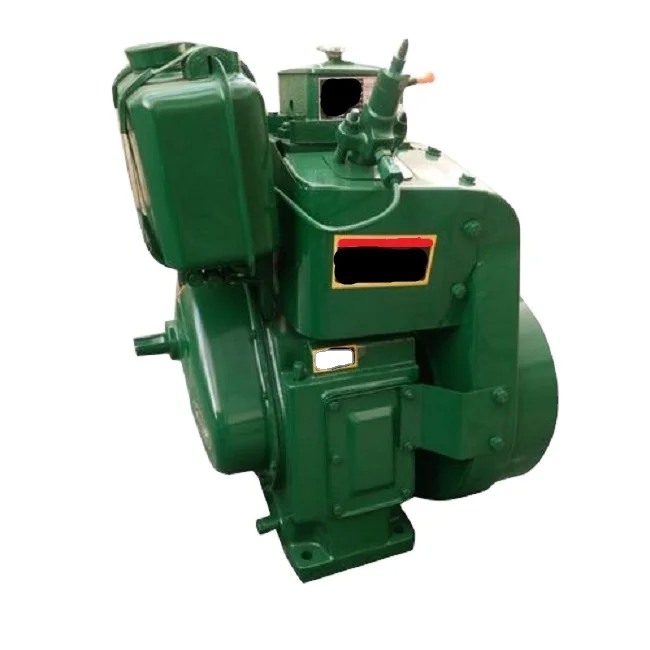

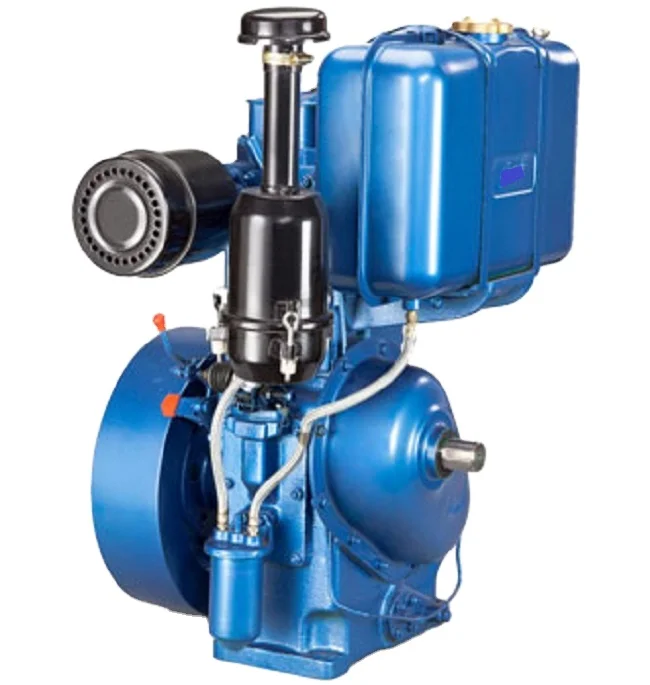

WATER COOLED DIESEL PUMP
* We are the largest exporter of water cooled diesel pump. We provide high quality Water Cooled Diesel Engines which is highly durable and long lasting. Compliance with stringent quality standards, our Water Cooled Diesel Engine provides maximum power output.
* We have the 5 H.P TO 30 H.P. Available in /1000/1500/1600/1800 R.P.M Single and twin cylinder, water cooled totally enclosed, compression cycle, cold starting diesel engine.
* The working principle of the diesel water pump is: the water is filled in the pump casing before the pump starts (or there is water in the pump casing). After the start, the impeller rotates at a high speed to make the water in the impeller channel flow toward the volute.
* Diesel clean water pumps are great for general water transfer, pool water removal, irrigation and civil engineering. Pump housing and pump cover are made with durable aluminium alloy, along with cast-iron impellers and diffusors, which increases pump capacity, durability and a better performance.
* We also provide the water cooled/ air cooled diesel pump as per customer requirements for any size and HP.
Application
* Agriculture
* Sugarcane Crusher,
* Construction equipment
* Turbine Pump
* Marine
* Mining applications
* Firefighting
* Municipal sewage disposal
* Emergency drainage
* Flood control
* Drought relief projects.
* High-pressure washers.
TECHNICAL SPECIFICATIONS
Item | Technical Data |
Method of Cooling | Water |
No. of Cylinder | 1 |
Rated Power - B. H. P. / kW | 6.5/4.8 |
Bore (mm) | 85.0 |
Stroke (mm) | 110.0 |
Rated R. P. M. | 1500 |
Swept Volume (CC) | 624 |
Compression Ratio | 19.0:1 |
Bearing Type | Bush |
Method of Starting | Cold Starting with the help of Starting Handle |
Engine Rotation | Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request |
Governor Type / Class | Centrifugal / B1 Class |
Fuel Oil | High Speed Diesel (Sp. Gr. 0.82 / 0. 84) |
Fuel Tank Capacity | 7.0 Lts. |
Fuel Injection Timing by Spill Cut Off Method | 27° BTDC |
Fuel Injection Equipment | Injection Release Pressure 190 / 210 kg / cm2 |
Sp. Fuel Consumption gms / bhp - hr | 185 |
Sp. Fuel Consumption gms / Kwhr | 251 |
Fuel Filter Type / Capacity (Lts.) | Paper Type (Replaceable) / 0.2 |
Bumping Clearance (mm) | 1.00 - 1.12 |
Valve Tappet Clearance Inlet (mm) | 0.18 |
Valve Tappet Clearance Exhaust (mm) | 0.20 |
Air Cleaner | Oil Bath Washable Type |
Silencer | Muffler Type |
Lubrication System | Plunger Pump |
Lub. Oil Sump Capacity (Lts.) | 3.500 |
Lub. Oil Strainer | Perforated Tin Sheet Washable Type |
Lub. Oil Grade | Temp 5° C & Below - SAE 10, Temp 5° C to 34° C - SAE 30, Temp 34° C & Above - SAE 40. |
Crank Shaft Height (mm) | 203 |
Foundation Bolt Spacing (mm) | 292 x 140 |
Engine Net Weight (kg) | 145 |
Engine Gross Weight (kg) | 215 |
Overall Dimensions (L x W x H) | 520 x 480 x 793 |
Overall Packing Dimensions (L x W x H) (mm) | 762 x 660 x 908 |
Pump Size (mm) | 80 x 65 |
Head Range (mts.) | 12.0 to 18.0 |
Head (mts.) | 16.0 |
Discharge (lps) | 16.0 |
Efficiency (%) | 78.0 |
Pump Set Net Weight (kg) | 195.0 |
Pump Set Gross Weight (kg) | 305.0 |
Overall Packing Dimensions (L x W x H) (mm) | 1118 x 635 x 997 |

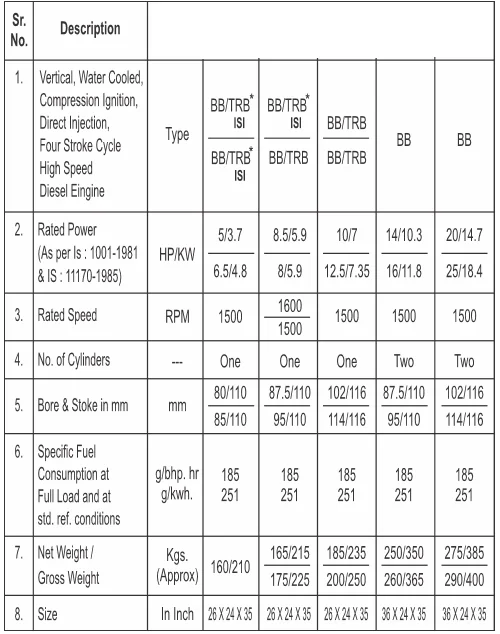

SPECIFICATIONS
