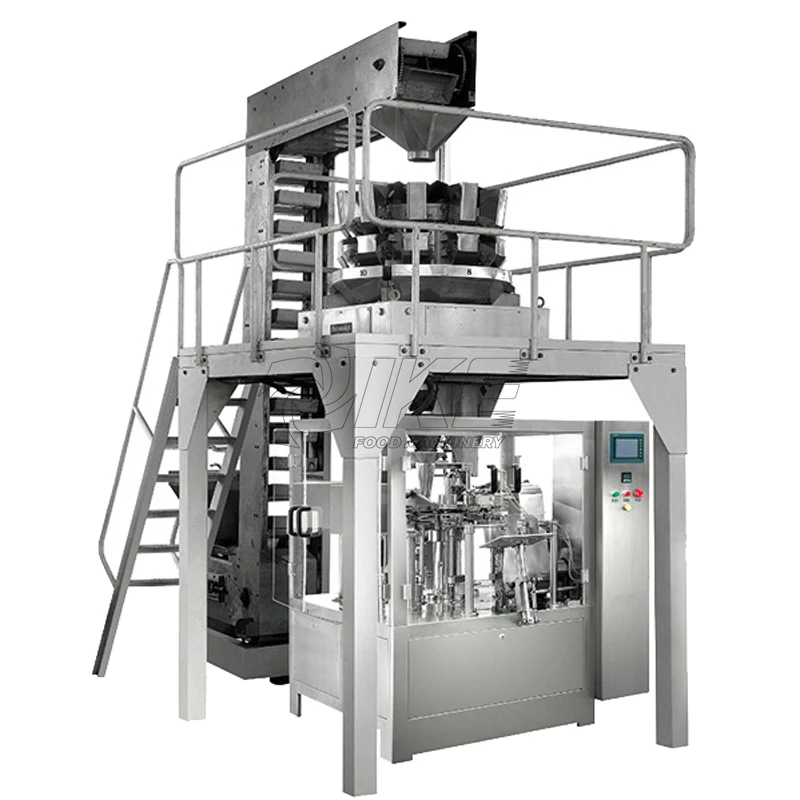

IKE Multifunction Automatic Premade Pouch Dried Fruit Smyrna Mango Doypack Zipper Bag Packing Machine
- Category: >>>
- Supplier: Foshan IKE Science & Technology Co. Ltd.
Share on (10000008512402):
Product Overview
Description
Product Description
If you strictly require DOYPACK bags for the packaging of your high quality products, then DOYPACK-DS-B8200 is your clear choice! IKE engineers purpose-designed the DOYPACK-DS-B8200 to achieve the best price/performance ratio for the forming, filling and sealing of DOYPACK bags.
The DOYPACK-DS-B8200 features robust construction, the highest quality materials, brand name components and precise manufacturing in the ChinaRepublic to ensure extremely high reliability and an extra long service life.
Main Function :
Pick up-Open-Fill -Seal preformed/premde Pouches for Almost Products.
Applications :
1. Solid: Candy, chocolate, rock candy, cookies, cakes, peanuts, green beans, pistachios, nuts, cooked food, pickles, puffed food,daily necessities, etc.
2. Granule: MSG, chicken, sugar, melon seeds, nuts, capsules, granular medicines, seeds, feed,
1. Solid: Candy, chocolate, rock candy, cookies, cakes, peanuts, green beans, pistachios, nuts, cooked food, pickles, puffed food,daily necessities, etc.
2. Granule: MSG, chicken, sugar, melon seeds, nuts, capsules, granular medicines, seeds, feed,
pesticides, fertilizers, chemical raw materials.
3. Other materials can be bagged.
3. Other materials can be bagged.

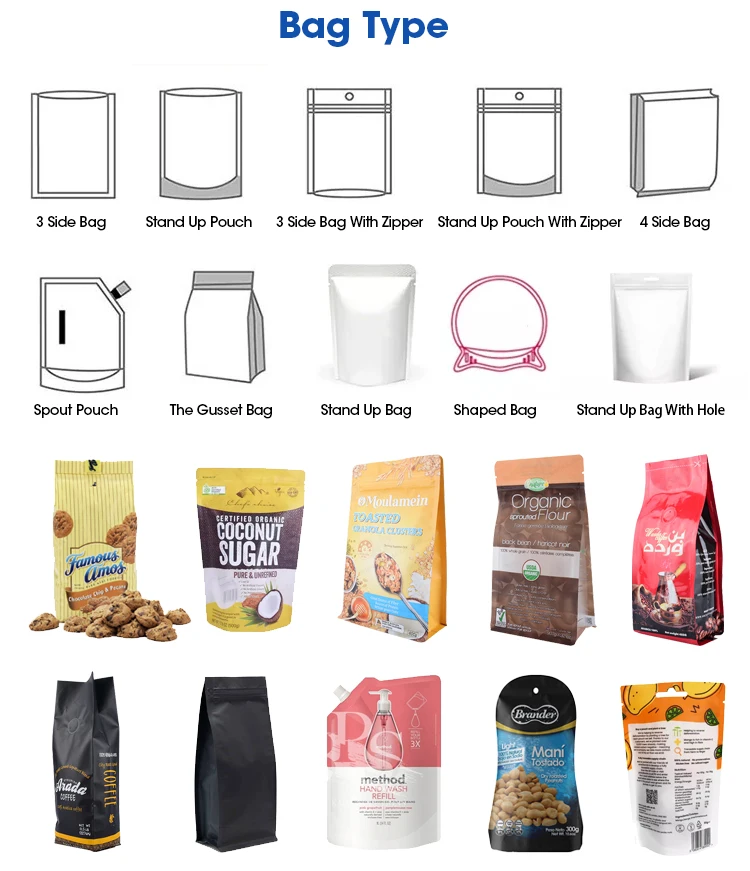

Suitable Pouch Type:
All type of heat sealable performed side seal bags, block bottom bags, zip-lock recloseable bags, stand-up pouch with or without spout etc.
All type of heat sealable performed side seal bags, block bottom bags, zip-lock recloseable bags, stand-up pouch with or without spout etc.
Model | DS-B8200 | ||||||
Pouch Type | Four-side seal bags, stand-up pouches with or without spout, zipper bags, three-side seal bags, paper bags, etc. | ||||||
Bag Size | W：70-200/100-250mm | ||||||
Max. Filling | 2500g | ||||||
Max. Speed | 60 bags/min | ||||||
Average precision | ≤ ±1% | ||||||
Power | 2.5KW | ||||||
Dimension | 1900 X 1570 X 1700mm | ||||||
Weight | 1500kg | ||||||
Features and Characteristics:
1.Suitable pouches: All kinds of size premade pouches.
2.Easy to operate: PLC controller, HMI system, fault indication on the touch screen.
3.Easy to adjust: All working process in one station, more easily adjusting.
4.Frequency control: Speed can be adjusted by frequency conversion within the range.
5.High Automation: Unmanned in weighing and packing process, machine alarm automatically when failure.
1.Suitable pouches: All kinds of size premade pouches.
2.Easy to operate: PLC controller, HMI system, fault indication on the touch screen.
3.Easy to adjust: All working process in one station, more easily adjusting.
4.Frequency control: Speed can be adjusted by frequency conversion within the range.
5.High Automation: Unmanned in weighing and packing process, machine alarm automatically when failure.
Safety and Hygiene:
1.Machine alarm and stop when the inadequate air pressure.
2.Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
3.Hygienic construction, the product contact parts are adopted sus304 stainless steel.
4.Imported engineering plastic bearings, no need to oil, no contamination.
5.Oil-free vacuum pump, avoid the pollution of the production environmental.
1.Machine alarm and stop when the inadequate air pressure.
2.Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
3.Hygienic construction, the product contact parts are adopted sus304 stainless steel.
4.Imported engineering plastic bearings, no need to oil, no contamination.
5.Oil-free vacuum pump, avoid the pollution of the production environmental.
Work Process:
Work Process | Station 1 Bag Feeding Station 2 Date Printing (option)and Open zipper bag Station 3 Open bag Station 4 Filling Materials Station 5,6,7 :Vibration,Air Removal,Nitrogen Filling,Close Zipper,Hole Punching,Heat Sealing Remark:No.5.6.7.Stations are based on customer requirements for adjusting. Station 8 Heat Sealing and Product Output | ||||||
Safey Measures | 1.no bag feeding, no filling and no sealing. 2.no bag opening/open error, no filling and no sealing 3.no filling, no sealing | ||||||

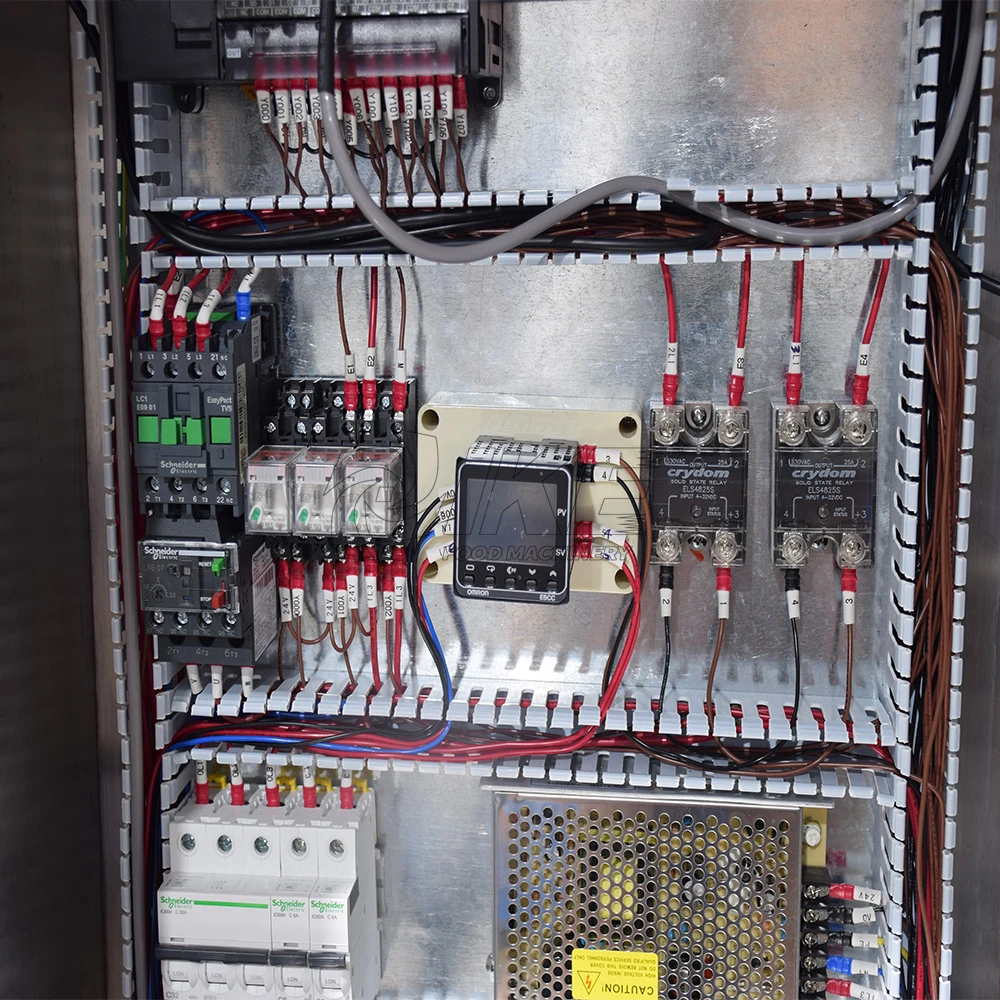

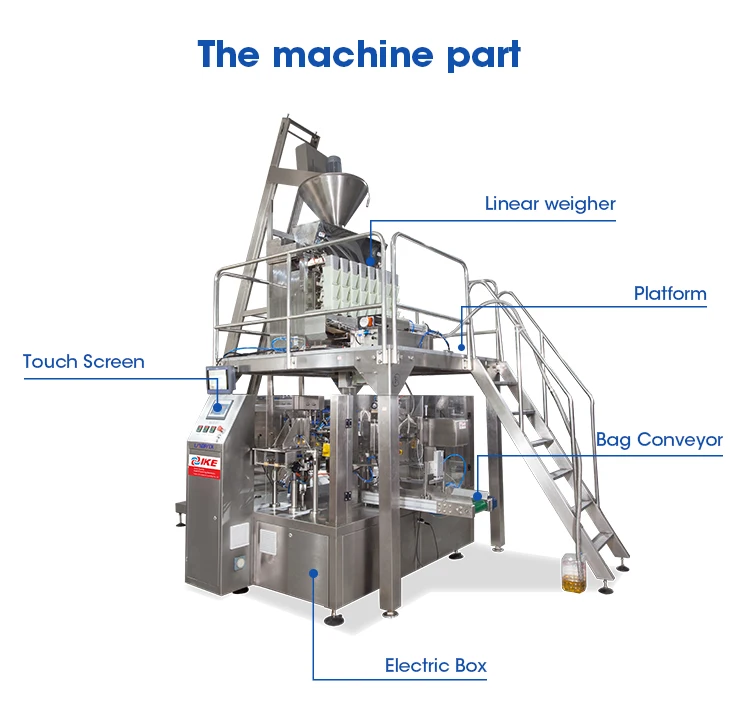

Parts of Machine:
Parts | PLC | Touch Screen | Frequency Conveter | Vacuum Pump | Printer | Main Motor | emperature Controllor |
Brand | SIEMENS | SIEMENS | TOSHIBA | ORION | SHENG LONG | EVERGEAR | AISET |
Oringin | Germany | Germany | Japan | Japan | China | China | China |

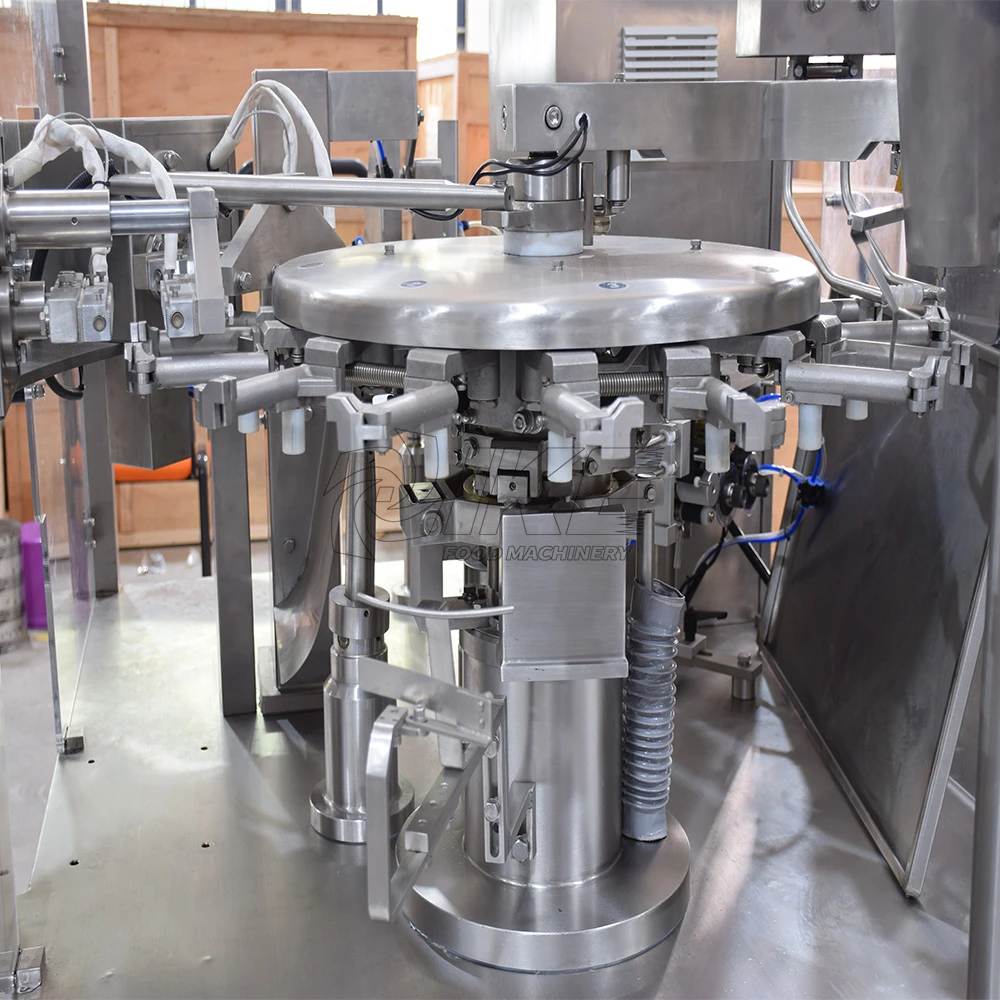

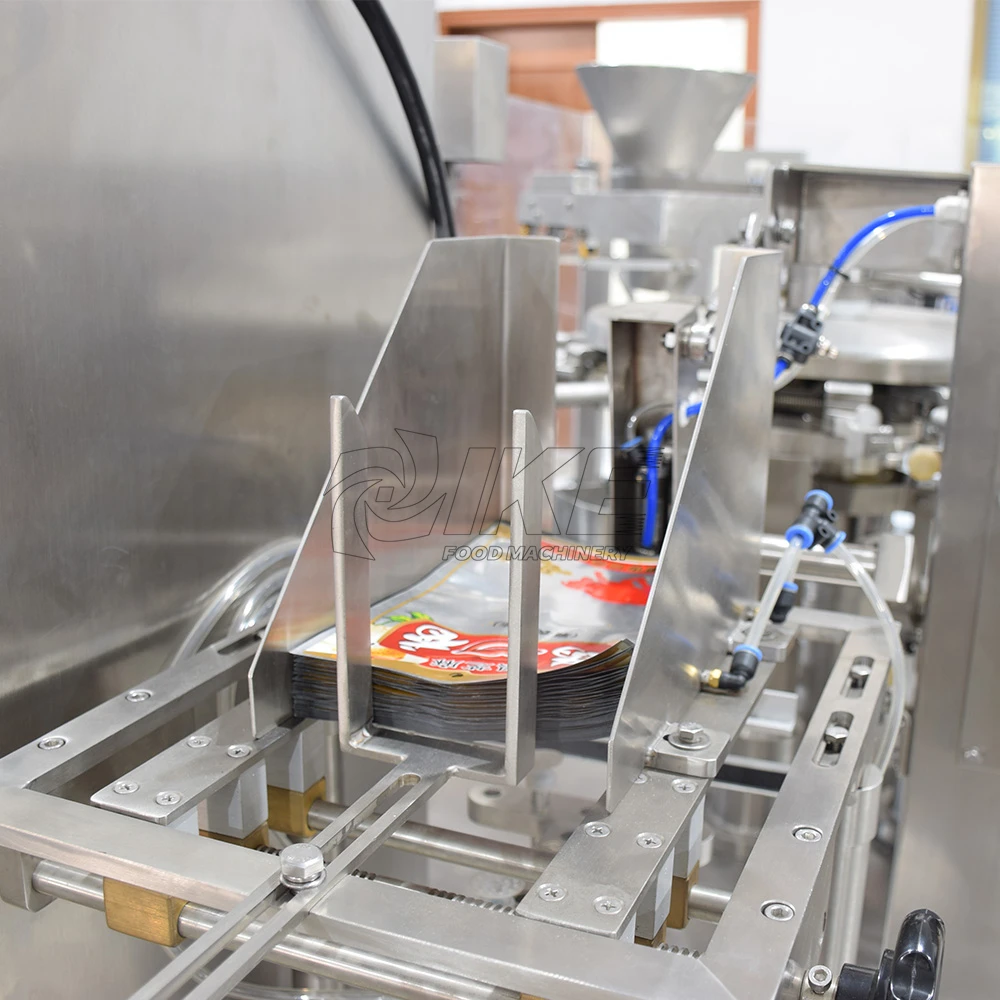

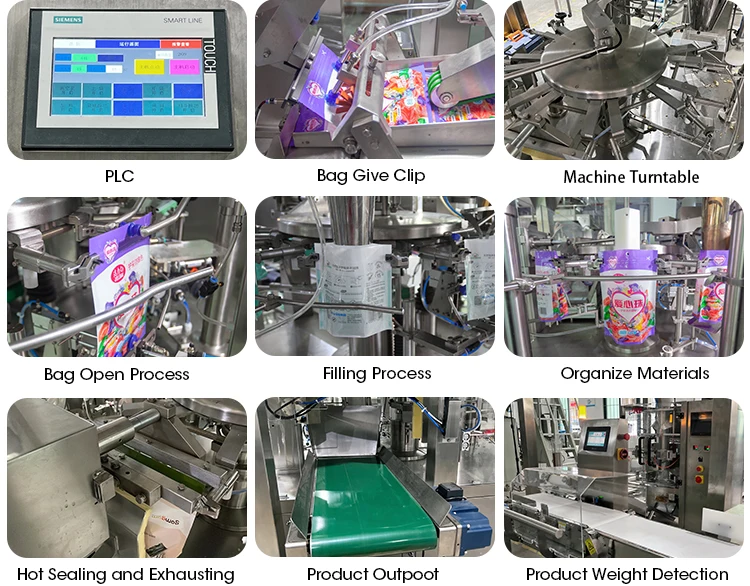

Detail Picture:
Company Introduction

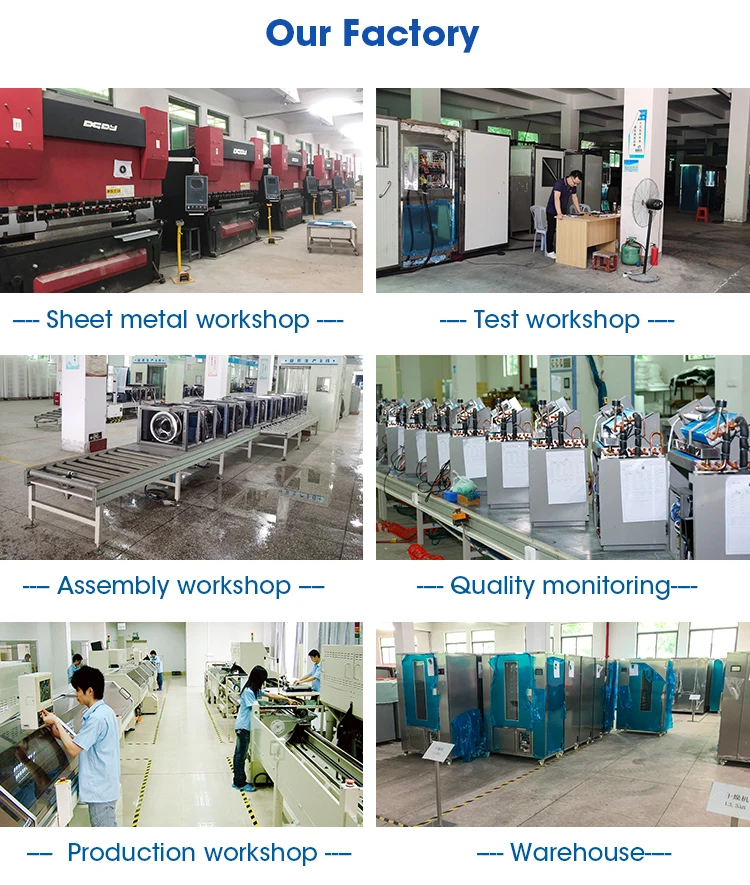

IKE factory,Over 29 years of R&D experience since 1994; Production plant covers an area of 110,000 sqm;
Monthly output 10,000 sets of food machinery; 200 in-house production workers.
We have attended 5~6 overseas exhibitions every year.
IKE Pack is manufacturing and trading company which is mainly engaged in the R&D, manufacture,marketing and service of plastic bag food packaging machine with more than 27 years in China.
The aim of IKE Pack is to give you a hand and assist you to solve your package problems with most suitable solution.
We are specialized in packing machine
1.Rotary pouch packing machine
2.Rotary vacuum packing machine
We provide professional packing solution and do a series of service from beginning to end
Our strength
1.Equipment make and assemble strictly in accordance with CE,ISO9001(certification) standard in our own CNC
2.29 years experience in packing industrial with good after-sale service group
3.Our professional team of research and development has got our own paten for invention
4.Professional sales and engineer team with 24 hours hot line to do design packing project, problem consulting,soultion.
5.Professional engineers group as after-service team can speak English and do overseas service.
The aim of IKE Pack is to give you a hand and assist you to solve your package problems with most suitable solution.
We are specialized in packing machine
1.Rotary pouch packing machine
2.Rotary vacuum packing machine
We provide professional packing solution and do a series of service from beginning to end
Our strength
1.Equipment make and assemble strictly in accordance with CE,ISO9001(certification) standard in our own CNC
2.29 years experience in packing industrial with good after-sale service group
3.Our professional team of research and development has got our own paten for invention
4.Professional sales and engineer team with 24 hours hot line to do design packing project, problem consulting,soultion.
5.Professional engineers group as after-service team can speak English and do overseas service.
We continually design new model and improve machines and solutions to satify different and stringent requirements from market.
Our professional pre-sales and after-sales service guarantee the complete satifaction of the equipments.Welcome to work with us to win a mutual benfit future.
Our professional pre-sales and after-sales service guarantee the complete satifaction of the equipments.Welcome to work with us to win a mutual benfit future.

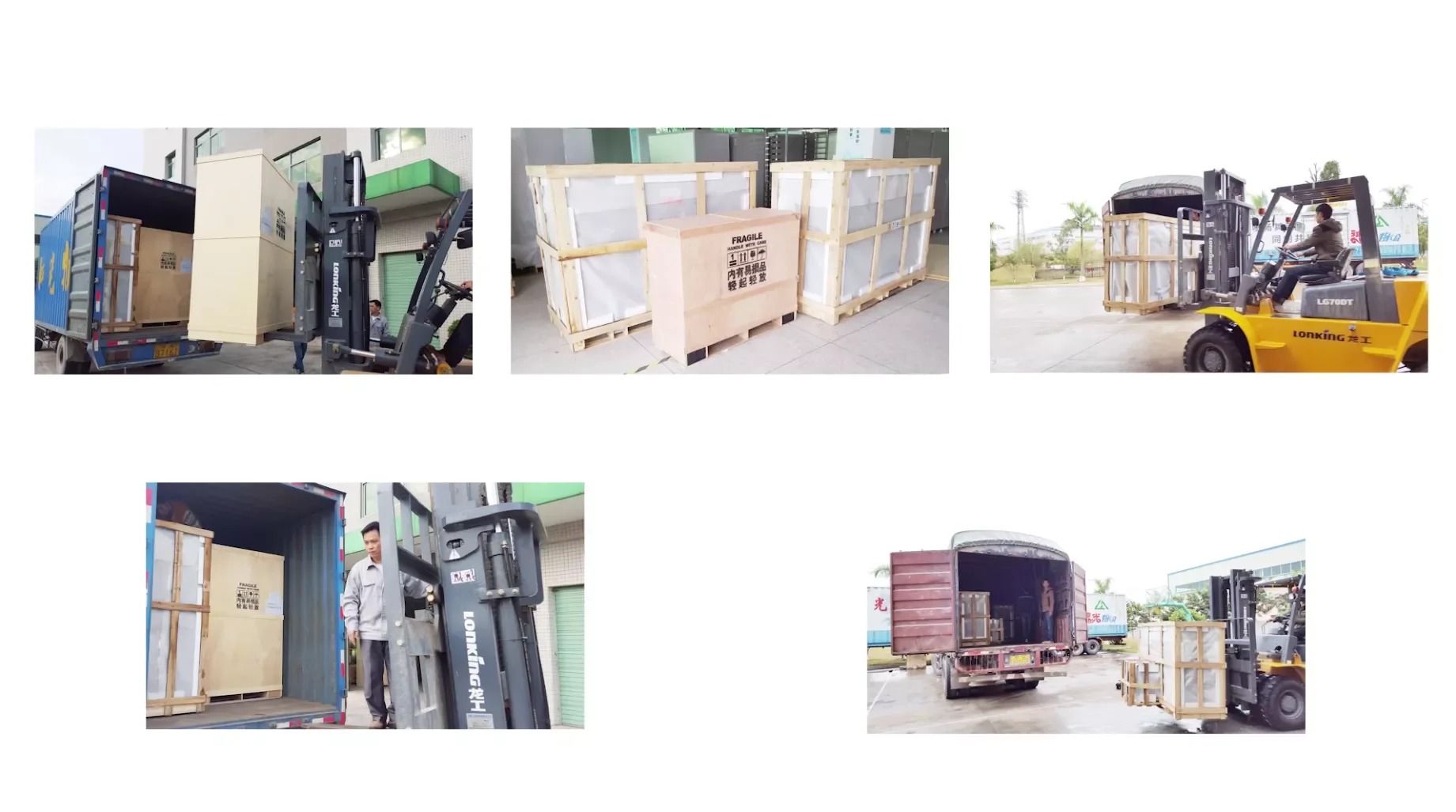

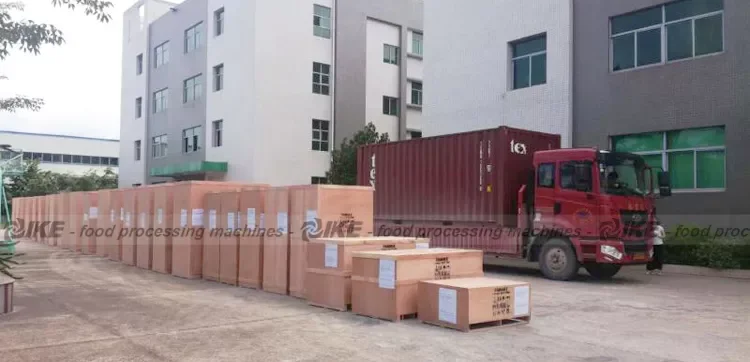

Packing&Shipping
1.Export package standard in plywood,special requirment is negotiated.
2.Normally goods will be shipped by ocean,other request,please contact us.
FAQ
1.Are you a direct manufacturer?
3.Can you do customized prouducts?
4.How to guarantee the quality of your goods?
5.Should you have any question,please feel free to contact us.
Yes,we are the manufacturer and also have the export sales deparment,welcome to visit our factory.
2.What products can you produce?
We mainly produce equipment for vegetable, fruits, meat, fish,nuts ,Medicinal materials, scented tea, pet feed,etc.
3.Can you do customized prouducts?
Yes,we are mainly doing customized products according to the customers’ requirements.
4.How to guarantee the quality of your goods?
All our prouducts meet the national standard as well as international standard like CE.
5.Should you have any question,please feel free to contact us.
