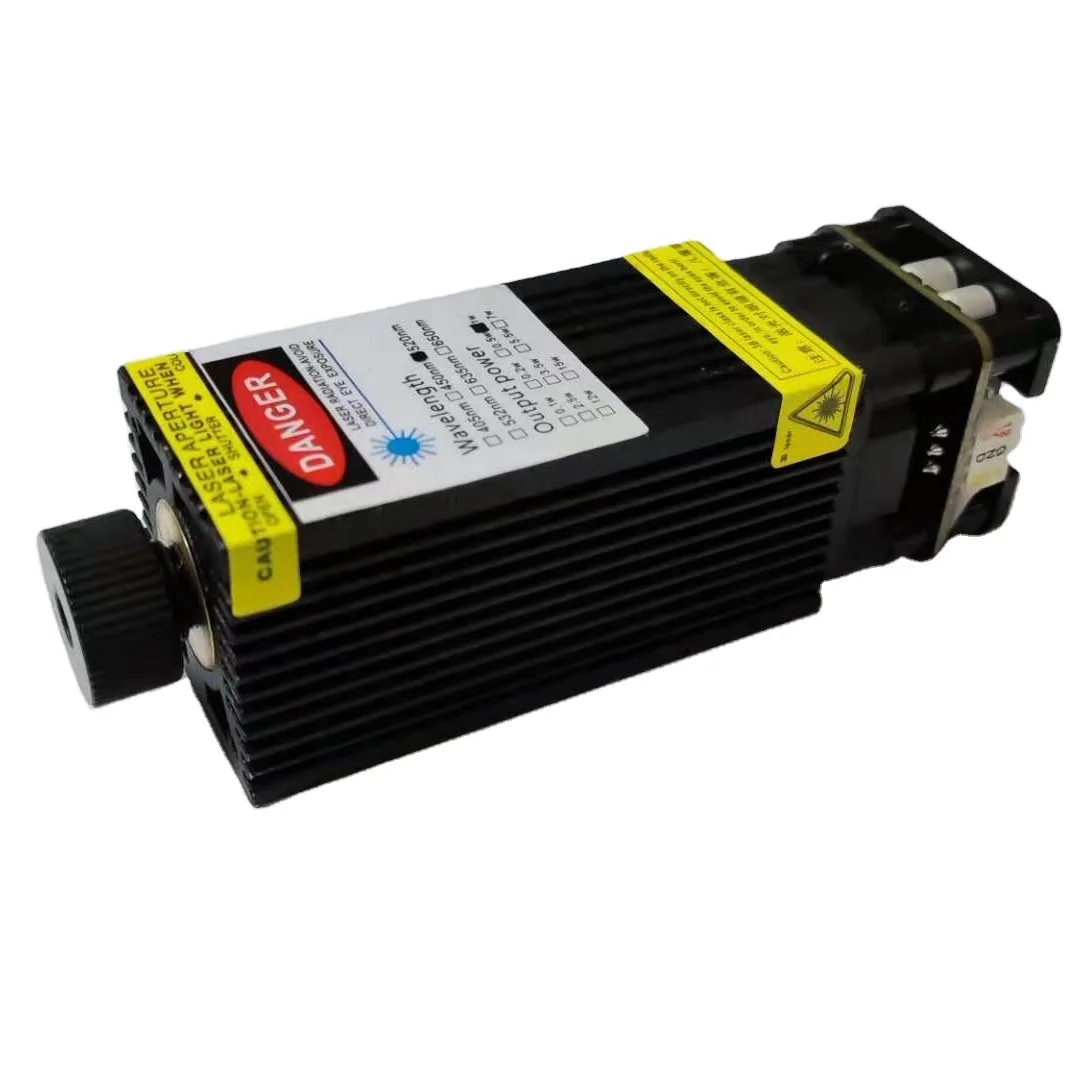

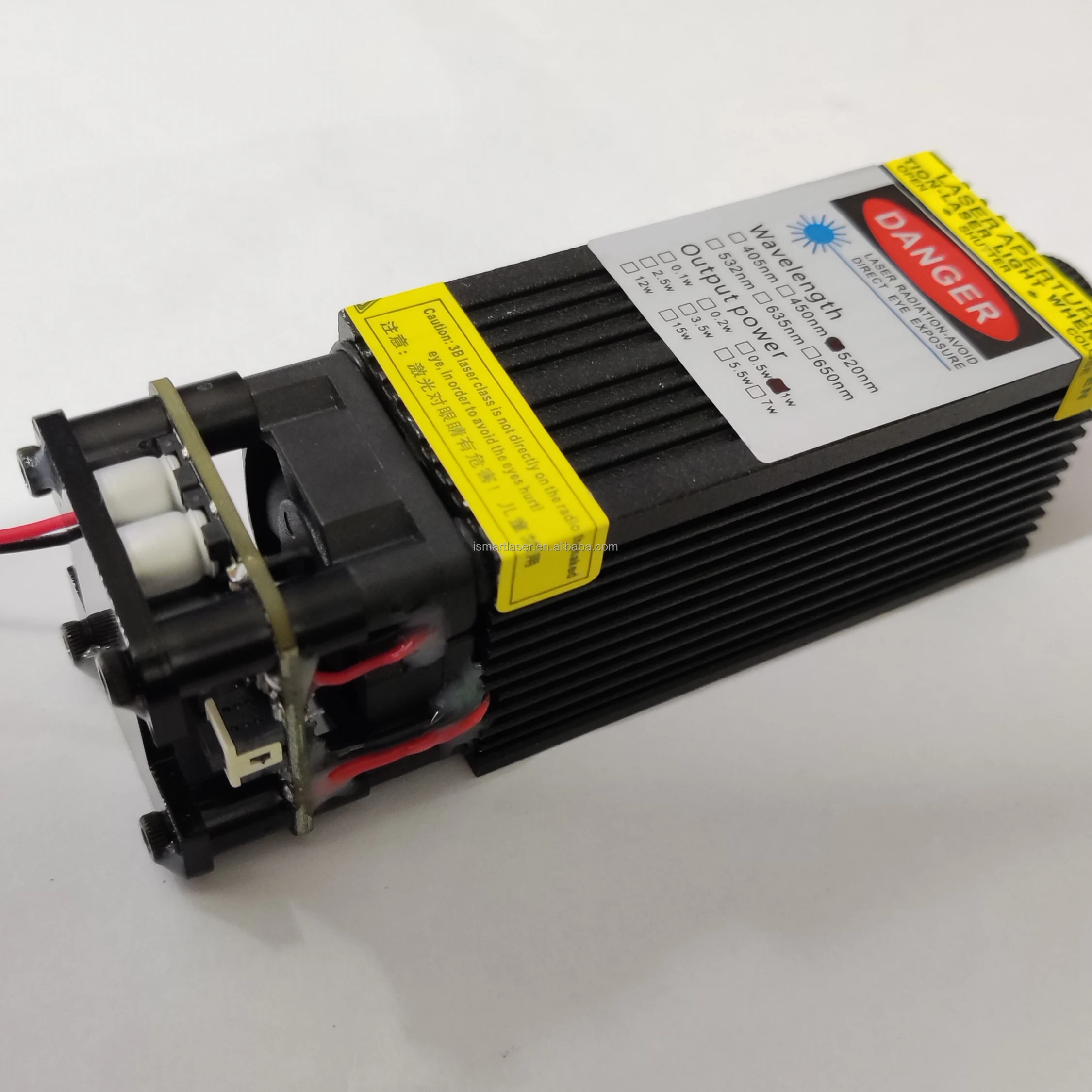

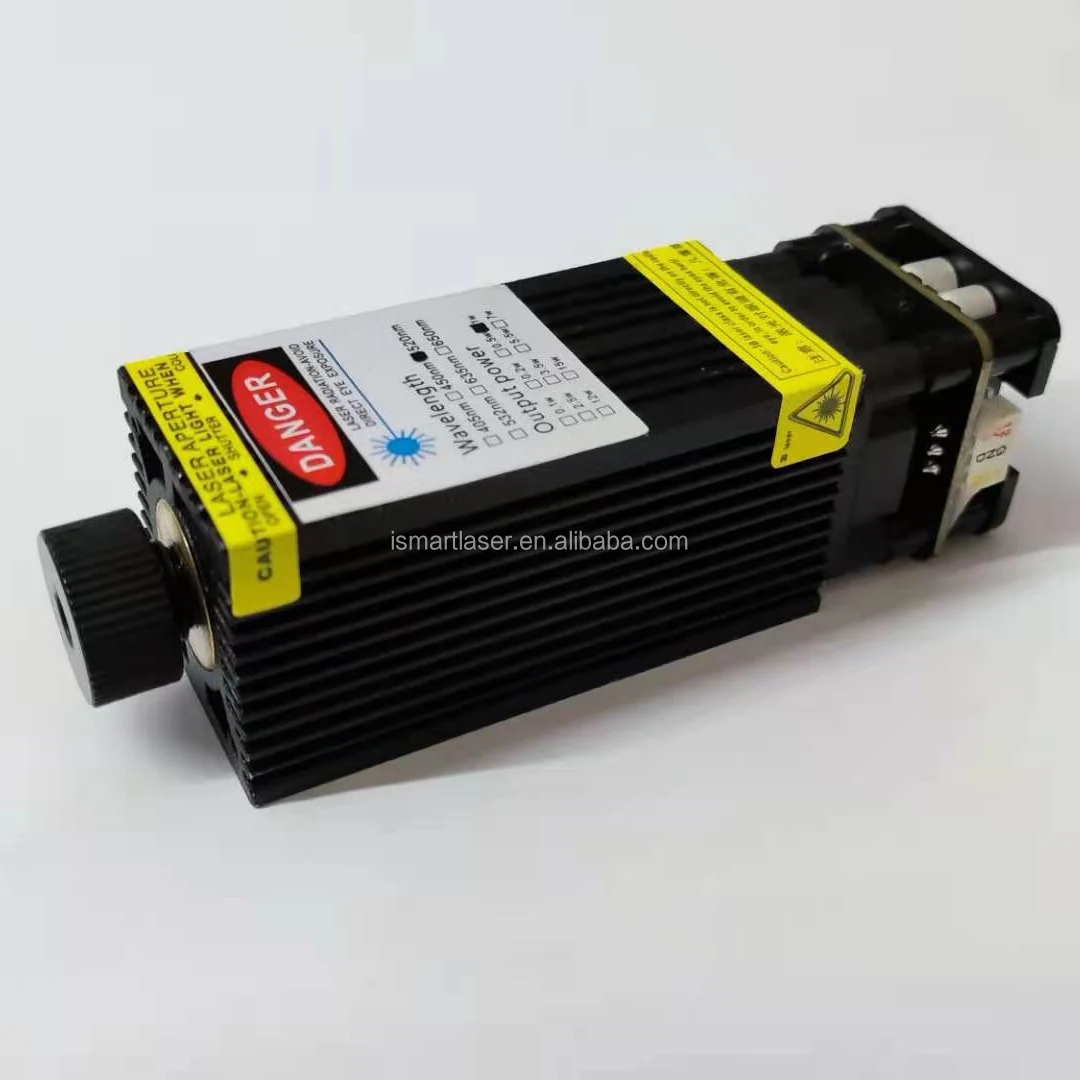

ismartlaser Industrial high power 520nm 500mw laser diode module Green Dot Laser DC12V for bird repellent

Product Overview

Description

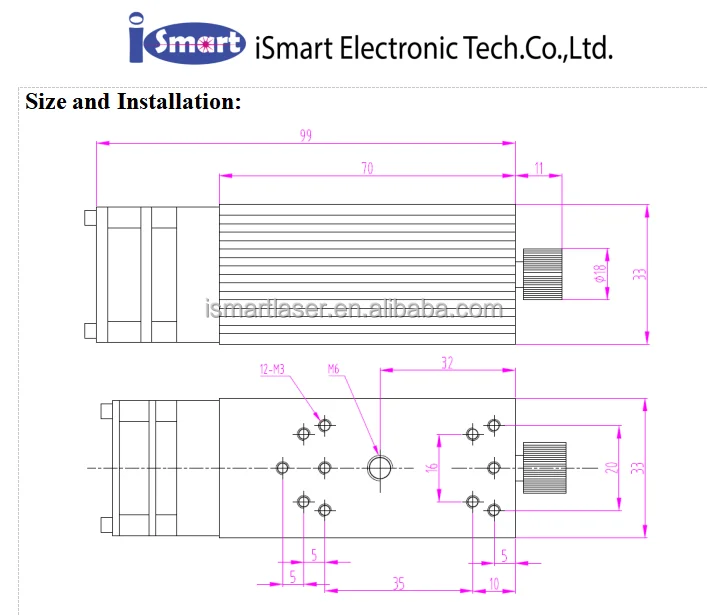

Model: ISM-GD1W-515-99x33x33

Specification:



[Materials]             :Aluminum Anodize Black
[Wavelength]          :520nm/±10nm
[Output Power]       :<600~800mW (Diode @1W)

[Operation Mode]     :PWM Modulation,TTL
[Operation Voltage]    :DC=12V,

[Working Current]      :1.3A  @12V

[Projection Distance]  :>200m

[Beam Shape]           :Elliptical

[Beam Size]             :Focus Adjustable:<55X10mm @ 50M

[Beam Divergence]     :<2.5mrad

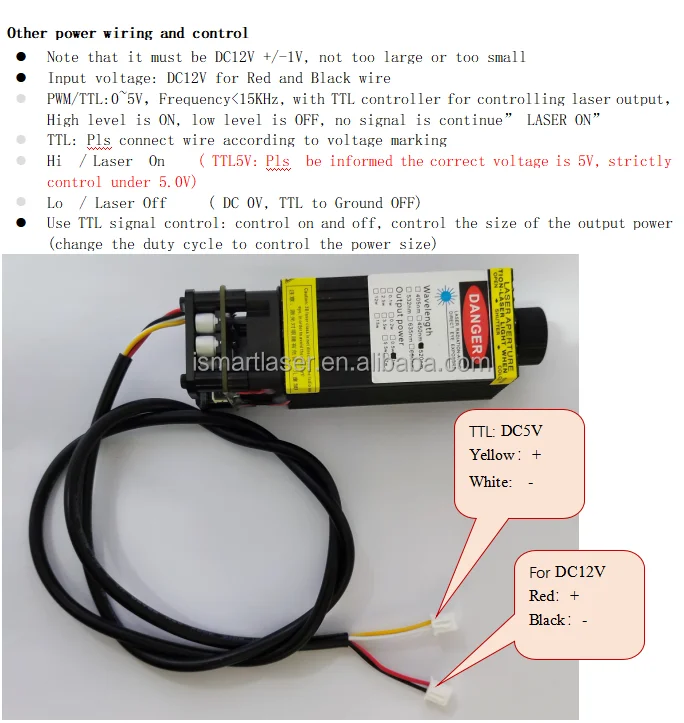

[Leading Wire L]         :500mm Black /Red two wires

[Working Temp.]        :-10℃~+60℃
[Storage Temp.]         :-40℃~+80℃
[Life time]              : >5000H

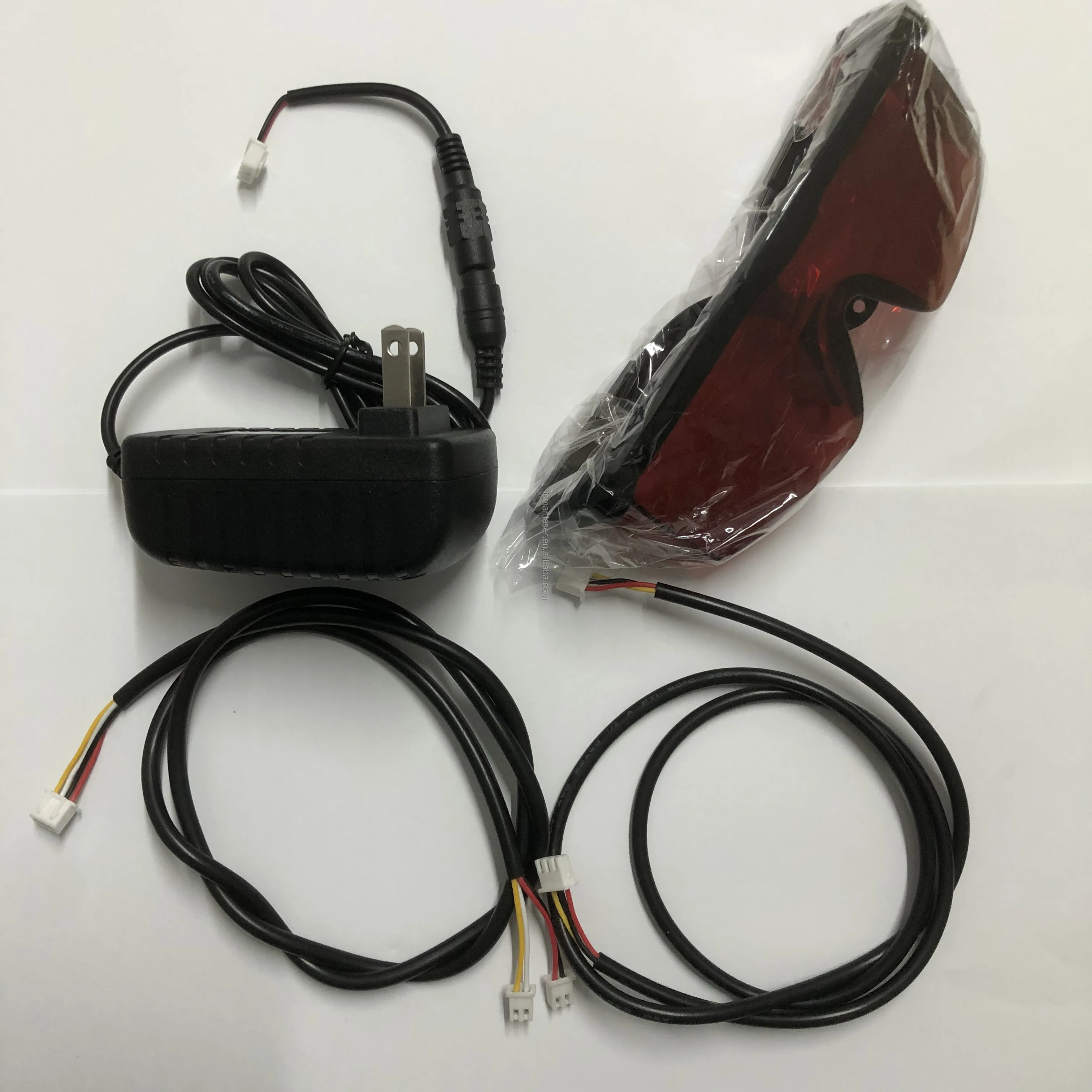

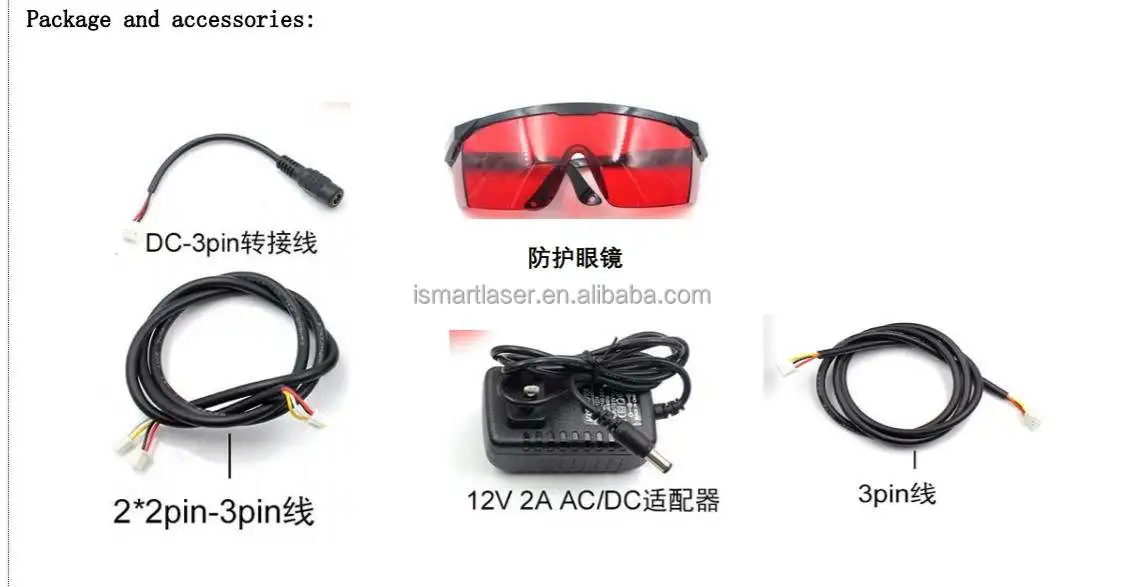

Accessories:
