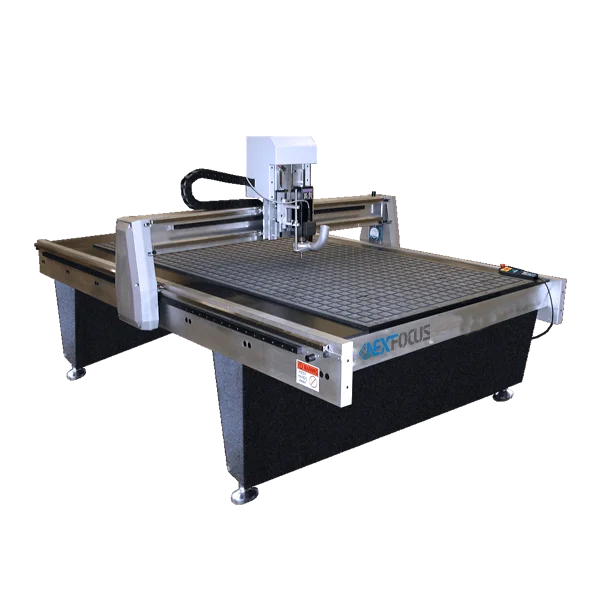

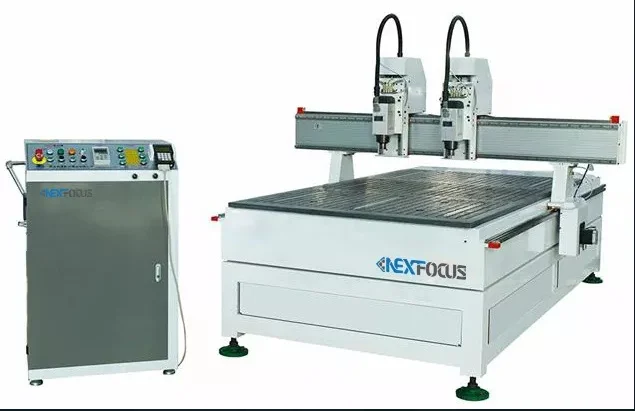

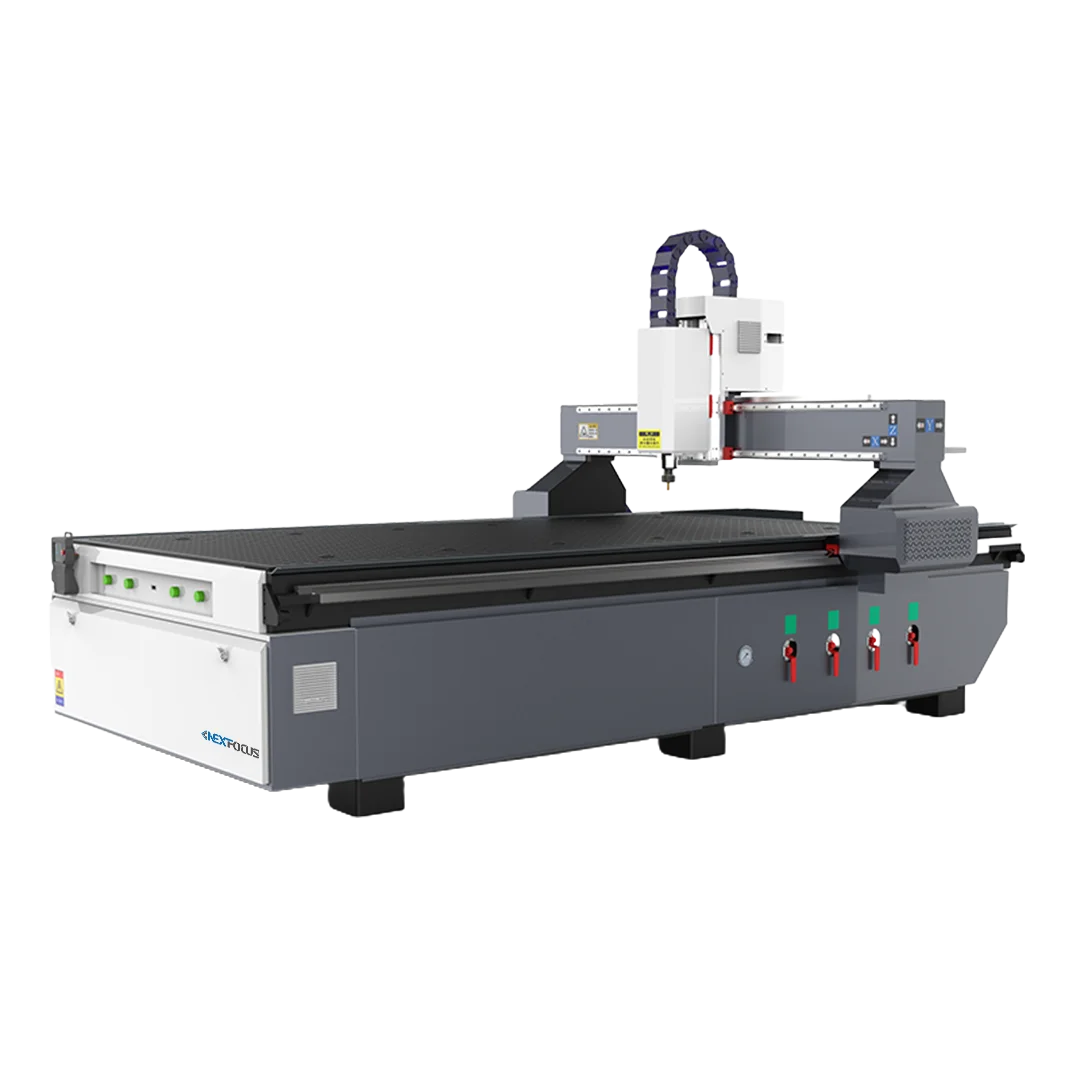

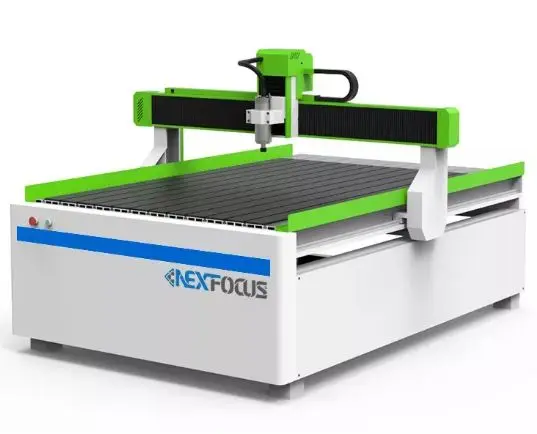

Customizable machine cnc router machine for Solid wood mini desktop cnc router 2.2KW 3.0KW 3.5KW 4.5kw 5kw wood design cutting
- Category: >>>
- Supplier: Next Focus Co. Ltd.
Share on (10000008572194):
Product Overview
Description
Product Description
Heavy Body: heavy integral welding structure, 8MM steel tube welded. Hard to be distortion after high temperature heat
treatment. More solid and reliable, stability with higher precision after CNC lathe Grinding processing. High performance stepper motor with TAIWAN ball screw and square rail, ensure higher stability. According to industry standard, synchronized X.Y.Z motor, Japan Omron limit switch X,Y,Z ensure precision and high ratio. With the help of Marble platform, collimator, repeater and some other auxiliary tool for testing stable assembly, surface of guide rail, improved the working accuracy. 3D smart CNC controller system, providing fast, smooth, 3 axis 3d engraving. High quality aluminum alloy T slot table. Support CAD/CAM software: Artcam, Wentai, Mastercam, Type3, UG, and Caxa. JD Paint, proe /UG and etc.
treatment. More solid and reliable, stability with higher precision after CNC lathe Grinding processing. High performance stepper motor with TAIWAN ball screw and square rail, ensure higher stability. According to industry standard, synchronized X.Y.Z motor, Japan Omron limit switch X,Y,Z ensure precision and high ratio. With the help of Marble platform, collimator, repeater and some other auxiliary tool for testing stable assembly, surface of guide rail, improved the working accuracy. 3D smart CNC controller system, providing fast, smooth, 3 axis 3d engraving. High quality aluminum alloy T slot table. Support CAD/CAM software: Artcam, Wentai, Mastercam, Type3, UG, and Caxa. JD Paint, proe /UG and etc.
Product Feature:
* Strong software compatibility.
* Assembled by experienced workers.
* Good quality, low noise air/water-cooled spindle.
* High performance, subdivision stepper motors and drivers.
* Breakpoint and power failure continued working control system.
* Circular linear guide rail, rolling ball screw transmission, fast speed
* Assembled by experienced workers.
* Good quality, low noise air/water-cooled spindle.
* High performance, subdivision stepper motors and drivers.
* Breakpoint and power failure continued working control system.
* Circular linear guide rail, rolling ball screw transmission, fast speed
Product Paramenters
Model No | NF-CNC9060/1325/3015 |
Structure | Welded by seamless square steel tube |
X,Y,Z working area | 900x600x150mm, 1300*2500*200mm |
Guide rail | X,Y,Z TAIWAN linear square guide rail |
Transmission | X,Y Gear rack |
Z Taiwan Rolling ball screw | |
Workpiece fixture | T-slot |
Drive system | 85BYGH450B stepper motors, 4 sets |
leadshine drivers, 4 sets | |
Spindle | 3.5KW Water coolant spindle |
1 set | |
Spindle rotating speed | 6000-24000rpm |
Max. engraving speed | 20000mm/min |
Accuracy | <0.04/300mm |
Collect | ER20 |
Cutter diameter | 3.175mm, 4mm, 6mm, 12.7mm |
Slider | X axis 4 sets |
Y axis 4 sets | |
Z axis 4 sets | |
Inverter | 3.7 kw Fuling inverter |
1 set | |
Transformer | 1 set |
Power supply | 1 set |
Control system | NC Studio |
Software compatility | Type3/Artcam/Artcut/Ucancam/Jdpaint/Mach3 etc. |
Working voltage | 380V/220V, 50HZ,3phas |
Command language | G-code,*uoo, *mmg, *plt, ENG, HPGL |
Computer interface | USB |
Flash memory | 128M(U Disk) |
Environment temperature | 0-45 centigrade |
Relative humidity | 30%-75% |
Maintainance | Auto oil lubricating system |
Machine size | 3050*1900*1850mm |
Weight | 950kg-1200Kg |
