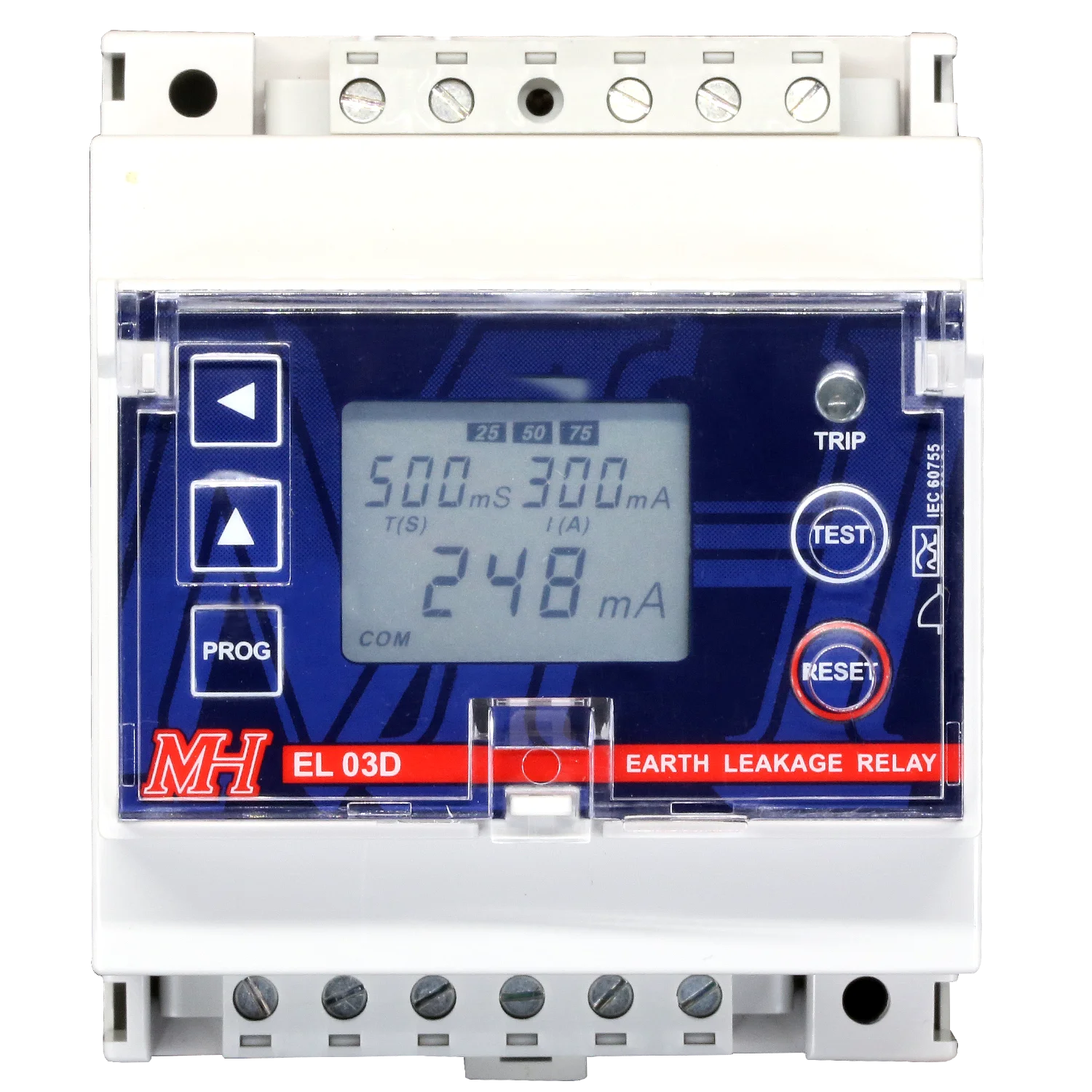

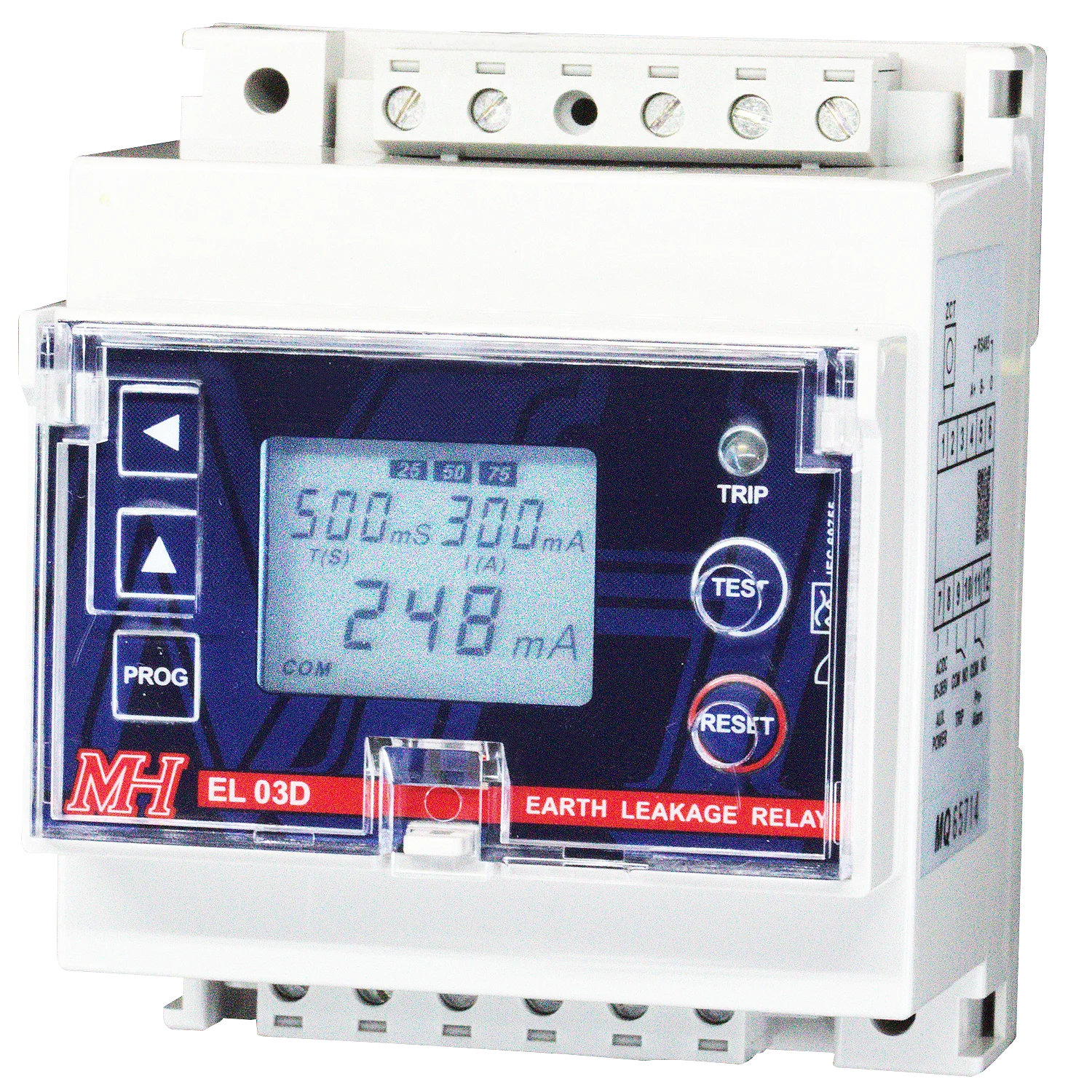

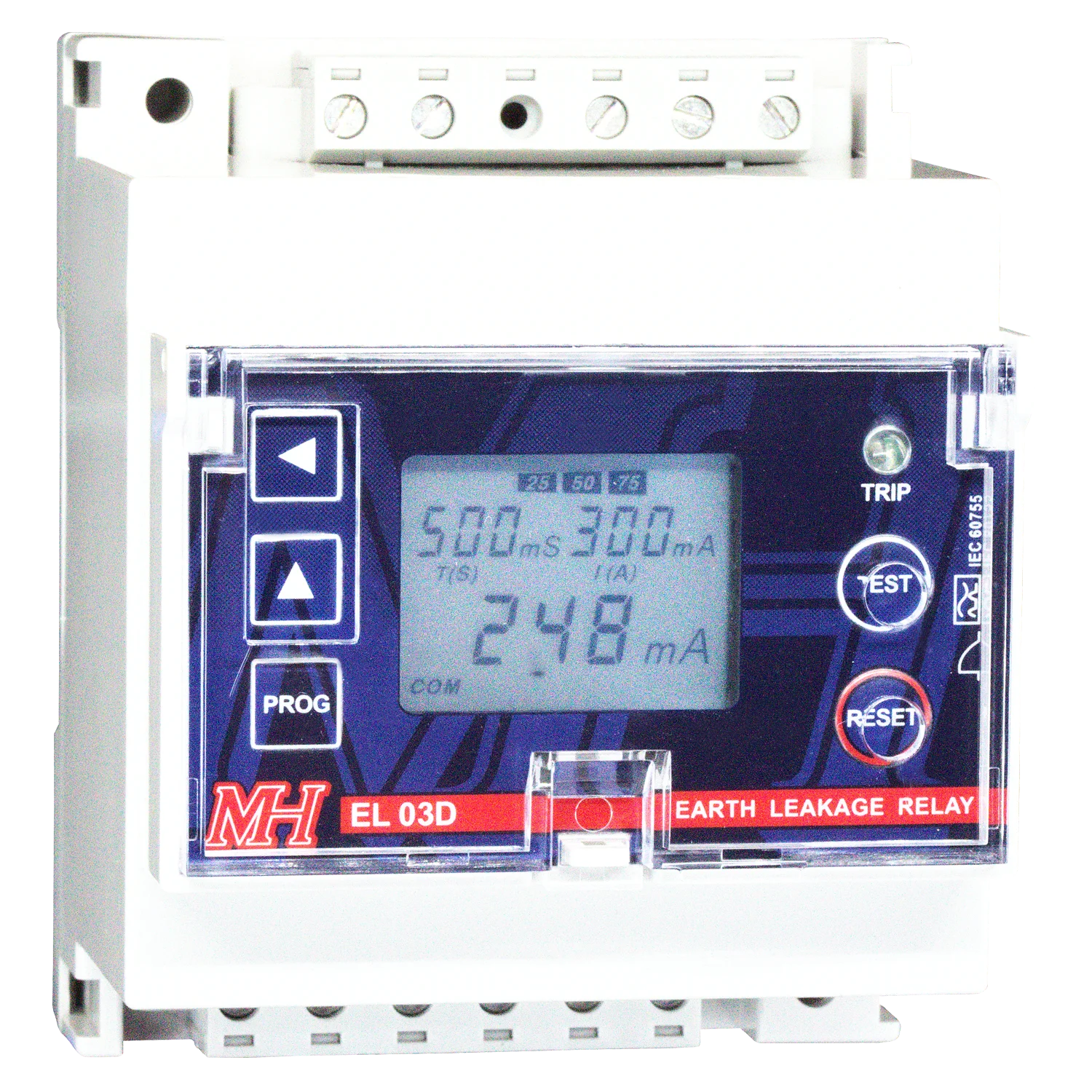

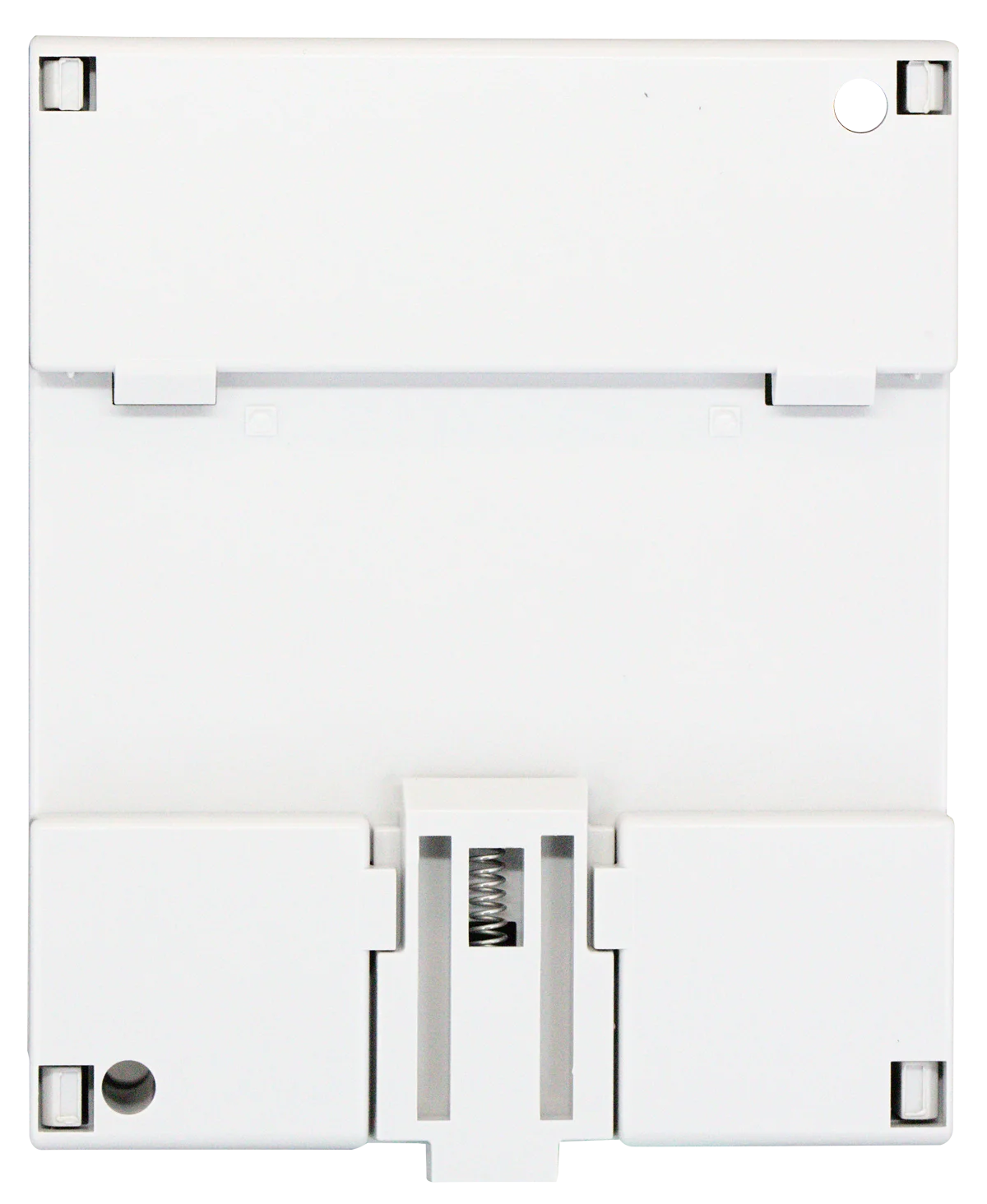

The MH EL 03D and EL 30D is a digital earth leakage relay with DIN rail mounting. It is designed to monitor and protect the low voltage distribution system through the use of a zero-sequence current transformer.
MH EL 03D and EL 30D are designed in accordance with IEC 60755 Type A & AC operation. It provides real-time communication via Modbus-RTU protocol, pre-alarm warning and comes with two output contacts.
Highlights of EL03 / EL30D
- Microprocessor-based with highest accuracy
- Earth Leakage Current protection
- IEC 60755 Type A and AC performance
- Extra secure test trip system
- Event records with date and time stamping
- Modbu-RTU RS485
- Configurable Pre-Fault Alarm Output
- Self diagnostic
- Optional Remote Reset Input
- Backlit high contrast LCD display
- Simple, compact and user friendly
- Fully type tested by accredited laboratory
Applications
Incoming feeder protection
Outgoing feeder protection
Earth Leakage Protection
Product Parameters
Characteristic | |||
Protection functions | Earth Leakage Protection | ||
Power Supply | AC/DC 85-265V (other voltages available on request) | ||
Operating frequency | 50 / 60 Hz | ||
Power consumption | ≤ 3.5VA | ||
Residual operating current setting | 0.03A to 3.00A in step of 0.01A (EL 03D) 0.3A to 30.0A in step of 0.1A (EL 30D) | ||
Configurable Pre-Alarm setting | 5-100% of residual operating current in step of 1% | ||
Definite time delay setting | 0.01-0.50 sec in step of 0.01 sec (0.01-5.00 sec available upon request) | ||
Operating temperature range | -10 to 55°C | ||
Relative humidity | <93%, non-condensing | ||
Degree of protection | IP54 (front) | ||
Output | Relay output | 2 x N/O (normally open) Contact #1 Tripping Contact #2 Trip/Pre-Alarm (Remote reset optional) | |
Contact rating | 5A at 250VAC | ||
Optional interface | RS485 Modbus RTU | ||
LED status indication | Red LED for tripped, Red blinking LED for ZCT input error | ||
Event Record | Four event records with tripped value, date and time stamping | ||
Housing material | ABS resin complying with UL94V0 | ||
Net weight | Approximately 200g | ||
Dimensions | 75mm (width) x 90mm (height) x 74mm (depth) | ||
Standard compliance | IEC60255, IEC 60755, CE Marking | ||

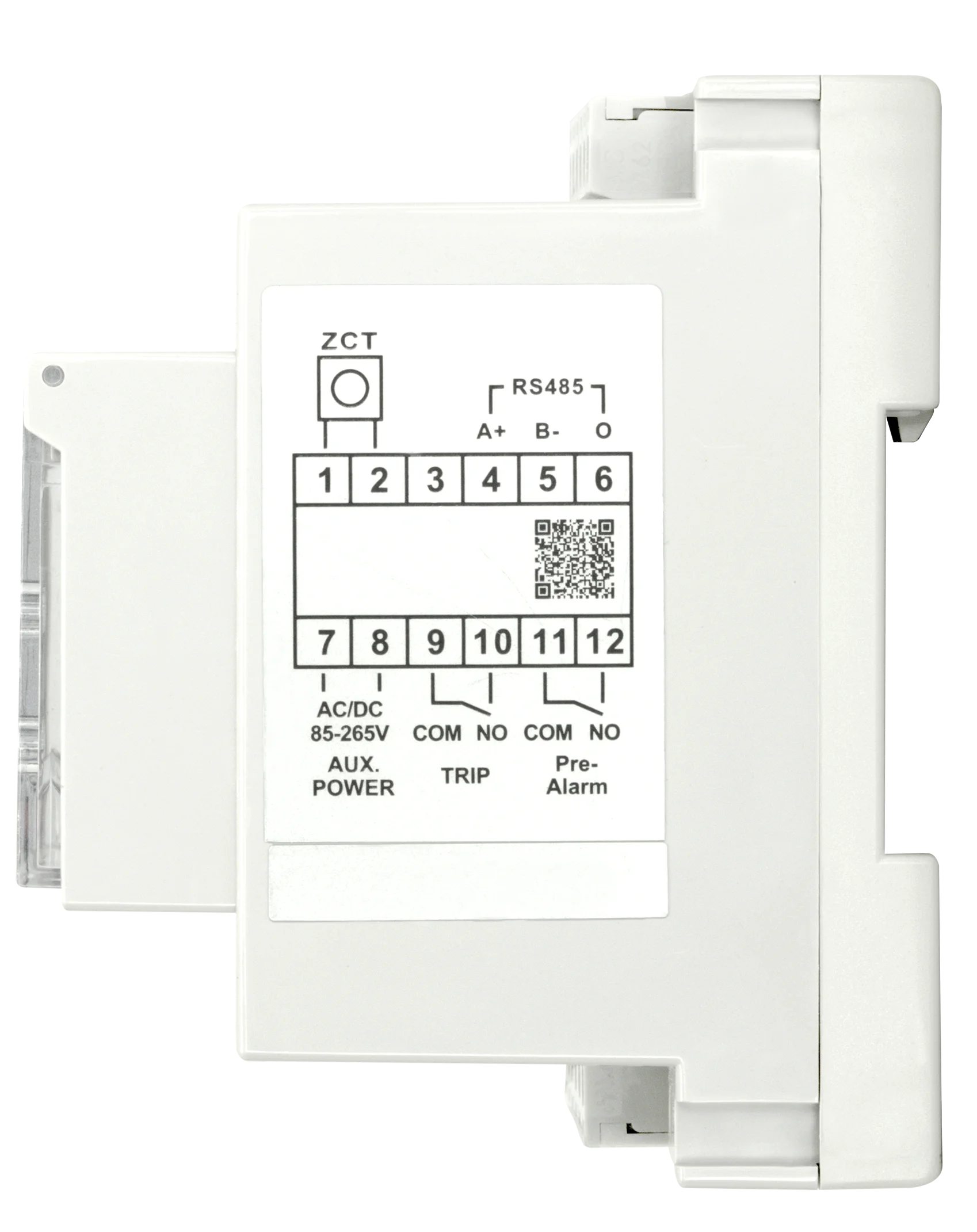

Connection Diagram
3P4W
3P3W
