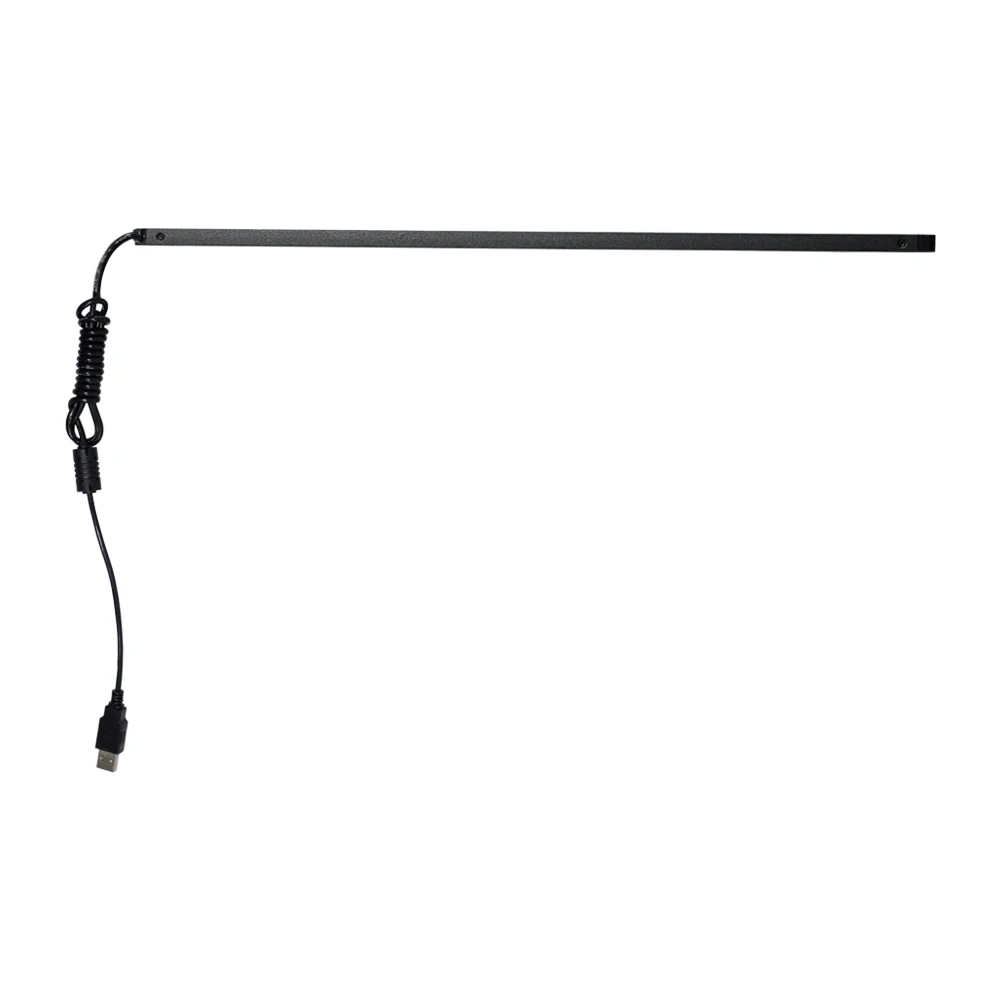

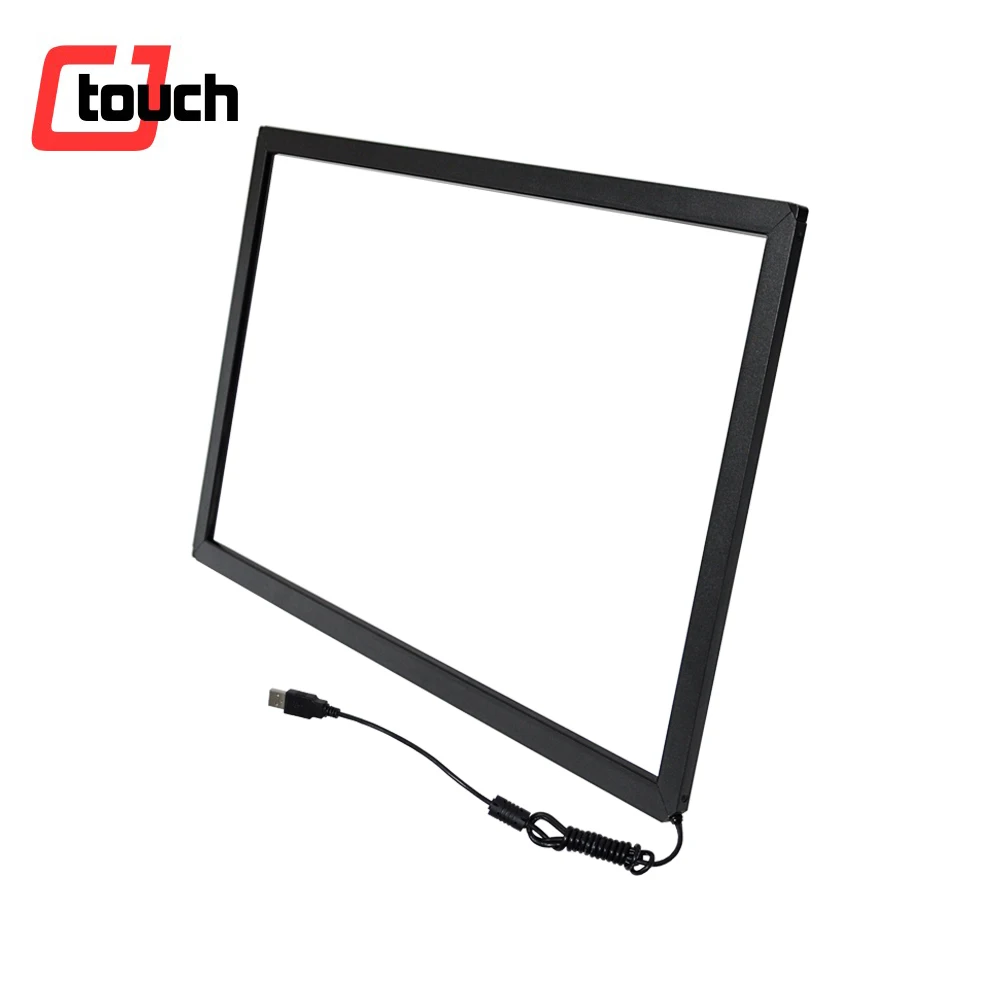

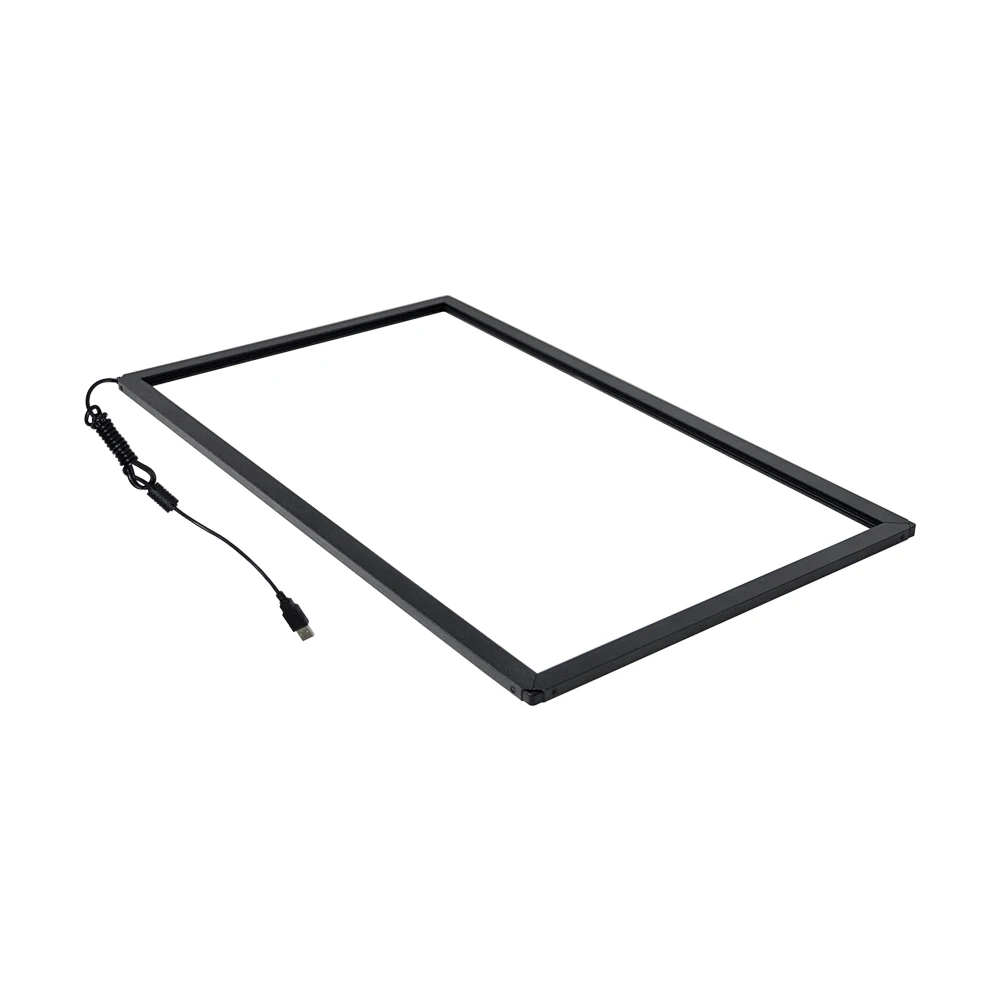

Infrared touch screen touch 18.5 inch ir multi touch frame panel overlay kit
- Category: >>>
- Supplier: Dongguan Cjtouch Electronic Co. Ltd.
Share on (10000008607856):
Product Overview
Description
Infrared touch screen touch 18.5 inch ir multi touch frame panel overlay kit
Product Description
Main features
- Interactive Multi points Infrared Touchscreen/Touch Glass Overlay kit
- Dustproof/Vandalproof/Anti-glare Touch Panels;
- Tempered glass can provide high durability, vandal resistance and safety
- With 2/4/6/10 points touch infrared touch frame overlay kit;
- USB, RS232, Serial Interface Touchscreen Panels;
- Operating system: Wins7/8/10, Li-nux;
- Application : Food processing/ Industrial automation/ Kiosks/ Medical equipment/ In-vehical and transportation/ POS terminals;
- Sample supported, Custom made workable, Free for 1 year warranty;
- 14 years' experienced manufacturer of touch screens/touch monitors
Specificaition
MECHANICAL | |
P/N | CIN Slim series |
Overlay Thickness | 7.9 mm |
Overlay Frame Width | 18.5 mm |

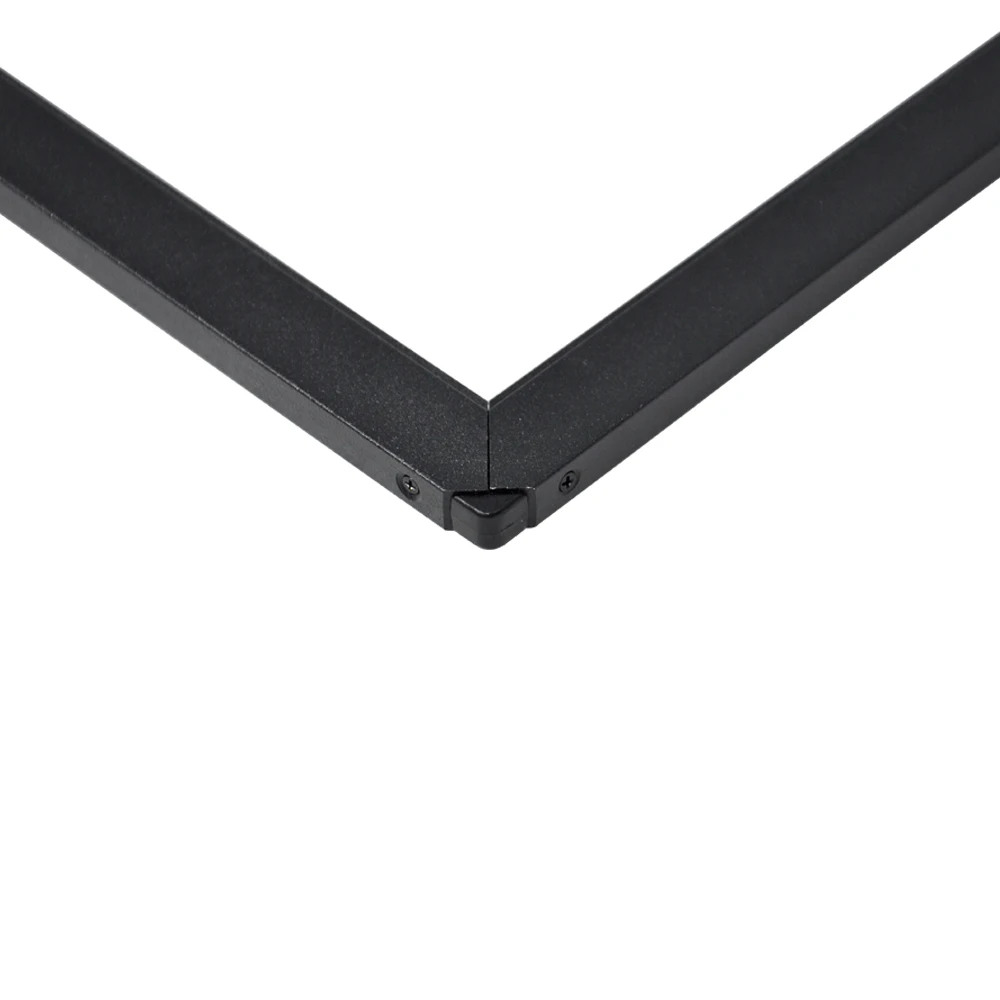

Housing | Aluminum frame |
TOUCH CHARACTERISTICS | |
Input Method | Finger or touch pen |
Touch Points | NA2= 2 Touch Points,NA4= 4 Touch Points, NA6=6 Touch Points |
Touch Activation Force | Non Minimum activation force |
Position Accuracy | 1mm |
Resolution | 4096(W)×4096(D) |
Response Time | Touch: 6ms |
| Drawing : 6ms |
Cursor Speed | 120 dot/sec |
Glass | 3mm glass Transparency : 92% |
Object Touch Size | ≥ Ø5mm |
Touch Intensity | Over 60 millions single touch |
ELECTRICAL | |
Operating Voltage | DC 4.5V ~ DC 5.5V |
Power | 1.0W (100mA at DC 5V) |
Anti -Static Discharge (Standard :B) | Touch Discharge,Grade 2:Lab Vol 4KV |
| Air Discharge,Grade 3:Lab Vol 8KV |
ENVIRONMENT | |
Temperature | operating:-10 °C ~ 60 °C |
| storage:-30°C ~ 70 °C |
Humidity | operating:20% ~85% |
| storage:0%~95% |
Relative Humidity | 40 °C,90% RH |
Anti – glare Test | Incandescent lamp (220V,100W) , operating distance over 350mm |
Altitude | 3,000m |
Interface | USB2.0 full speed |
Seal Ability | IP64 Anti-Spill (Customizable to IP65 Waterproof) |
Working Environment | Directly Under sunlight ,indoor and outdoor |
Application of Display | Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks |
Software(Firmware) | |
Operate system | Windows 7,Windows 8,Windows 10, Andriod,Linux |
Calibration tool | Precalibrated & Software can be download in CJTouch Website |
VID | 1FF7 |
PID | 0013 |
Application:
- Food processing
- Industrial automation
- Kiosks
- Medical equipment
- In-vehicle and transportation
- Point-of-sale (POS) terminals
Production line

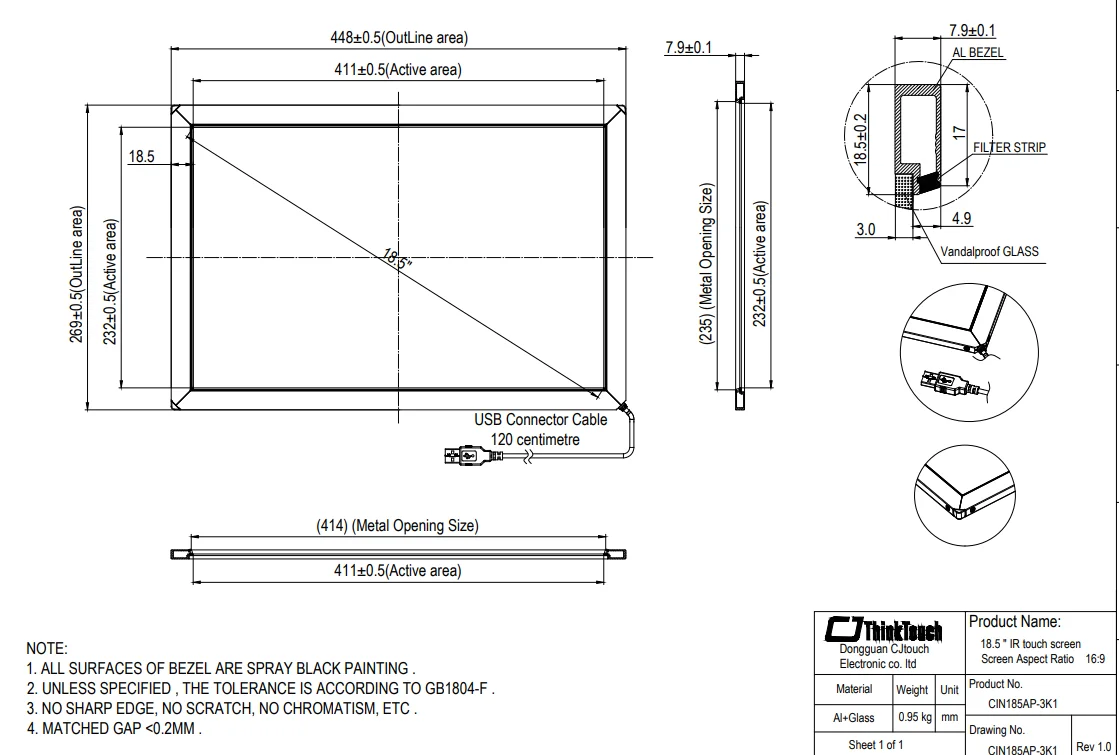

Drawing
Package
Packing method: Carton package (with glass) / Tube package (without glass)
Shipping:Sample or small orders shipping by Fedex, UPS, DHL, TNT Door to Door, bulk orders by air or sea
Company profile
Dongguan CJTouch Electronic Co., Ltd. is a leading provider of Touchscreen, Touch monitor and All-in-one computers. With advanced, cost-effective touch solutions, CJTouch believes in engaging with customers while providing customized services.
Experience:
Established in 2006 and headquartered in Dongguan, China, CJTouch has proven to be reliable and trustworthy partners to help seamlessly integrate our products into your total solution.
Over 10 years of combined experience in researching and developing touch-enabled screens and monitors.
Two factories with over 200 skilled and qualified employees, including R & D engineers, technical experts and sales representatives.
What We Offer:
Through our consistent and high quality performance, CJTouch has got ISO 9001 certified and has earned CE, UL, FCC, RoHS and other international certifications.
Single & Multi-touch screens (custom sizes available)
Single & Multi-touch monitors (custom sizes and functions available)
All-in-one computers
ODM/OEM services
Technology:
CJTouch has always relied on continuous innovation to stay ahead in touch technology. We are committed to delivering the most cutting-edge solutions in the industry.
Surface Acoustic Wave (SAW) touch technology
Infrared touch technology
Projected Infrared Touch technology
Applications:
We offer an extensive array of services with products being widely used in industries such as finance, gaming, retail, kiosk, health care, education, etc.
Certificate
Our office
Other products we provide
Contact
FAQ
1. What is your MOQ?
Our minimun order quantity is 1PCS.
2. What about the quantity?
Our products have 12 months' warranty. If there is any problem during this period, we will provide effcient technical support and a solution for you.
3. Can you produce the product according to the customer's requirement?
Sure, we are a professional manufacturer. OEM and ODM are both welcome.
4. What is your delivery method?
EMS/ DHL/ UPS/ FED EX
