MH DTL реле перегрузки по току OA703 ANSI 50/51, 86 Панельное крепление 96x96 мм с уникальной механической кнопкой перемещения
- Category: Electrical Instruments >>>
- Supplier: MUN HEAN SINGAPORE PTE LTD
Share on (10000008633128):
Product Overview
Description
Products Description

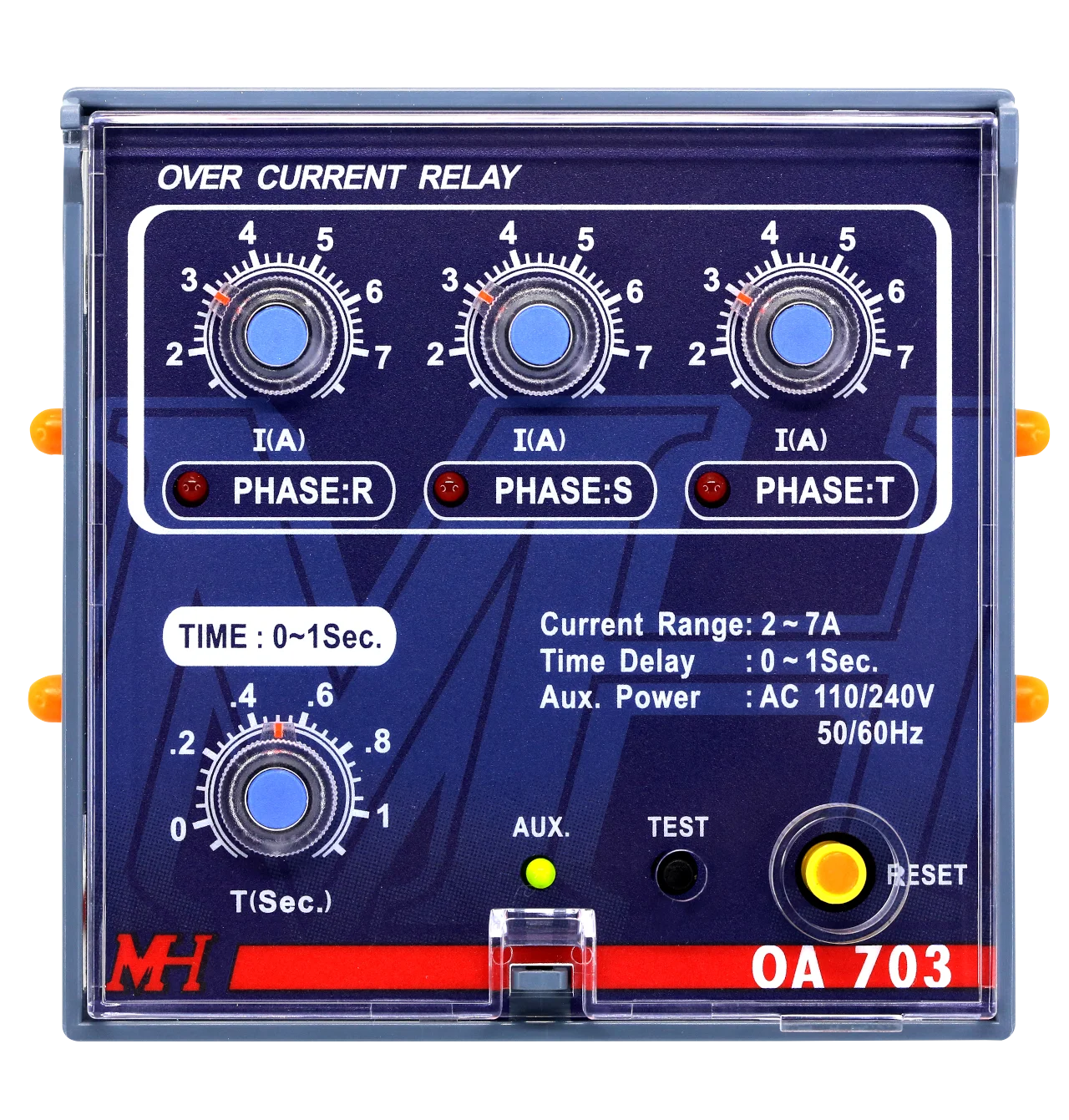

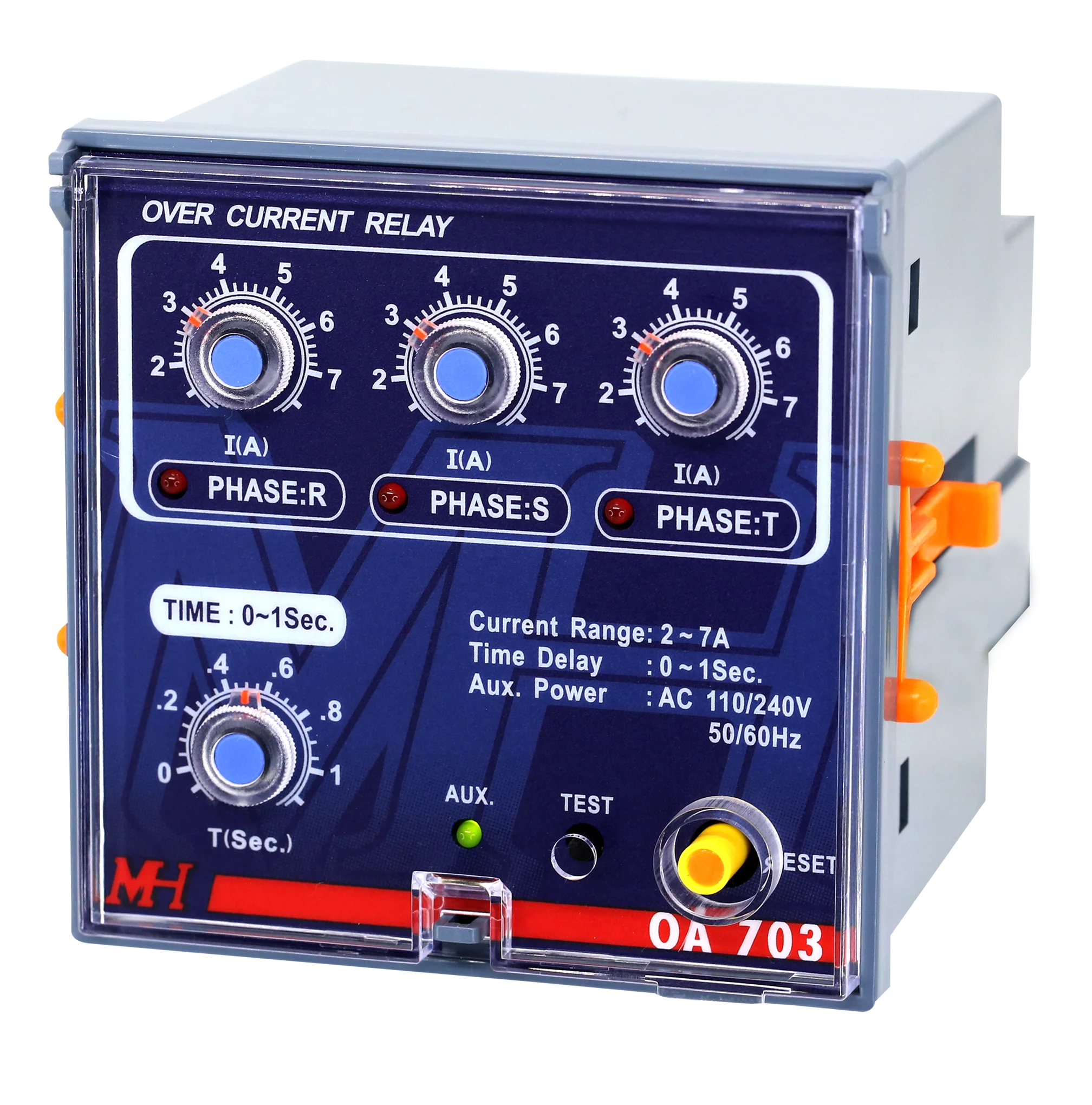

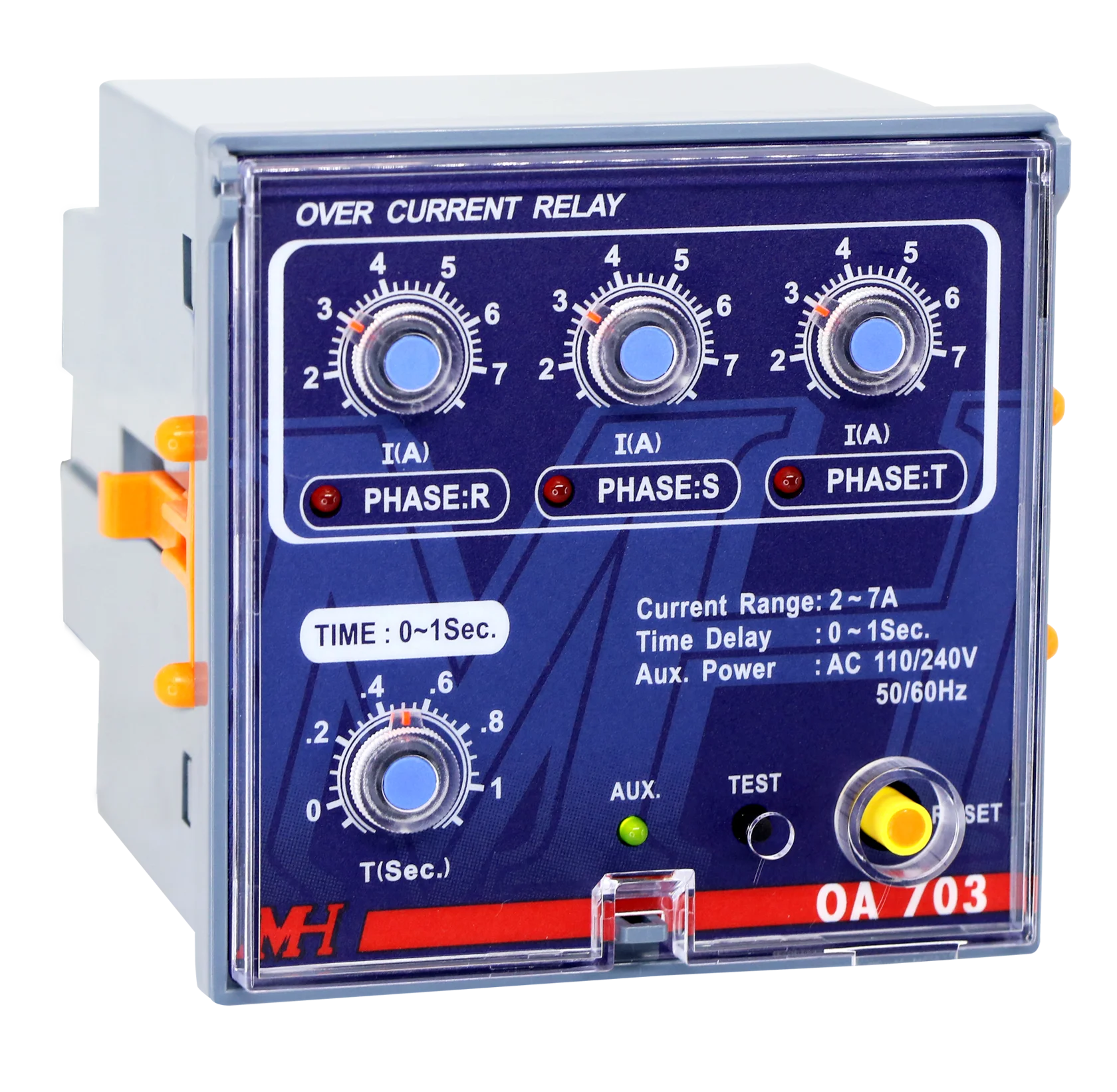

The MH OA703 DTL Overcurrent Relay is a protective relay designed to monitor and detect phase overcurrent. It is equipped with a unique fault indicative system which called MTB. This MTB is a Mechanical Trip Button that latched with output contact after relay operated. The MTB is designed in accordance with ANSI 86 lockup relay.
Highlights of OA703
- Comply to ANSI 50/51, 86
- Unique fault indicative system in accordance with ANSI 86 Lockup Relay
- No requirement for auxiliary power supply for fault indication
- Safeguard against automatic reset before fault rectification
- Trip status indication for individual phases
- Simple, compact and user friendly
- Fully type tested by accredited laboratory
Applications
Incoming feeder protection
Outgoing feeder protection
Busbar protection
Product Parameters
Characteristic | |||
Protection functions | ANSI 50/51, 86 | ||
Power Supply | 110/230V ±15% (other voltages available on request) | ||
Operating frequency | 50 / 60 Hz | ||
Power consumption | ≤ 5VA | ||
Rated input current | 5A (1A available upon request) | ||
Overcurrent pickup setting | 2 - 7A | ||
Definite time delay setting | 0 - 1sec | ||
Operating temperature range | -10 to 55°C | ||
Relative humidity | <93%, non-condensing | ||
Degree of protection | IP31 (front), IP20 (back) | ||
Overcurrent withstandability | 10 * I rated (for 1 sec) | ||
Output | Relay output | 1 x C/O (changeover), 1 x N/O (normally open) | |
Contact rating | 2A at 250VAC | ||
LED status indication | Normal operation, fault current detected | ||
Safety feature | Mechanical Trip Button (MTB) complying with ANSI 86 | ||
Housing material | ABS resin complying with UL94V0 | ||
Net weight | Approximately 440g | ||

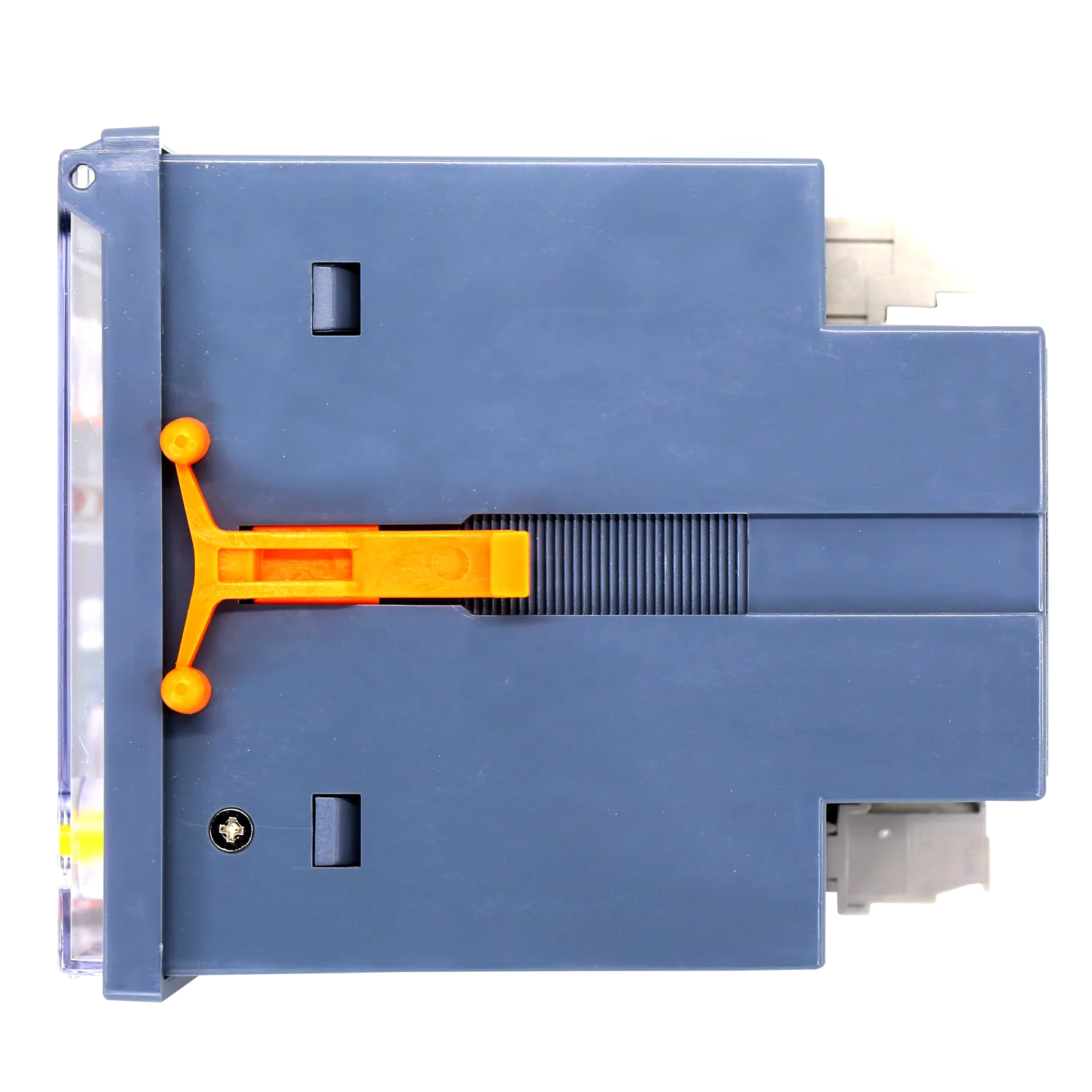

Dimensions | 96mm (width) x 96mm (height) x 107mm (depth) | ||
Panel cut-out | 92mm (width) x 92mm (height) | ||
Standard compliance | IEC60255, CE Marking | ||

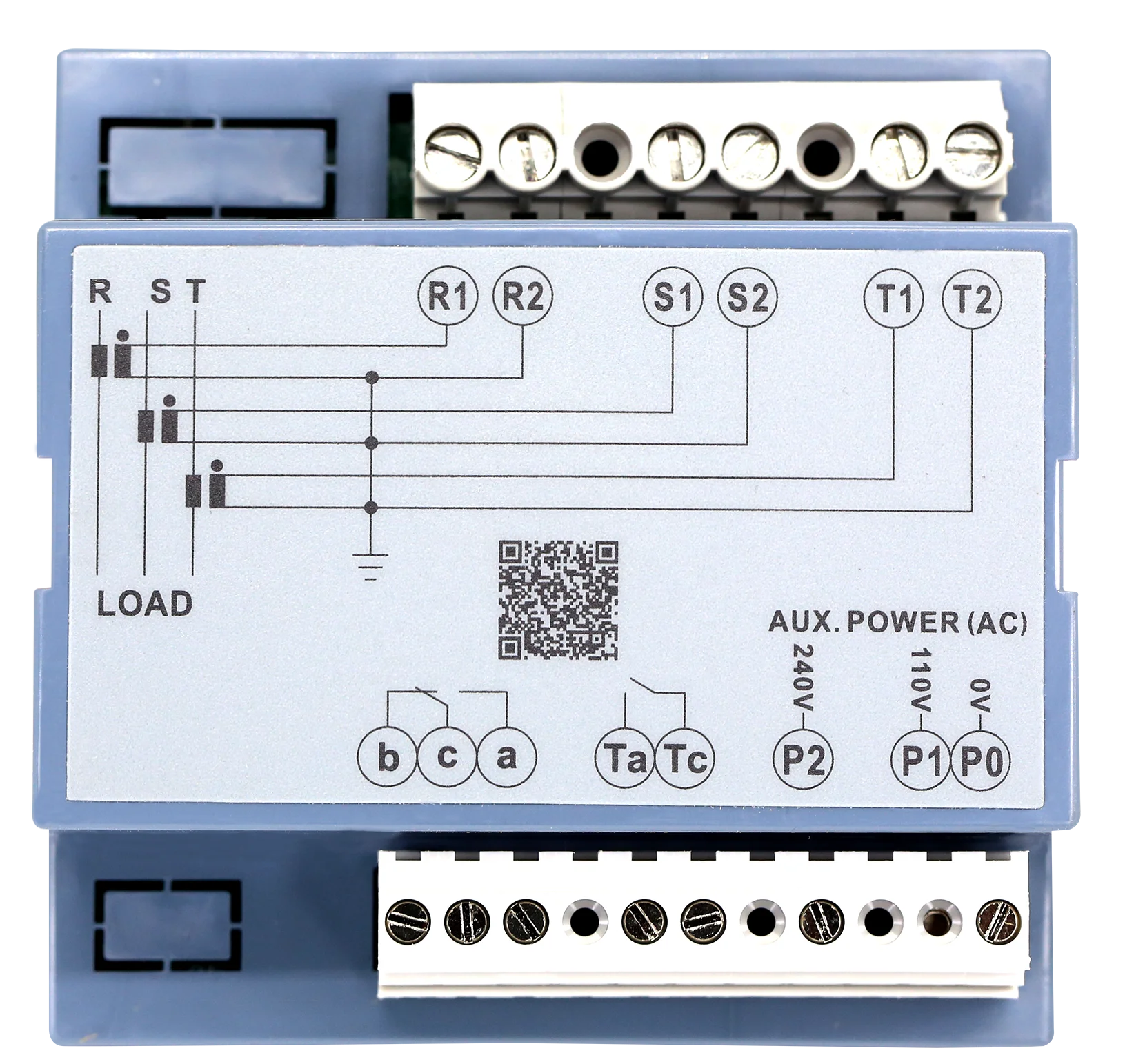

Connection Diagram
3P4W
3P3W
