Product Overview
Description
Product Overview

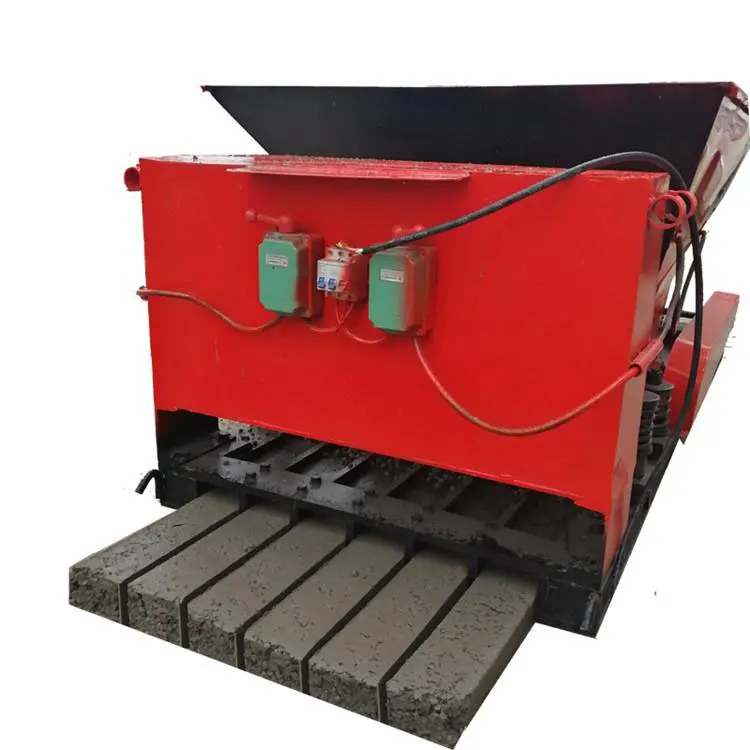

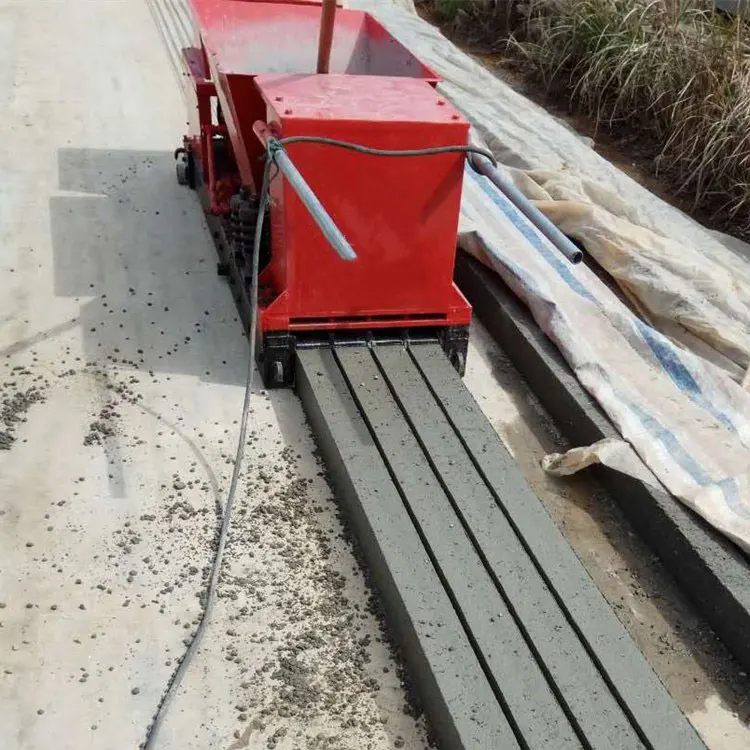

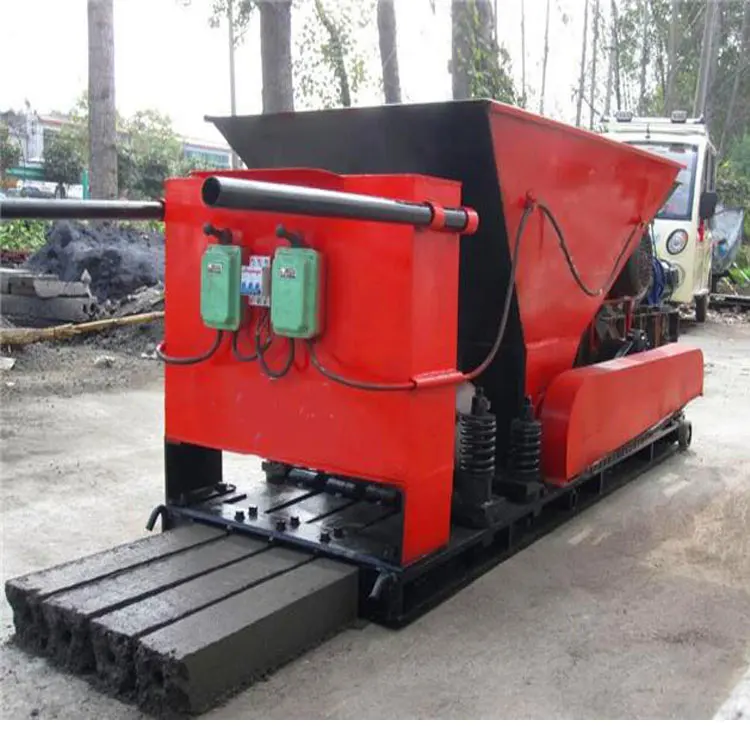

Reinforced Concrete post Machine
The Machine work on the principle of pushing extrusion for making the precast concrete pillars, columns or posts .According to the sizes of pillars, the machine can make the 4-8 rows of concrete products . It is very efficient . About 300 meter length of precast concrete pillars can be made per working hour.
FEATURES AT A GLANCE
Advantages
1. The machine is easy to operate. Only 2-3 persons can run the whole precast factory.
2. High capacity. One single machine can cast 2-8 rows of lintels depend on their different sizes.
3. The length of lintels can be cut as per different construction requirements.
4. The smooth surface, high-density for the finished lintels products.
5. Long working life and No need for excessive maintenance and maintenance.
1. The machine is easy to operate. Only 2-3 persons can run the whole precast factory.
2. High capacity. One single machine can cast 2-8 rows of lintels depend on their different sizes.
3. The length of lintels can be cut as per different construction requirements.
4. The smooth surface, high-density for the finished lintels products.
5. Long working life and No need for excessive maintenance and maintenance.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model | Post or Pillar sizes | Nos of posts | Motor | Vibrator | Weight | Dimension |
TWT50X60-8 | 50X60mm | 8 | 4KW | 0.8KW | 830KG | 2100*750*650mm |
TWT60X60-8 | 60X60mm | 8 | 4KW | 0.8KW | 850KG | 2100*790*650mm |
TWT70X70-8 | 70x70mm | 8 | 4KW | 0.8KW | 880KG | 2100*810*650mm |
TWT80X80-8 | 80x80mm | 8 | 4KW | 0.8KW | 910KW | 2100*830*650mm |
TWT90X90-6 | 90x90mm | 6 | 5KW | 1.5KW | 950KW | 2100*850*650mm |
TWT100X100-6 | 100x100mm | 6 | 5KW | 1.5KW | 1000KG | 2100*750*650mm |
TWT120X120-4 | 120x120mm | 4 | 5.5KW | 1.5KW | 1100KG | 2100*680*650mm |
TWT150X150-4 | 150x150mm | 4 | 5.5KW | 2KW | 1120KG | 2100*730*650mm |
TWT200X200-2 | 200x200mm | 2 | 7KW | 2.KW | 1100KG | 2100*630*650mm |
TWT250X250-2 | 250x250mm | 2 | 7KW | 3KW | 1250KG | 2100*700*650mm |
TWT300X300-2 | 300x300mm | 2 | 9KW | 4KW | 1380KG | 2100*780*650mm |
The above technical data may change as our machines continue to be upgraded and improved. Please refer to the actual situation.

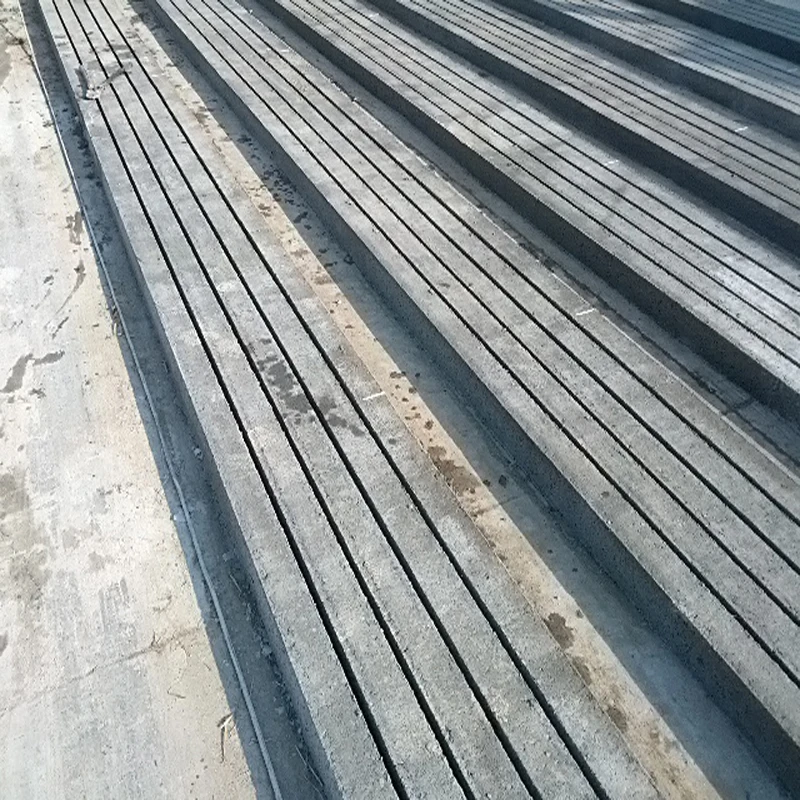

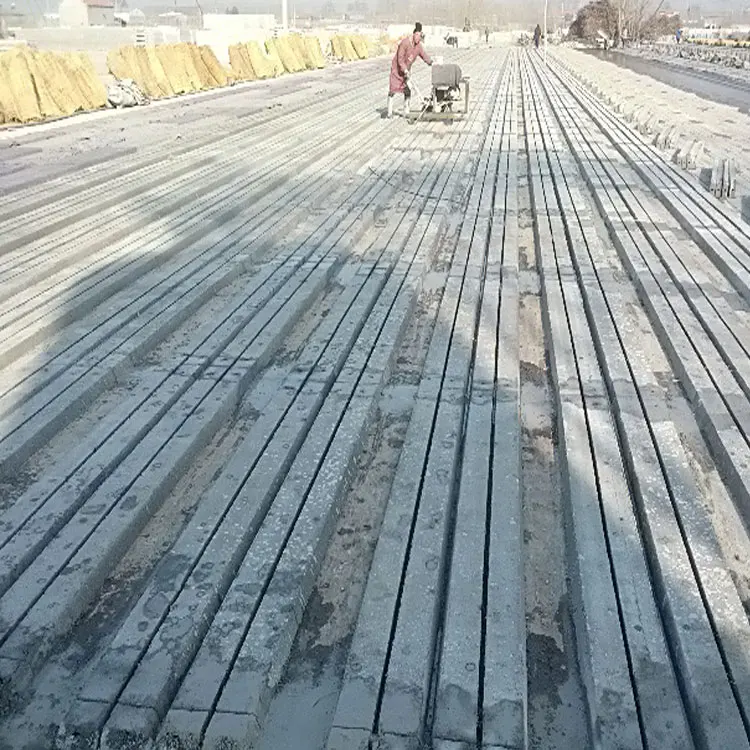

Finished Products
Finshed Products And Applications
Concrete Fence Posts
orchard
Greenhouse Pillars
