Automatic Explosion proof Glass Bottle Liquid Vacuum Industrial Alcohol Ethanoll Filling Machine
- Category: >>>
- Supplier: Changzhou Powerrig Machinery Technology Co. Ltd.
Share on (10000008646140):
Product Overview
Description

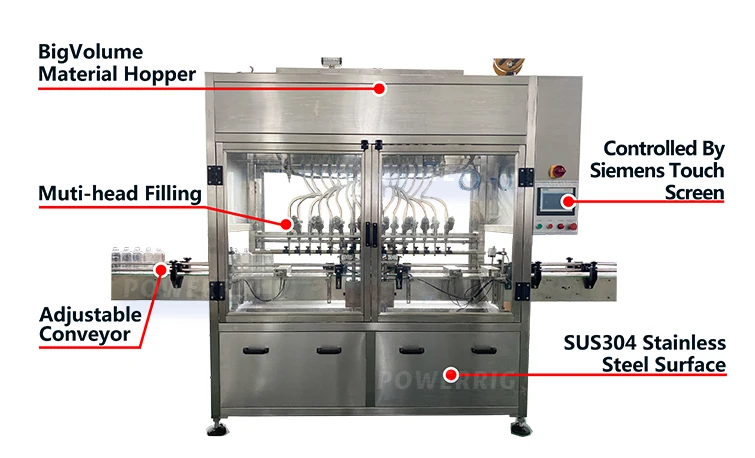

Product Introduction
Machine interface automatic control system, simple operation, convenient replacement of products, stable filling, fast speed and high precision.
Filling materials: suitable for filling materials like water, liquid without particulate matter, filling liquid is measured by time control.
Weight | 400KG |
Voltage | 220V 50HZ |
Filling Volume | 20-1000ml |
alcoholSuitable Filling Material | acohol, Mouth wash, glassy water, liquid products |
Air Consumption | 0.5m³/min |
Dimension | 1300*900*2550mm |
Power | 2.5Kw |
Filling Nozzle | 8nozzles(Support customization) |
Capacity | 2000 bottles per hour (250 ml as an example) |
Additional Function | anti-explosion |

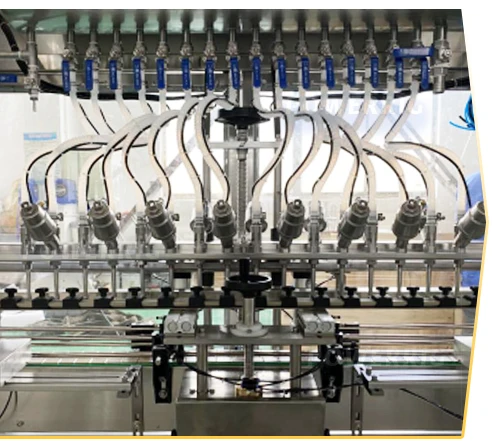

Filling Heads
Every filling head has anti-drop design. It promise do not waste the material. And diameter of filling head basis on the diameter of customer’s barrel’s mouth.

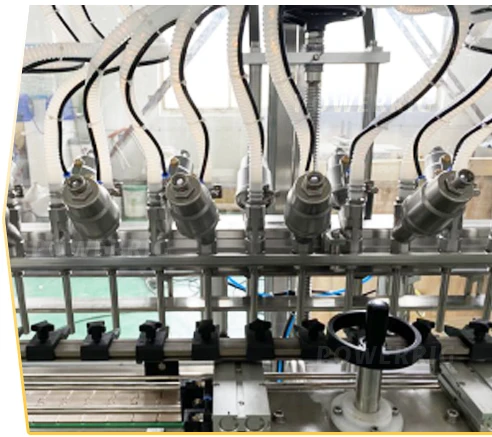

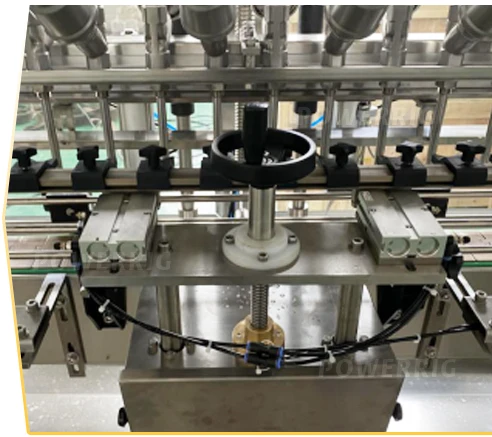

Liquid Valves and Material Pipes
The valves are connected with the material pipes, and hand wheel is to adjust the heights of filling heads.

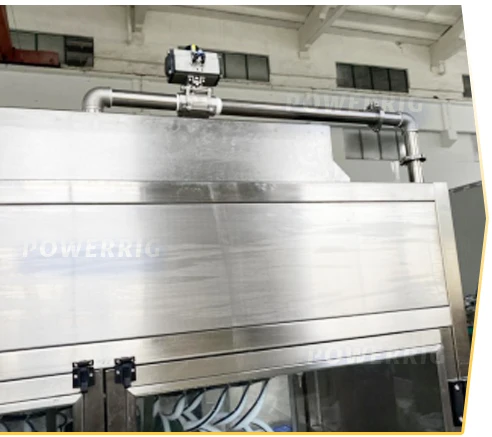

Material Tank
The material tank is used for liquid storage. And this tank can be SUS 316 material since it contacts filling liquid.

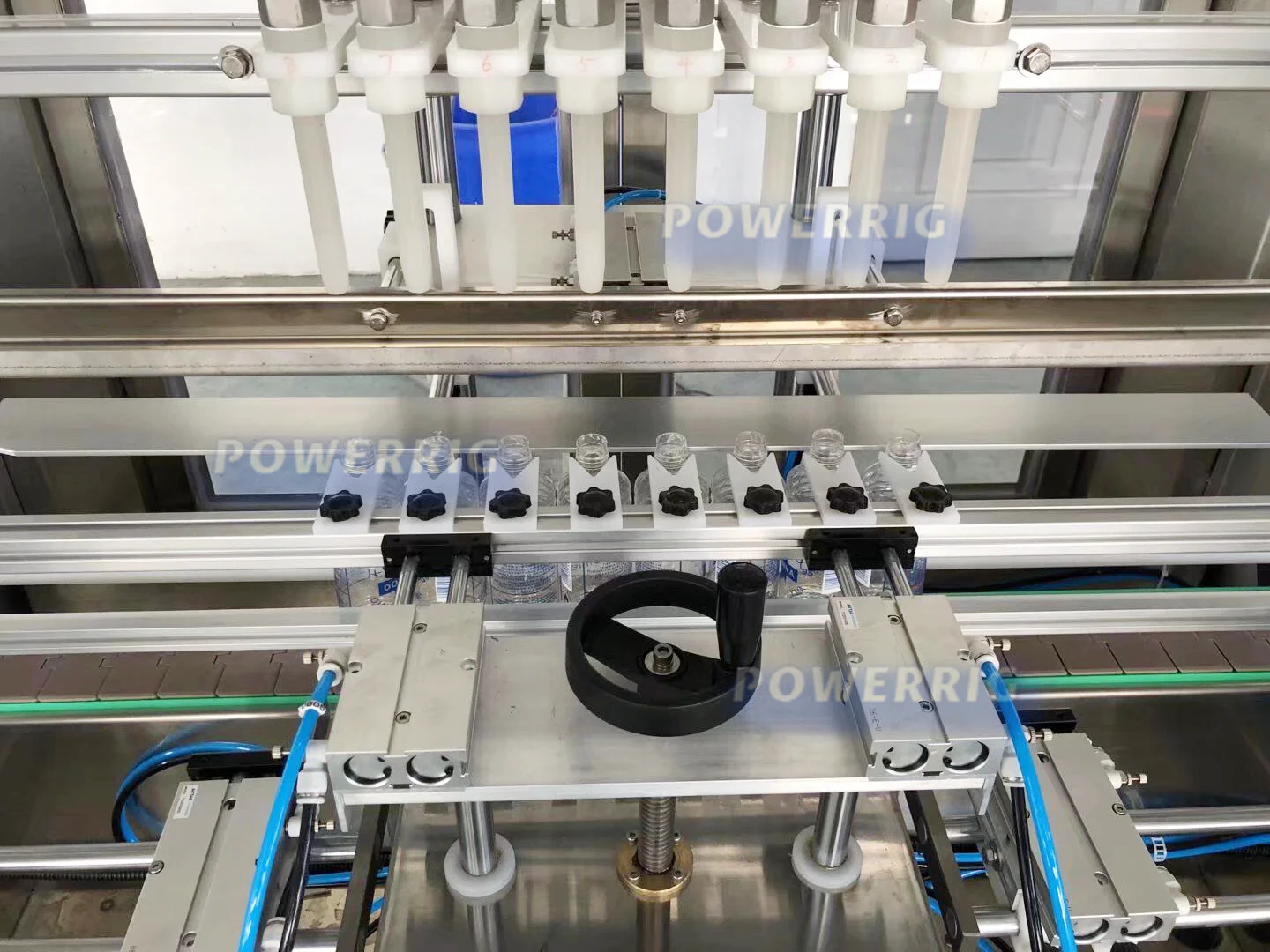

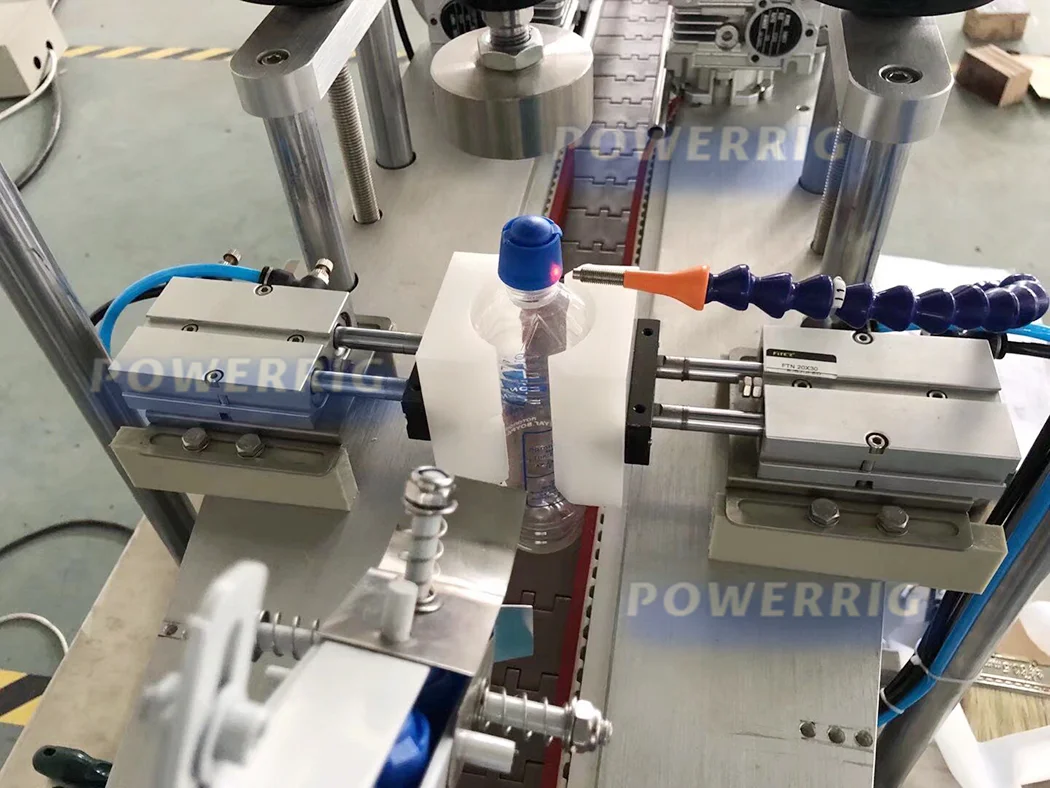

Bottle Clamping Parts
The width of guardrail on both sides of the conveyor belt should be adjusted according to the bottle size to ensure that the bottle can pass smoothly.

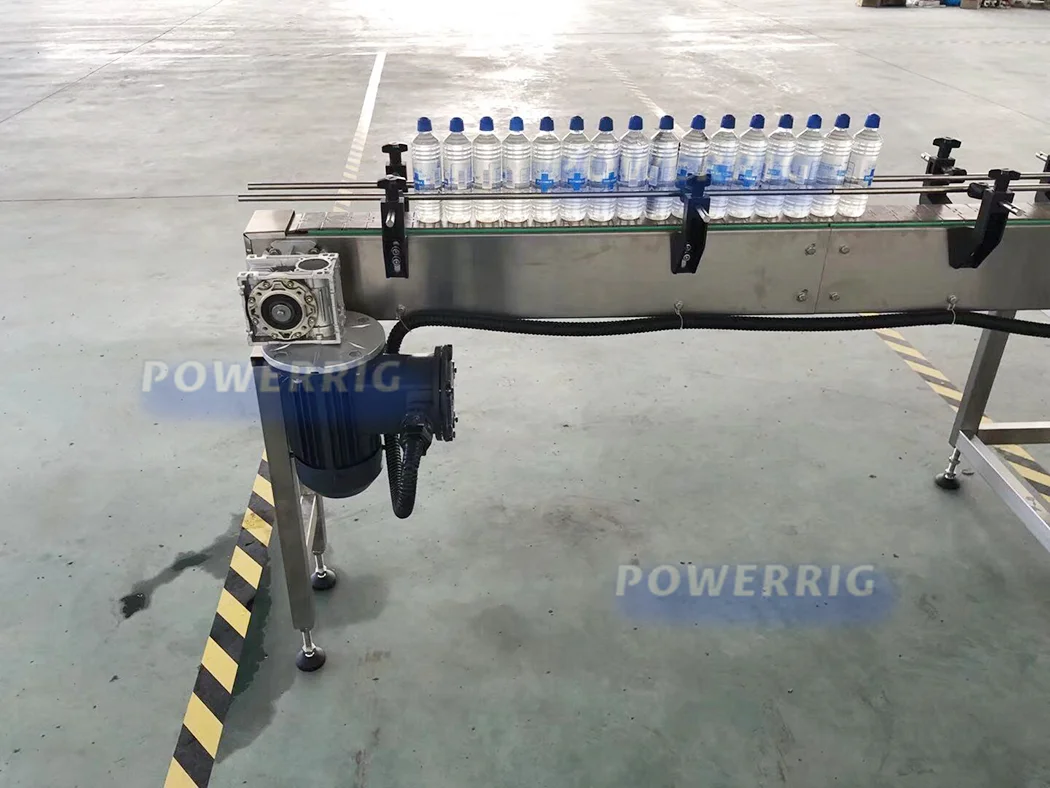

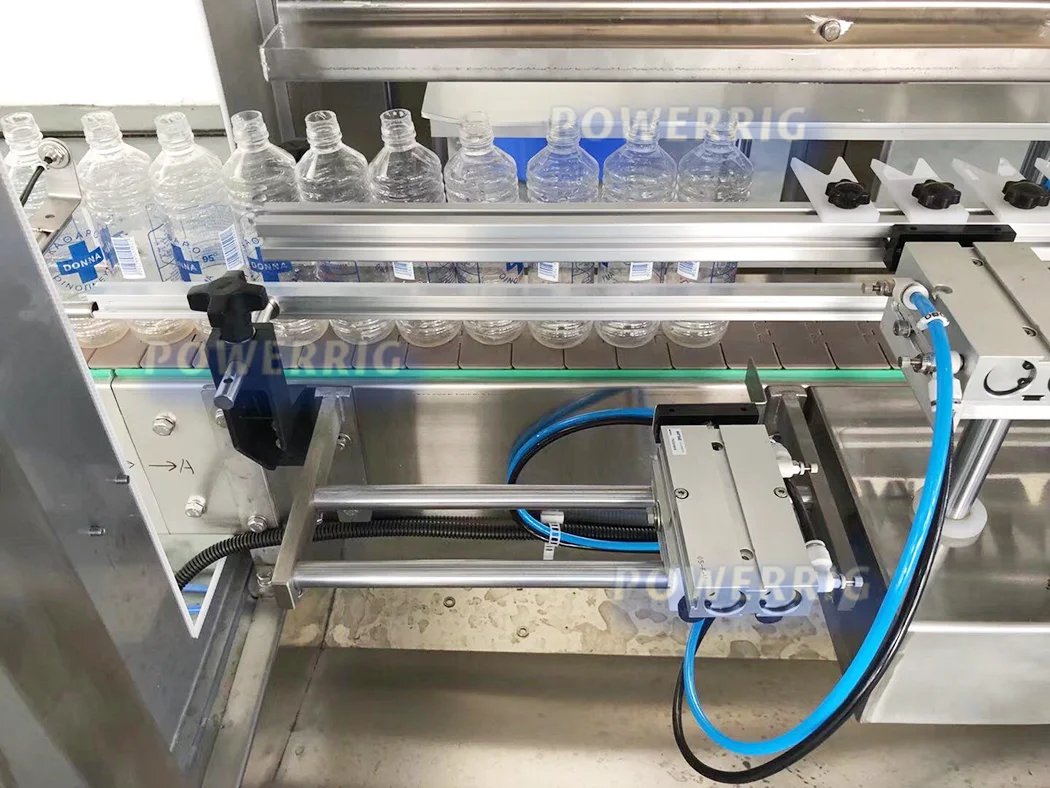

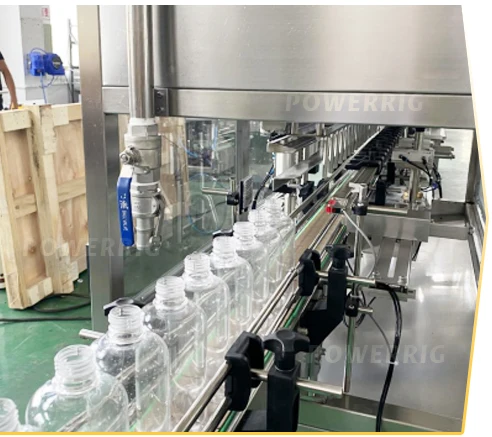

Adjustable conveyor
This conveyor is easy to adjust for different volume bottle,and the coveyor is made of stainess steel which is very easy to clean
Related Product
Company introduction
Product Introduction
This machine combines optical, mechanical, electrical, gas in one machine. Adopt through control filling time to reach different volume filling. Filling time can be precisely controlled to a hundredth of a second. The filling process is completed under the PLC program control on the touch screen. Having a stable and reliable operation, high efficiency, adaptability, the filling volume of measurement specification can be changed within a few minutes. Filling valve use imported brands, advanced technology, sophisticated, non-drip filling phenomenon.
Weight | 1200KG |
Power | Customized |
Filling Volume | 500-5000ml |
Filling Error | ≤3% |
Suitable Filling Material | bleach, pesticide, sulfuric acid products |
Suitable Barrel Width | 120-250mm |
Air Consumption | 0.6m³/min |
Dimension | 2000*1300*2200mm |
Power | 2.2Kw |
Filling Nozzle | 12 nozzles |
Capacity | ≤3500BPH |
Suitable Barrel Length | 180-330mm |
Suitable Barrel Height | 80-450mm |
Working Pressure | 0.6Mpa-0.8Mpa |

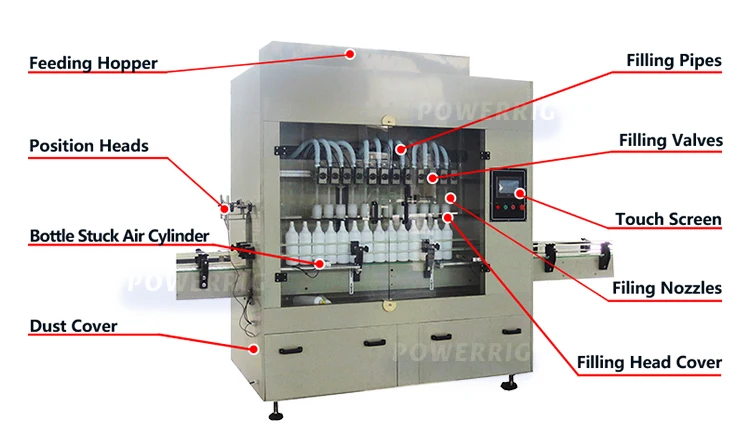

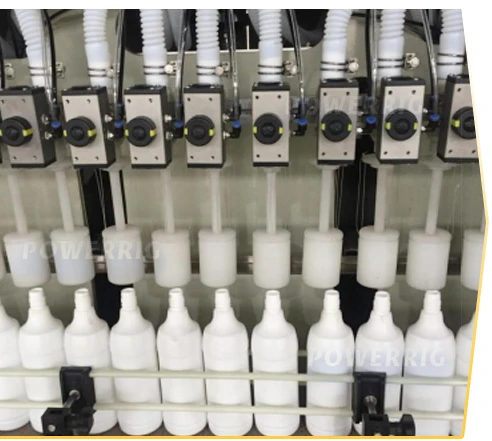

Filling Heads
Every filling head has anti-drop design. It promise do not waste the material. And diameter of filling head basis on the diameter of customer’s barrel’s mouth. The tube material is PTFE, corrosion resistance. The filling heads are also PTFE material. They will go down into the bottles when start to fill.
Material tank and Valves
The valves are also used to control the bleach filling time and anti-corrosion. The material tank is made of PTFE material, corrosion resistance. The material tank uses the slope design, it is more easy for the customer to change the material, meet GMP requirements

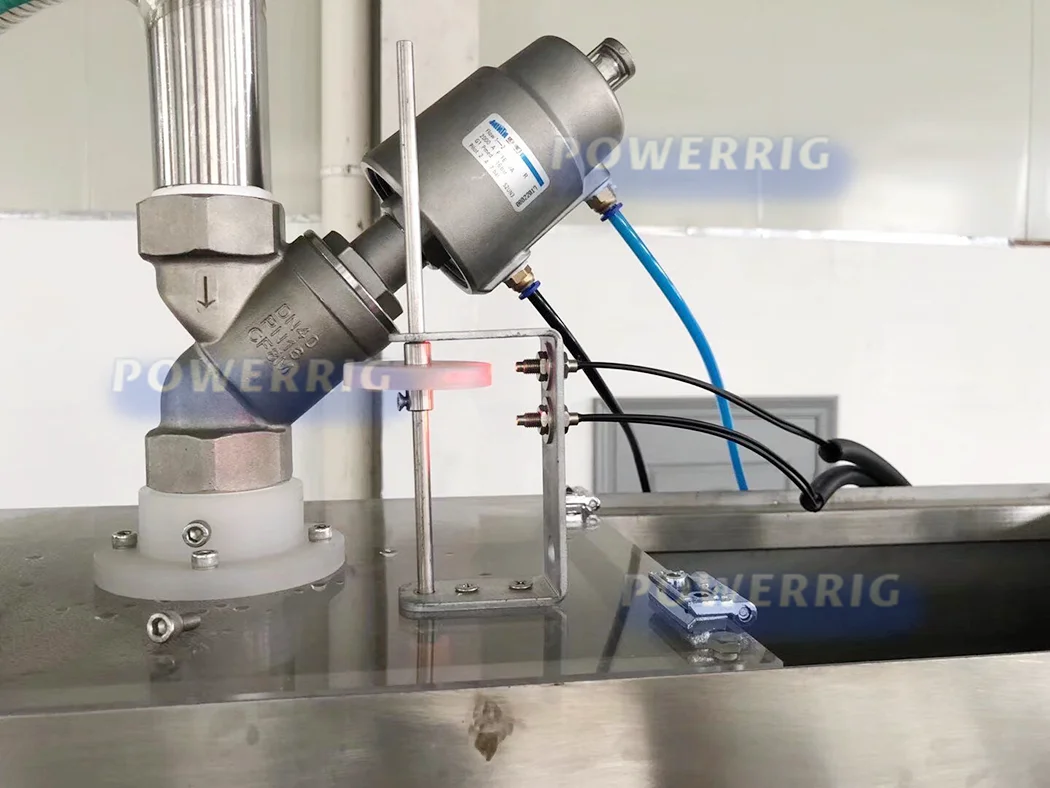

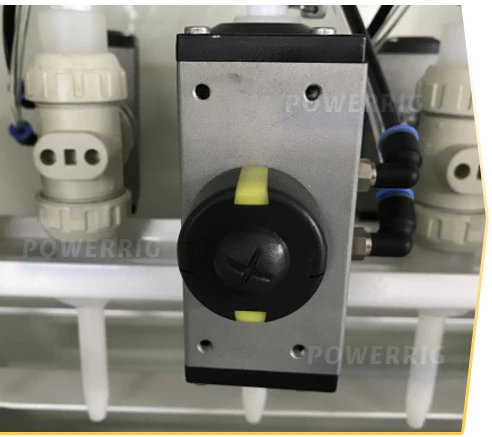

Time control filling valve
This valve is controlled by PLC system, and it use time control to set the filling volume. The filling volume settings can be done on the touch screen
