Ручной электростатический пистолет для порошкового покрытия XR5

Share on (10000008655237):


Price:

Quantity:


Product Overview

Description















































































ModelXR5-100mXR5-300mXR5-400m
Powder gunXR-5m
EST output range0-110kV(Negative)
EST output current0-100μA
Weight of gun450g
EST controllerXR5-GCU
Input power

AC100-240V single phase


50Hz/60Hz



AC100-240V single phase


50Hz/60Hz



AC220V single phase


50Hz/60Hz





Max. current@115V:400mA      @230V:200mA
Max. air consumption6m3/h10m3/h15m3/h
Air connectionØ 8 mmØ 8 mmØ 8 mm
Input air pressure0.5MPa~0.6MPa (Recommend static pressure 0.5MPa)
Powder tankX

Fluidized bed tank type.


Capacity: 60L (15Kg)


Loading use powder carton 15Kg
Size mm (WxDxH)340x165x330700x490x1080700x490x1060
Weight(Kg)4.85045
























































ModelXR-5mXR-5aXR-5aq
Powder gunManual spray gunAutomatic spray gunQuick color change auto spray gun
EST output range0-110kV(Negative)
EST output current0-100μA
Weight of gun495g460g460g
EST controllerXR5-GCU
Working power

  DC 13.5V


Flow rate50~250g/ min. (Based on different injector, and powder tube sizes)

Size mm (WxDxH) with


flat nozzle


325x30x92390x30x45390x30x45

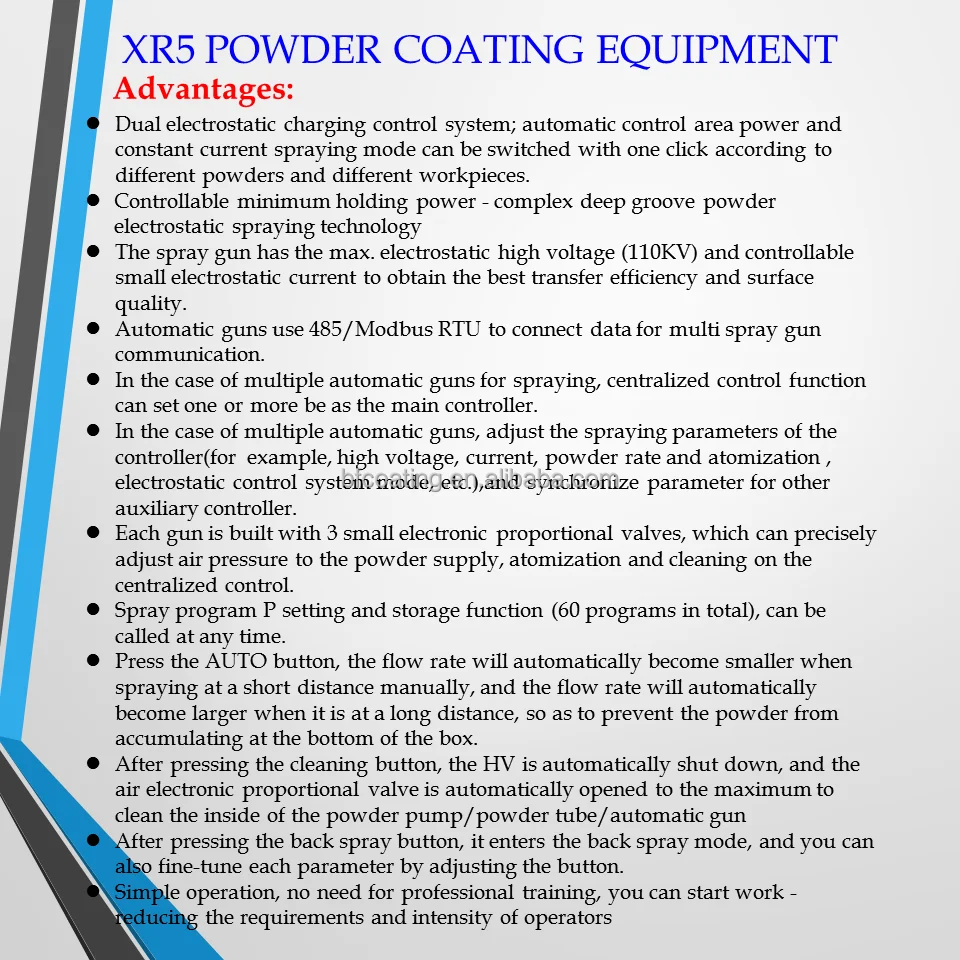

1 (2).PNG

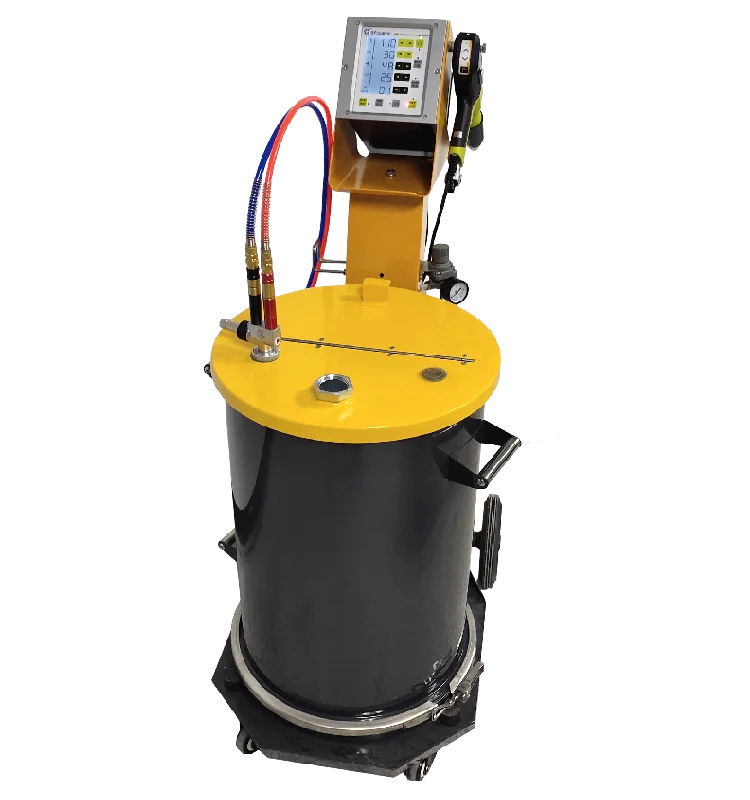

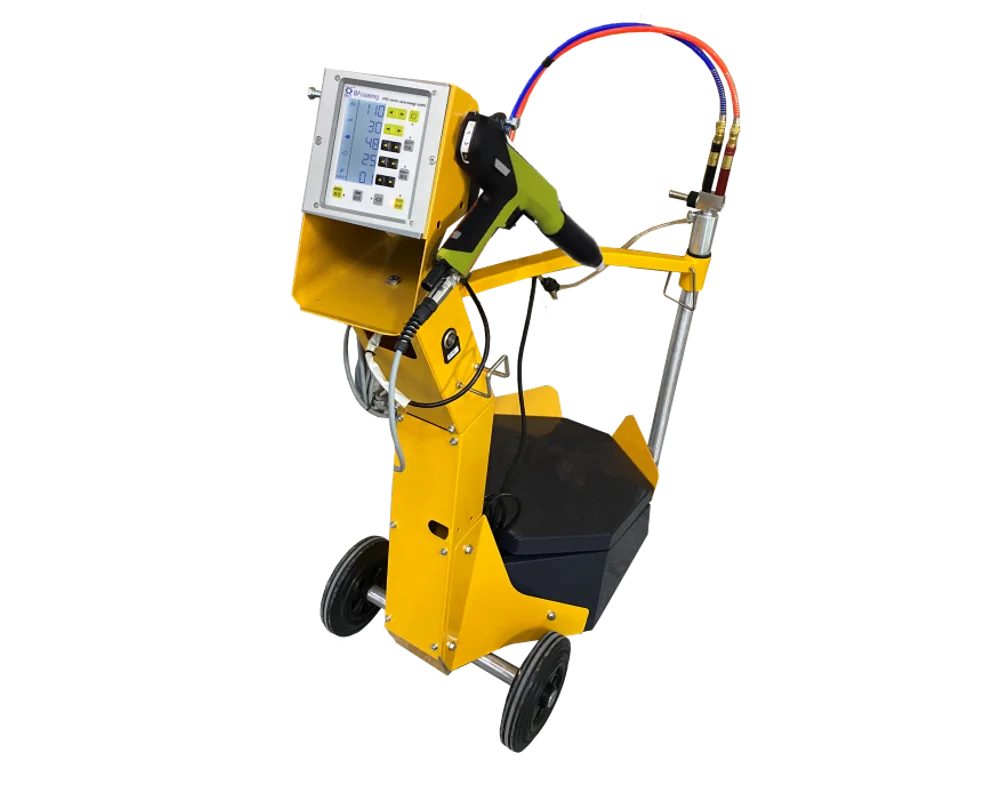

2_XR5-300mXR5-400m 1000x800













Company Profile

Company Profile











changzhu industrial co., ltd.

1.Long Wall & Baifu is a company that has been focusing on surface treatment technology for 30 years. It has distributed many high-quality Japanese, German, and American equipment, and has own its factory for improvement and production. So far, it has accumulated a lot of sales reference about electrostatic coating, reciprocator, swing feeder and robots in various automation applications.
2.At present, we have exported more than 20 countries, like China, South Korea, Japan, Thailand, Vietnam, Indonesia, Philippines, India, Malaysia, Singapore and so on.
3.The painting process has always been a very important part of the manufacturing industry, and it is also related to the product life, durability and beauty. However, the quality of coating is affected by many conditions, such as paint, climate, sprayer, and techniques. We can base on our 30 years coating experience, and study the most suitable coating methods for different coating environments in various countries. We can also provide related customized OEM service for customers, and explore the mystery of painting together with customers.
4.1) Coating equipment with high cost-effectiveness
2) Customized coating application product
3) Coating equipment OEM
4) Production line planning in the coating area



















Product Display

Product Display

















Production Process

Production Process


















Certifications

Certifications

















Packing & Delivery

Packing & Delivery
















Cooperative

Cooperative





























FAQ

FAQ






A) How to get more product information?
Please contact us and describe detail inquiry.


B) I would like to ask some questions about spray, what information should I provide?
Please try to provide the following complete information to our evaluation.

1. Use sprayer, 2. Paint photo and viscosity, 3. Ambient temperature and humidity, 4. Photo of the problem


C) How can I make customized service?
At this stage, we provide customized spraying line planning, including swing table, reciprocator, control cabinet etc. for
different coating lines.


D) What kind of OEM service is available?
As long as the products are shipped from our side, we will provide free stick labels, laser engraving services on the products, and please provide the LOGO you want to use.


E) If I get a defective product, can I get a refund or exchange?
Our products are strictly QC and tested when they leave the factory. Our warranty period is one year from the date of delivery. If the product fails under the normal operation by the customer, after inspection it has been identified as the problem of the product itself, during the warranty period, we will responsible for maintenance.


F) How to guarantee the quality of your products
We will carefully select a vendor when purchasing. Functional testing is executed when production. We will issue a final test report when products leave the factory.


G) How can I become a partner of Bfcoating?
We sincerely welcome customers to become our partners. But before that, if you have some coating equipment sales references and experience will be better.
