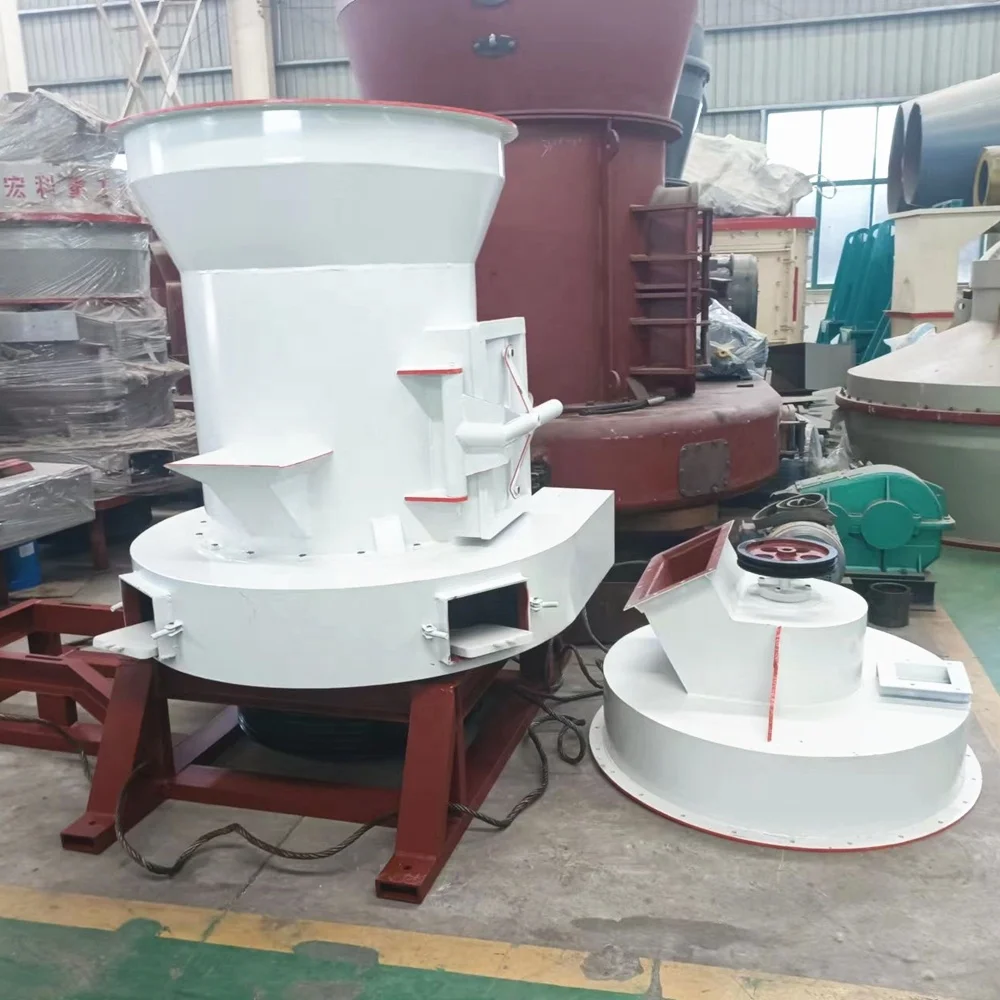

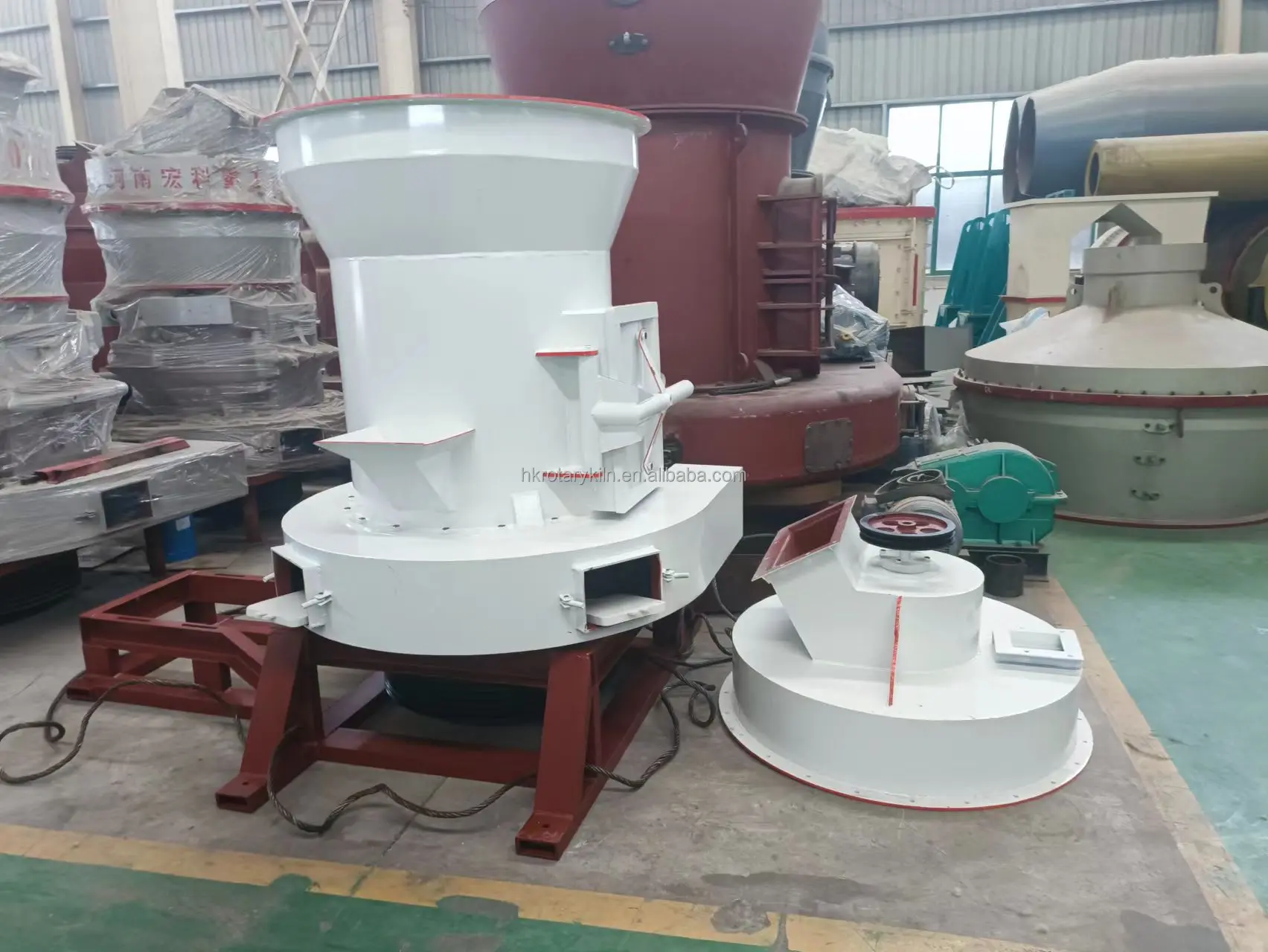

1TPH Mining Equipment Limestone Coal Grinding Mill Machine Whole Set Raymond Grinding Mill Price
Product Overview

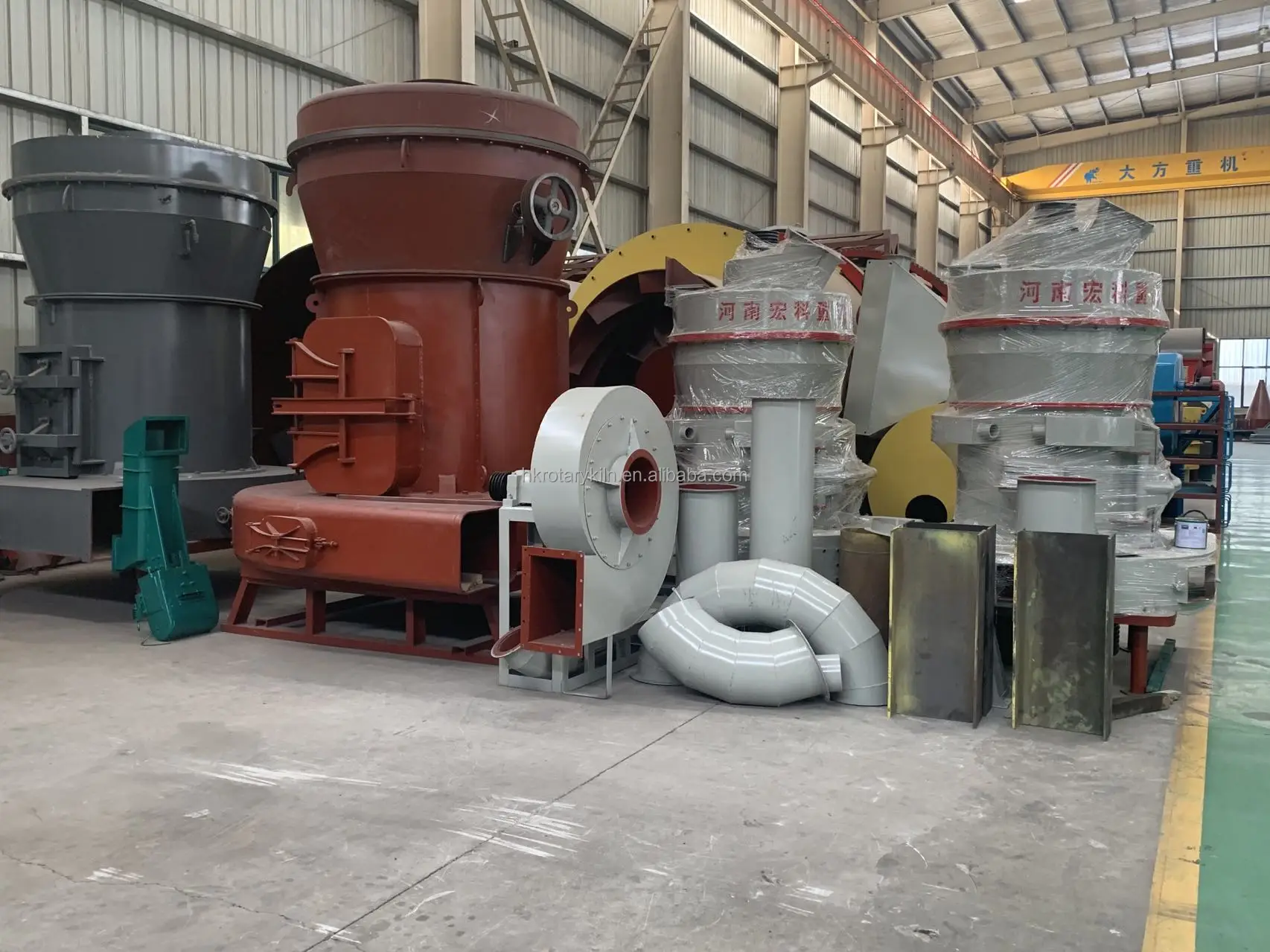

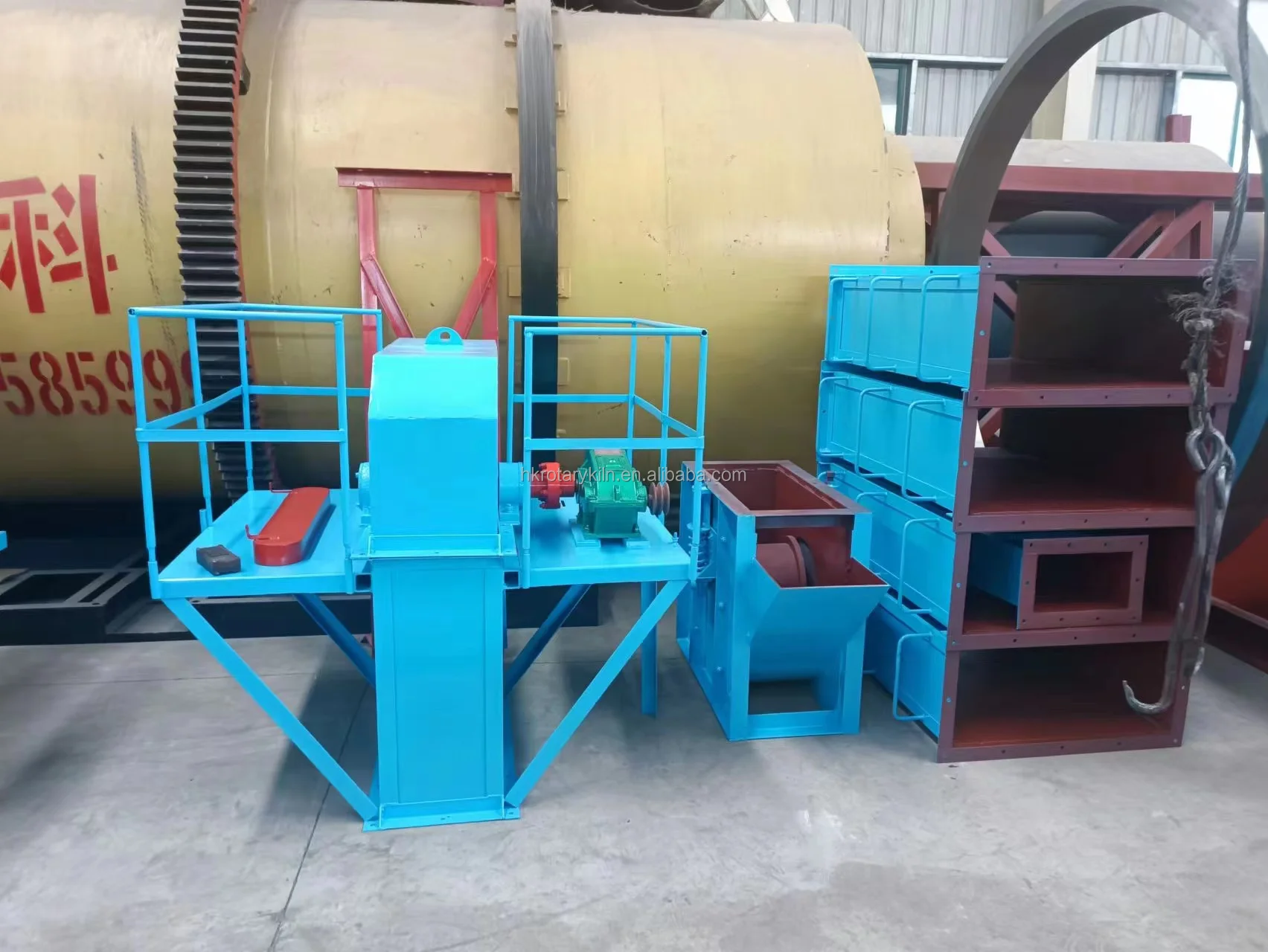

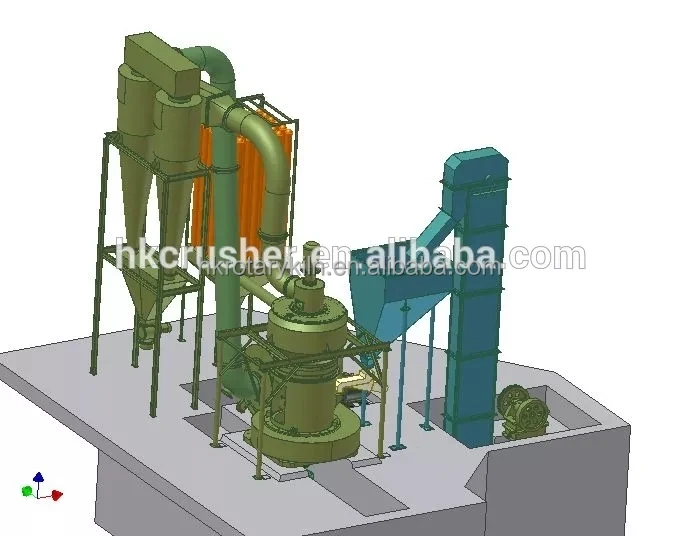

The whole plant of YGM75 Raymond grinding mill includes jaw/hammer crusher, elevator, hopper, vibrating feeder, Raymond mill, Bag filter, other can also be customoized according to customer needs.

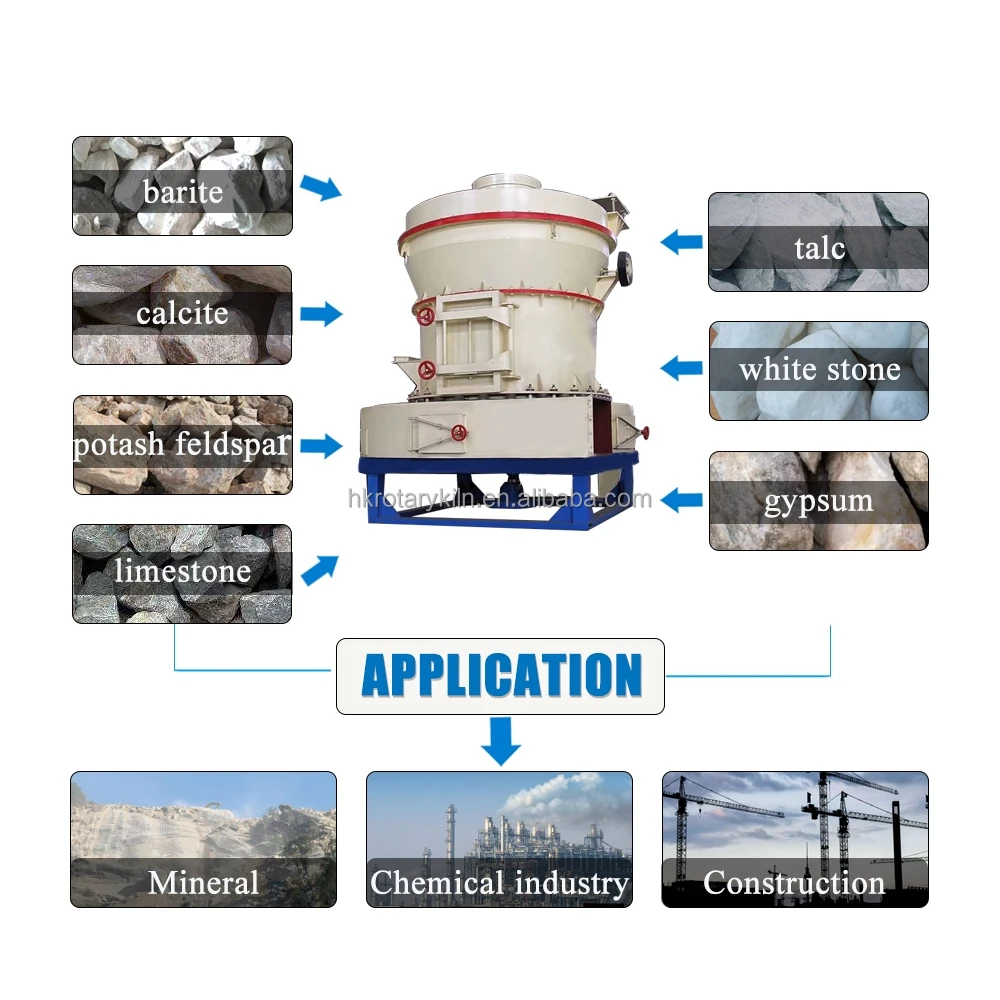

Raymond mill bentonite is used in grinding the non-flammable and non explosive stuff which has the mohs hardness below 9.3,humidity less than 6%:such as gypsum,talc,Calcite,limestone, bentonite,marble,feldspar,barite,dolomite,granite,kaolin,bentonite,bauxite,iron ore etc.the final products could be 60-325 mesh.
WORKING PRINCIPLE

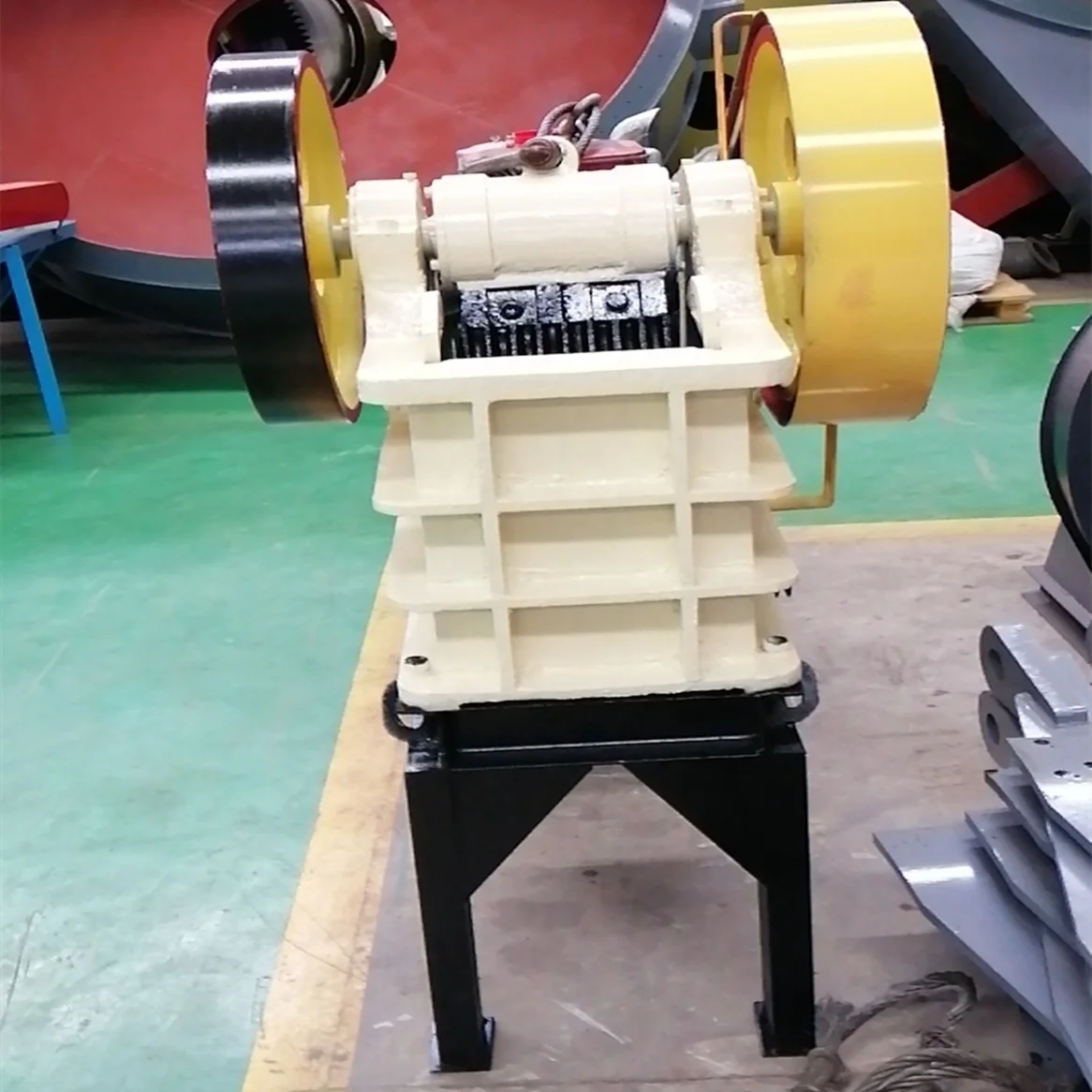

Firstly, raw material is crushed by jaw crusher to the required size, which is lifted up to the hopper.
Secondly, the raw material goes into the grinding chamber of raymond mill machine through the electro-magnetic vibrating feeder at an even rate.

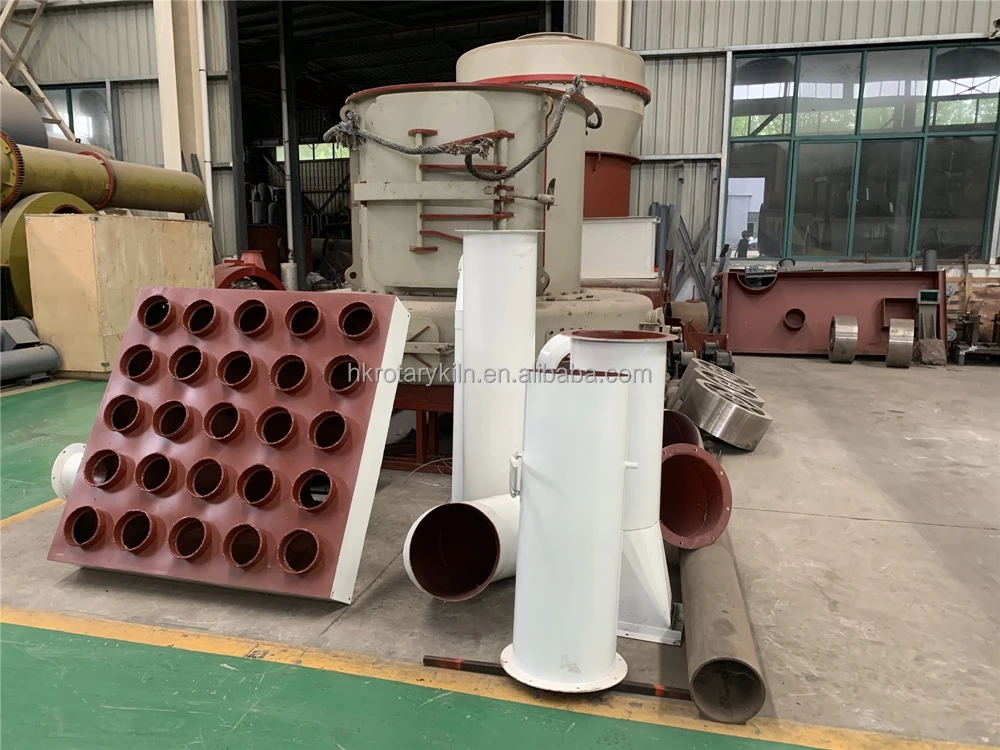

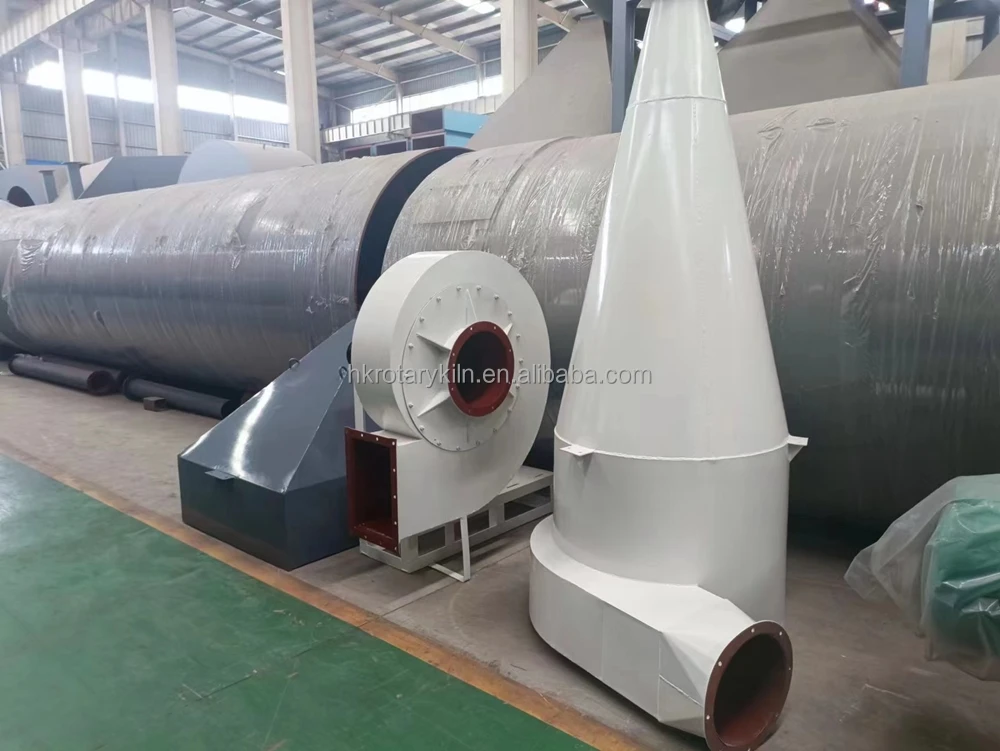

Thirdly, the raw material lifted by the shovel is ground into powderbetween the ring and roller. Fourthly, the powder isblown up to the cyclone collector through the classifier, which will be collected through the discharging valve. The unneeded powder, which cannot go the classifier, will be reground into the needed powder.
Secondly, the raw material goes into the grinding chamber of raymond mill machine through the electro-magnetic vibrating feeder at an even rate.
Thirdly, the raw material lifted by the shovel is ground into powderbetween the ring and roller. Fourthly, the powder isblown up to the cyclone collector through the classifier, which will be collected through the discharging valve. The unneeded powder, which cannot go the classifier, will be reground into the needed powder.
FEATURES AT A GLANCE
1.The whole plant of raymond mil bentonite machine is a vertical structure of strong systematic characteristic, so it occupies small area. From crushing of raw material to grinding and packing is an independent production system.
2. Compared with other milling plants, its passing ratio achieves 99%, this is what other mill can not reach.
3. Driving system of main frame adopts airtight gearing and pulley, drives smoothly and operates reliably.
4. Main parts of the whole plant are made from cast and steel of high quality. The technics is so subtly that insures the
durability of whole plant.

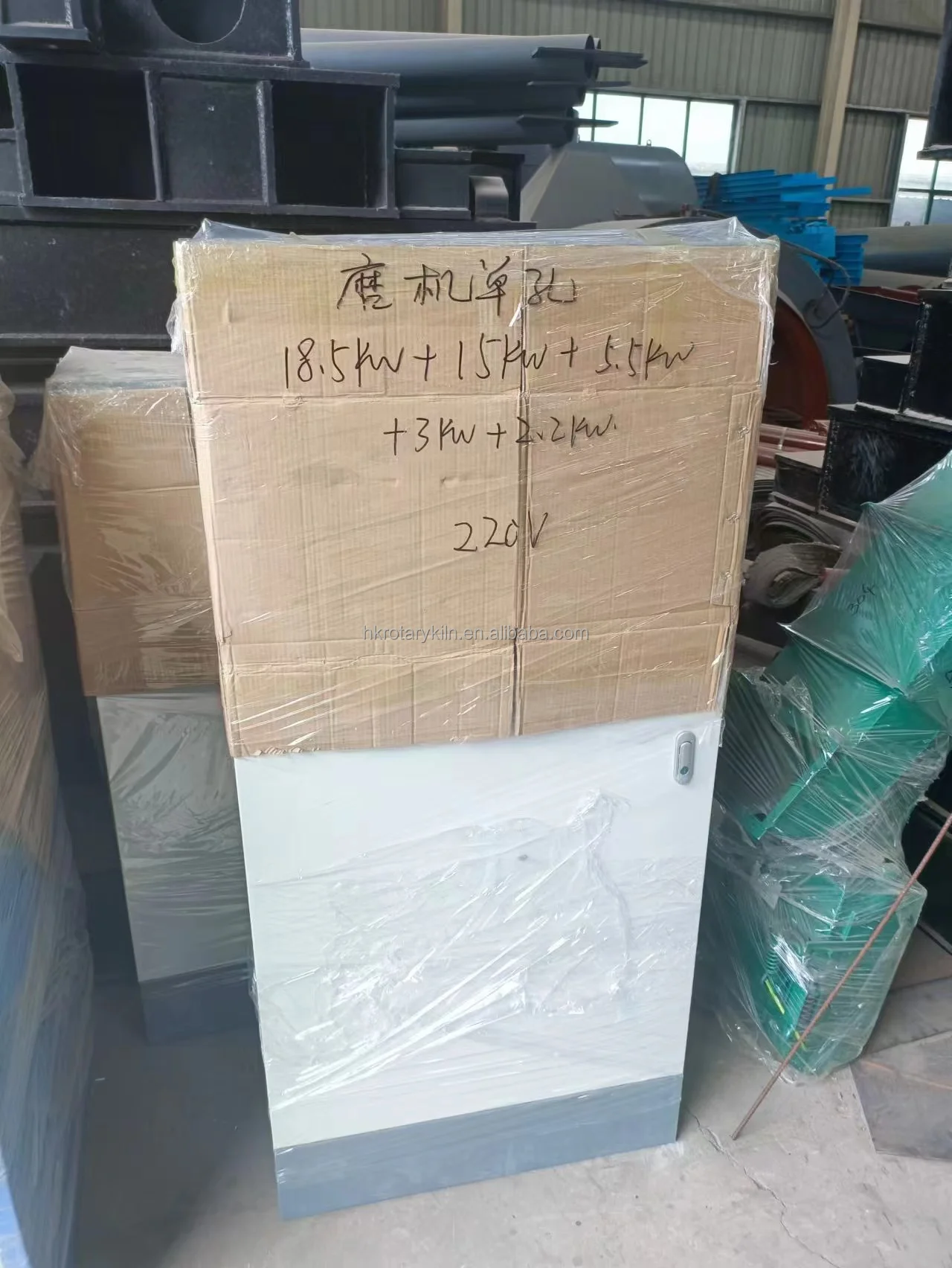

5. The electric control system is centralized controlled, so the automaticity is high, no people are needed in the operating room.
2. Compared with other milling plants, its passing ratio achieves 99%, this is what other mill can not reach.
3. Driving system of main frame adopts airtight gearing and pulley, drives smoothly and operates reliably.
4. Main parts of the whole plant are made from cast and steel of high quality. The technics is so subtly that insures the
durability of whole plant.
5. The electric control system is centralized controlled, so the automaticity is high, no people are needed in the operating room.
PRODUCT SPECIFICATIONS
Type | Roller No. | Maximum Feed Size (mm) | Output Size (mm) | Output (t/h) | Motor Power (kw) | Blower Power (kw) | Analysis Machine Power (kw) | Overall Dimension (mm) |
YGM75 | 3 | 15 | 30-325 | 0.4-1.8 | 18.5 | 15 | 2.2 | 4300*3500*5100 |
YGM85 | 3 | 20 | 30-325 | 1-3 | 22 | 18.5 | 2.2 | 5300*4100*5200 |
YGM95 | 3 | 20 | 30-325 | 1.2-4.5 | 18.5 | 15 | 2.2 | 7100*5900*7900 |
YGM130 | 5 | 30 | 30-400 | 3.8-12 | 75 | 175 | 7.5 | 7850*8000*9700 |
YGM138 | 5 | 35 | 30-400 | 6.5-18 | 90 | 110 | 18.5 | 10920*9470*10227 |
YGM175 | 5 | 40 | 30-400 | 11-25 | 160 | 200 | 37 | 12182*8835*9916 |

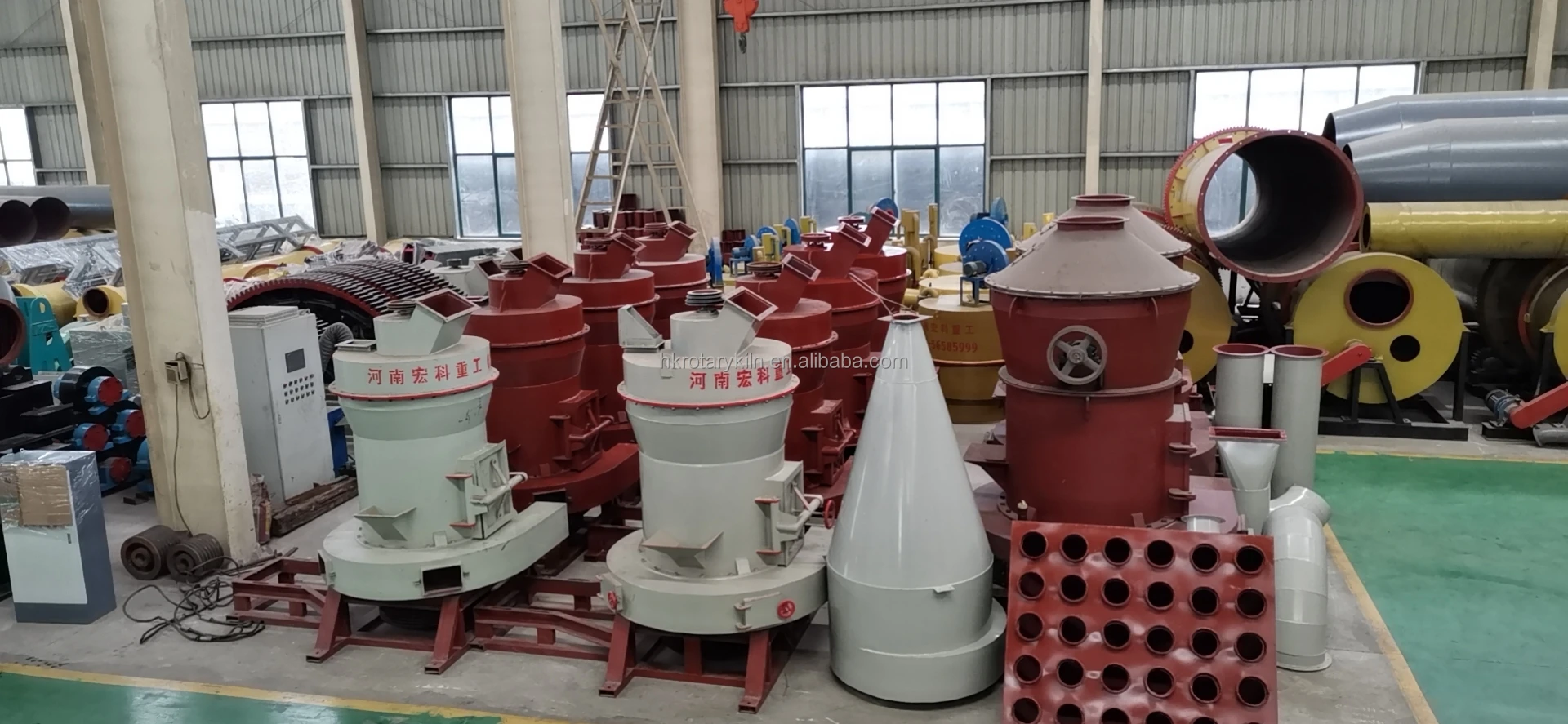

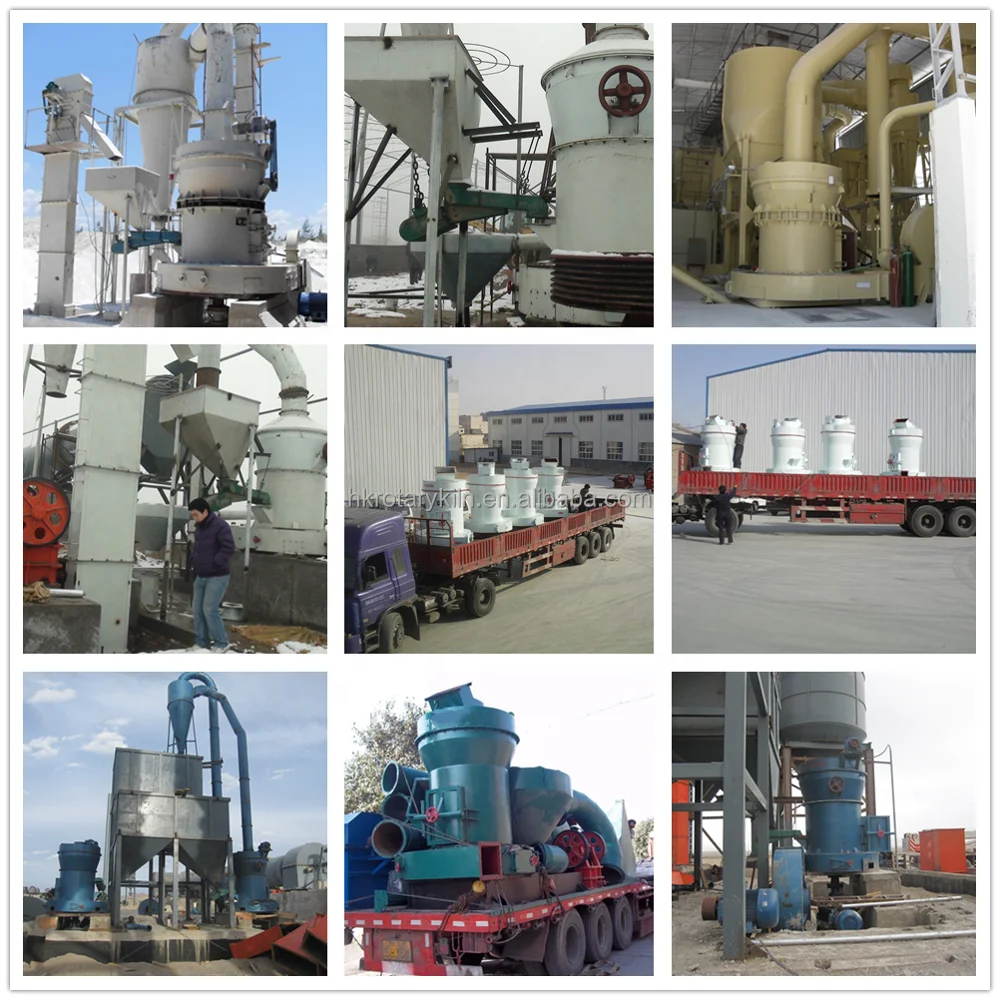

Successful Project
COMPANY PROFILE

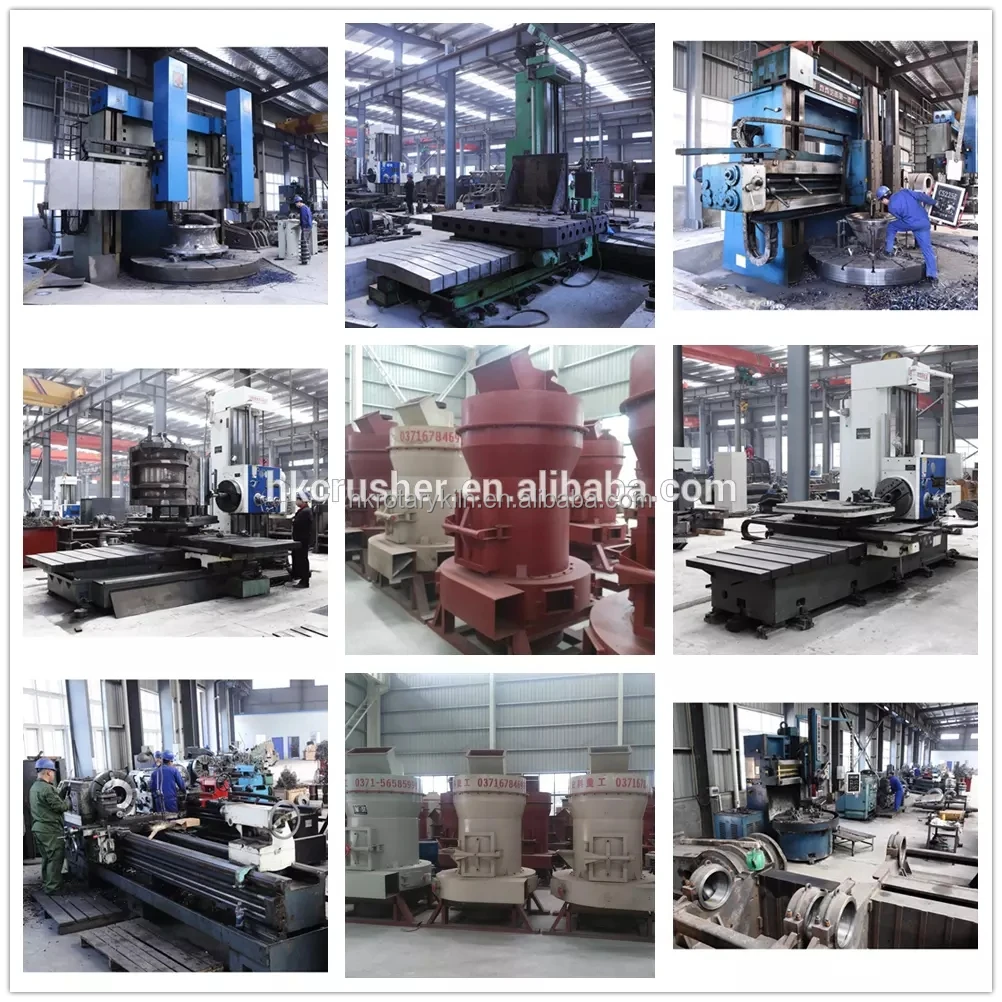

Henan Hongke Heavy Machinery Co., Ltd. is located in Henan Province which is the cultural base of the central area of China. We are a mining machinery manufacturing enterprise that integrates scientific research, production and marketing.
We are a high-tech enterprise that specializes in the research and production of rotary kilns, dryers, crushers and so on, such as new type of lime rotary kiln, ceramsite kiln, zinc oxide rotary kiln, sludge rotary kiln, chemical rotary kiln, metallurgical
rotary kiln, Raymond mill, ultra-fine mill, large and medium dryer, ball mill, sand mill,stone production line, mineral processing equipment and so on.
From the design, production, installation and debugging, we provide you the entire tracking service.We adhere to the aim of high quality to survive, good credibility to make development, and sincerely look forward to cooperating with you!
We are a high-tech enterprise that specializes in the research and production of rotary kilns, dryers, crushers and so on, such as new type of lime rotary kiln, ceramsite kiln, zinc oxide rotary kiln, sludge rotary kiln, chemical rotary kiln, metallurgical
rotary kiln, Raymond mill, ultra-fine mill, large and medium dryer, ball mill, sand mill,stone production line, mineral processing equipment and so on.
From the design, production, installation and debugging, we provide you the entire tracking service.We adhere to the aim of high quality to survive, good credibility to make development, and sincerely look forward to cooperating with you!
FAQ
1. What is the minium order quantity?
One set.
2.How long is the warranty period?
One year. Wearing parts are excluded.
3. What is the after-service of your company?
We can provide the customers foudation drawing, installation service, work training as well as other service according to the
customer's requirements.
4.How long is the delivery time?
About 15 days after we receive the payment.
5. What are the payment terms?
T/T, L/C are the best, it can be adjustable according to different situations.
--------------------------------------------------------------------------------------
Kindly Note:
1. Please pay attention to the capacity. It's what you must take into consideration in choosing a suitable machine.
2. Please Inform us the follow figures:
1). Raw material
One set.
2.How long is the warranty period?
One year. Wearing parts are excluded.
3. What is the after-service of your company?
We can provide the customers foudation drawing, installation service, work training as well as other service according to the
customer's requirements.
4.How long is the delivery time?
About 15 days after we receive the payment.
5. What are the payment terms?
T/T, L/C are the best, it can be adjustable according to different situations.
--------------------------------------------------------------------------------------
Kindly Note:
1. Please pay attention to the capacity. It's what you must take into consideration in choosing a suitable machine.
2. Please Inform us the follow figures:
1). Raw material
2) Initial size and final size
3). Capacity ( t/h)
Upon we got your message we shall give you our favorable offer in short time.
3). Capacity ( t/h)
Upon we got your message we shall give you our favorable offer in short time.
